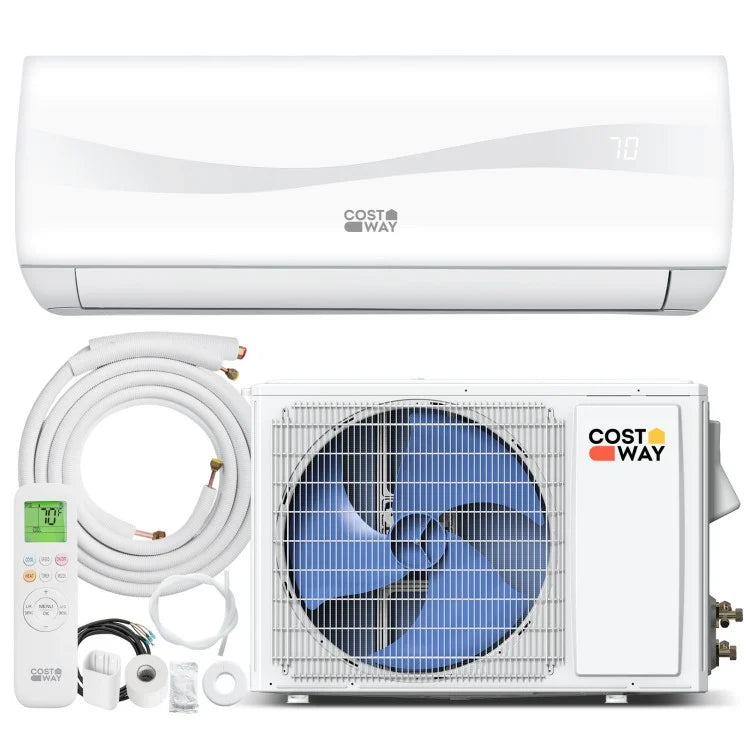

12000 BTU 17 SEER2 208-230V Mini Split Air Conditioner with Heat Pump

Experience year-round comfort with the 12000 BTU Mini Split Air Conditioner with Heat Pump, perfect for rooms up to 750 sq.ft. Equipped with advanced inverter technology, this energy-efficient AC offers precise cooling and heating with a 17 SEER2 rating and R32 eco-friendly refrigerant. Enjoy ultra-quiet operation at just 23 dB while customizing your climate with 7 modes and 5 fan speeds. Built to handle extreme weather, it cools in hot summers and heats efficiently during cold winters. Maintenance is simple with washable filters, a 58℃ self-cleaning function, and auto defrost, while the child lock ensures safe use.

Key Features

• Year-round climate control: 12000 BTU cooling / 12300 BTU heating for spaces up to 750 sq.ft.

• Advanced inverter technology with 17 SEER2 cooling and 8.5 HSPF2 heating

• 7 modes (cool, heat, dry, fan, auto, sleep, ECO) and 5 fan speeds (low, mid, high, turbo, auto)

• Ultra-quiet indoor operation at 23 dB with sleep mode and display-off function

• Built-in 24H timer for customized scheduling and energy savings

• Chassis electrical heating for extreme weather operation (-15℃ to 48℃)

• Easy maintenance with 58℃ self-cleaning function and removable, washable filters

• Safety features: child lock, auto defrost, professional installation recommended

Specifications

• Color (Indoor/Outdoor Unit): White

• Material: Metal, Aluminum, Plastic

• Indoor Unit Dimensions: 31.18 × 7.91 × 11.5 in / 792 × 201 × 292 mm

• Outdoor Unit Dimensions: 27.99 × 11.02 × 21.18 in / 711 × 280 × 538 mm

• Cooling Capacity: 12000 BTU

• Heating Capacity: 12300 BTU

• Heat Pump: 1 Ton

• Voltage: 208-230V~60Hz/1PH

• Max Input Power: 1900 W

• Max Input Current: 8.5 A

• Coverage Area: 750 sq.ft.

• Air Flow Volume: 353 CFM

• Dehumidification Capacity: 60 Pints/Day (28.8 L/Day)

• Temperature Setting Range: 16℃–32℃

• Operating Ambient Temperature: -15℃–48℃

• Refrigerant: R32

• SEER2: 17

• HSPF2: 8.5

• Indoor Noise Level: 23 dB

• Gas Pipe Diameter: 3/8"

• Liquid Pipe Diameter: 1/4"

• Drain Hose Diameter: 0.67"

• Indoor Unit Net Weight: 17.64 lbs / 8 kg

• Outdoor Unit Net Weight: 49.6 lbs / 22.5 kg

• Box Quantity: 2

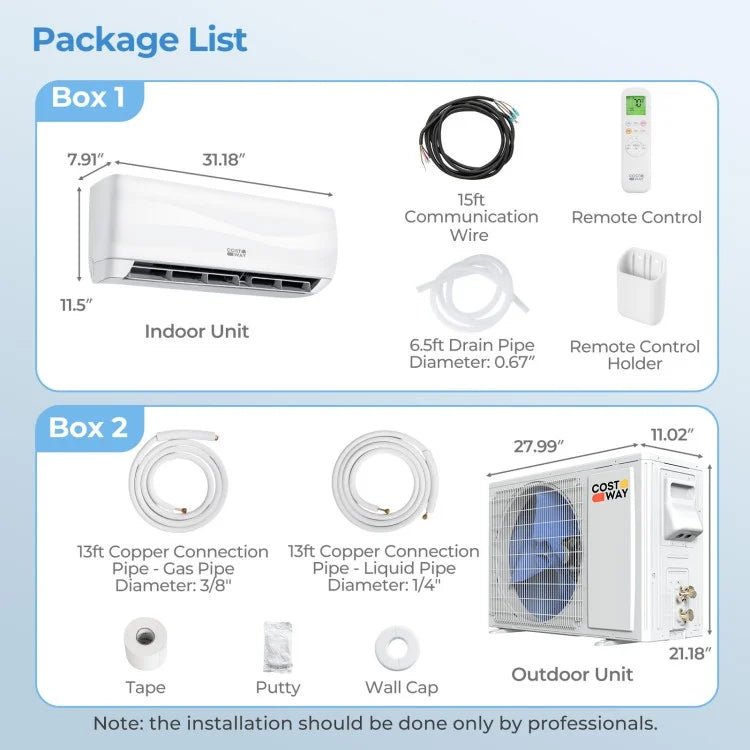

Package Includes

• 1 x Indoor Unit

• 1 x Outdoor Unit

• 1 x 15 ft Communication Wire

• 1 x 13 ft Copper Liquid Pipe

• 1 x 6.5 ft Drain Hose

• 1 x 13 ft Copper Gas Pipe

• 1 x Remote Control and Holder

• 1 x Tape, 1 x Wall Cap

• 1 x Putty

• 1 x User Guide
