Description
The iMounTEK 12V Diaphragm Water Pump is a versatile and efficient pump designed for various applications where a reliable water flow is needed. With its self-priming function and robust construction, it's suitable for use in sprayers, garden sprinklers, tour vehicles, and more.
Key Features:
-
Self-Priming Function: Allows the pump to be mounted above the water tank, preventing liquid backflow within the pump. Note: Do not submerge the pump in water.
-

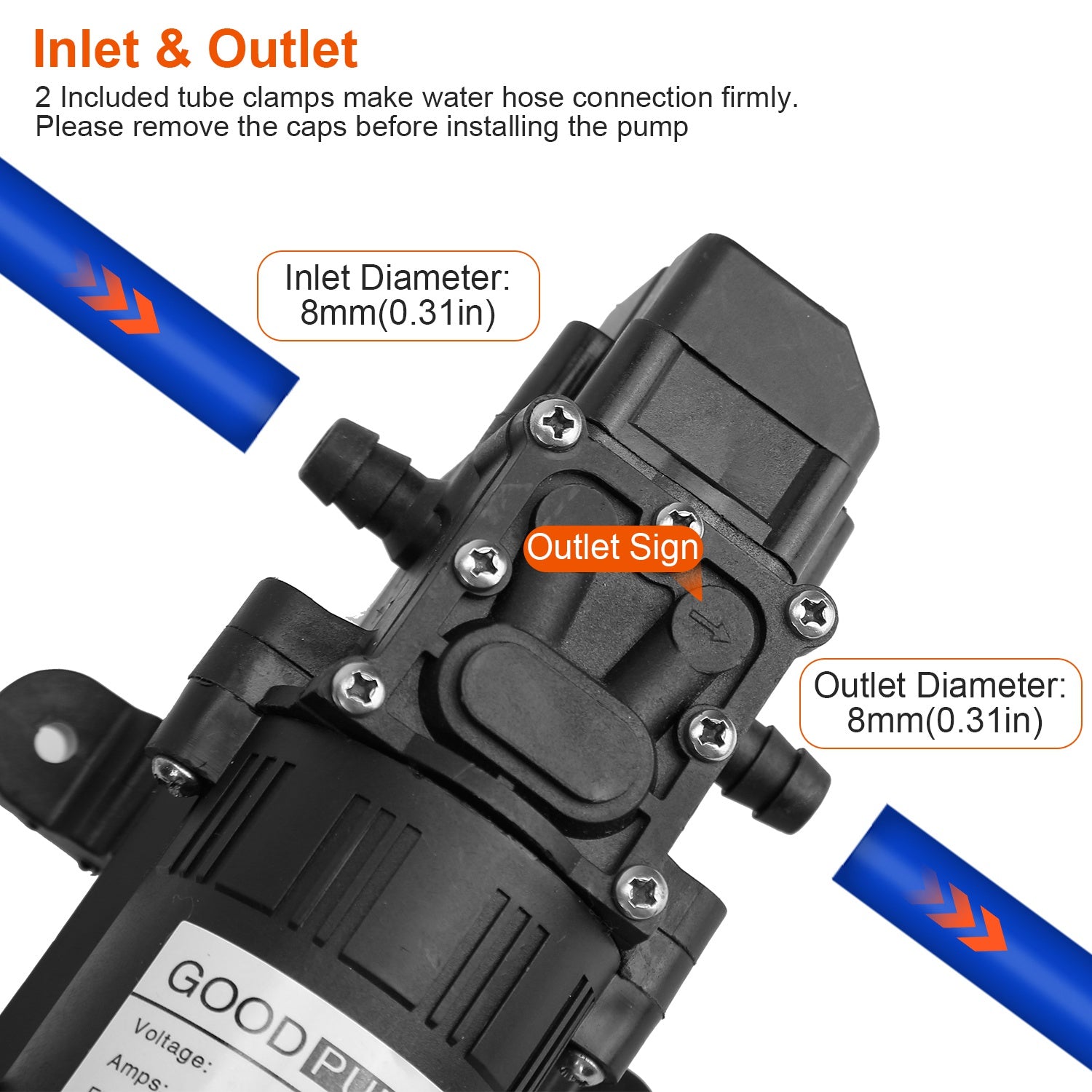

Inlet & Outlet: Includes 2 tube clamps for easy connection to water hoses with an inner diameter of 8mm. The left hose is for water inlet and the right hose is for water outlet.
-
Easy Wire Connection: Simply connect two wires to a 12V power source, such as a battery or converter, regardless of positive or negative polarity.
-
Automatic Pressure Cut-Off: The pump automatically cuts off when the water outlet pressure reaches 123 PSI (0.85MPA) and resumes operation when the pressure drops.
-

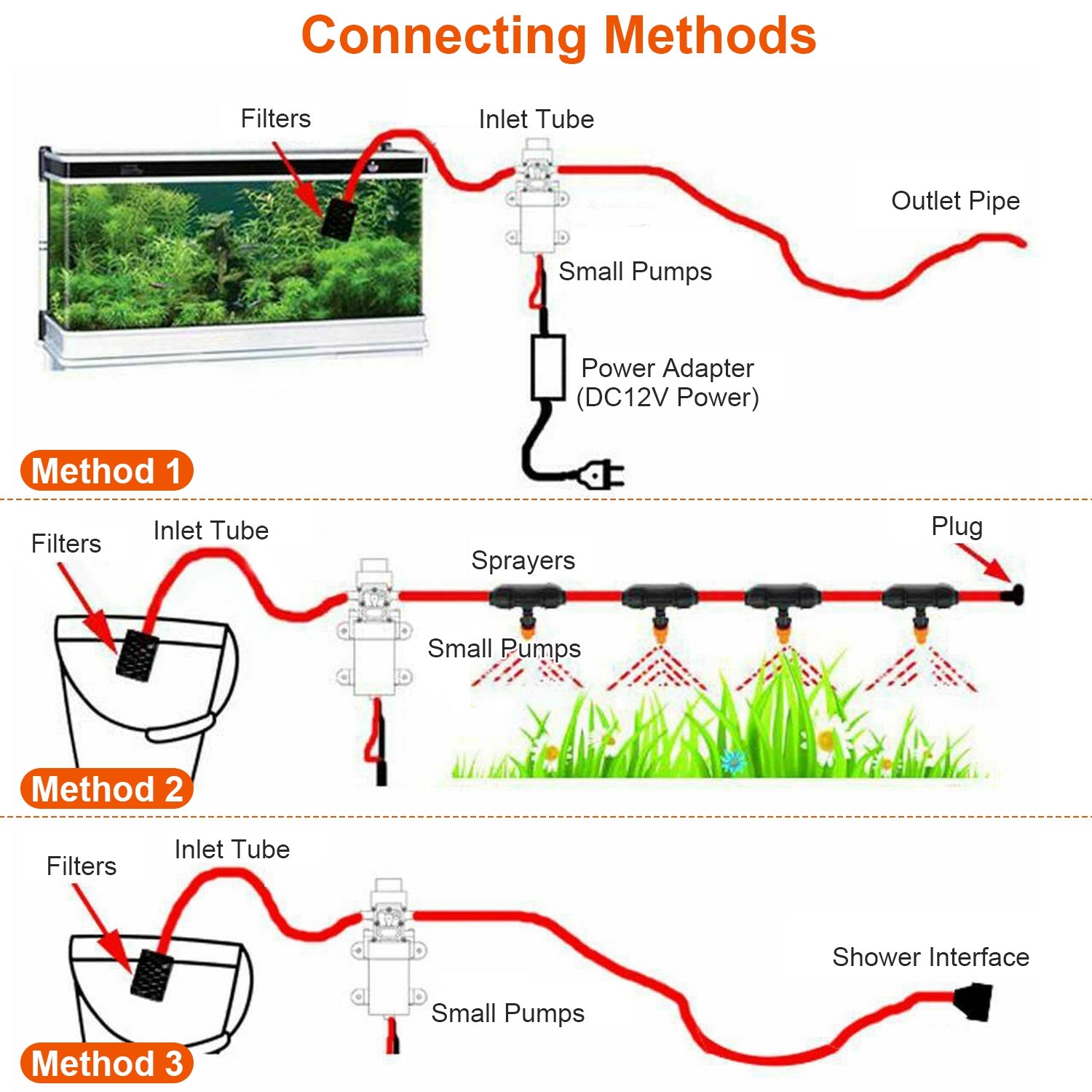

Wide Application: Ideal for use in garden irrigation, vehicle cleaning, beverage dispensing, water purification systems, and various industrial applications.
-

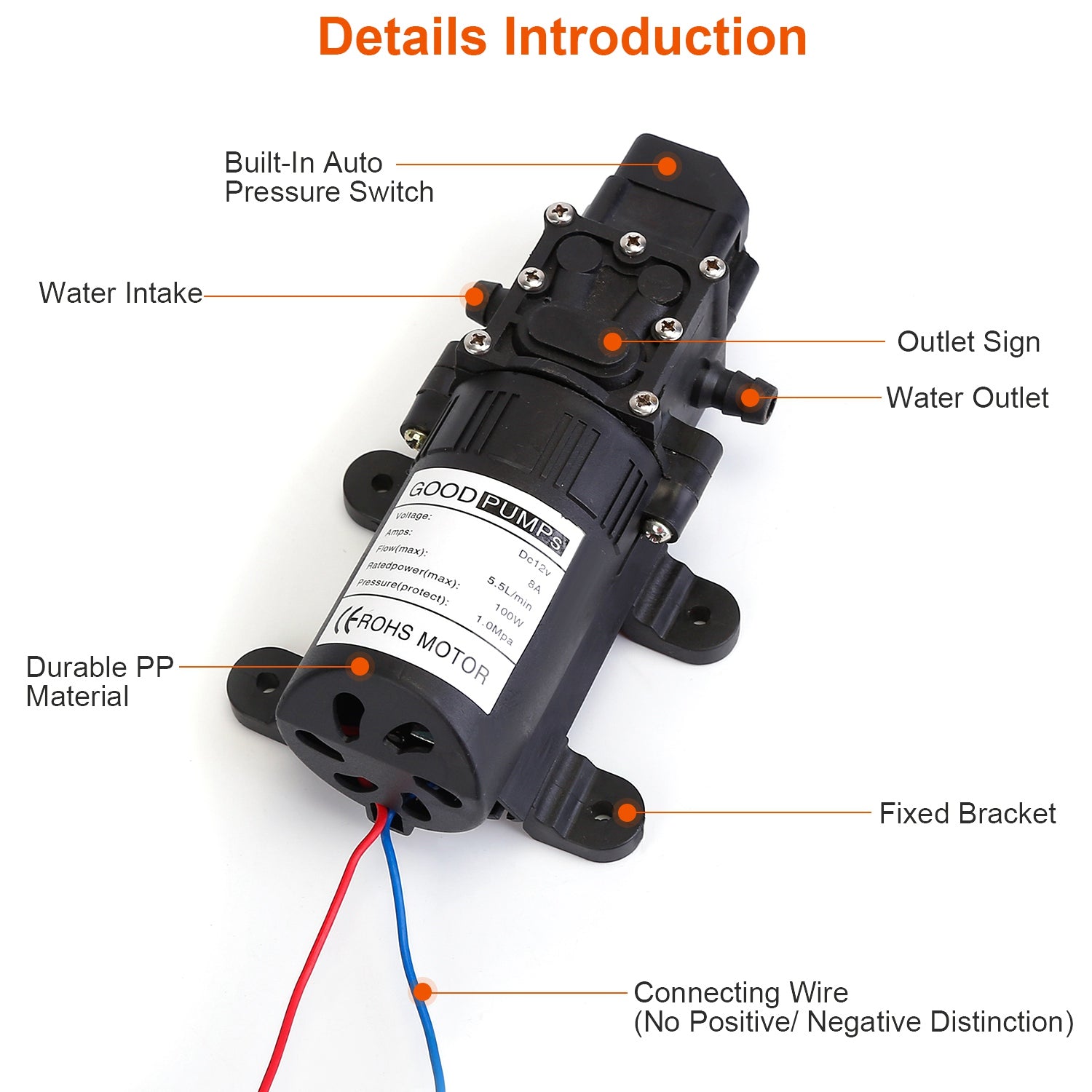

Durable Construction: Made from PP (Polypropylene) with a pure copper coil, ensuring durability and reliable performance.
Specifications:
- Brand: iMounTEK
- Product Type: 12V Diaphragm Water Pump
- Color: Black
- Material: PP + Pure Copper Coil
- Voltage: DC 12V
- Max Current: 8A
- Max Rated Power: 100W
- Max Flow Rate: 5.5L/Min
- Max Working Pressure: 0.85MPA / 123PSI
- RPM: 3000R/Min
- Compatible Water Hose: Hose with 8mm Inner Diameter
- Connecting Wire Length: 39cm / 15.35in

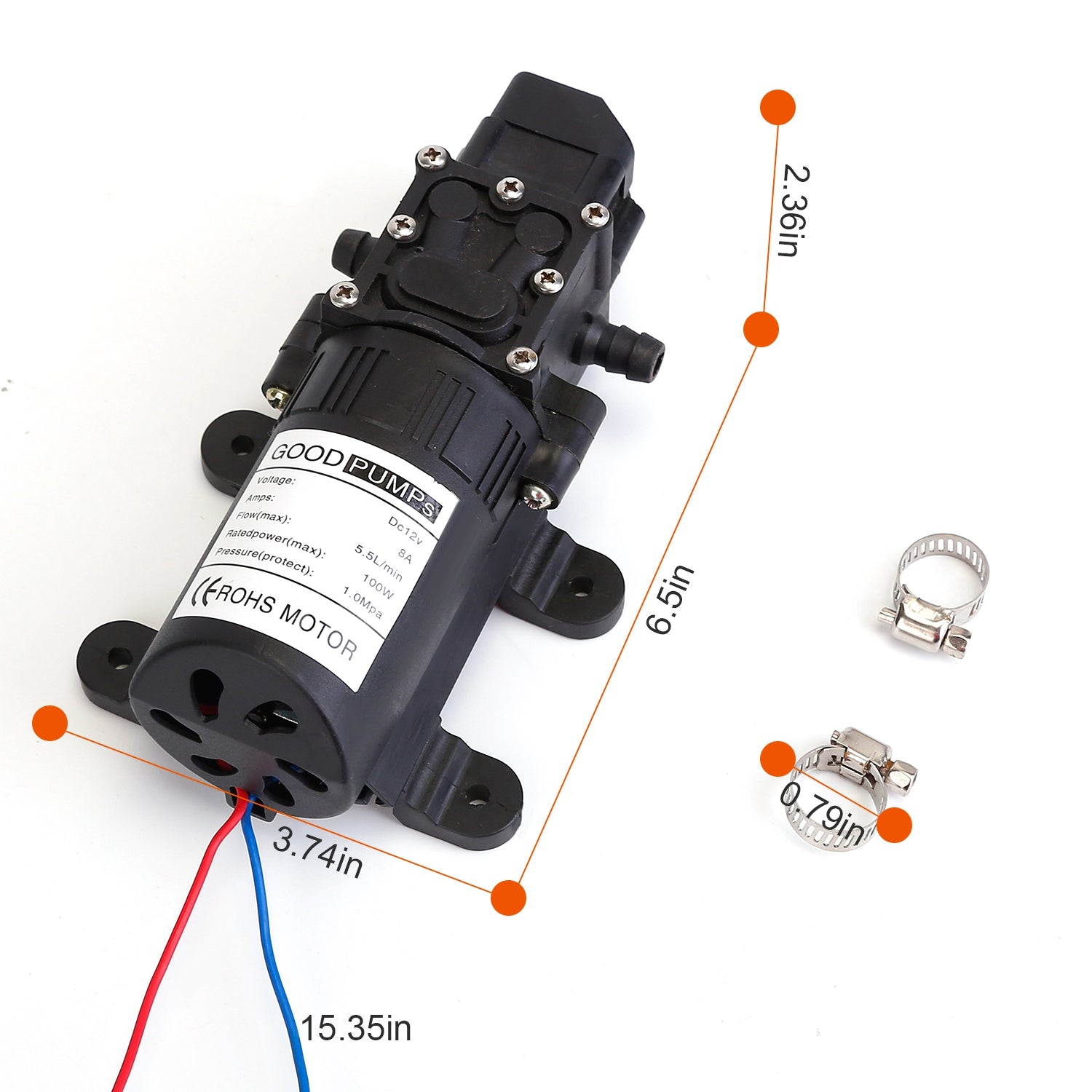

- Item Size: 16.5x9.5x6cm / 6.5x3.74x2.36in
- Item Weight: 563g / 1.24lbs
- Package Size: 17x12x10cm / 6.69x4.72x3.94in
- Package Weight: 614g / 1.35 lbs
