23000 BTU 208/230V Mini Split Heat Pump Heats at -15℃/5℉, Anti-Freeze Chassis Technology

The 23000 BTU Mini Split Heat Pump is engineered for reliable heating and cooling in extreme climates. Built with advanced anti-freeze chassis technology, this ductless system maintains full heating performance even at -15°C (5°F) while providing efficient cooling up to 50°C (122°F). Its inverter-driven compressor ensures consistent temperature control and improved energy efficiency, while eco-friendly R32 refrigerant enhances performance with lower environmental impact. Designed to cover spaces up to 1500 sq. ft., this mini split system delivers dependable comfort year-round with quiet operation, smart airflow distribution, and easy maintenance.

Key Features

• Powerful 23,000 BTU cooling and 22,400 BTU heating capacity for large spaces

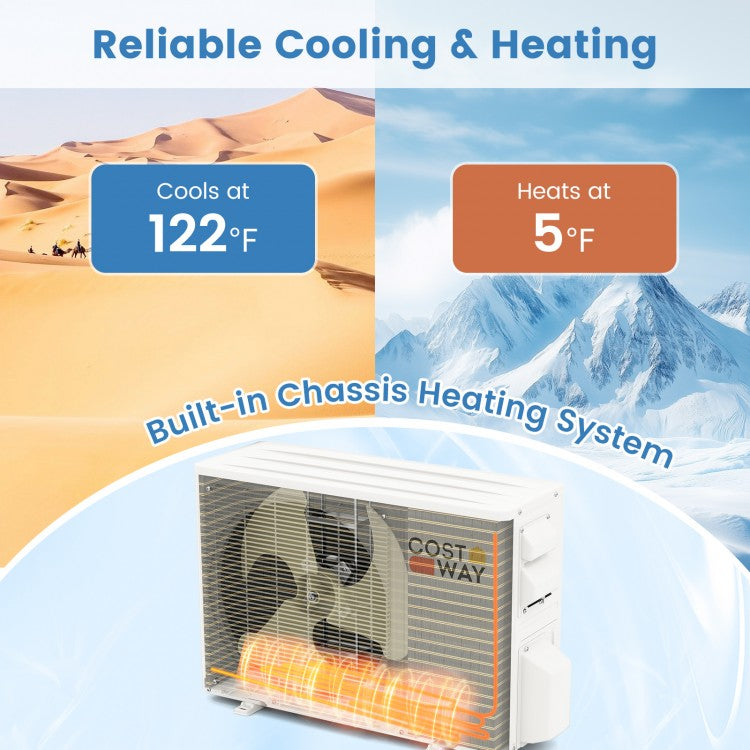

• Advanced anti-freeze chassis technology prevents outdoor unit freezing

• Maintains full heating capacity even at -15°C (5°F)

• Efficient cooling performance up to 50°C (122°F)

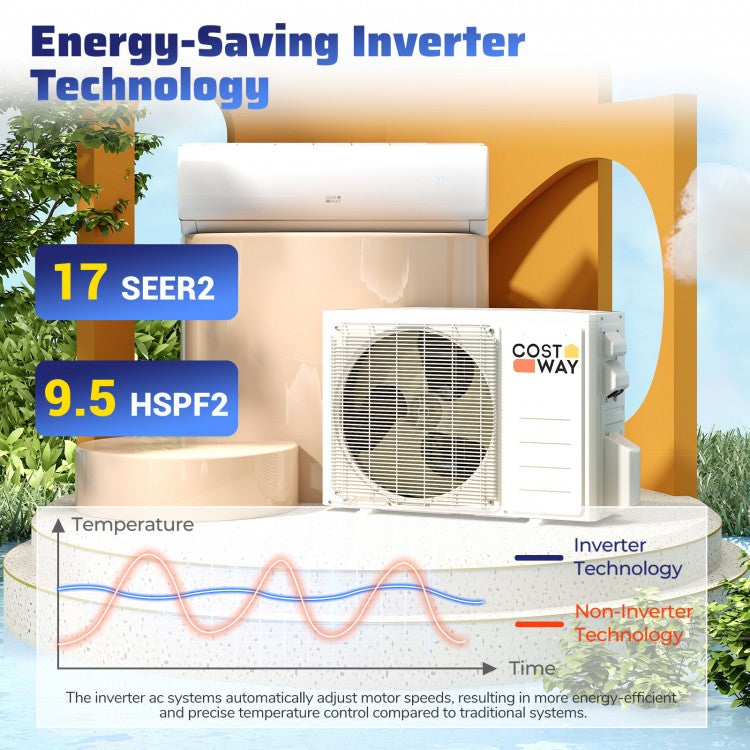

• Inverter compressor technology reduces energy consumption and start-stop cycles

• R32 refrigerant improves energy efficiency and environmental performance

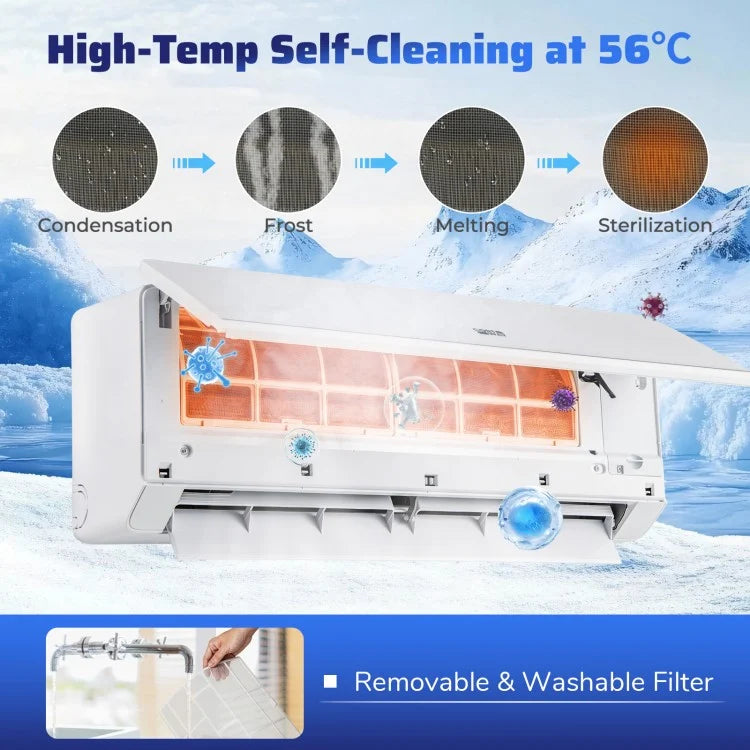

• Rapid defrost and self-cleaning system with 56°C sterilization

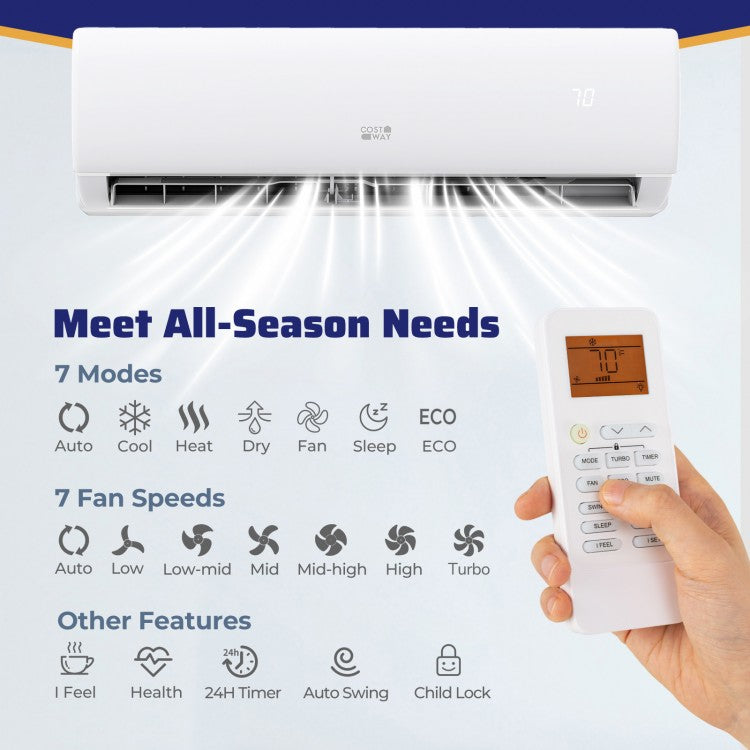

• 4D automatic airflow swing for even temperature distribution

• Reliable performance across extreme weather conditions

• ETL and AHRI certified for dependable quality and safety

Specifications

• Cooling Capacity: 23,000 BTU

• Heating Capacity: 22,400 BTU

• SEER2: 17

• HSPF2: 9.5

• Cooling Power: 2365 W

• Heating Power: 1900 W

• Voltage: 208–230V / 60Hz

• Minimum Circuit Ampacity: 17A

• Coverage Area: Up to 1500 sq. ft.

• Air Flow Volume: 676 CFM

• Dehumidifying Capacity: 122 Pints/Day (57.6 L/Day)

• Refrigerant: R32

• Temperature Setting Range: 60°F – 88°F (16°C – 31°C)

• Operating Ambient Temperature: -15°C – 50°C

• Indoor Noise Level: 37 dB

• Outdoor Noise Level: 56 dB

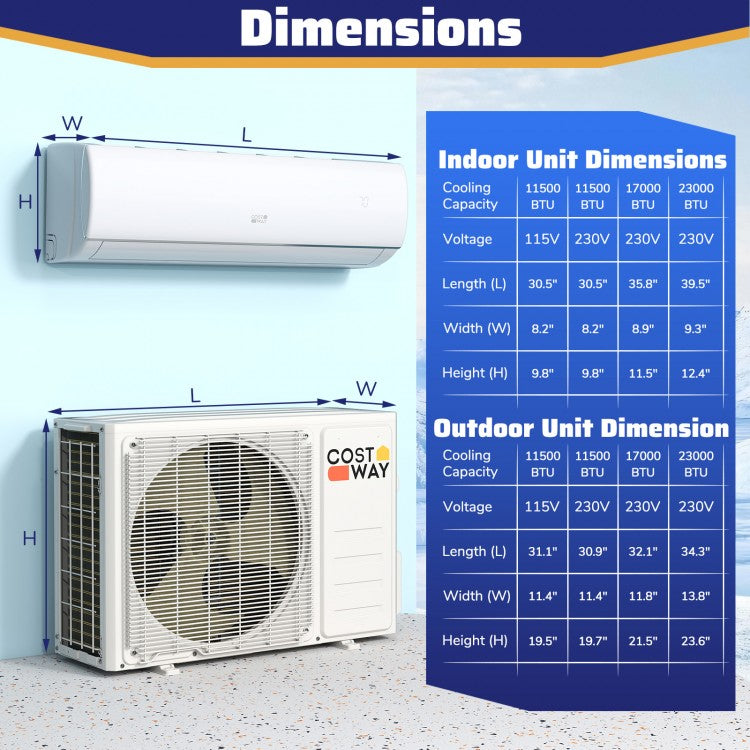

• Indoor Unit Dimensions: 39.5 x 12.4 x 9.3 in

• Outdoor Unit Dimensions: 34.3 x 13.8 x 23.6 in

• Air Pipe Diameter: 1/2 in (12.7 mm)

• Drain Pipe Diameter: 0.67 in

• Max Remote Control Distance: 39 ft

• Indoor Unit Weight: 29 lbs

• Outdoor Unit Weight: 74.5 lbs

• Color: White

• Material: Metal, Aluminum, Copper, AS

• Box Quantity: 2 (May vary by batch)

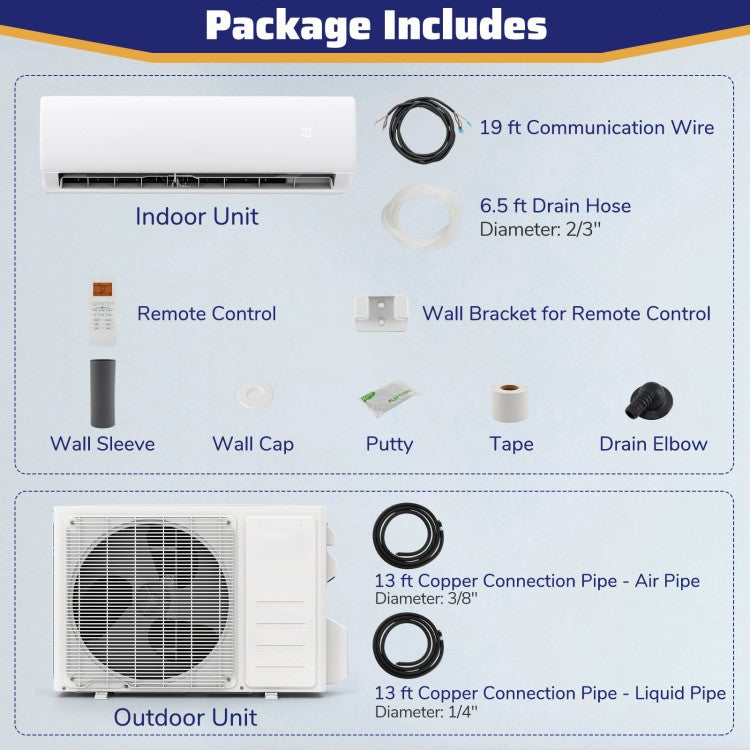

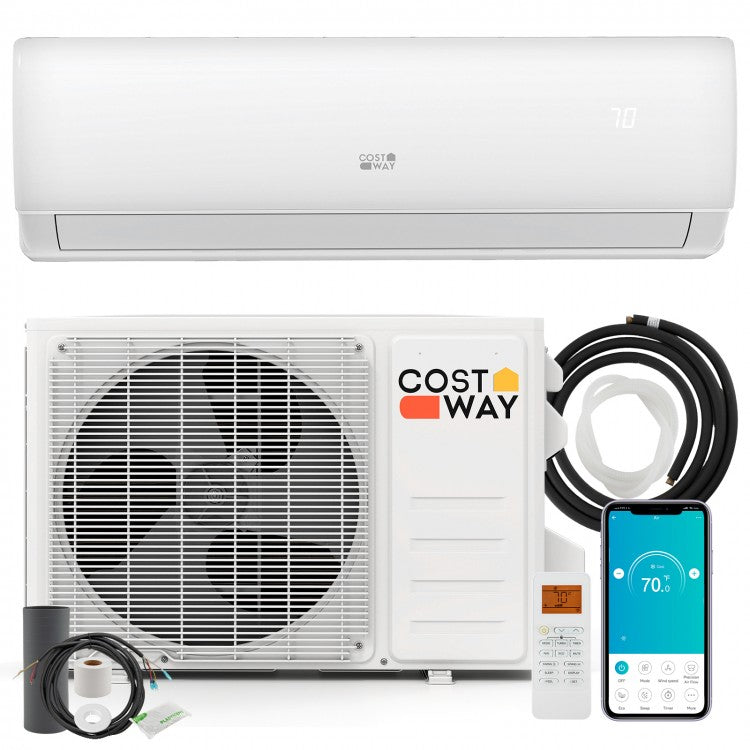

Package Includes

• 1 × Indoor Unit

• 1 × Outdoor Unit

• 1 × 13 ft Copper Connection Pipe (Air Pipe)

• 1 × 13 ft Copper Connection Pipe (Liquid Pipe)

• 1 × 19 ft Communication Wire

• 1 × 6.5 ft Drain Hose

• 1 × Remote Control

• 1 × Remote Control Wall Bracket

• 1 × Wall Sleeve

• 1 × Wall Cap

• 1 × Drain Elbow

• 1 × Tape

• 1 × Putty

• 1 × User Guide
