Description
Boost your productivity by connecting up to three HDMI displays from a single Mini DisplayPort 1.2 output using this 3-Port MST Hub. Designed for Windows systems only, this adapter leverages Multi-Stream Transport (MST) technology to support Triple 1080p @ 60Hz or Dual 4K @ 30Hz output. Ideal for extended desktop workstations, presentations, and multitasking across multiple screens, this hub is plug-and-play with no drivers required and includes a USB power port for added reliability with lower-power sources.
Key Features
-

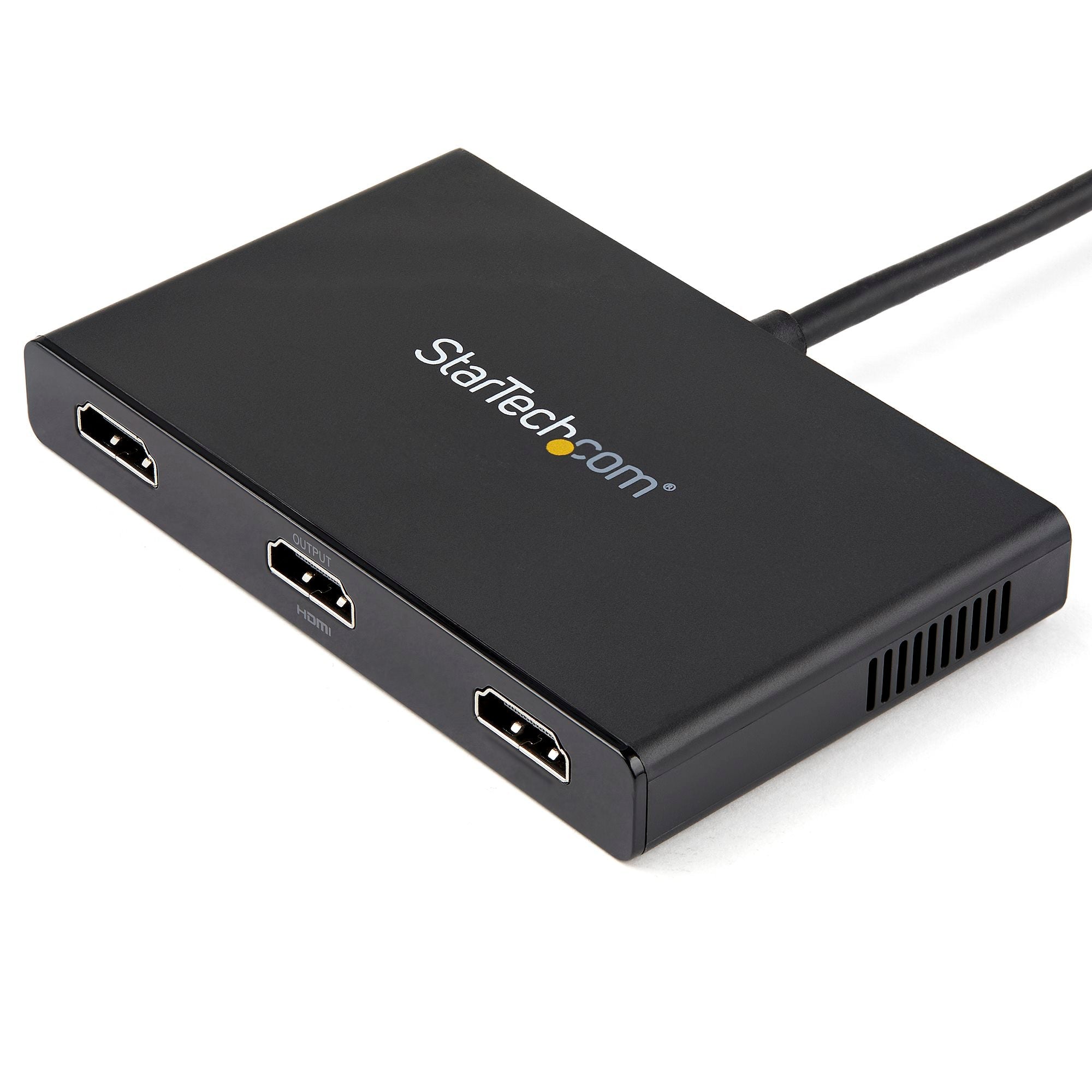

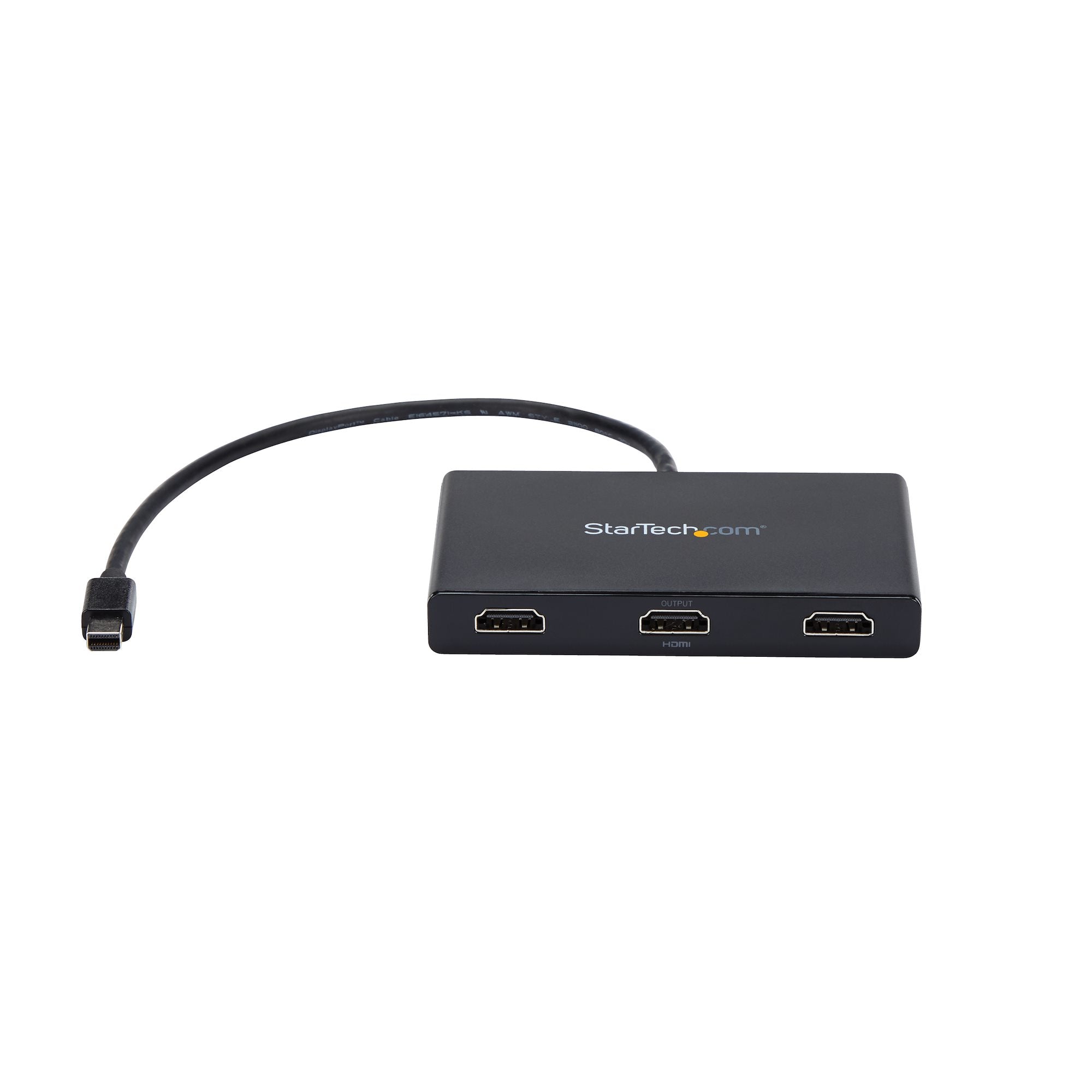

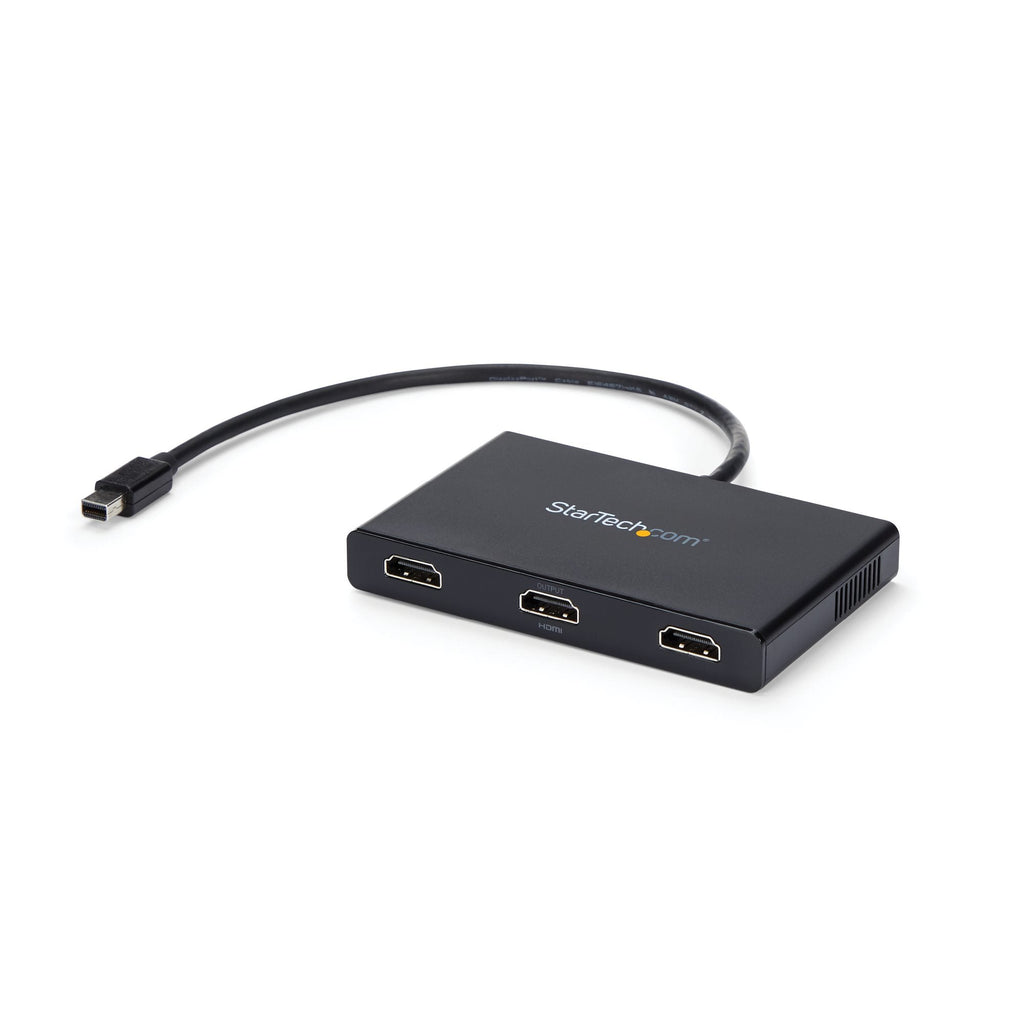

Triple HDMI Output – Connect up to 3 HDMI monitors from a single Mini DisplayPort source
-
Supports Triple 1080p @ 60Hz or Dual 4K @ 30Hz – Flexible multi-monitor configurations
-
MST Technology – Extended or mirrored display support on Windows
-
Mini DisplayPort 1.2 Input – Compatible with Thunderbolt 1/2 ports (Windows only)
-
USB Bus-Powered – No external power adapter needed (USB-A to Micro-USB cable included)
-
Plug-and-Play Setup – No drivers or software required
-
Compact and Lightweight – Portable solution for desks or travel setups
-
Windows Only – macOS does not support MST for multiple extended displays
Specifications
-

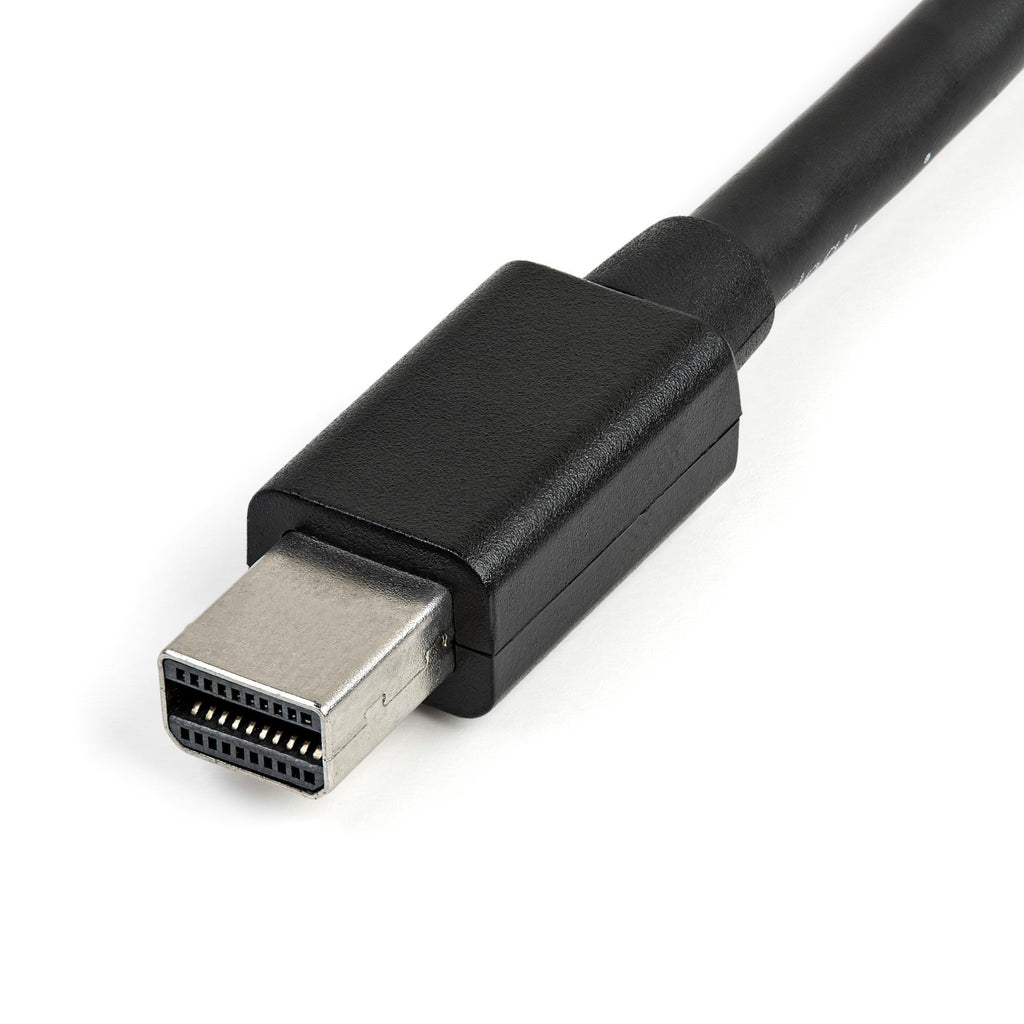

Input Connector: Mini DisplayPort 1.2 (Male)
-
Output Connectors: 3 × HDMI 1.4 (Female)
-
Power Input: Micro-USB (USB-A to Micro-USB cable included)
-
Max Resolution Support:
-
3 x 1920x1080 @ 60Hz
-
2 x 3840x2160 @ 30Hz
-
1 x 4K @ 60Hz (if only one display is connected)
-
-
Display Modes: Extended, Mirrored, Collage (via Windows Display Settings)
-
Audio Support: Yes
-
HDCP Support: Yes
-
Operating System Compatibility: Windows 10/11 only (no macOS support)
Product Dimensions / Weight
-
Hub Size: ~3.9 x 2.4 x 0.6 in (10 x 6 x 1.5 cm)
-
Cable Length: ~6 in (15 cm)
-
Weight: ~4.6 oz (130 g)
Package Dimensions / Weight
-
Package Size: ~8.3 x 5.5 x 1.6 in (21 x 14 x 4 cm)
-
Shipping Weight: ~6.3 oz (180 g)
