Product Description

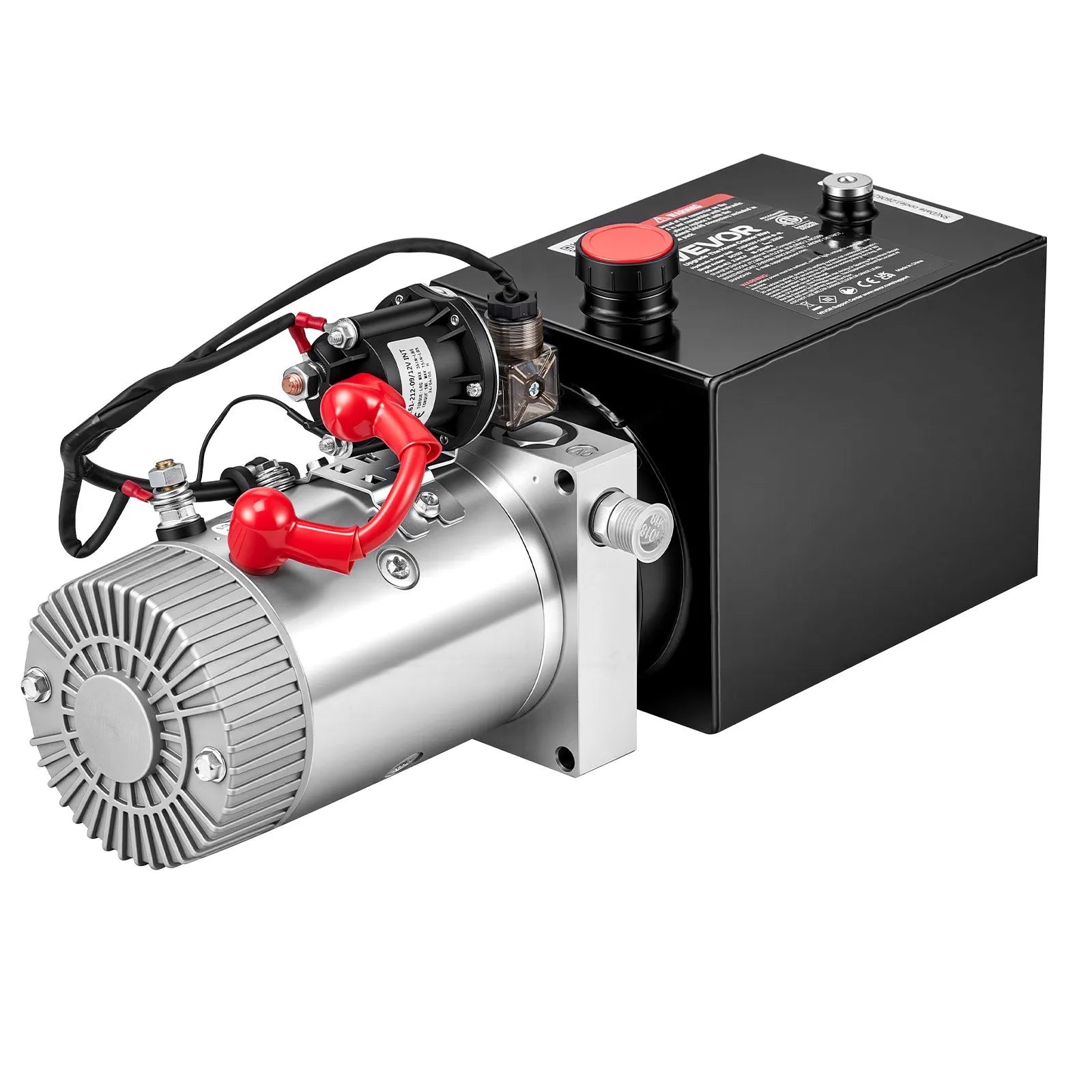

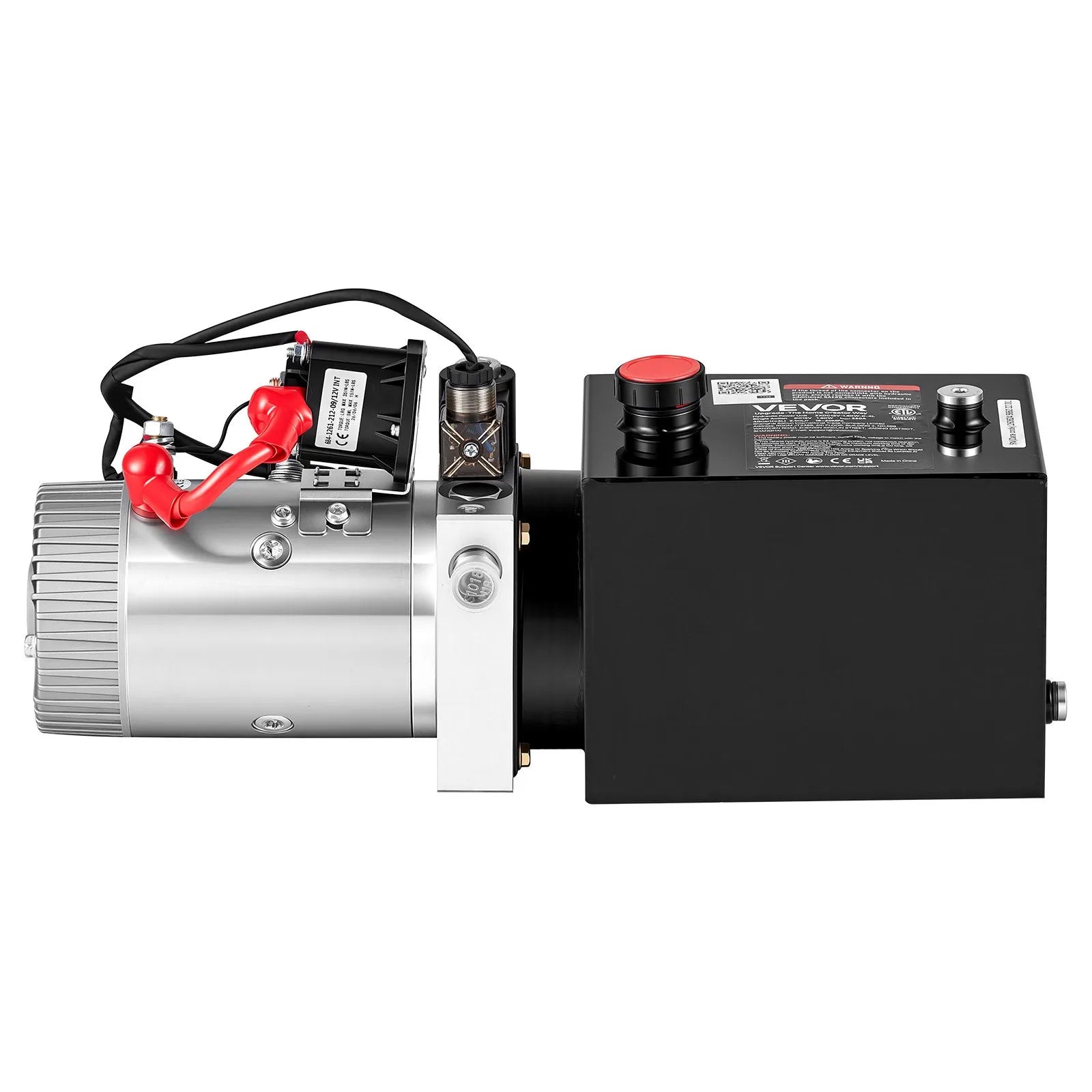

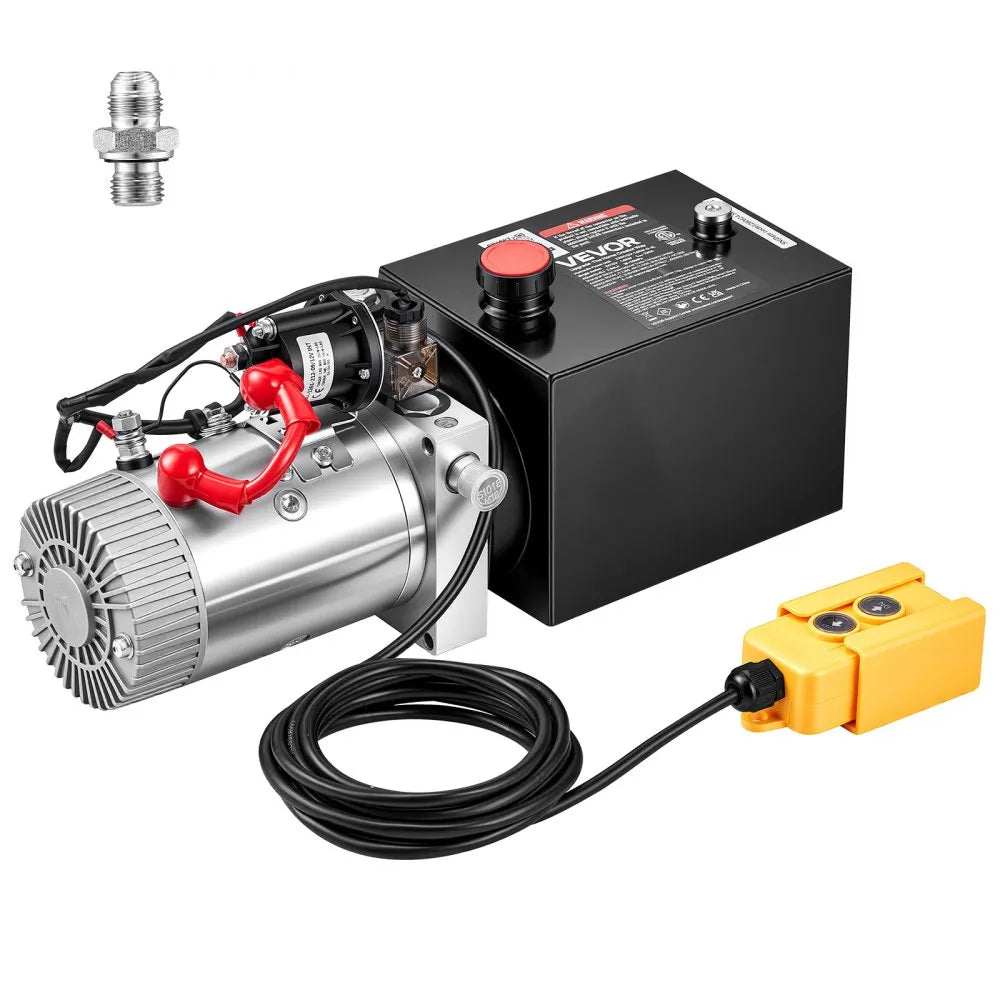

Power demanding lifting applications with this 4-Quart 12V Single-Acting Hydraulic Power Unit. Designed to provide dependable hydraulic power for dump trailers, liftgates, scissor lifts, lift tables, and other equipment, this compact electric pump delivers a 0.91 GPM flow rate with a maximum relief pressure of 3200 PSI.
The 1.6 kW DC12V motor provides reliable lifting performance, while the single-acting design allows for powered lifting and smooth gravity-assisted lowering. A built-in relief valve helps release excess pressure for stable and dependable operation.

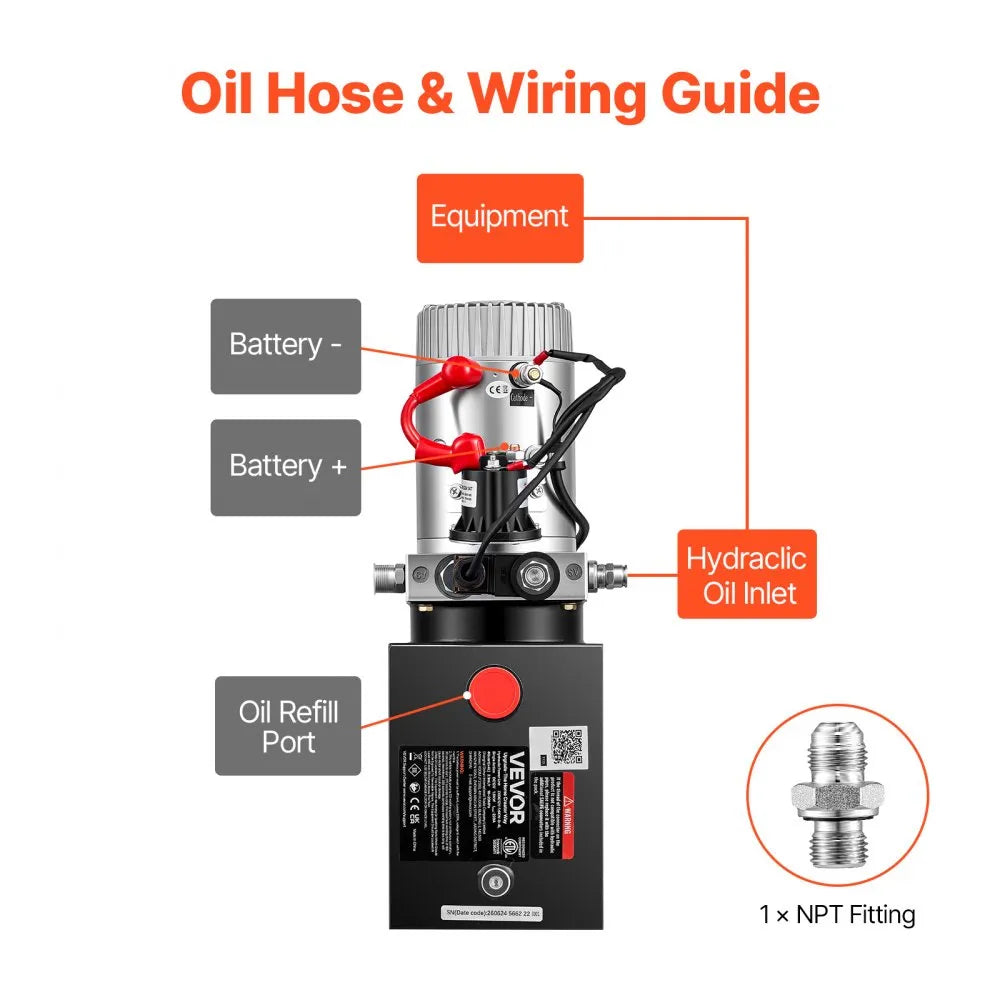

The pump comes pre-assembled for convenient installation. Simply add the appropriate hydraulic oil, connect the hydraulic hoses and power cables, and operate the unit using the included handheld controller.
A sturdy steel reservoir and tightly sealed construction help provide long-lasting performance while minimizing the potential for oil leakage.

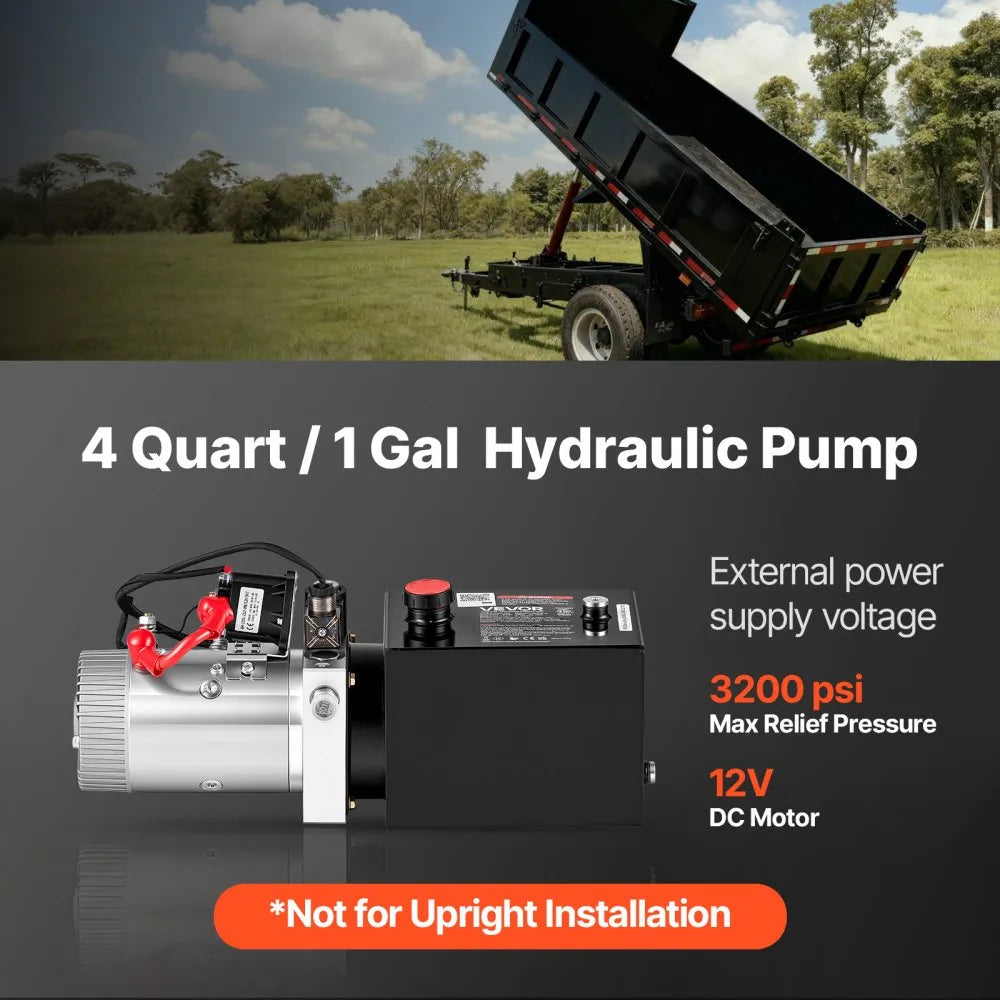

Important: This hydraulic power unit is designed for horizontal installation only and should not be mounted vertically.
Features & Benefits
- Powerful 12V Hydraulic System: 1.6 kW motor delivers reliable hydraulic power for lifting applications.

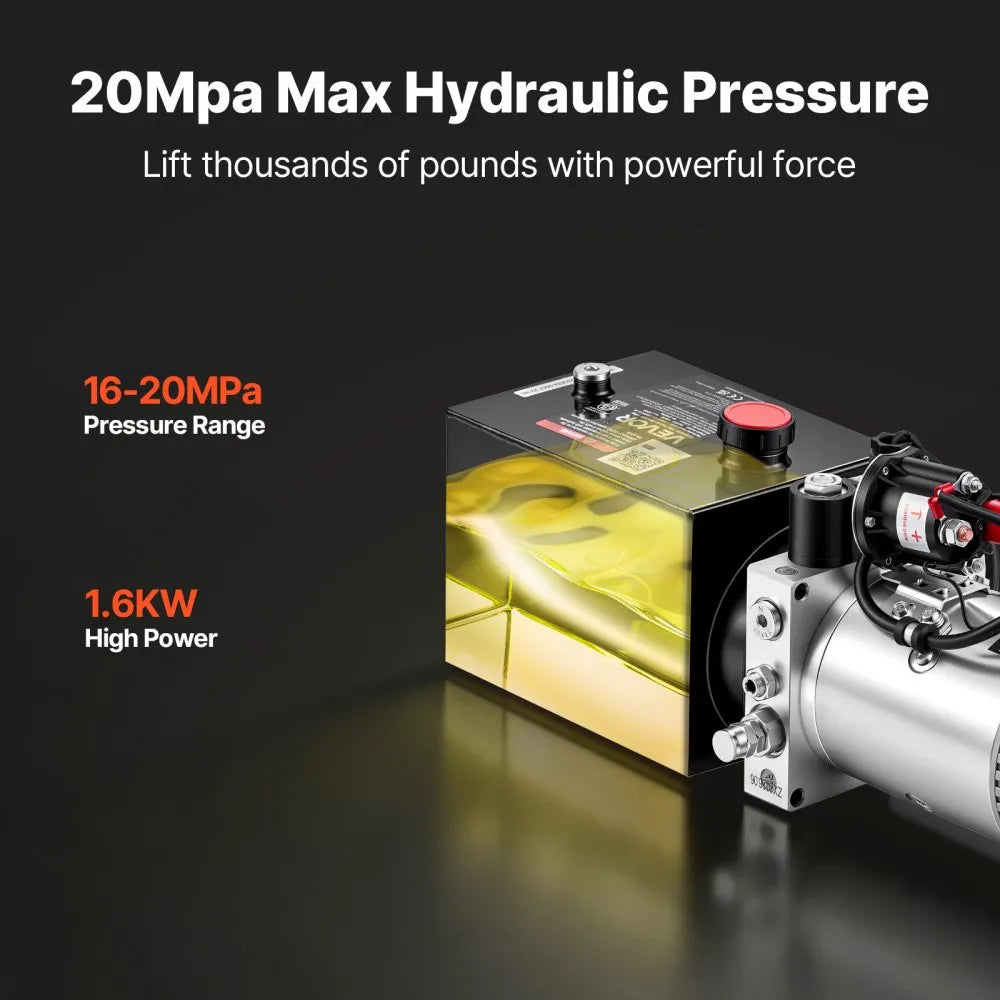

- 3200 PSI Maximum Relief Pressure: Provides substantial hydraulic pressure for demanding equipment.

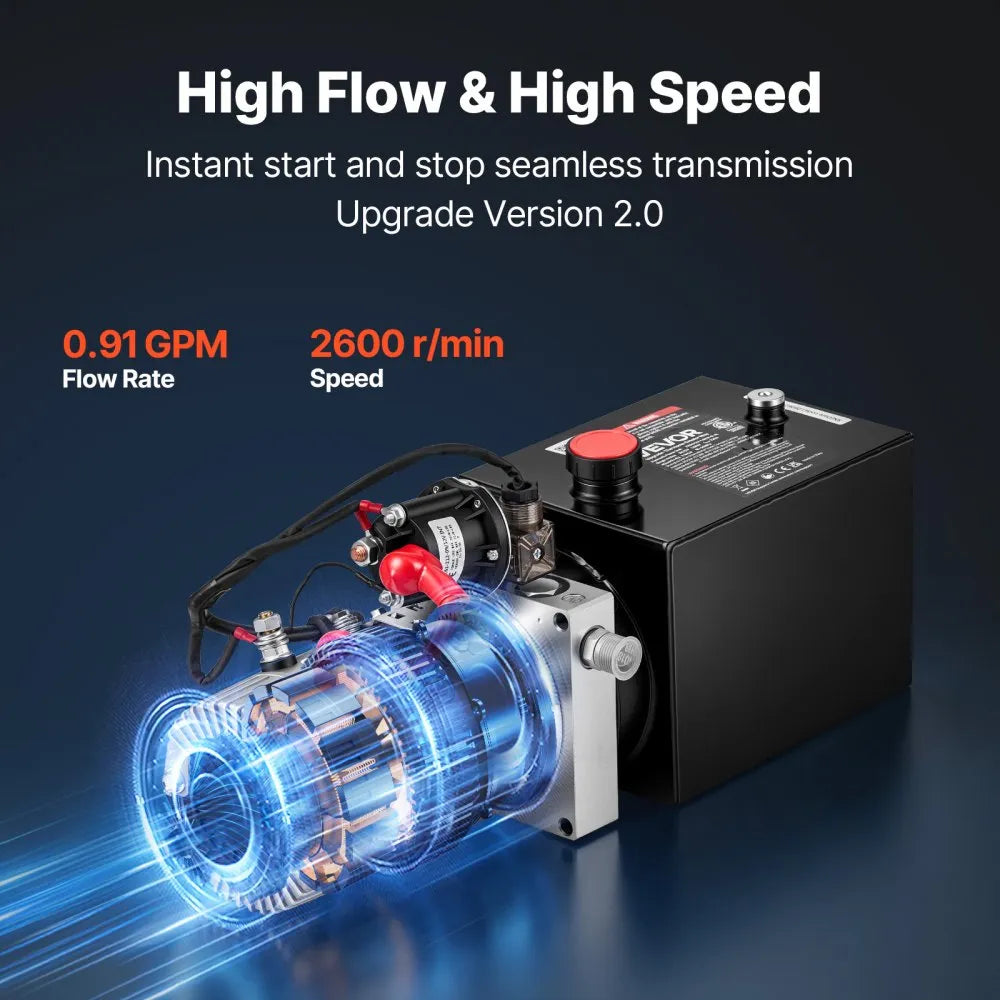

- 0.91 GPM Flow Rate: Designed for efficient hydraulic operation.
- 4-Quart Reservoir: Provides a steady supply of hydraulic fluid during operation.
- Single-Acting Operation: Provides powered lifting with gravity-assisted lowering.
- Built-In Relief Valve: Helps automatically release excess pressure for safer, more stable operation.
- Pre-Assembled Design: Simplifies installation and setup.
- Handheld Controller: Convenient control for lifting applications.
- Durable Steel Reservoir: Rust-resistant construction helps support long-term use.
- Multiple Applications: Suitable for dump trailers, liftgates, scissor lifts, lift tables, small presses, and bucket conveyors.
- Horizontal Installation: Designed specifically for horizontal mounting.

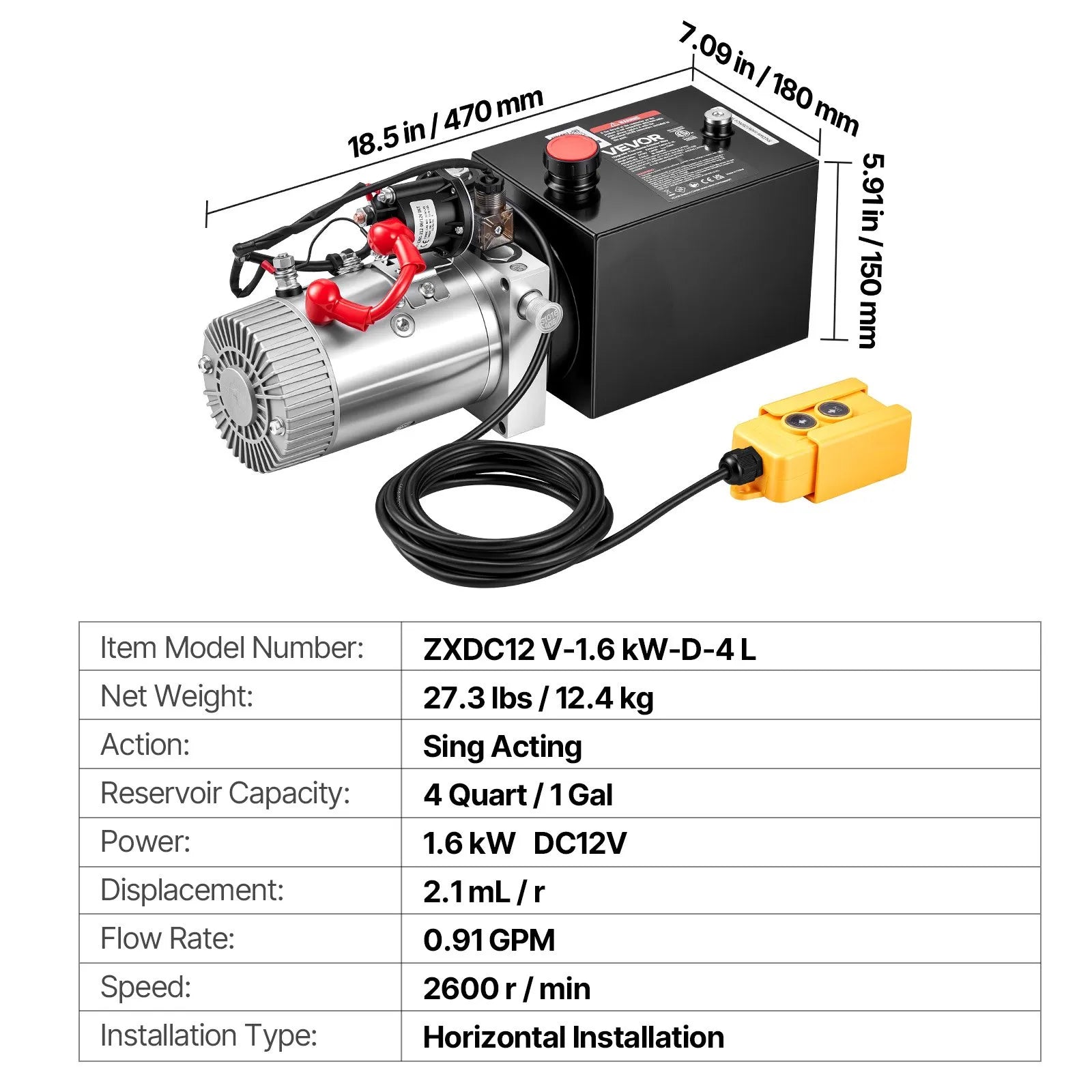

Specifications
- Item Model Number: ZXDC12V-1.6KW-D-4L
- Voltage: DC12V
- Function: Single Acting
- Reservoir Capacity: 4 Quart
- Maximum Relief Pressure: 3200 PSI
- Power: 1.6 kW
- Flow Rate: 0.91 GPM
- Rotating Speed: 2600 r/min
- Net Weight: 27.34 lbs / 12.4 kg
- Product Dimensions: 18.5 × 7.09 × 7.87 in / 470 × 180 × 200 mm
Installation Note
Horizontal installation only. Do not install vertically. Hydraulic oil, hoses, fittings, and electrical connections should be selected and installed according to the requirements of the equipment being powered.
