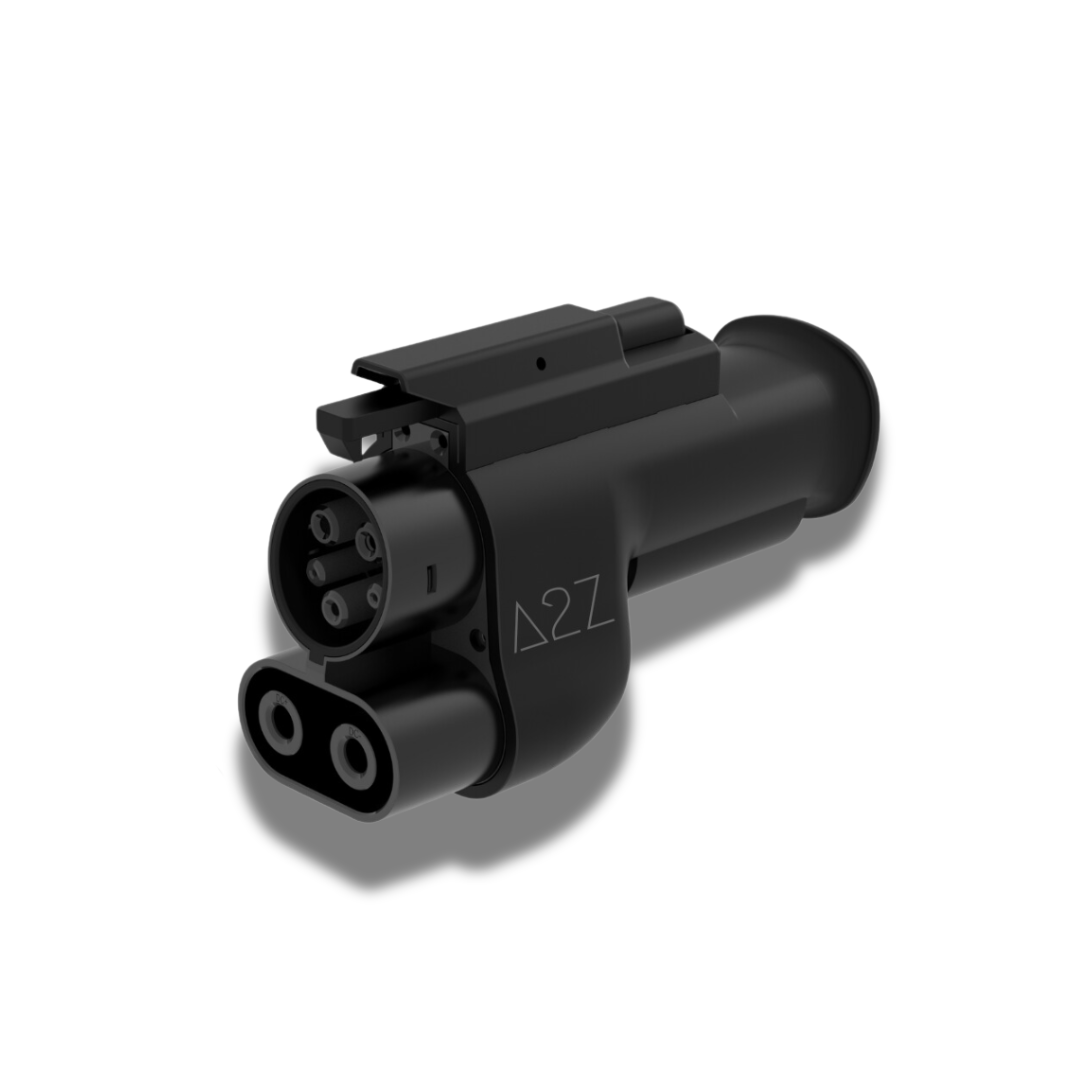

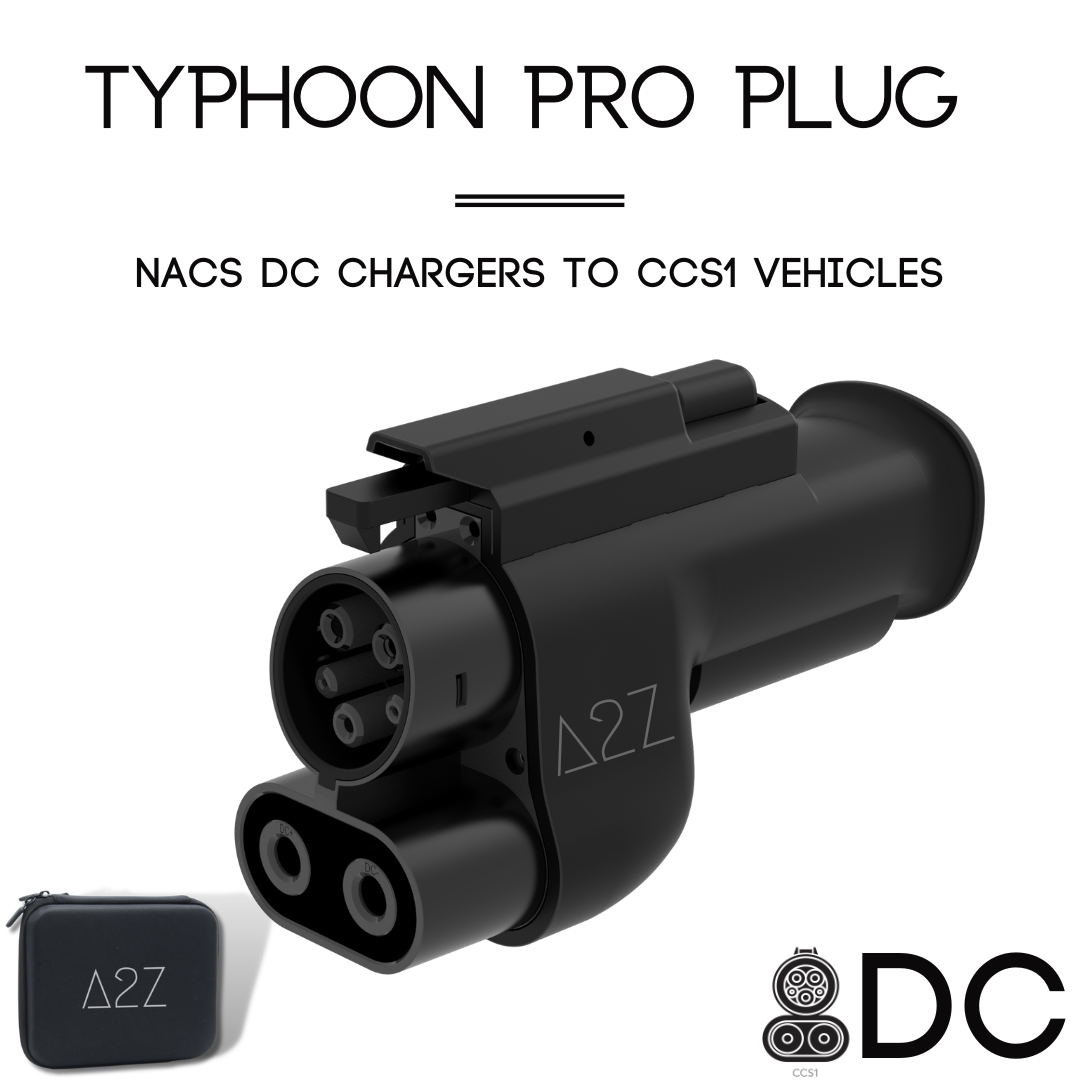

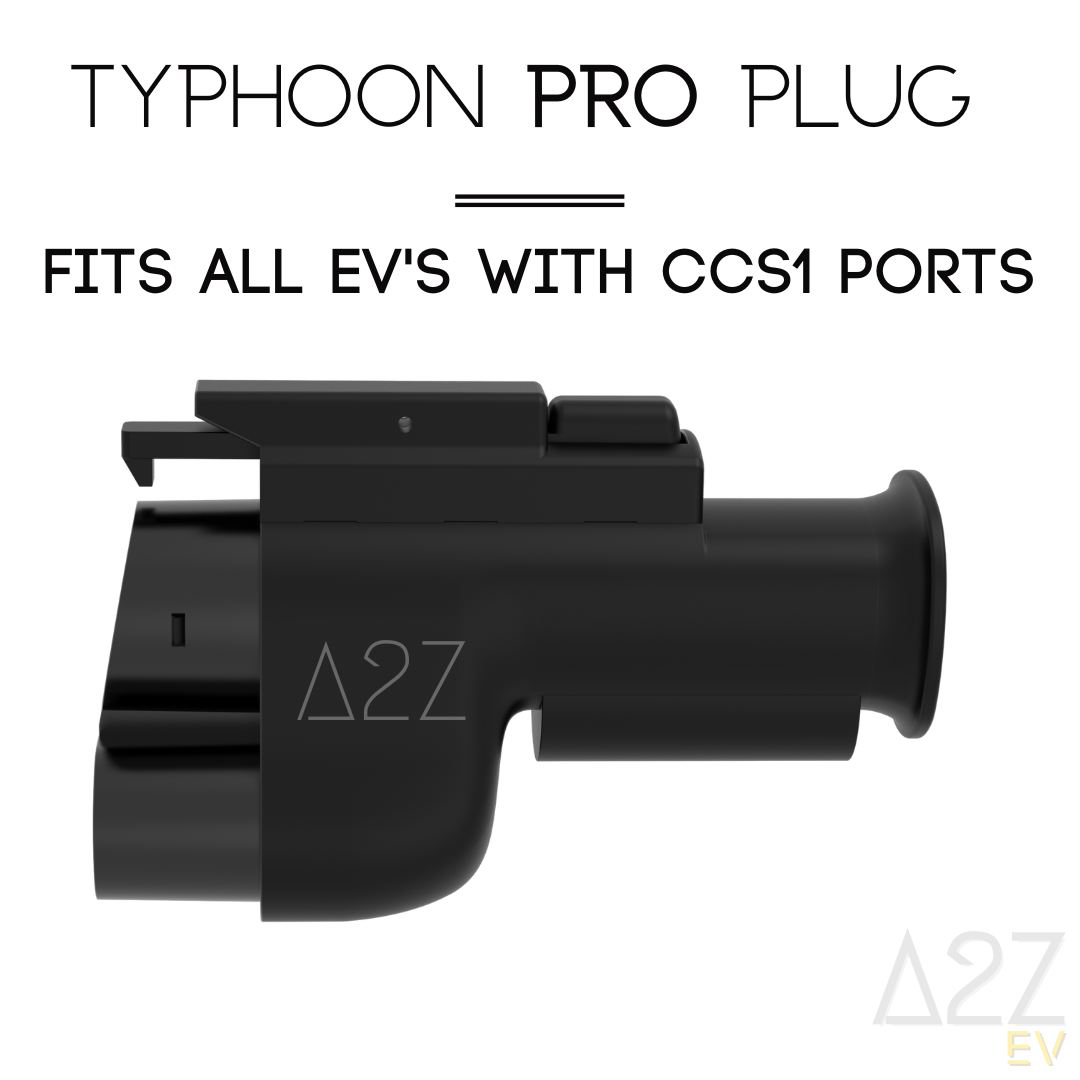

A2Z EV NACS Charger to CCS1 Vehicle | DC | Compatible with Superchargers | The Typhoon Pro

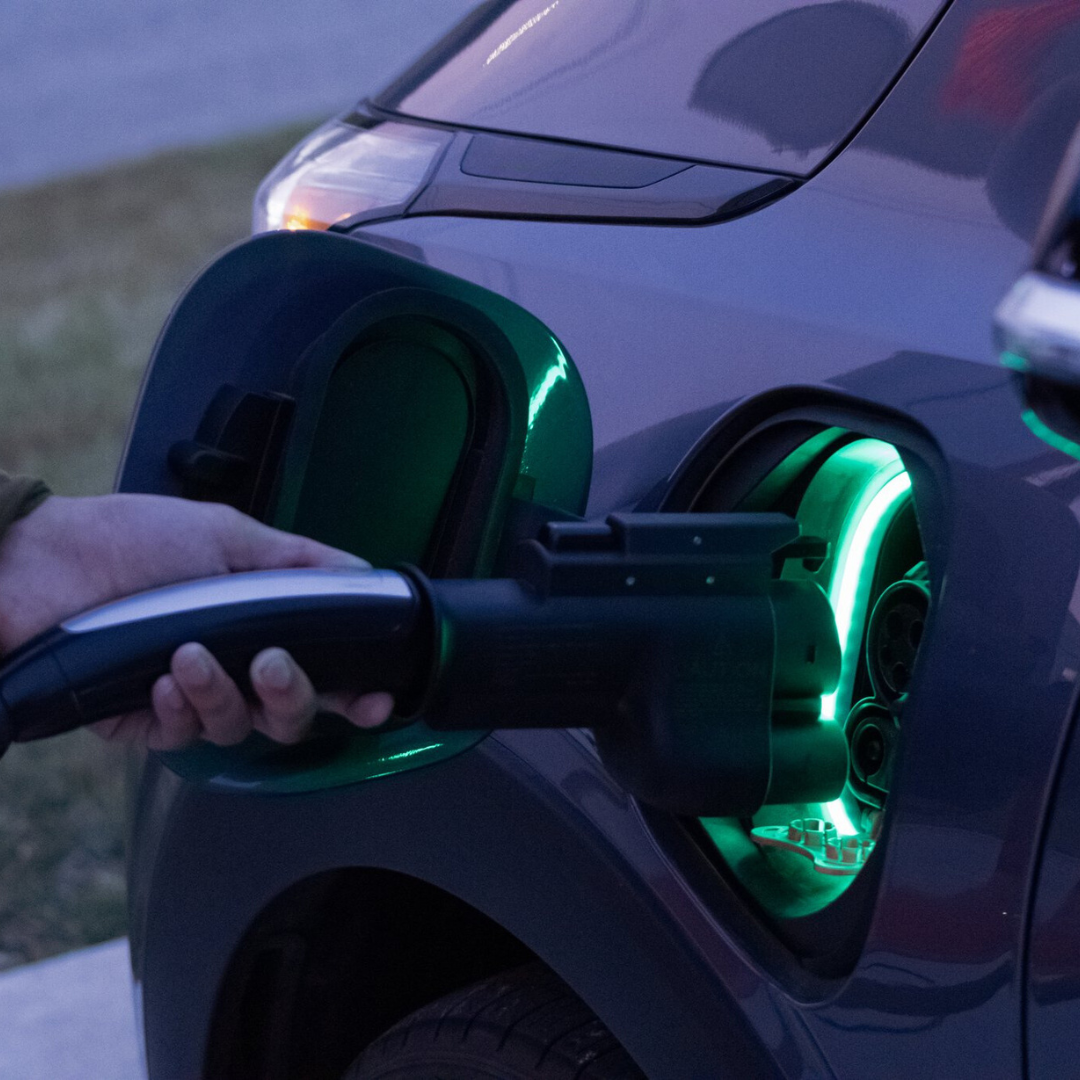

The most preferred NACS to CCS1 adapter across North America. Designed for CCS1-equipped electric vehicles, this adapter enables access to NACS DC fast charging stations with a strong focus on safety, precision engineering, and reliable performance.

Features:

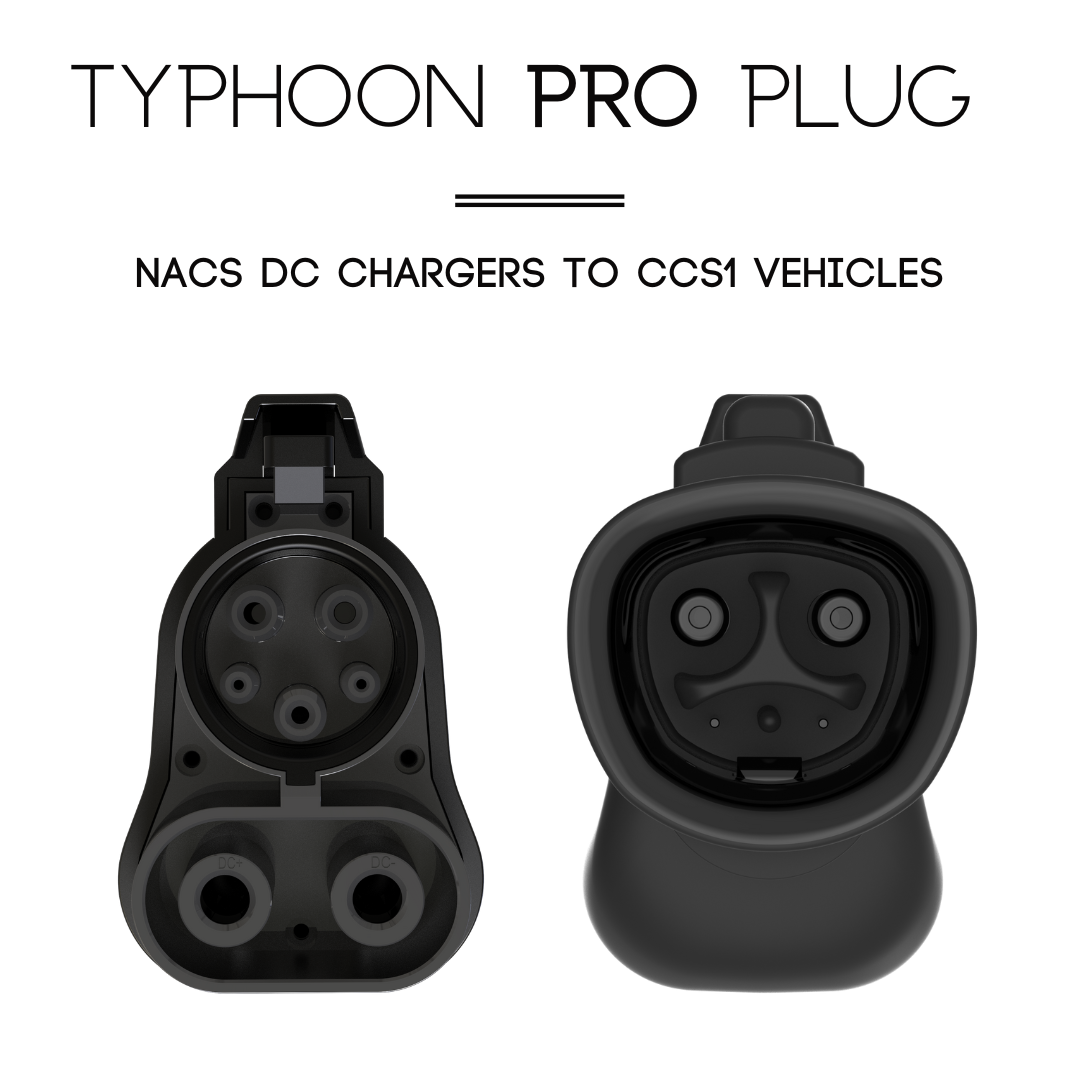

• Product Type: NACS to CCS1 DC fast charging adapter

• Brand: A2Z EV

• Model: Typhoon Pro

• Compatibility: Ford, Rivian, GM, Volvo, Polestar, Nissan, Mercedes-Benz, Hyundai, Genesis, Lucid, Kia, Honda, Acura, Porsche, Audi, Subaru Solterra, Toyota BZ4X

• VW Compatibility: VW ID.4 and ID. Buzz access to Superchargers starting November 18, 2025

• Charging Access: NACS DC chargers in North America

• Supercharger Support: Tesla Supercharger V3 and V4 only

• Third-Party Charger Support: Compatible with ChargePoint and EVgo NACS DC chargers

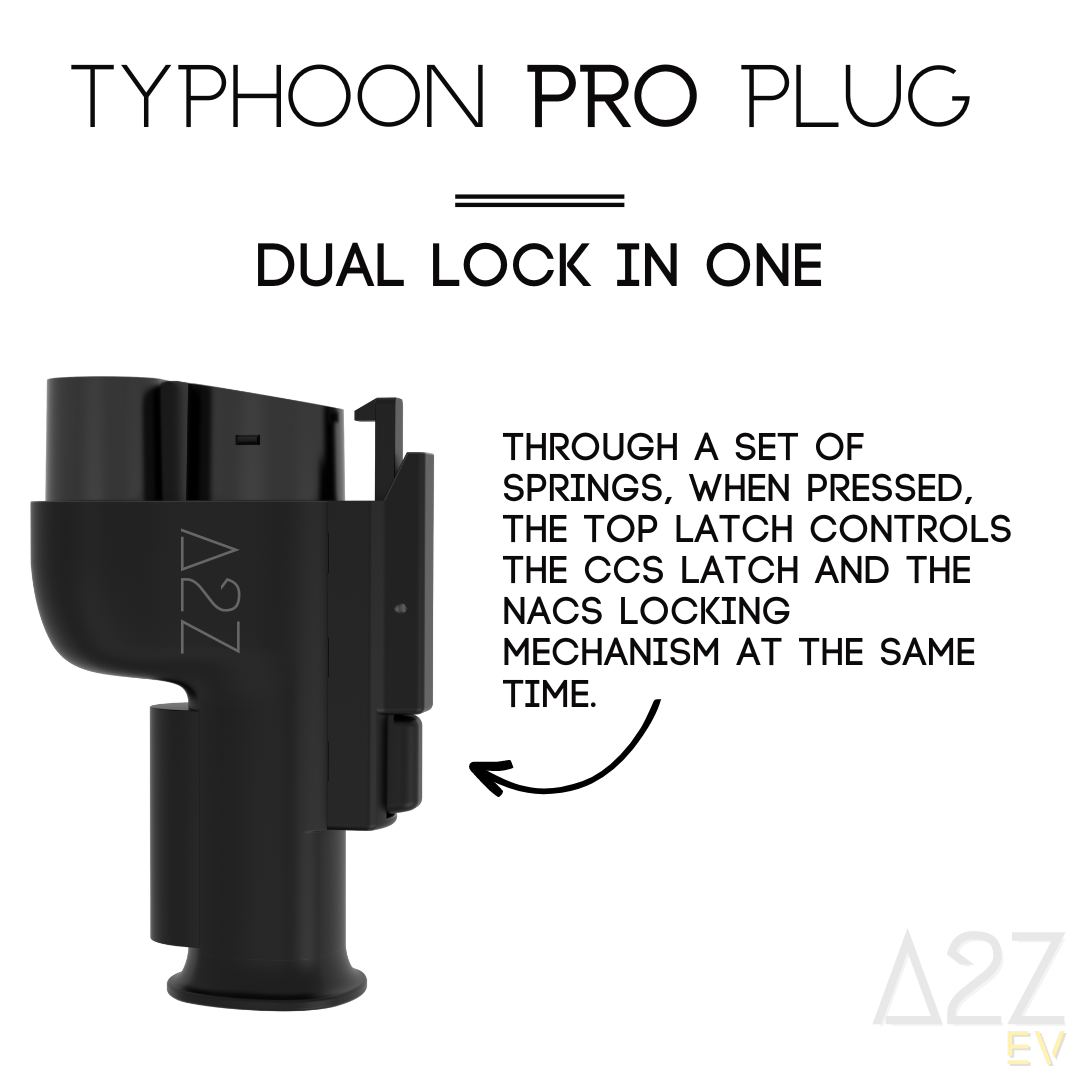

• Safety and Security: Single integrated dual locking mechanism

• Locking Mechanism: CCS1 latch controls NACS side locking pin via spring system

• Security Function: NACS connector cannot be removed if adapter is locked in vehicle charge port

• Thermal Safety: Dual internal temperature sensor switches

• Thermal Control: First sensor derates charging, second sensor stops charging if temperature threshold is reached

• Thermal Recovery: Charging resumes once temperature normalizes and adapter is reconnected

• Ingress Protection: IP54 (mating) and IP67 (enclosing)

• Assembly: Partially assembled and tested in Canada

Specifications:

• Rated Amperage: Up to 600A with liquid-cooled cables, up to 400A with non-liquid-cooled cables

• Rated Voltage: 100–1000V DC

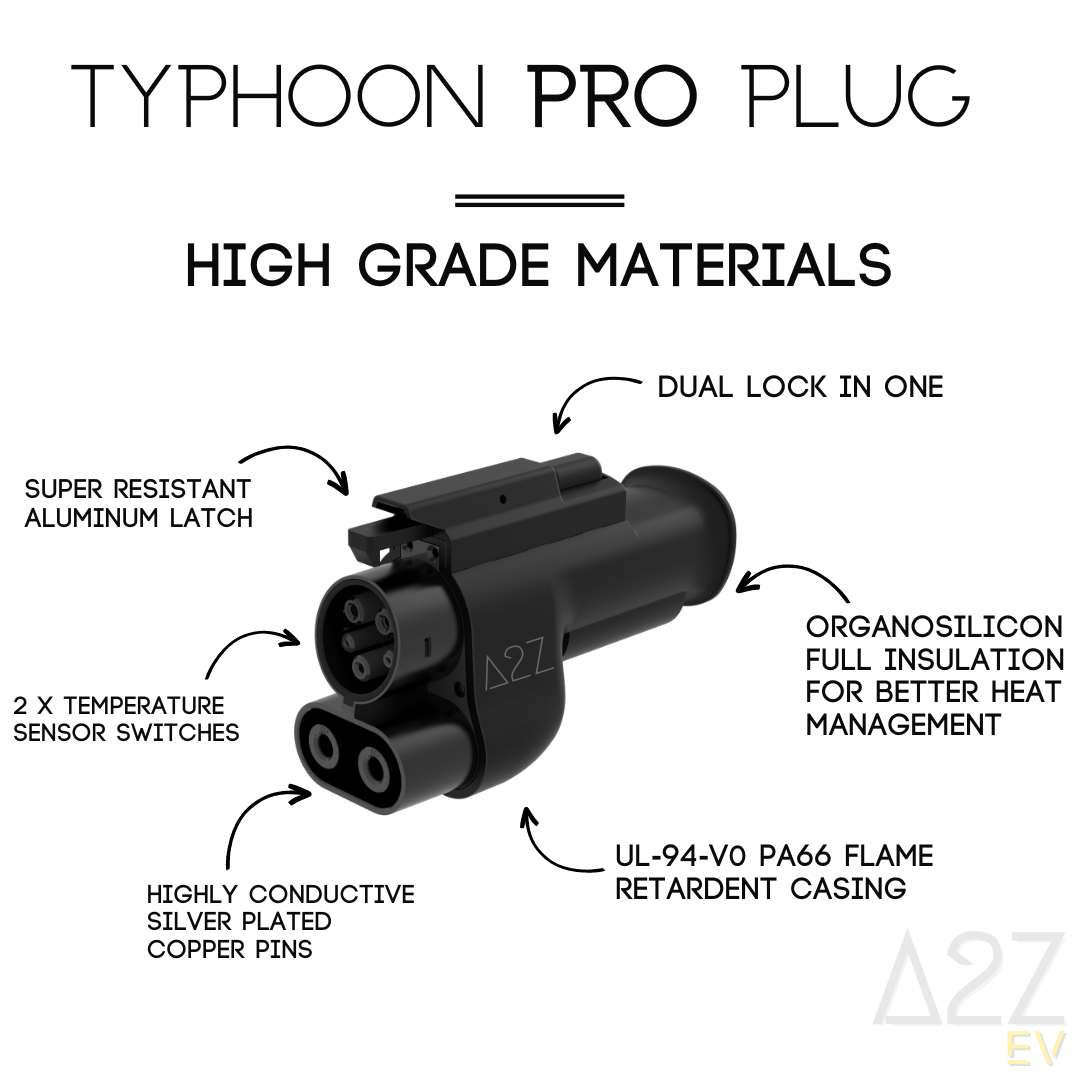

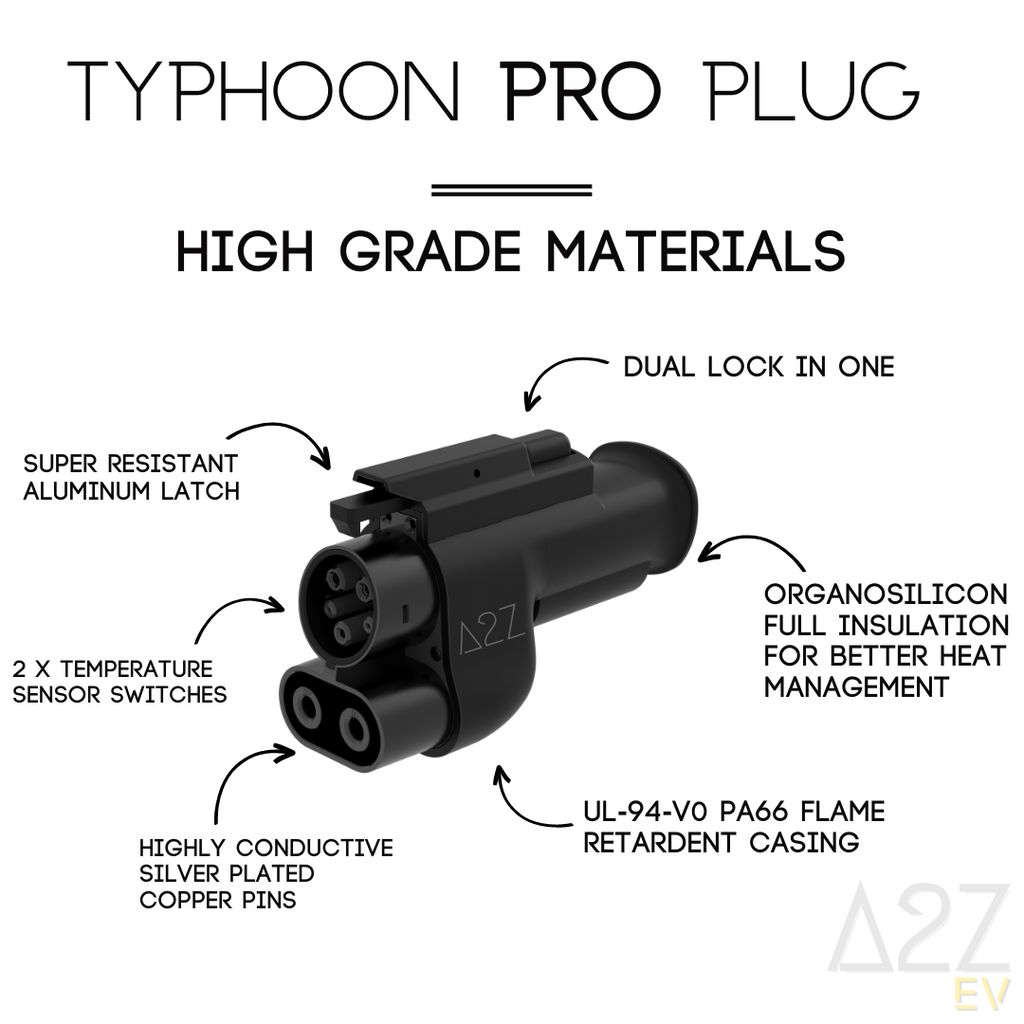

• Conductor Material: Silver plated copper

• Contact Resistance: 5 mΩ

• Shell Material: UL-94-V0 PA66

• Operating Temperature: -30°C to 50°C

• Sealing Gasket: Silicone rubber

• Locking: Dual locking mechanism in one

• Security: Locks into vehicle while charging if vehicle incorporates a charge port locking pin

• Degree of Protection: IP54 (mating) and IP67 (enclosing)

• Certifications: UL2252 certification in progress (passed all tests, certificate release by December 15); FCC certified (DL-20230705008C)

• Requirements: CCS1 port equipped vehicles; any NACS Level 3 DC charging station (Superchargers V3 and V4 only)

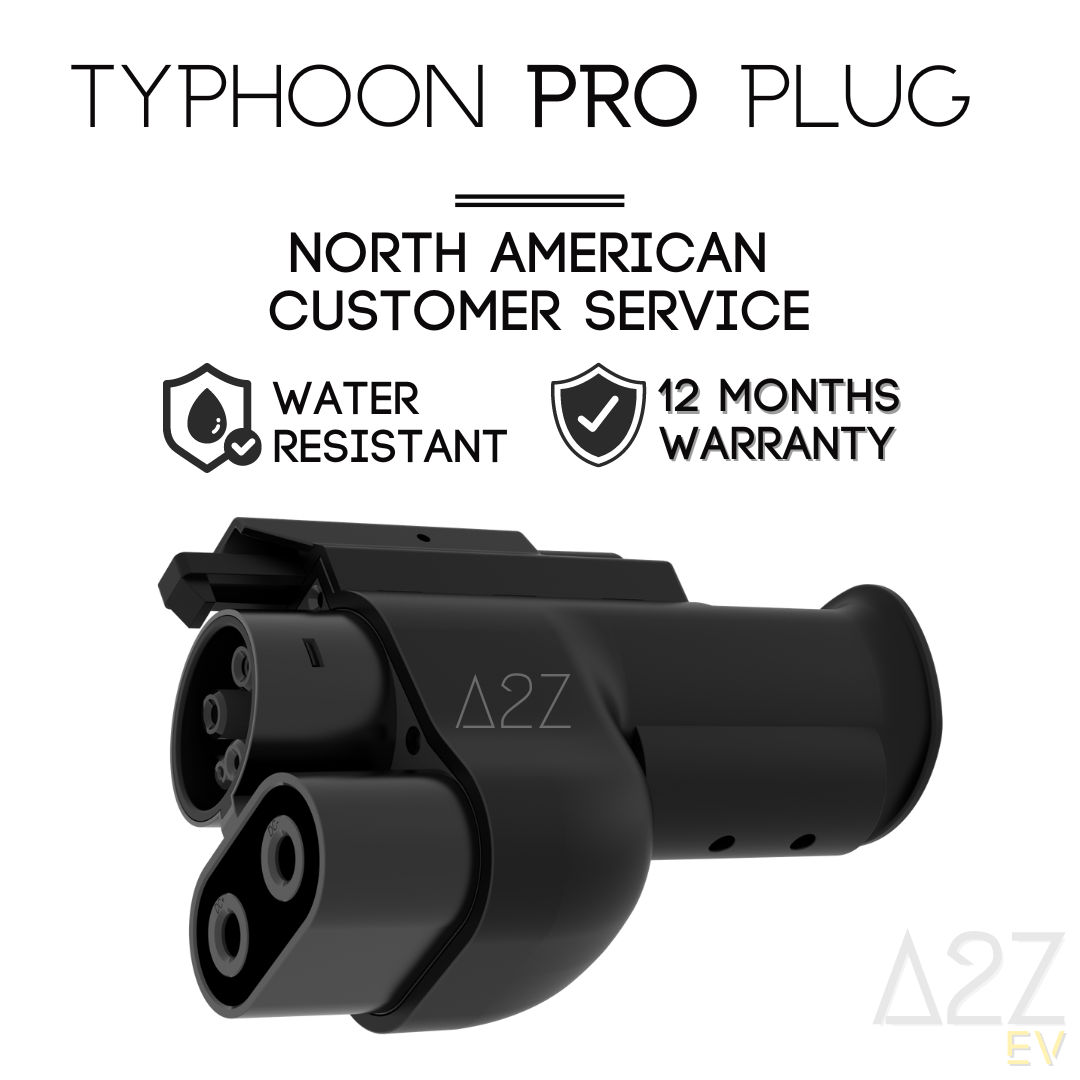

• Warranty: 12-month warranty against manufacturing defects only; excludes misuse, mishandling, negligence, accidents, or modifications

• Authorization Notice: Third-party adapters are not officially authorized for Tesla Superchargers; ensure vehicle brand has network access before purchase
