Description

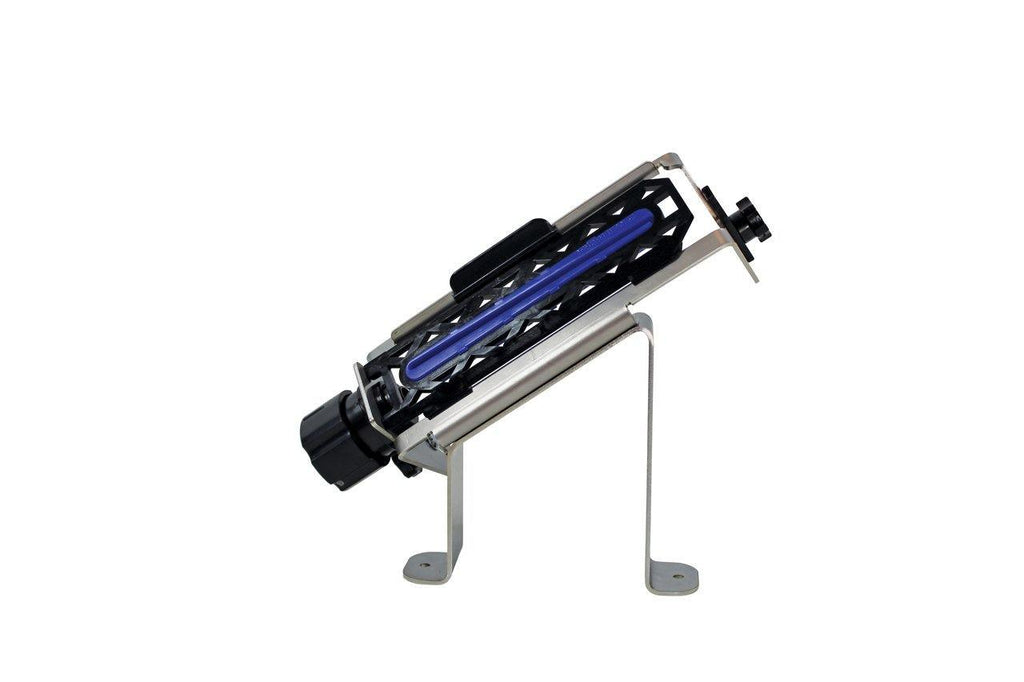

The Bohning Multi-Fletcher® Jig is a versatile and precise fletching tool designed for archers who demand consistent, high-quality results. Perfect for carbon, aluminum, or wooden arrows, this jig accommodates all arrow diameters and allows both 3- and 4-fletch configurations, including helical setups. With durable construction and color-coded clamp inserts, it ensures accurate alignment while protecting feathers and vanes during installation. Certified Crossbow Compatible.
Key Features:
-
All-in-One Fletching Solution: Accommodates all arrow diameters (X10s to 27s), standard nocks, and crossbow bolts.
-
Flexible Fletching Options: Supports 3-fletch (120°) or 4-fletch (90° or 60°x120°) setups with straight or helical angles.
-
Color-Coded Clamp Inserts: Includes 7 inserts for precise angles:
-
Feather 2° Right & 2° Left (max 5" / 127mm)
-
Vane 1° Right & 1° Left (max 5" / 127mm)
-
Vane 3° Right & 3° Left (max 3" / 76mm)
-
Vane Straight (max 5" / 127mm)
-
-
Durable Construction: Rugged 16-gauge stainless steel base with composite clamps for long-lasting performance.
-
Easy Cleaning & Maintenance: Clamps can be cleaned with acetone to remove adhesive residue.
-
Superior Adhesion & Accuracy: Snap-lock clamp plate provides consistent angles and maximum adhesion force.
-
Workstation Ready: Base can be screwed to a table as a single unit or in a multiple jig arrangement for high-volume fletching.
Specifications:
-
Material: Stainless steel base, durable composite clamps
-
Fletch Options: 3-Fletch, 4-Fletch, Straight or Helical
-
Max Feather Length: 5" (127mm)
-
Max Vane Length: 3"-5" (76-127mm)
-
Compatibility: All arrow diameters, standard nocks, crossbow bolts
-
Crossbow Compatible: Yes
