Description
Product Overview

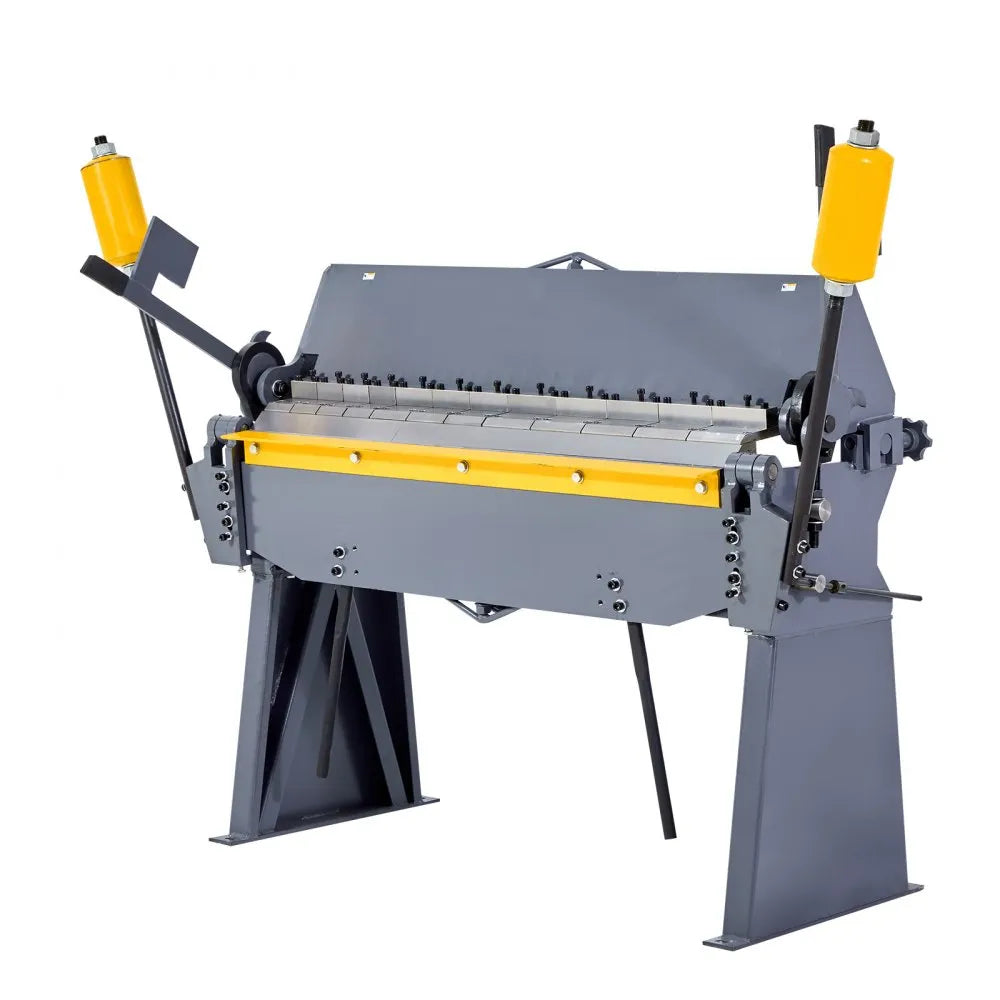

Take on heavy-duty metal fabrication projects with this 48" Box and Pan Brake Sheet Metal Bending Machine. Designed for fabrication shops, HVAC contractors, metalworking professionals, and industrial applications, this brake delivers precise bends up to 135 degrees and handles materials up to 12-gauge (2.5 mm) mild steel.
Featuring 8 removable fingers, dual counterweight hammers, and heavy-duty steel construction, this machine provides the versatility needed to fabricate boxes, pans, electrical enclosures, ductwork, cabinets, and custom metal components with exceptional accuracy.
Features & Benefits

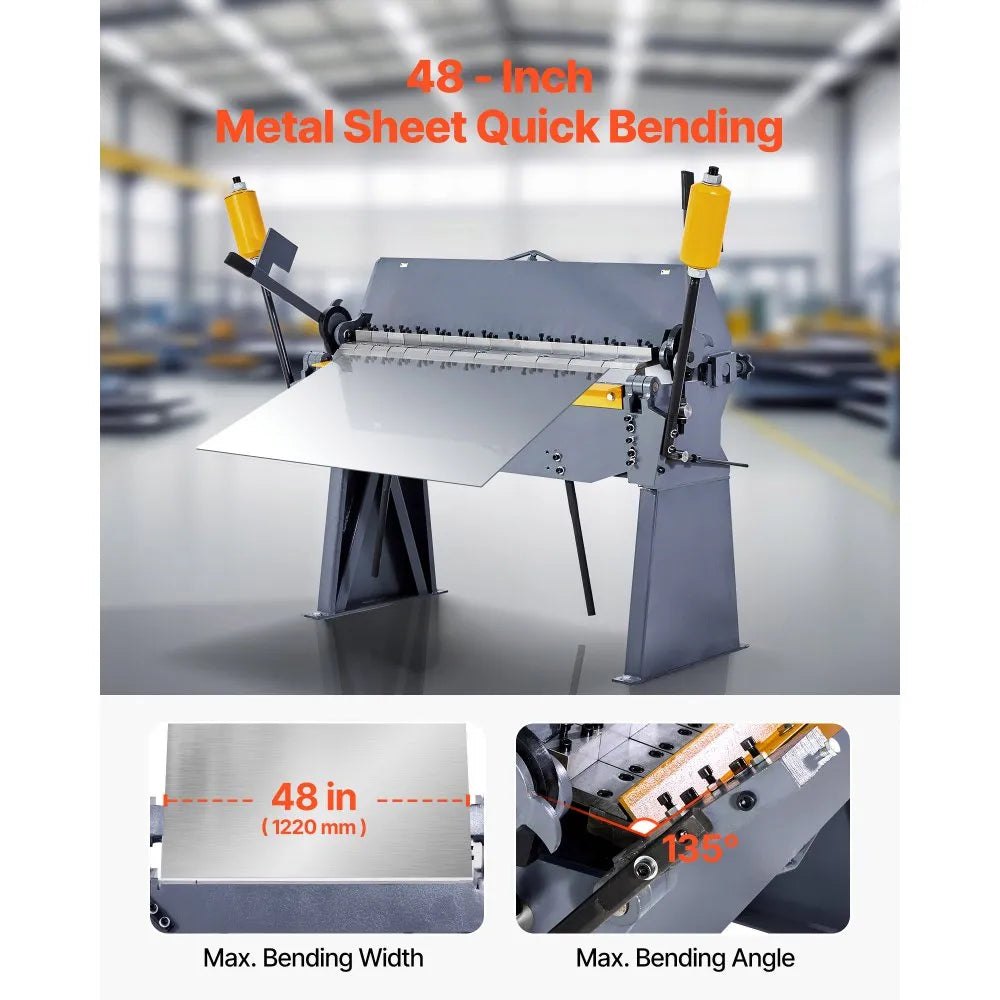

🔨 Heavy-Duty 48" Bending Capacity
- Bends sheet metal up to 48 inches wide
- Ideal for large fabrication projects
- Perfect for commercial and industrial use
📐 Adjustable 0°–135° Bending Angle
- Precise angle control
- Suitable for simple and complex bends
- Creates professional-grade finished products
⚙️ Handles Multiple Metal Types
Compatible with:
- Mild Steel
- Stainless Steel
- Aluminum
- Copper
Capable of bending:
- Up to 12 Gauge (2.5 mm) Mild Steel

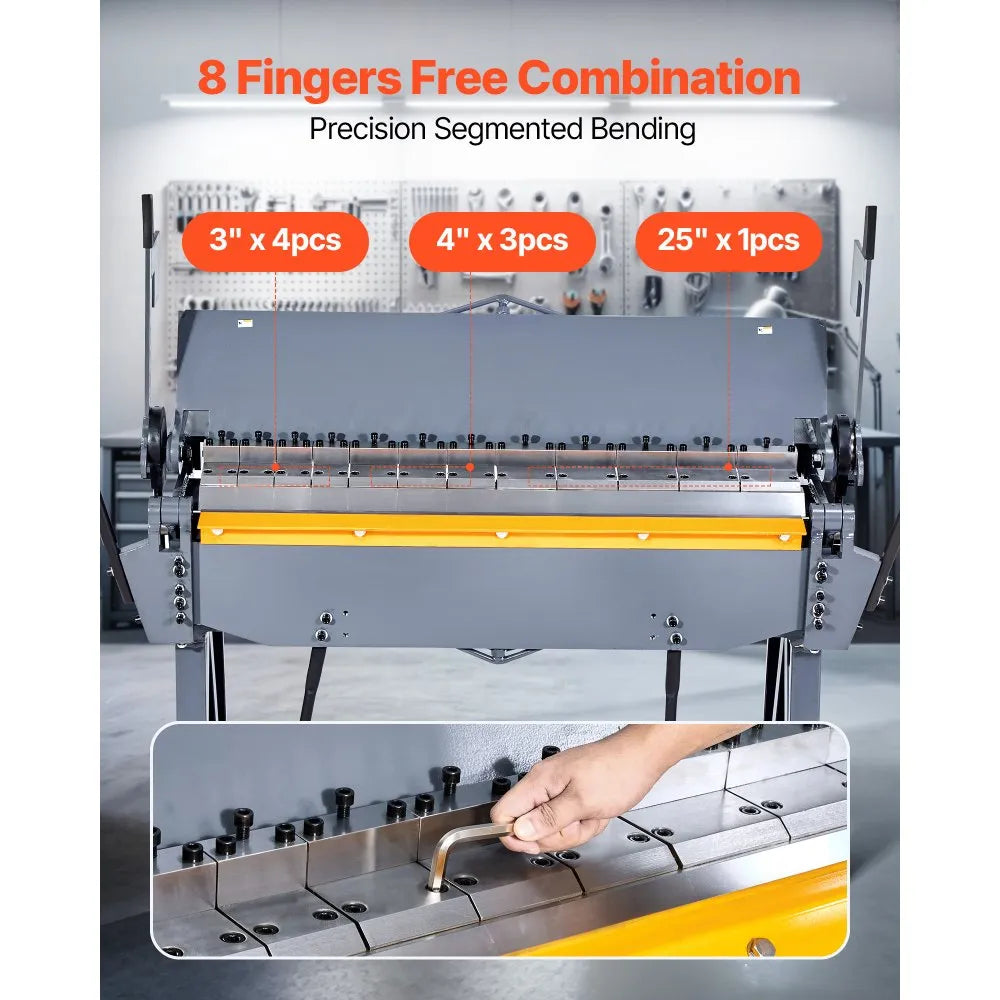

🏗️ 8 Segmented Finger Design
Includes:
- 4 × 3" Fingers
- 3 × 4" Fingers
- 1 × 25" Finger
Allows custom configurations for:
- Electrical Boxes
- HVAC Components
- Control Panels
- Cabinets
- Flanged Parts
- Complex Fabrication Projects

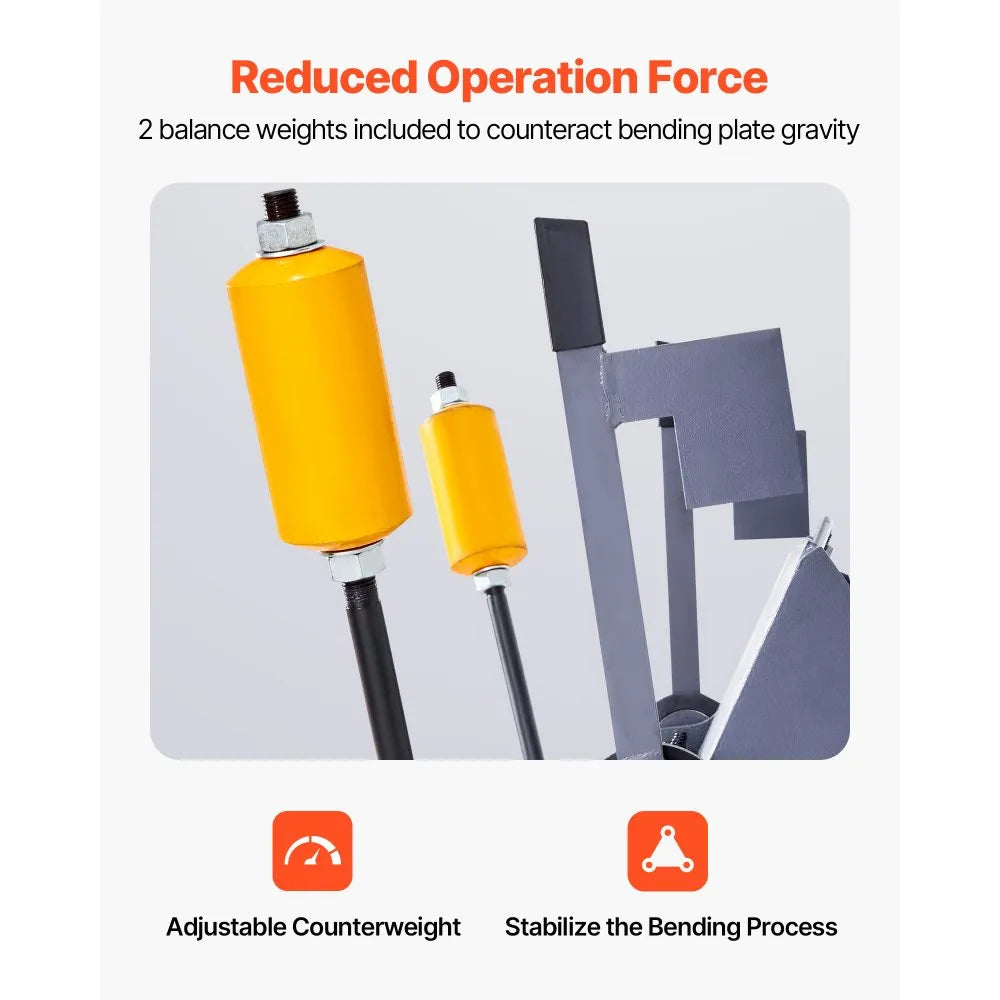

⚖️ Dual Counterweight Hammers
- Improves clamping force
- Reduces operator effort
- Increases bending stability
- Ideal for larger sheet metal sections
💪 Industrial Steel Construction
- Heavy-duty low carbon steel frame
- Built for demanding fabrication environments
- Long-lasting durability

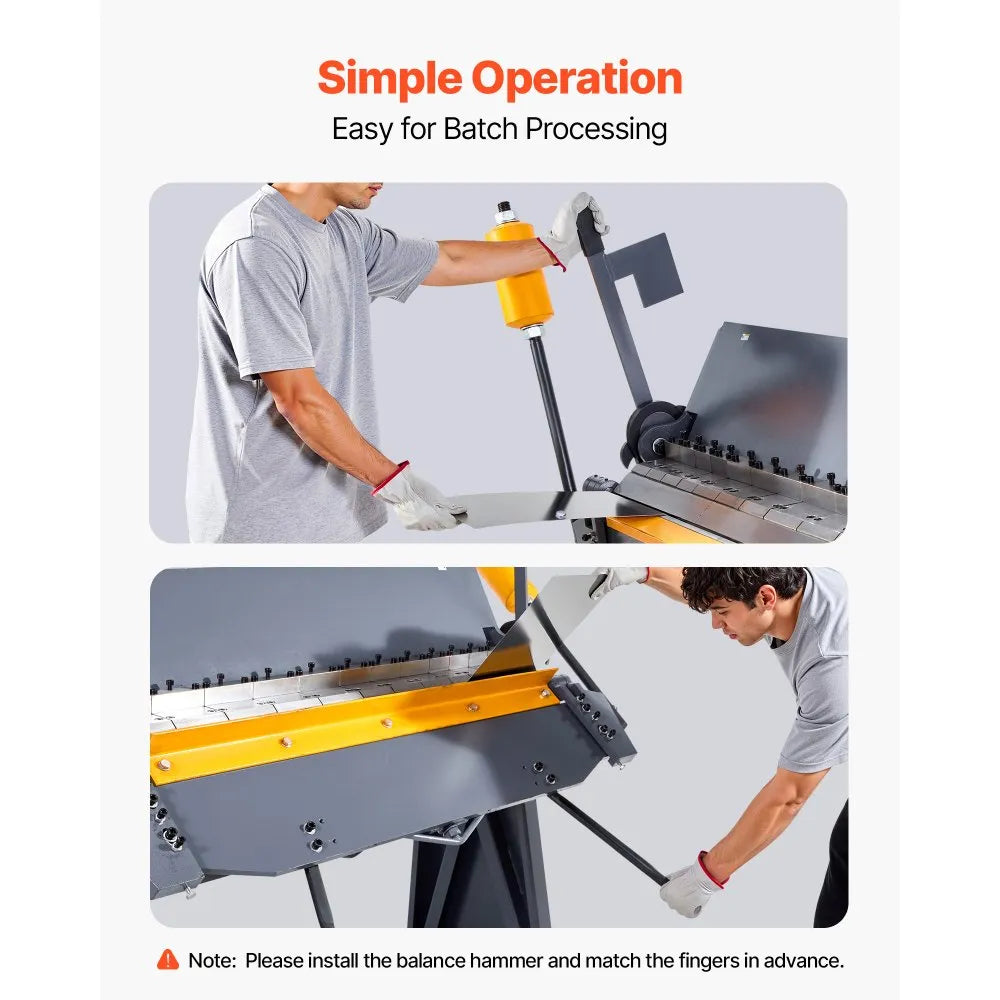

🔧 Simple Manual Operation
- Easy sheet positioning
- Quick clamping action
- Precise angle adjustments
- Excellent control over bending process
Ideal For
- Metal Fabrication Shops
- HVAC Contractors
- Manufacturing Facilities
- Automotive Fabrication
- Electrical Enclosure Production
- Agricultural Equipment Repair
- Sheet Metal Workshops
- Industrial Maintenance Departments
- Custom Metalworking Projects
Technical Specifications
| Feature | Specification |
|---|---|
| Model | W2.5×1220 |
| Product Type | Box & Pan Brake |
| Maximum Bending Width | 48" (1220 mm) |
| Maximum Material Thickness | 12 Gauge (2.5 mm) Mild Steel |
| Maximum Bending Angle | 135° |
| Bending Method | Manual |
| Counterweight System | Dual Balance Hammers |
| Mounting Type | Desktop Mounted |
| Segmented Fingers | 8 |
| Finger Sizes | 4 × 3", 3 × 4", 1 × 25" |
| Material | Low Carbon Steel |
| Product Dimensions | 61.6" × 27.6" × 50.8" |
| Product Weight | 1105.6 lbs (501.5 kg) |
What's Included
- 1 × 48" Box & Pan Brake
- 8 × Removable Bending Fingers
- Dual Counterweight System
- Installation Hardware
- User Manual
