EchoCool Series 11500 BTU 208/230V Mini Split Air Conditioner and Heater Pump System

The EchoCool Series 11500 BTU Mini Split Air Conditioner and Heat Pump System delivers efficient heating and cooling with advanced inverter technology and smart connectivity. Designed for rooms up to 750 sq. ft., this ductless system provides consistent climate control while reducing energy consumption. Built with eco-friendly R32 refrigerant and a high-efficiency compressor, it ensures reliable performance in both hot and cold environments. With built-in WiFi compatibility, users can easily control the system through a smartphone app, Alexa, Google Assistant, or the included remote control. Quiet operation, multiple comfort modes, and a self-cleaning feature make this mini split a practical solution for year-round comfort.

Key Features

• 11,500 BTU cooling and heating capacity for spaces up to 750 sq. ft.

• Energy-efficient inverter compressor reduces power consumption

• Eco-friendly R32 refrigerant for improved environmental performance

• WiFi smart control via mobile app, Alexa, and Google Assistant

• 7 operating modes including Auto, Cool, Heat, Dry, Fan, Sleep, and ECO

• 7 adjustable fan speeds with 4D automatic air swing

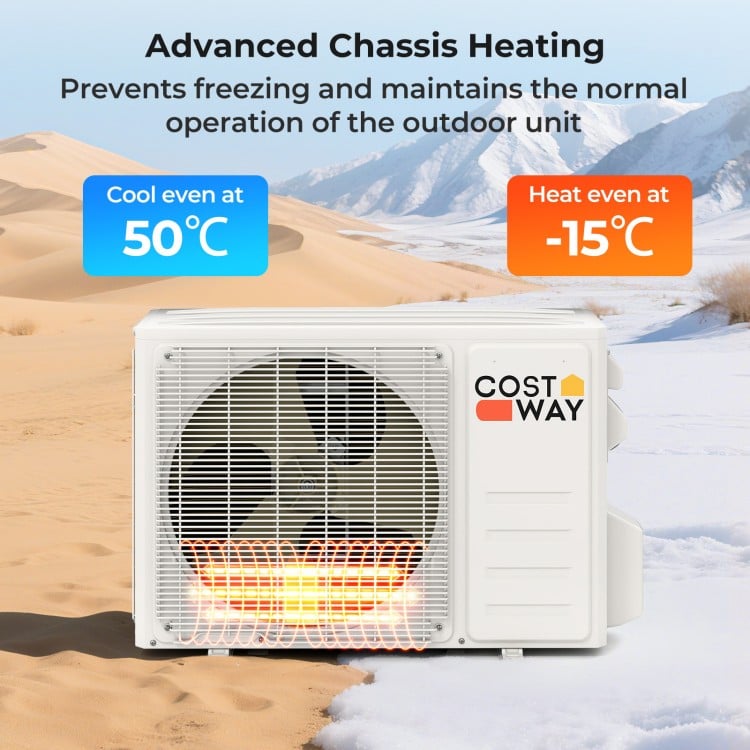

• Advanced chassis heating prevents freezing in cold conditions

• Self-cleaning system with 56°C sterilization and washable filter

• Quiet sleep mode with screen-off feature for undisturbed rest

• ETL and AHRI certified for reliable quality and safety

Specifications

• Cooling Capacity: 11,500 BTU

• Heating Capacity: 11,500 BTU

• SEER2: 17

• HSPF2: 8.3

• Cooling Power: 1170 W

• Heating Power: 1100 W

• Voltage: 208–230V / 60Hz

• Minimum Circuit Ampacity: 11A

• Coverage Area: Up to 750 sq. ft. (70㎡)

• Air Flow Volume: 294 CFM

• Dehumidifying Capacity: 66 Pints/Day (31.2 L/Day)

• Refrigerant: R32

• Temperature Setting Range: 60°F – 88°F (16°C – 31°C)

• Operating Ambient Temperature: -15°C – 50°C

• Indoor Noise Level: 28 dB

• Outdoor Noise Level: 55 dB

• Indoor Unit Dimensions: 30.5 x 8.2 x 9.8 in

• Outdoor Unit Dimensions: 30.9 x 11.4 x 19.7 in

• Drain Pipe Diameter: 0.67 in

• Max Remote Control Distance: 39 ft

• Indoor Unit Weight: 20 lbs

• Outdoor Unit Weight: 53.5 lbs

• Color: White

• Material: Metal, Aluminum, Copper, AS

• Box Quantity: 2 (May vary by batch)

Package Includes

• 1 × Indoor Unit

• 1 × Outdoor Unit

• 1 × 13 ft Copper Connection Pipe (Air Pipe)

• 1 × 13 ft Copper Connection Pipe (Liquid Pipe)

• 1 × 19 ft Communication Wire

• 1 × 6.5 ft Drain Hose

• 1 × Remote Control

• 1 × Remote Control Wall Bracket

• 1 × Wall Sleeve

• 1 × Wall Cap

• 1 × Drain Elbow

• 1 × Tape

• 1 × Putty

• 1 × User Guide
