EchoCool Series 17000 BTU 208/230V Mini Split Air Conditioner and Heater Pump System

The EchoCool Series 17000 BTU Mini Split Air Conditioner and Heat Pump System provides efficient and reliable climate control for medium to large spaces. Designed to cover up to 1250 sq. ft., this ductless system features advanced inverter technology and eco-friendly R32 refrigerant to deliver powerful cooling and heating while reducing energy consumption. With built-in WiFi connectivity, you can conveniently manage temperature settings through a smartphone app, Alexa, Google Assistant, or the included remote control. Quiet operation, multiple comfort modes, and a self-cleaning system make this mini split a practical and energy-efficient solution for year-round comfort.

Key Features

• 17,000 BTU cooling and 16,500 BTU heating capacity for rooms up to 1250 sq. ft.

• Energy-efficient inverter compressor reduces power consumption and improves performance

• Eco-friendly R32 refrigerant for enhanced energy efficiency and lower environmental impact

• WiFi smart control via mobile app, Alexa, and Google Assistant

• 7 operating modes including Auto, Cool, Heat, Dry, Fan, Sleep, and ECO

• 7 adjustable fan speeds with 4D automatic airflow swing

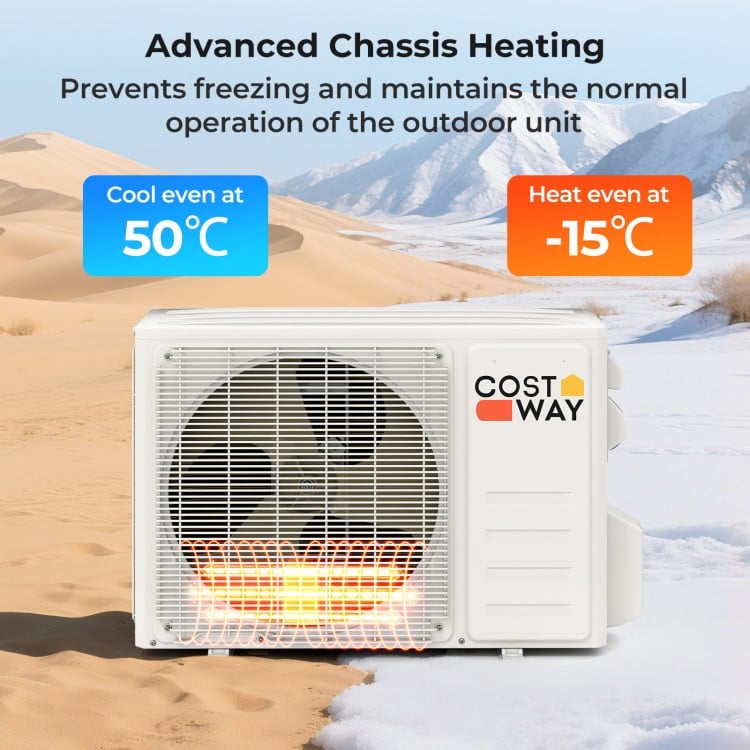

• Advanced chassis heating prevents freezing in cold environments

• Self-cleaning system with 56°C sterilization and washable filter

• Quiet sleep mode with screen-off function for uninterrupted rest

• ETL and AHRI certified for reliable quality and safety

Specifications

• Cooling Capacity: 17,000 BTU

• Heating Capacity: 16,500 BTU

• SEER2: 17

• HSPF2: 8.5

• Cooling Power: 1770 W

• Heating Power: 1440 W

• Voltage: 208–230V / 60Hz

• Minimum Circuit Ampacity: 12A

• Coverage Area: Up to 1250 sq. ft. (116㎡)

• Air Flow Volume: 412 CFM

• Dehumidifying Capacity: 81 Pints/Day (38.4 L/Day)

• Refrigerant: R32

• Temperature Setting Range: 16°C – 31°C

• Operating Ambient Temperature: -15°C – 50°C

• Indoor Noise Level: 28 dB

• Outdoor Noise Level: 57 dB

• Indoor Unit Dimensions: 35.8 x 8.9 x 11.5 in

• Outdoor Unit Dimensions: 32.1 x 11.8 x 21.5 in

• Drain Pipe Diameter: 0.67 in

• Max Remote Control Distance: 39 ft

• Indoor Unit Weight: 24 lbs

• Outdoor Unit Weight: 60.5 lbs

• Color: White

• Material: Metal, Aluminum, Copper, AS

• Box Quantity: 2 (May vary by batch)

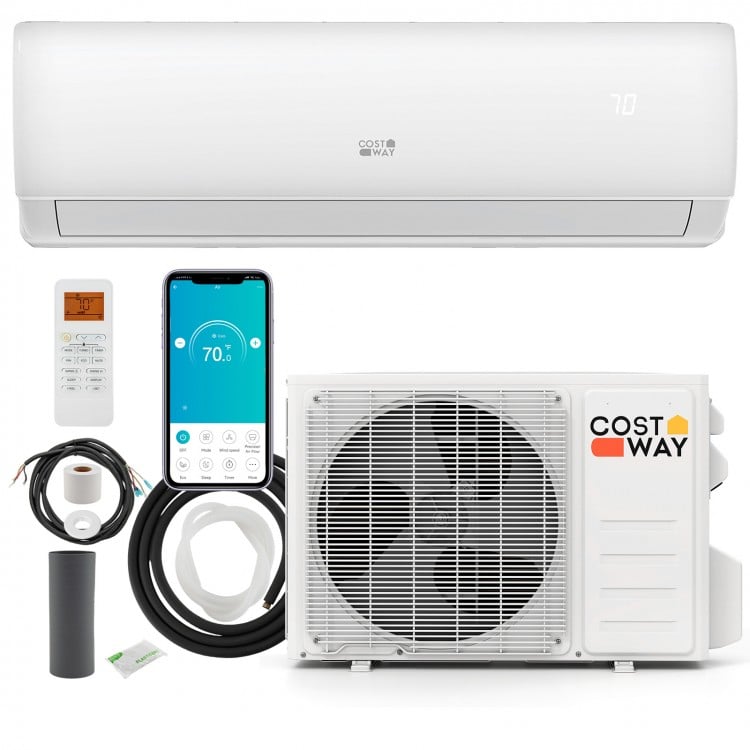

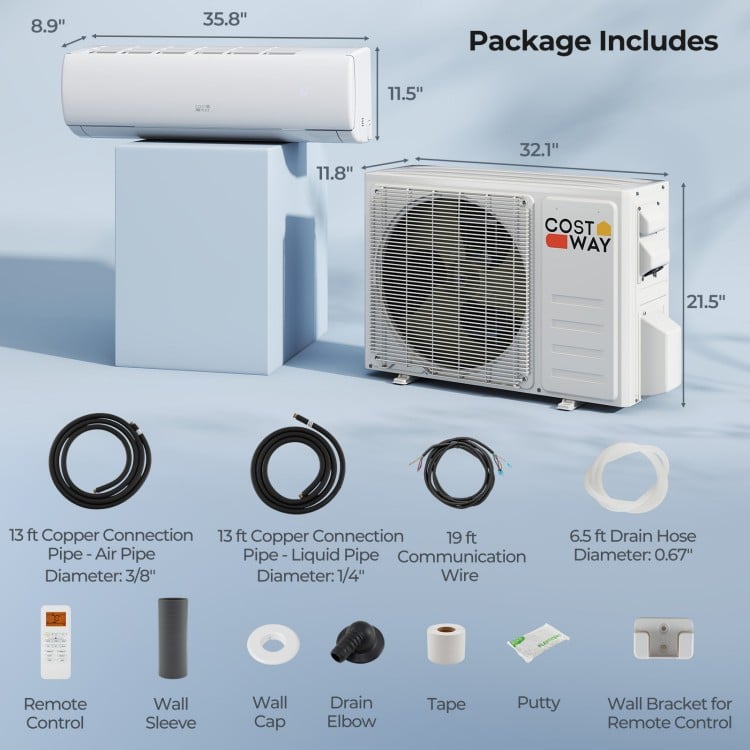

Package Includes

• 1 × Indoor Unit

• 1 × Outdoor Unit

• 1 × 13 ft Copper Connection Pipe (Air Pipe)

• 1 × 13 ft Copper Connection Pipe (Liquid Pipe)

• 1 × 19 ft Communication Wire

• 1 × 6.5 ft Drain Hose

• 1 × Remote Control

• 1 × Remote Control Wall Bracket

• 1 × Wall Sleeve

• 1 × Wall Cap

• 1 × Drain Elbow

• 1 × Tape

• 1 × Putty

• 1 × User Guide
