EchoCool Series 23000 BTU 208/230V Mini Split Air Conditioner and Heater Pump System

The EchoCool Series 23000 BTU Mini Split Air Conditioner and Heater Pump System delivers reliable heating and cooling for large spaces with powerful performance and smart efficiency. Designed for rooms up to 1500 sq. ft., this ductless system features advanced inverter technology and eco-friendly R32 refrigerant for improved energy efficiency and consistent temperature control. With built-in WiFi connectivity, users can easily manage the system through a smartphone app, Alexa, Google Assistant, or the included remote control. Quiet operation, multiple comfort modes, and a self-cleaning system make this mini split a convenient and dependable solution for year-round climate control.

Key Features

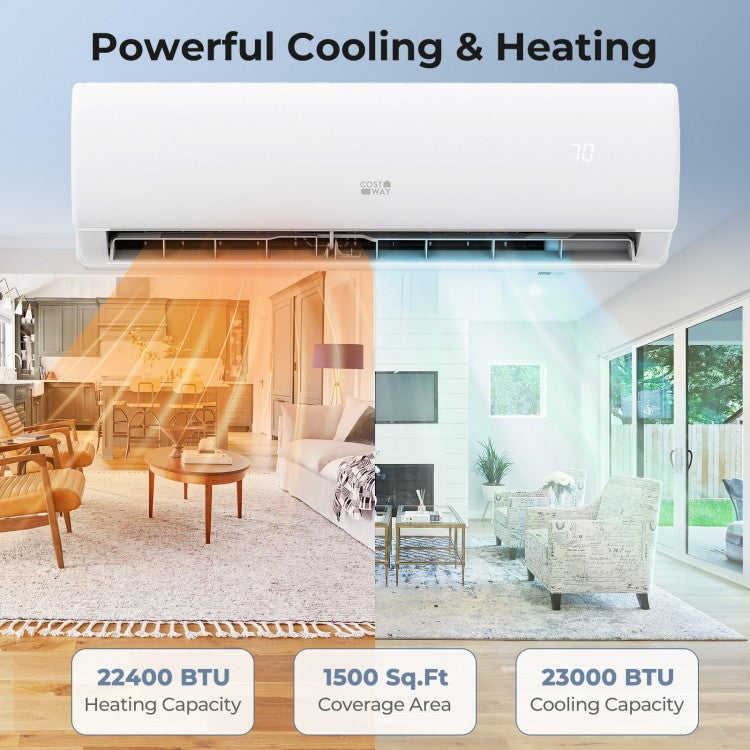

• Powerful 23,000 BTU cooling and 22,400 BTU heating capacity for large spaces

• Covers areas up to 1500 sq. ft. with efficient airflow

• Energy-saving inverter technology reduces compressor cycling

• Eco-friendly R32 refrigerant for improved environmental performance

• WiFi smart control via mobile app, Alexa, and Google Assistant

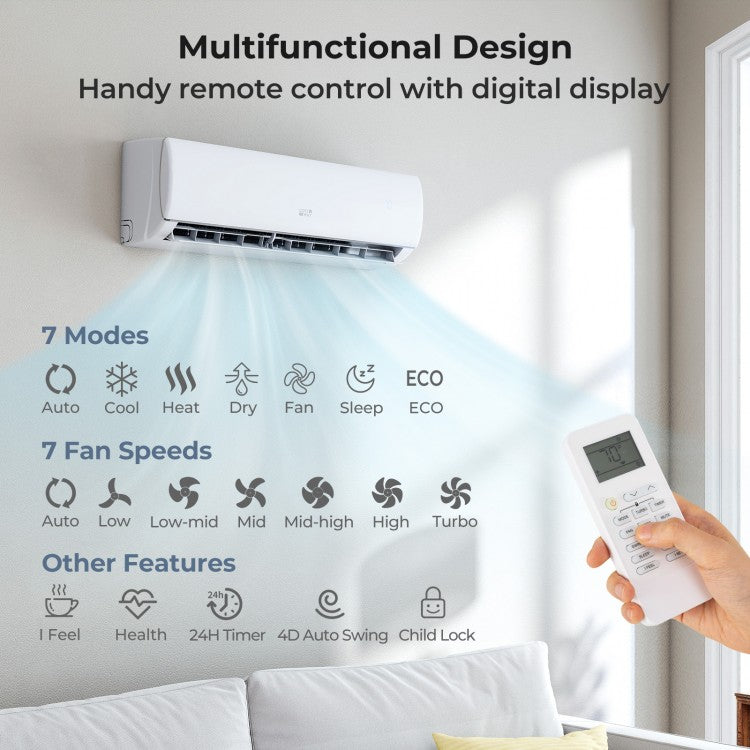

• 7 operating modes including Auto, Cool, Heat, Dry, Fan, Sleep, and ECO

• 7 adjustable fan speeds with 4D automatic airflow swing

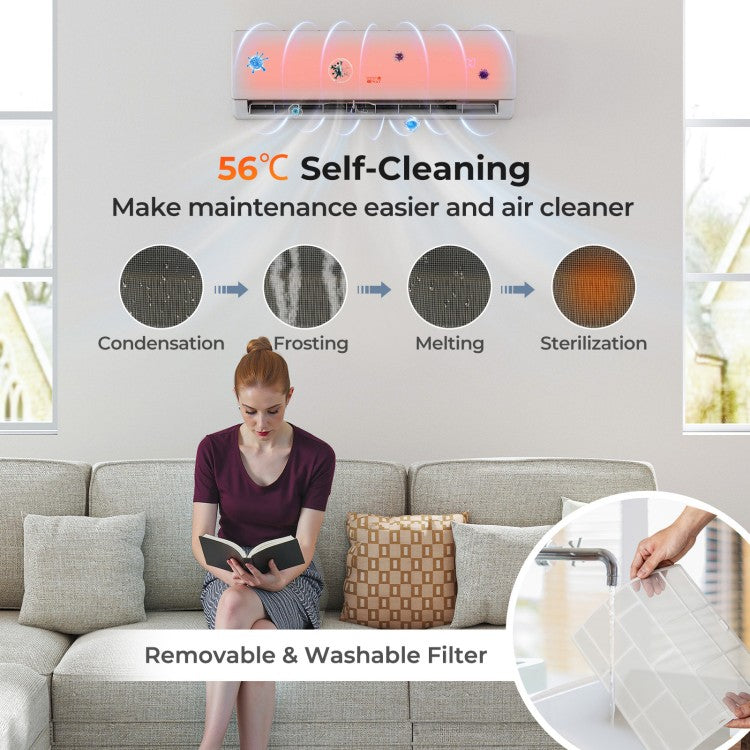

• Self-cleaning system with 56°C sterilization for cleaner air

• Quiet operation with sleep mode and screen-off feature

• Washable air filter for easy maintenance

Specifications

• Cooling Capacity: 23,000 BTU

• Heating Capacity: 22,400 BTU

• SEER2: 17

• HSPF2: 9.5

• Cooling Power: 2365 W

• Heating Power: 1900 W

• Voltage: 208–230V / 60Hz

• Minimum Circuit Ampacity: 17A

• Coverage Area: Up to 1500 sq. ft.

• Air Flow Volume: 676 CFM

• Dehumidifying Capacity: 122 Pints/Day (57.6 L/Day)

• Refrigerant: R32

• Temperature Setting Range: 60°F – 88°F (16°C – 31°C)

• Operating Ambient Temperature: -15°C – 50°C

• Indoor Noise Level: 28 dB

• Outdoor Noise Level: 56 dB

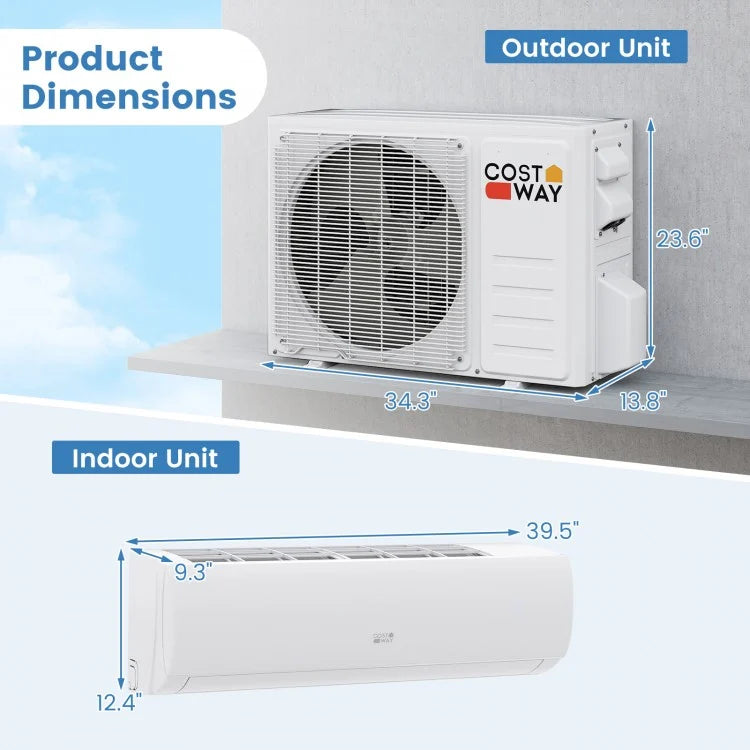

• Indoor Unit Dimensions: 39.5 x 9.3 x 12.4 in

• Outdoor Unit Dimensions: 34.3 x 13.8 x 23.6 in

• Air Pipe Diameter: 1/2 in (12.7 mm)

• Drain Pipe Diameter: 0.67 in

• Max Remote Control Distance: 39 ft

• Indoor Unit Weight: 29 lbs

• Outdoor Unit Weight: 74.5 lbs

• Color: White

• Material: Metal, Aluminum, Copper, AS

• Box Quantity: 2 (May vary by batch)

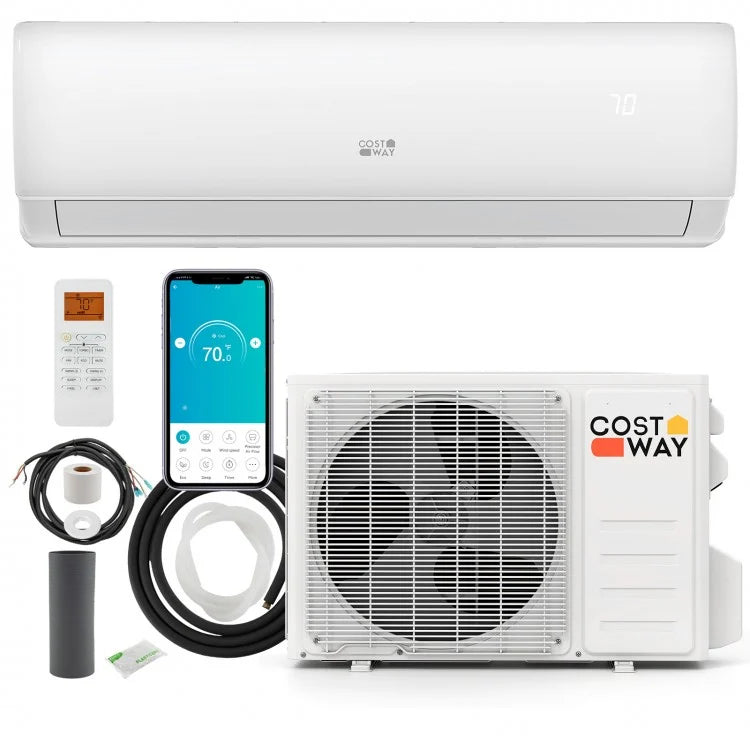

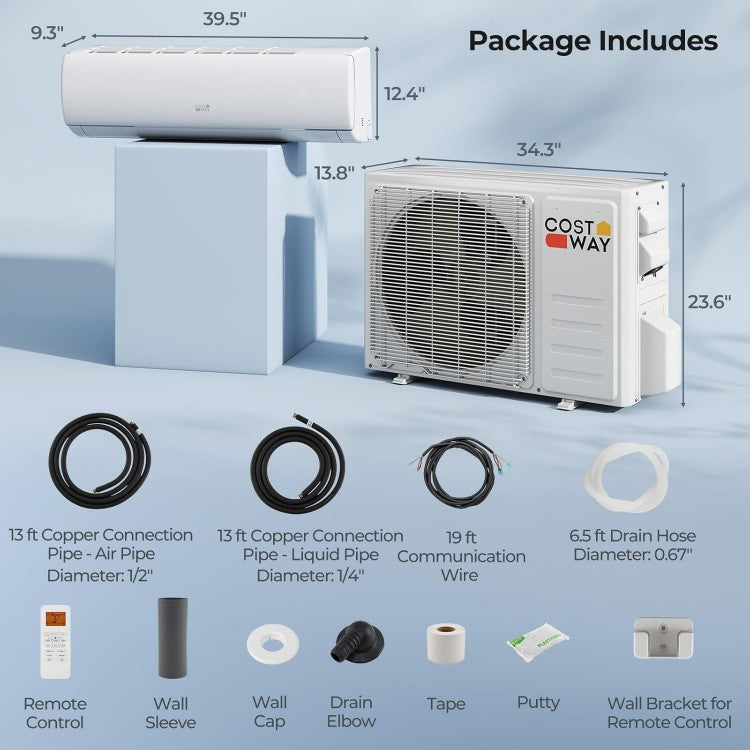

Package Includes

• 1 × Indoor Unit

• 1 × Outdoor Unit

• 1 × 13 ft Copper Connection Pipe (Air Pipe)

• 1 × 13 ft Copper Connection Pipe (Liquid Pipe)

• 1 × 19 ft Communication Wire

• 1 × 6.5 ft Drain Hose

• 1 × Remote Control

• 1 × Remote Control Wall Bracket

• 1 × Wall Sleeve

• 1 × Wall Cap

• 1 × Drain Elbow

• 1 × Tape

• 1 × Putty

• 1 × User Guide
