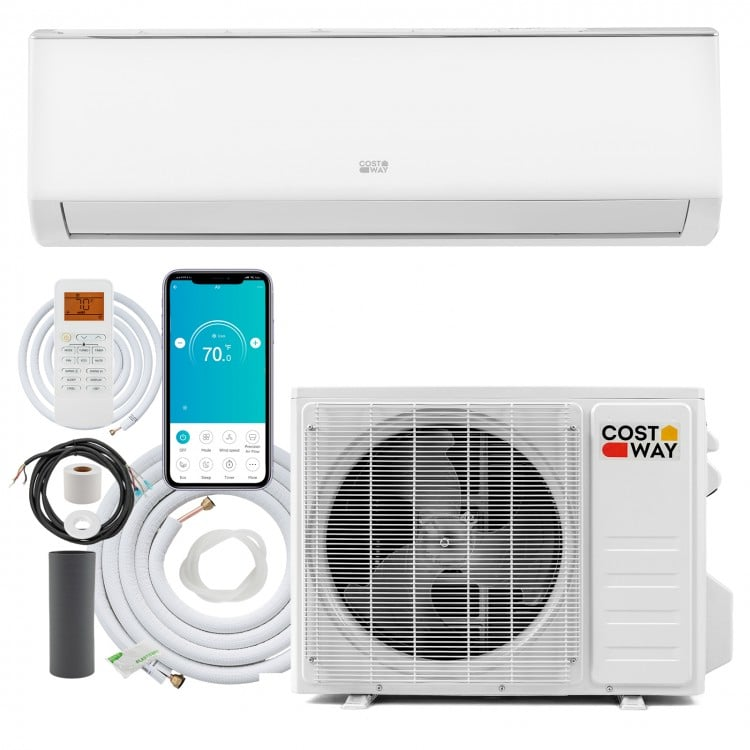

EcoGuard Series 12000 BTU 20 SEER2 115V Mini Split Air Conditioner and Heater

The 12000 BTU Mini Split Air Conditioner and Heat Pump delivers efficient heating and cooling for medium-sized spaces up to 600 sq. ft. Featuring advanced inverter technology and eco-friendly R454B refrigerant, this ductless system maintains steady temperatures while reducing energy consumption. WiFi-enabled, it allows remote control via smartphone, Alexa, or Google Assistant, while the included remote provides backup control. With multiple operating modes, quiet operation, and intelligent airflow distribution, this mini split ensures year-round comfort and convenience.

Key Features

• 12,000 BTU cooling and heating capacity for spaces up to 600 sq. ft.

• High efficiency with 20 SEER2 and 9.5 HSPF2 ratings

• Advanced inverter technology reduces energy use and stabilizes operation

• Low-GWP R454B refrigerant for environmentally friendly cooling and heating

• WiFi smart control compatible with Alexa and Google Assistant

• 7 operating modes: Auto, Cool, Heat, Dry, Fan, ECO, Sleep

• 8 fan speeds from mute to turbo for customizable airflow

• 4D swing distributes air evenly for fewer hot or cold spots

• Quiet operation as low as 28 dB

• Self-cleaning function and washable filters for easy maintenance

• Child lock and 24-hour timer for safety and convenience

Specifications

• Cooling Capacity: 12,000 BTU

• Heating Capacity: 12,000 BTU

• SEER2: 20

• HSPF2: 9.5

• Rated Input Consumption (Cooling): 1050 W

• Rated Input Consumption (Heating): 1030 W

• Voltage: 115V

• Frequency: 60Hz

• Coverage Area: Up to 600 sq. ft.

• Maximum Air Flow Volume: 306 CFM

• Dehumidification Capacity: 81.2 Pints/Day

• Temperature Setting Range: 16℃ – 31℃

• Operating Ambient Temperature: -20℃ – 53℃

• Refrigerant: R454B

• Indoor Noise Level: 28 dB

• Gas Pipe Diameter: 3/8 in

• Liquid Pipe Diameter: 1/4 in

• Max Remote Control Distance: 26 ft

• Indoor Unit Dimensions: 31.93 x 7.99 x 11.5 in

• Outdoor Unit Dimensions: 30.98 x 11.42 x 19.61 in

• Indoor Unit Weight: 19.8 lbs

• Outdoor Unit Weight: 55.1 lbs

• Color: White

• Material: Cold-rolled Steel Sheet, Copper, Aluminum

• Box Quantity: 2

• Assembly Required: Yes

Package Includes

• 1 × Indoor Unit

• 1 × Outdoor Unit

• 1 × 13 ft Communication Wire

• 1 × 16.4 ft Copper Connection Pipe (Liquid Pipe)

• 1 × 16.4 ft Copper Connection Pipe (Gas Pipe)

• 1 × 6.5 ft Drain Pipe

• 1 × Insulation Foam

• 1 × Remote Control

• 1 × Remote Control Holder

• 1 × Wall Sleeve

• 1 × Wall Cap

• 1 × Tape

• 1 × Putty

• 1 × User Guide
