EcoGuard Series 12000 BTU 20 SEER2 208-230V Mini Split Air Conditioner and Heater

The 12,000 BTU Mini Split Air Conditioner and Heat Pump delivers efficient heating and cooling for spaces up to 600 sq. ft. Engineered with chassis electrical heating, it performs reliably in extreme temperatures, heating at -20℃ and cooling at 53℃. WiFi-enabled, this ductless system allows control via smartphone, Alexa, or Google Assistant, with a convenient remote included. Featuring multiple operating modes, ultra-quiet operation, and 4D air distribution, it ensures customizable comfort with minimal energy use.

Key Features

• 12,000 BTU cooling and heating capacity for rooms up to 600 sq. ft.

• Energy-efficient 20 SEER2 and 9.5 HSPF2 ratings

• Advanced inverter technology stabilizes temperature and reduces energy consumption

• Low-GWP R454B refrigerant for eco-friendly heating and cooling

• WiFi smart control compatible with Alexa and Google Assistant

• 7 operating modes: Auto, Cool, Heat, Dry, Fan, ECO, Sleep

• 8 fan speeds from mute to turbo for tailored airflow

• 4D swing for even air distribution and fewer hot/cold spots

• Quiet operation as low as 28 dB

• Self-cleaning function and washable filters for easy maintenance

• Child lock and 24-hour timer for added convenience

Specifications

• Cooling Capacity: 12,000 BTU

• Heating Capacity: 12,000 BTU

• SEER2: 20

• HSPF2: 9.5

• Rated Input Consumption (Cooling/Heating): 1,050 W / 1,030 W

• Voltage: 208–230V

• Frequency: 60Hz

• Coverage Area: 600 sq. ft.

• Maximum Air Flow Volume: 306 CFM

• Dehumidification Capacity: 81.2 Pints/Day

• Temperature Setting Range: 16℃ – 31℃

• Operating Ambient Temperature: -20℃ – 53℃

• Refrigerant: R454B

• Indoor Noise Level: 28 dB

• Gas Pipe Diameter: 3/8 in

• Liquid Pipe Diameter: 1/4 in

• Max Remote Control Distance: 26 ft

• Indoor Unit Dimensions: 31.93 × 7.99 × 11.5 in

• Outdoor Unit Dimensions: 30.98 × 11.42 × 19.61 in

• Indoor Unit Weight: 19.8 lbs

• Outdoor Unit Weight: 55.1 lbs

• Color: White

• Material: Cold-rolled Steel Sheet, Copper, Aluminum

• Box Quantity: 2

• Assembly Required: Yes

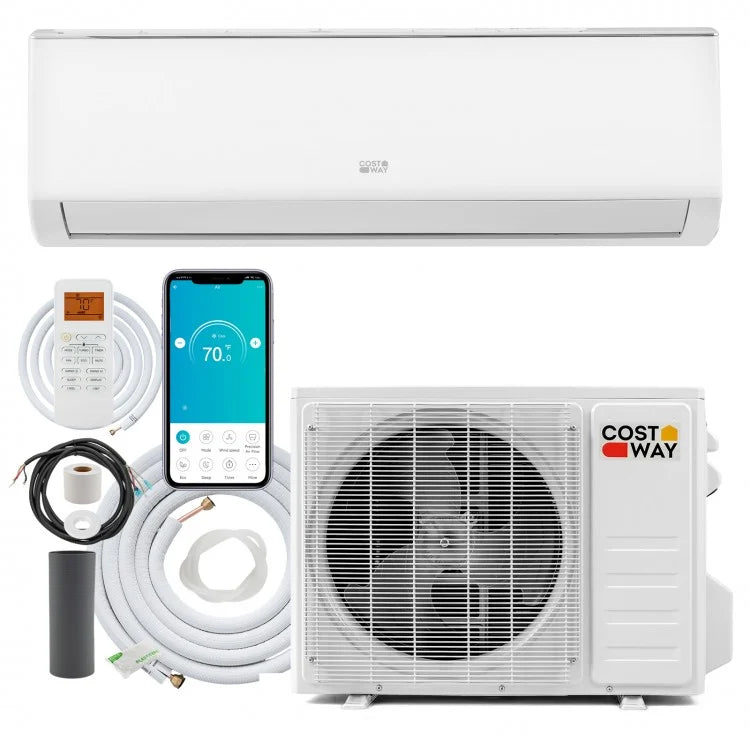

Package Includes

• 1 × Indoor Unit

• 1 × Outdoor Unit

• 1 × 13 ft Communication Wire

• 1 × 16.4 ft Copper Connection Pipe (Liquid)

• 1 × 16.4 ft Copper Connection Pipe (Gas)

• 1 × 6.5 ft Drain Pipe

• 1 × Insulation Foam

• 1 × Remote Control

• 1 × Remote Control Holder

• 1 × Wall Sleeve

• 1 × Wall Cap

• 1 × Tape

• 1 × Putty

• 1 × User Guide
