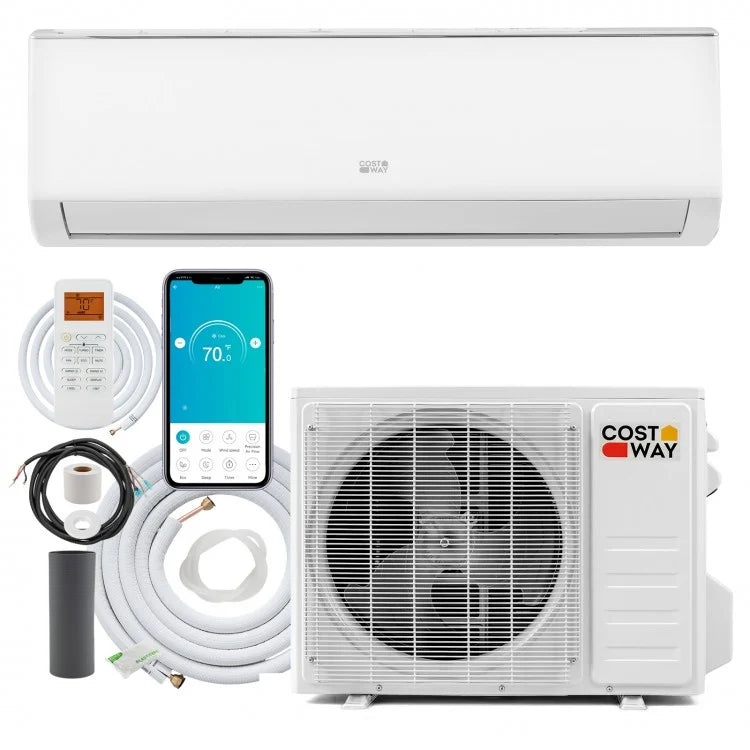

EcoGuard Series 9000 BTU 20 SEER2 208-230V Mini Split Air Conditioner and Heater

The 9000 BTU Mini Split Air Conditioner and Heat Pump provides efficient heating and cooling for small to medium spaces up to 400 sq. ft. Equipped with advanced inverter technology and eco-friendly R454B refrigerant, this ductless system maintains stable temperatures while reducing energy consumption. WiFi-enabled, it allows remote control via smartphone, Alexa, or Google Assistant, with an included remote for backup. With multiple operating modes, low noise, and 4D air distribution, this mini split ensures comfortable and customizable climate control year-round.

Key Features

• 9,000 BTU cooling and 10,000 BTU heating capacity for spaces up to 400 sq. ft.

• High efficiency with 20 SEER2 and 10 HSPF2 ratings

• Advanced inverter technology stabilizes temperatures and reduces energy consumption

• Low-GWP R454B refrigerant for environmentally friendly operation

• WiFi smart control compatible with Alexa and Google Assistant

• 7 operating modes: Auto, Cool, Heat, Dry, Fan, ECO, Sleep

• 8 fan speeds from mute to turbo for customizable airflow

• 4D swing distributes air evenly for fewer hot or cold spots

• Quiet operation as low as 28 dB

• Self-cleaning function and washable filters for easy maintenance

• Child lock and 24-hour timer for safety and convenience

Specifications

• Cooling Capacity: 9,000 BTU

• Heating Capacity: 10,000 BTU

• SEER2: 20

• HSPF2: 10

• Rated Input Consumption (Cooling/Heating): 750 W

• Voltage: 208–230V

• Frequency: 60Hz

• Coverage Area: Up to 400 sq. ft.

• Maximum Air Flow Volume: 342 CFM

• Dehumidification Capacity: 55.8 Pints/Day

• Temperature Setting Range: 16℃ – 31℃

• Operating Ambient Temperature: -20℃ – 53℃

• Refrigerant: R454B

• Indoor Noise Level: 28 dB

• Gas Pipe Diameter: 3/8 in

• Liquid Pipe Diameter: 1/4 in

• Max Remote Control Distance: 26 ft

• Indoor Unit Dimensions: 31.93 x 7.99 x 11.5 in

• Outdoor Unit Dimensions: 30.98 x 11.42 x 19.61 in

• Indoor Unit Weight: 19.8 lbs

• Outdoor Unit Weight: 48.5 lbs

• Color: White

• Material: Cold-rolled Steel Sheet, Copper, Aluminum

• Box Quantity: 2

• Assembly Required: Yes

Package Includes

• 1 × Indoor Unit

• 1 × Outdoor Unit

• 1 × 13 ft Communication Wire

• 1 × 16.4 ft Copper Connection Pipe (Liquid Pipe)

• 1 × 16.4 ft Copper Connection Pipe (Gas Pipe)

• 1 × 6.5 ft Drain Pipe

• 1 × Insulation Foam

• 1 × Remote Control

• 1 × Remote Control Holder

• 1 × Wall Sleeve

• 1 × Wall Cap

• 1 × Tape

• 1 × Putty

• 1 × User Guide
