Description

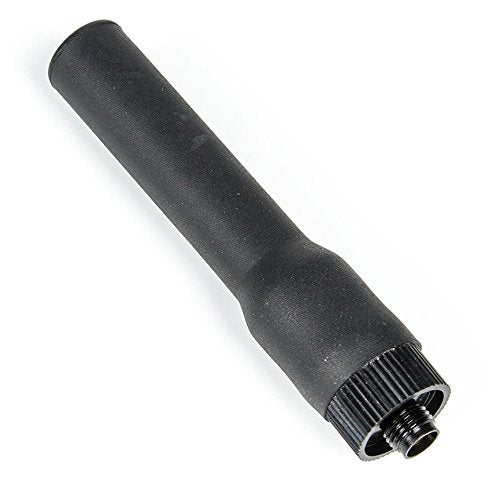

Compact, durable, and efficient — the Genuine Nagoya NA-810 Stubby Antenna offers exceptional performance in a small, flexible design. Measuring only 2.5 inches, this dual-band antenna is ideal for those who prefer a low-profile, rugged antenna without compromising signal quality. Each Nagoya antenna is precisely tuned and tested for its frequency range, ensuring excellent VHF/UHF reception and transmission. The NA-810’s ultra-flexible build allows it to bend up to 180°, making it highly resistant to damage from daily use. Perfect for portable and discreet operation, this stubby antenna is compatible with all Baofeng, BTECH, and Kenwood radios using an SMA-Female connector.
Features:
-
Certified Genuine: Authentic Nagoya NA-810 antenna, individually tuned and factory tested.
-
Compact Design: Only 2.5 inches long for a discreet, portable, and lightweight profile.
-

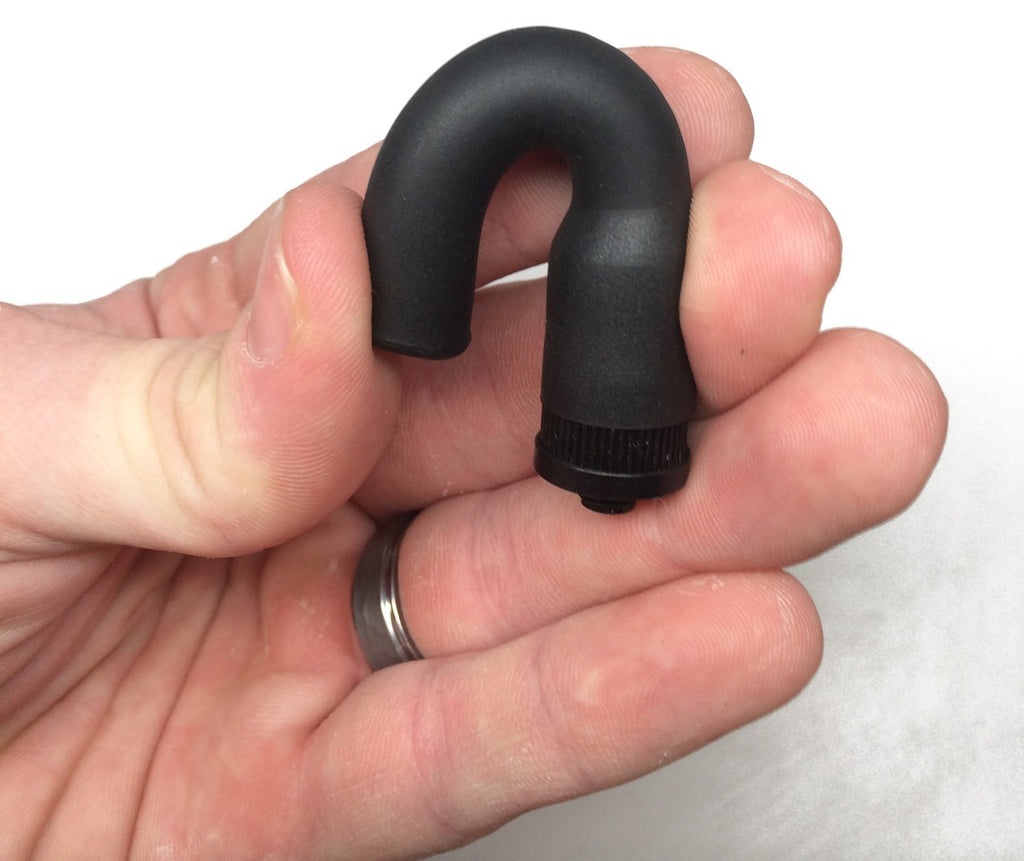

High Flexibility: Soft, durable whip design bends up to 180° without losing signal integrity.
-
Dual-Band Coverage: Supports 144/430MHz (VHF/UHF) frequencies for reliable communication.
-
Rugged Construction: Built to handle everyday wear, outdoor use, and rough conditions.
-
Enhanced Reception: Offers superior tuning and clarity compared to standard stock antennas.
-

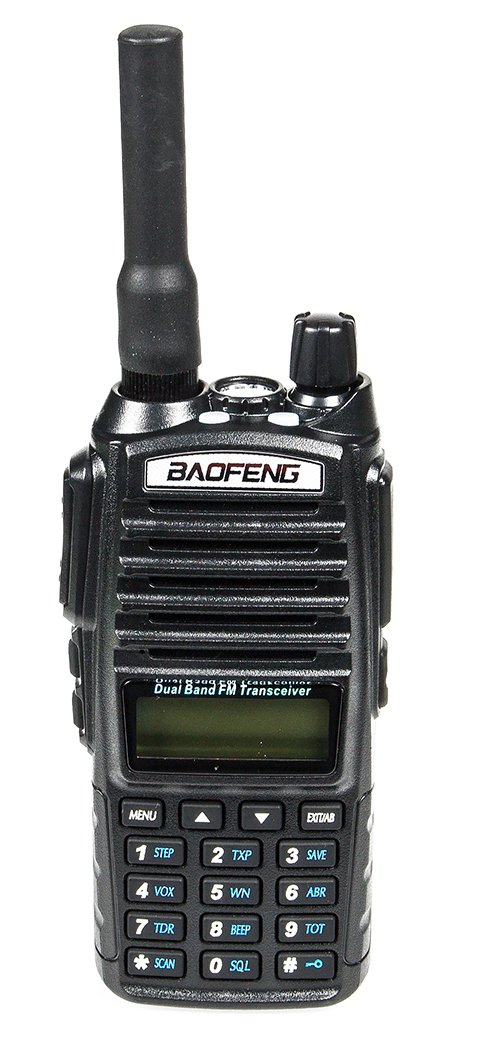

Universal Fit: Compatible with Baofeng UV-5R, UV-82, BF-F8HP, BTECH, Kenwood, and other SMA-Female radios.
-
Easy Installation: Quick screw-on connection—no adapter or tuning required.
Specification:
-
Model: Nagoya NA-810
-
Frequency Range: 136–174MHz (VHF), 400–520MHz (UHF)
-
Wave: 1/4λ (144MHz), 1/4λ (430MHz)
-
Gain: 1.5dBi (approx.)
-
Max Power: 10 Watts
-
VSWR: < 1.5:1
-
Impedance: 50 Ohm
-
Connector: SMA-Female
-
Length: 2.5 inches (6.4 cm)
-
Flexibility: 180° bendable soft whip
-
Compatibility: Baofeng UV-5R, UV-82, BF-F8HP, BF-F8+, BTECH GMRS-V1, MURS-V1, UV-5X3, Kenwood TK series, and similar models
-
Note: Not compatible with Baofeng UV-9R waterproof radios
