Description
The Dovoh H3-360G-KIT Outdoor Laser Level with Receiver offers the ultimate solution for accurate alignment and leveling in outdoor and large-scale projects. Featuring 3x360° laser lines and a high-performance receiver, this laser level ensures that you can achieve perfect horizontal and vertical alignment even in challenging conditions. The green laser technology offers exceptional visibility, making it easier to work in direct sunlight or bright environments. Designed for outdoor applications such as construction, landscaping, and surveying, the Dovoh H3-360G-KIT is equipped with a rugged receiver for enhanced detection and precision over long distances, making it ideal for professional and DIY projects alike.
Features:
- 3x360° Laser Lines: Provides full coverage of horizontal and vertical alignment for large-area projects, making it ideal for outdoor tasks.

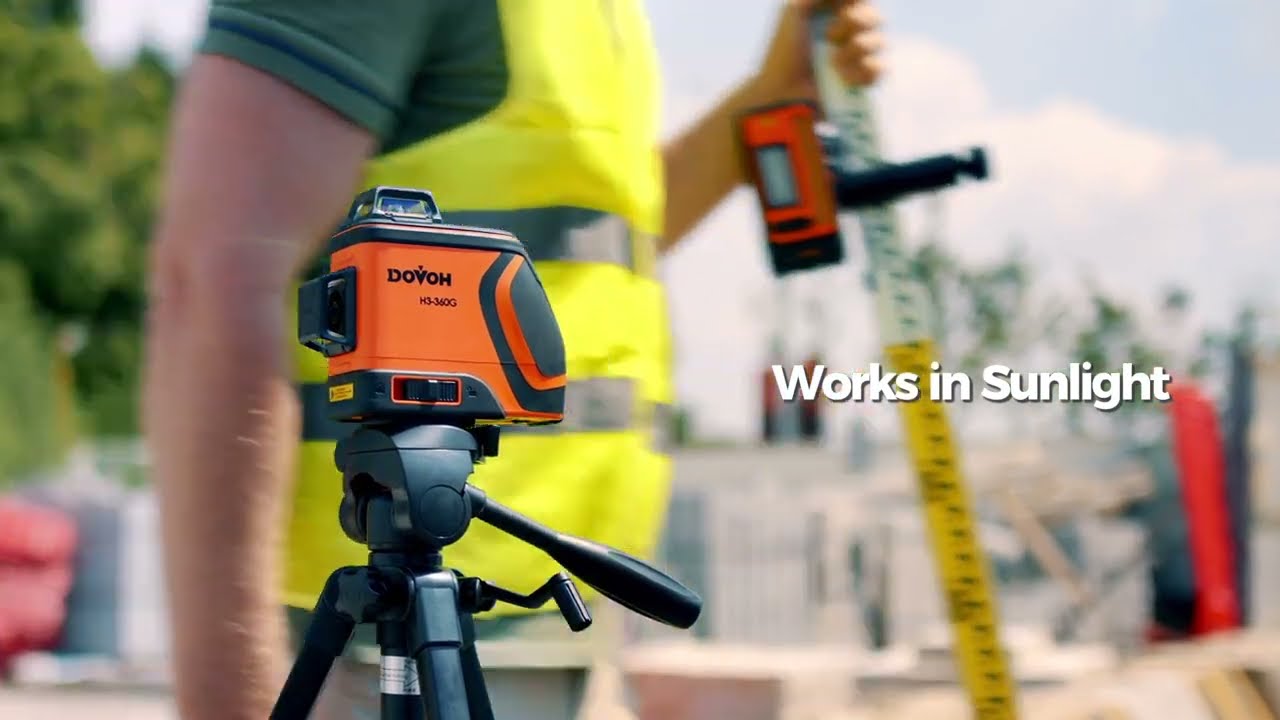

- Green Laser Technology: Ensures superior visibility, even in bright sunlight, for clear and precise measurements.

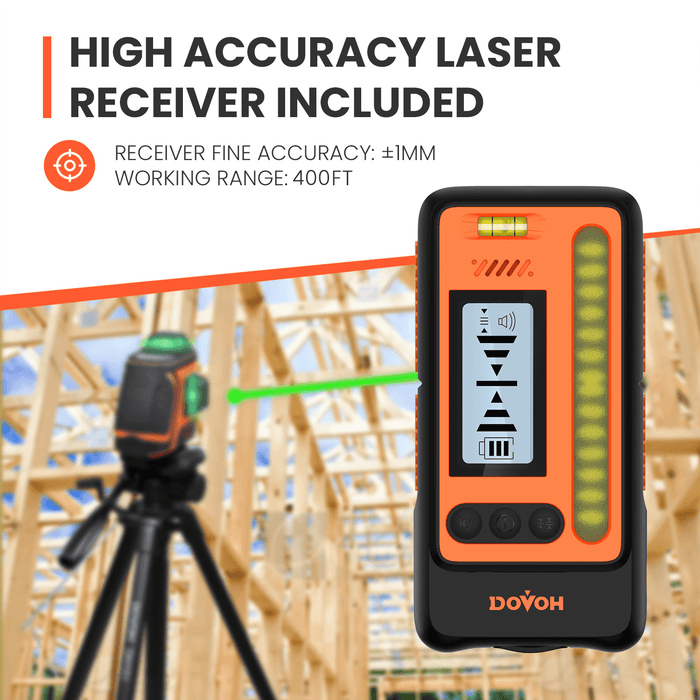

- High-Performance Receiver: Enhances detection and precision, ensuring accurate alignment over long distances, perfect for outdoor and large-scale applications.
- Durable and Weather-Resistant: Built to withstand outdoor elements, offering reliable performance in various weather conditions.
- Self-Leveling Function: Automatically calibrates for optimal accuracy and minimal setup, reducing time spent on manual adjustments.
- Wide Range: Suitable for large projects such as surveying, fencing, foundations, and landscaping.
- Compact and Portable Design: Easy to carry and transport, ideal for both professionals and DIY enthusiasts working in outdoor environments.
specifications:
- Model: H3-360G
- Laser Class: Ⅱ
- Item Dimensions: 5.91x3.15x4.92in (150x80x125mm)
- Item Weight: 825g
- Laser Type: 520nm, <1mw
- Laser Beam: Green
- Working Range (300LUX): 98ft/30m
- Working Range (with laser receiver): Up to 400ft/122m
- Working Time with 4 laser lines: 18 hours
- Working Time with 8 laser lines: 11 hours
- Working Time with 12 laser lines: 8 hours
- Leveling Accuracy: ±1/13 in. at 33ft (±2mm/10m)
- Self-leveling Range: ±4°
- Self-leveling Time: < 4 seconds
- Power Adapter: 5V=1A
- Battery: 7.4V 2600mAh Li-ion Battery
- Charger:
- Input: 5V=1A
- Output: 500mA
- Charging Time: About 6 hours
- Charging Port: Type-C
- Thread Mount: 1/4"-20 & 5/8"-11
- IP Rating: IP54 (Water & Dustproof)
- Operation Max. Humidity: 90%
- Operation Temperature: -10℃ ~ 40℃ (14℉ ~ 104℉)
- Storage Temperature: -20℃ ~ 70℃ (-4℉ ~ 158℉)
- Article number: 102107
- Working range: 5-X m
- Reception angle: 90º
- Reception accuracy:
- Fine: ±1mm
- Coarse: ±3mm
- Operating temperature: -10℃ to +50℃
- Storage temperature: -10℃ to +70℃
- Relative air humidity max: 90%
- Pollution degree according to IEC 61010-1: 3
- Batteries: 2×1.5V LR6(AA)
- Approx. operating time: 14h
- Weight according to EPTA-Procedure 01:2014: 227g
- Dimensions (length x width x height): 72x25x142mm
- Protection rating: IP54 (dust and splash-proof)

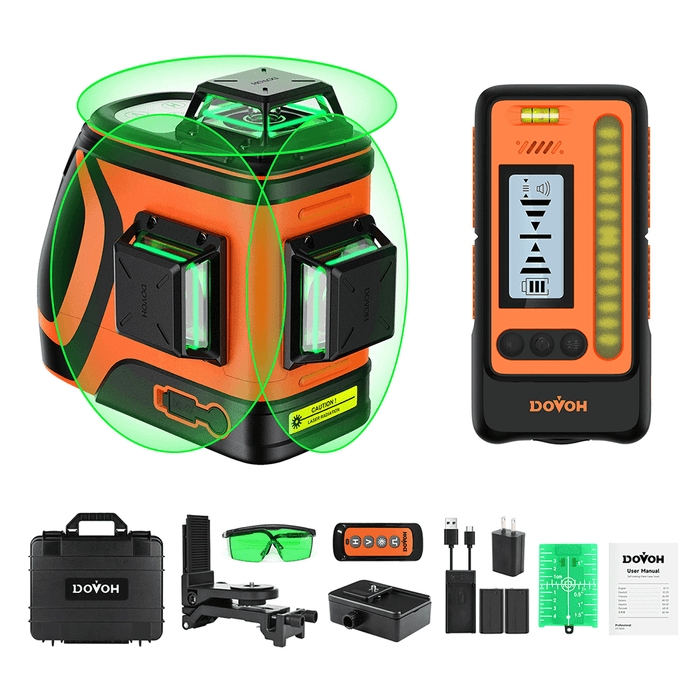

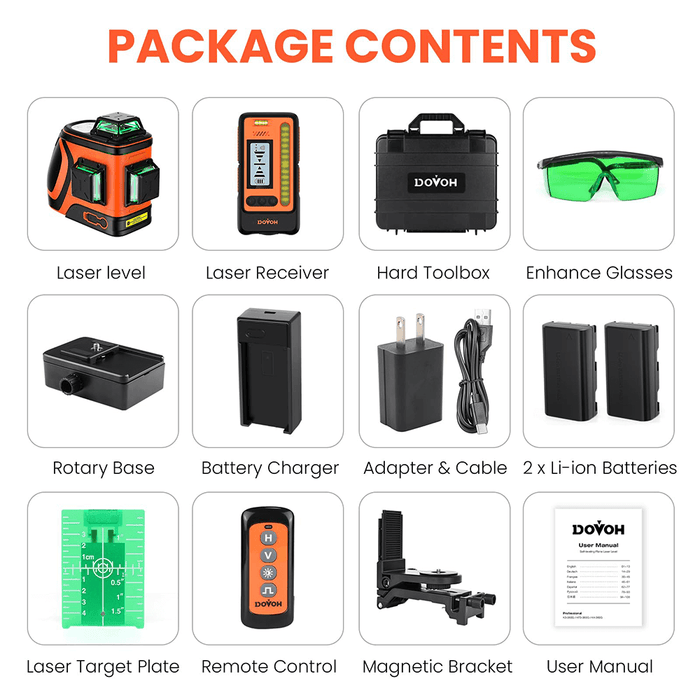

Packing List:
- 1 x Outdoor Laser Level
- 1 x Laser Receiver
- 1 x Hard Toolbox
- 1 x Enhance Glasses
- 1 x Rotary Base
- 1 x Battery Charger
- 1 x Adapter & 1 x Type-C Cable
- 2 x Li-ion Batteries
- 1 x Green Target Plate
- 1 x Remote Control
- 1 x Magnetic Bracket
- 1 x User Manual
