Description

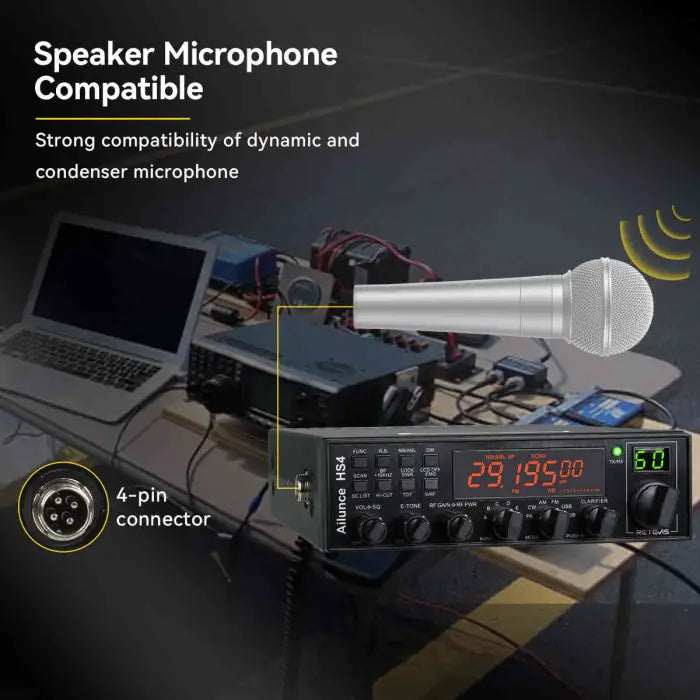

Updated for 2024, the Retevis HS4 10+ Meter Mobile CB Style Amateur Ham Radio now includes CTCSS/DCS tones and supports both Electret and Dyna style mics via its 4-pin microphone connector. With six operational modes (PA/AM/FM/USB/LSB/CW), versatile frequency bands, and long-range communication capability, this mobile SSB radio ensures clear and reliable operation. Features include a large LCD, noise reduction, dual watch function, SWR protection, and keypad lock for enhanced usability.
Features:
-

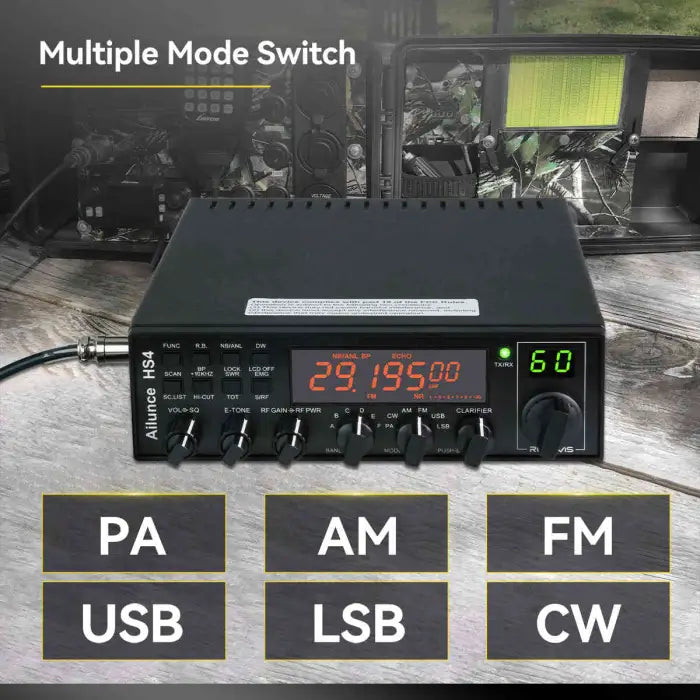

Operational Modes: PA / AM / FM / USB / LSB / CW, with Morse code CW mode and 2.5mm key plug
-

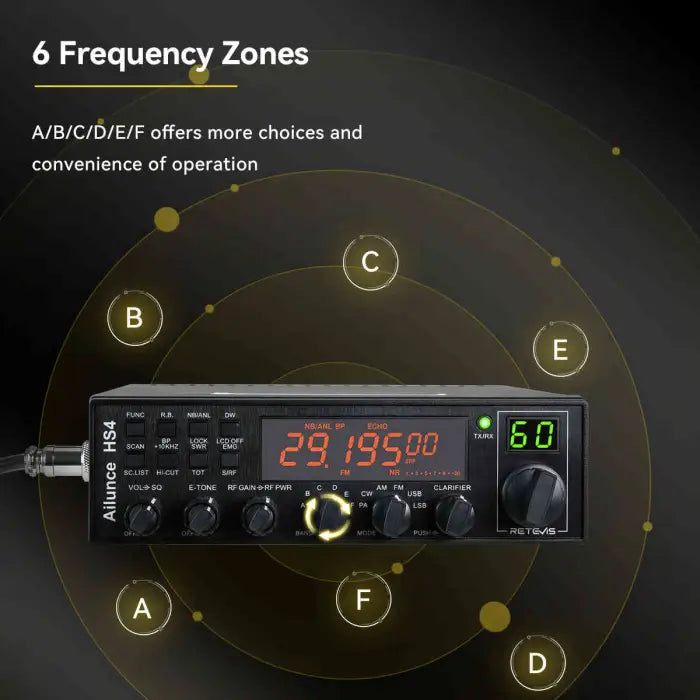

Frequency Bands: 6 channelized zones (A/B/C/D/E/F) for maximum coverage
-

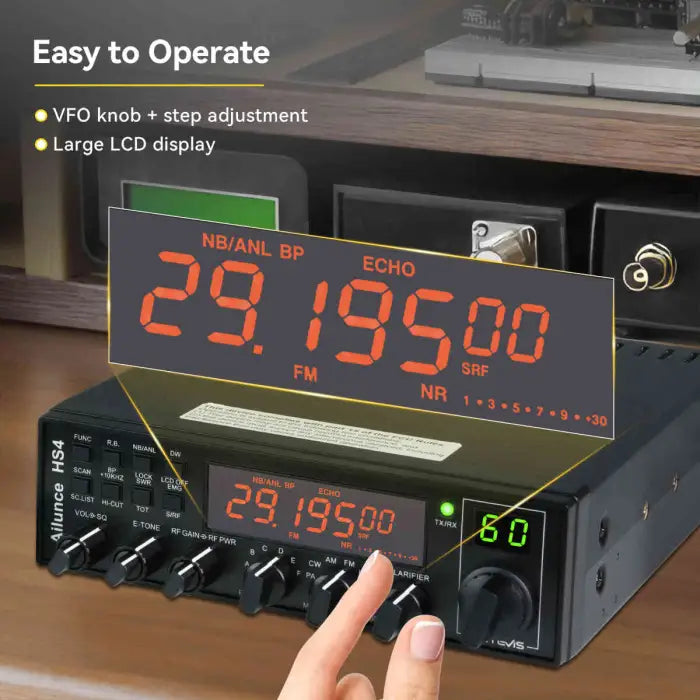

Large LCD Display: Shows complete frequencies and function operations
-

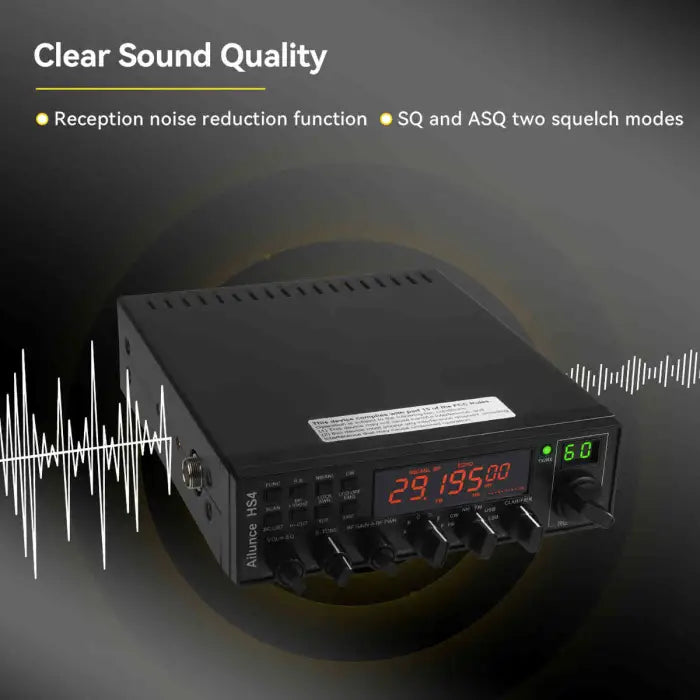

Clear Sound Quality: Supports squelch and noise reduction functions
-
CTCSS/DCS: 104 codes for secure communication
-

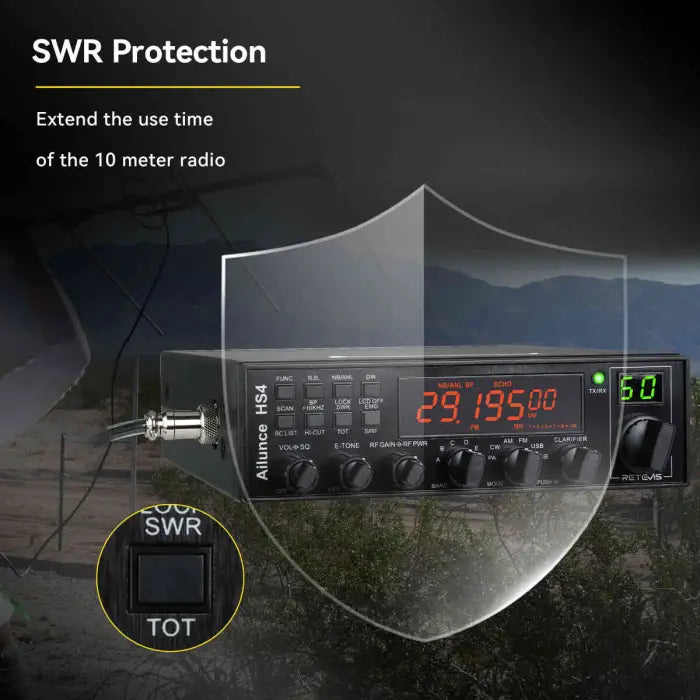

SWR Protection: Protects radio from high SWR damage
-

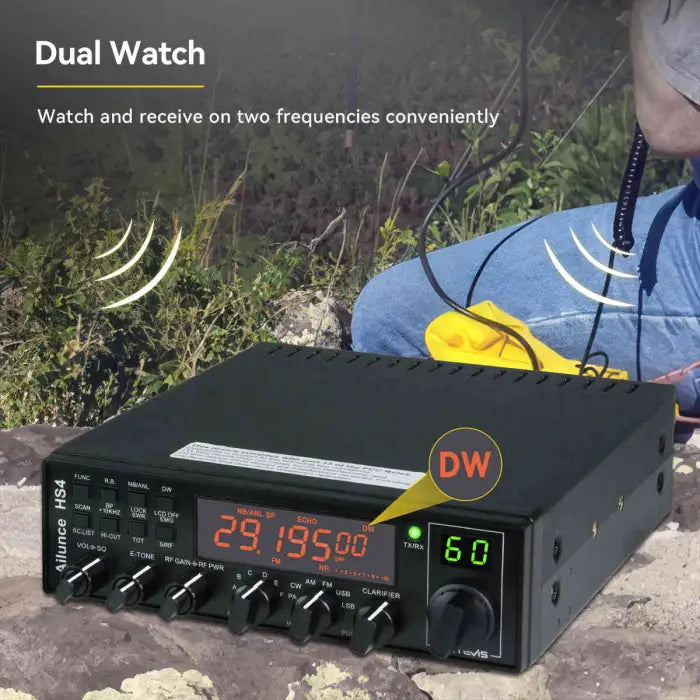

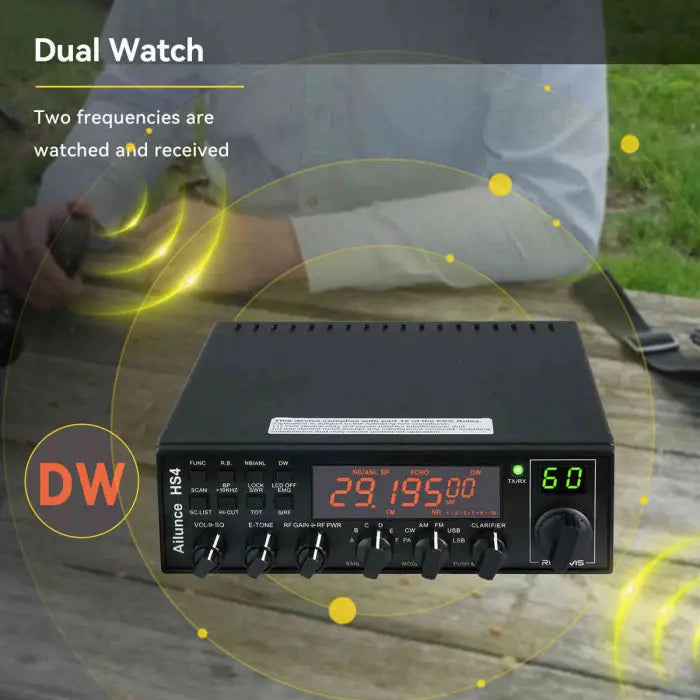

Dual Watch Function: Receives on two frequencies alternately
-
Keypad Lock: Prevents accidental frequency or setting changes
-
VFO Knob: Adjustable frequency rotation with optional step values
Specifications:
-
Frequency Range: 28.000 MHz – 29.700 MHz
-
Frequency Bands: A/B/C/D/E/F
-
Channels: 60 programmable channels
-
Frequency Control: Phase-Locked-Loop Synthesizer
-
Frequency Step: 10Hz / 100Hz / 1KHz / 10KHz
-
Frequency Tolerance: 0.005%
-
Frequency Stability: 0.001%
-
Temperature Range: -30℃ to +50℃
-
Microphone: Plug-in dynamic with PTT / UP / DN / ASQ switch, coiled cord
-

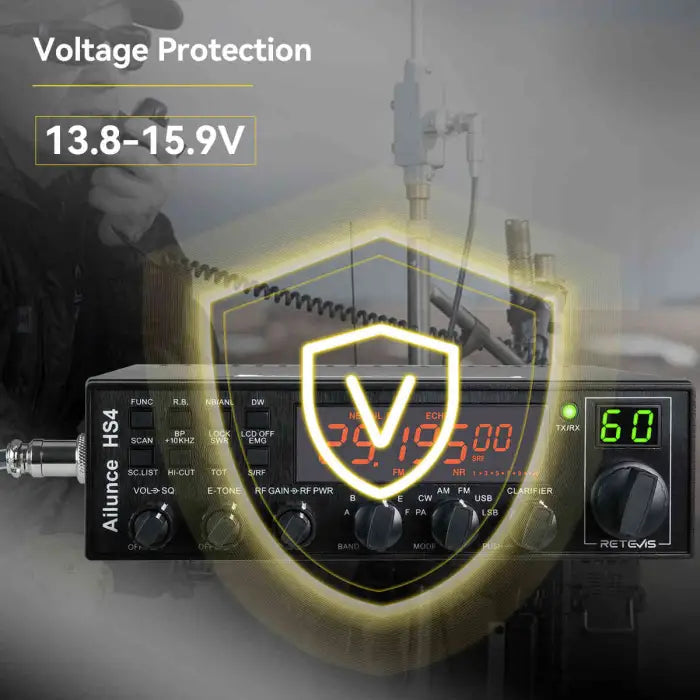

Input Voltage: DC 13.8V normal, 15.9V max, 11.7V min
-
Transmit Current: AM full mod 6A, SSB 30W PEP output 9A
-

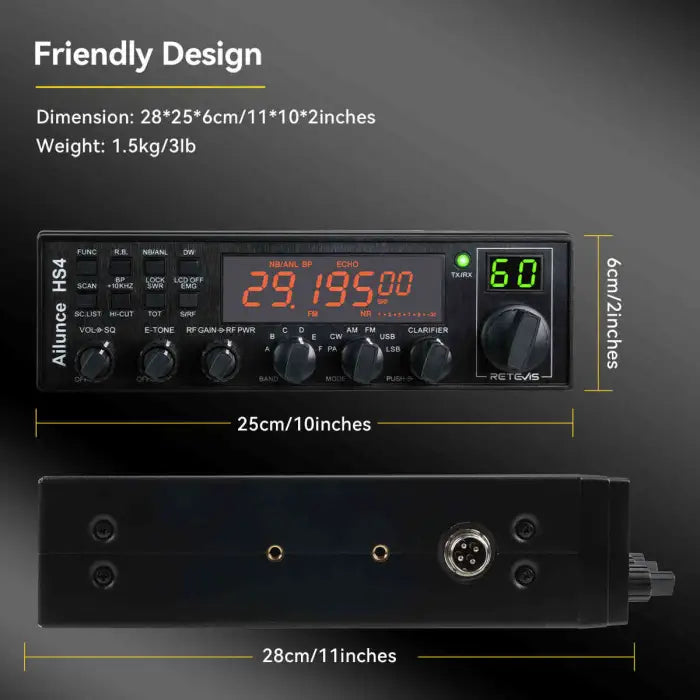

Size: 28 x 25 x 6 cm
-
Weight: 1.5 kg
-
Antenna Connector: UHF, SO239
Transmitter:
-
Power Output: AM/CW 1–12W, FM 1–40W, USB/LSB 1–35W (adjustable)
-
Modulation: AM / FM
-
Inter-modulation Distortion: SSB 3rd order > -25dB, 5th order > -35dB
-
SSB Carrier Suppression: 55dB
-
Unwanted Sideband: 50dB
-
Frequency Response: AM/FM 450–2500 Hz
-
Output Impedance: 50Ω, unbalanced
-
Sensitivity: SSB 0.25μV (10dB S+N/N), AM 1.0μV, FM 1.0μV
-
Selectivity: AM/FM 6dB@3KHz, 50dB@9KHz, SSB 6dB@2.1KHz, 60dB@3.3KHz
-
Image Rejection: >65dB
-
IF Frequency: AM/FM 10.695 MHz 1st IF, 455 kHz 2nd IF; SSB 10.695 MHz
-
Adjacent Channel: 60dB AM/FM, 70dB SSB
Receiver:
-
RF Gain Control: 45 dB adjustable
-
Automatic Gain Control (AGC): <10 dB change for 10–100,000 μV input
-
Squelch: Adjustable, threshold <0.5μV; Automatic Squelch for AM/FM 0.5μV
-
ANL: Switchable
-
Noise Blanker: RF type, effective on AM/FM/SSB
-
Audio Output Power: 3W into 8Ω
-
Frequency Response: 300–2800 Hz
-
Built-in Speaker: 8Ω, round
-
External Speaker: 8Ω (disables internal speaker when connected)
Programming Software & Manual:
-
Owners Manual included

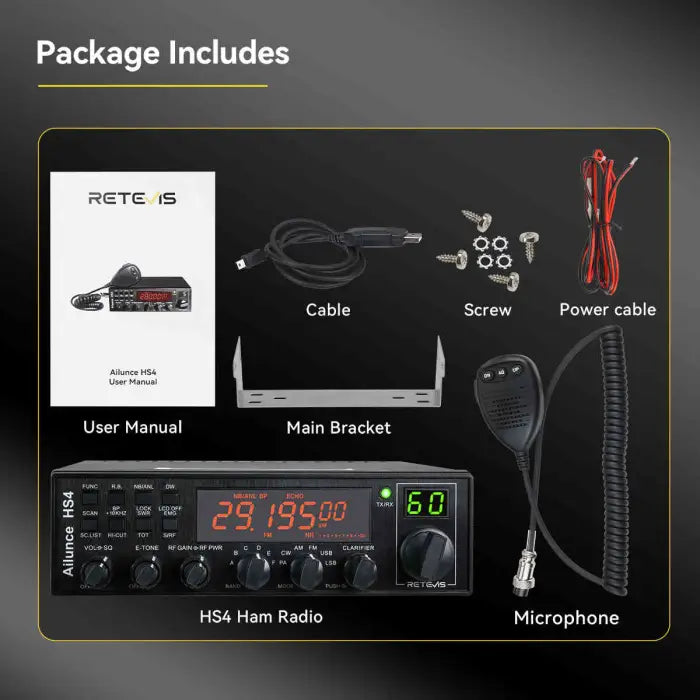

What’s in the Box:
-

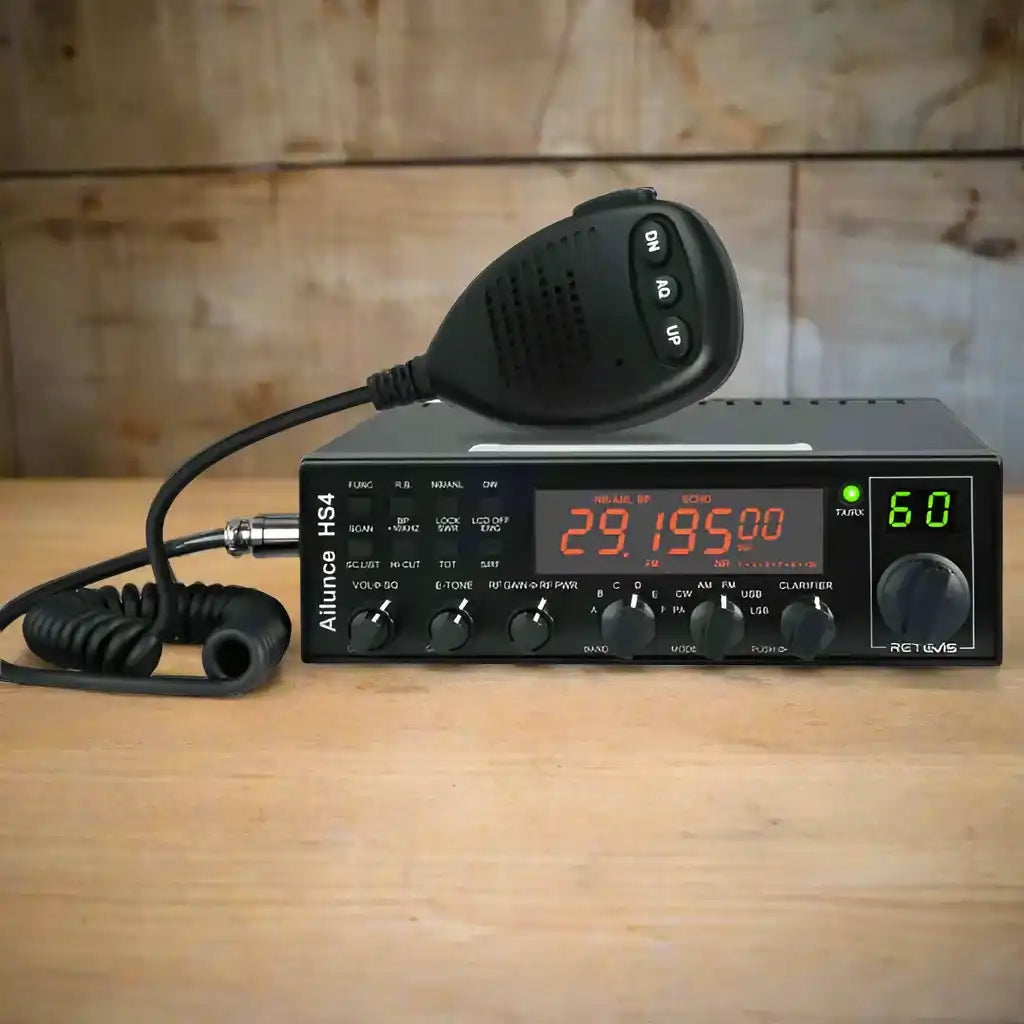

Retevis HS4 Mobile CB Style Amateur Ham Radio
-
Plug-in Microphone
-
Power Cable / Antenna Connector
-
User Manual
