Description

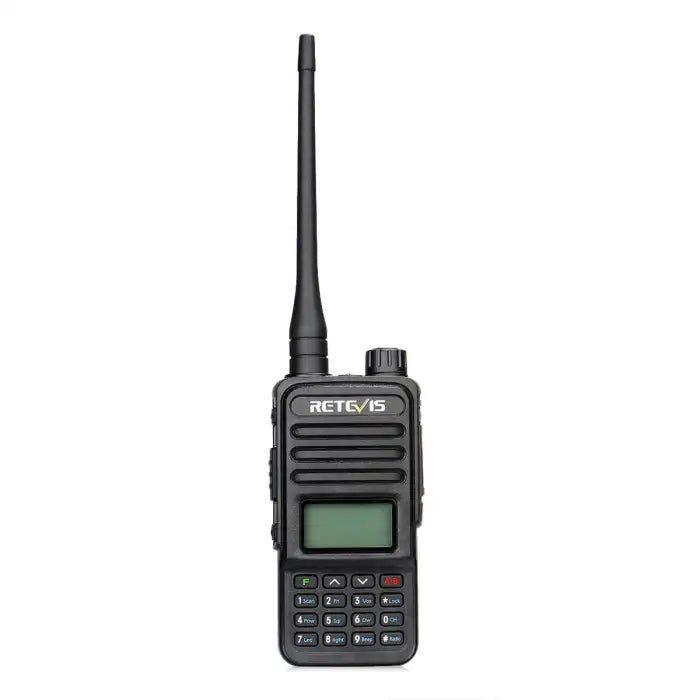

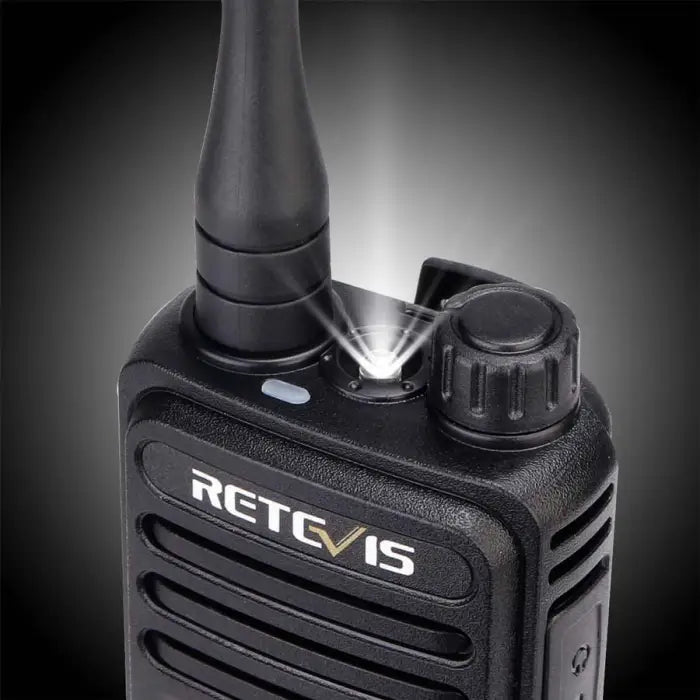

The Retevis RT85 (UV88) Dual Band Amateur Ham Radio offers robust performance and modern features at an entry-level price. Compatible with UV-5R and UV-82, it features a 5W output, nearly double the memory, strong audio, and a durable case. Ideal for simplex or repeater use, this radio includes a dual-band antenna, 1400mAh Li-ion battery, and North America 110V desktop charger. Programmable via CHIRP software, the RT85 is perfect for both beginners and experienced amateur radio enthusiasts.
Features:
-
Frequency Range: VHF 144–148 MHz (2M), UHF 430–450 MHz (70CM)
-
Channels: 200 memory channels
-
Power Output: 5W (4W UHF)
-
Modes: Simplex or Repeater work modes
-
Audio: Strong audio with >500mW output, <10% distortion
-
Display: Dot Matrix LCD, Backlit DTMF Keypad
-

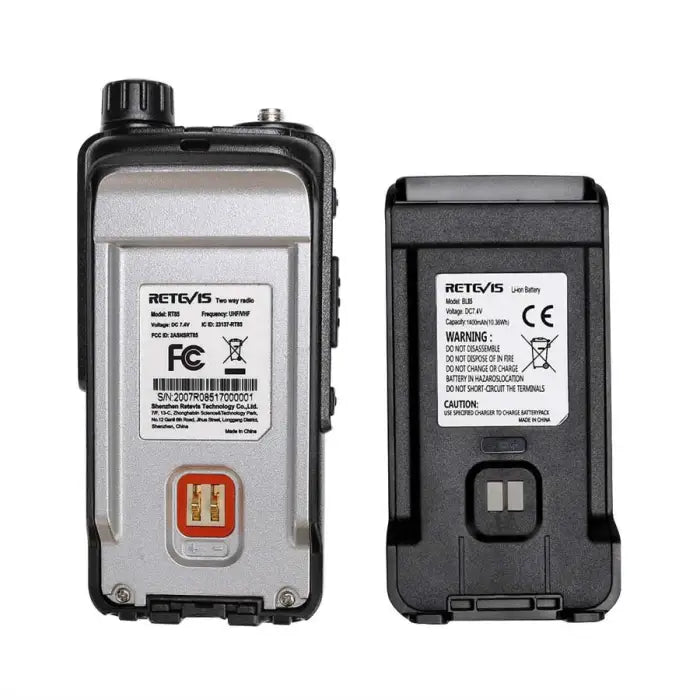

Battery: 1400mAh Li-ion rechargeable, battery saver included
-
Programmable: PC programmable with optional software and cable
-

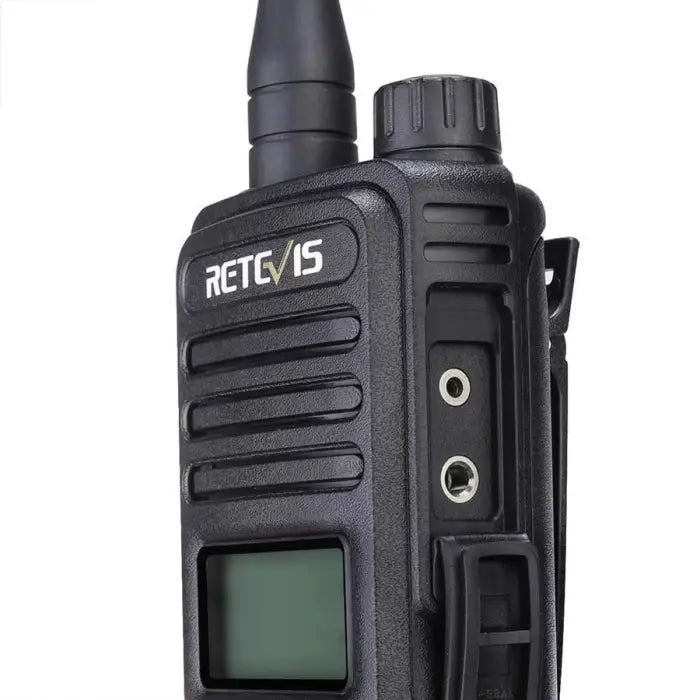

Additional Features: VOX, LED status light, Hi/Low power selectable, programmable multifunction keys, keypad lock, CTCSS/DCS tones, K Plug speaker/mic jack
-
Warranty: One year manufacturer warranty
Specifications:
-
Operating Voltage: 7.4V DC
-
Operating Temperature: -10 → +50°C
-
Weight (Radio Body): 106g
-
Dimensions (Ex Antenna): 116 x 53 x 36 mm
-
Receiver Sensitivity: <0.2 uV
-
Occupied Bandwidth: <16KHz
-
Frequency Stability: 5ppm
-
Current Draw: 60–250mA (Rx), <1600mAh (Tx)
-
Audio Response: +7~-12.5dB (Rx), +6.5~-14dB (Tx)
-
Adjacent Channel Power: <65dB
-
Modulation: FM
-
Spurious Power: <=15dB
-
Modulation Noise: <-40dB
-
Modulation Distortion: <5%
Box Contents:
-
RT85 Radio
-

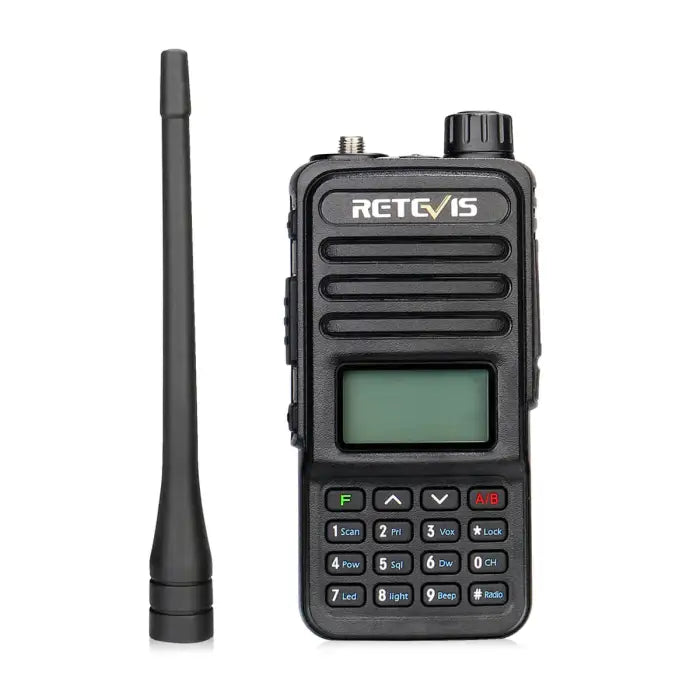

Dual Band Antenna
-
Lithium Ion Battery
-

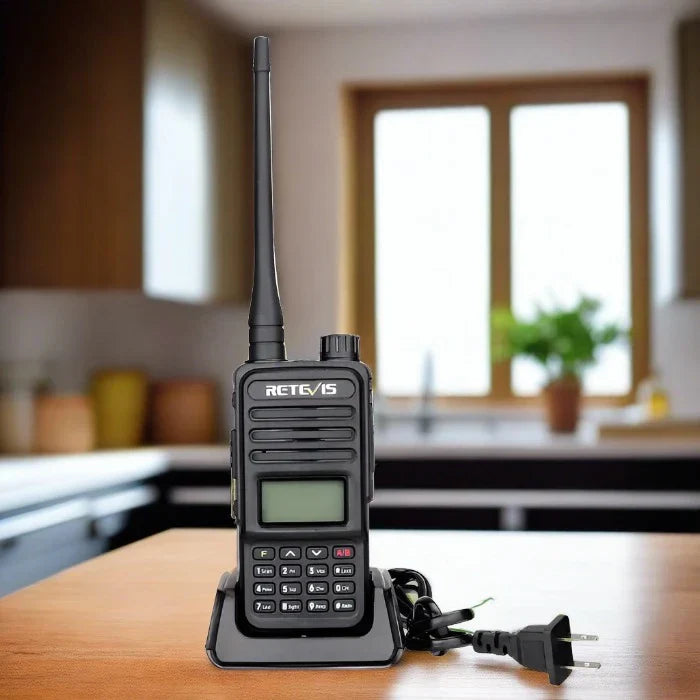

Desktop Charger
-

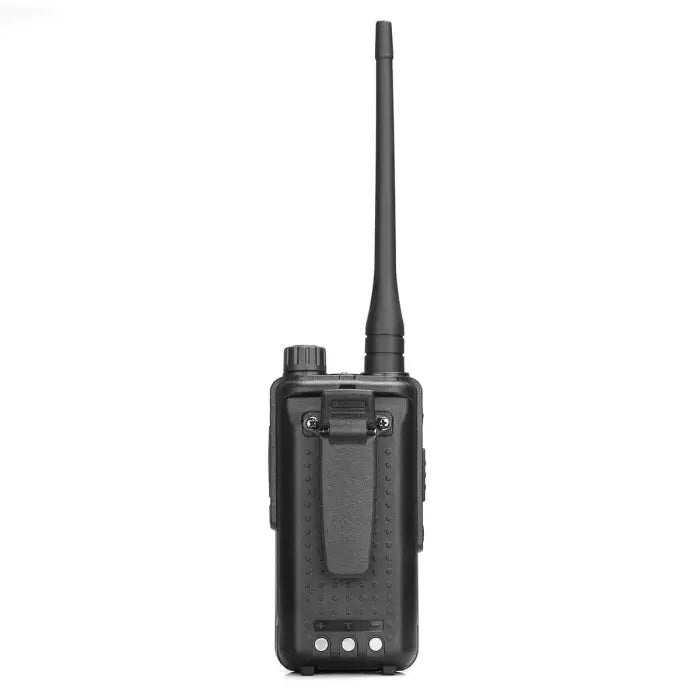

Belt Clip
-
Instructions
