Description

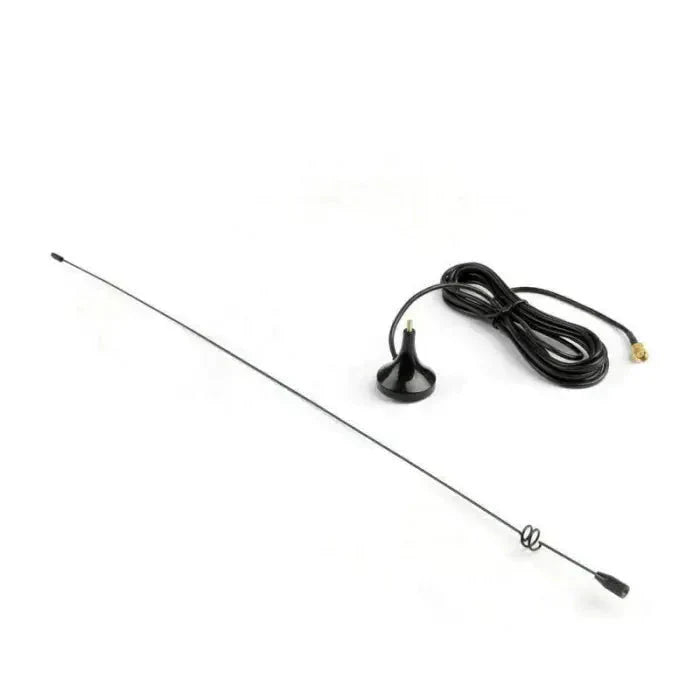

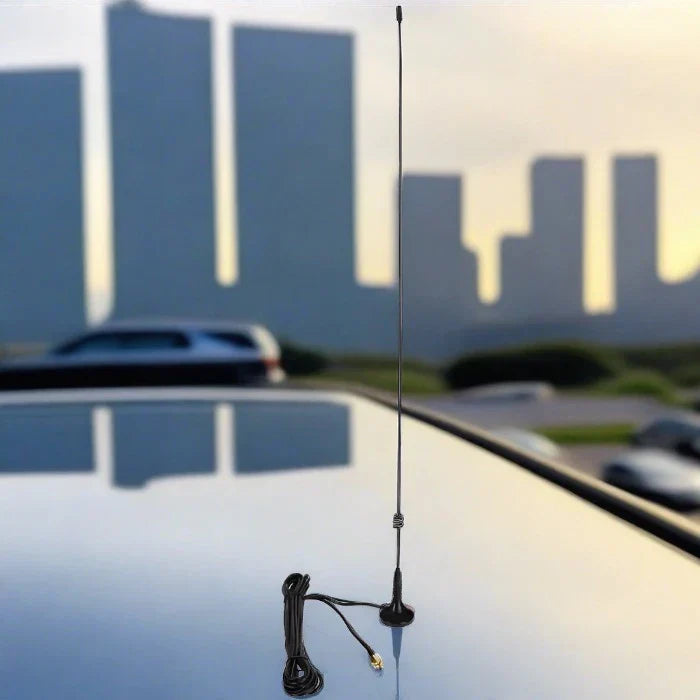

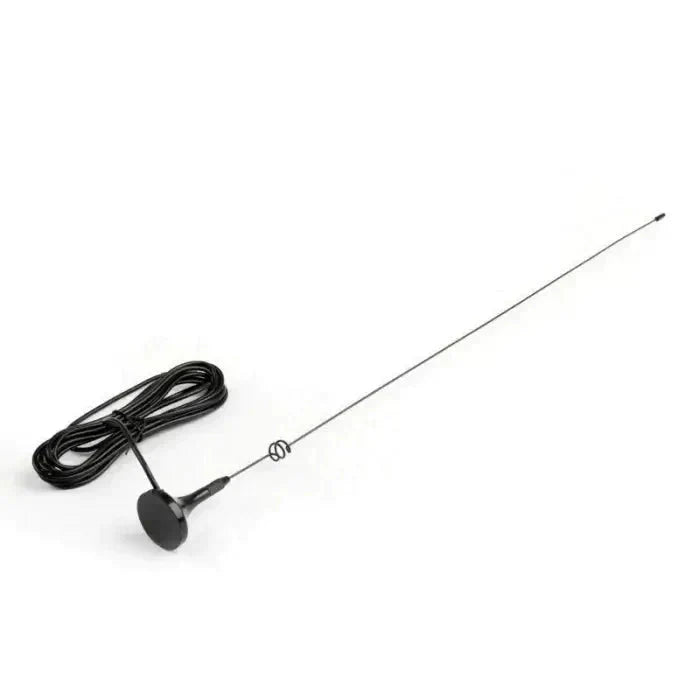

Boost your handheld radio’s performance instantly with the SD30VU SMA-F Mini Mag Mount Antenna. Designed for mobile use, it features a strong magnetic base, low VSWR, and dual-band coverage for both VHF and UHF. Simply mount it on your vehicle, plug it into your SMA-M radio, and experience significantly improved transmit and receive range on 2m/70cm bands. No drilling, no wiring — just better communication.
Features:
-
Range Upgrade: Improves HT transmit and receive by moving the antenna outside the vehicle
-
Dual Band Coverage: Operates on 144–430MHz (2M/70CM)
-

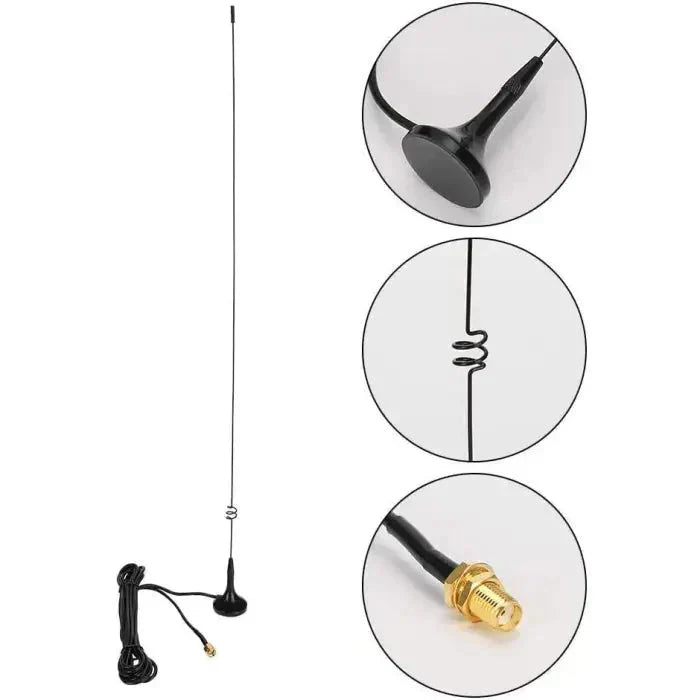

Magnetic Mount: Strong 31mm magnet attaches securely to flat metal surfaces
-
Quick Installation: Plug-and-play setup with no tools required
-
Compatibility: Works with SMA-M handheld radios (flush-style connector)
Specifications:
-
Frequency Range: 144 – 430 MHz
-
Gain: 3.0 dBi
-
Antenna Length: 38.5 cm
-
Max Power: 10W
-
V.S.W.R.: ≤ 1.5:1
-
Impedance: 50 Ω
-
Connector: SMA-F ("Chinese style" for SMA-M radios)
-
Cable Type & Length: RG-174, 3m
-
Magnet Base: 31mm diameter
Compatibility:
-
Baofeng UV-5R, BF-F8HP and similar models
-
Older Wouxun SMA-M handhelds
-
Quansheng, TYT and select Yaesu models with SMA-M connector
What’s in the Box:
-
1 × Dual-band magnetic mount antenna (SMA-F)
-
1 × Magnetic base with integrated 3m RG-174 cable
