Smart 23000 BTU 208/230V Mini Split AC/Heat Pump with Alexa & Google Assistant

The Smart 23000 BTU Mini Split AC and Heat Pump delivers powerful climate control with advanced smart technology and energy-efficient performance. Designed for spaces up to 1500 sq. ft., this ductless system features an intelligent inverter compressor that dynamically adjusts performance based on environmental conditions and usage patterns. With built-in WiFi connectivity and compatibility with Alexa and Google Assistant, you can control temperature, modes, and scheduling from anywhere. Combined with eco-friendly R32 refrigerant, precise temperature control, and quiet operation, this system offers reliable heating and cooling for modern smart homes.

Key Features

• Powerful 23,000 BTU cooling and 22,400 BTU heating capacity for large rooms

• Smart WiFi control via mobile app, Alexa, and Google Assistant

• Intelligent inverter compressor adjusts speed for energy efficiency

• Precision temperature control within ±0.5°C

• R32 refrigerant for improved energy efficiency and environmental performance

• 7 operating modes: Auto, Cool, Heat, Dry, Fan, Sleep, and ECO

• 7 fan speeds with 4D automatic air swing for balanced airflow

• Self-cleaning system with 56°C sterilization and washable filter

• Quiet sleep mode with screen-off feature for undisturbed rest

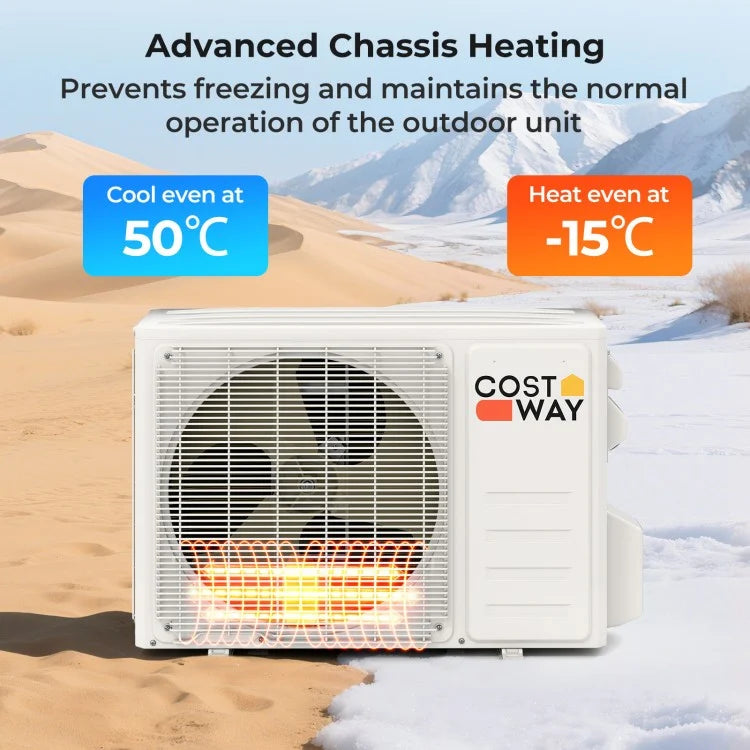

• Designed for reliable operation from -15°C to 50°C

Specifications

• Cooling Capacity: 23,000 BTU

• Heating Capacity: 22,400 BTU

• SEER2: 17

• HSPF2: 9.5

• Cooling Power: 2365 W

• Heating Power: 1900 W

• Voltage: 208–230V / 60Hz

• Minimum Circuit Ampacity: 17A

• Coverage Area: Up to 1500 sq. ft.

• Air Flow Volume: 676 CFM

• Dehumidifying Capacity: 122 Pints/Day (57.6 L/Day)

• Refrigerant: R32

• Temperature Setting Range: 60°F – 88°F (16°C – 31°C)

• Operating Ambient Temperature: -15°C – 50°C

• Indoor Noise Level: 37 dB

• Outdoor Noise Level: 56 dB

• Indoor Unit Dimensions: 39.5 x 12.4 x 9.3 in

• Outdoor Unit Dimensions: 34.3 x 13.8 x 23.6 in

• Air Pipe Diameter: 1/2 in (12.7 mm)

• Drain Pipe Diameter: 0.67 in

• Max Remote Control Distance: 39 ft

• Indoor Unit Weight: 29 lbs

• Outdoor Unit Weight: 74.5 lbs

• Color: White

• Material: Metal, Aluminum, Copper, AS

• Box Quantity: 2 (May vary by batch)

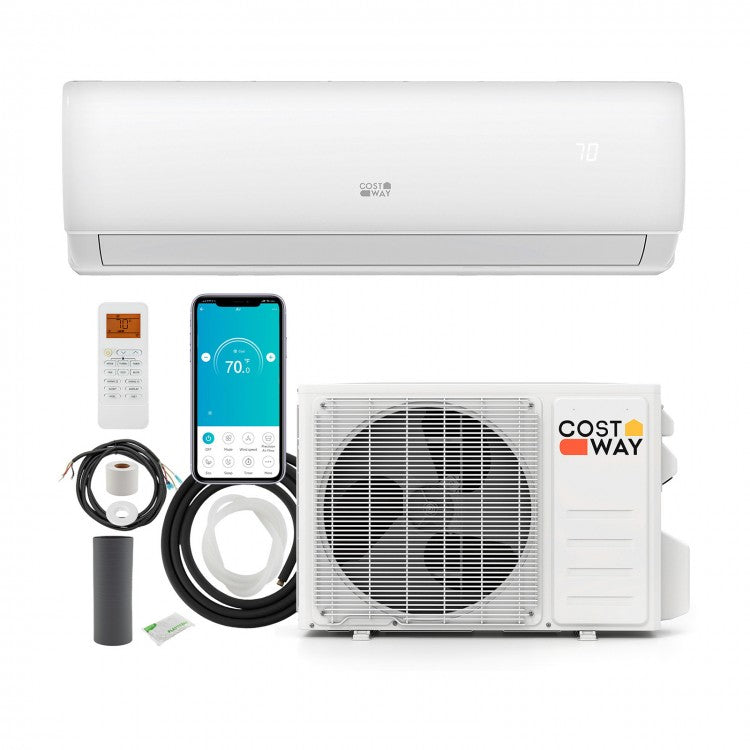

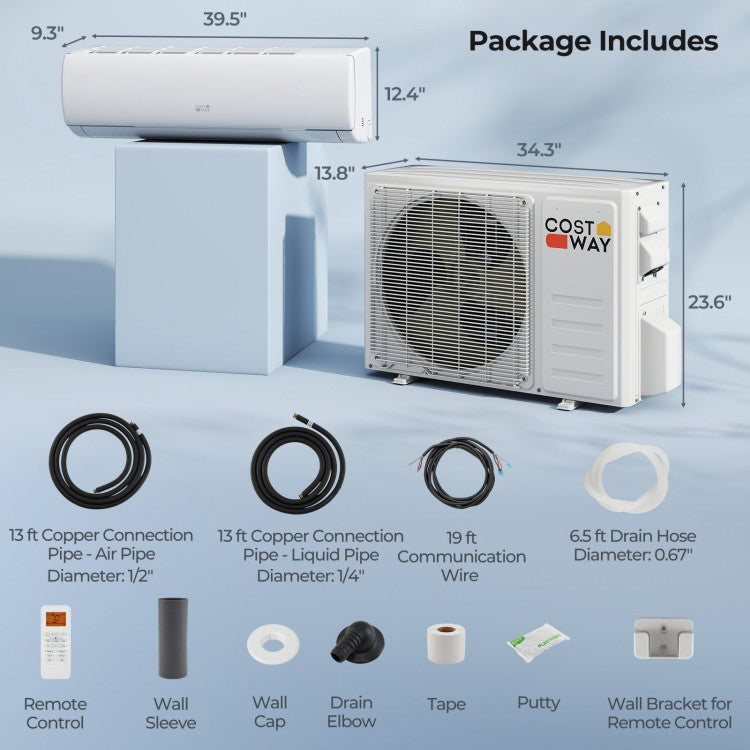

Package Includes

• 1 × Indoor Unit

• 1 × Outdoor Unit

• 1 × 13 ft Copper Connection Pipe (Air Pipe)

• 1 × 13 ft Copper Connection Pipe (Liquid Pipe)

• 1 × 19 ft Communication Wire

• 1 × 6.5 ft Drain Hose

• 1 × Remote Control

• 1 × Remote Control Wall Bracket

• 1 × Wall Sleeve

• 1 × Wall Cap

• 1 × Drain Elbow

• 1 × Tape

• 1 × Putty

• 1 × User Guide
