Product Description

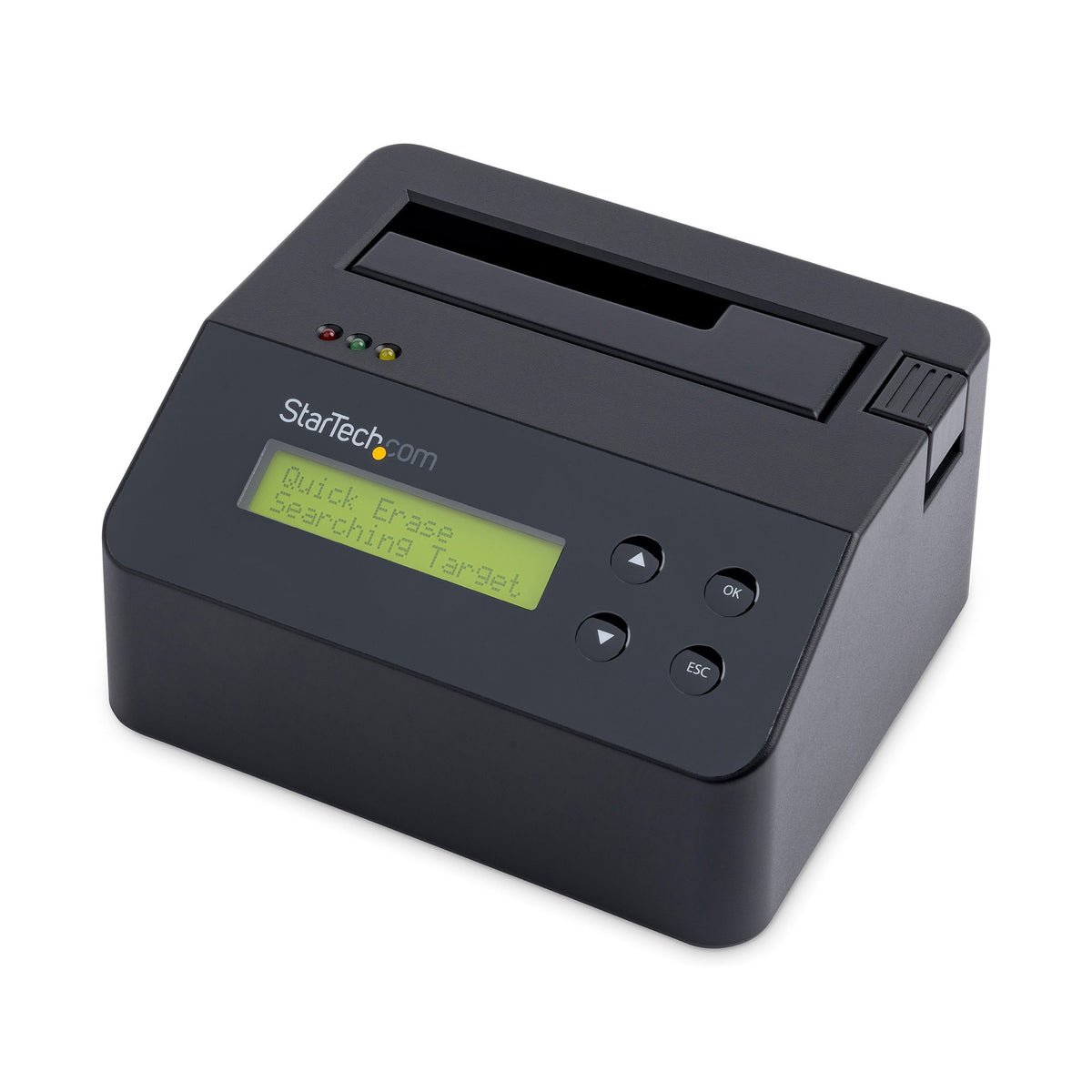

Securely erase data from hard drives and solid-state drives with the StarTech Single-Bay Hard Drive Eraser and Docking Station. Designed for IT professionals, computer technicians, businesses, and data management specialists, this standalone device provides a convenient solution for sanitizing SATA storage drives without requiring a connected computer.
Supporting both 2.5-inch and 3.5-inch SATA hard drives and SSDs, this drive eraser offers multiple erasure methods to accommodate different data sanitization requirements. Available options include Quick Erase, single-pass and multi-pass overwriting, Custom Erase, Secure Erase, Enhanced Secure Erase, and Cryptographic Erase.
The standalone operation allows you to erase a compatible drive directly through the device. This makes it useful for preparing storage devices for reuse, decommissioning drives, managing retired computer equipment, and supporting data sanitization workflows.

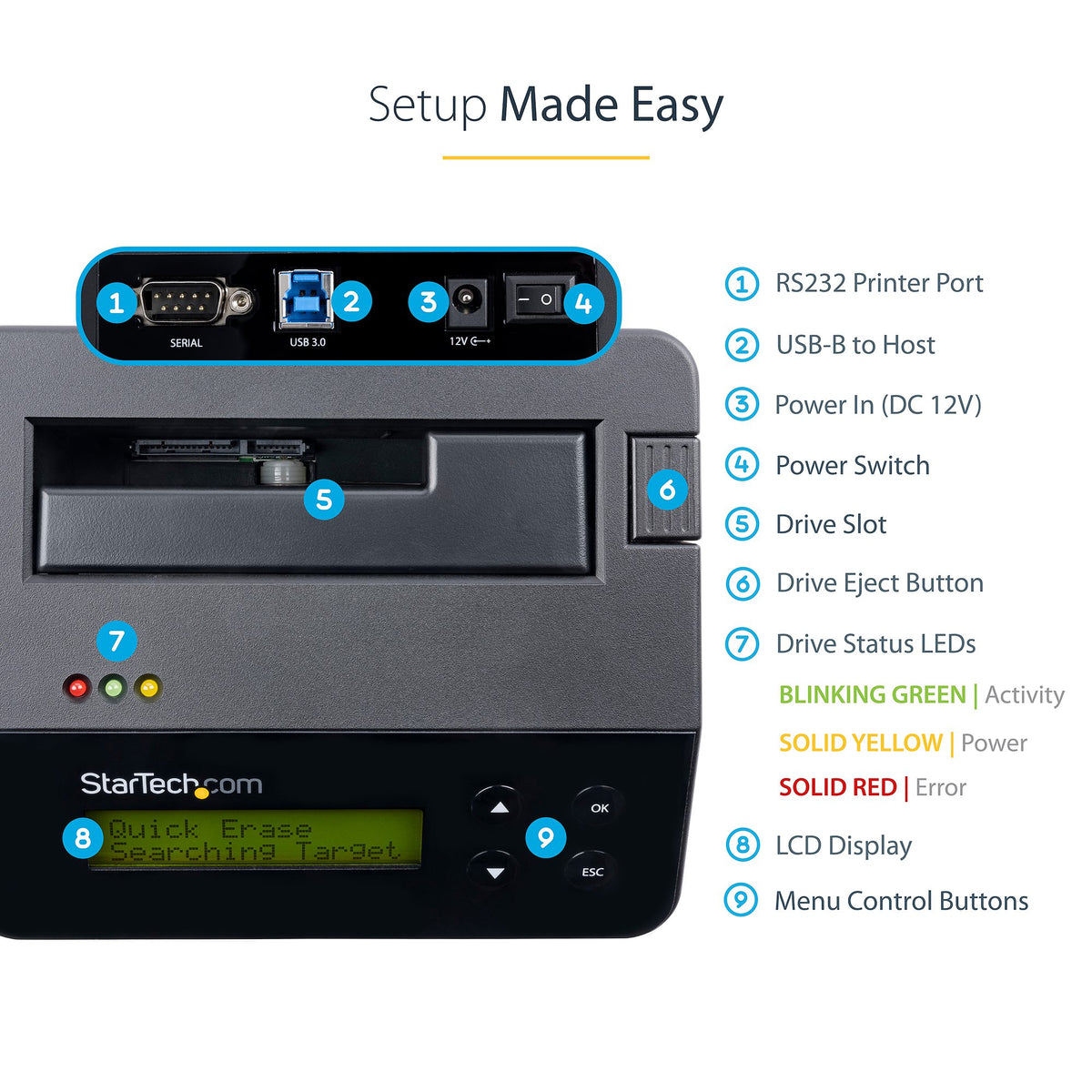

An integrated two-line LCD display provides information about the erasure process, allowing you to monitor progress and check operating status. The device also features indicator lights for power, activity, and HPA/DCO detection. Its DB-9 serial port supports connection to a compatible serial printer for printing records of completed erasure procedures.

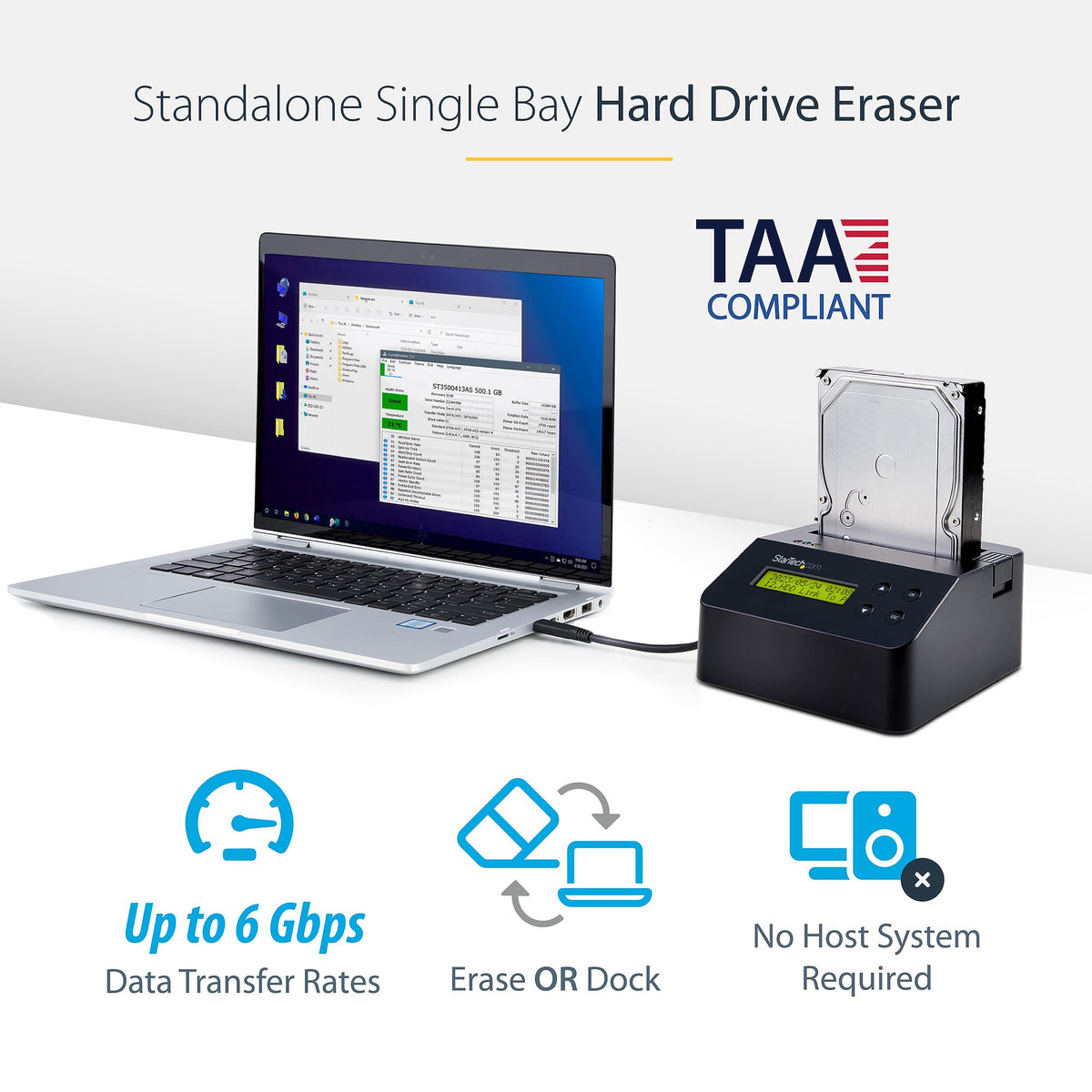

Beyond drive erasure, this versatile device can function as a SATA docking station when connected to a compatible computer through USB 3.0. With USB transfer speeds of up to 5 Gbps and support for UASP, it can also be used for tasks such as backing up drives, transferring files, and accessing stored data.
The tool-free, removable drive design simplifies installation and removal, while the included universal power adapter supports a range of regional power standards.
Whether you're managing IT equipment, preparing drives for reuse, or securely sanitizing storage devices, this StarTech drive eraser offers a practical tool for professional data management.
Important: Drive erasure is destructive and can permanently remove data. Back up any information you need before beginning, and verify the selected erasure method and completion status before reusing or disposing of a drive.
Key Features
- Standalone Drive Erasure: Erases compatible SATA HDDs and SSDs without requiring a host computer during the erasure process.

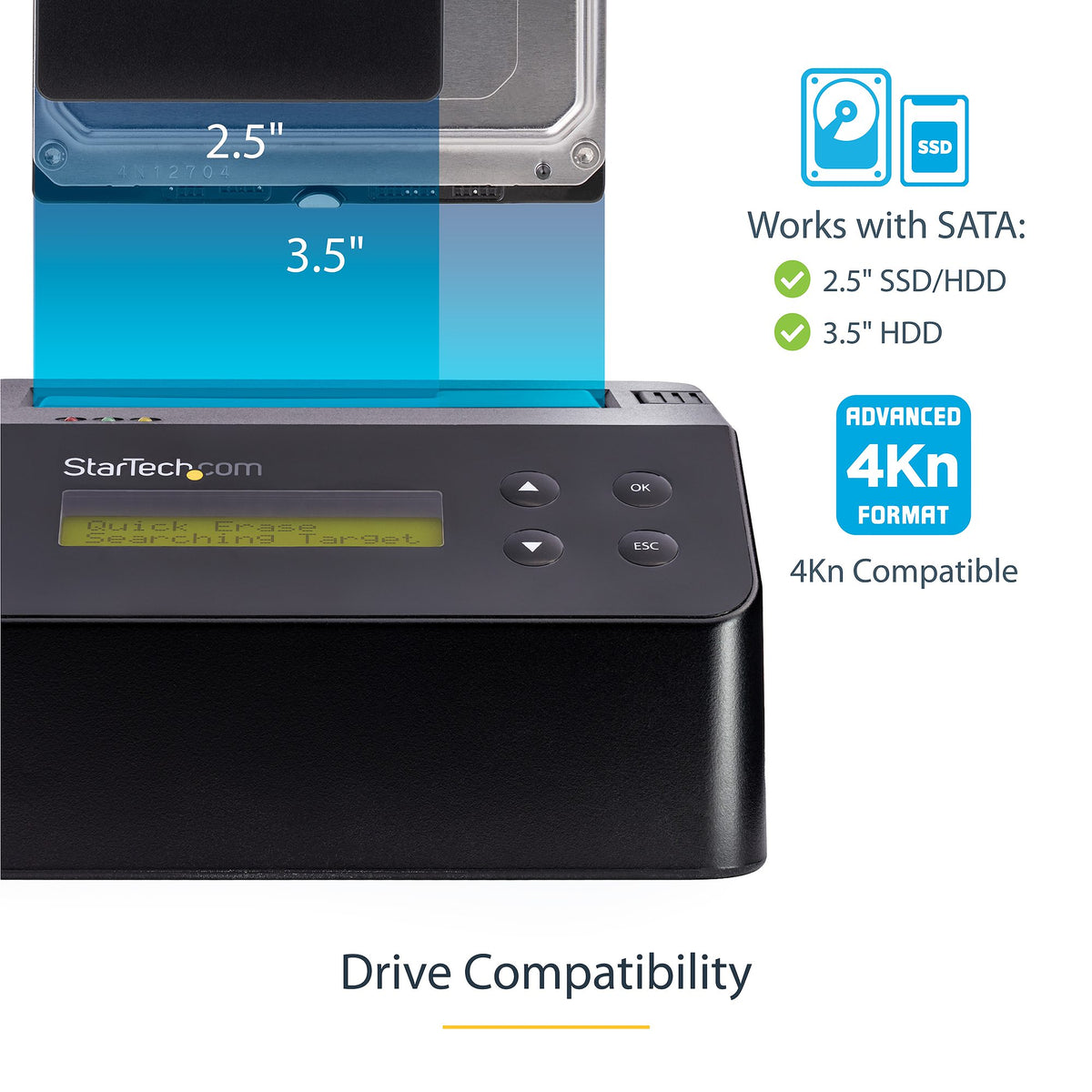

- Single-Bay Design: Accommodates one 2.5-inch or 3.5-inch SATA drive at a time.
- Multiple Erase Modes: Supports Quick Erase, single-pass and multi-pass overwriting, Custom Erase, Secure Erase, Enhanced Secure Erase, and Cryptographic Erase.
- 4Kn Drive Compatibility: Supports 4Kn sector-format drives for compatibility with newer storage devices.
- SATA I, II & III Support: Compatible with SATA storage interfaces, including SATA III at up to 6 Gbps.
- USB 3.0 Docking Function: Connects to a compatible computer for accessing, backing up, or transferring data.
- USB Transfer Speeds: Supports USB 3.0 data transfer rates of up to 5 Gbps, subject to the connected system and drive.
- LCD Status Display: Two-line LCD makes it easier to configure the device and monitor erasure progress.
- LED Indicators: Provides power, drive activity, and HPA/DCO detection indicators.
- Serial Printer Connection: Features a DB-9 RS-232 port for connecting a compatible serial printer to produce erasure records.
- Tool-Free Drive Installation: Removable, top-loading drive design simplifies inserting and removing drives.
- S.M.A.R.T. Support: Supports drive monitoring information when used with compatible drives and systems.
- Hot-Swap Capability: Supports drive insertion and removal under compatible operating conditions.
- Universal Power Adapter: Includes an AC power adapter supporting 100–240V input.
- TAA Compliant: The supplier identifies the device as TAA compliant. Confirm the applicable documentation for procurement requirements.
Specifications
- Brand: StarTech
- Product Type: Standalone Hard Drive Eraser & Docking Station
- Model Number: Not provided in the supplied information
- Number of Drive Bays: 1
- Compatible Drive Sizes: 2.5-inch and 3.5-inch
- Compatible Drive Types: SATA HDDs and SSDs
- Supported SATA Standards: SATA I, SATA II, SATA III
- Maximum SATA III Interface Rate: 6 Gbps
- Computer Interface: USB 3.0 / USB 3.2 Gen 1
- Maximum USB Interface Rate: 5 Gbps
- USB Connector: USB-B
- Standalone Erasure: Yes
- Drive Docking Function: Yes
- 4Kn Support: Yes
- S.M.A.R.T. Support: Yes
- Hot-Swap Capability: Yes
- RAID Support: Not specified
- LCD Display: Two-line LCD
- LED Indicators: Power, activity, and HPA/DCO detection
- Serial Port: DB-9 RS-232
- Chipset: Xilinx Spartan-6
- Housing Material: Steel
- Colour: Black
- Product Dimensions: 5.5 × 4.8 × 2.8 inches
- Metric Dimensions: 14 × 12.3 × 7 cm
- Product Weight: 23.2 oz (656 g)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -10°C to 65°C (14°F to 149°F)
- Operating Humidity: 10%–90% RH, as specified by the supplier
- Power Supply: Included AC adapter
- Input Voltage: 100–240V AC
- Output Voltage: 12V DC
- Output Current: 5A
- TAA Compliance: Yes, according to the supplier

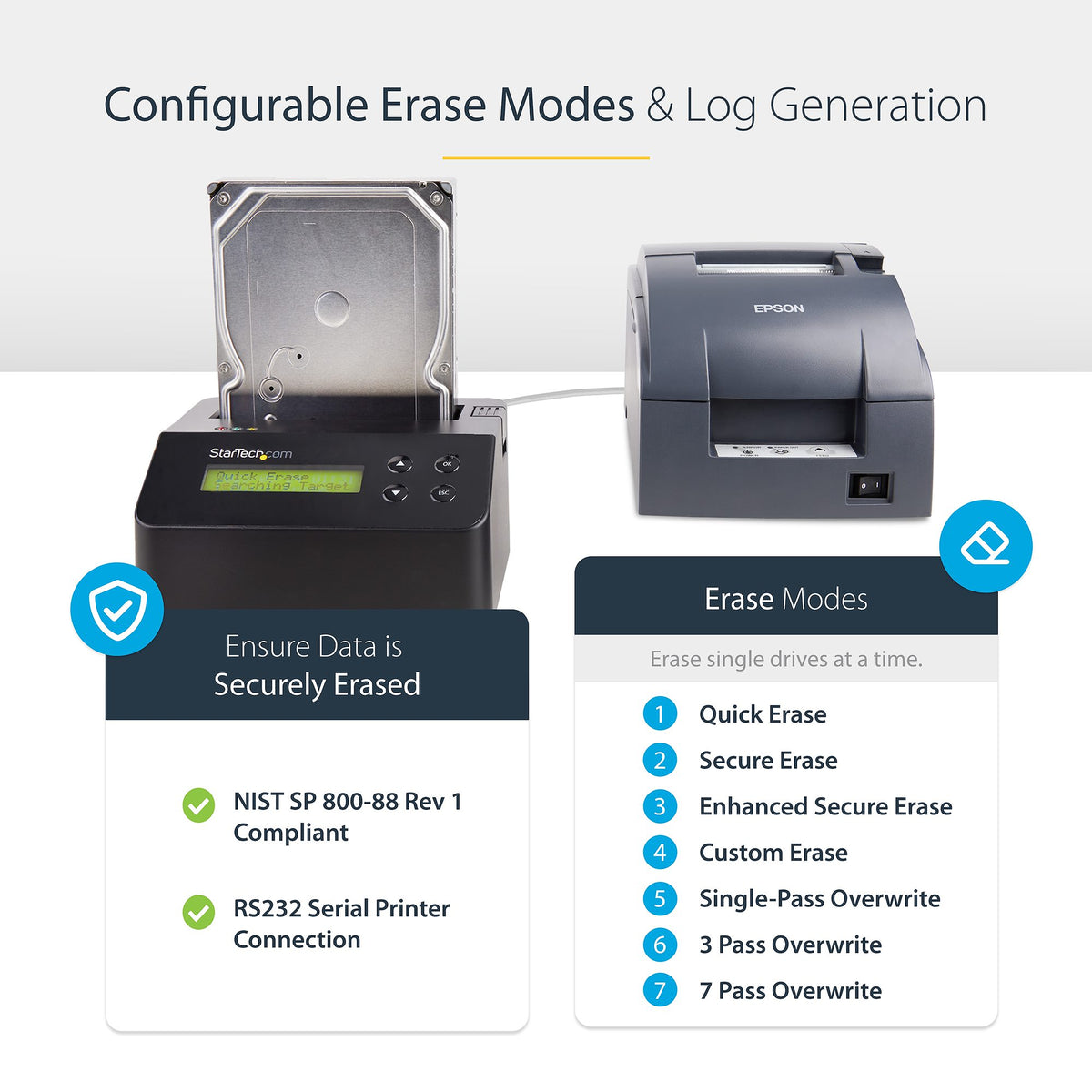

Supported Erase Methods
- Quick Erase
- Single-Pass Overwrite
- Three-Pass Overwrite
- Seven-Pass Overwrite
- Custom Erase
- Secure Erase
- Enhanced Secure Erase
- Cryptographic Erase
The supplier describes several of these methods as corresponding to sanitization approaches in NIST SP 800-88 Revision 1. The appropriate method depends on the drive type and the organization's data sanitization requirements.
Drive Capacity Information
The supplier states that the device has been tested with hard drives up to 10TB at 7200 RPM.
Although the product description mentions compatibility with drives of various capacities, confirm support for larger drives with the manufacturer before purchasing or advertising compatibility with them.

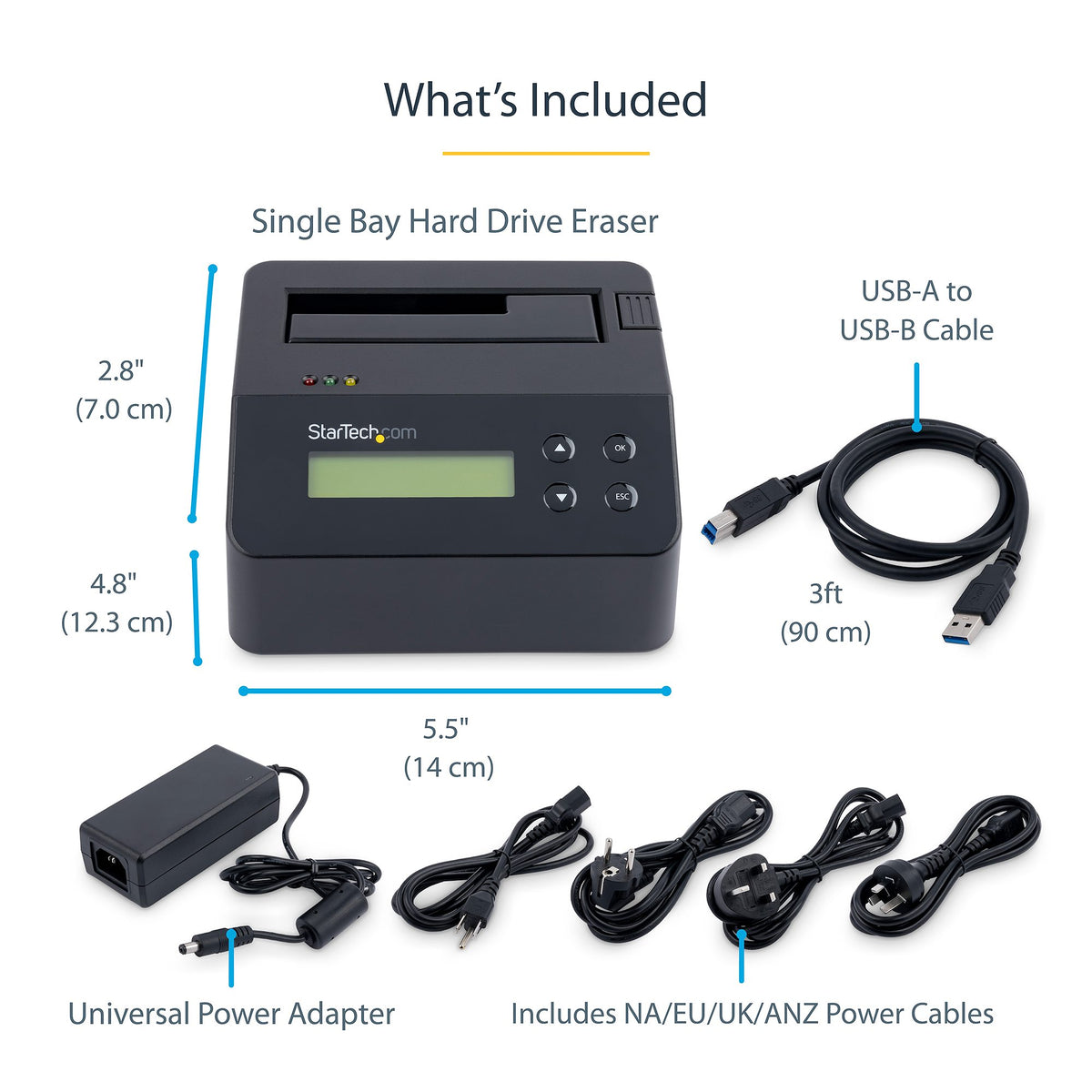

Package Includes
- 1 × StarTech Single-Bay Hard Drive Eraser & Docking Station
- 1 × USB 3.0 Cable
- 1 × Universal Power Adapter
- 1 × Quick-Start Guide
