Product Overview
Protect your outdoor spaces from standing water and flooding with this premium 12-Pack Linear Trench Drain System. Designed for driveways, patios, pool decks, walkways, garages, gardens, and landscaping projects, this heavy-duty drainage solution helps channel water away efficiently while maintaining a clean and professional appearance.
Constructed from durable HDPE material and featuring removable grates for easy maintenance, this drainage system provides reliable performance for residential and light commercial applications.
Features & Benefits

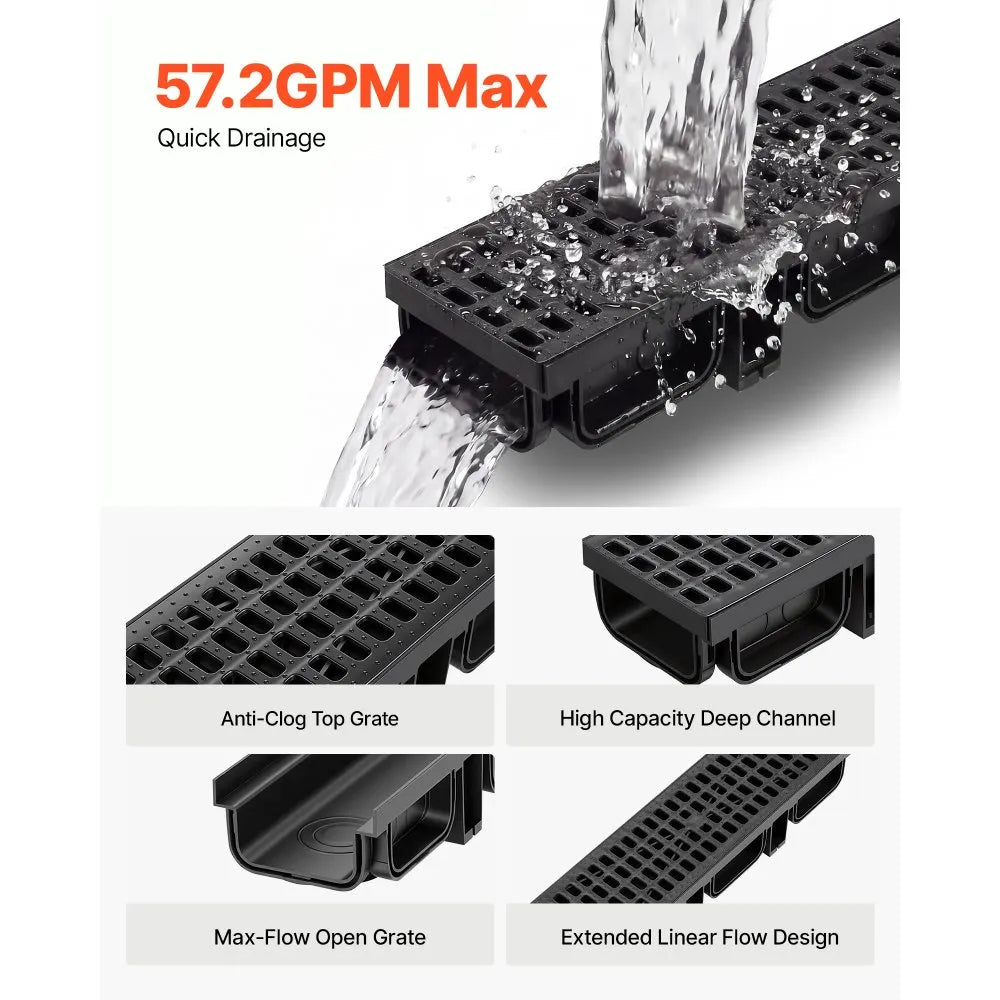

High-Performance Drainage
The wide 3.9-inch channel and 1.8-inch depth promote rapid water flow, helping prevent pooling, erosion, and water damage around your property.

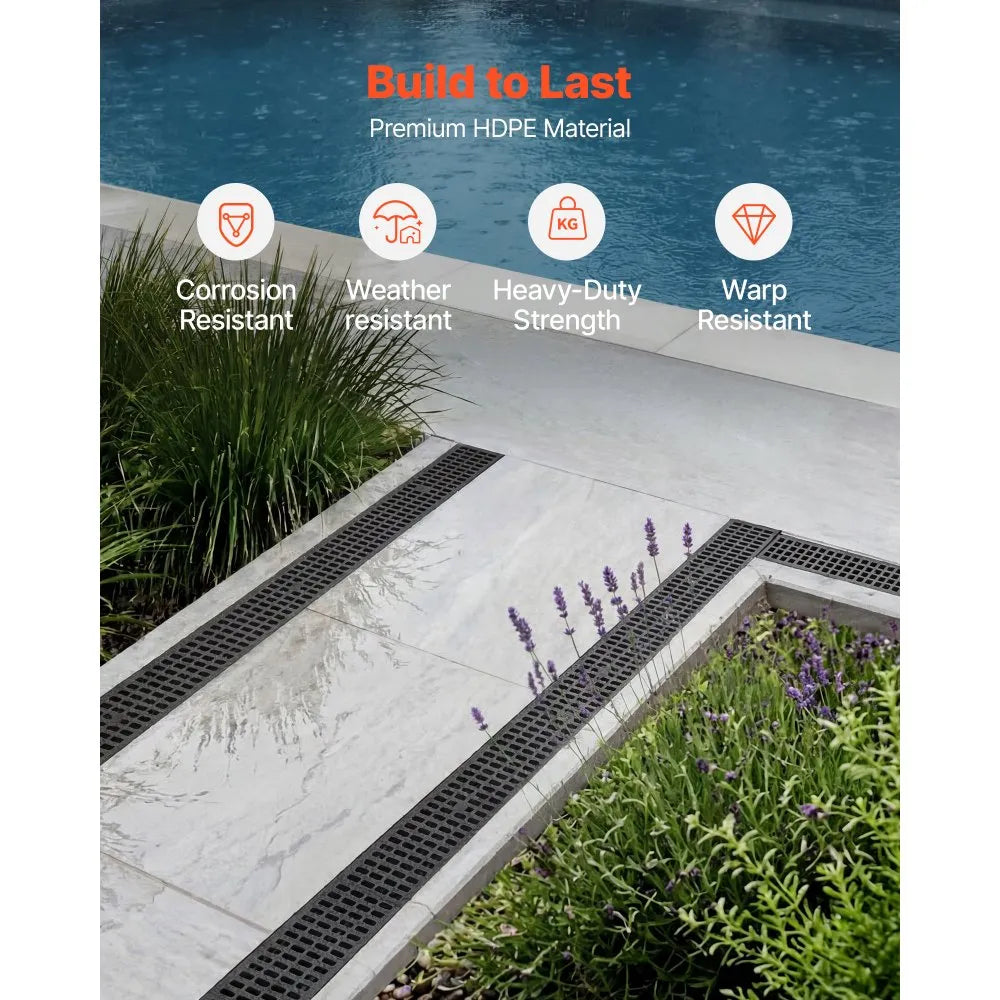

Durable HDPE Construction
Manufactured from high-density polyethylene (HDPE), the drain channels resist moisture, UV exposure, cracking, and everyday wear for long-lasting outdoor performance.
Removable Grates for Easy Cleaning
The detachable grate design allows quick access for removing leaves, dirt, and debris, helping maintain optimal drainage flow.
Expandable Modular Design
Connect multiple sections together to create custom drainage lengths for driveways, patios, pool decks, sidewalks, and landscaping projects.

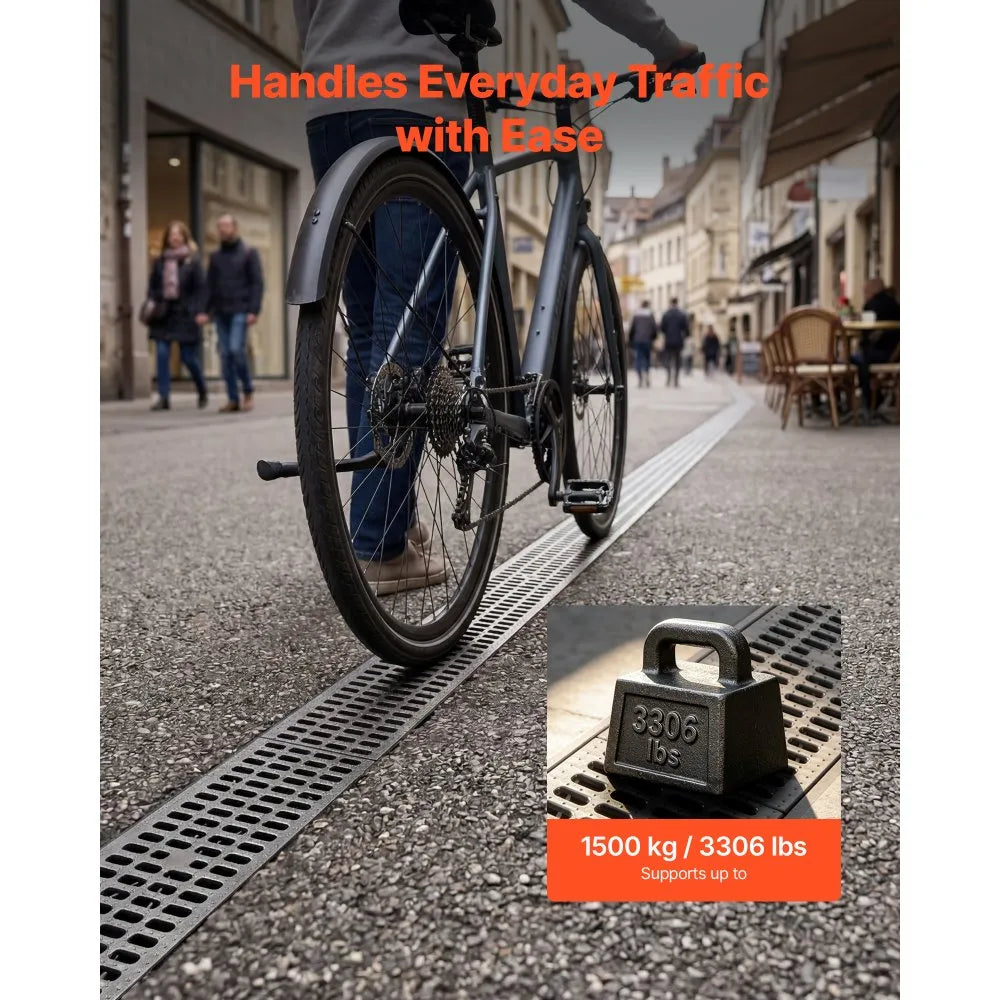

Strong Load Capacity
Supports up to 3,306 lbs (1,500 kg) after proper concrete installation, making it suitable for pedestrian traffic and many residential applications.
Versatile Outdoor Applications
Ideal for:
-
Driveways
-
Patios
-
Pool Surrounds
-
Walkways
-
Gardens
-
Garages
-
Landscaped Areas
-
Sidewalks
-
Deck Drainage

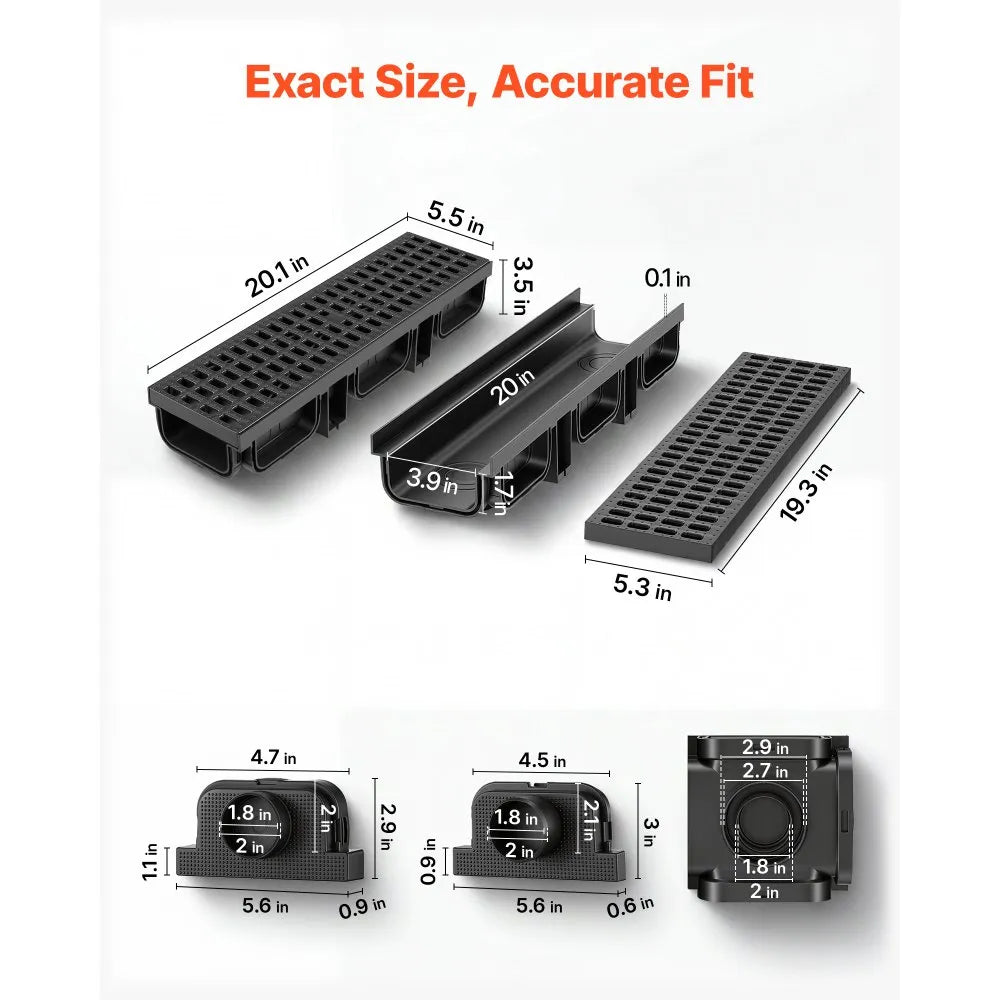

Technical Specifications
| Feature | Specification |
|---|---|
| Material | HDPE (High Density Polyethylene) |
| Quantity | 12 Pack |
| Drain Dimensions | 20.1 x 5.5 x 3.5 in |
| Drain Dimensions | 510 x 140 x 90 mm |
| Internal Channel Size | 3.9 x 1.8 in |
| Internal Channel Size | 100 x 45 mm |
| Side Connection | Yes |
| Maximum Load Capacity | 3,306 lbs (1,500 kg) |
| Product Weight | 27.1 lbs (12.3 kg) |
| Color | Black |

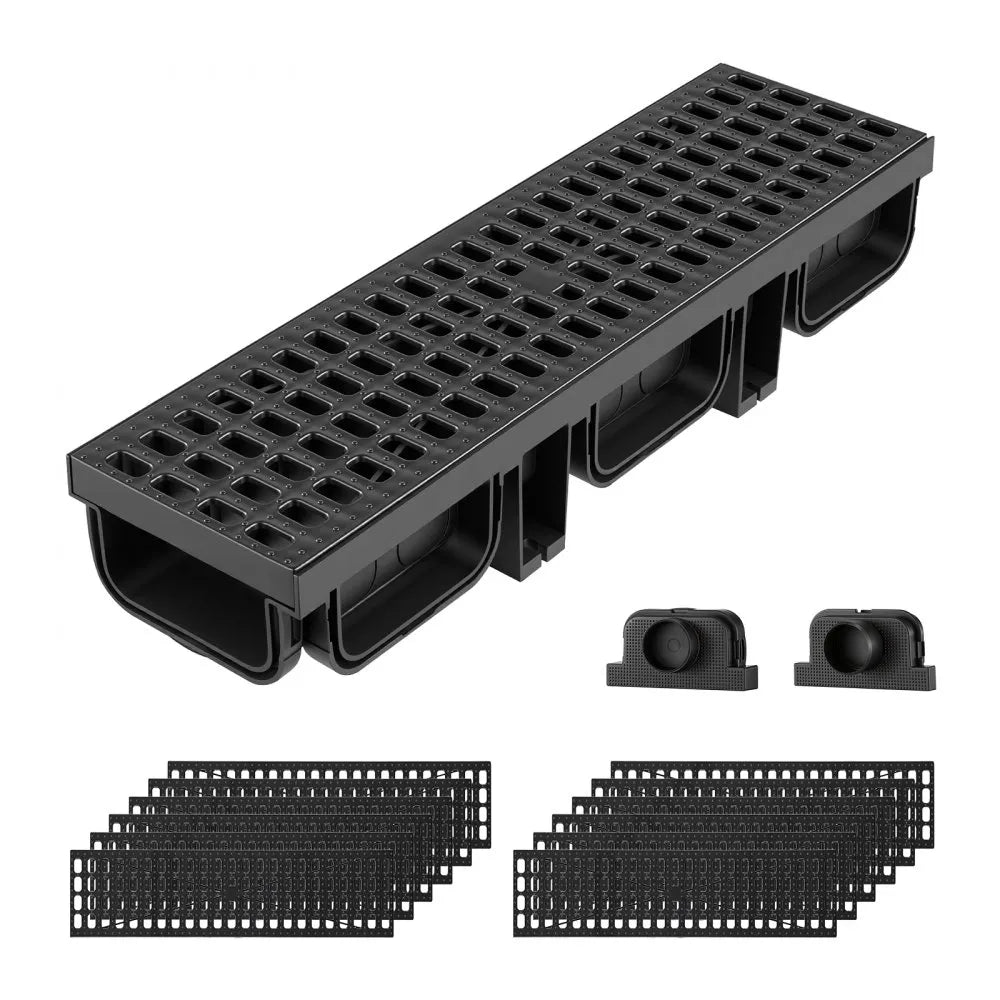

What's Included
-
12 × HDPE Drain Channels
-
Drain Grates
-
End Caps
-
Connection Hardware
-
Installation Screws
