Description
Product Overview
Protect your property from standing water, flooding, and erosion with this 6-Pack Linear Trench Drain System. Designed for residential and light commercial drainage applications, these heavy-duty HDPE channel drains efficiently direct water away from driveways, patios, pool decks, sidewalks, garages, and landscaped areas.
Featuring removable grates for easy cleaning and a modular design that allows multiple sections to connect together, this drainage system provides a reliable and professional solution for outdoor water management.
Features & Benefits

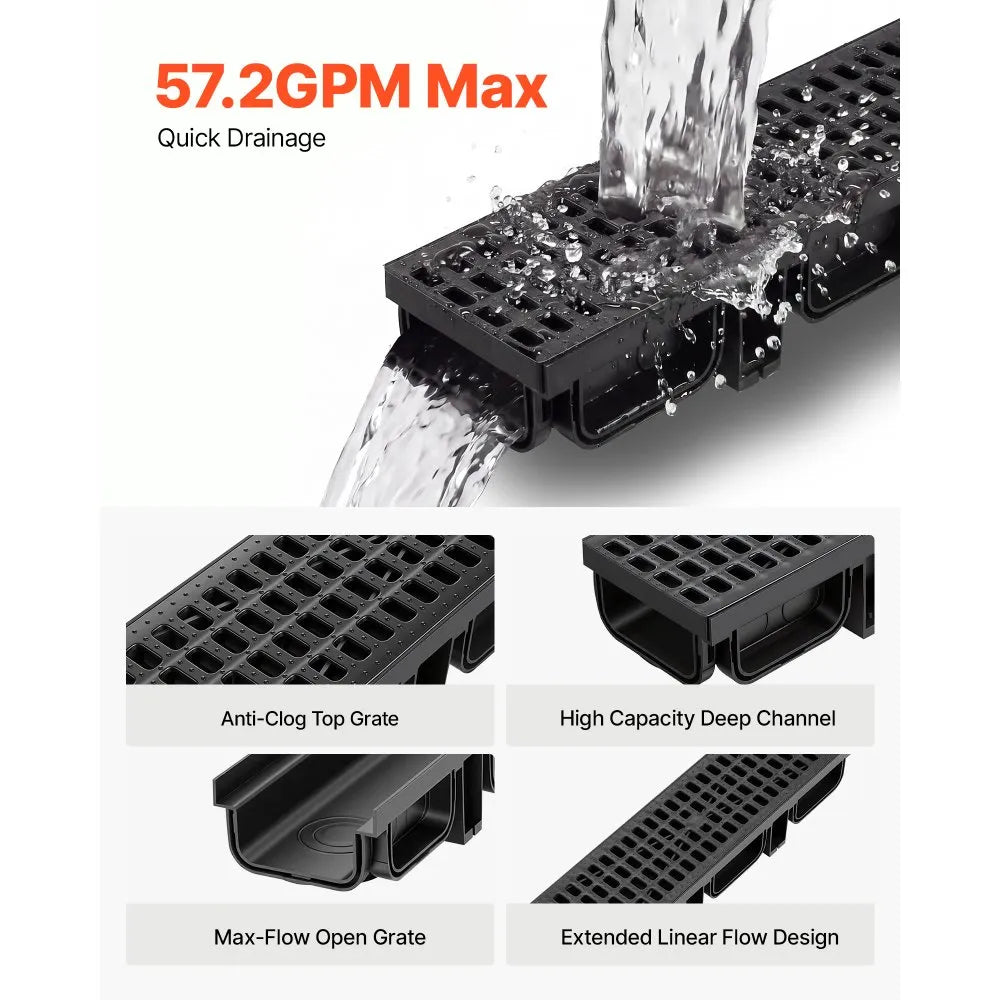

✅ Fast Water Drainage
- Wide 3.9-inch drainage channel
- Deep 1.8-inch flow path
- Supports up to 57.2 GPM flow rate
- Helps prevent flooding and standing water

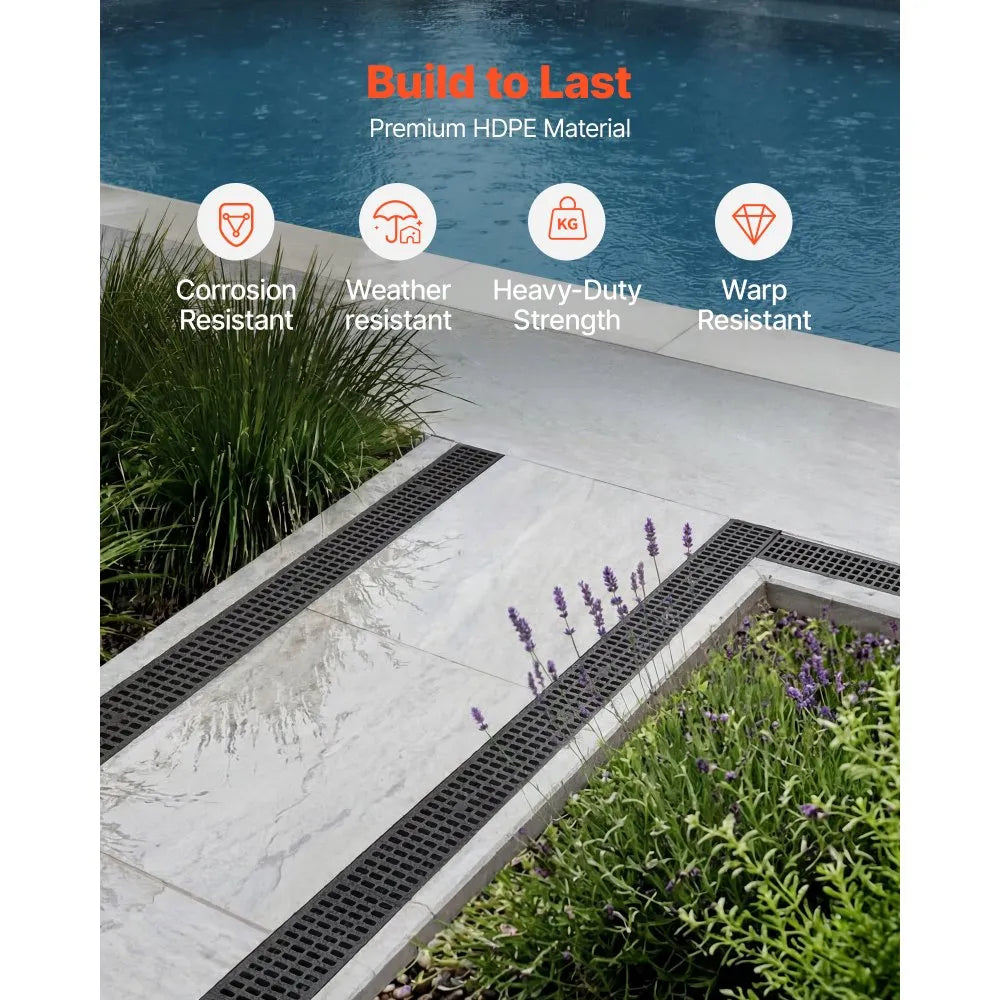

✅ Durable HDPE Construction
- High-density polyethylene material
- UV-resistant and weather-resistant
- Designed for long-term outdoor use
- Resists cracking and corrosion
✅ Easy Maintenance
- Removable grate design
- Quickly remove leaves, dirt, and debris
- Helps maintain consistent water flow
- Simple seasonal cleaning

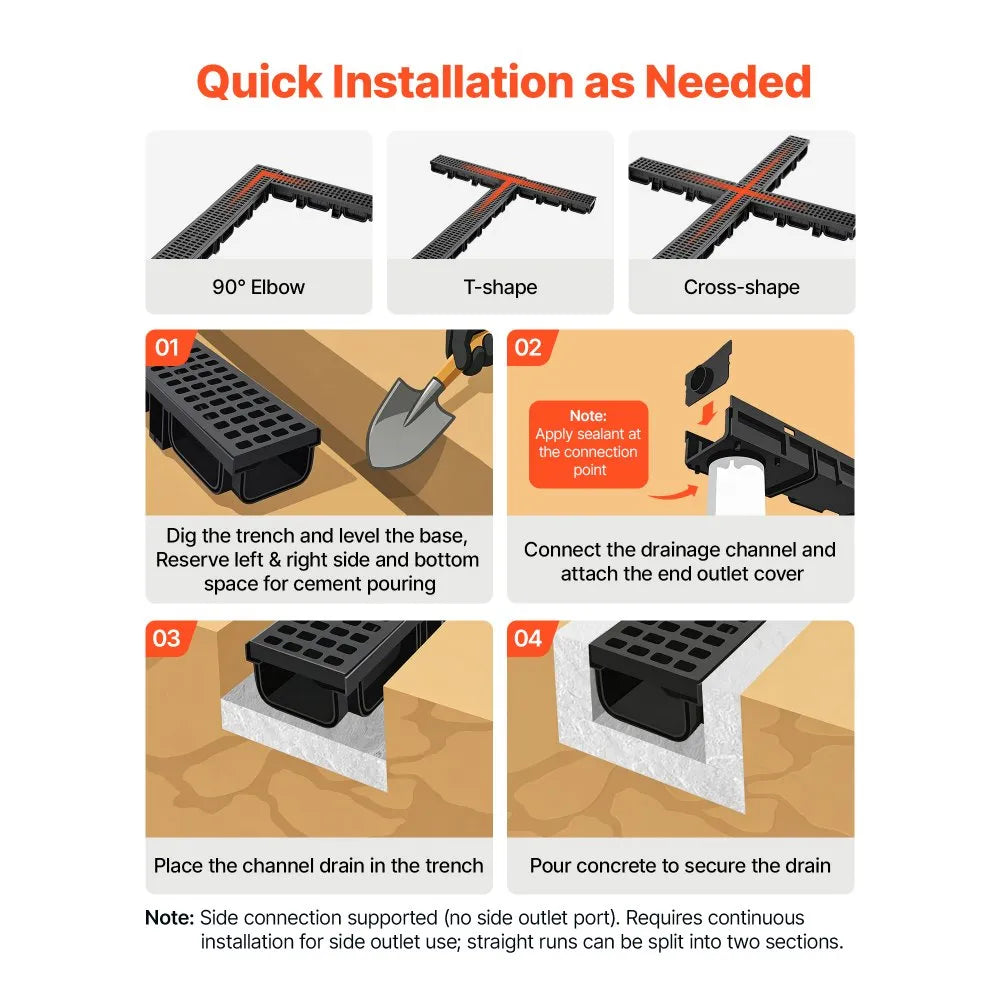

✅ Expandable Modular System
- Connect multiple drain sections together
- Create custom drainage lengths
- Includes end caps and connection hardware
- Side outlet connection available

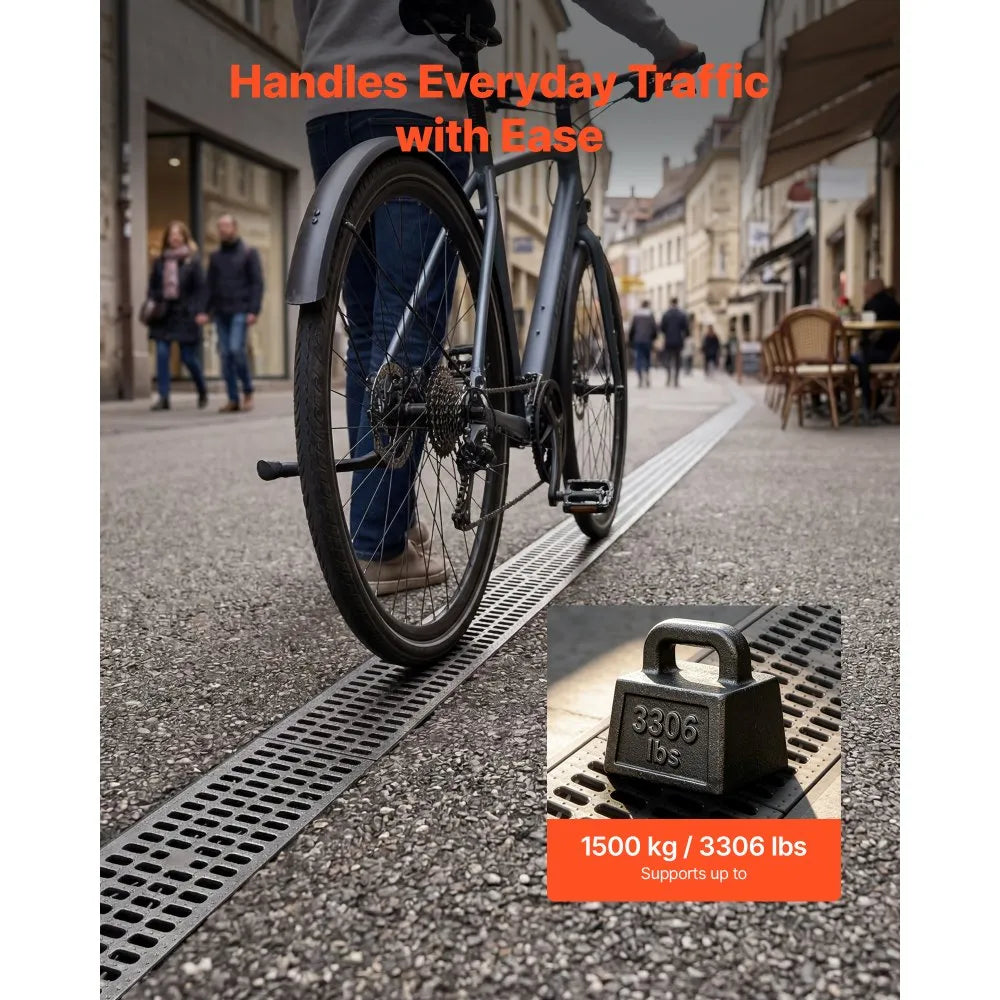

✅ Heavy-Duty Load Capacity
- Supports up to 3,306 lbs (1,500 kg) after proper installation
- Suitable for pedestrian traffic
- Ideal for gardens, patios, and walkways
✅ Versatile Outdoor Applications
- Driveways
- Patios
- Pool Areas
- Sidewalks
- Gardens
- Garages
- Decks
- Landscaped Areas
Specifications
| Feature | Specification |
|---|---|
| Model | ID100×45mm |
| Quantity | 6 Pack |
| Material | HDPE (High-Density Polyethylene) |
| Flow Rate | 57.2 GPM |
| Maximum Load Capacity | 3,306 lbs (1,500 kg) |
| Internal Drain Size | 3.9" × 1.8" |
| Internal Drain Size | 100 × 45 mm |
| Side Outlet Connection | Yes |

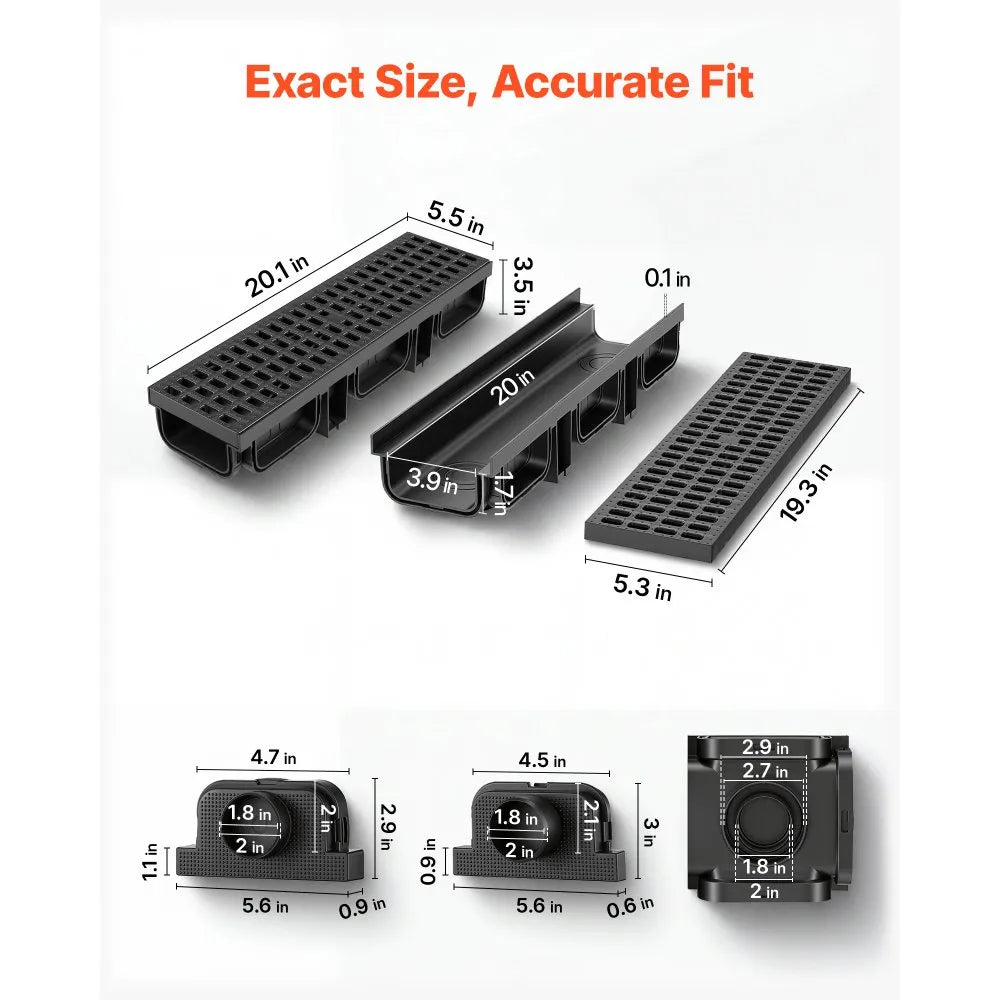

| Individual Drain Dimensions | 20.1" × 5.5" × 3.5" |
| Dimensions (mm) | 510 × 140 × 90 mm |
| Product Weight | 13.7 lbs (6.2 kg) |
| Color | Black |

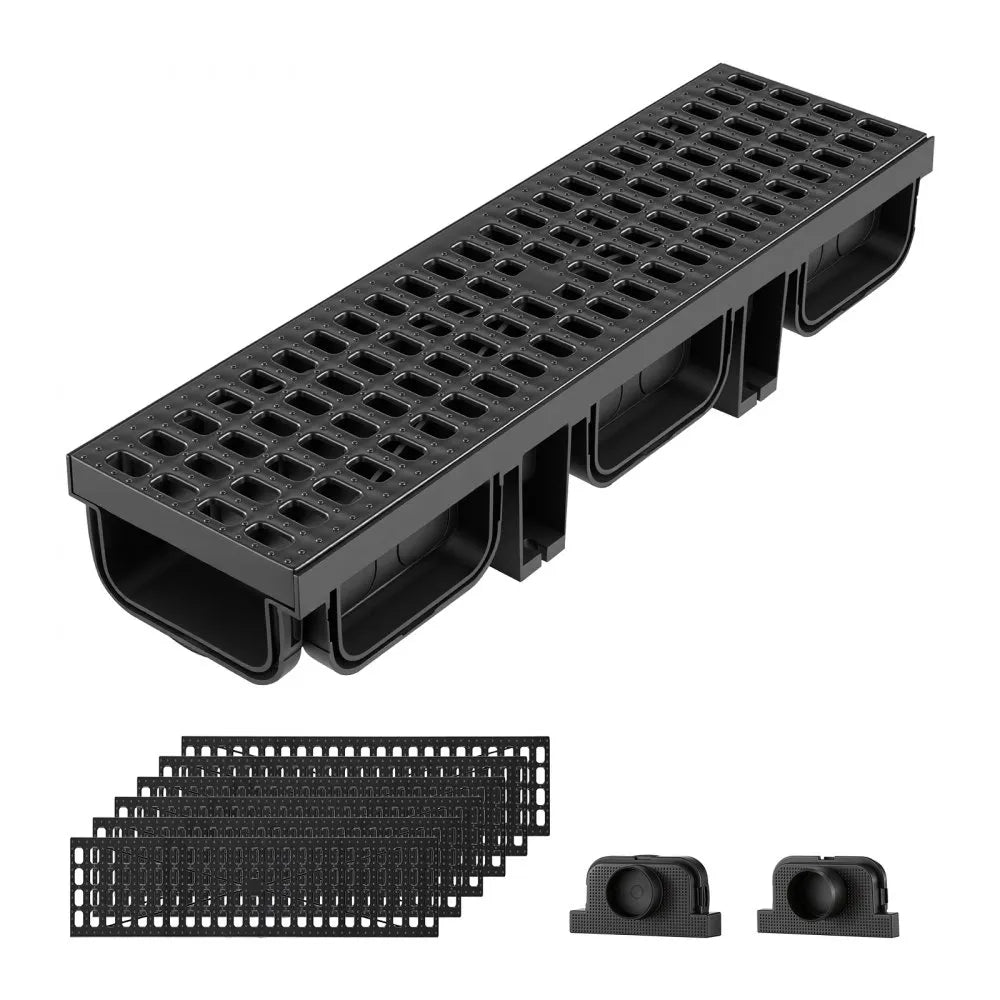

What's Included
- 6 × HDPE Drain Channels
- 6 × Drain Grates
- End Caps
- Mounting Screws
- Installation Hardware
