Description
The 30,000 BTU 2-Zone Mini Split Air Conditioner delivers customizable comfort for multi-room spaces. Each indoor unit operates independently, allowing precise temperature control for different rooms. With chassis heating for extreme climates (-25℃ to 52℃), energy-efficient inverter technology, and eco-friendly R32 refrigerant, this mini split AC offers quiet operation, low energy consumption, and smart control via app, remote, or voice. Perfect for homeowners seeking efficient, versatile, and reliable cooling and heating.
Key Features
-

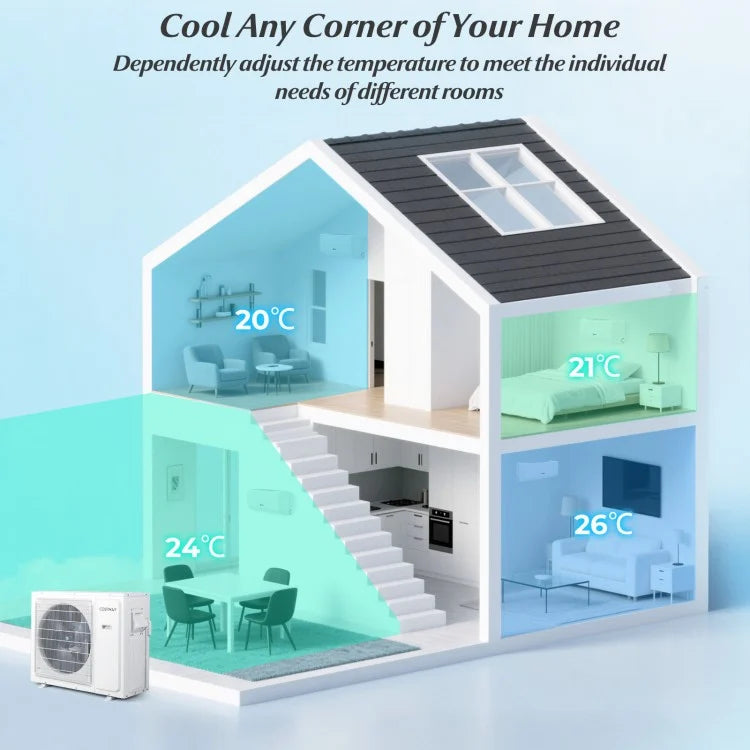

30,000 BTU 2-zone mini split AC with independent temperature control for each room
-

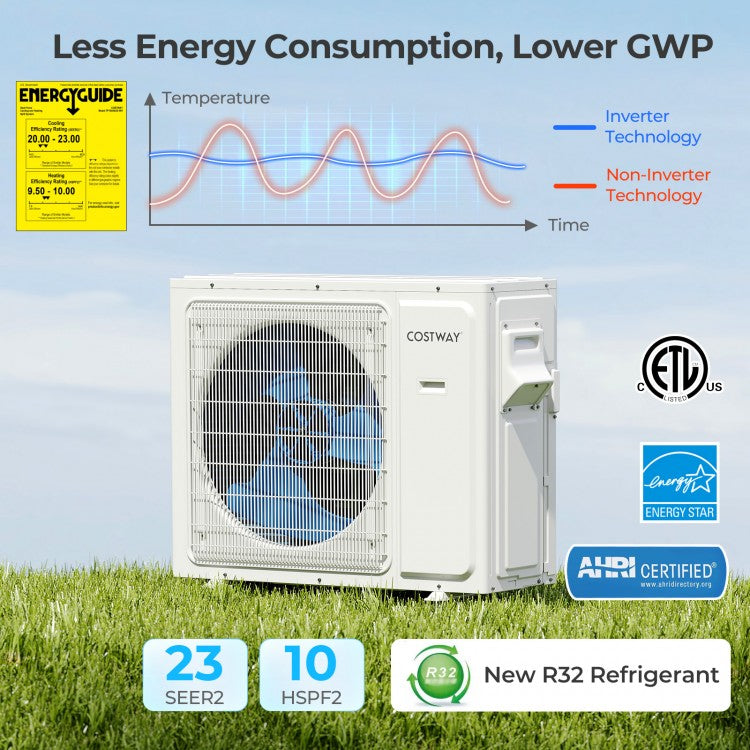

Energy Star certified with 23 SEER2 and 10 HSPF2 ratings
-
Eco-friendly R32 refrigerant and certified by ETL and AHRI
-
6 operation modes: Auto, Cool, Heat, Dry, Fan, Sleep
-
5 fan speeds: Auto, Low, Mid, High, Strong
-
Auto swing, “I Feel,” and Health functions for enhanced comfort
-
Smart control via smartphone app, remote, or voice commands
-
24-hour timer for convenient climate scheduling
-
Low-noise sleep mode with screen-off function
-

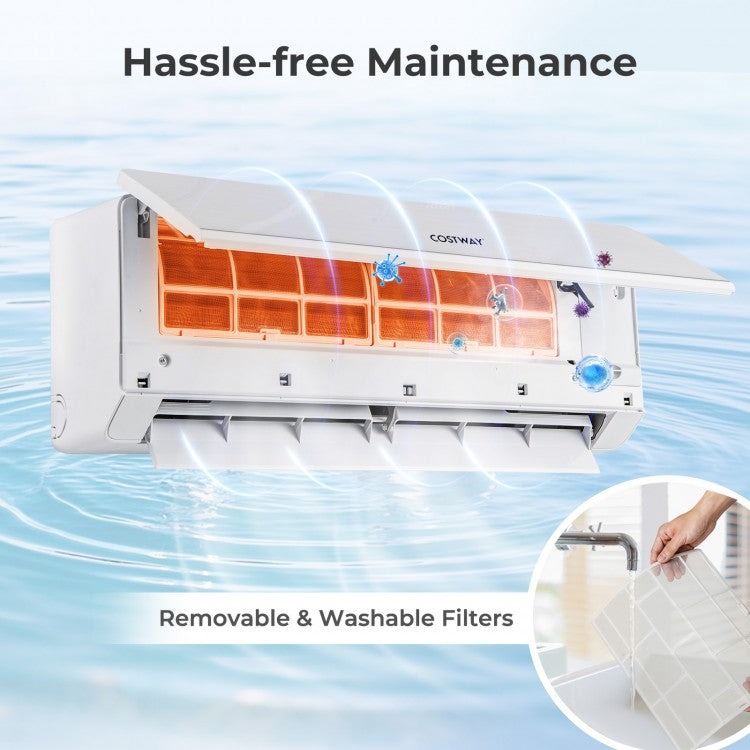

Easy maintenance with removable and washable filters
-

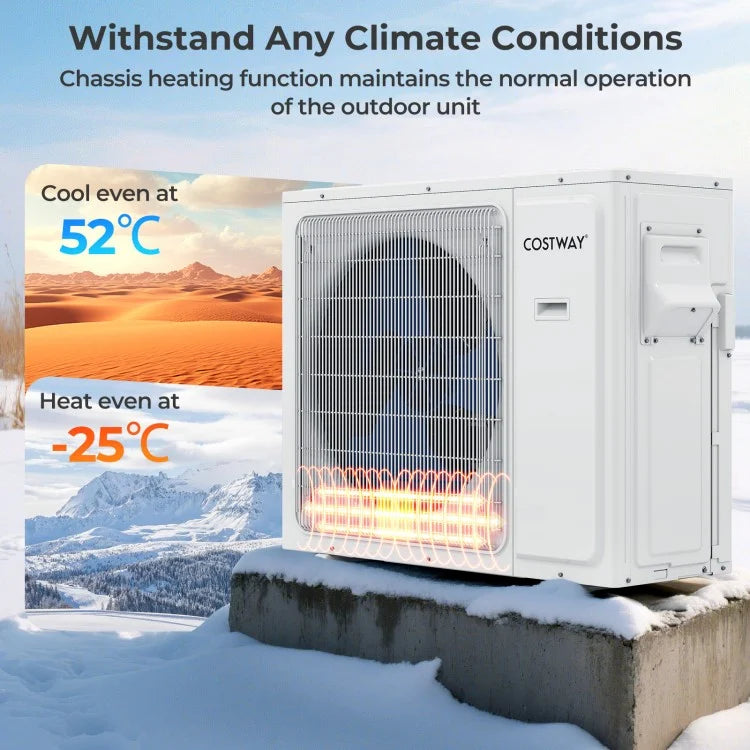

Chassis heating for stable outdoor unit operation in extreme temperatures
-
Professional HVAC installation recommended
-
Specifications
-
Color: White
-
Material: Metal, Aluminum, Plastic
-
Indoor Unit Sizes:
-
7,000 BTU: 31 × 7.8 × 11.5 in
-
9,000 BTU: 31 × 7.8 × 11.5 in
-
12,000 BTU: 34.5 × 7.6 × 11.7 in
-
17,000 BTU: 38.8 × 8.9 × 12.4 in
-
24,000 BTU: 44.1 × 9.1 × 13 in
-
18,000 BTU: 34.7 × 13.9 × 21.9 in
-
30,000 BTU: 41.2 × 17.9 × 31.8 in
-
36,000 BTU: 41.2 × 17.9 × 31.8 in
-
-
Multi-Zone Combination: 2
-
Power Supply: 208–230V~/60Hz/1PH
-
Temperature Setting Range: 16–32℃
-
Operating Ambient Temperature: -25℃ to 52℃
-
Refrigerant: R32
-
Heat Pump Capacity:
-
7k: 0.6 Ton
-
9k: 0.75 Ton
-
12k: 1 Ton
-
17k: 1.5 Ton
-
24k: 2 Ton
-
-
Dehumidifying Capacity:
-
7k & 9k: 35.5 Pints/Day
-
12k: 51 Pints/Day
-
17k: 81 Pints/Day
-
24k: 130 Pints/Day
-
-
SEER2 Rating: 18k–36k: 22–23
-
HSPF2: 10
-
Indoor Unit Noise Levels: 7k & 9k: 30 dB, 12k: 32 dB, 17k: 35 dB, 24k: 40 dB
-
Net Weight:
-
Outdoor Unit 18k: 75 lbs
-
Outdoor Unit 30k: 149 lbs
-
Outdoor Unit 36k: 154 lbs
-
Indoor Units 7k–24k: 17.5–31 lbs
-
-
Box Quantity: 4

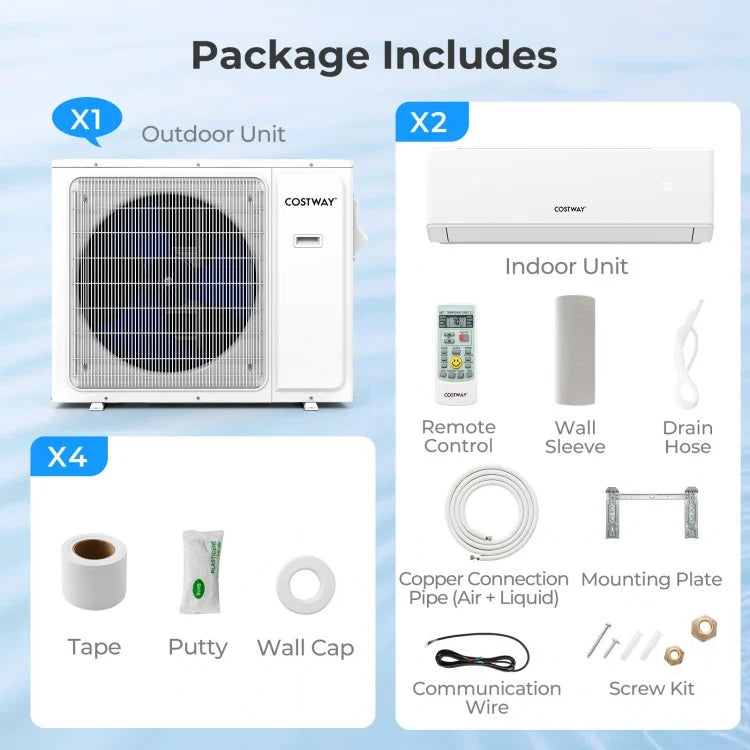

Package Includes
-
2 Indoor Units and 1 Outdoor Unit
-
Copper connection pipes, communication wires, drain pipes
-
Remote controls
-
Installation accessories (wall sleeve, wall cap, tape, putty)
-
User Guide
