Description
Upgrade your hydraulic connections with the VEVOR 1/2" Flat Face Hydraulic Couplers. Designed to meet ISO16028 standards, these skid steer quick-connect couplers feature 3/4 SAE internal threads for both male and female ends, ensuring compatibility with most hydraulic systems. Built from durable 45# carbon steel and chrome-plated for corrosion resistance, these couplers handle up to 5000 psi pressure and 25 GPM flow rate. With quick connection and disconnection, leak-proof design, and included dust caps for extra protection, this set is ideal for agriculture, construction, and industrial equipment.
Features
-
Compliant with Standards: Manufactured to ISO16028 for assured compatibility and performance.
-

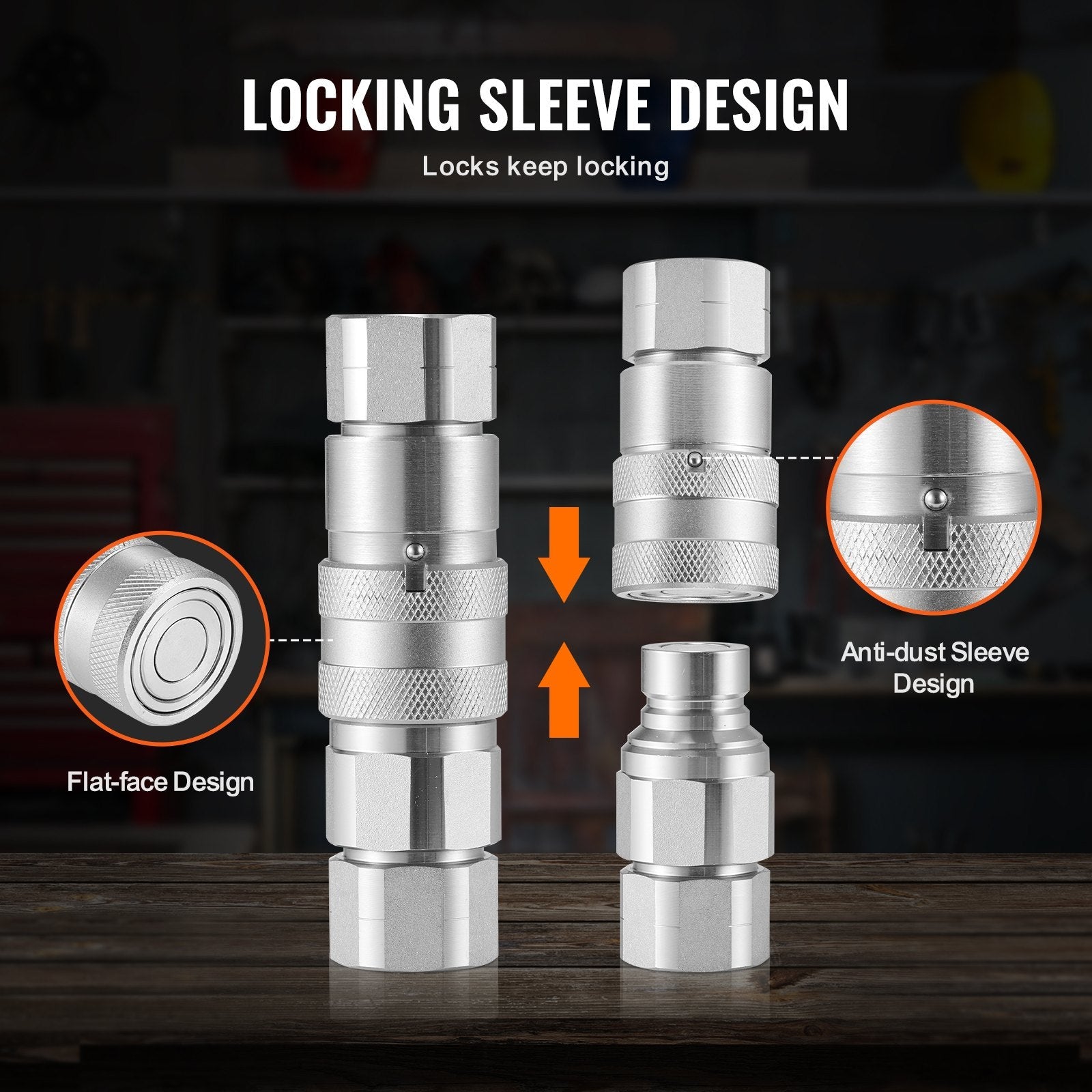

Safety and Leak Prevention: Flat face design minimizes fluid loss and prevents contamination.
-
Premium Steel Material: Made of 45# carbon steel with chrome plating for superior strength and corrosion resistance.
-
Quick Connection: Effortlessly connect or disconnect with minimal fluid spillage.
-
High Compatibility: 3/4 SAE internal threads for wide-ranging hydraulic system use.
-

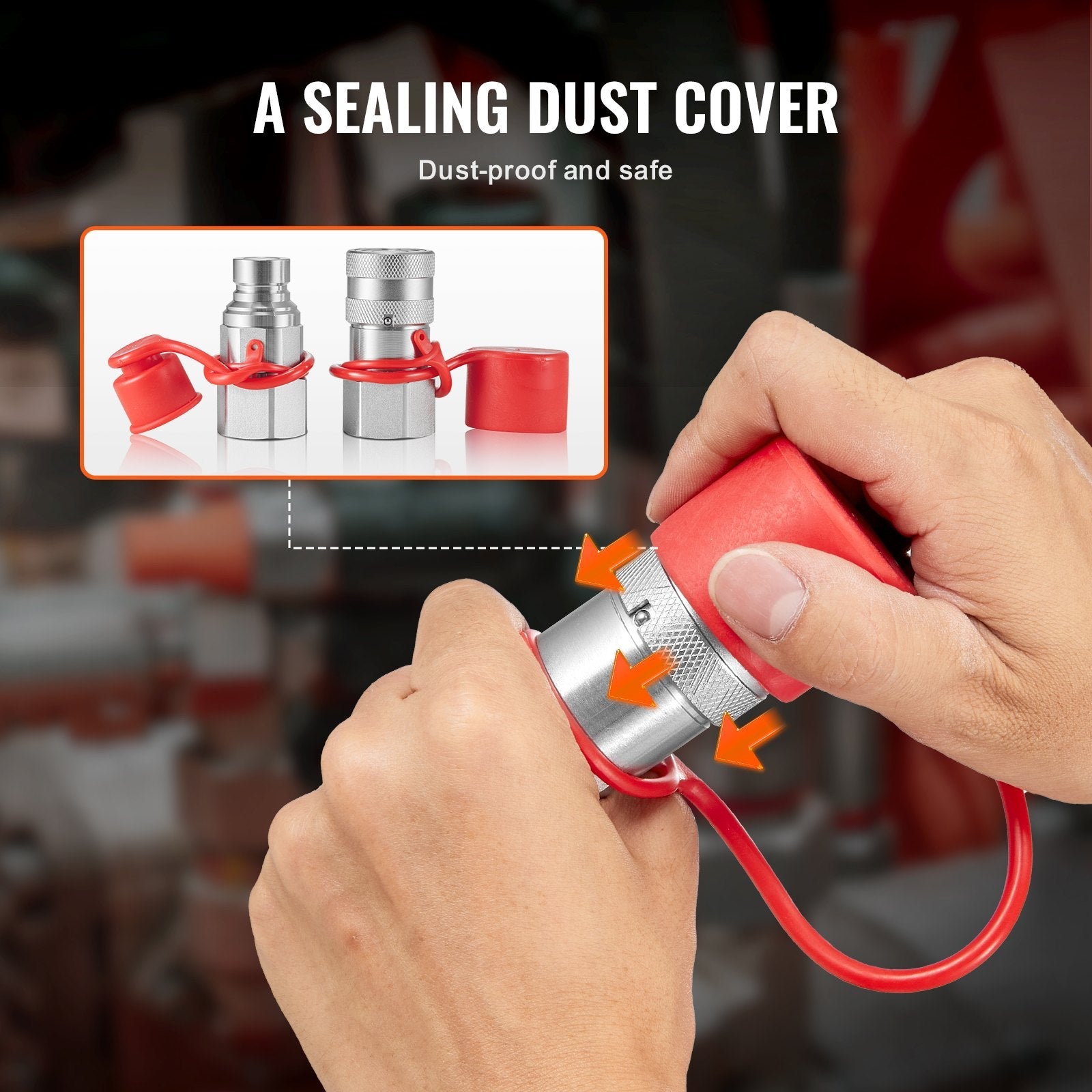

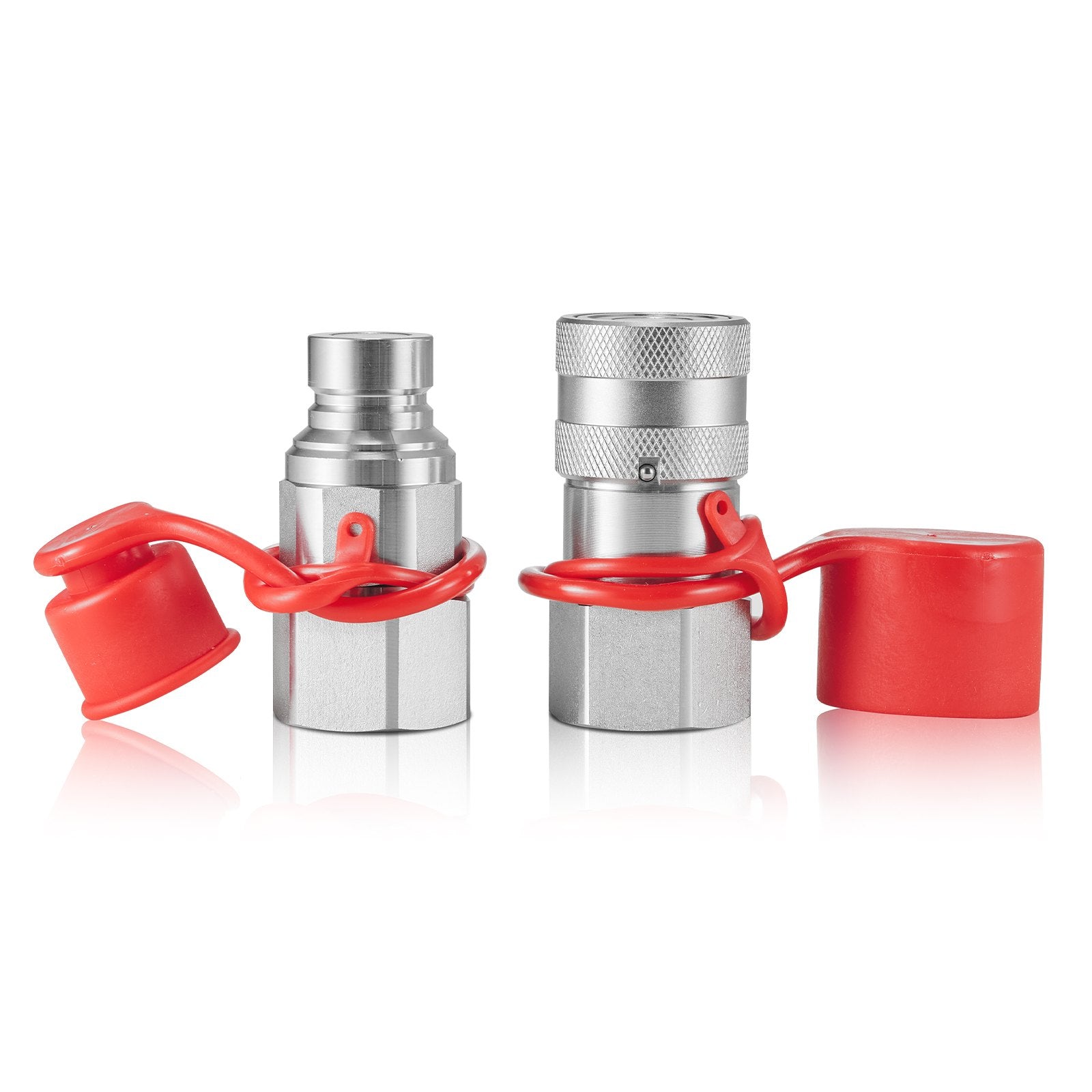

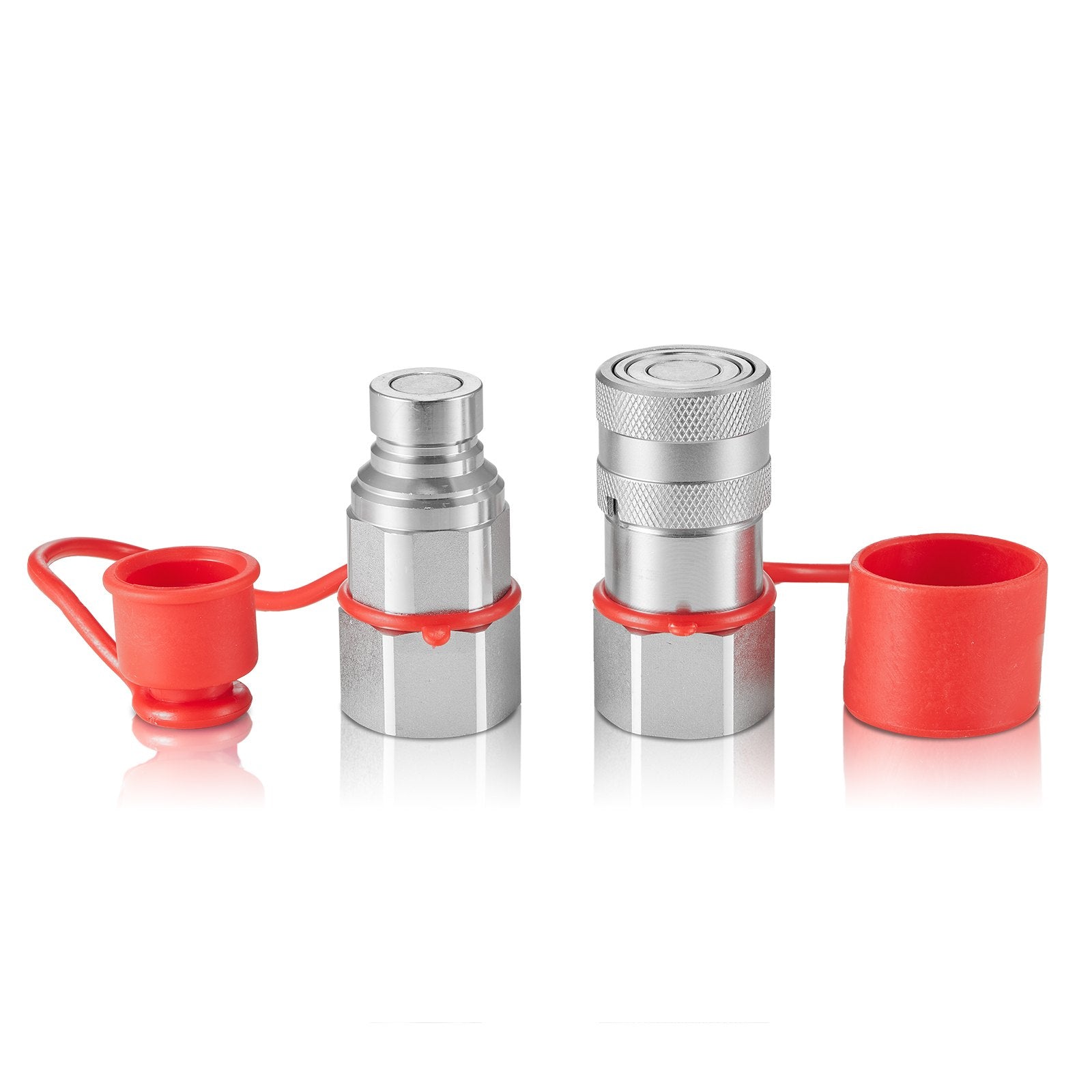

Well-Packaged: Comes with rubber dust caps to protect fittings when not in use.
Specifications
-
Coupler Type: Flat Face Hydraulic Coupler
-
Thread Size (Male & Female): 3/4 SAE (Internal Thread)
-
Body Size: 1/2"
-

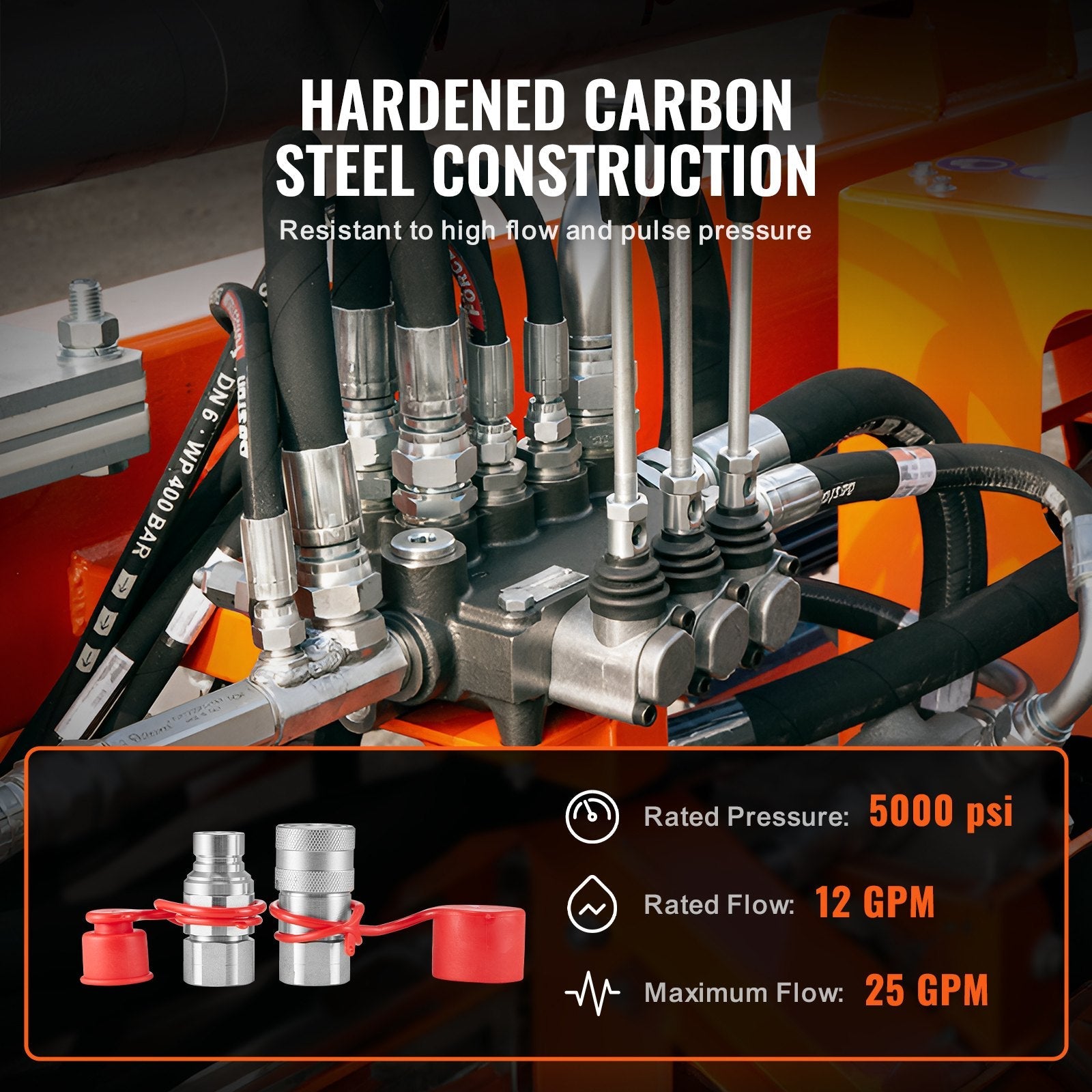

Rated Pressure: 5000 psi
-
Rated Flow: 12 GPM
-
Maximum Flow: 25 GPM
-
Standard: ISO16028
-
Material: 45# Carbon Steel, Chrome Plated
-
Color: White
-
Quantity: 1 Pair
-

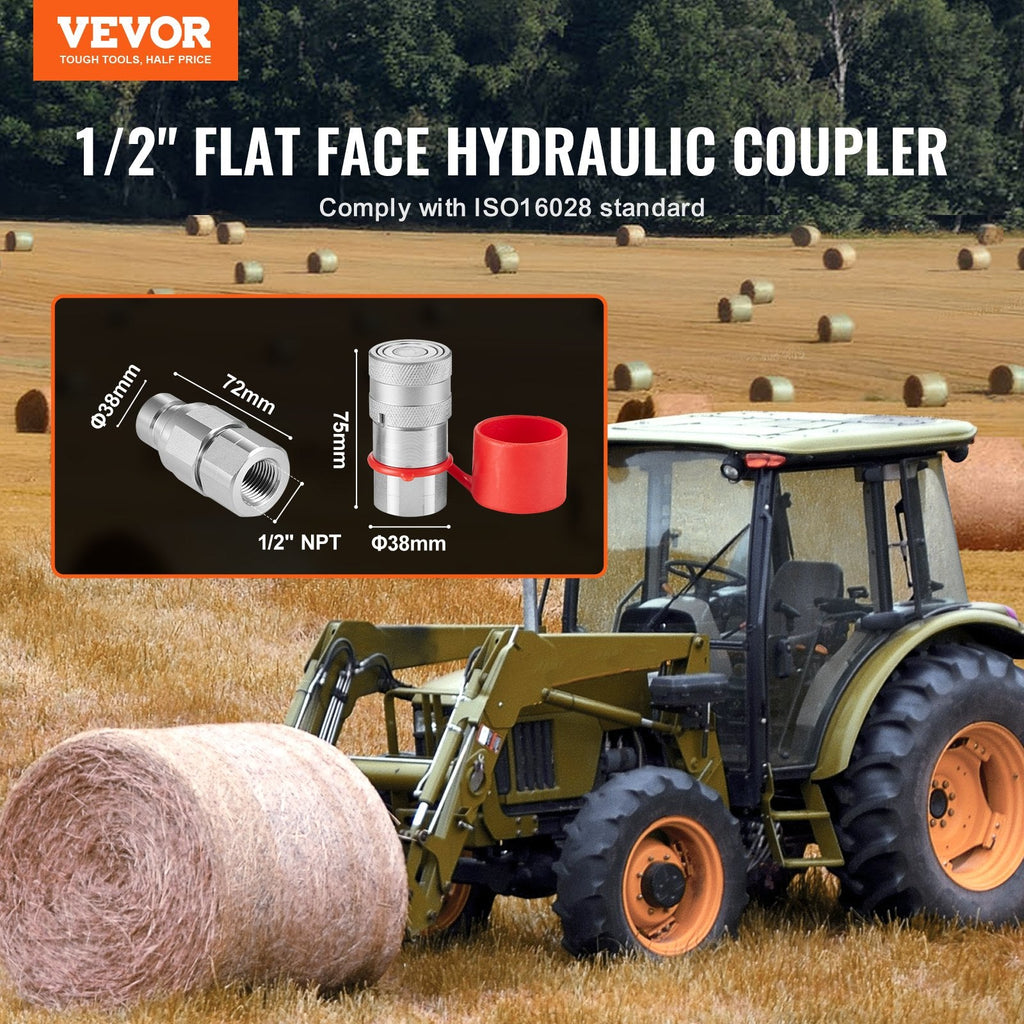

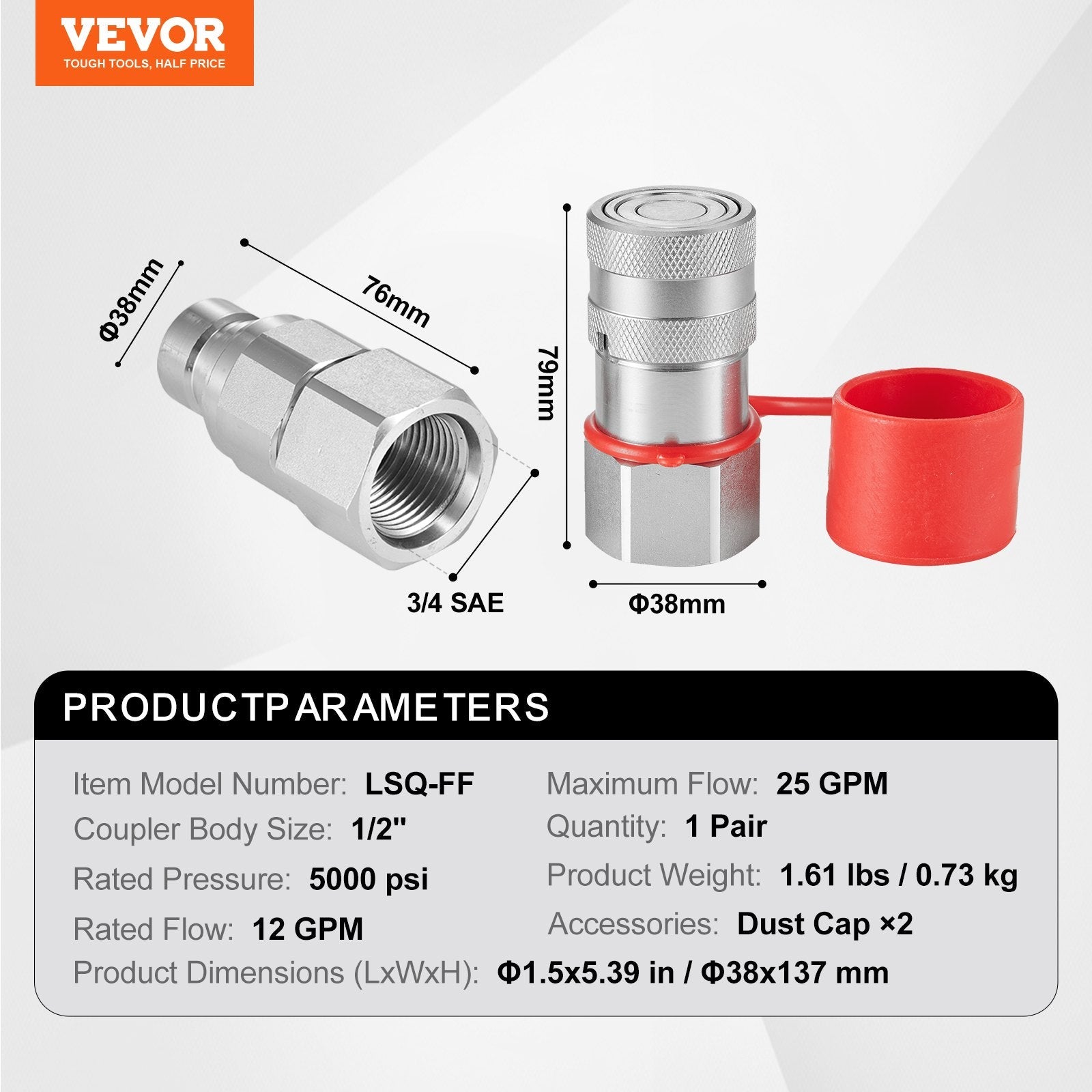

Product Dimensions (L x W x H): Ø1.5 x 5.39 in / Ø38 x 137 mm
-
Female Coupler Size: Ø38 × 79 mm
-
Male Coupler Size: Ø38 × 76 mm
-

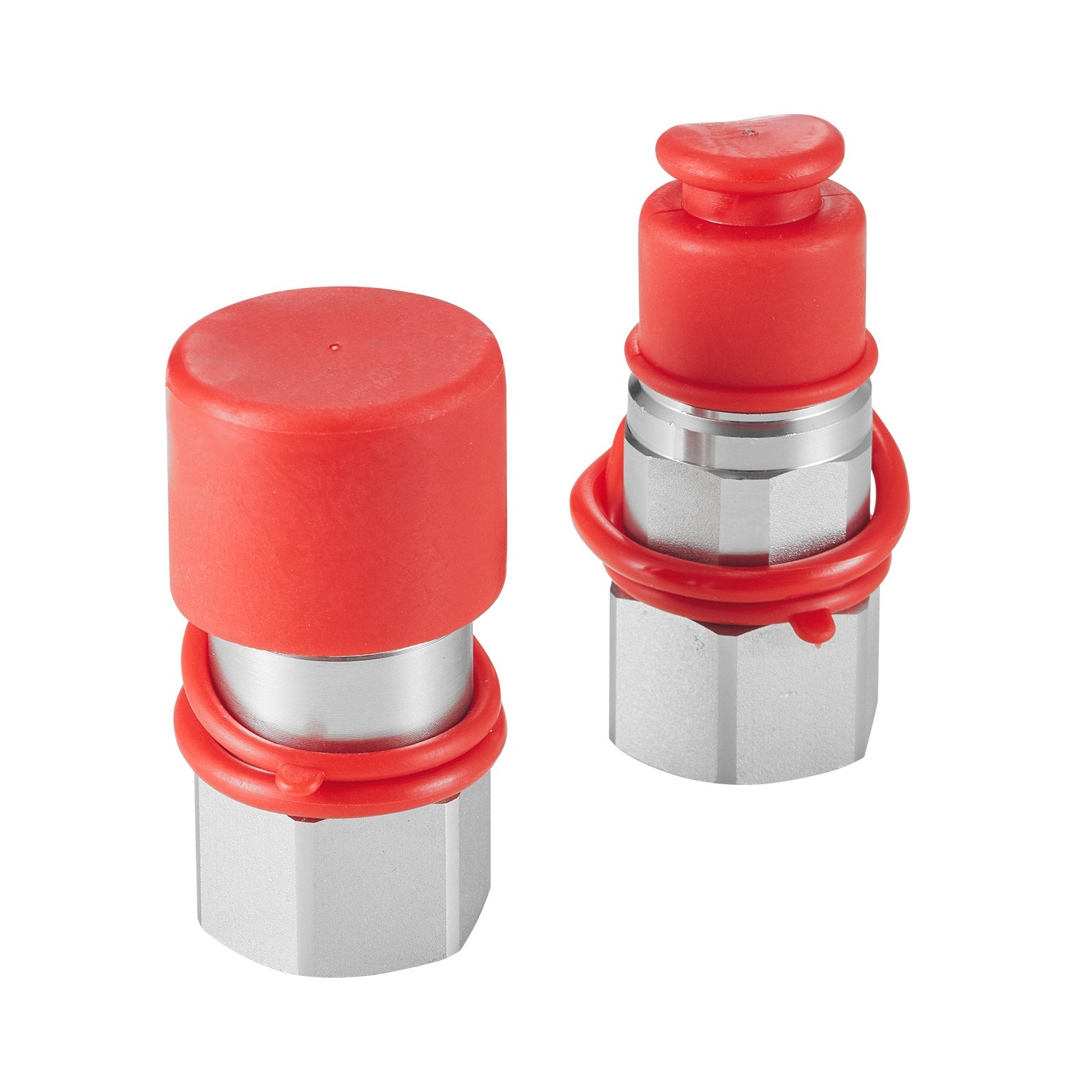

Dust Cap Size: Ø40 × 260 mm, Rubber, Red
-
Item Model Number: LSQ-FF
-
Product Weight: 1.61 lbs / 0.73 kg
