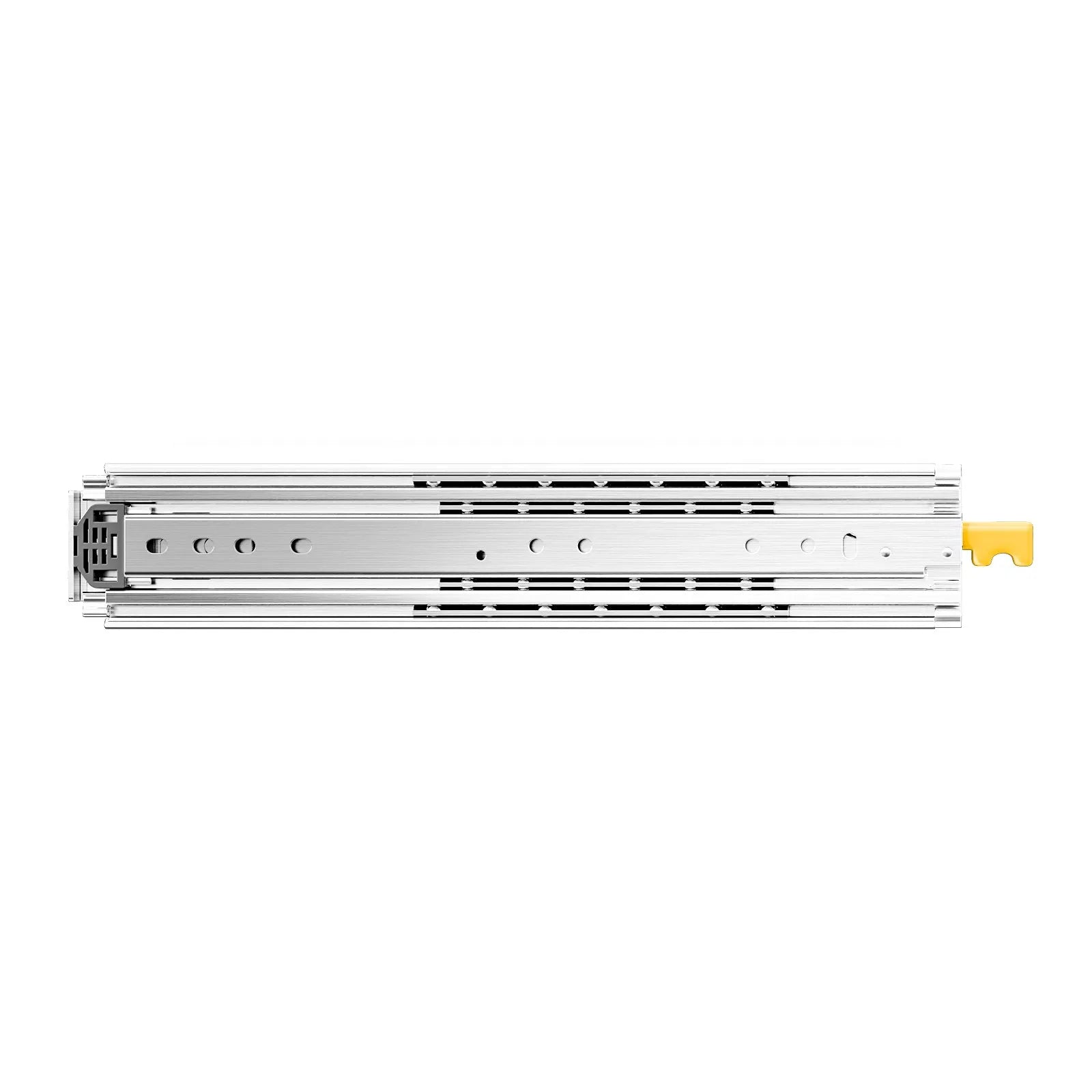

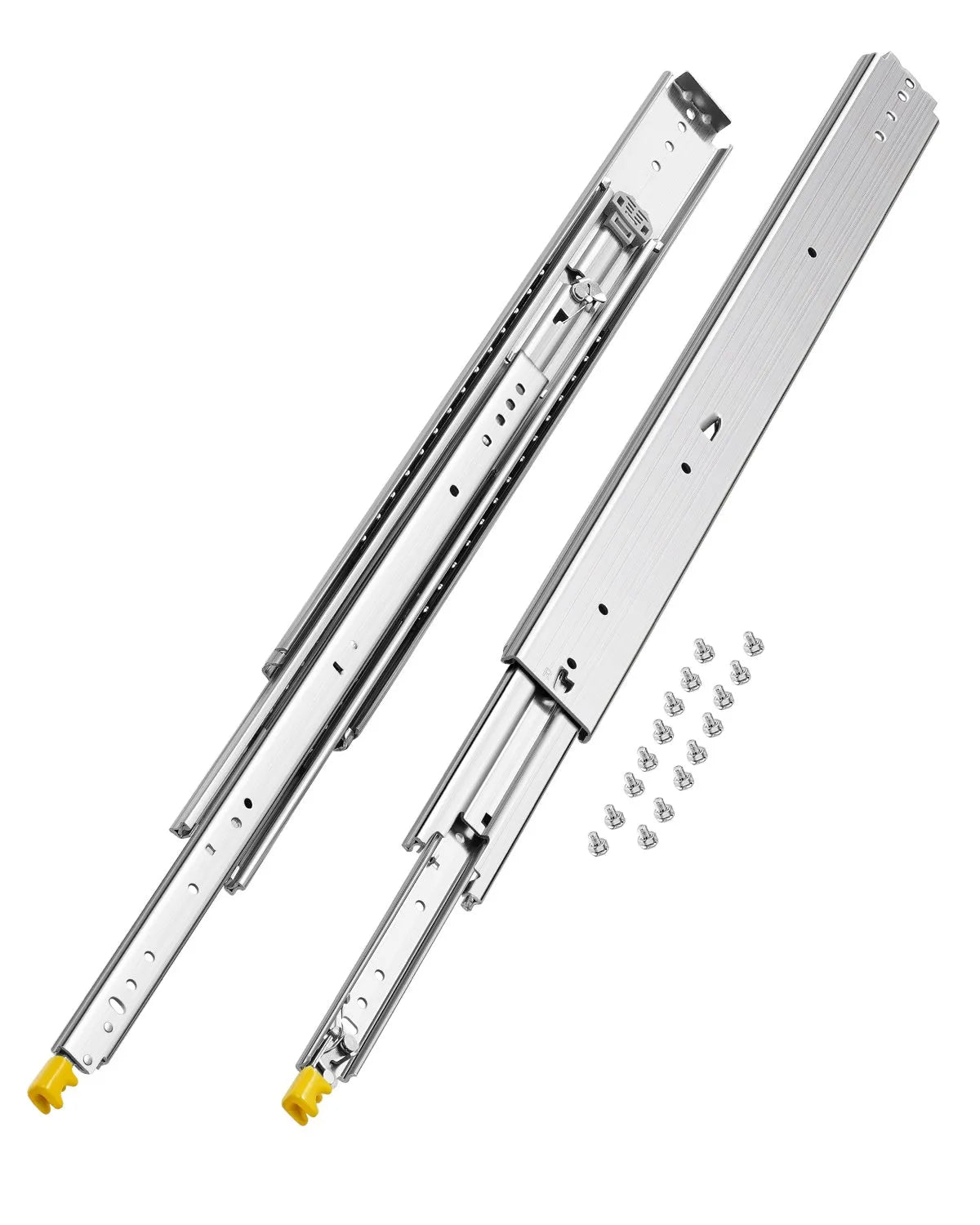

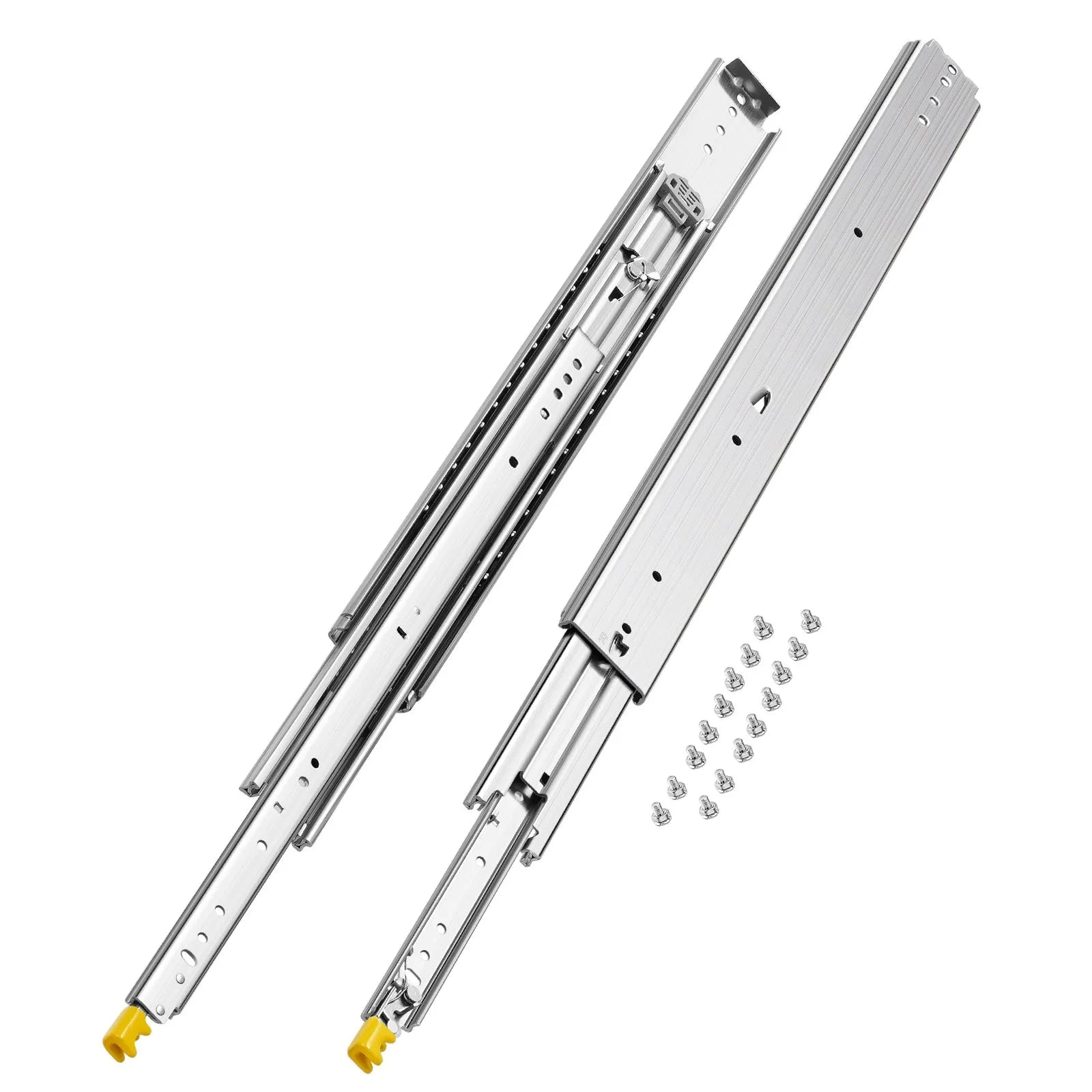

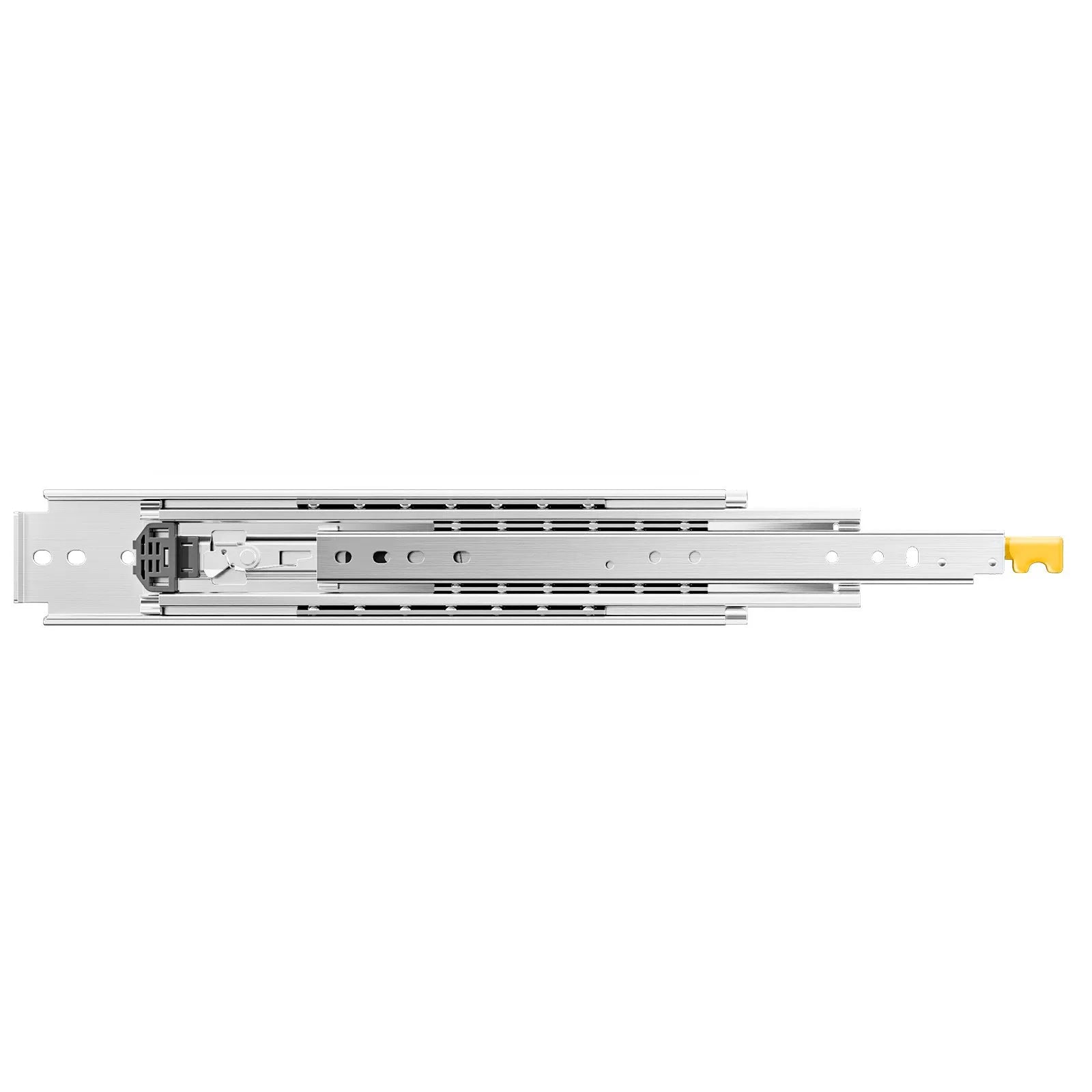

VEVOR 1 Pair Full Extension Drawer Slides 18 20 22 28 30 32 36 38 40 44 48 52 56 60 in, 500 lbs Load Capacity Locking Drawer Slides, Ball Bearing with Lock Side Mount Drawer Slide Rail

Experience maximum strength and smooth control with the VEVOR Heavy-Duty Full Extension Drawer Slides. Designed for industrial and heavy-storage applications, these side-mount locking slides deliver exceptional load capacity, secure locking, and full-access convenience for cabinets, RVs, trucks, and workshops.

Key Features:

• 500 lbs Heavy-Duty Capacity: Constructed from 0.77 in / 19.5 mm thick high-hardness steel, supporting up to 500 lbs with a galvanized, rust- and wear-resistant finish.

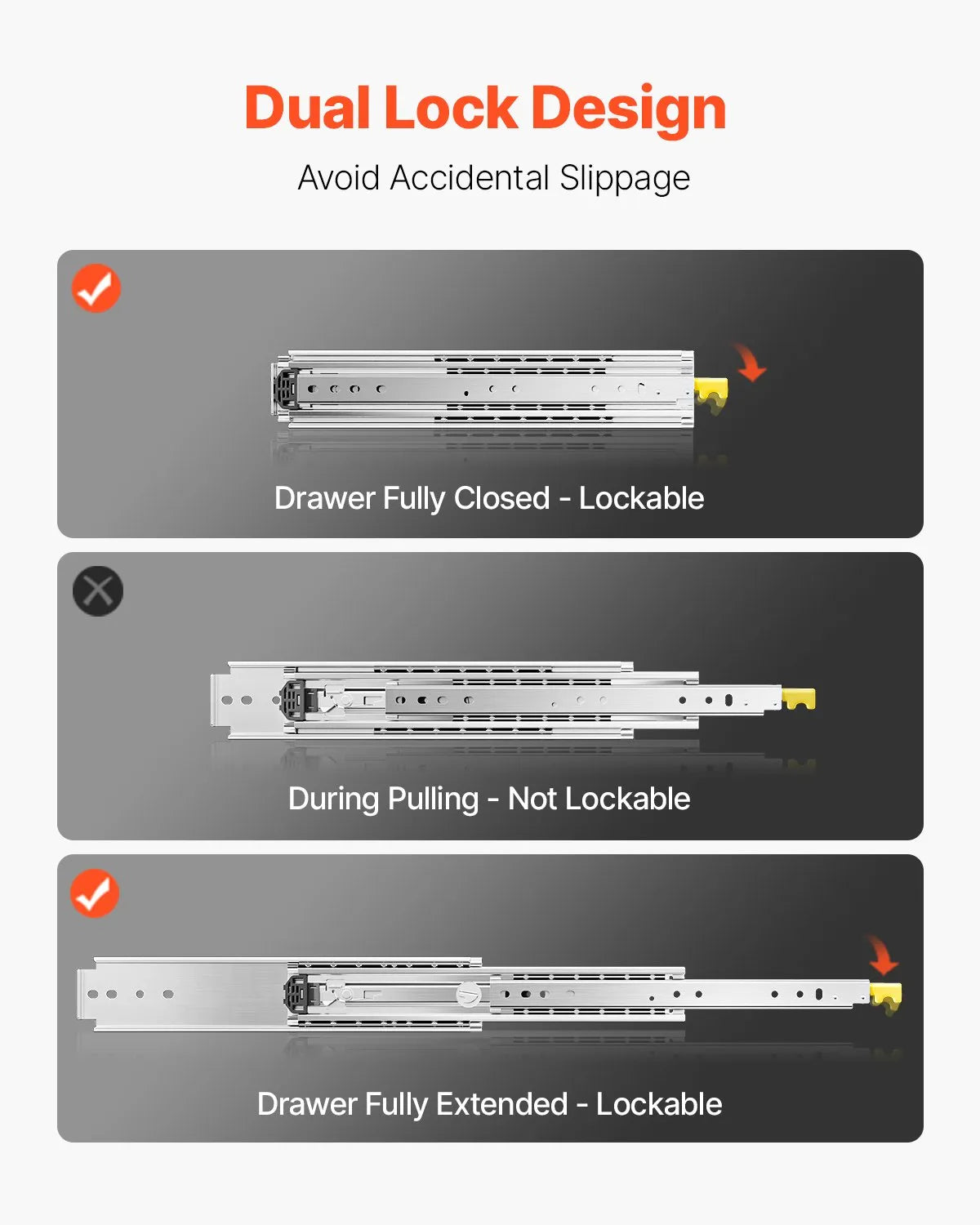

• Double Locking Design: Dual side locks secure drawers firmly in place, preventing sliding or accidental opening during movement or bumpy transport.

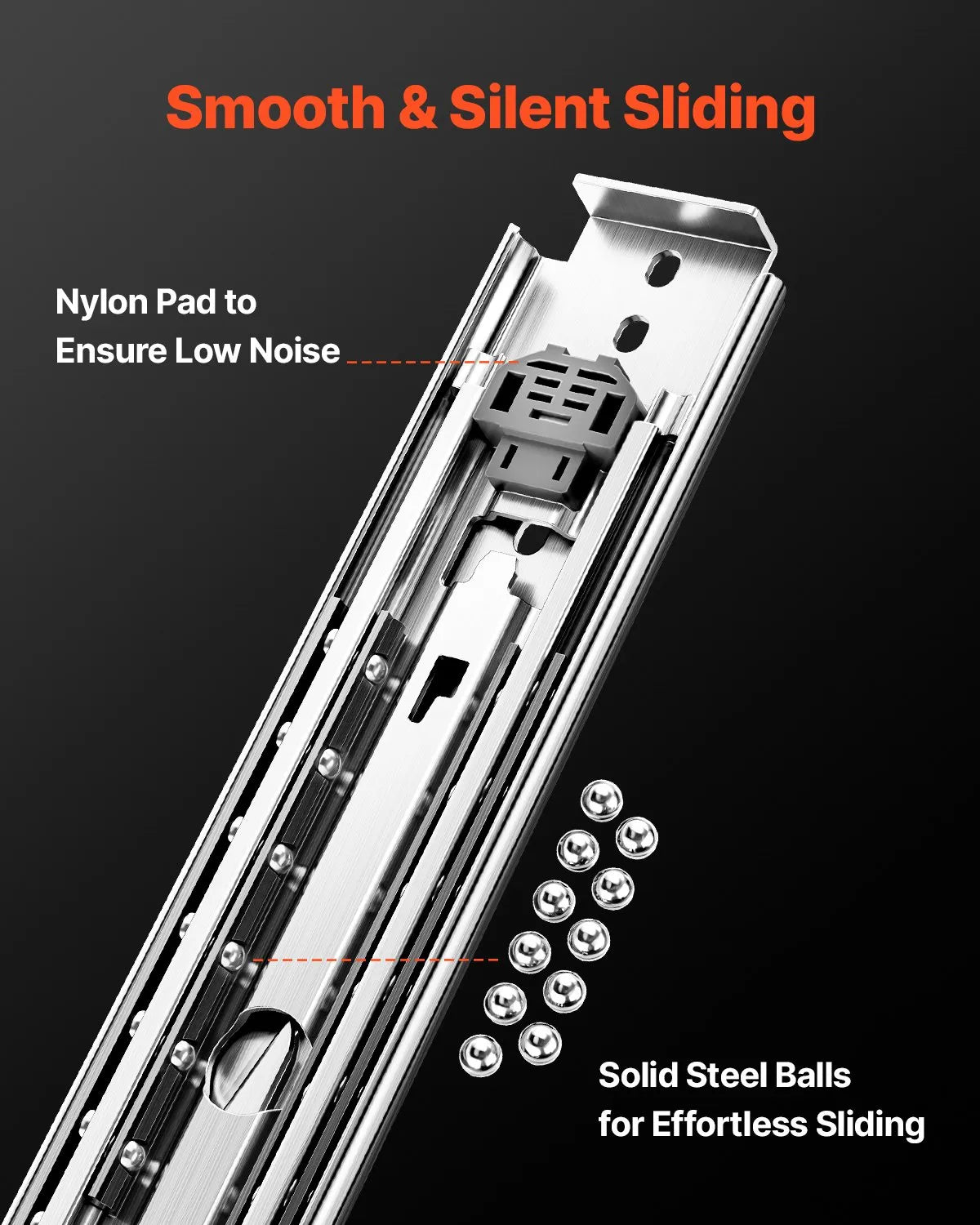

• Smooth & Quiet Operation: Double-row ball bearings ensure stable, smooth sliding, while nylon cushioning minimizes noise and rebound.

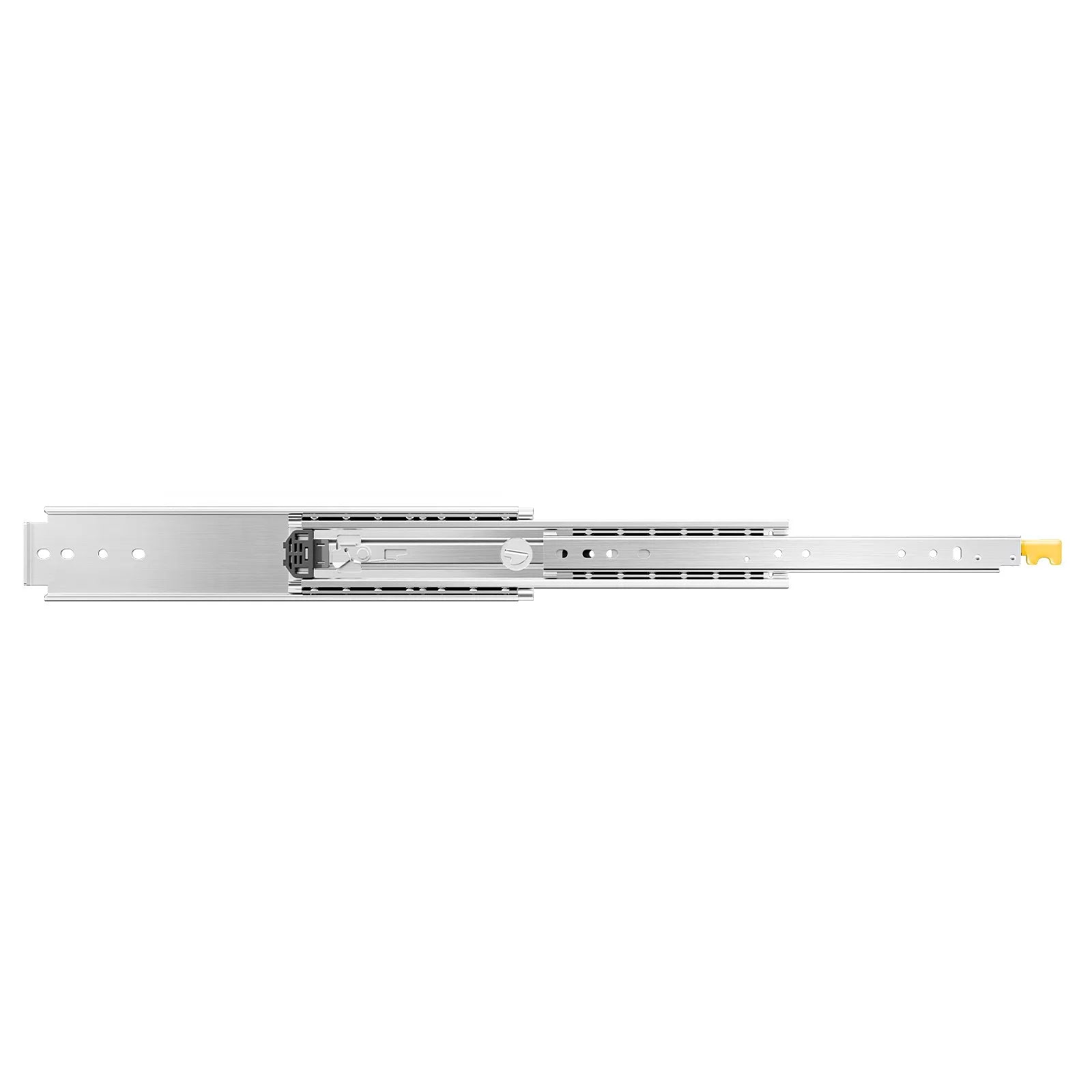

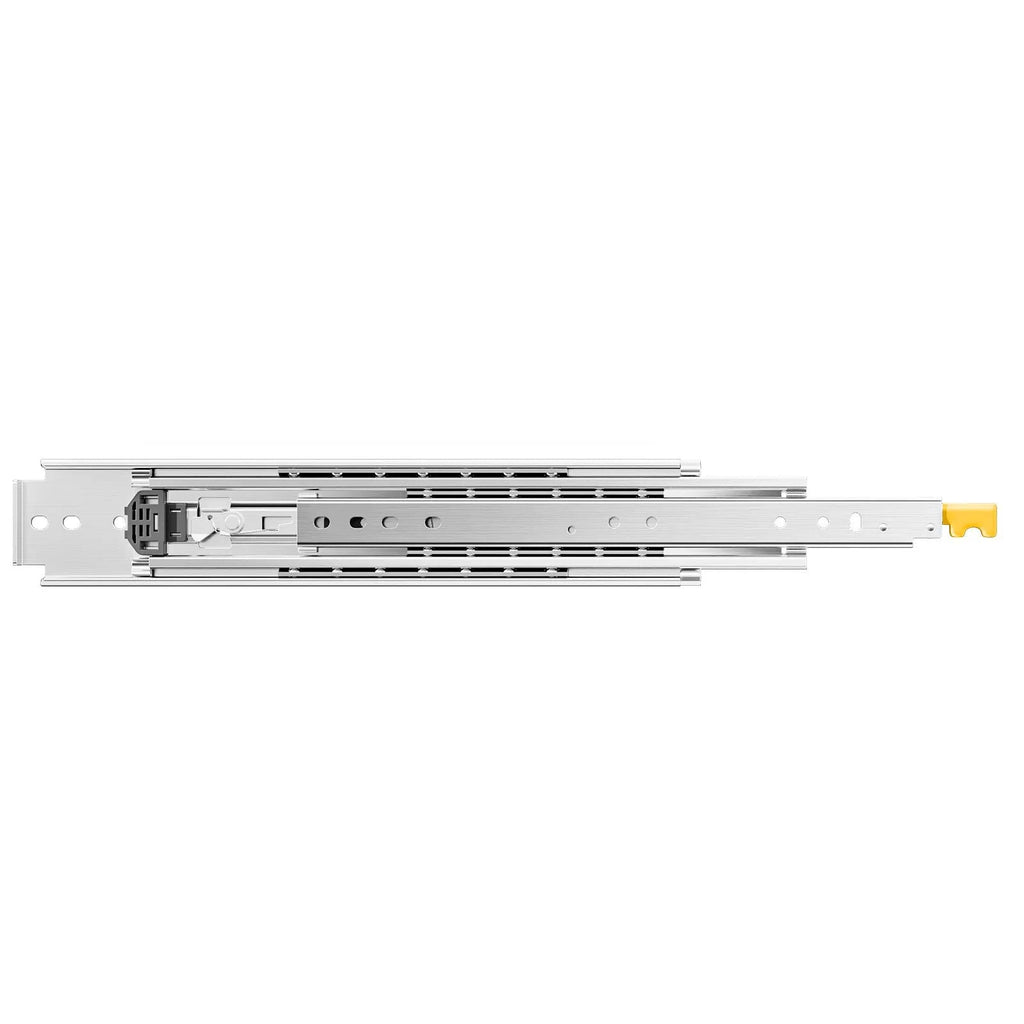

• 3-Fold Full Extension: Full-extension design allows complete access to the entire drawer, maximizing storage efficiency.

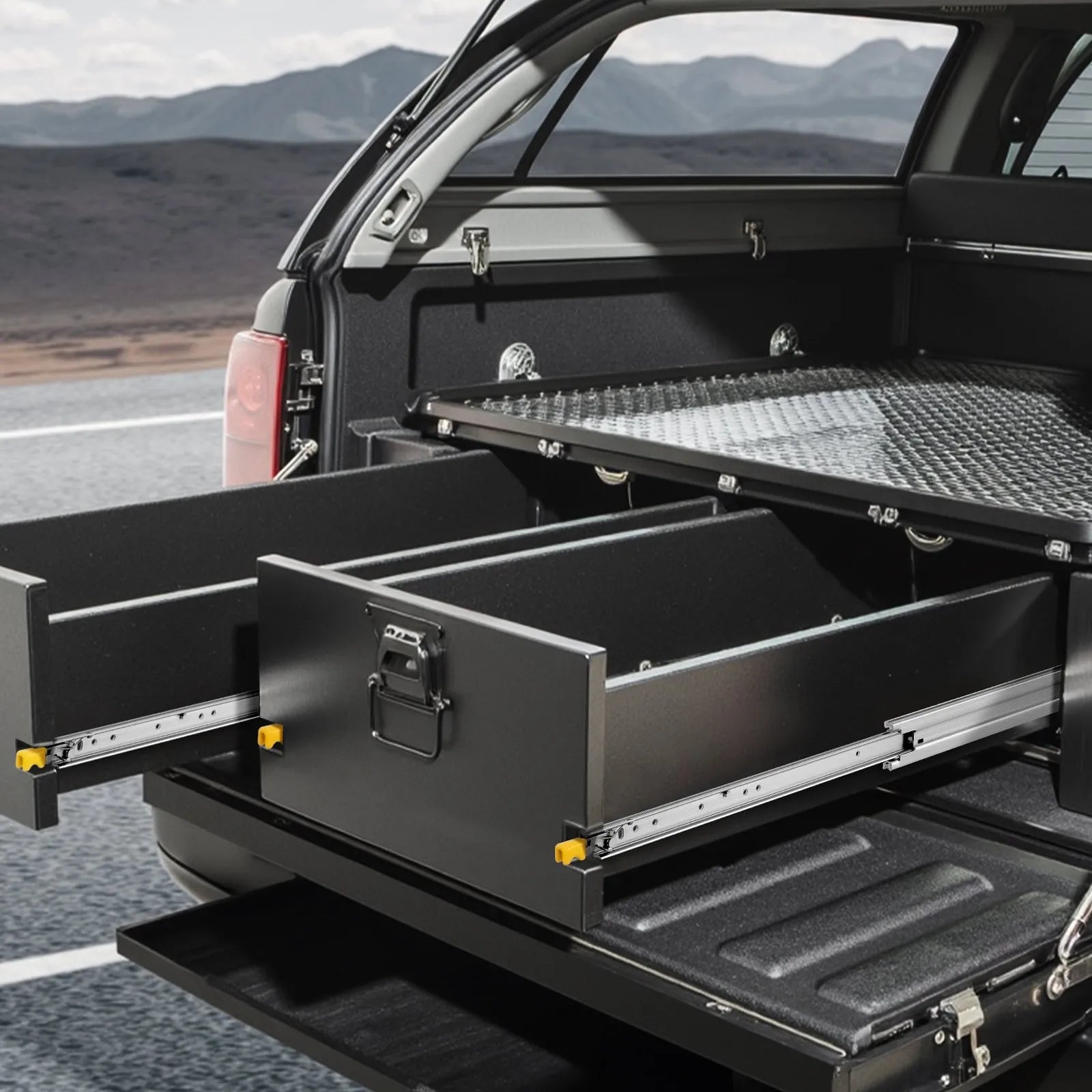

• Wide Compatibility: Suitable for shelving, cabinets, industrial drawers, RVs, trucks, vending machines, and heavy-duty storage systems.

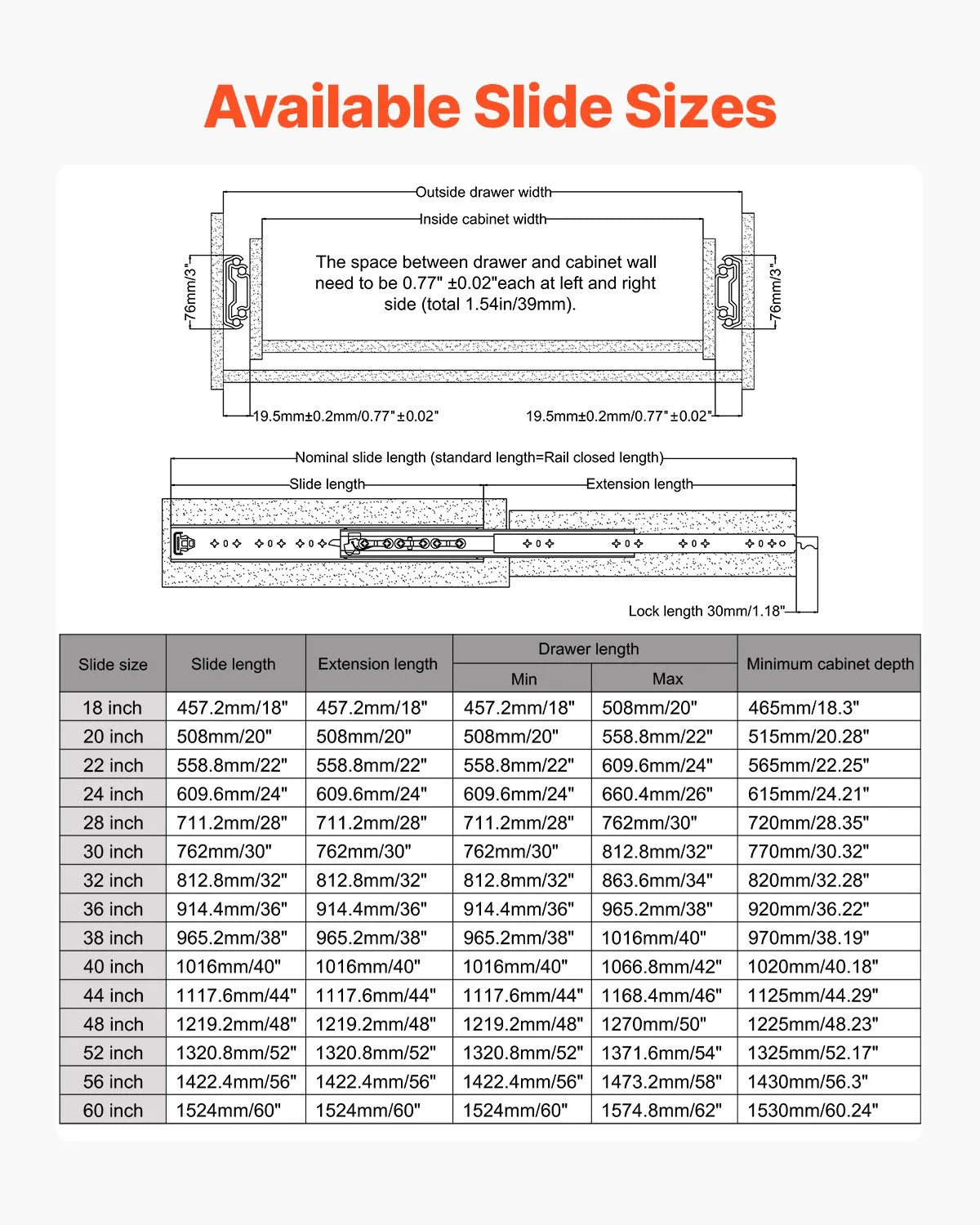

• Size Selection Guidance: Available in multiple lengths; slide length should be less than drawer depth (excluding frame boards).

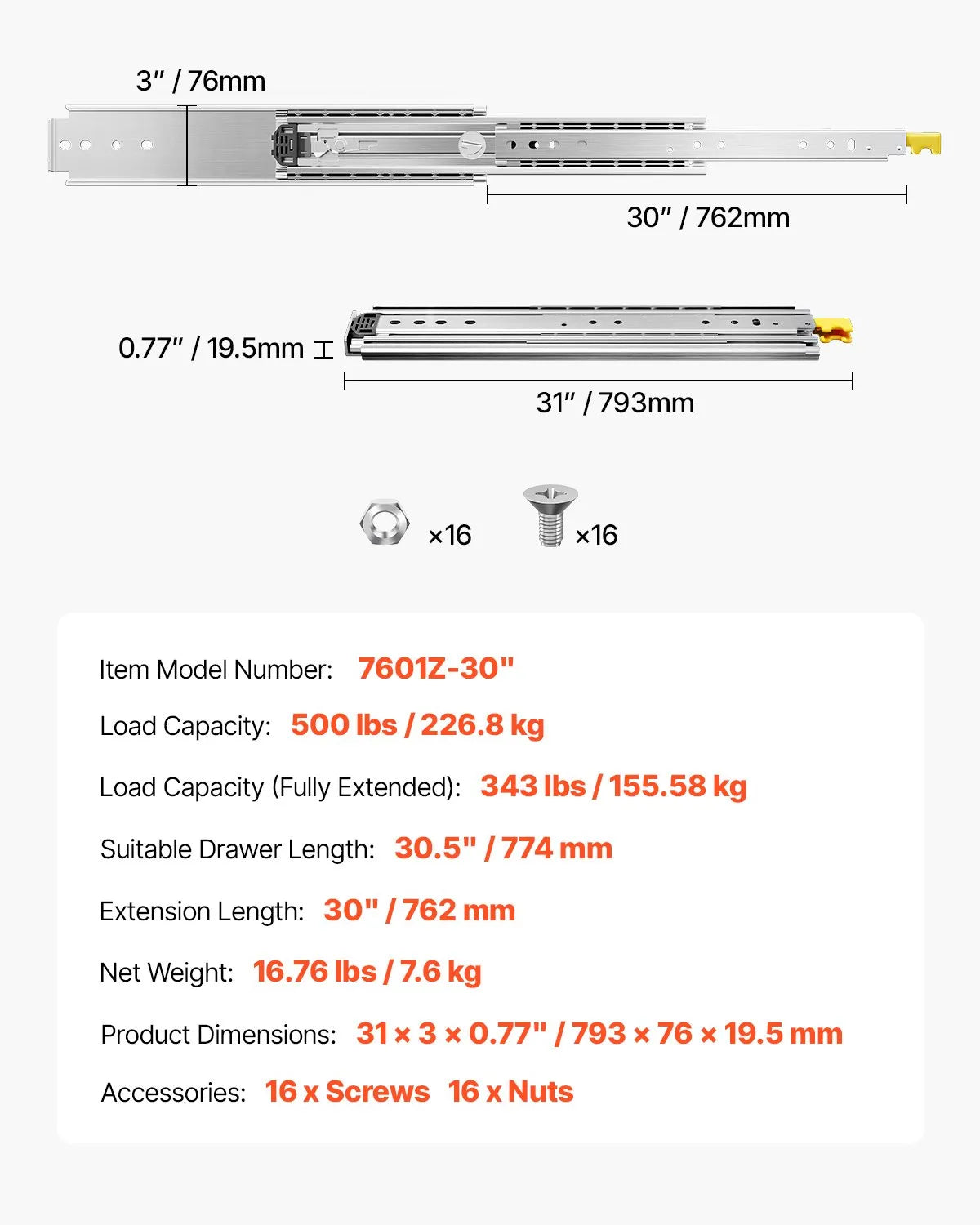

Specifications:

• Item Model Number: 7601Z-30"

• Load Capacity: 500 lbs / 226.8 kg

• Load Capacity (Fully Extended): 343 lbs / 155.58 kg

• Suitable Drawer Length: 30.5 in / 774 mm

• Extension Length: 30 in / 762 mm

• Net Weight: 16.76 lbs / 7.6 kg

• Product Dimensions: 31 × 3 × 0.77 in / 793 × 76 × 19.5 mm
