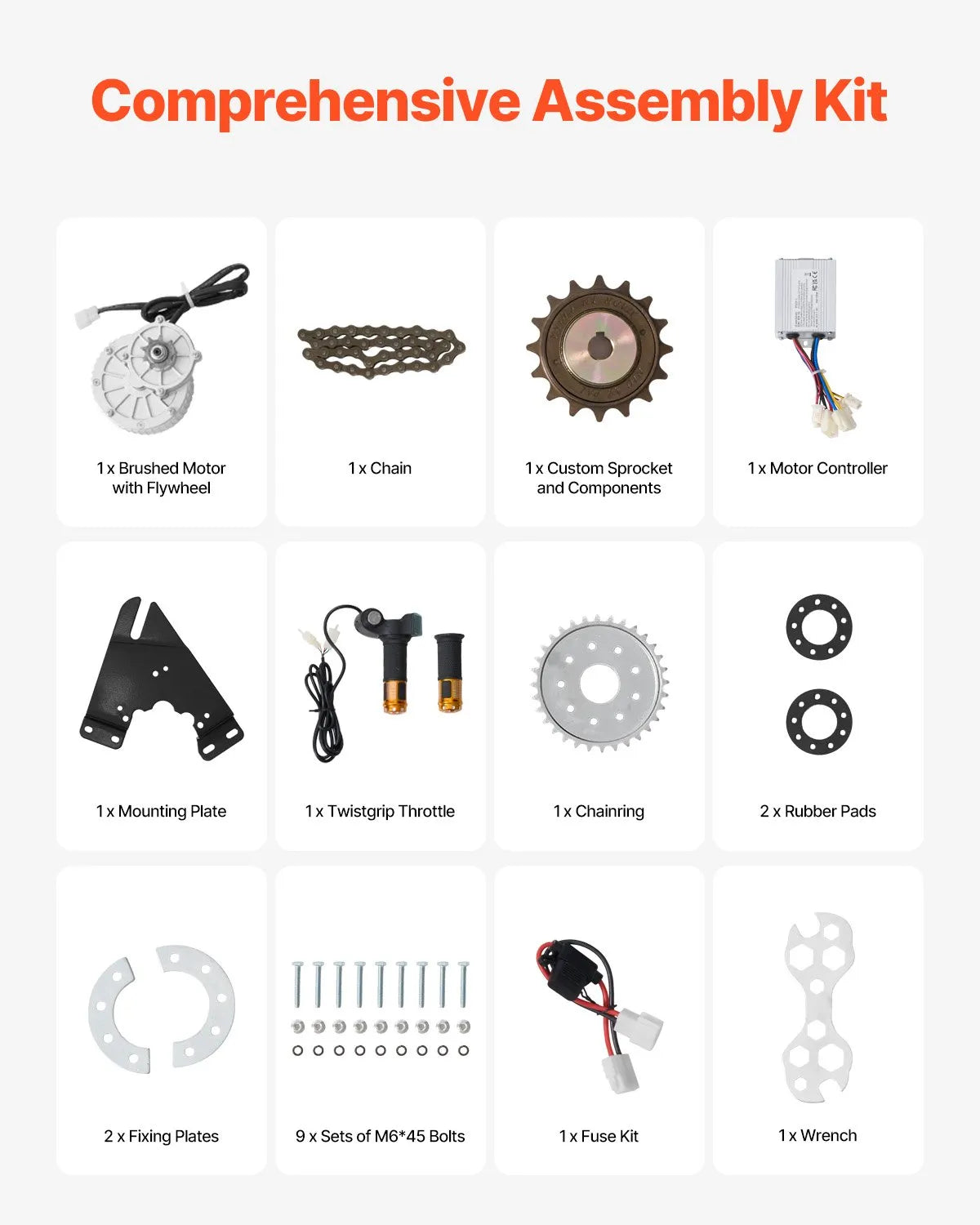

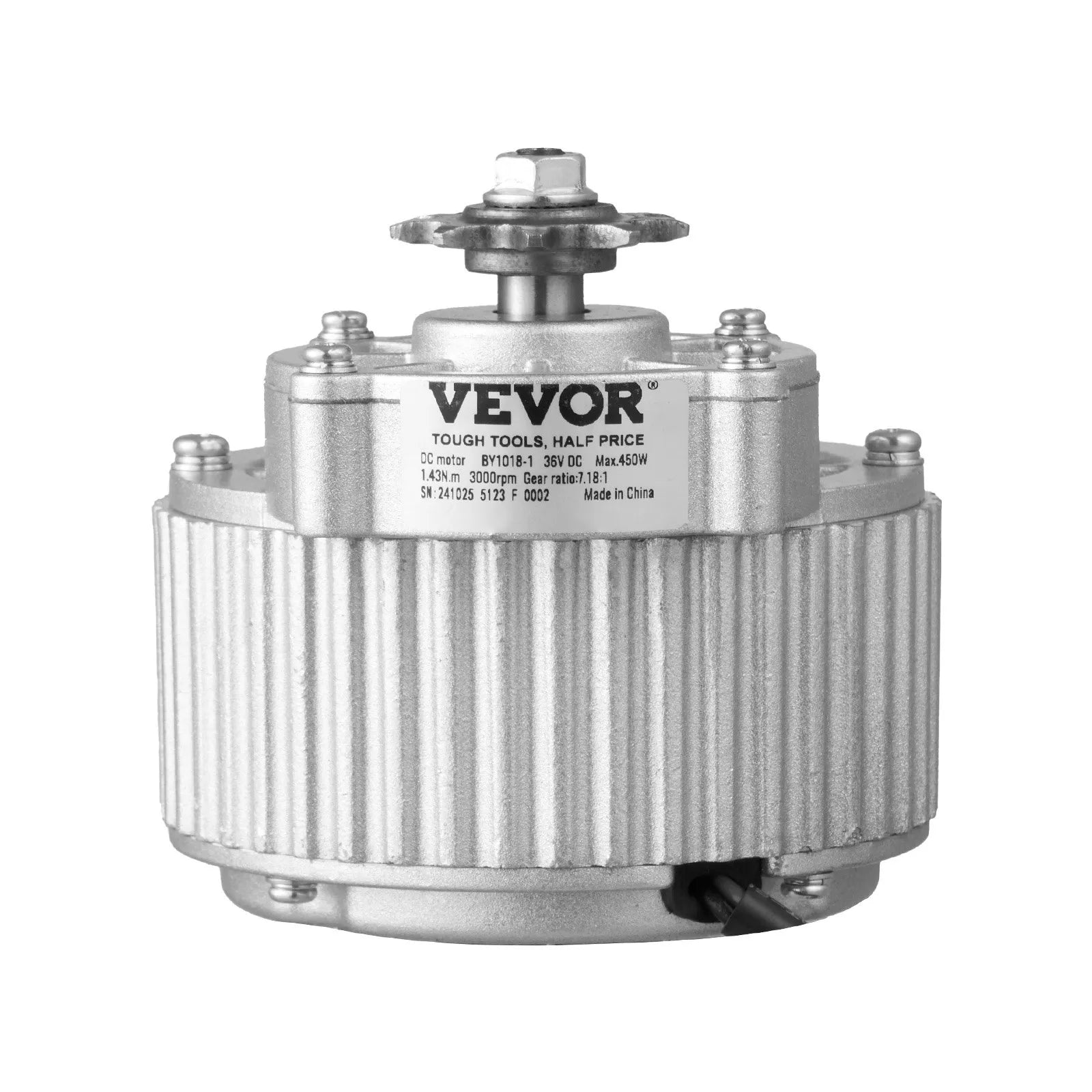

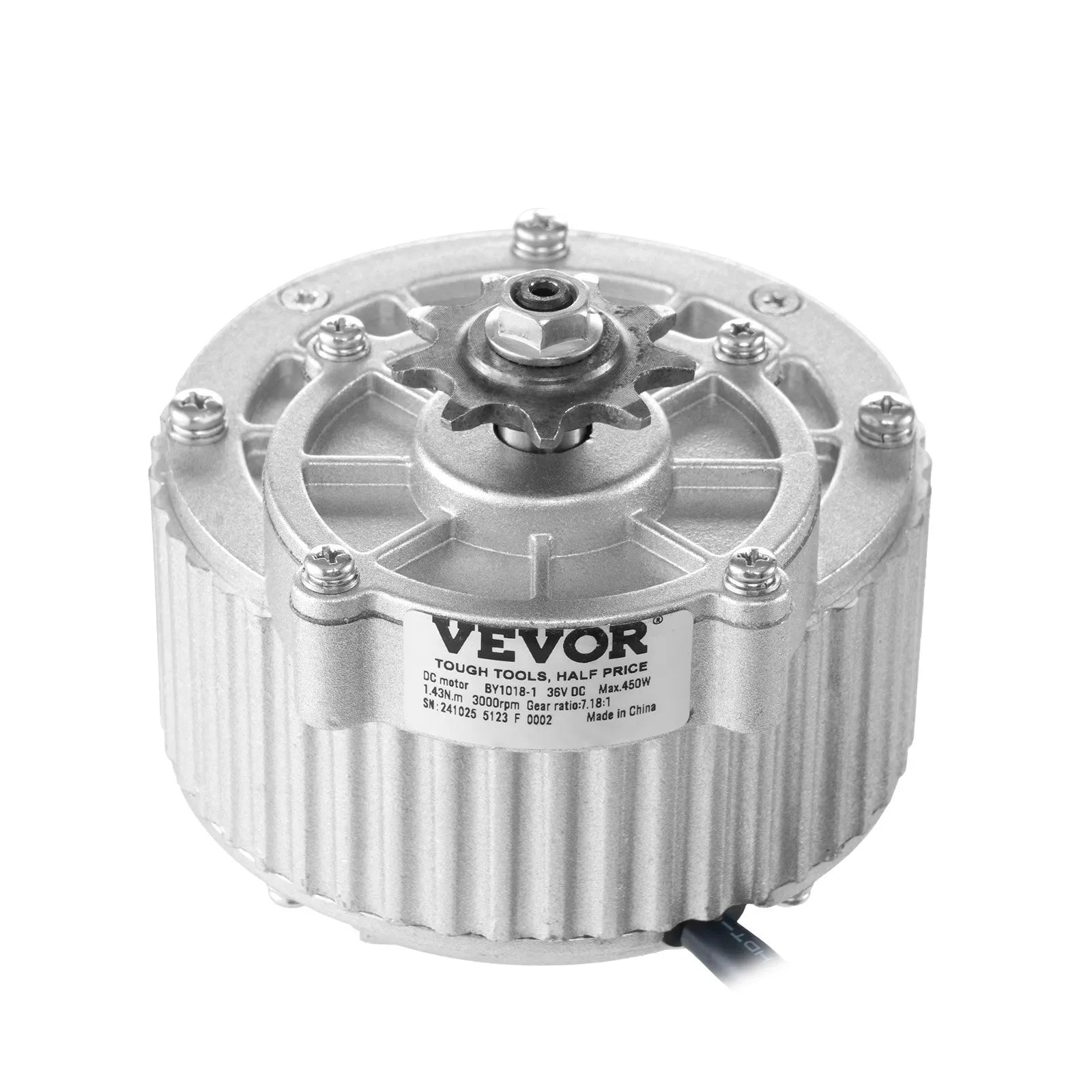

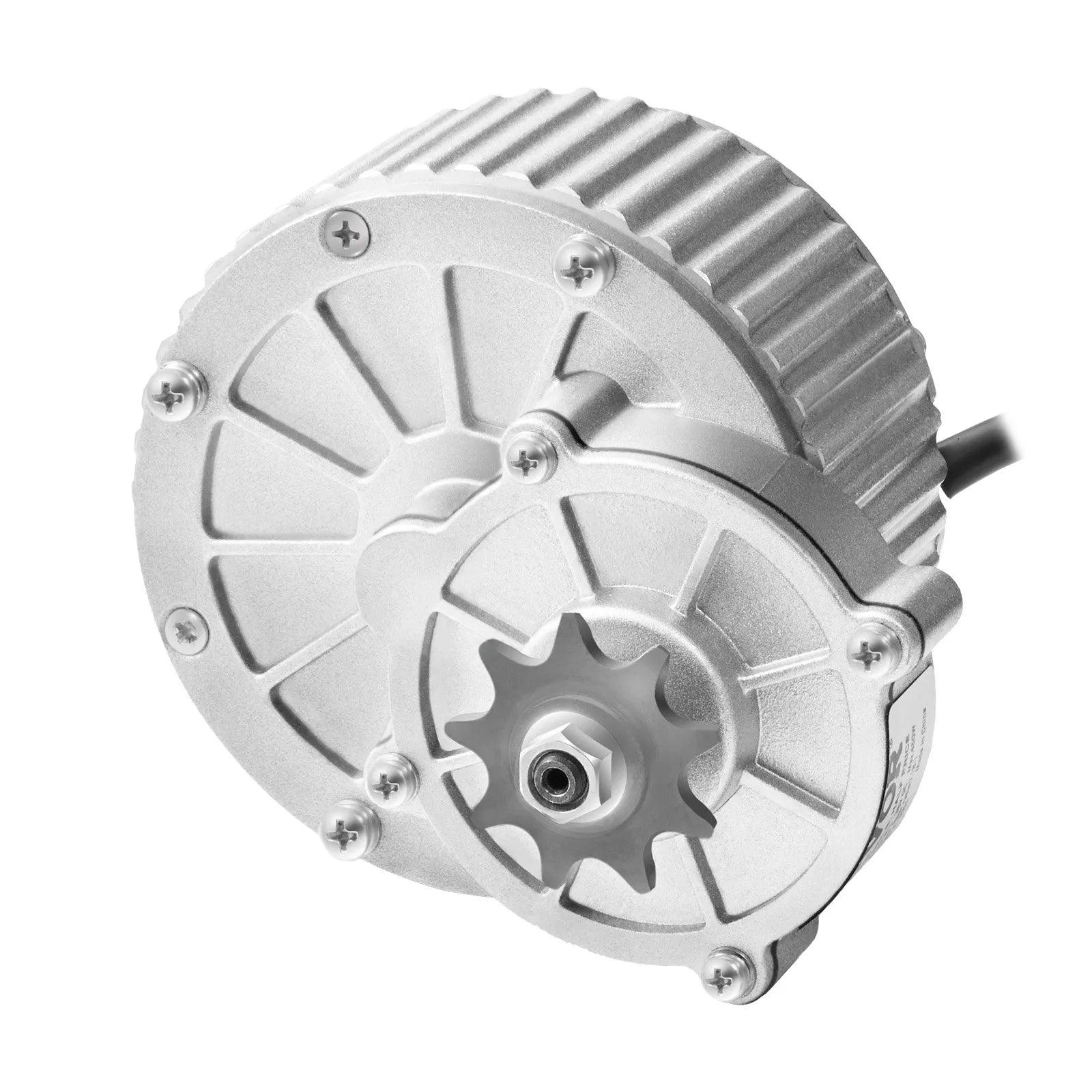

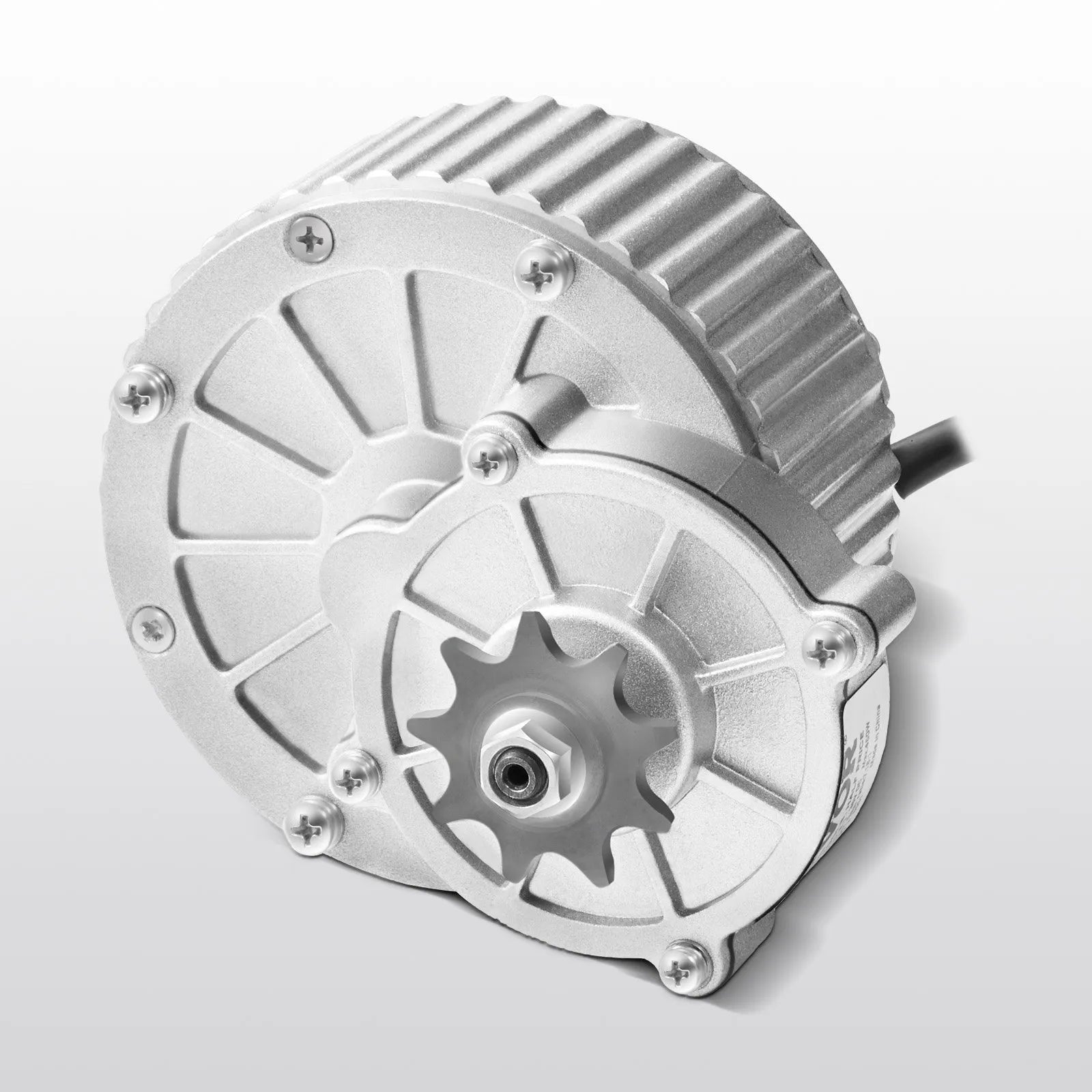

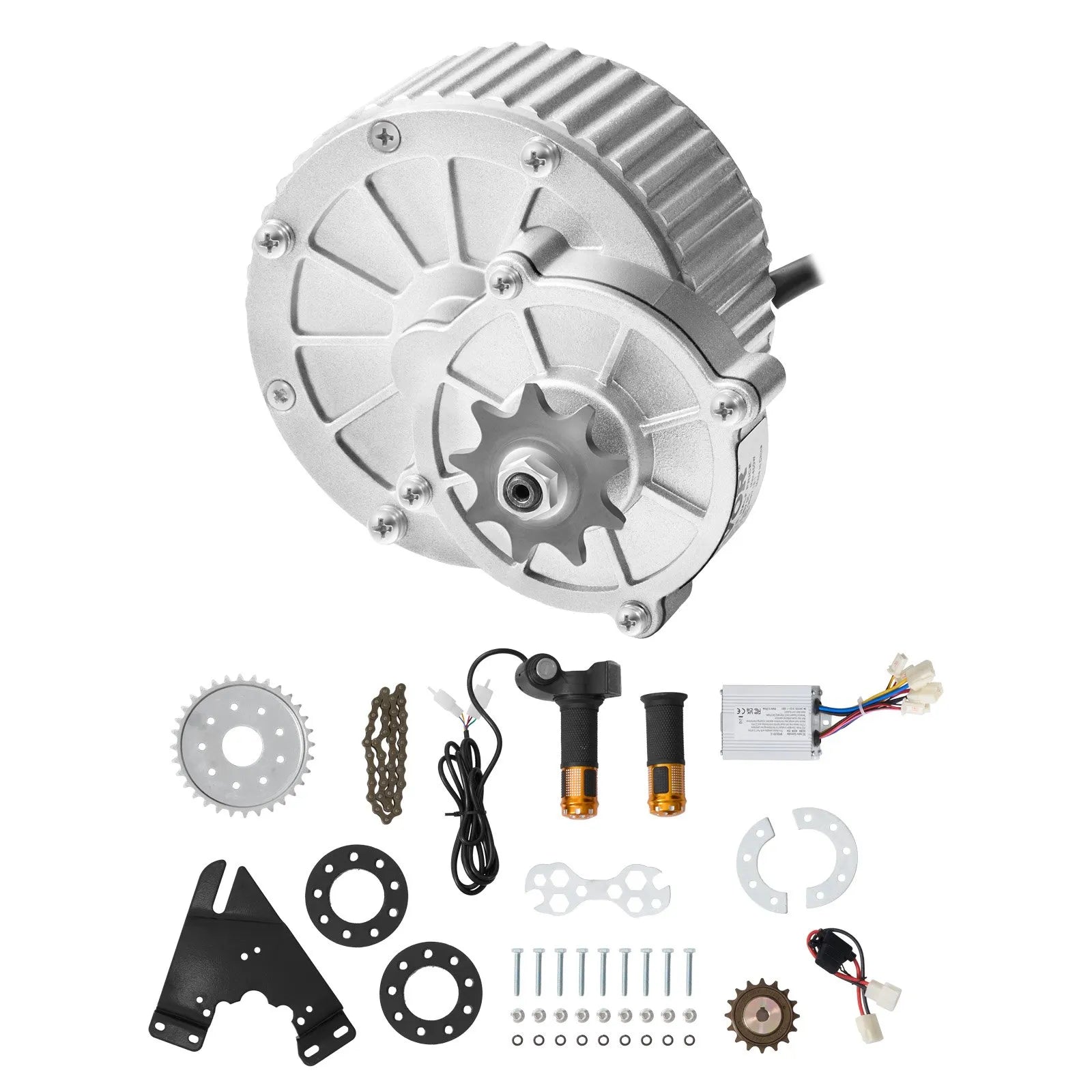

VEVOR 450W Electric Brushed DC Motor Kit 36V 3000rpm Motor with Speed Controller

Upgrade your electric vehicle or DIY project with the VEVOR 450W Electric Brushed DC Motor Kit. Featuring a 36V 3000 RPM motor with a new-generation speed controller, this kit delivers smooth, efficient, and powerful performance. Built with a 100% pure copper core, it ensures durability and long-lasting operation, making it ideal for e-bikes, scooters, go-karts, and other small electric vehicles.

Key Features

• 450W brushed DC motor with 36V input for reliable power

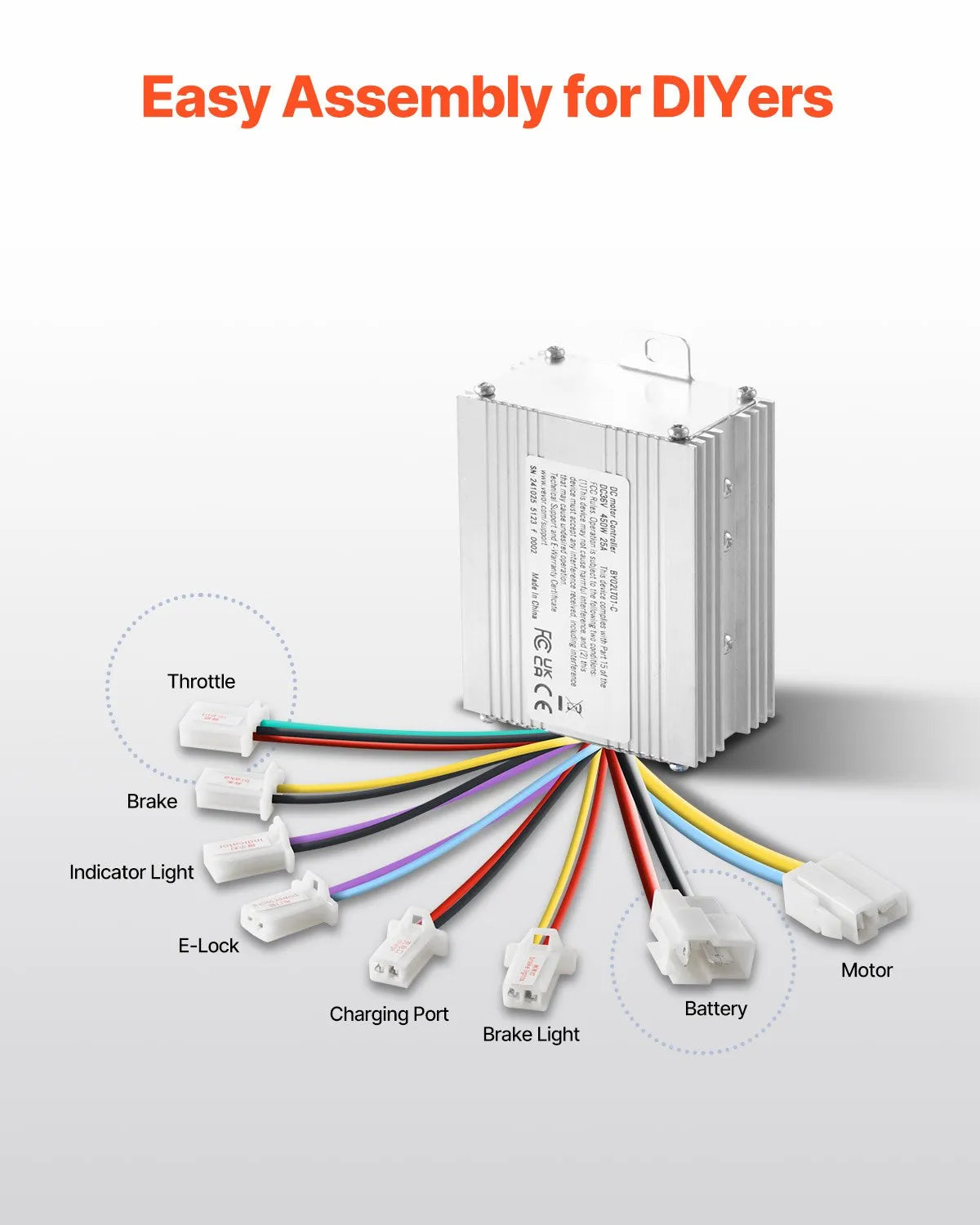

• New-generation speed controller for smooth acceleration and control

• 100% pure copper core for high efficiency and durability

• Rated rotation speed: 3000 RPM (410 RPM after deceleration)

• No-load speed: 4000 RPM (560 RPM after deceleration)

• Rated torque: 1.43 N·m for efficient load handling

• Low-noise operation at 70 dB

• Supports load capacity up to 220.5 lbs / 100 kg

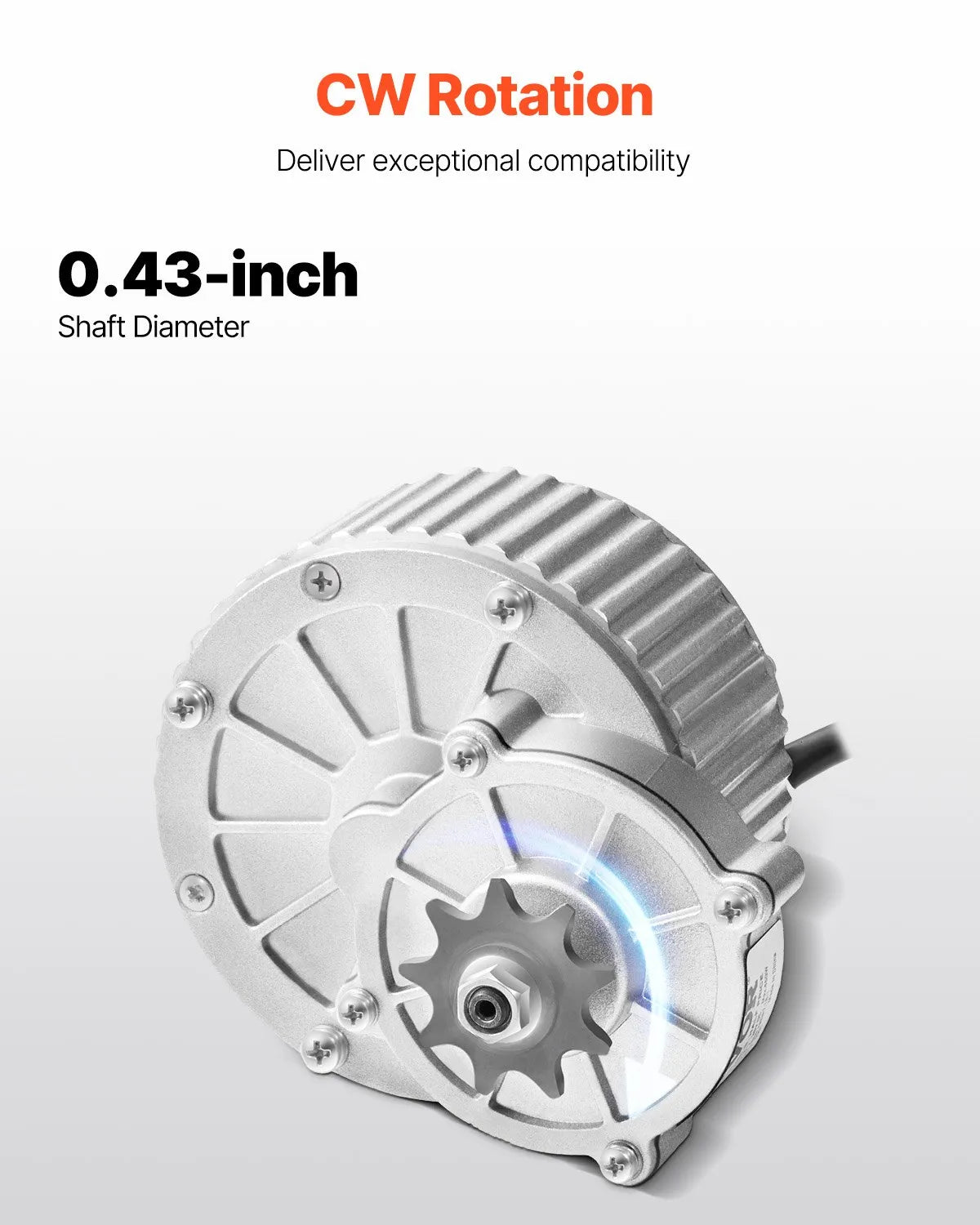

• Clockwise (CW) rotation direction for standard applications

• Compact and lightweight design for easy integration

Specifications

• Model: BY1018-1

• Rated Power: 450W

• Voltage: 36V

• Rotation Speed (Rated): 3000 RPM / 410 RPM after deceleration

• Rotation Speed (No-load): 4000 RPM / 560 RPM after deceleration

• Rated Torque: 1.43 N·m

• Applicable Gear Ratio: 7.18:1

• Load Capacity: ≤ 220.5 lbs / 100 kg

• Noise: 70 dB

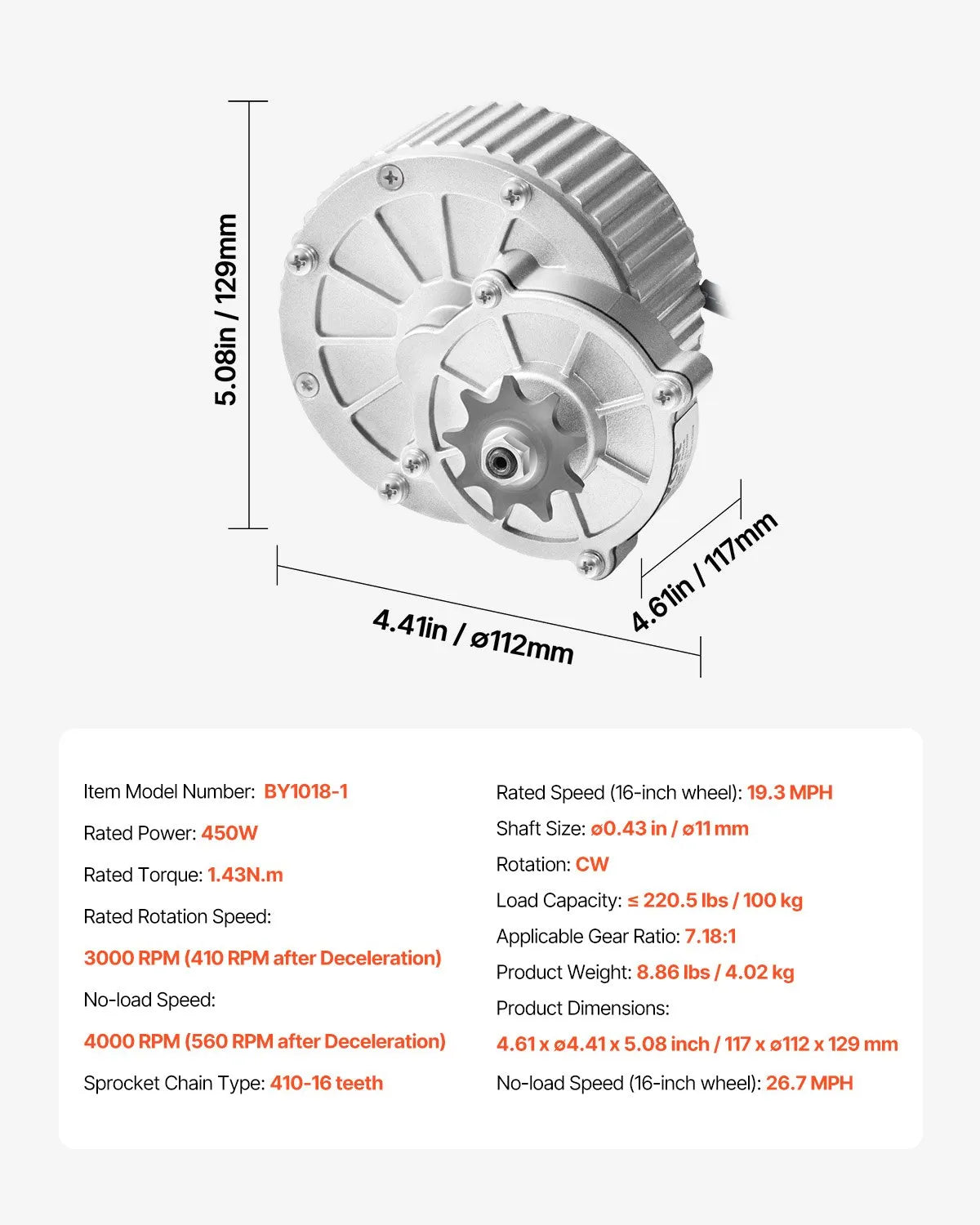

• Product Dimensions: 4.61 x 4.41 x 5.08 in / 117 x 112 x 129 mm

• Product Weight: 8.9 lbs / 4.02 kg

• Rotation Direction: CW
