Description

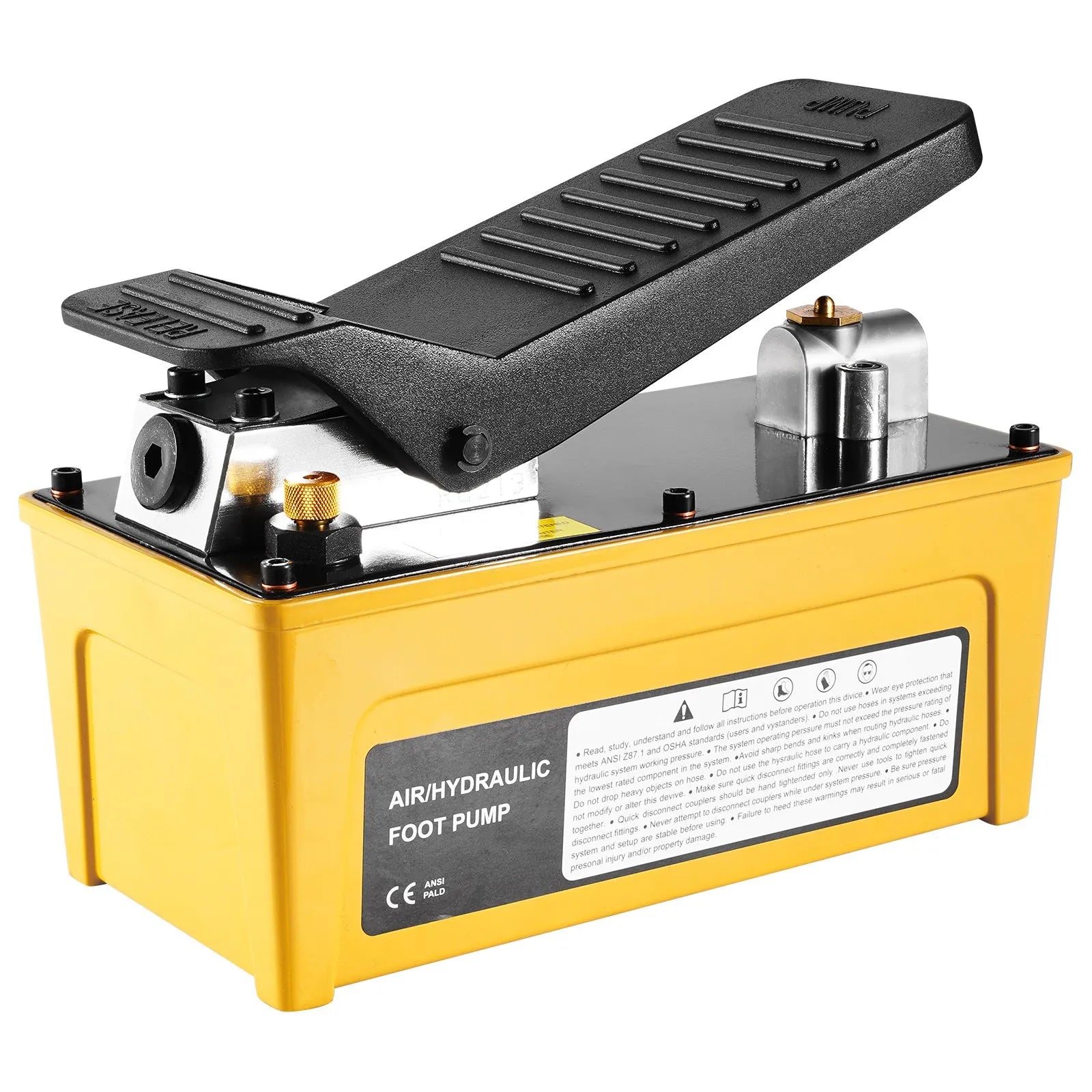

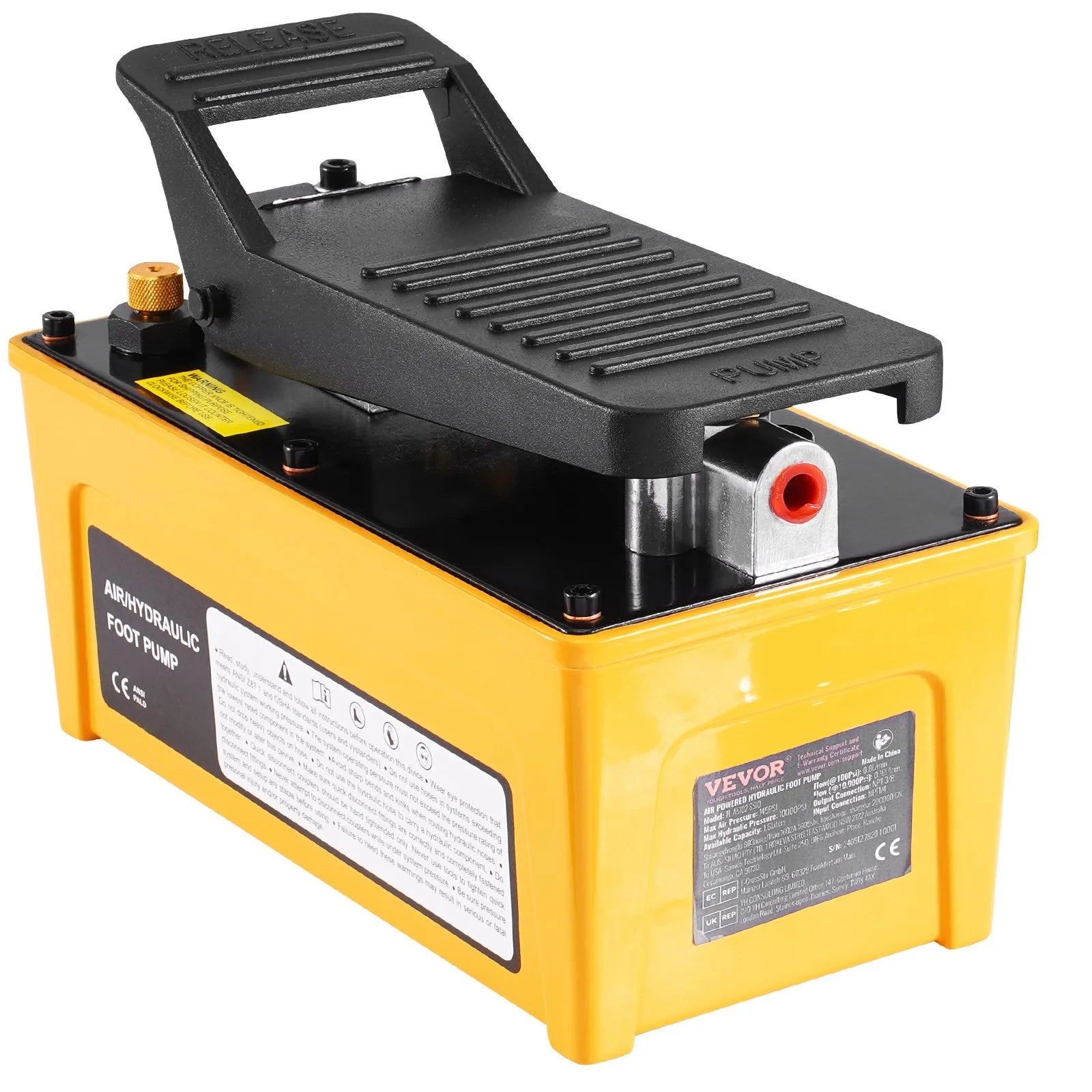

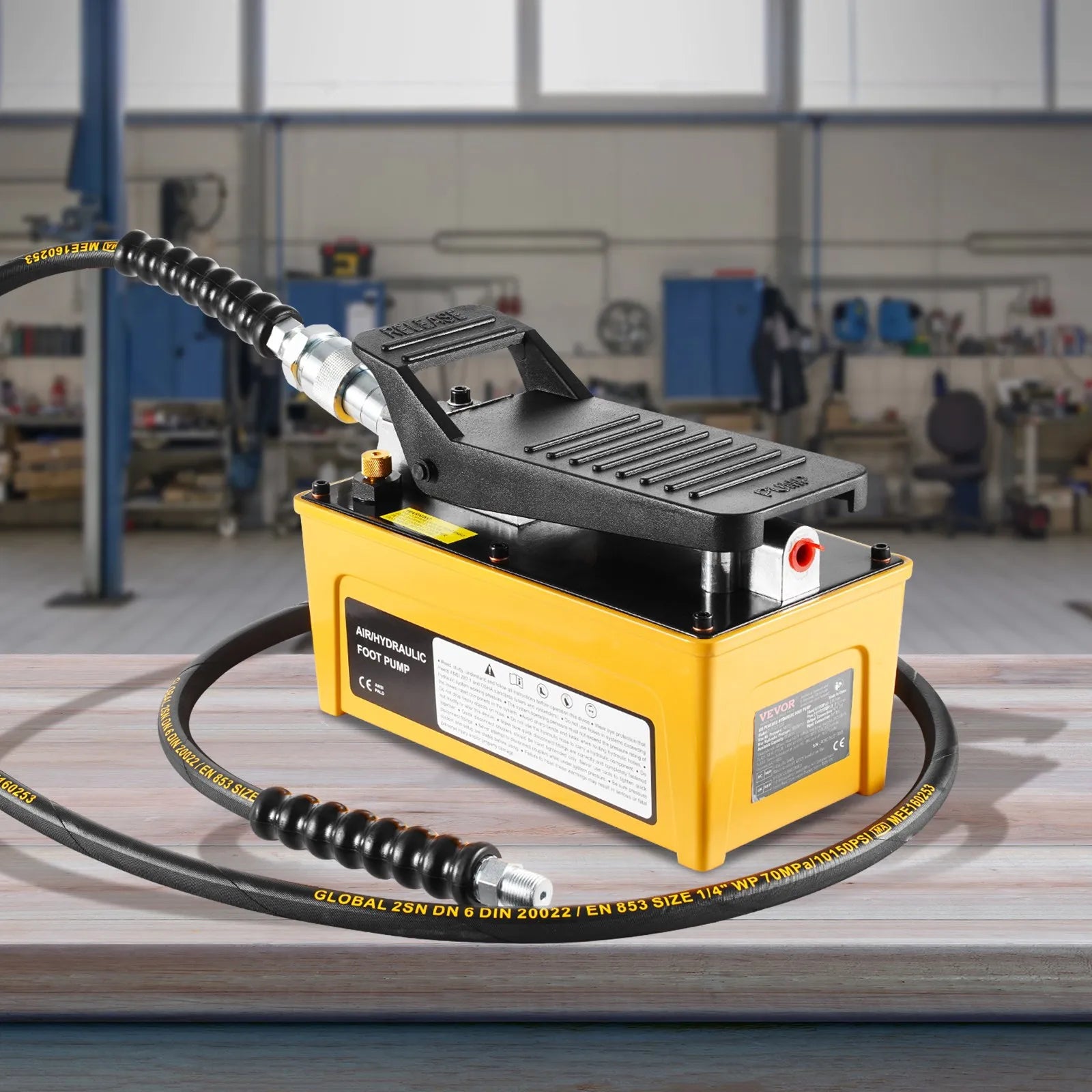

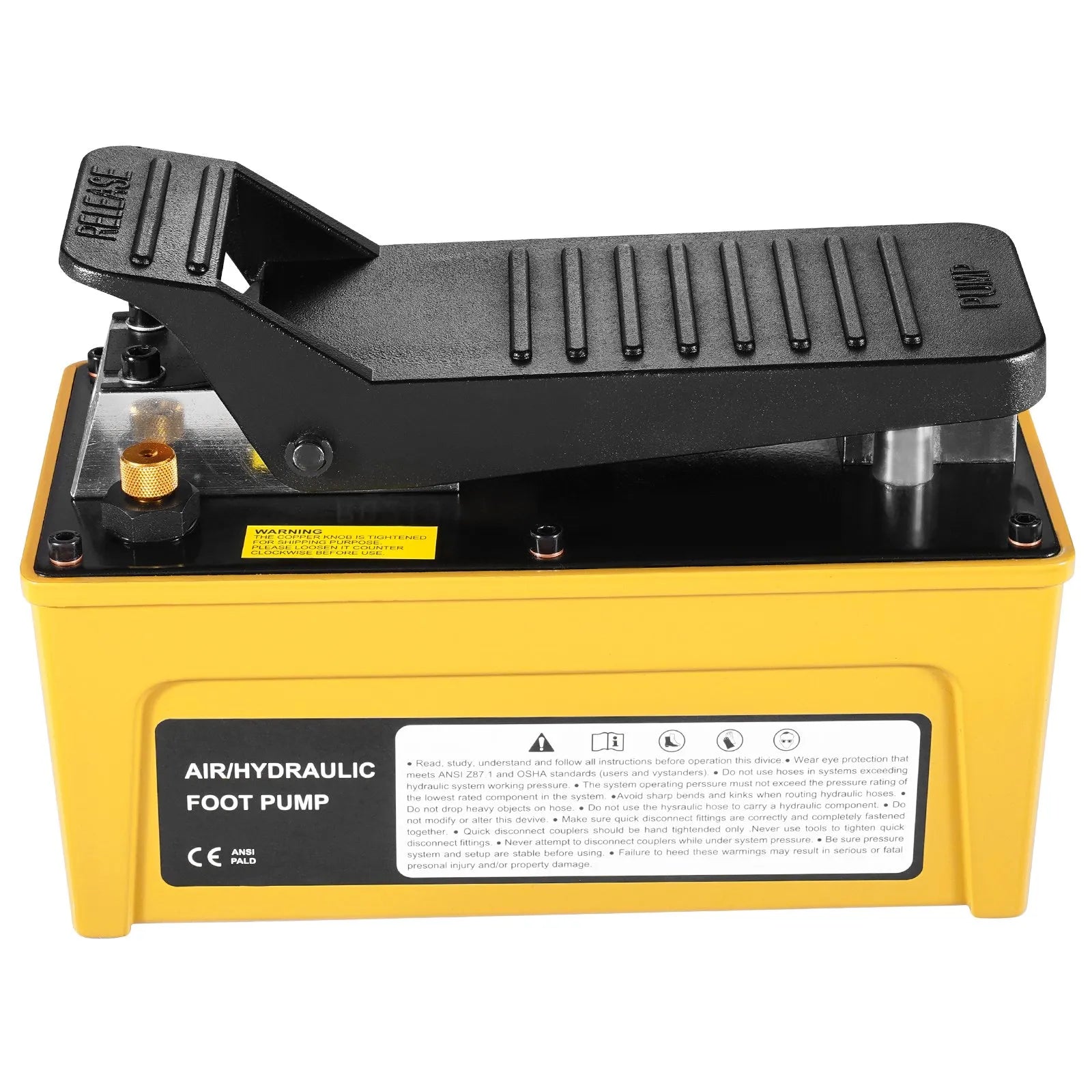

The VEVOR Air Hydraulic Pump is a high-performance air-actuated foot pump designed to deliver up to 10,000 PSI of hydraulic pressure for demanding industrial and automotive applications. Built with a tough outer shell for durability, this pump provides reliable power for frame machines, hydraulic presses, and other heavy-duty equipment. Featuring easy foot control operation and rock-solid stability, it ensures precise pressure control and efficient performance. With quick setup and strong output capacity, this pump is ideal for professional workshops and repair facilities.
Key Features
-

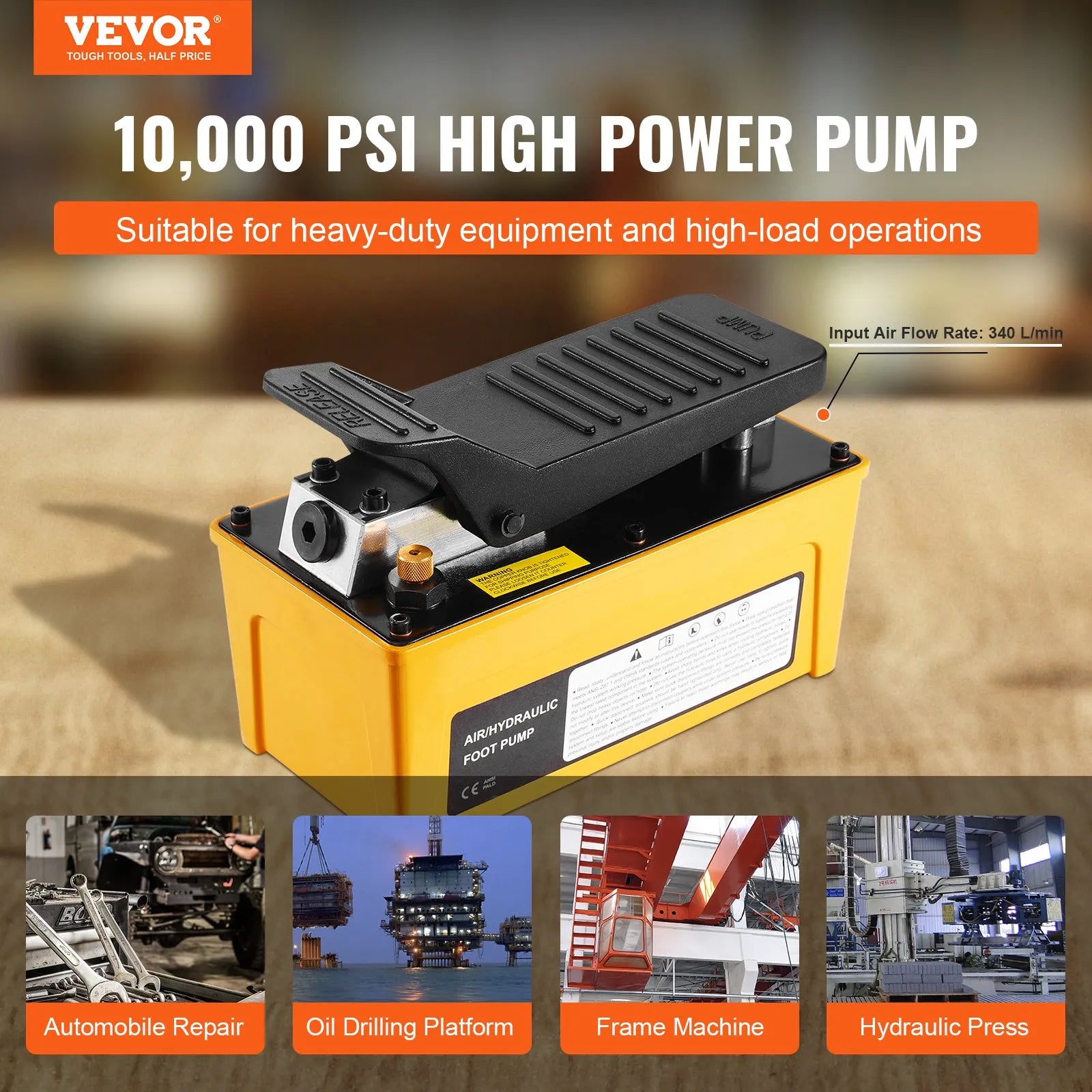

Delivers up to 10,000 PSI maximum output pressure
-

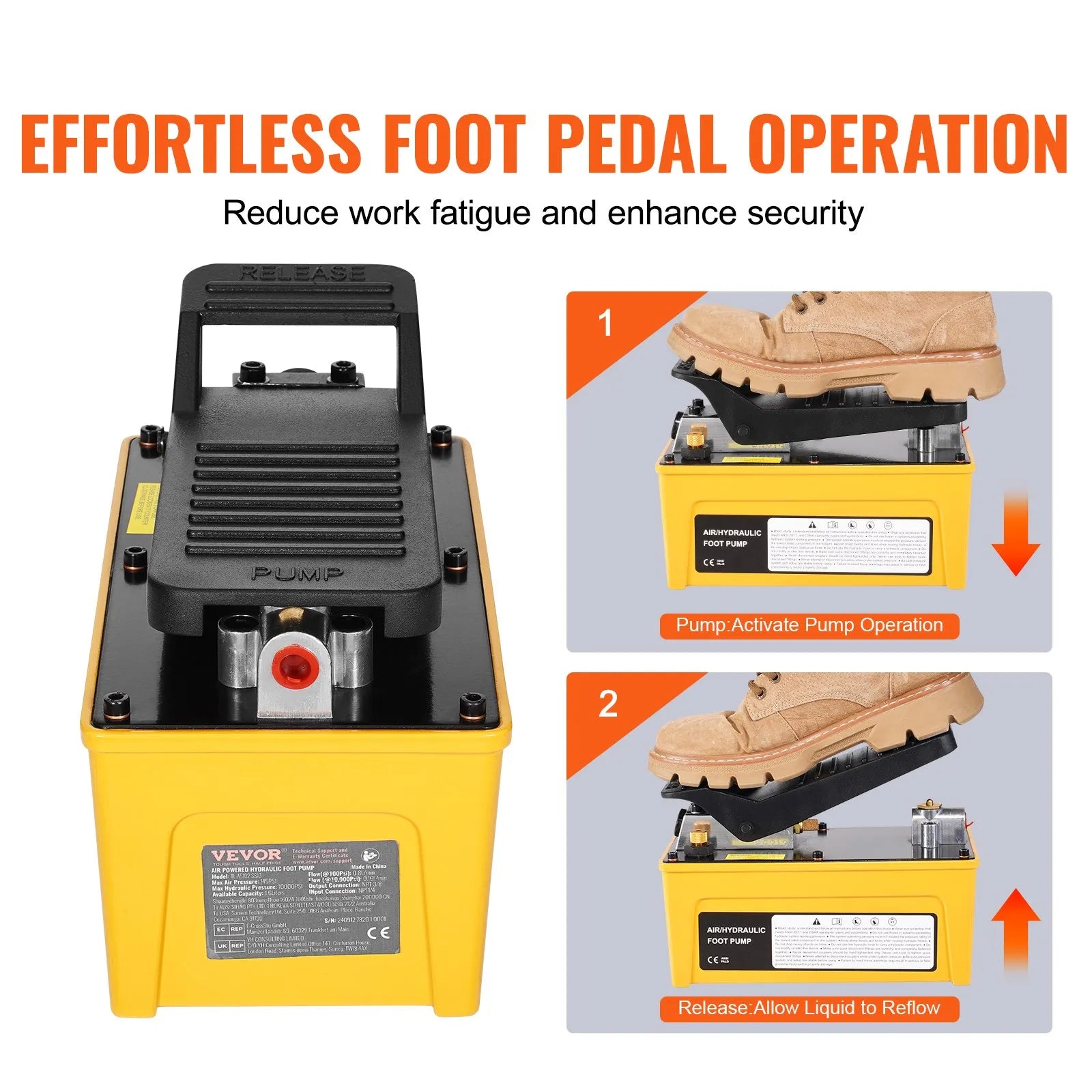

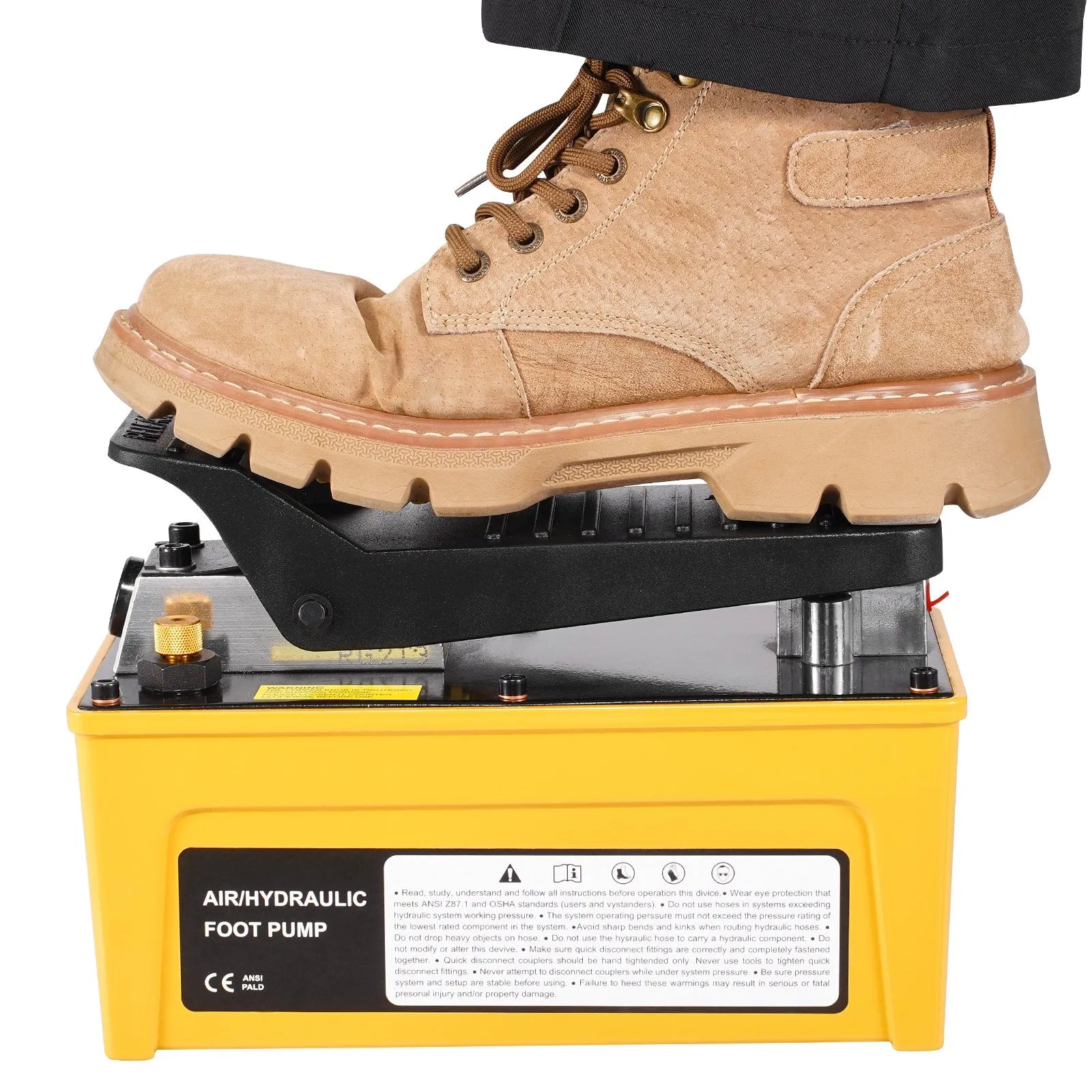

Air-actuated foot pedal design for hands-free operation
-
Compatible with frame machines and hydraulic equipment
-

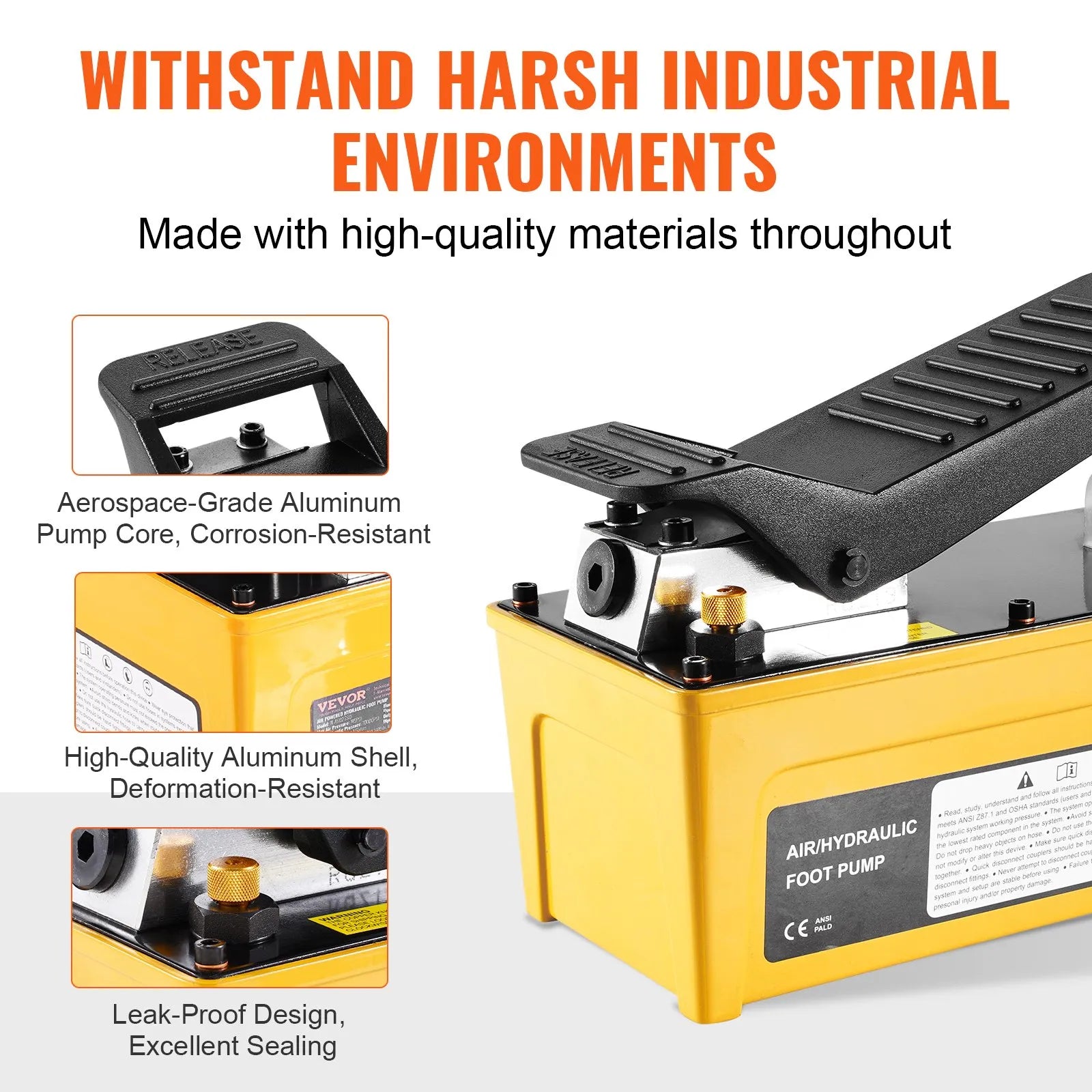

Tough, durable outer shell for long service life
-
Stable base design for secure operation
-
Quick and easy setup with standard NPT fittings
-
Efficient hydraulic pump flow rate for fast performance
-
Designed for heavy-duty industrial and automotive tasks
-
Reliable and consistent high-pressure output

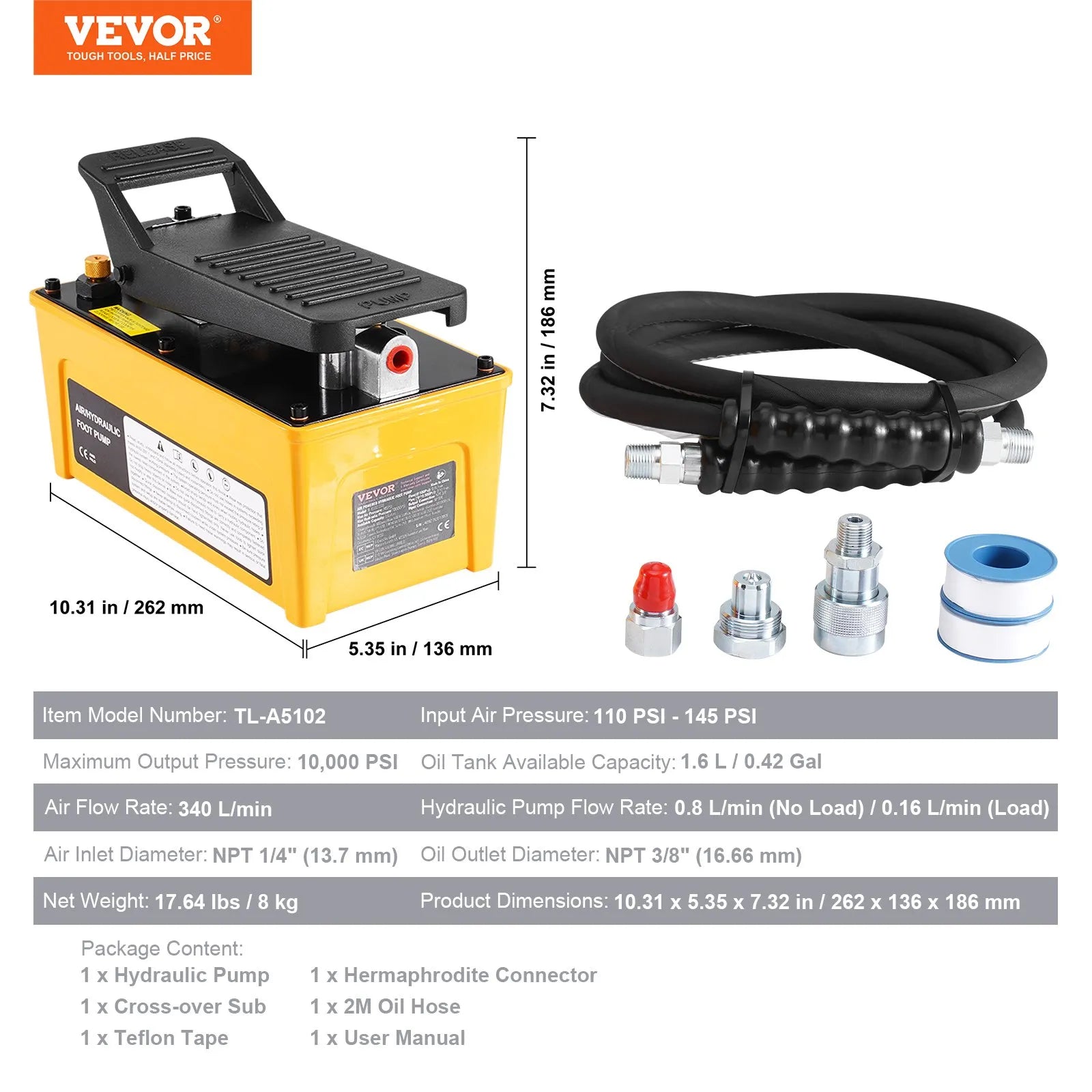

Specifications
-
Brand: VEVOR
-
Item Model Number: TL-A5102
-
Maximum Output Pressure: 10,000 PSI
-
Input Air Pressure: 110–145 PSI
-
Air Flow Rate: 340 L/min
-
Hydraulic Pump Flow Rate:
-
0.8 L/min (No Load)
-
0.16 L/min (Load)
-
-

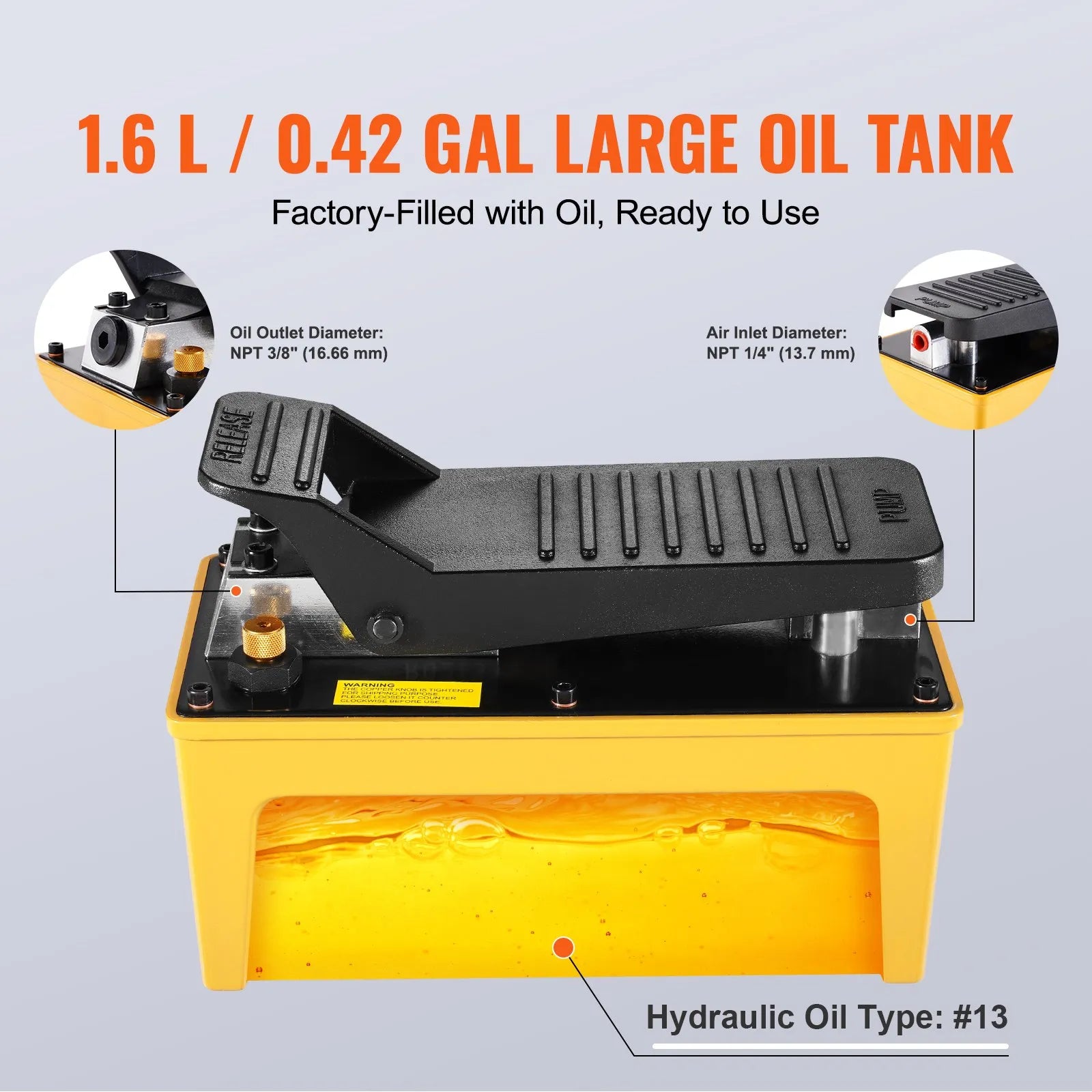

Oil Tank Available Capacity: 1.6 L / 0.42 Gal
-
Air Inlet Diameter: NPT 1/4" (13.7 mm)
-
Oil Outlet Diameter: NPT 3/8" (16.66 mm)
-
Product Dimensions: 10.31 x 5.35 x 7.32 in / 262 x 136 x 186 mm
-
Net Weight: 17.64 lbs / 8 kg
