Description

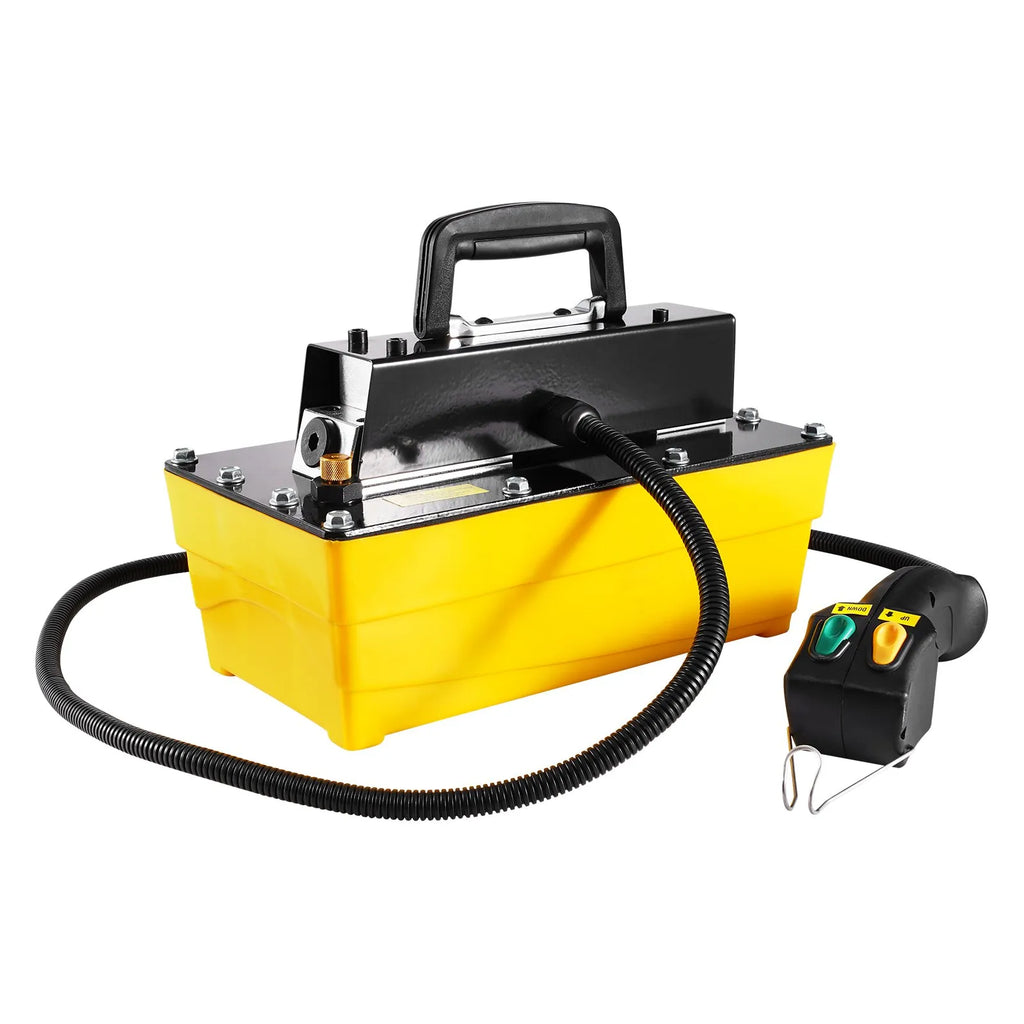

The VEVOR 10,000 PSI Air Over Hydraulic Pump is engineered for high-pressure hydraulic applications in auto body shops and industrial environments. Delivering up to 10,000 PSI of output pressure, this frame machine pump ensures powerful and consistent performance for heavy-duty equipment. Equipped with a 3-meter remote control, it allows convenient and precise operation from a safe distance. Featuring a tough outer shell, stable base design, and quick-connect NPT fittings, this pump is built for durability, efficiency, and demanding workshop tasks.
Key Features
-

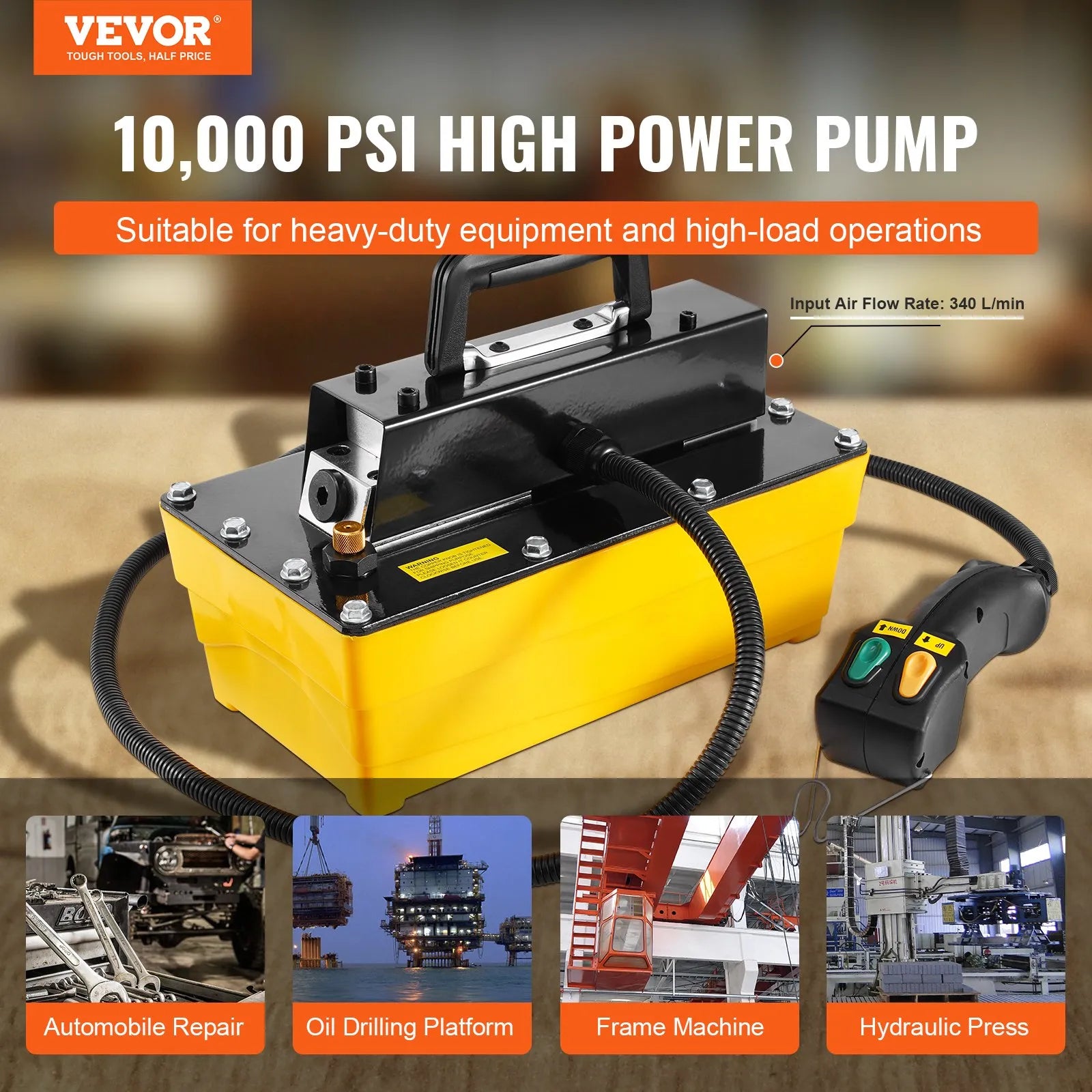

Delivers up to 10,000 PSI maximum output pressure
-
Air over hydraulic design for powerful and efficient operation
-

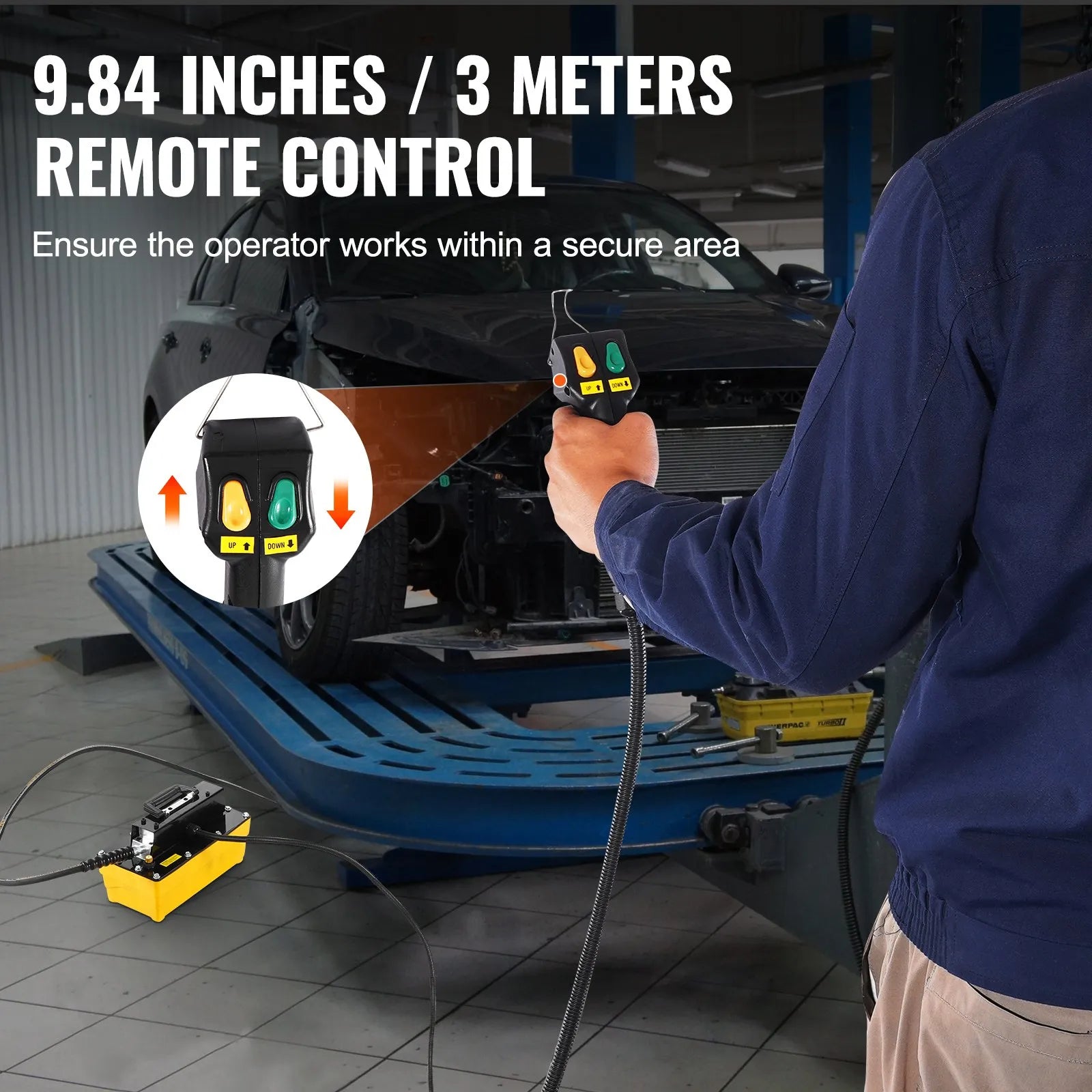

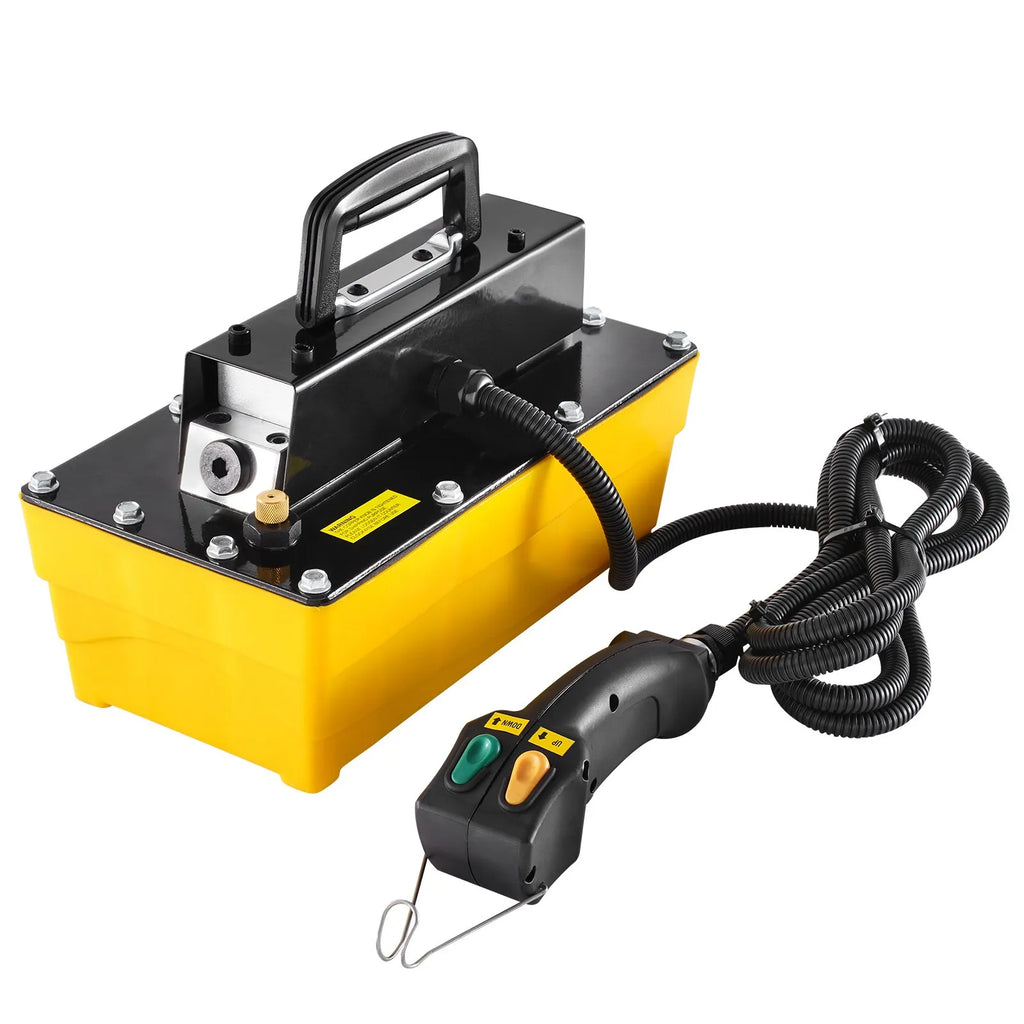

3-meter remote control for convenient and safe handling
-

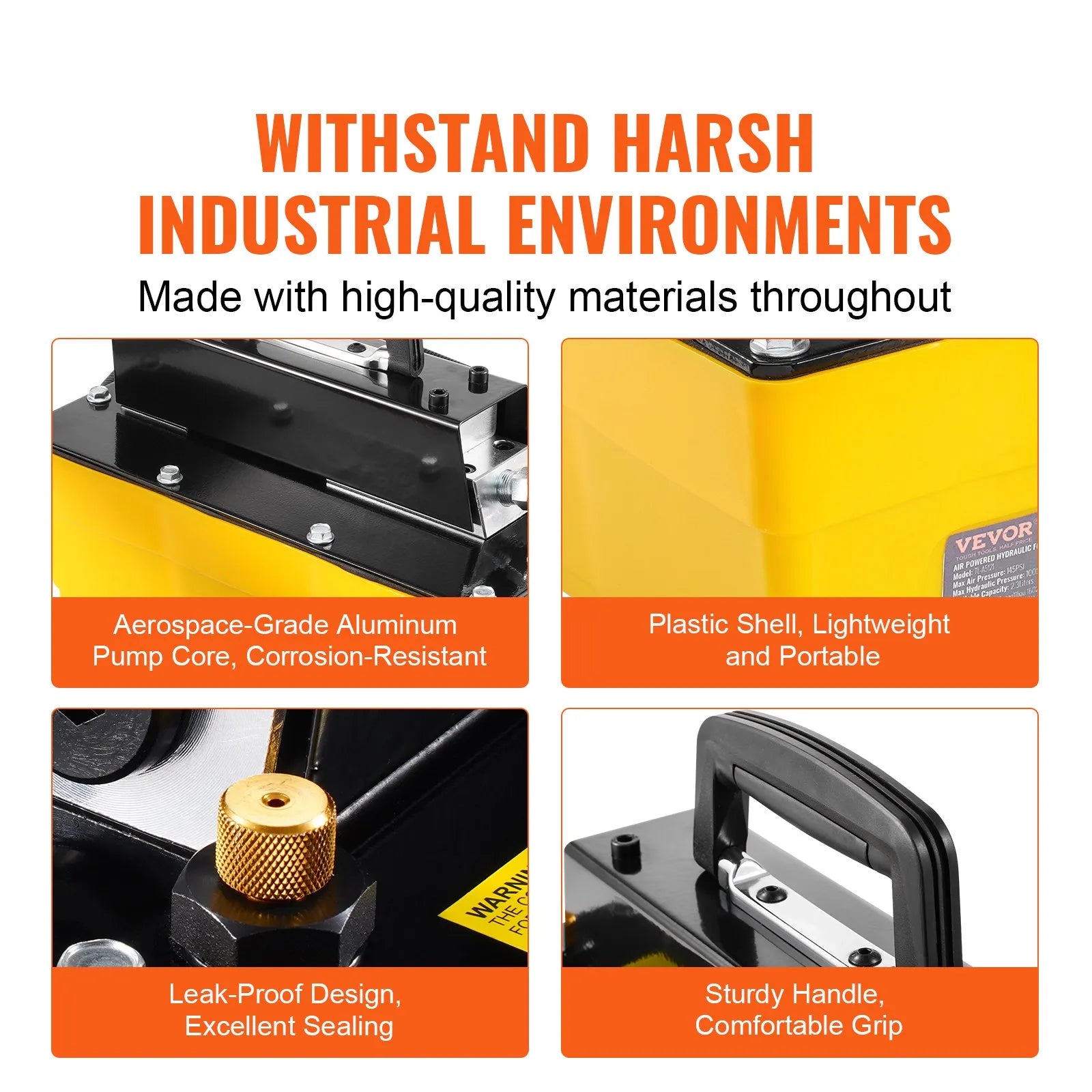

Durable tough-shell construction for long service life
-
Stable base for secure and reliable operation
-
Quick and easy setup with standard NPT fittings
-

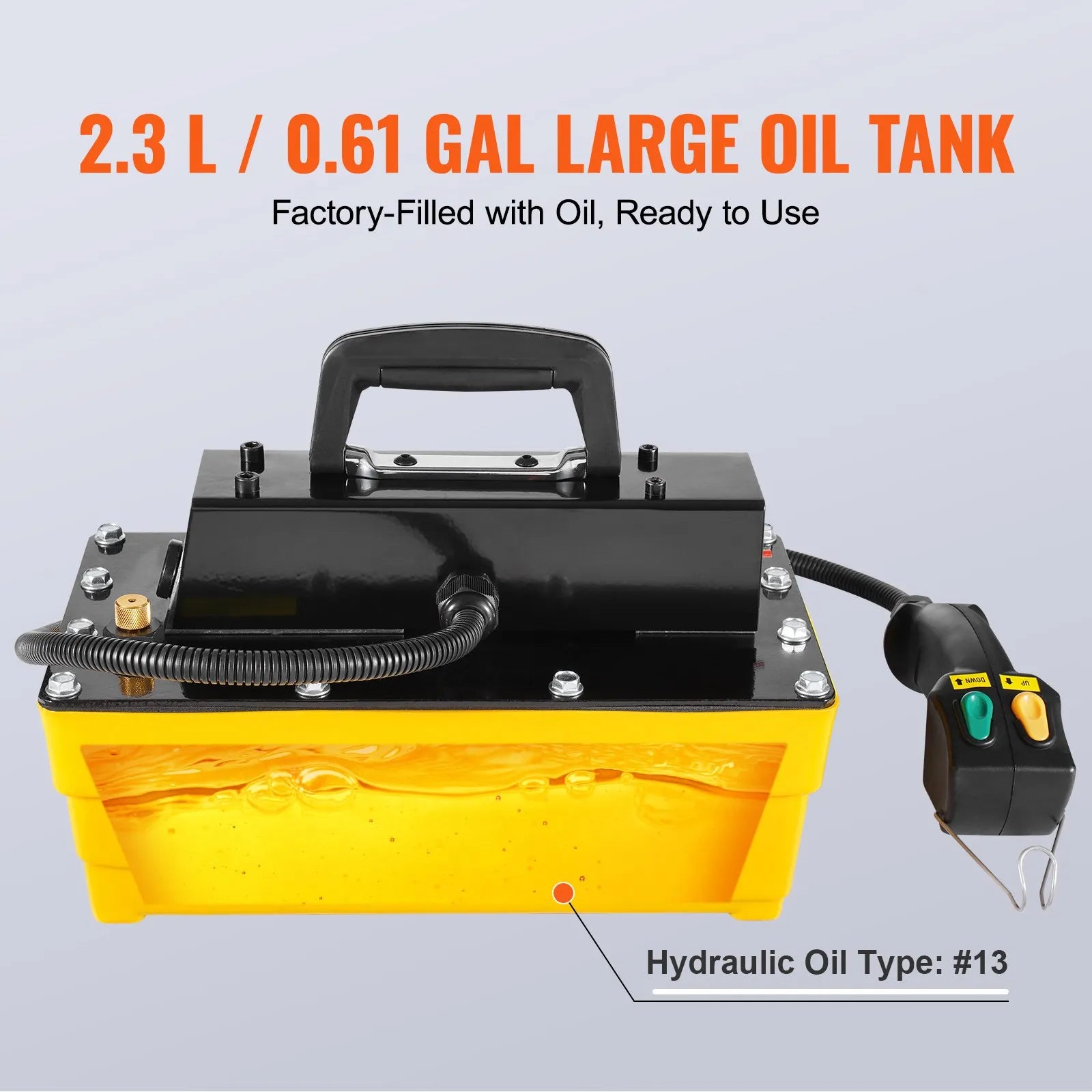

Large 2.3 L oil tank capacity for extended use
-
Suitable for frame machines, presses, and auto body repair
-
Designed for heavy-duty industrial and workshop applications
Specifications
-
Brand: VEVOR
-
Item Model Number: TL-A5121
-
Maximum Output Pressure: 10,000 PSI
-
Input Air Pressure: 110–145 PSI
-
Air Flow Rate: 340 L/min
-
Hydraulic Pump Flow Rate:
-
0.8 L/min (No Load)
-
0.16 L/min (Load)
-
-
Oil Tank Available Capacity: 2.3 L / 0.61 Gal
-

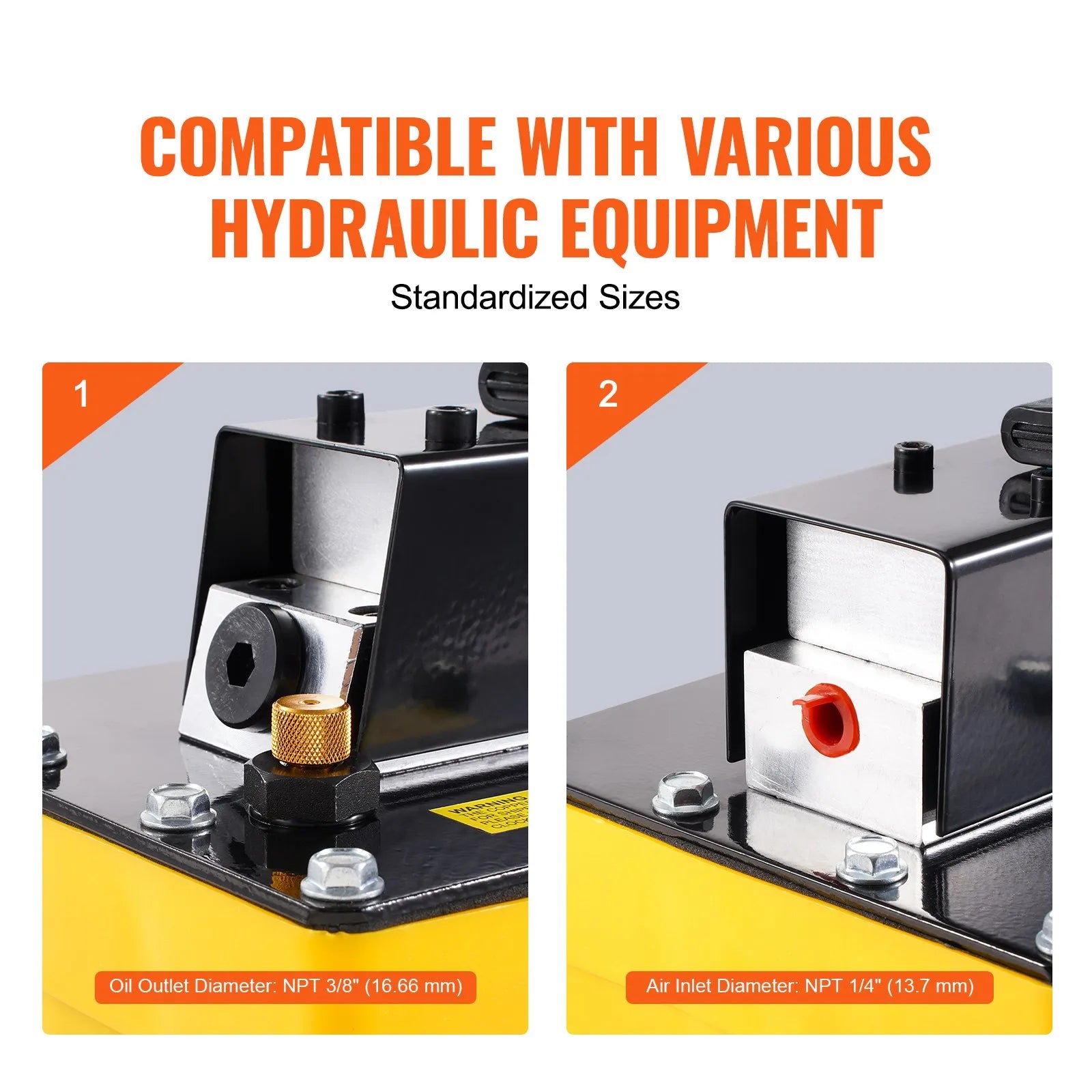

Air Inlet Diameter: NPT 1/4" (13.7 mm)
-
Oil Outlet Diameter: NPT 3/8" (16.66 mm)
-

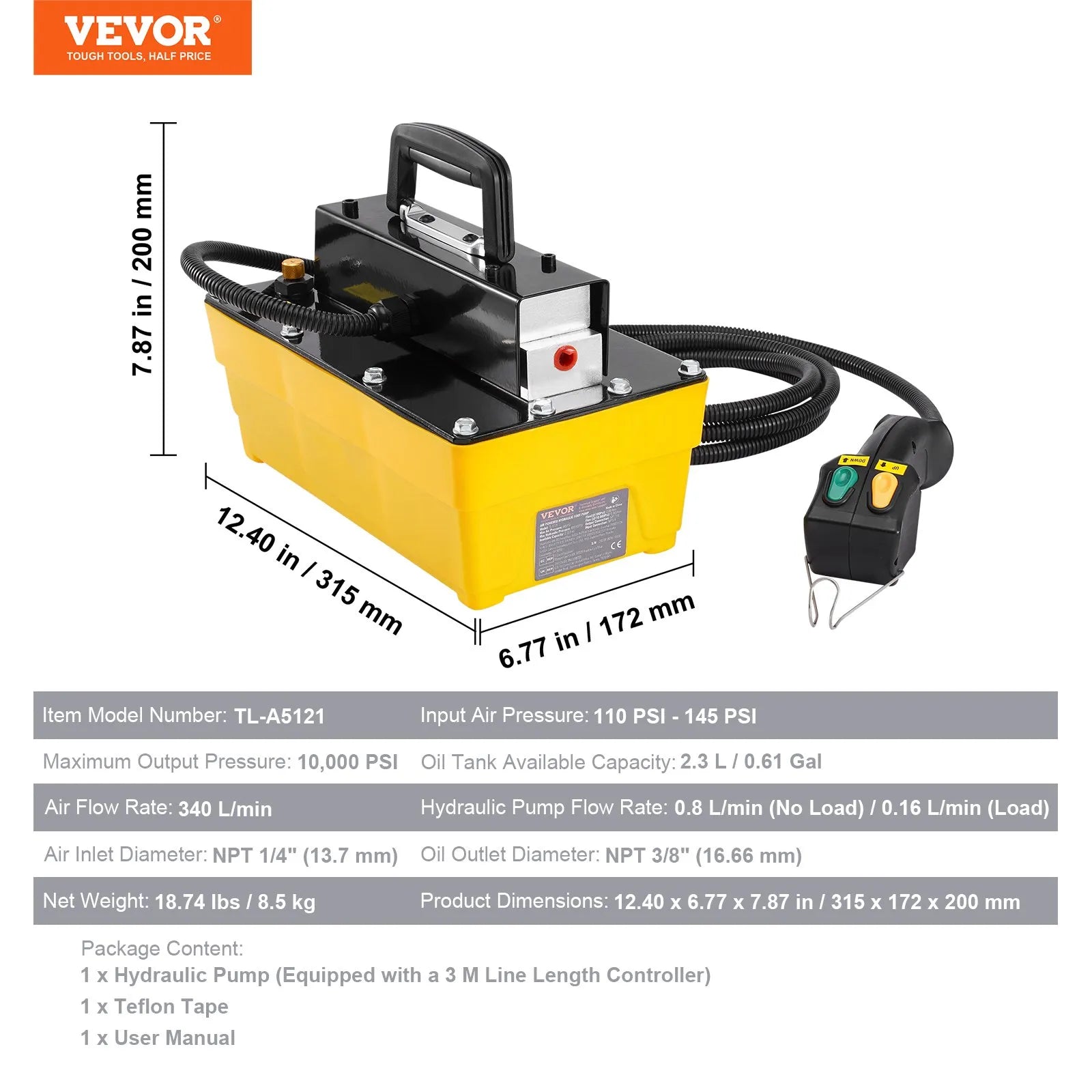

Product Dimensions: 12.40 x 6.77 x 7.87 in / 315 x 172 x 200 mm
-
Net Weight: 18.74 lbs / 8.5 kg
