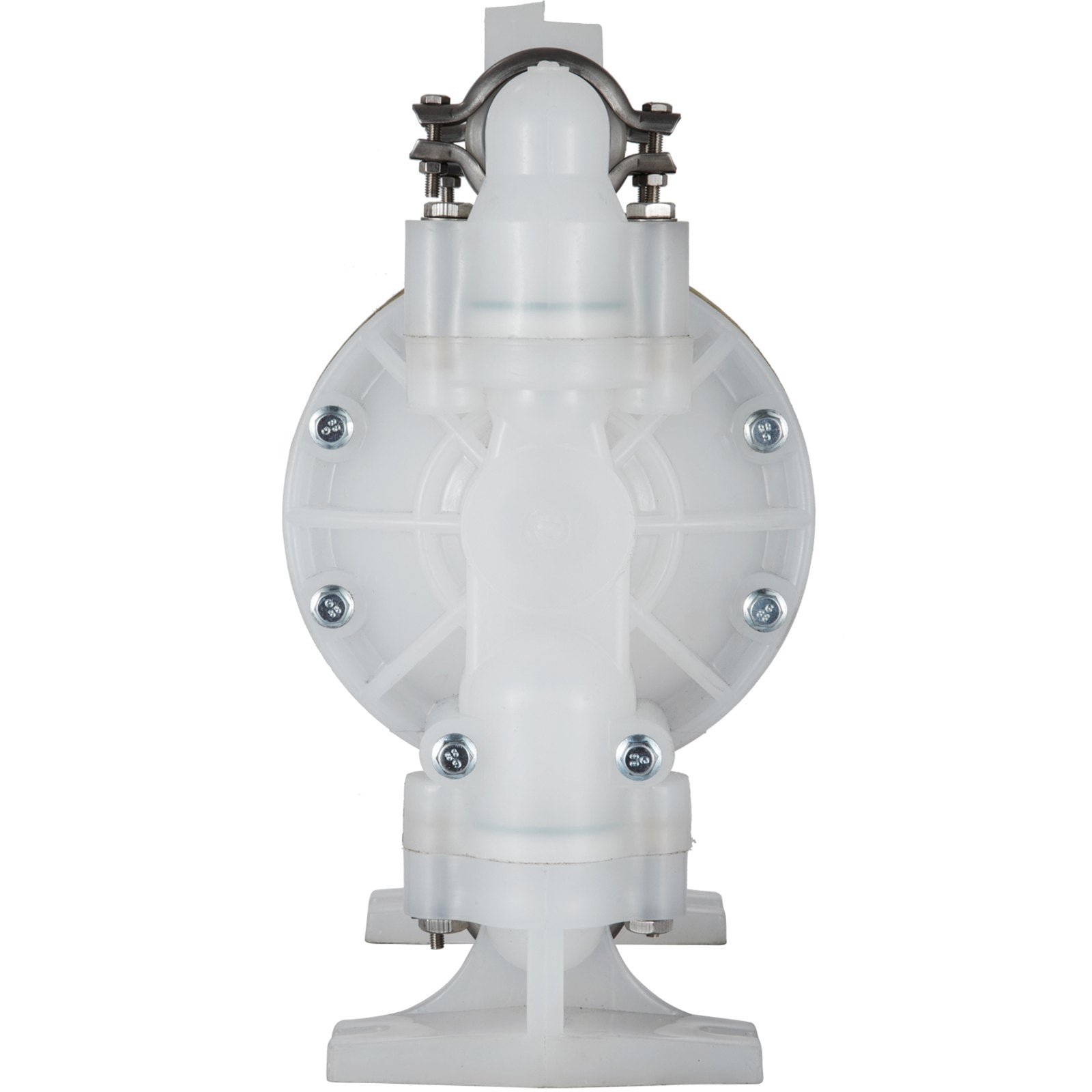

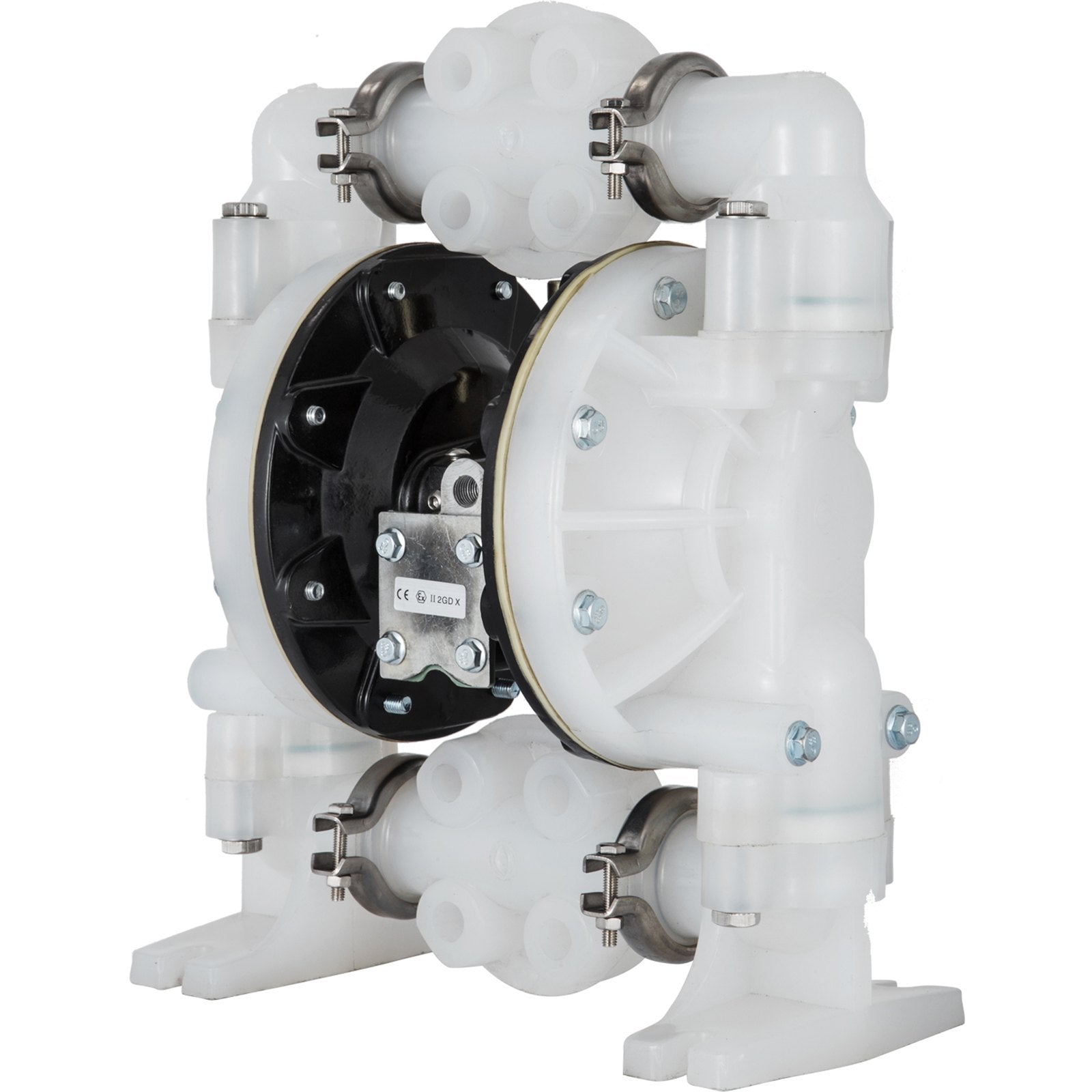

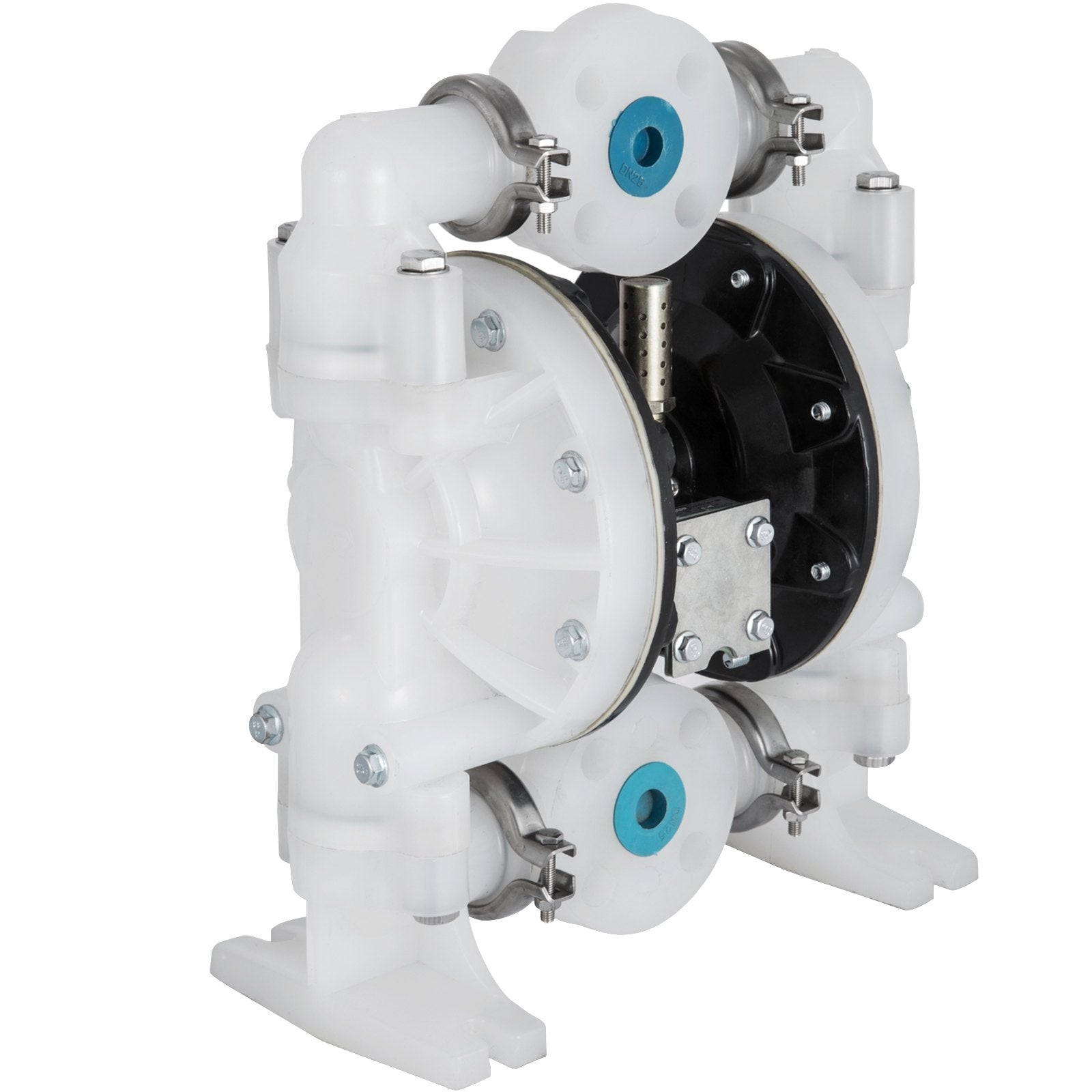

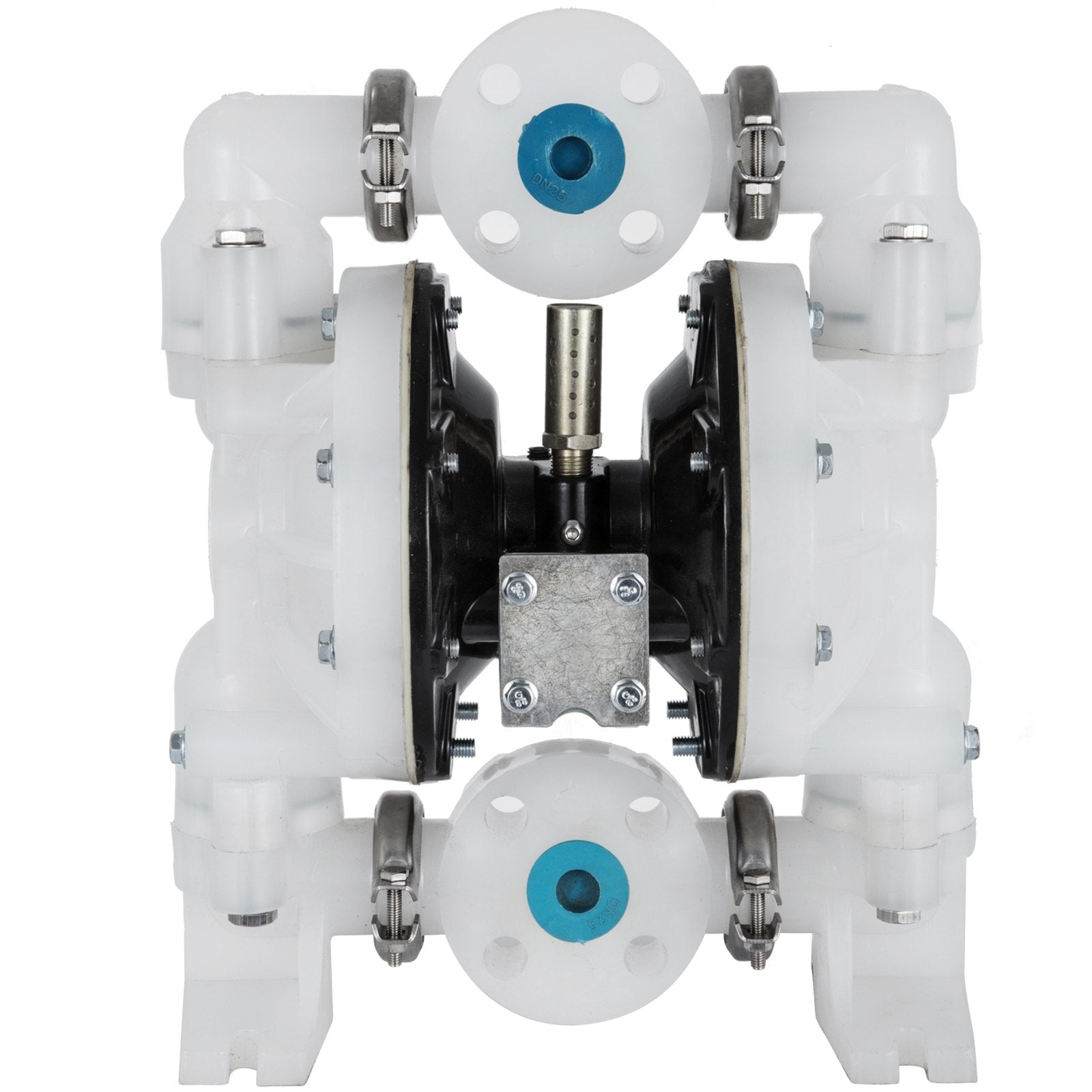

VEVOR Air-Operated Double Diaphragm Pump Chemical Industrial 1 Inch Inlet And Outlet

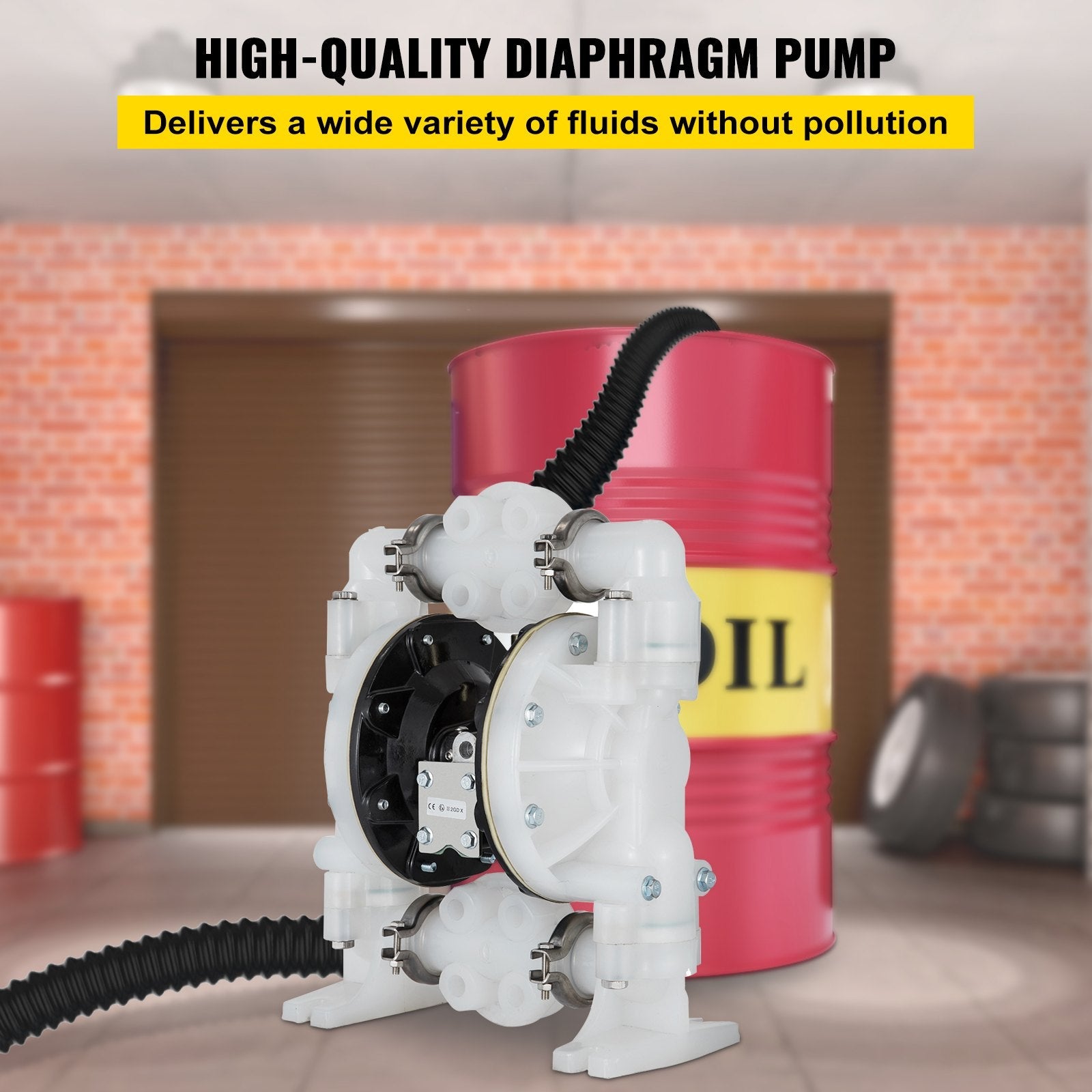

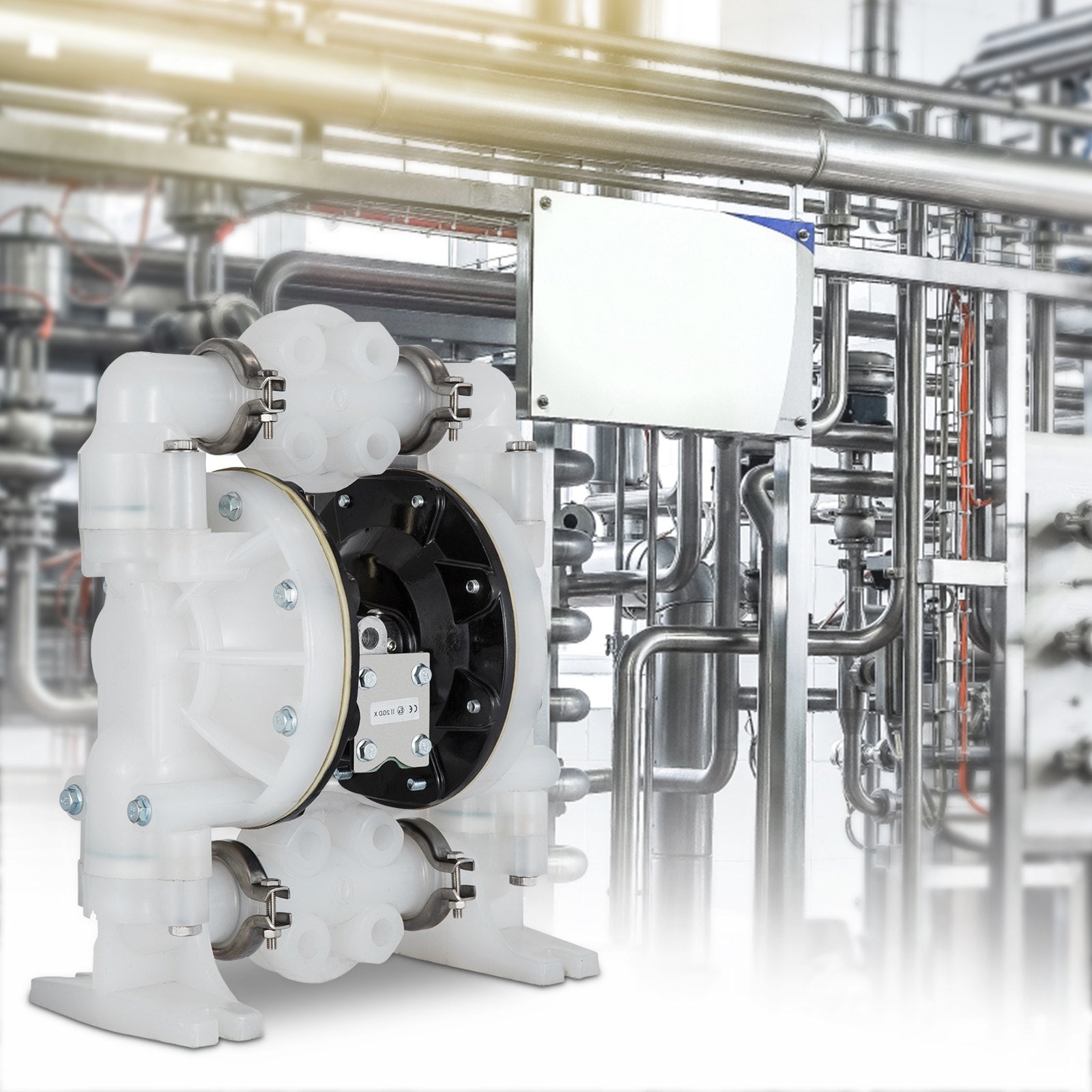

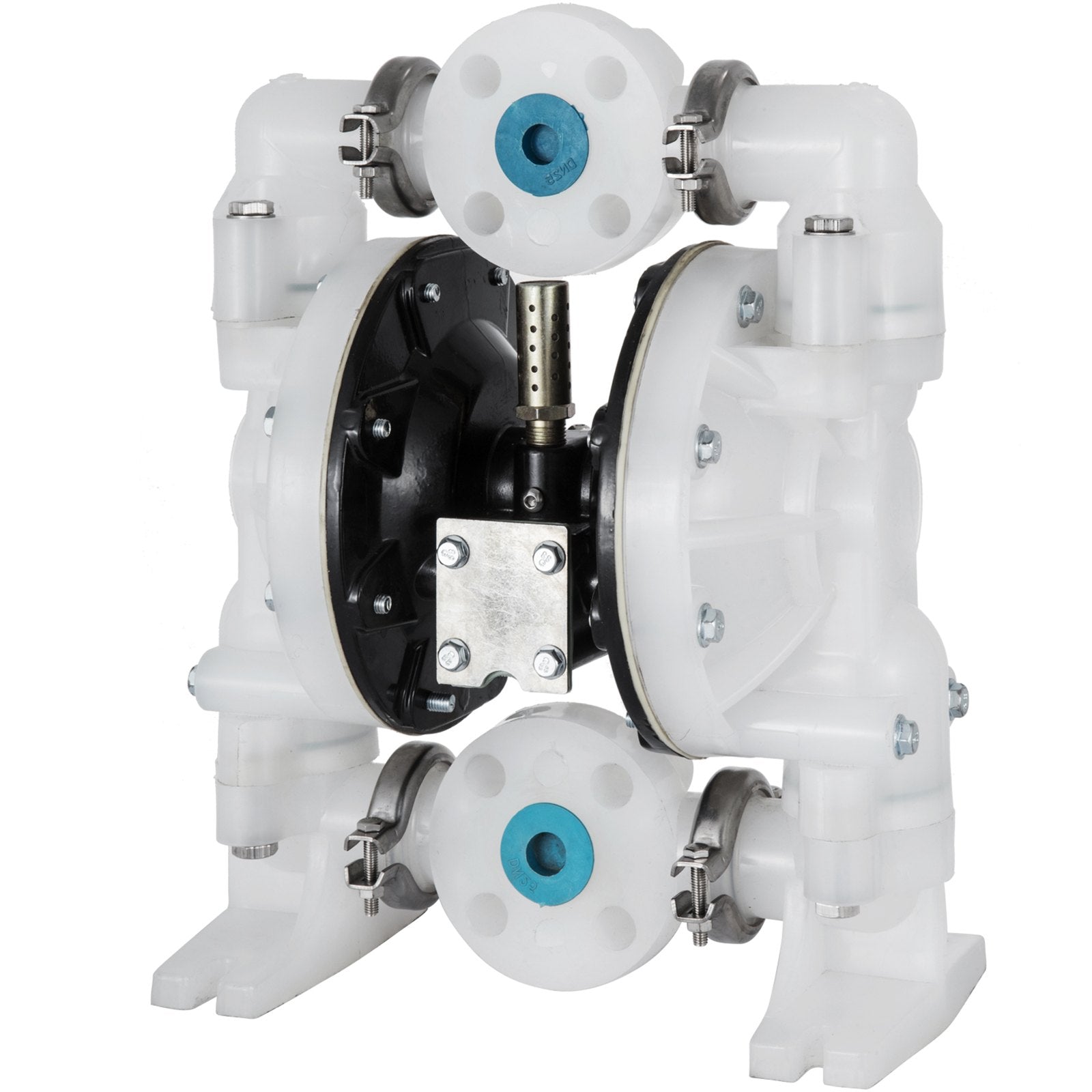

The VEVOR Air-Operated Double Diaphragm Pump is engineered for industrial and chemical applications, featuring a sturdy polypropylene body and PTFE double diaphragms for reliable performance. Designed with professional air-operated technology and sealed ball valves, it handles a variety of materials efficiently. This versatile pump supports a maximum flow rate of 79.2 GPM with 1-inch inlet and outlet ports, making it ideal for transferring liquids with suspended solids up to 3 mm. Its self-priming capability and robust construction ensure dependable operation in demanding environments.

Features

• Durable polypropylene body with PTFE double diaphragms

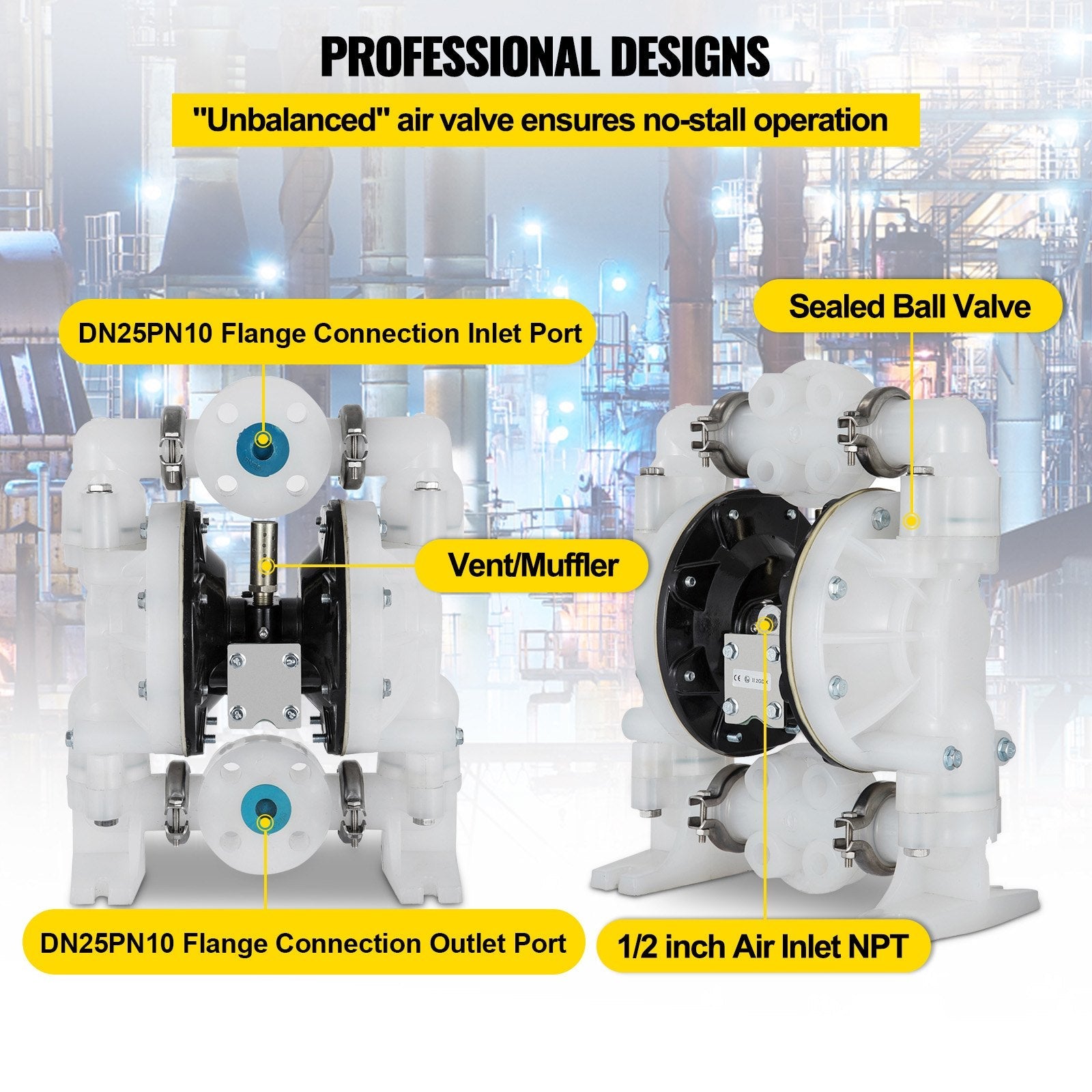

• Air-operated design with sealed ball valves for efficient pumping

• Handles various materials, including liquids with suspended solids up to 3 mm

• 1-inch inlet and outlet ports for versatile connectivity

• Self-priming wet up to 4.6 m (15 ft) and dry up to 3 m (10 ft)

• Maximum flow rate of 79.2 GPM and max pressure of 120 psi

• Suitable for chemical, industrial, and general liquid transfer tasks

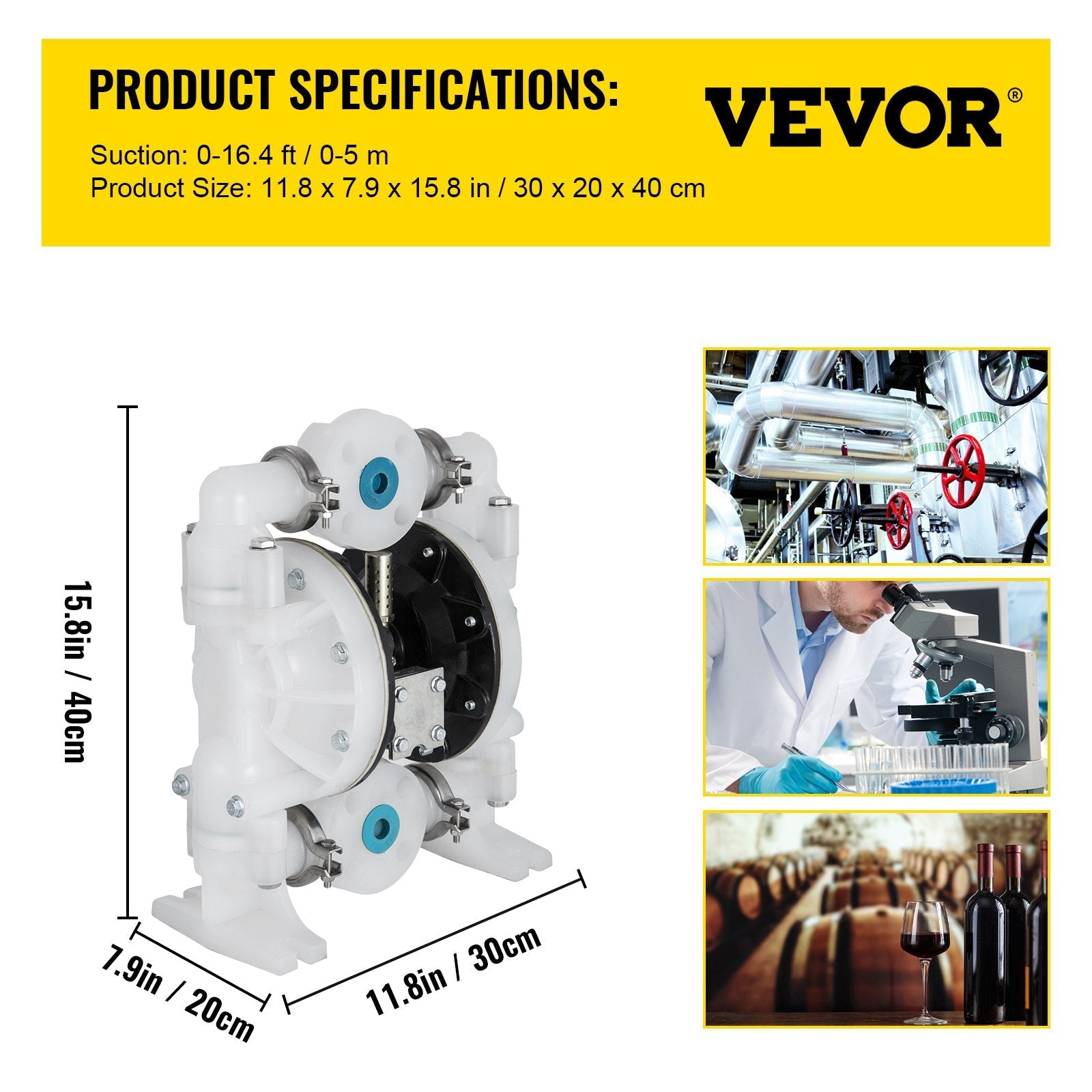

Specifications

• Model: QBY4-25PP

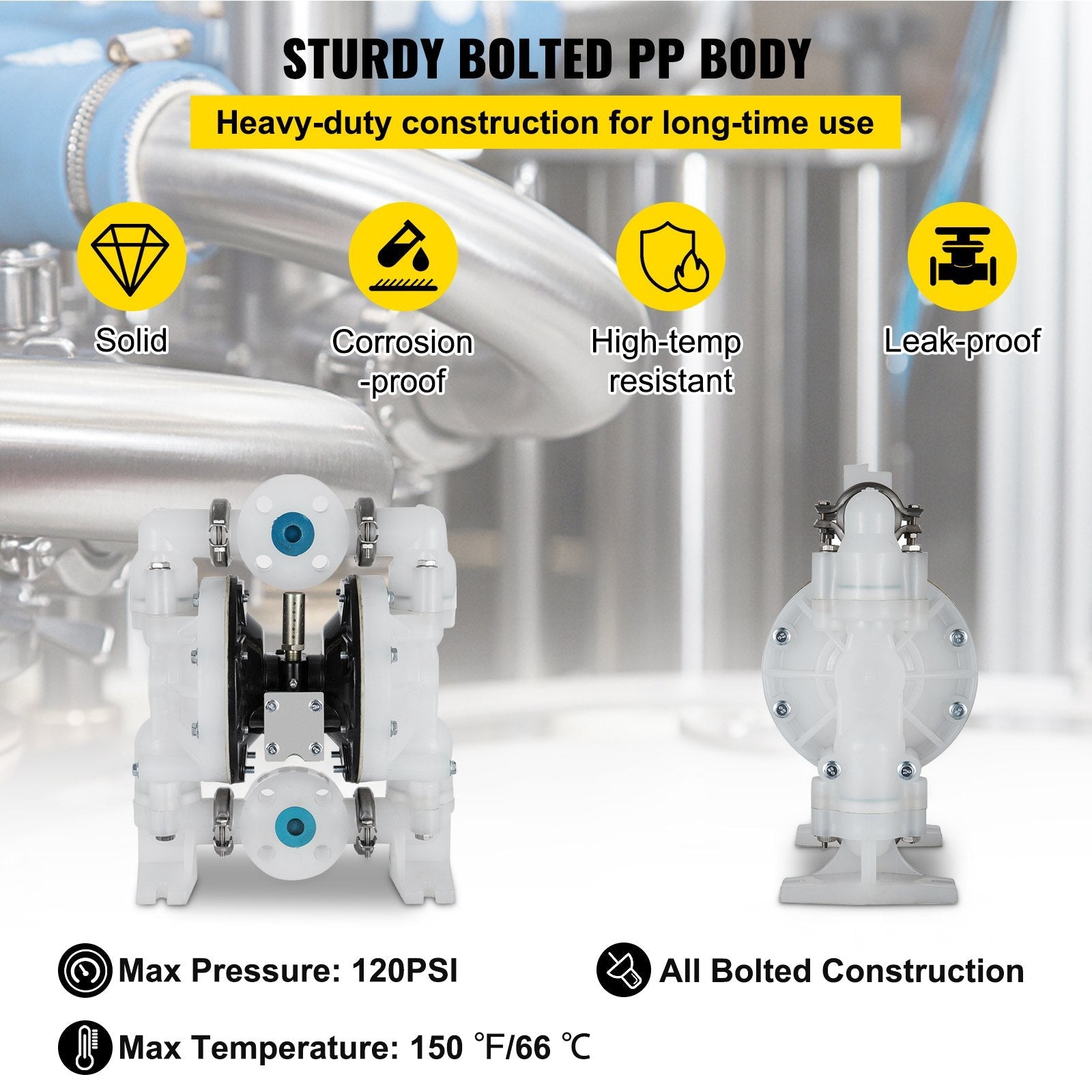

• Body Material: Polypropylene

• Type: Double diaphragm

• Inlet Port: 1 inch (25 mm)

• Outlet Port: 1 inch (25 mm)

• Air Inlet Size: 1/2 inch (12.7 mm)

• Max Flow Rate: 79.2 GPM

• Max PSI: 120 psi

• Max Head: 84 m (275.59 ft)

• Max Suspended Solids: 3 mm (1/8 inch)

• Suction (Dry): 3 m (10 ft)

• Suction (Wet): 4.6 m (15 ft)
