Description

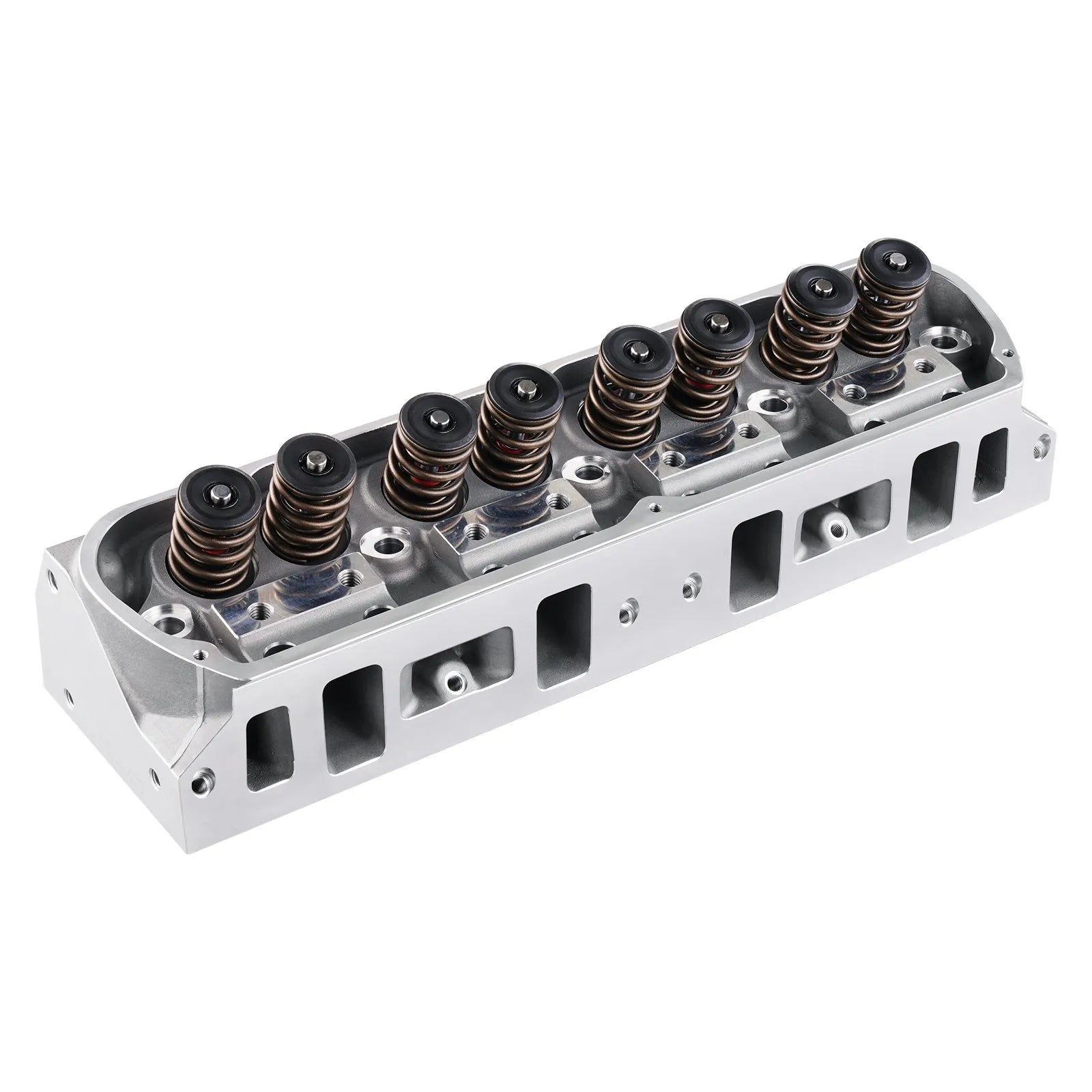

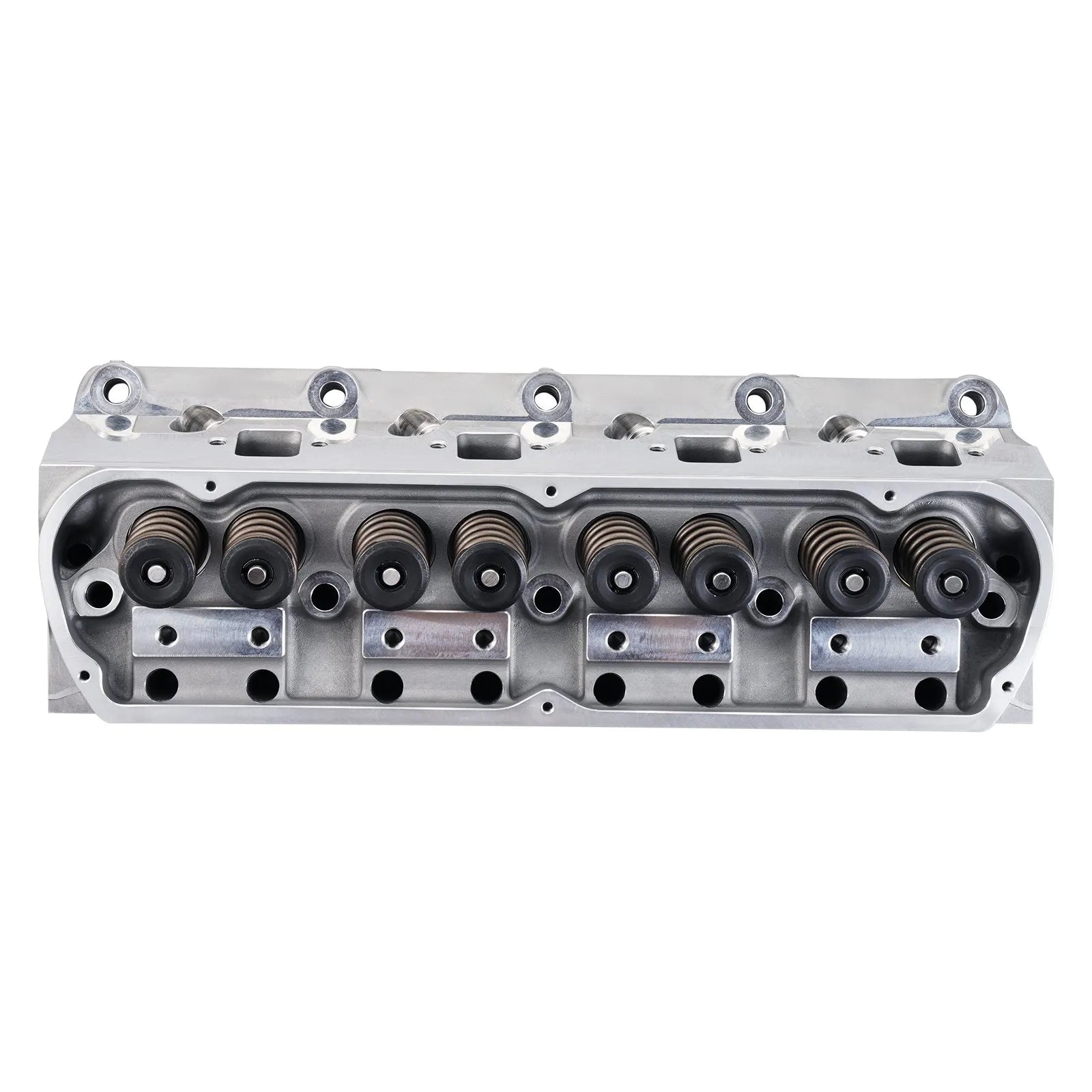

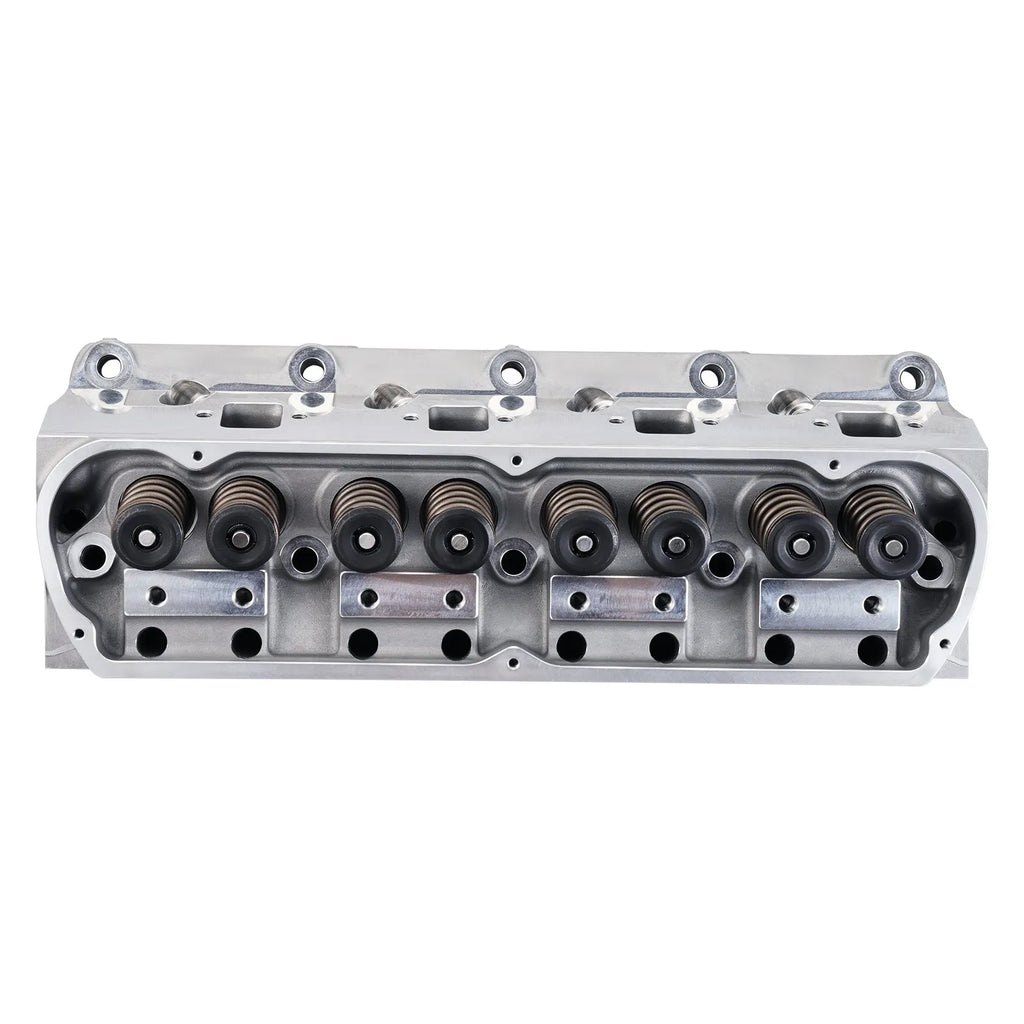

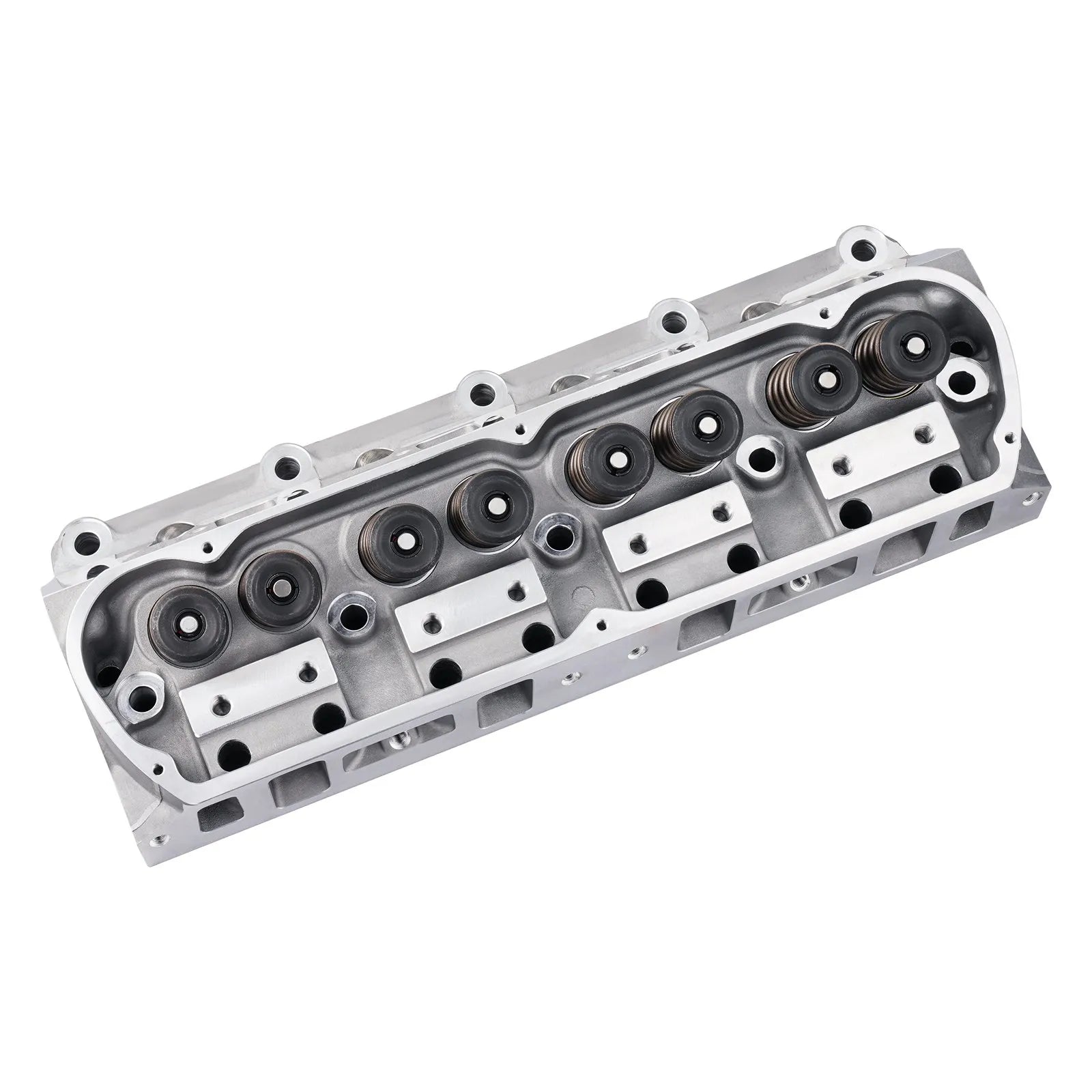

The VEVOR Engine Cylinder Head Assembly is a high-precision replacement component made from industrial-grade aluminum alloy, designed for SBF Ford Mustang engines. Engineered for durability and efficiency, it provides enhanced fuel performance, precise valve operation, and reliable sealing. Compatible with a range of applications, this cylinder head comes complete with intake and exhaust ports, spark plug holes, and all essential structural features required for installation.
Key Features
-

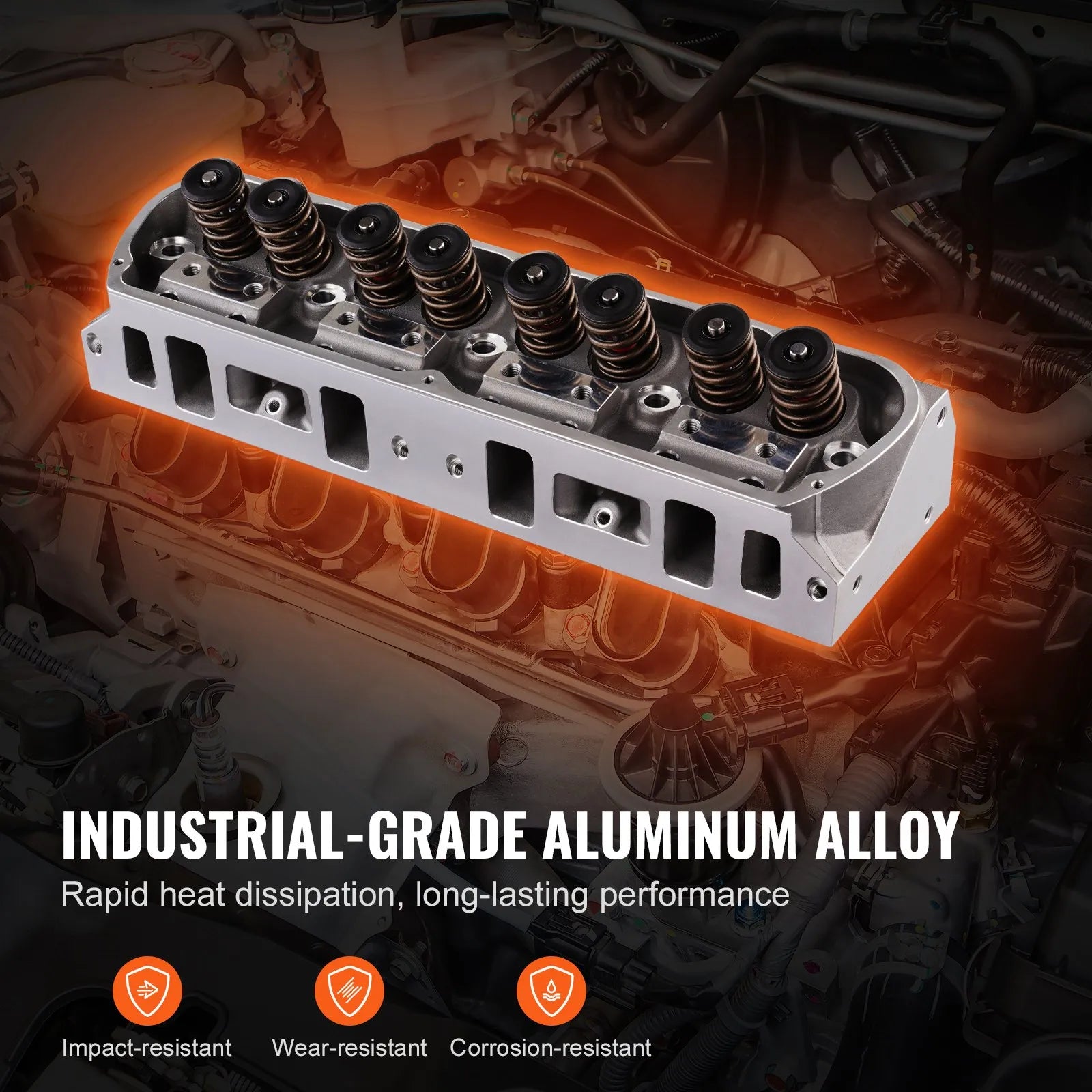

Constructed from durable Aluminum A356 alloy for strength and heat resistance
-

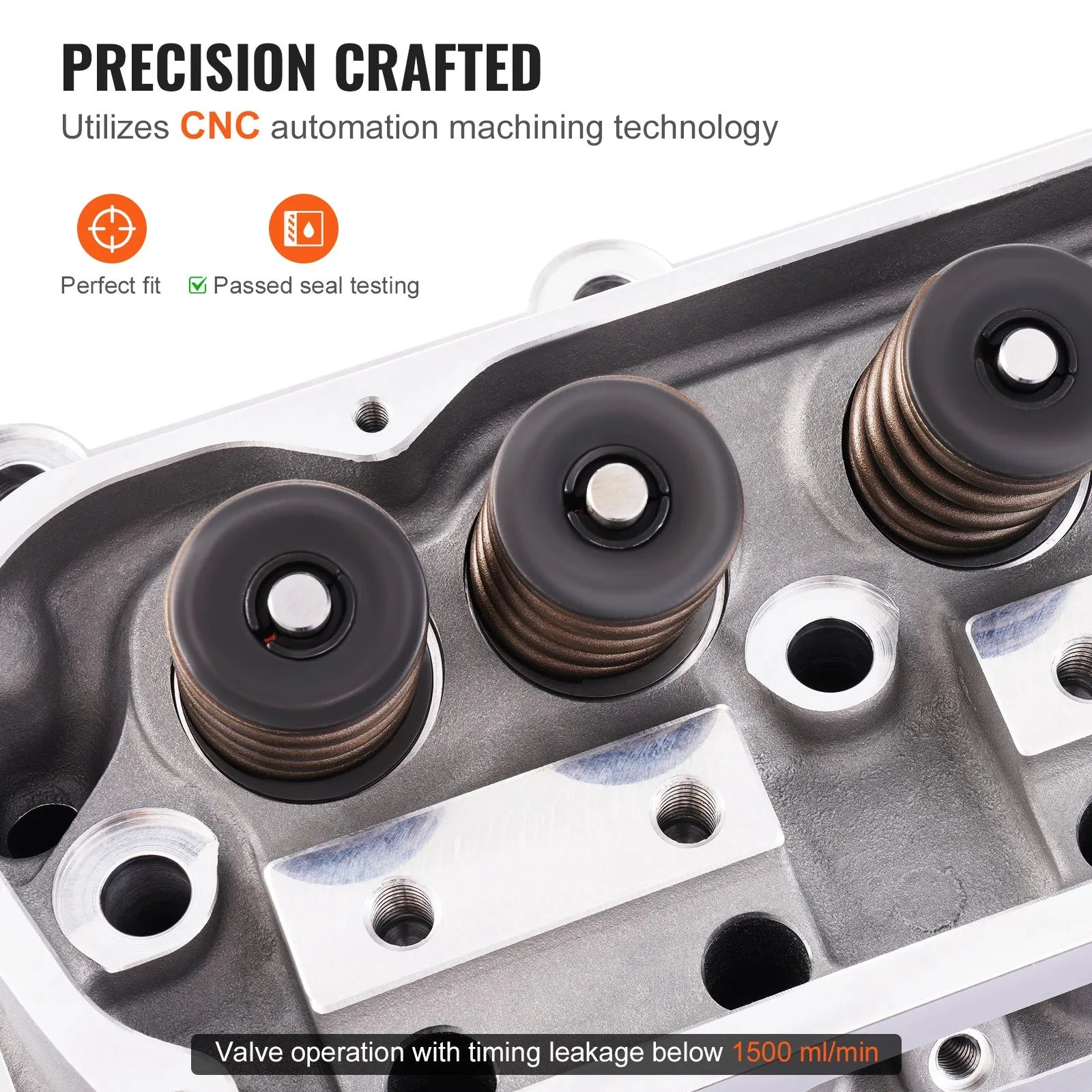

High manufacturing precision ensures optimal engine performance
-

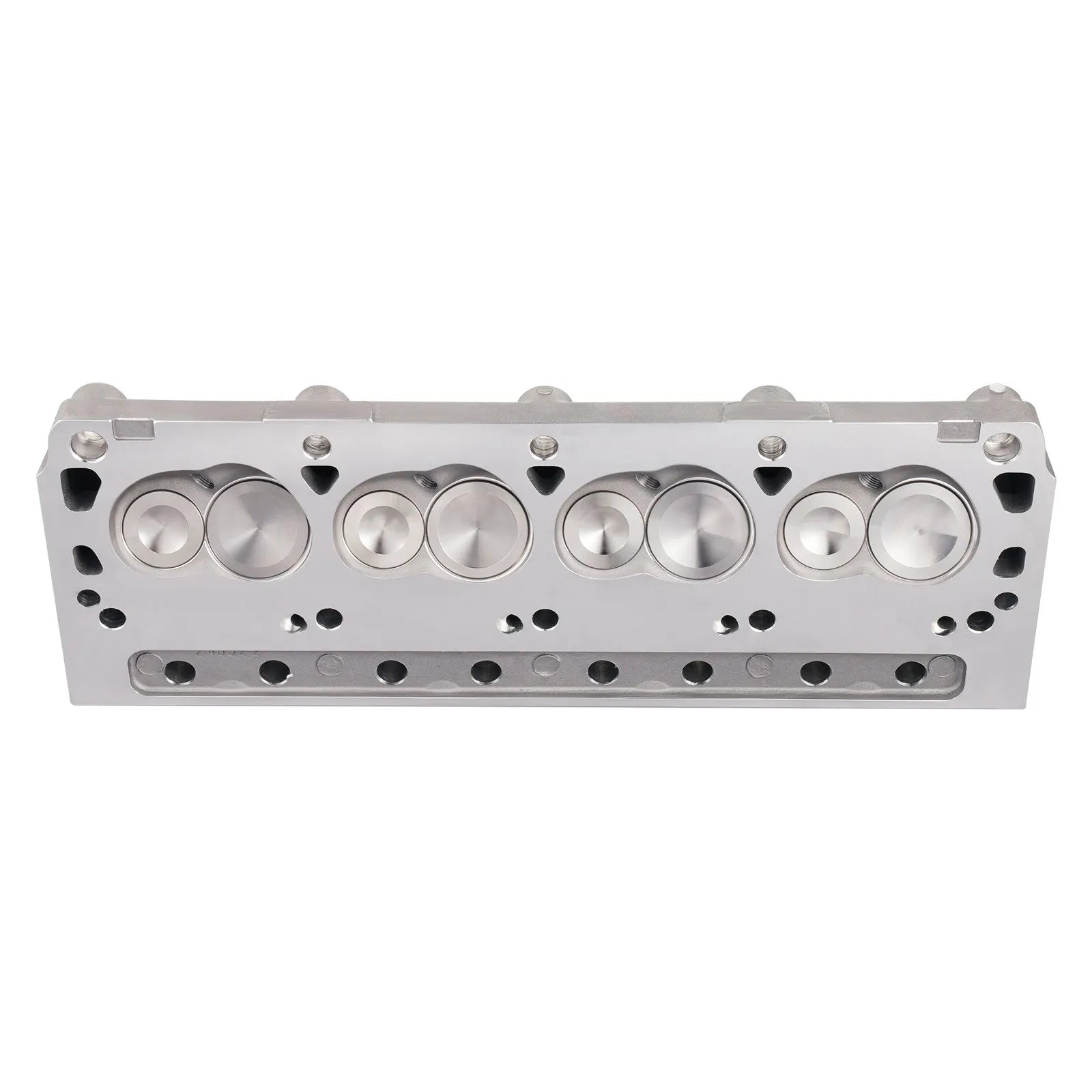

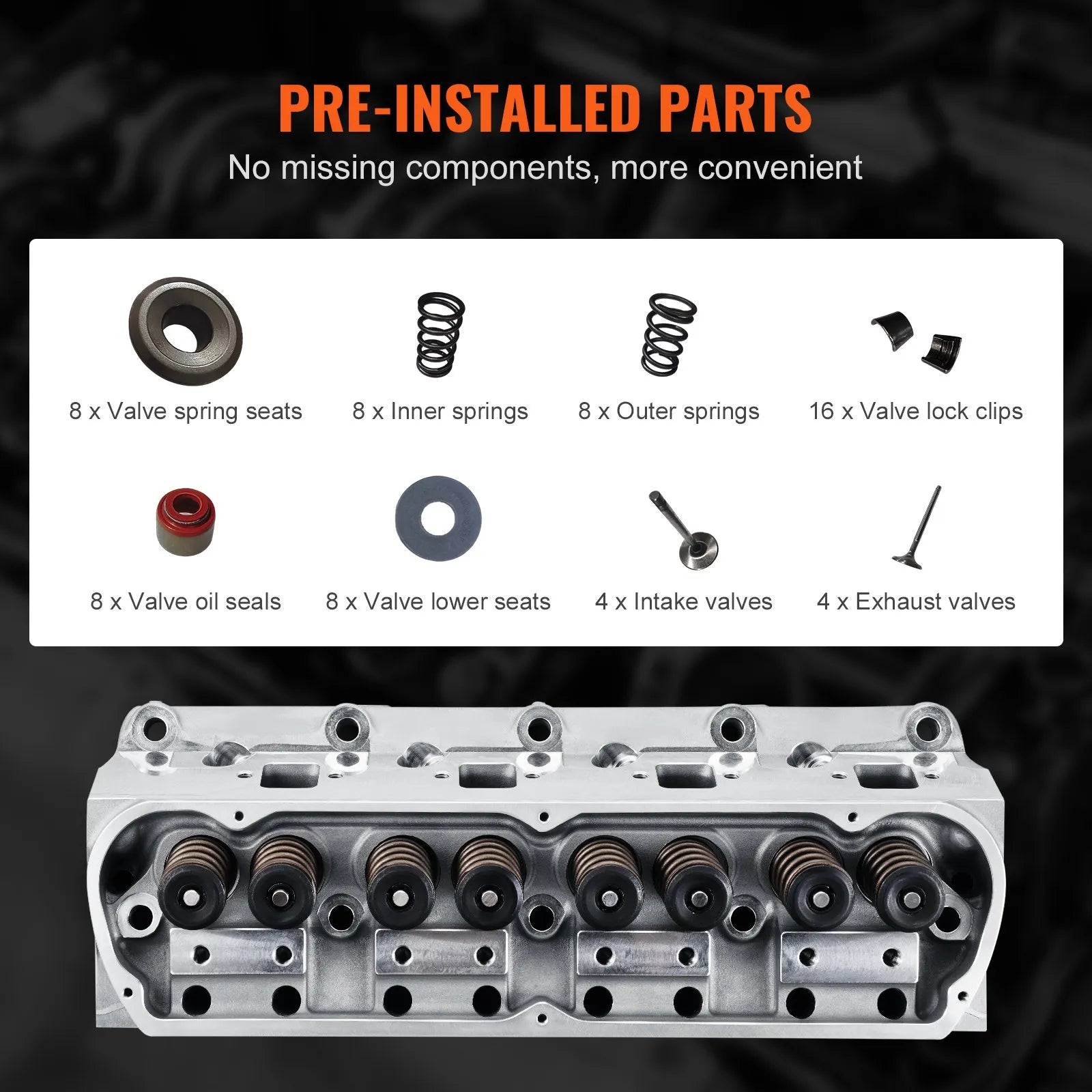

Complete parts including intake and exhaust ports, spark plug installation holes, and combustion chambers
-
Intake port volume: 175 cc, Combustion chamber volume: 61 cc
-
Slant hole spark plug type, M14 x 1.25mm specification
-
Enhanced fuel efficiency and reliable engine operation
-
Industrial-grade design suitable for SBF Ford Mustang engines
-
Water passage sealing side leakage pressure range: 0.35–0.45 MPa

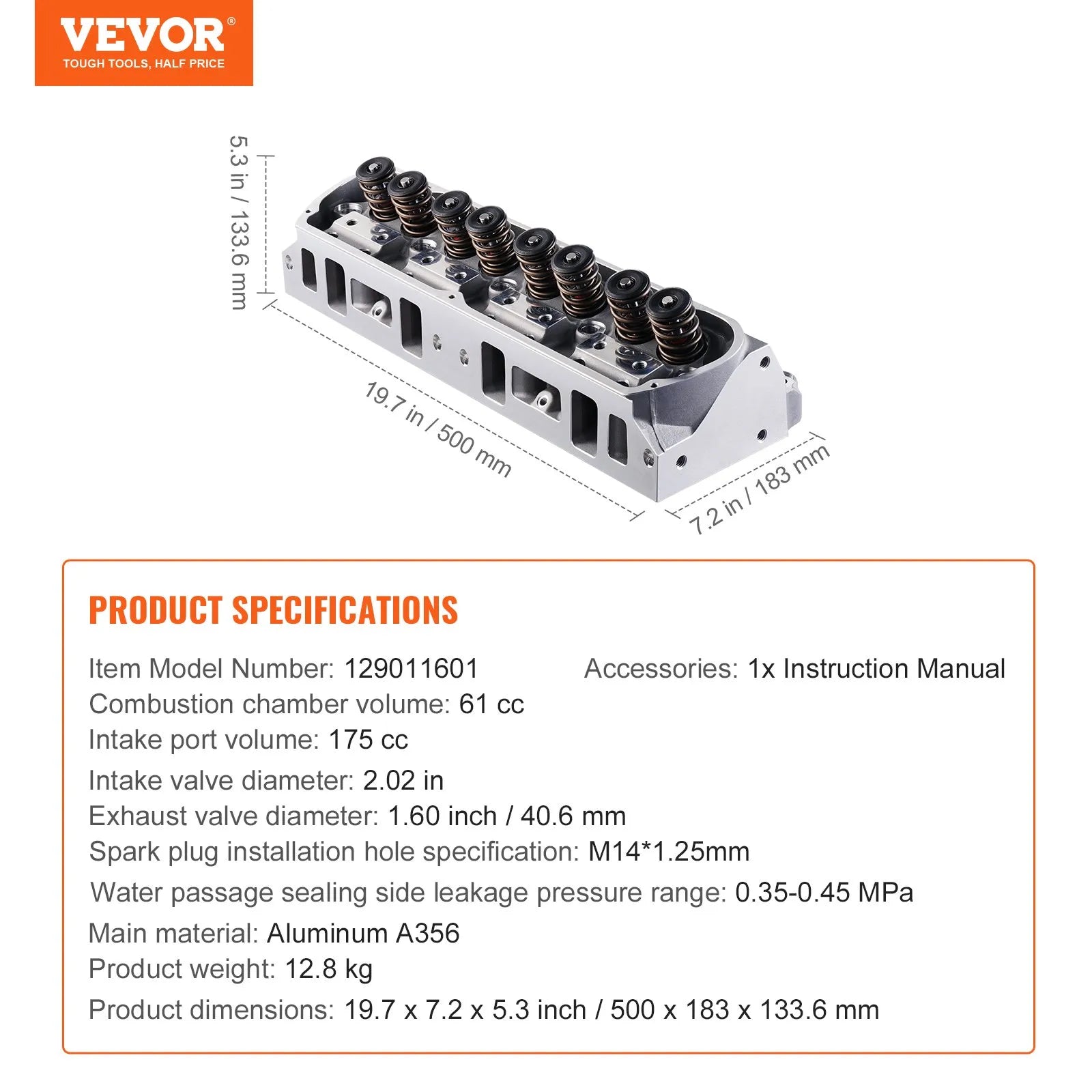

Specifications
-
Item Model Number: 129011601
-
Main Material: Aluminum A356
-
Intake Valve Diameter: 2.0 in / 51.3 mm
-
Exhaust Valve Diameter: 1.60 in / 40.6 mm
-
Spark Plug Installation Hole Specification: M14*1.25 mm
-
Combustion Chamber Volume: 61 cc
-
Intake Port Volume: 175 cc
-
Spark Plug Type: Slant Hole
-
Product Dimensions: 19.7 x 7.2 x 5.3 in / 500 x 183 x 134 mm
-
Product Weight: 26.0 lbs / 11.8 kg
