Description

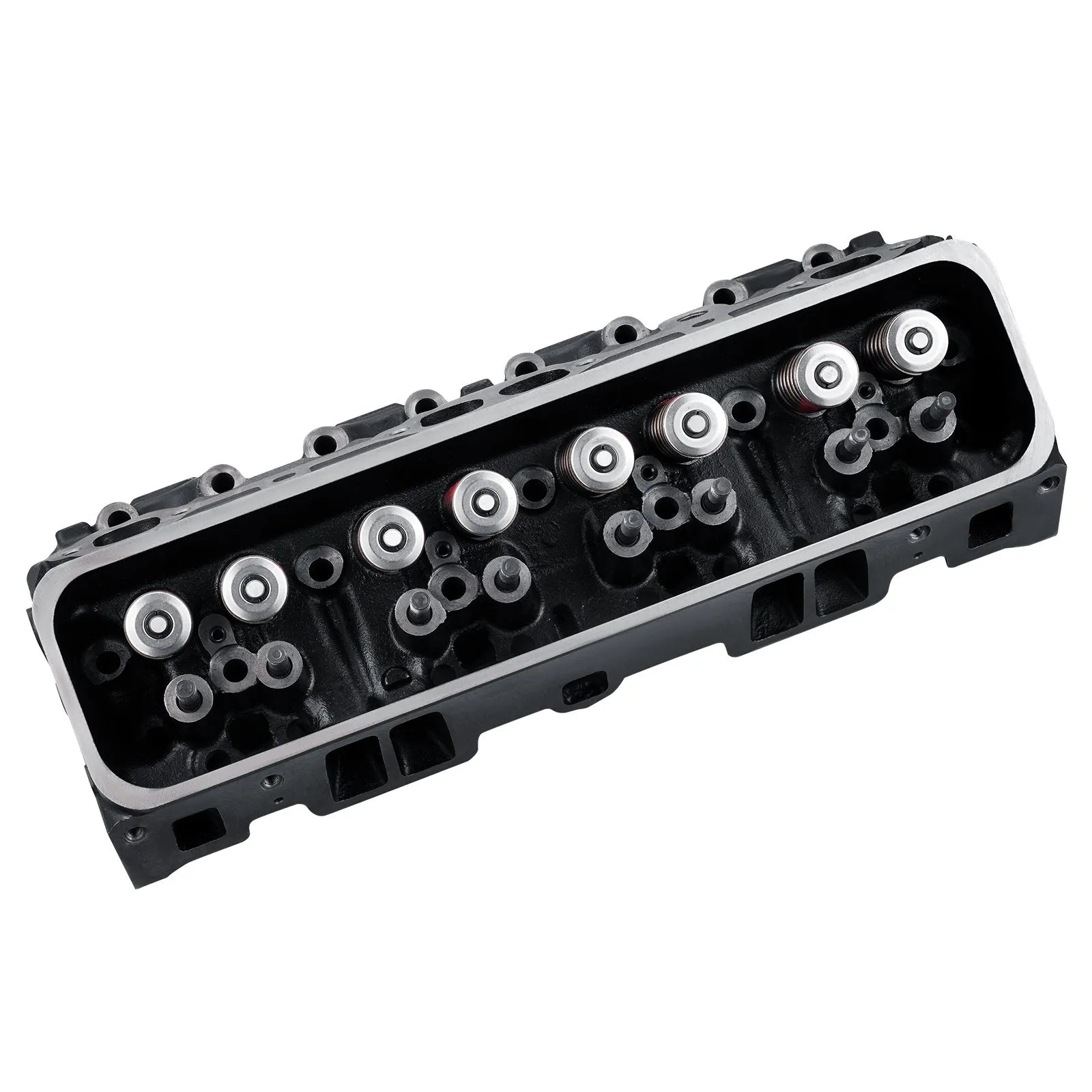

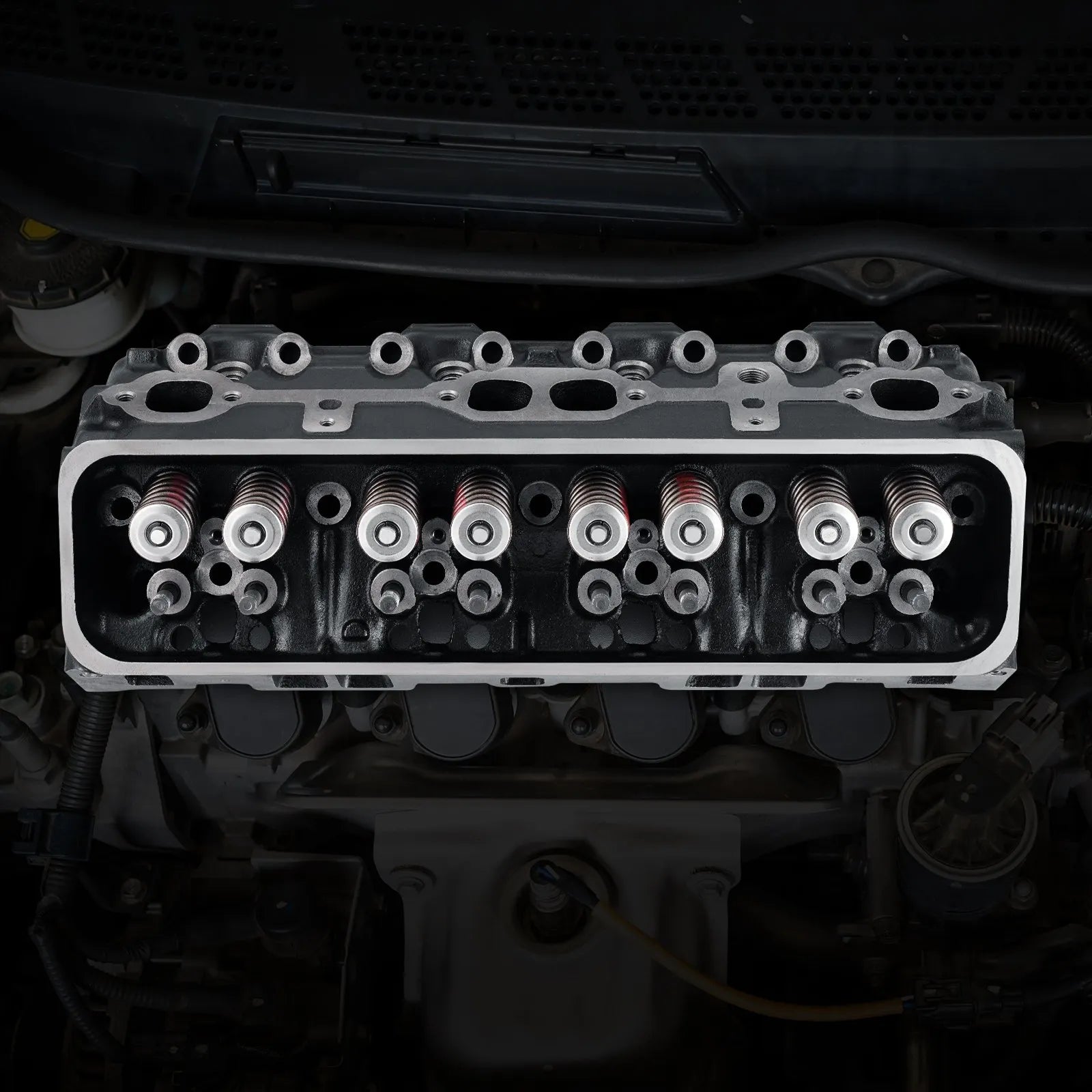

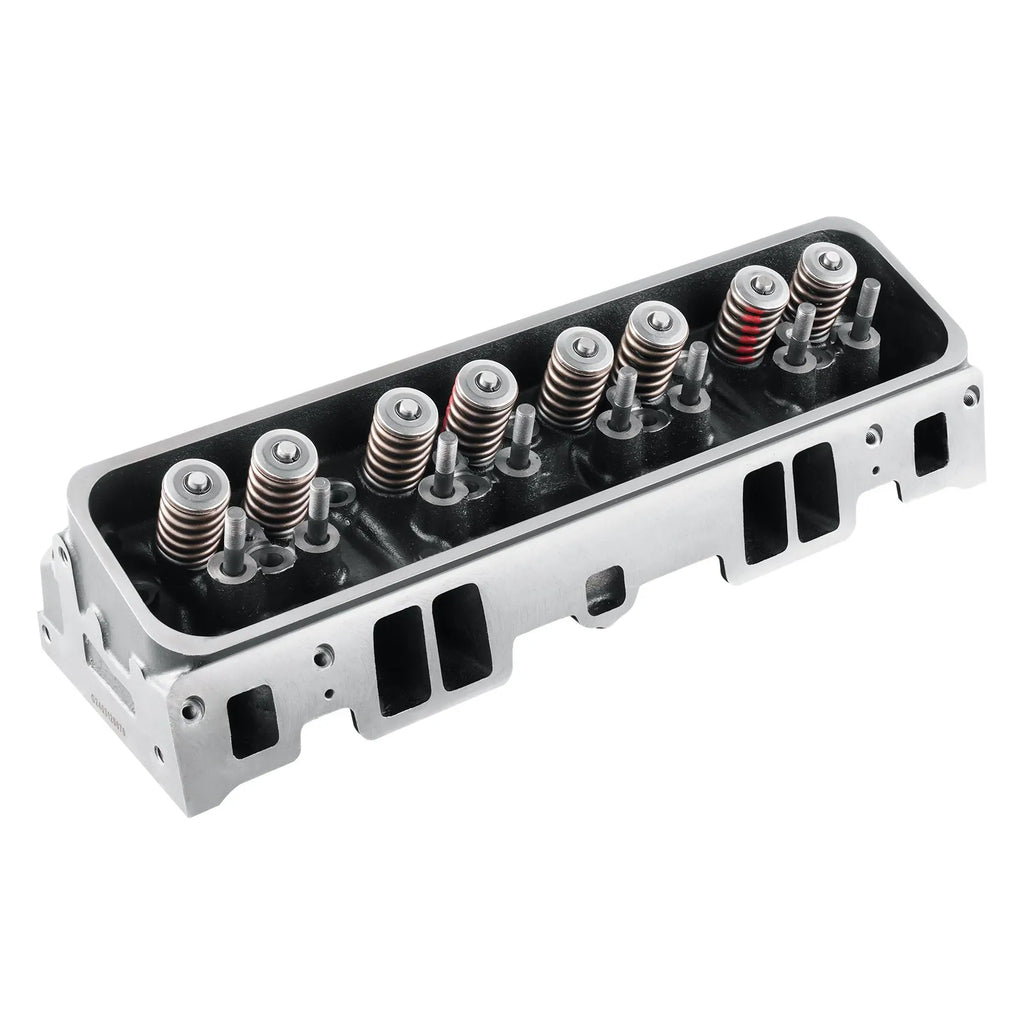

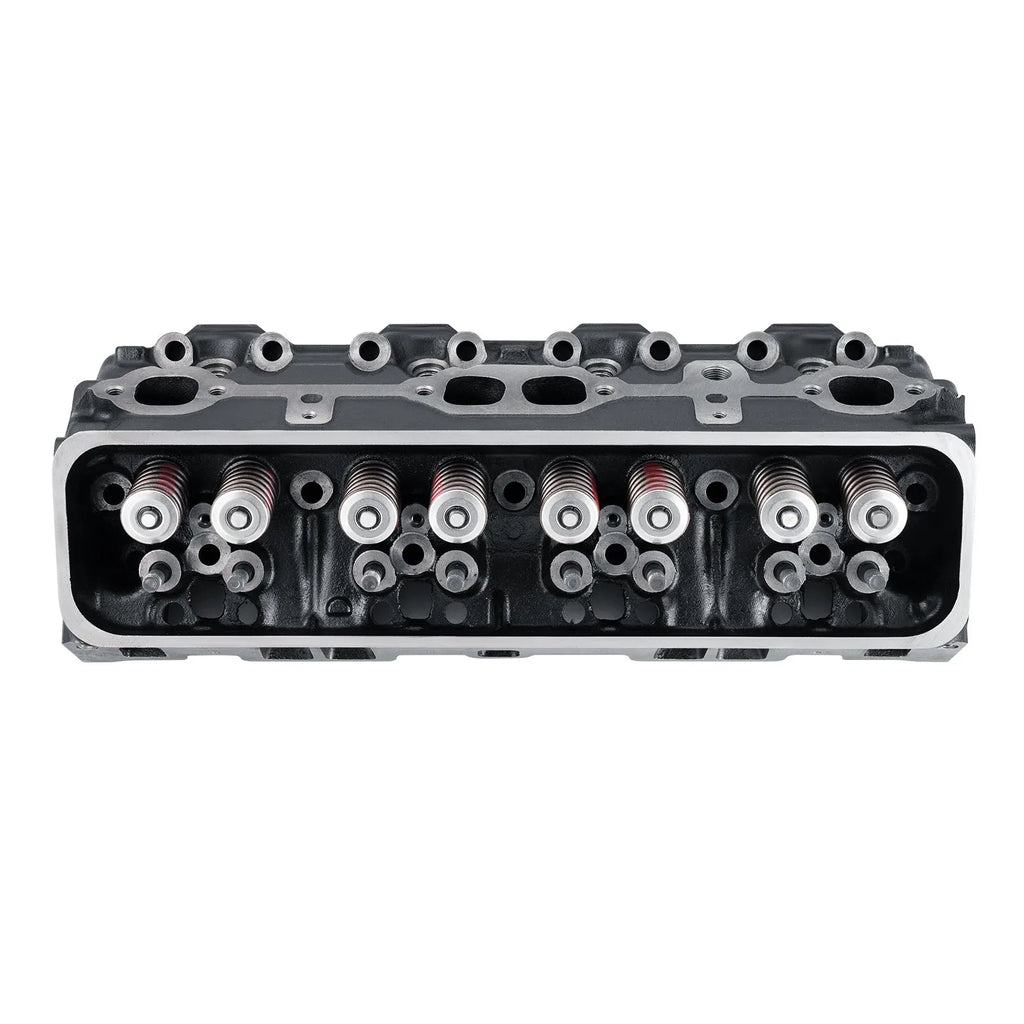

The VEVOR Engine Cylinder Head Assembly is a robust replacement component made from high-strength cast iron, designed for Chevrolet Escalade and GMC engines. Built for durability and precision, it ensures reliable engine operation, excellent sealing performance, and enhanced fuel efficiency. This cylinder head comes complete with intake and exhaust ports, spark plug holes, and all necessary features for direct replacement and optimal engine performance.
Key Features
-
Constructed from durable cast iron for strength and heat resistance
-

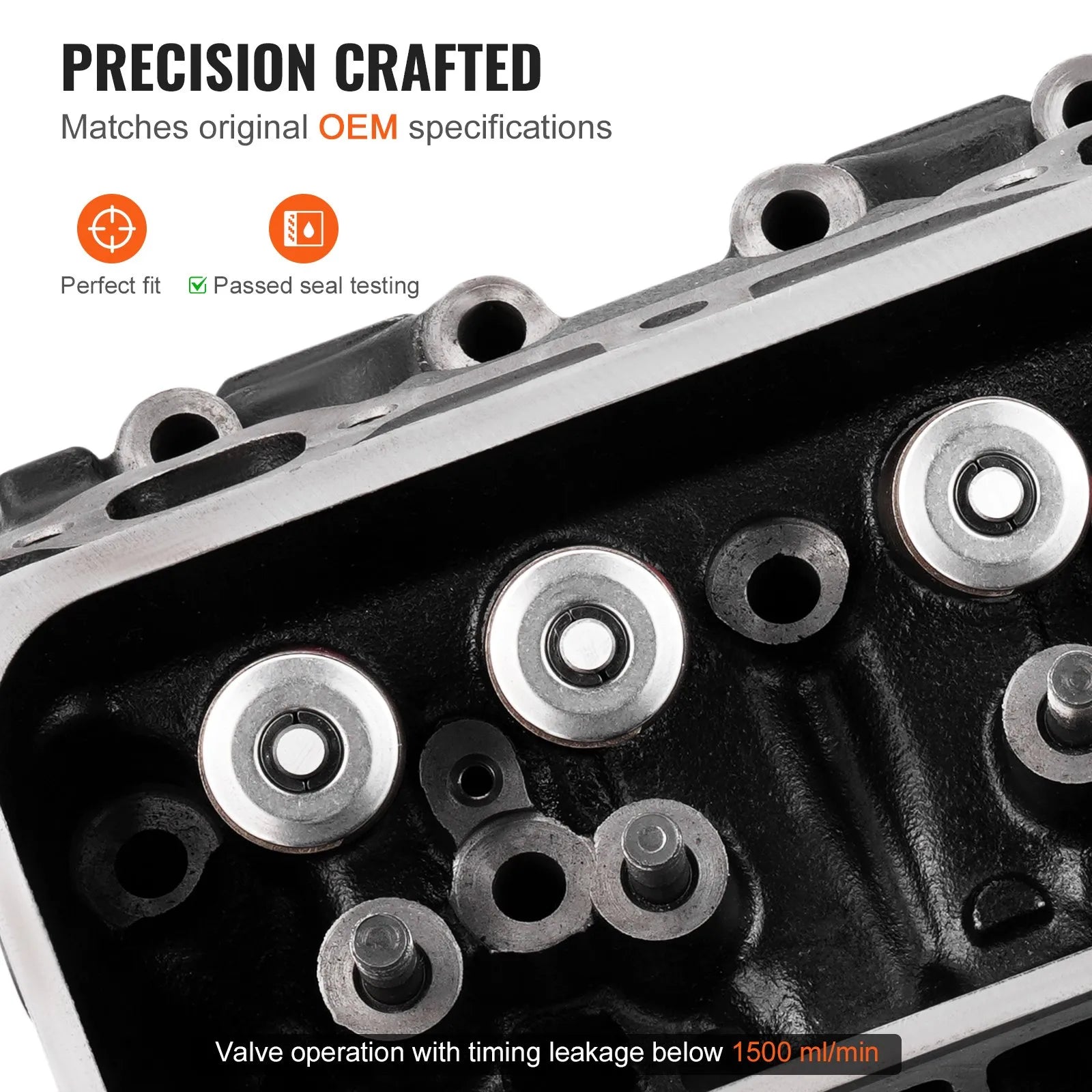

High manufacturing precision ensures consistent engine performance
-

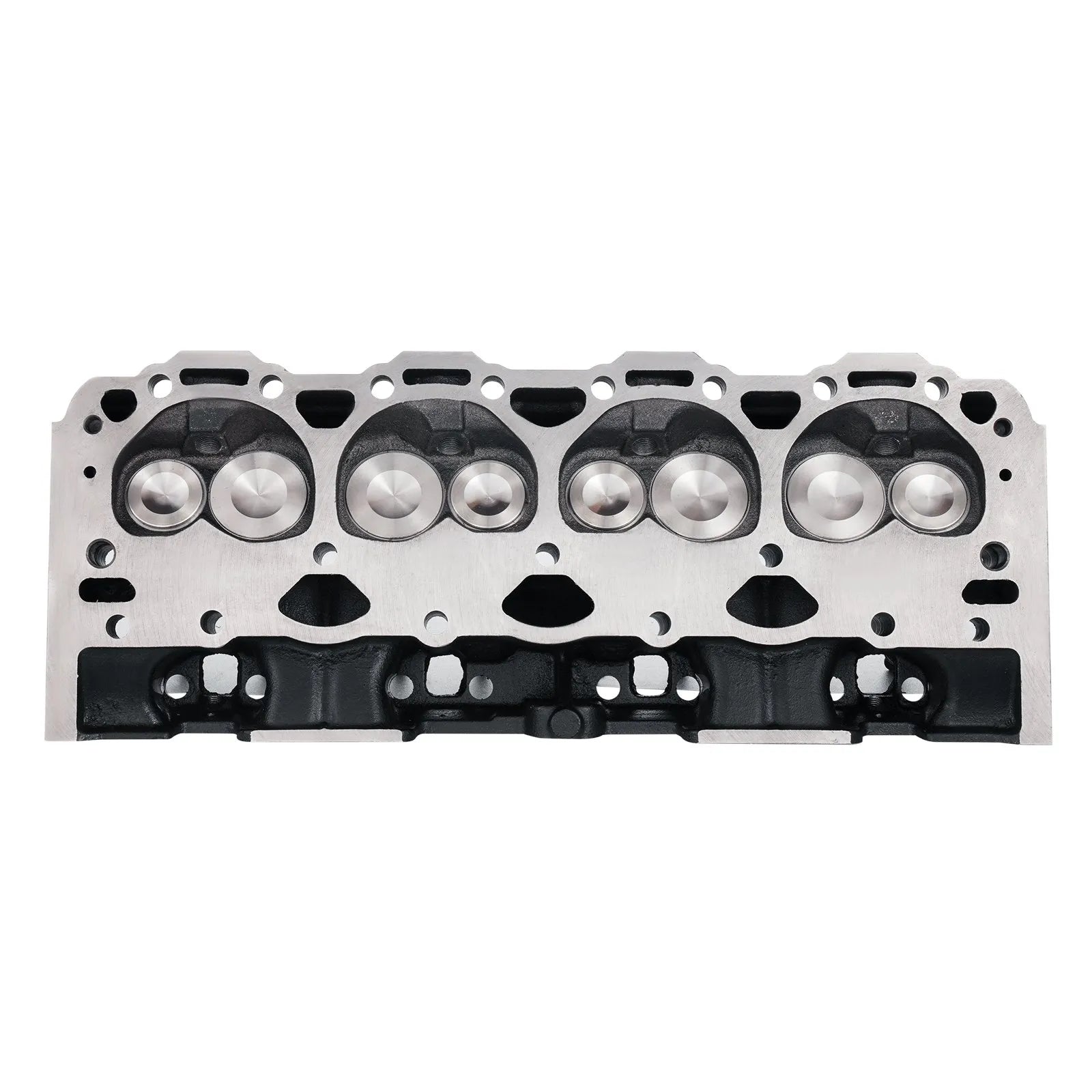

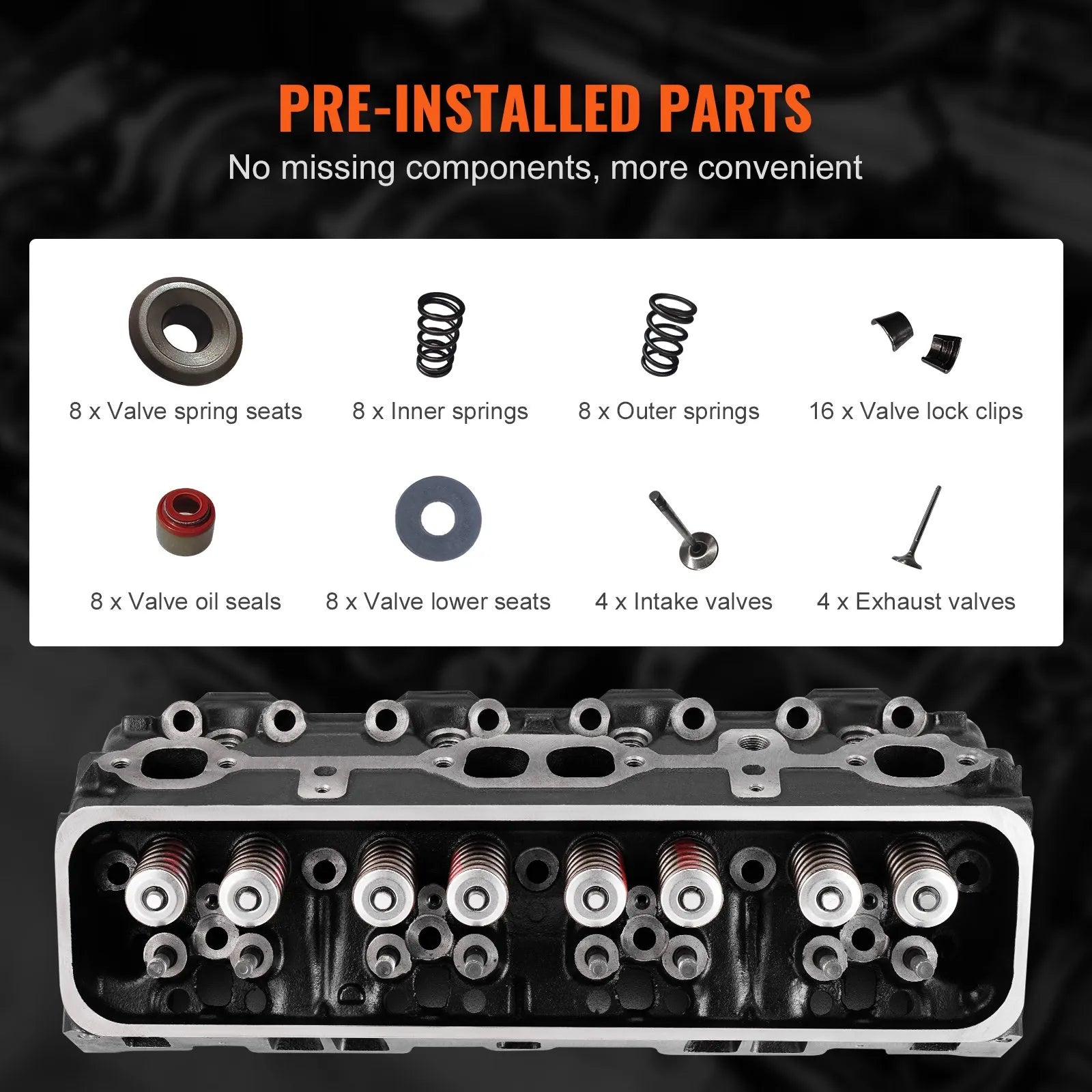

Complete parts including intake and exhaust ports, spark plug installation holes, and combustion chambers
-
Intake port volume: 170 cc, Combustion chamber volume: 64 cc
-
Straight hole spark plug type, M14 x P1.25 x 22.8 specification
-
Enhanced fuel efficiency and reliable engine operation
-
Industrial-grade design suitable for Chevrolet Escalade and GMC engines
-
Water passage sealing side leakage pressure range: 0.5–0.6 MPa

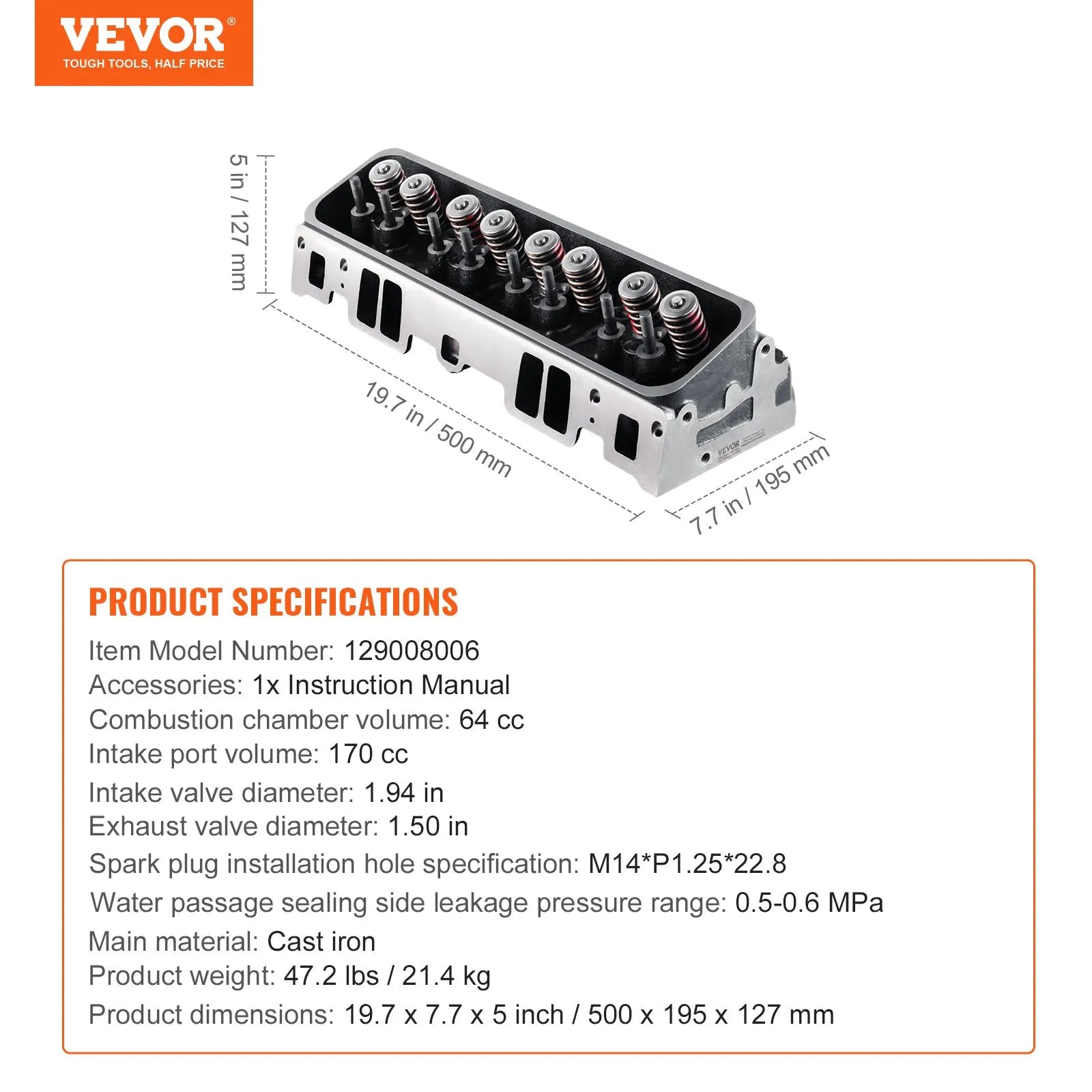

Specifications
-
Item Model Number: 129008006
-
Main Material: Cast Iron
-
Intake Valve Diameter: 1.94 in / 49.3 mm
-
Exhaust Valve Diameter: 1.50 in / 38.1 mm
-
Spark Plug Installation Hole Specification: M14 x P1.25 x 22.8
-
Combustion Chamber Volume: 64 cc
-
Intake Port Volume: 170 cc
-
Spark Plug Type: Straight Hole
-
Product Dimensions: 19.7 x 7.7 x 5 in / 500 x 195 x 127 mm
-
Product Weight: 47.2 lbs / 21.4 kg
