Description

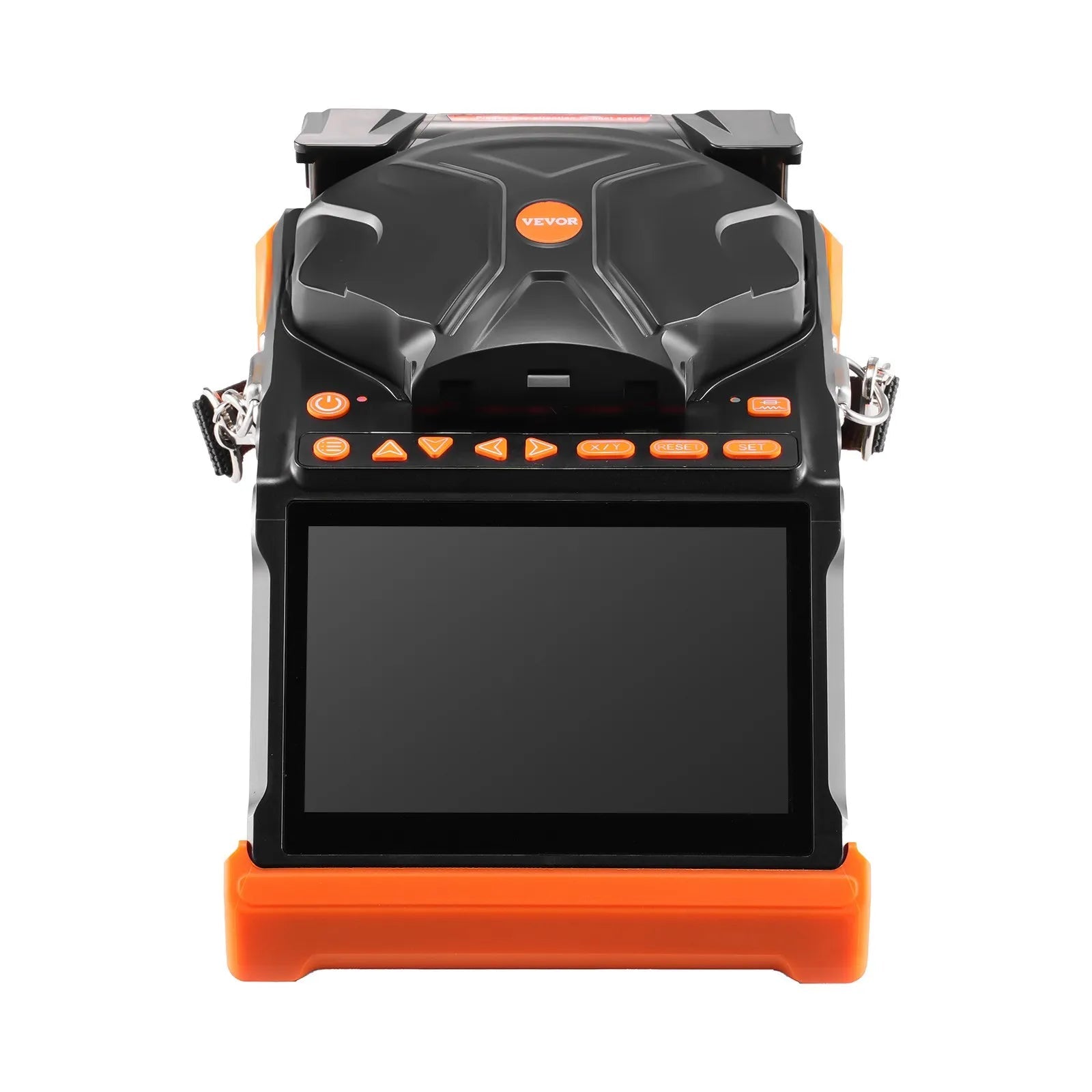

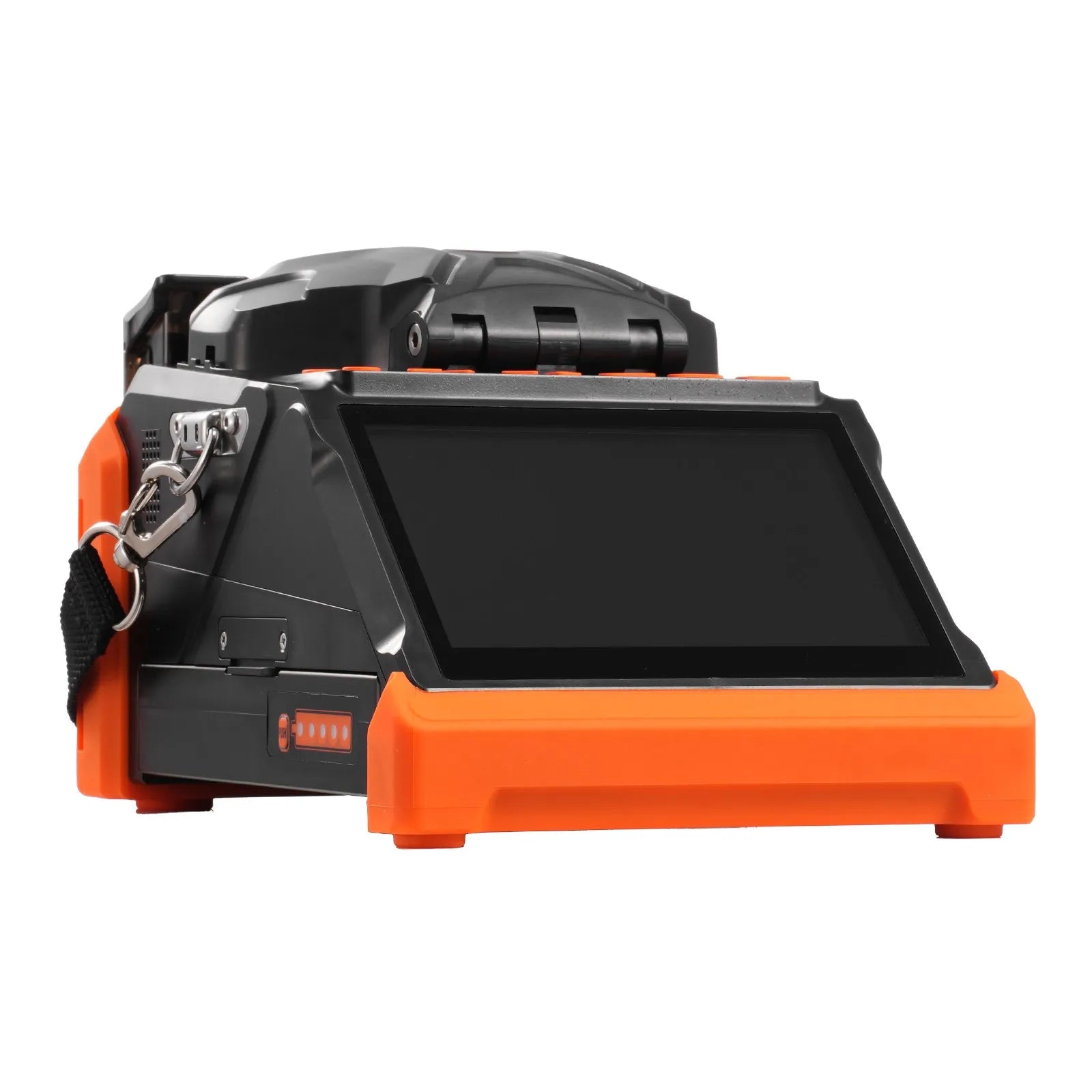

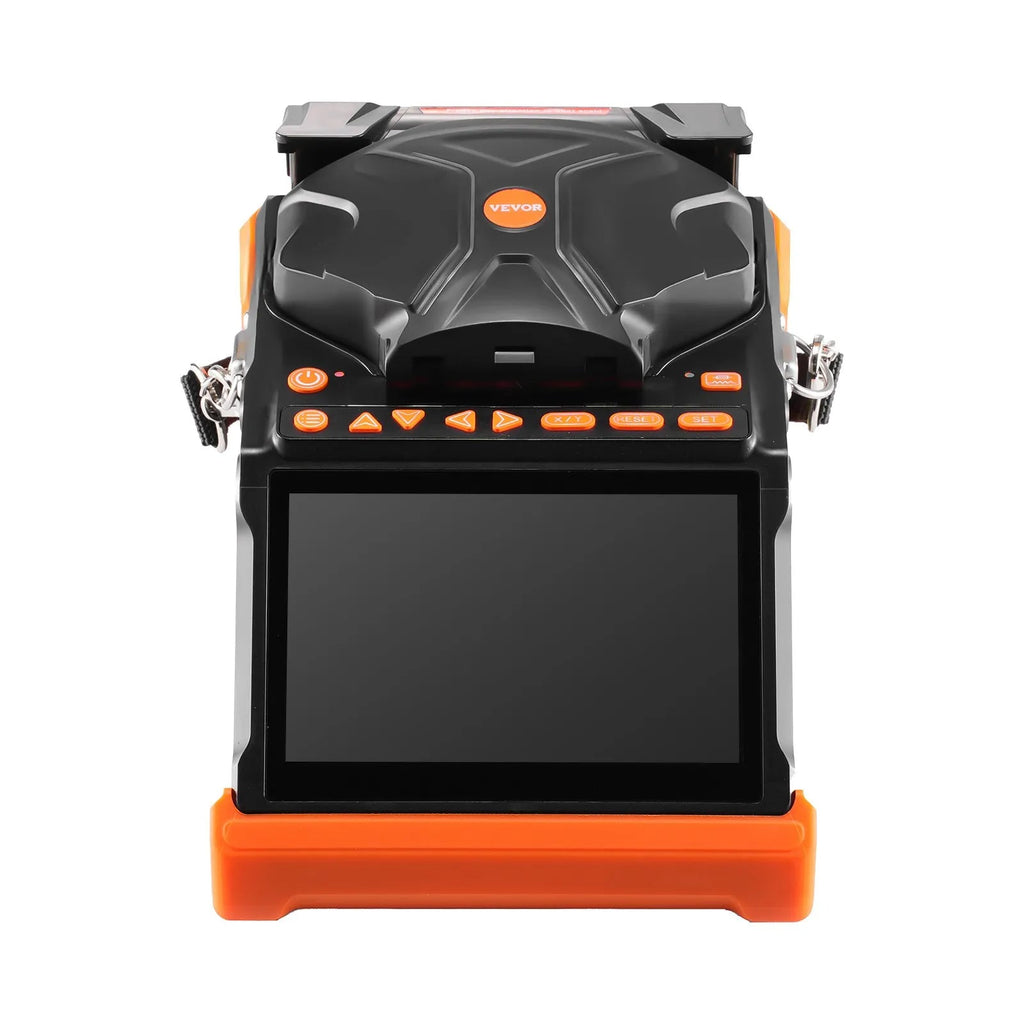

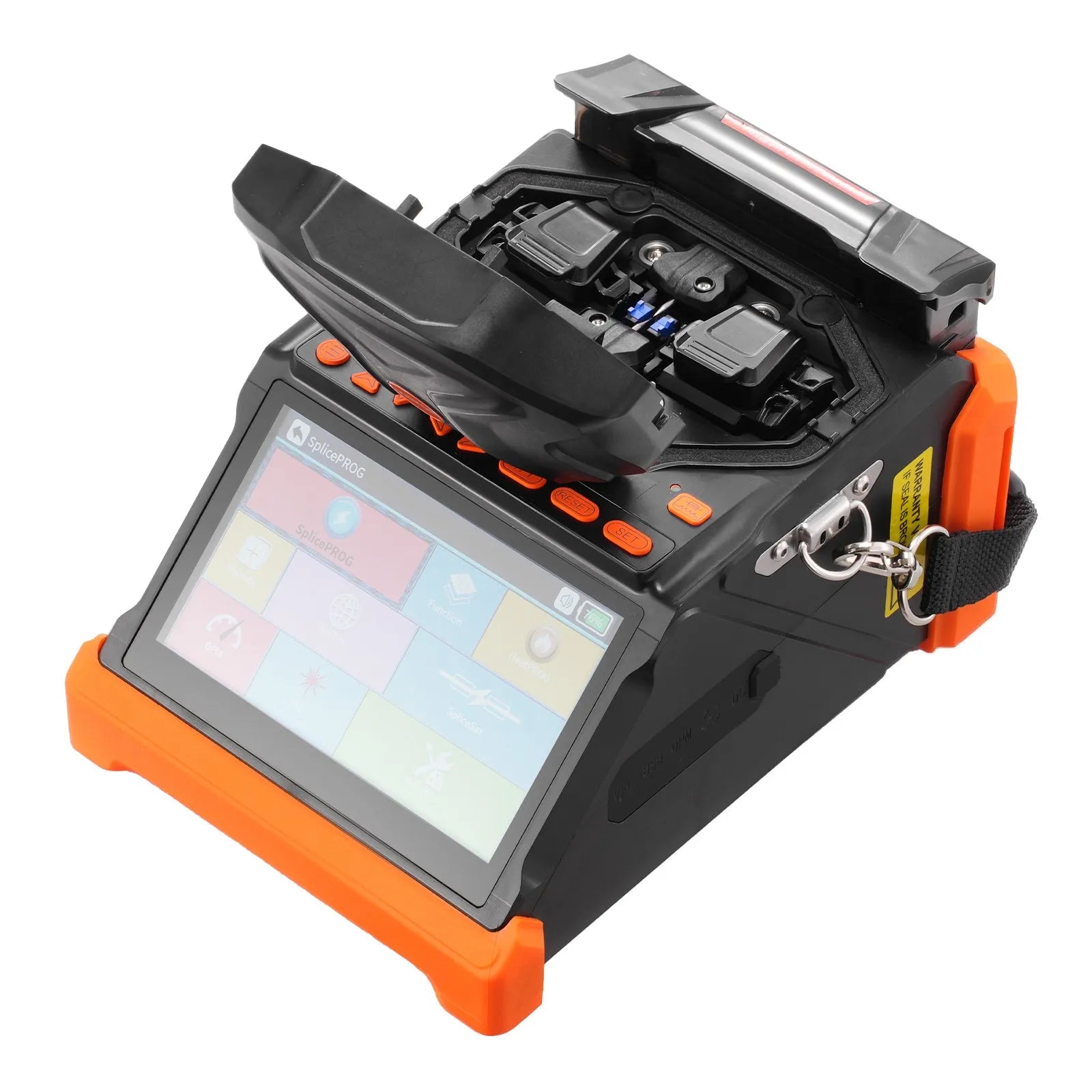

Enhance your fiber optic connections with the VEVOR Fiber Fusion Splicer. Designed for professionals, this splicer combines high-speed performance, precise core alignment, and a user-friendly interface, making fiber splicing efficient, accurate, and reliable.
Key Features:
-

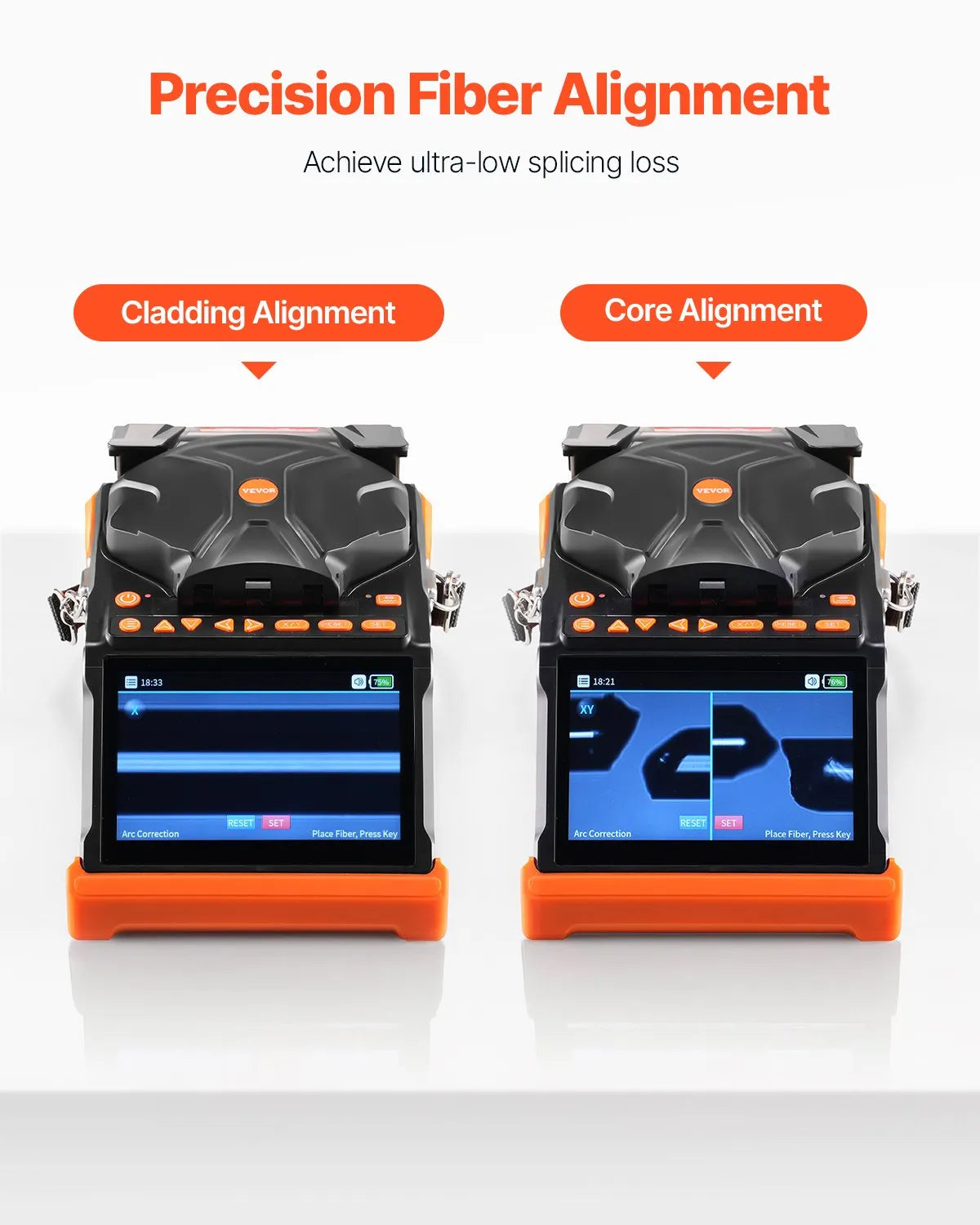

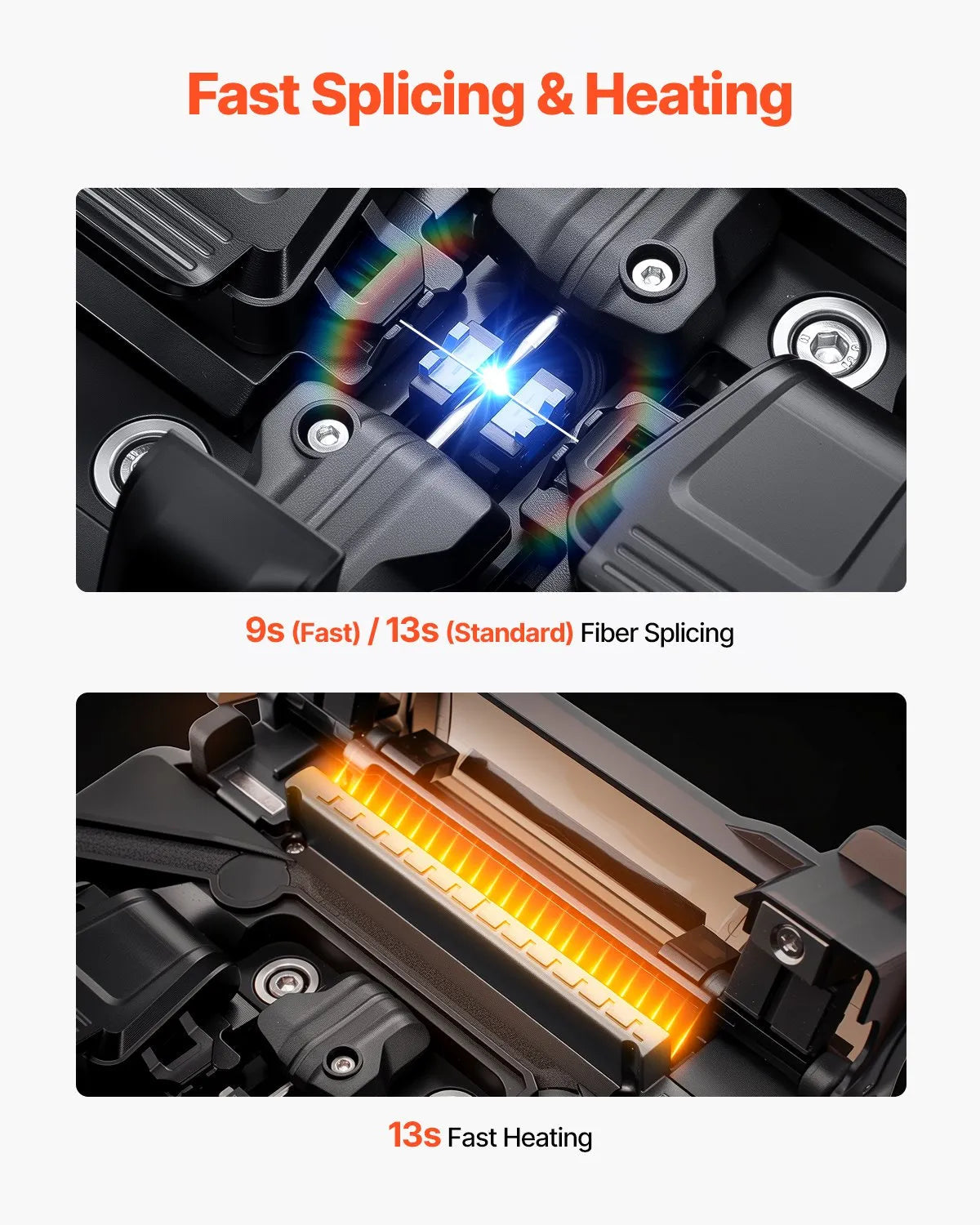

Fast Splicing & Heating: Features 6 high-precision motors and advanced core & cladding alignment technology for rapid 6s splicing, 13s standard splicing, and 13s fast heating with fusion loss as low as 0.01 dB (MM).
-

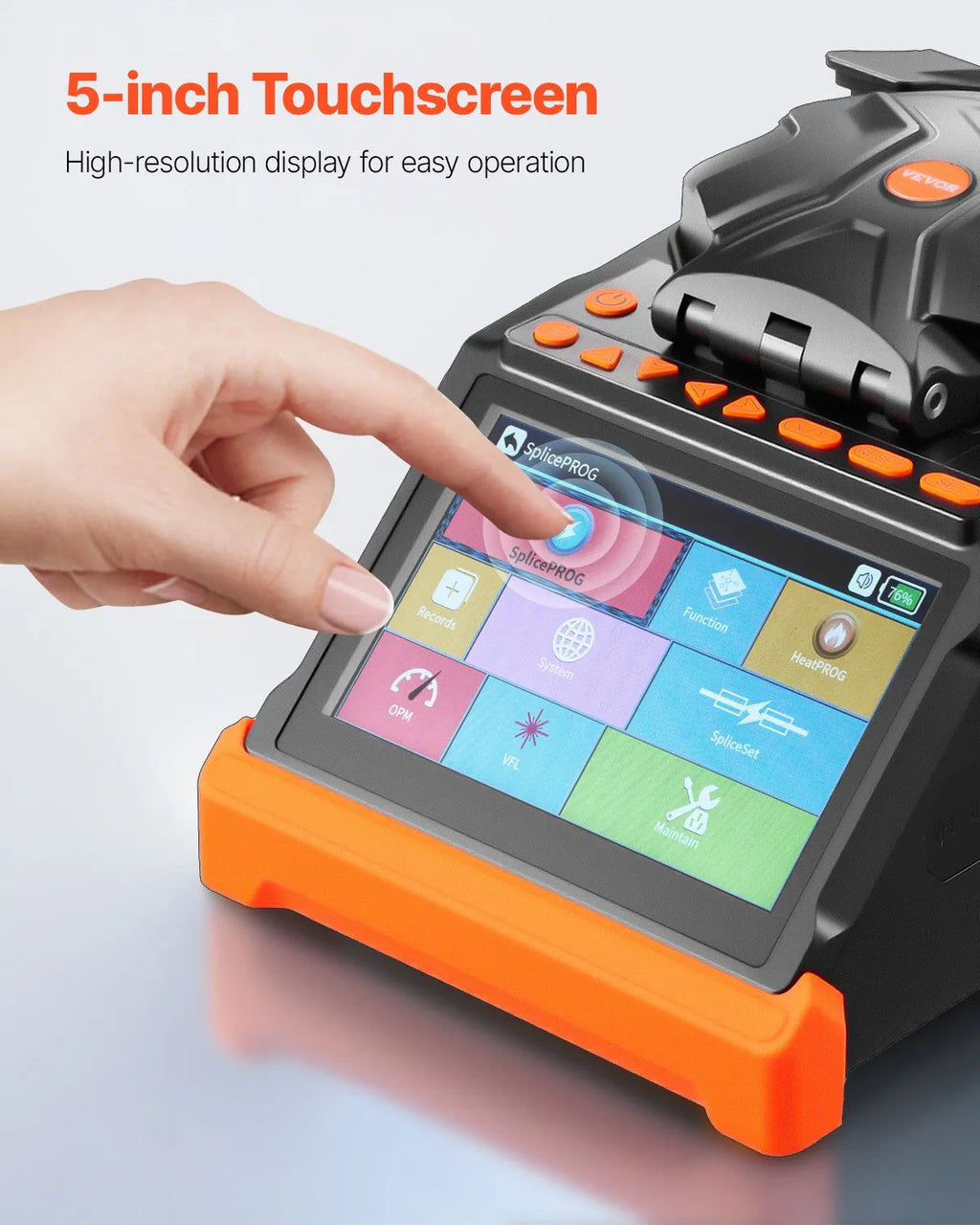

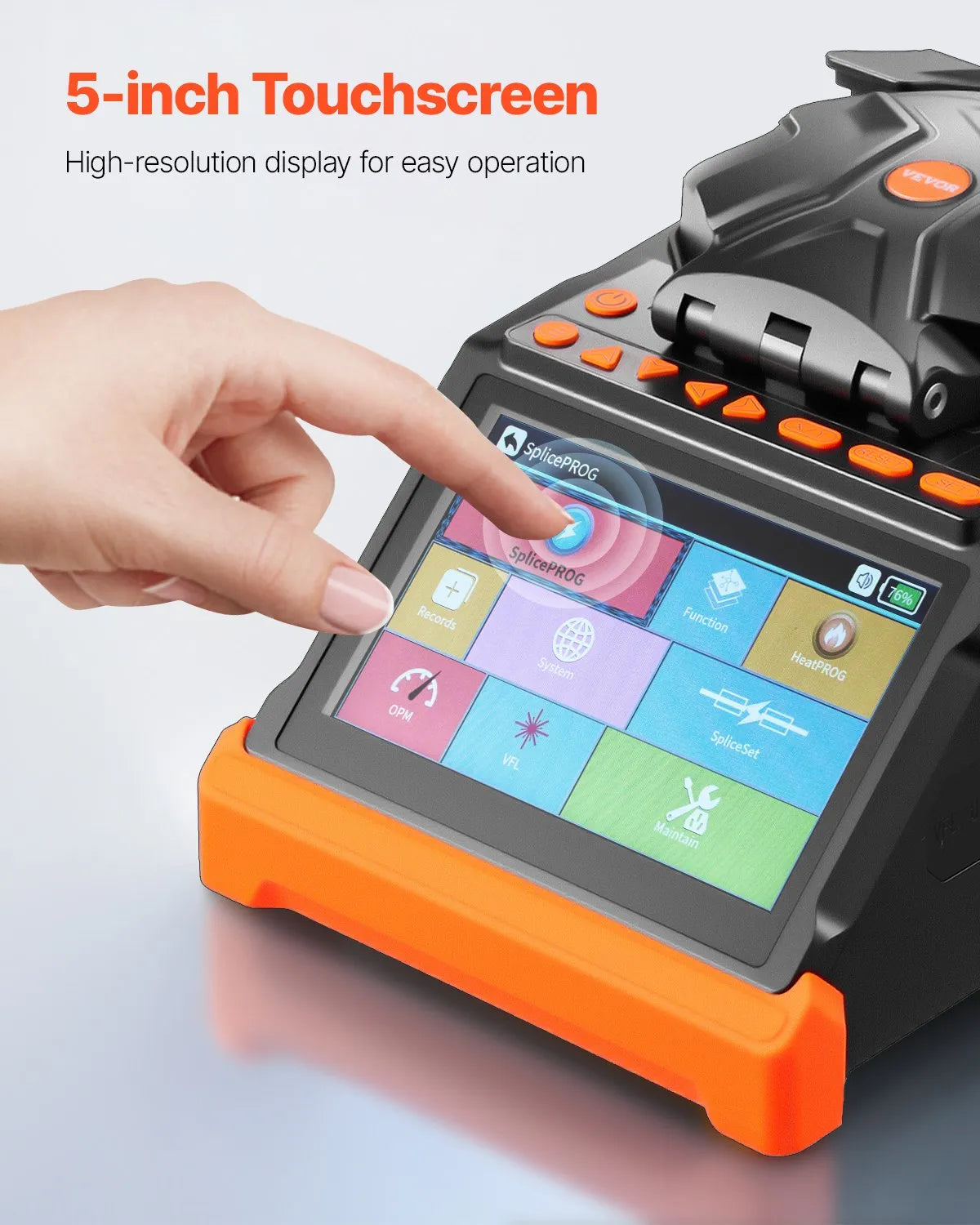

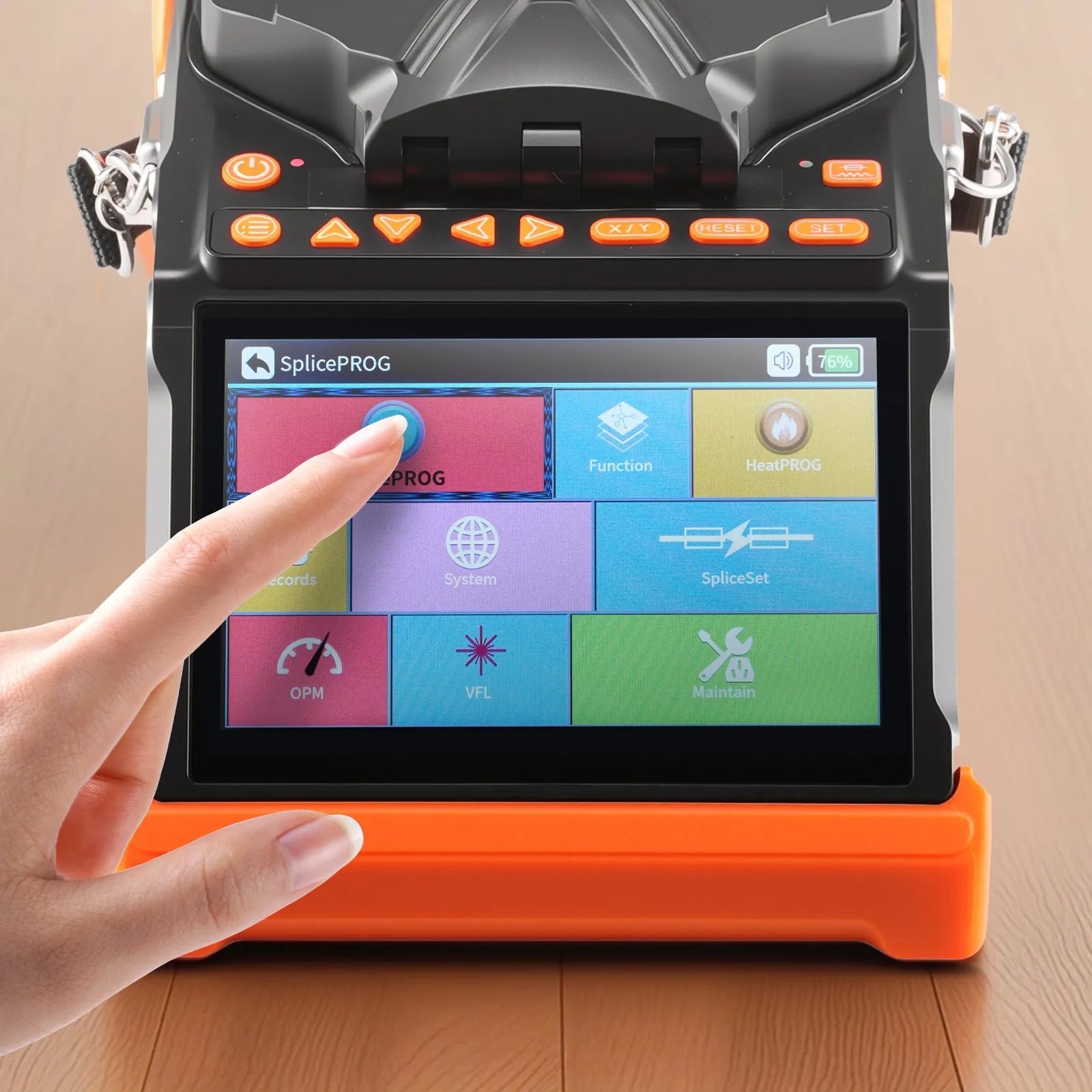

High-Definition Display: 5-inch color touch screen with independent 320x X or Y display or simultaneous 200x X/Y display for clear and visible fiber cores.
-

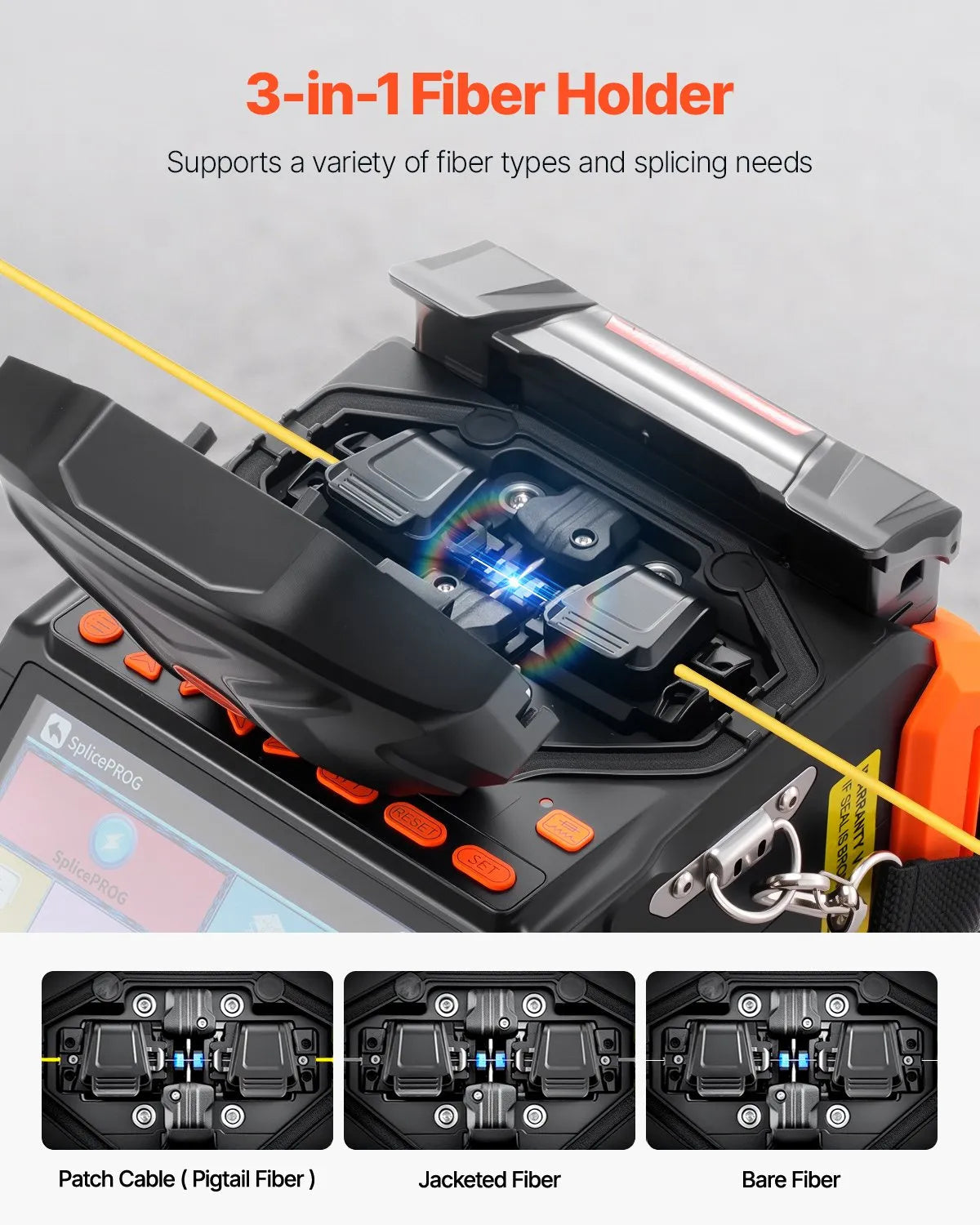

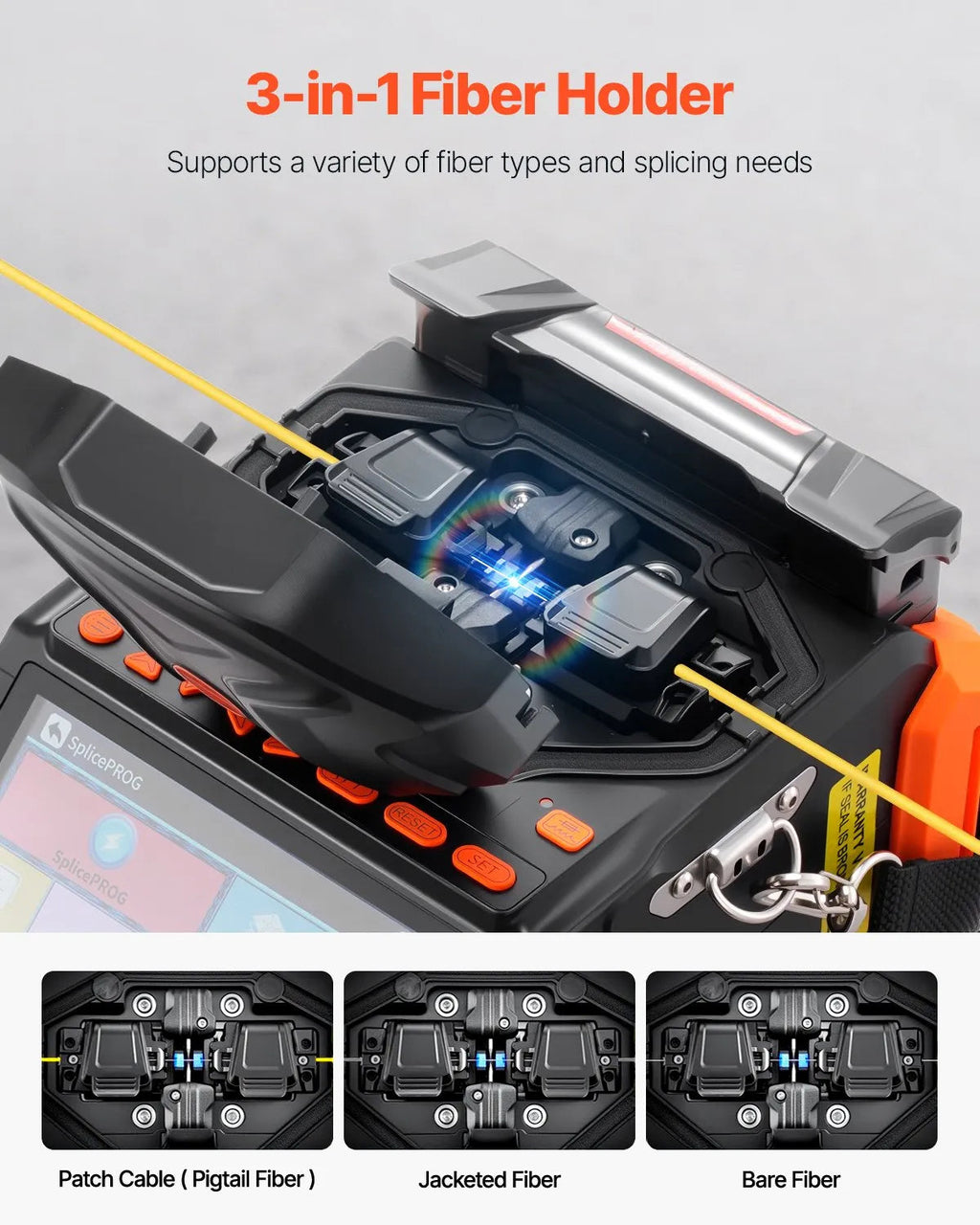

User-Friendly Design: 3-in-1 fiber holder compatible with SM, MM, DS, NZDS, pigtail fiber, bare fiber, and patch cable. Built-in VFL and OPM functions help measure connection losses, verify continuity, and evaluate fiber link quality.
-

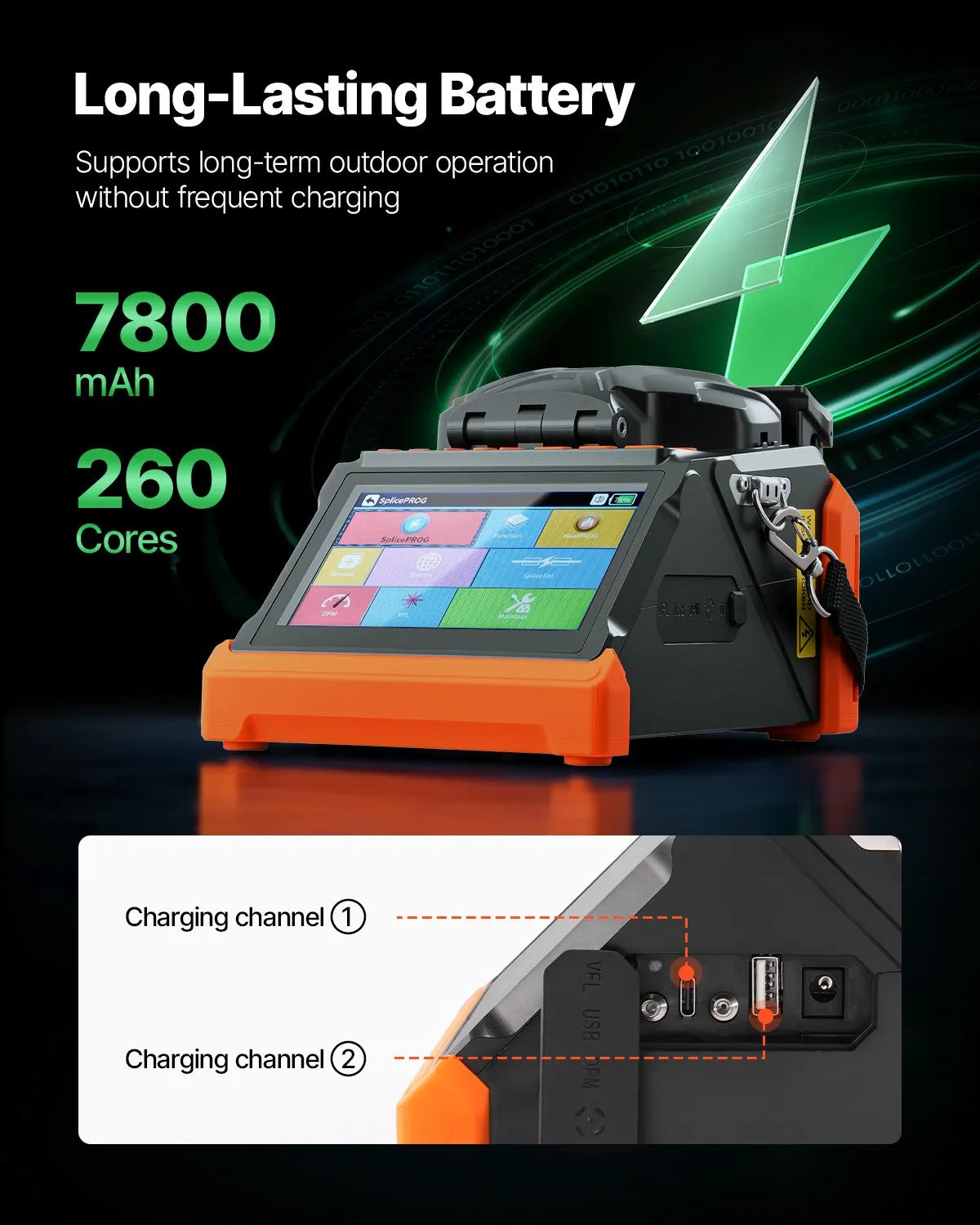

Extended Operation Time: 7800mAh rechargeable battery supports up to 260 continuous fusion splicing and heating cycles. Lightweight, dustproof, and shockproof for various working environments.
-

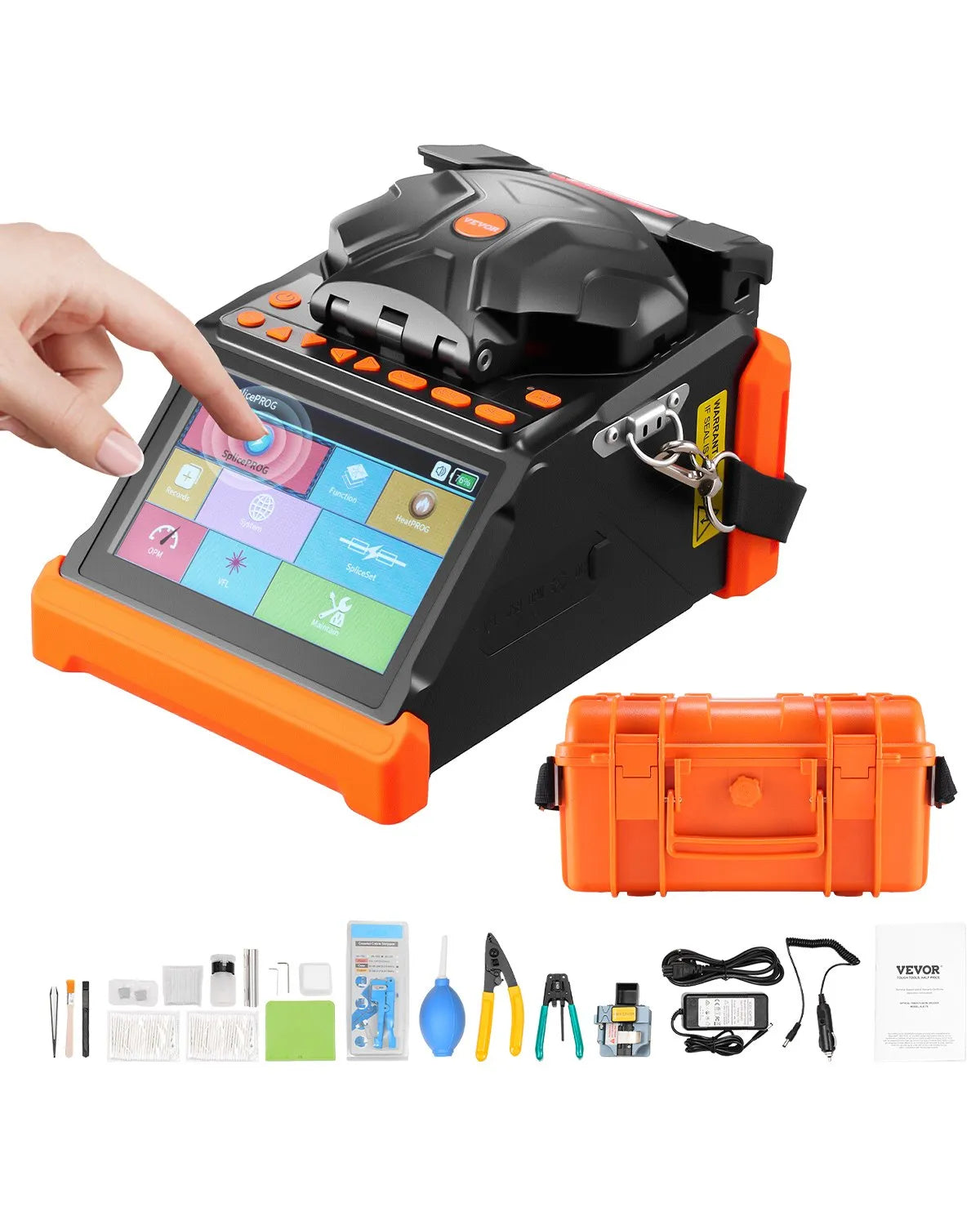

All-in-One Kit: Includes fiber fusion splicer, fiber cleaver, fiber stripper, 3-hole miller pliers, alcohol bottle, air blower, cooling tray, 100 pcs heat shrink tubes, brush, 50 pcs cotton swabs, 2 pcs spare electrodes, and other essential tools in a portable case.

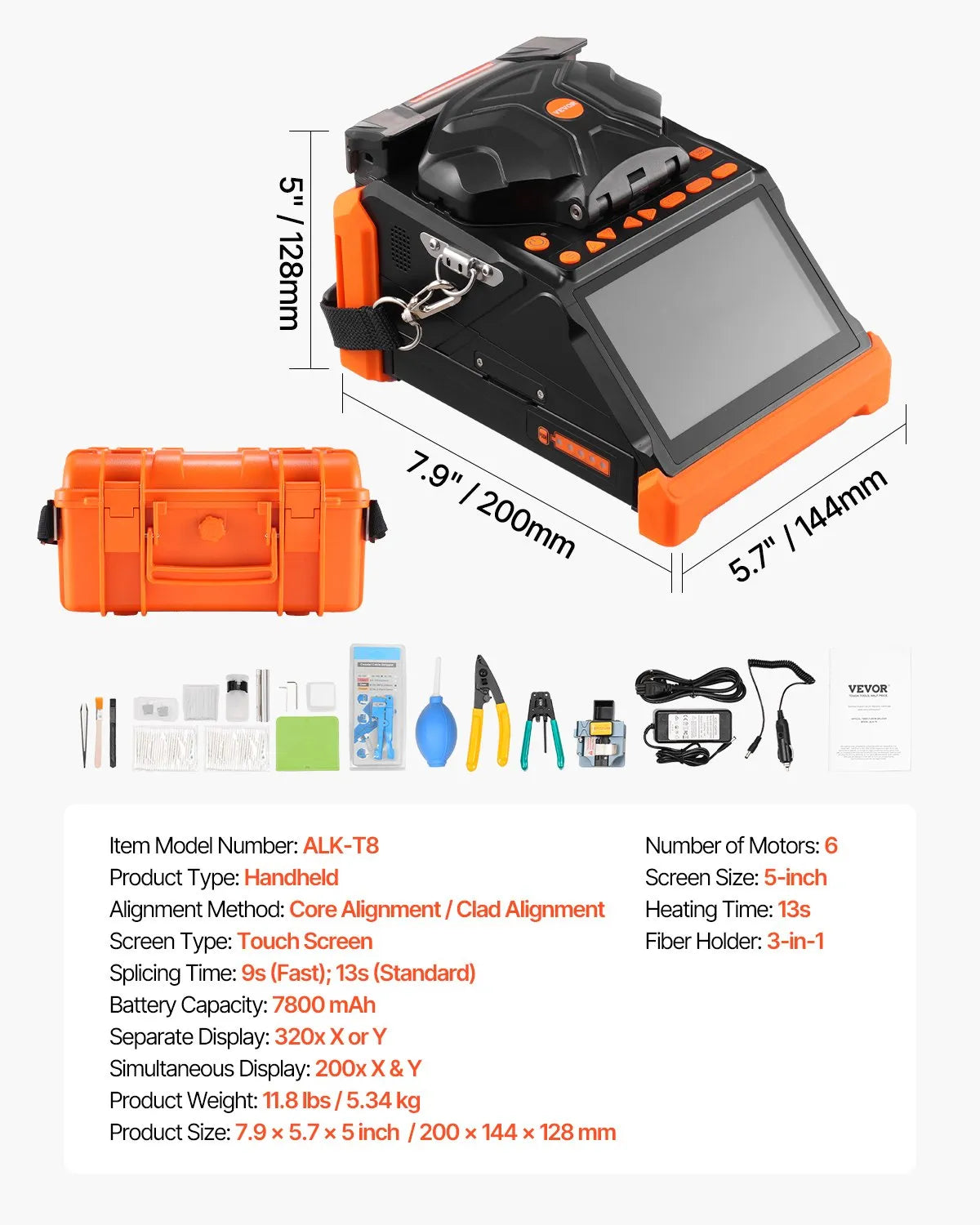

Specifications:
-
Item Model Number: ALK-T8
-
Alignment Method: Core Alignment / Clad Alignment
-
Number of Motors: 6
-
Screen Type: Touch Screen
-
Screen Size: 5-inch
-
Splicing Time: 6s (Fast); 13s (Standard)
-
Heating Time: 13s
-
Battery Capacity: 7800 mAh
-
Separate Display: 320x X or Y
-
Simultaneous Display: 200x X & Y
-
Fiber Holder: 3-in-1
-
Product Weight: 11.8 lbs / 5.34 kg
-
Product Size: 7.9 × 5.7 × 5 in / 200 × 144 × 128 mm
