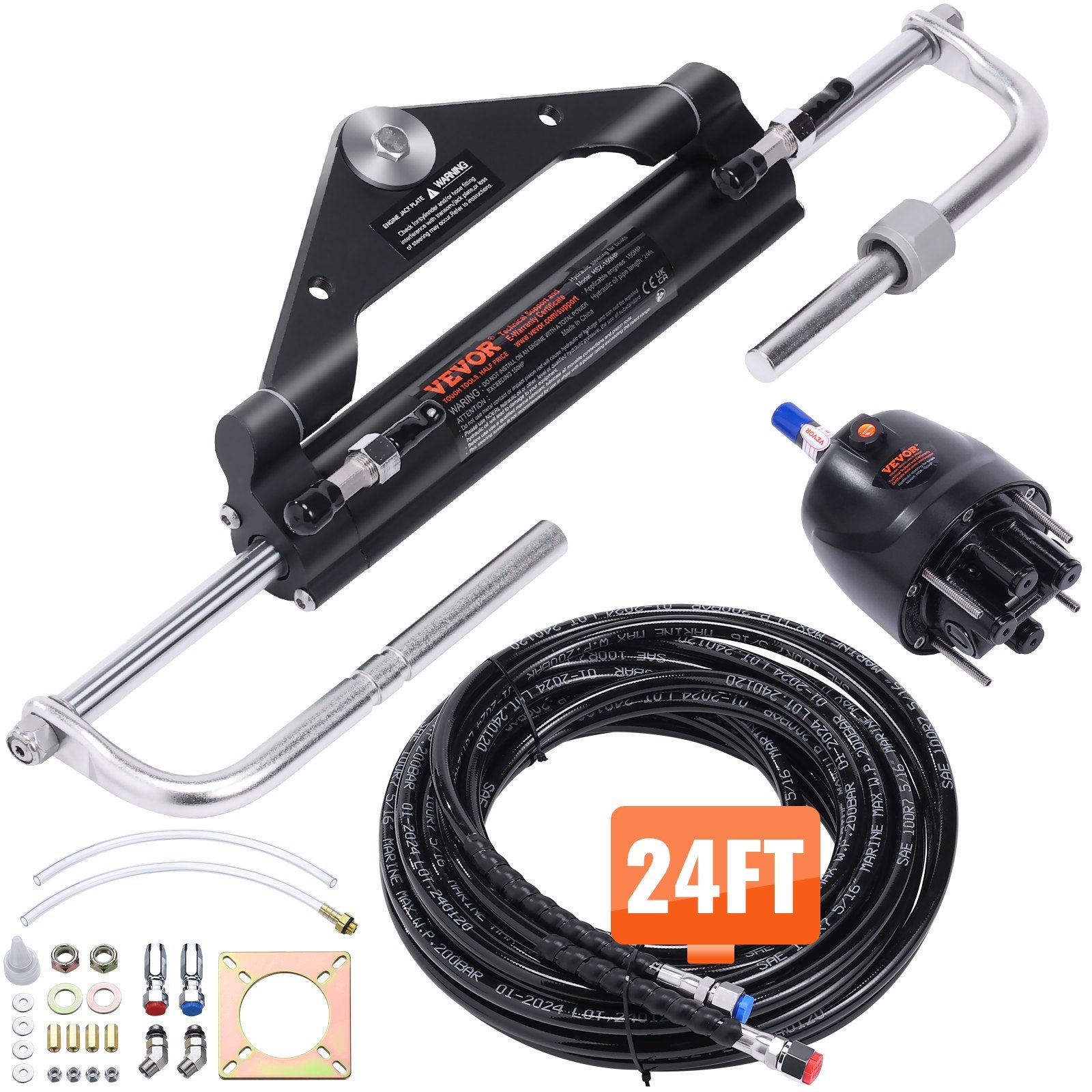

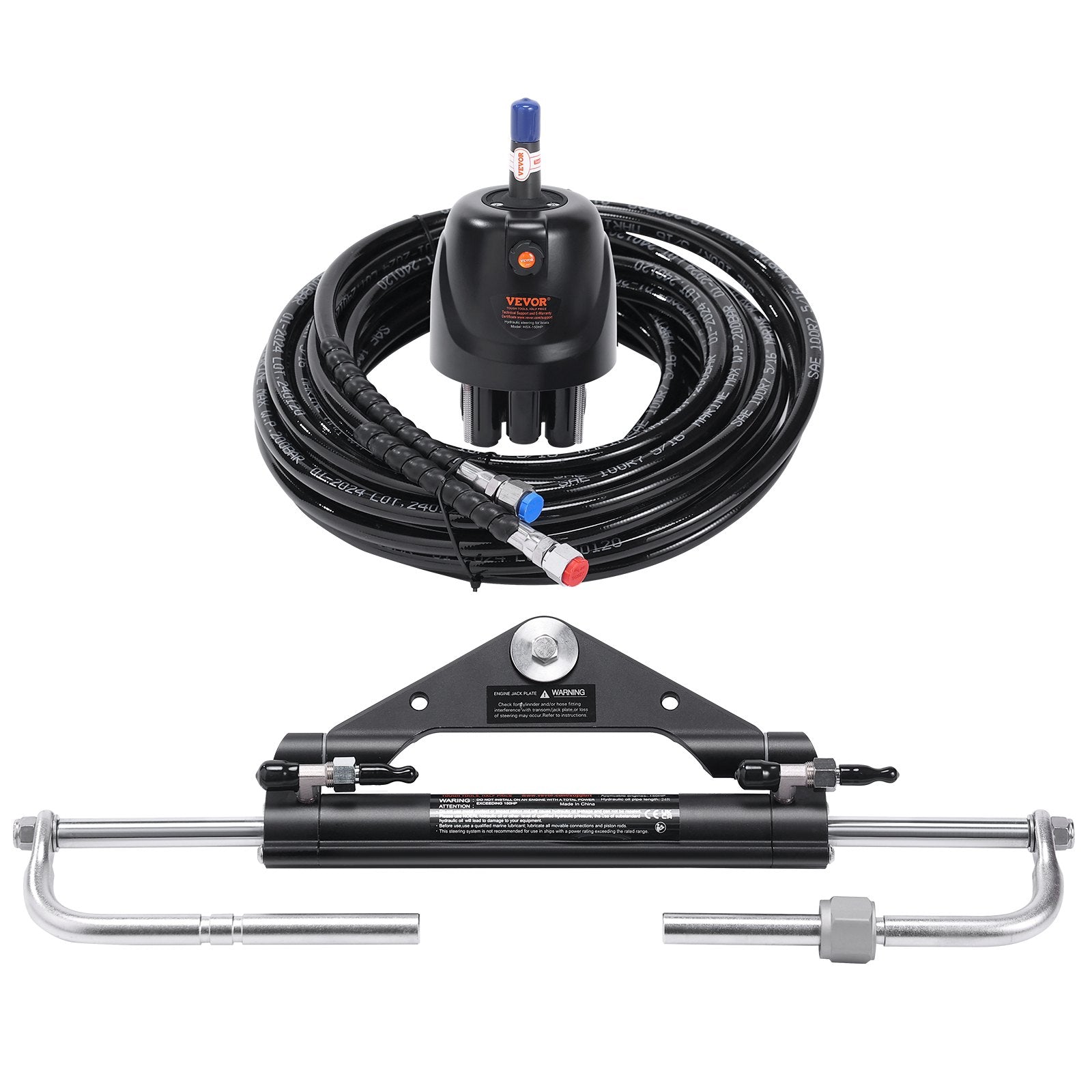

Upgrade your boating experience with the VEVOR Hydraulic Outboard Steering Kit. Designed for single-engine boats, this 150HP hydraulic steering system offers smooth and reliable control. The kit includes a helm pump, two-way lock cylinder, and a 24-foot hydraulic steering hose, making it the ideal choice for boat owners looking for easy-to-maintain, high-performance steering. Built with durability and ease of use in mind, this system is perfect for boats with up to 150HP engines, ensuring precise, effortless steering in all conditions.
Features
-
150HP Hydraulic Outboard Steering System Kit: Complete setup for efficient and smooth steering.
-

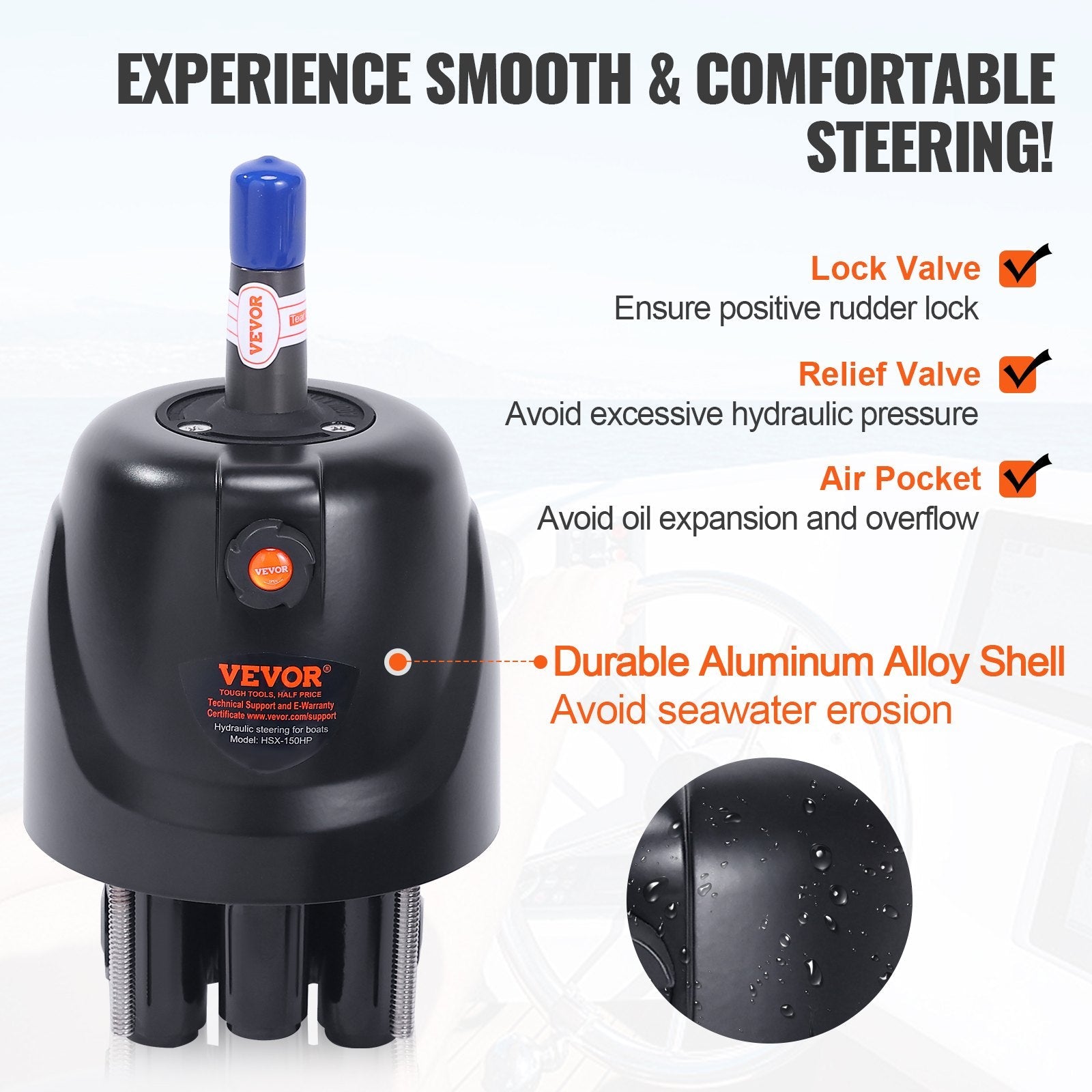

Easy Maintenance: Designed for hassle-free upkeep, ensuring your boat’s steering remains in top condition.
-

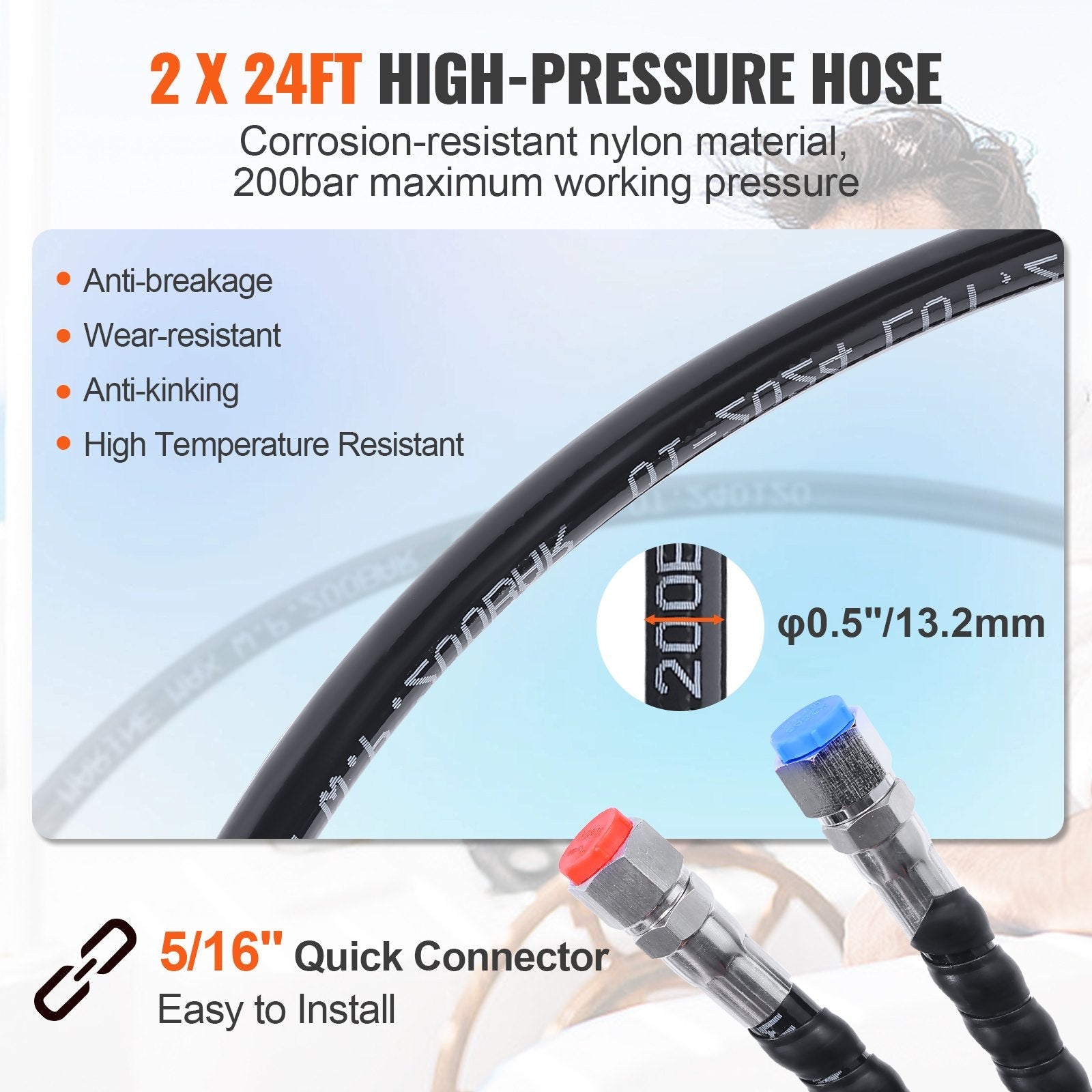

Fixed-Length Hoses: Includes a 24-foot hydraulic hose for secure and stable installation.
-

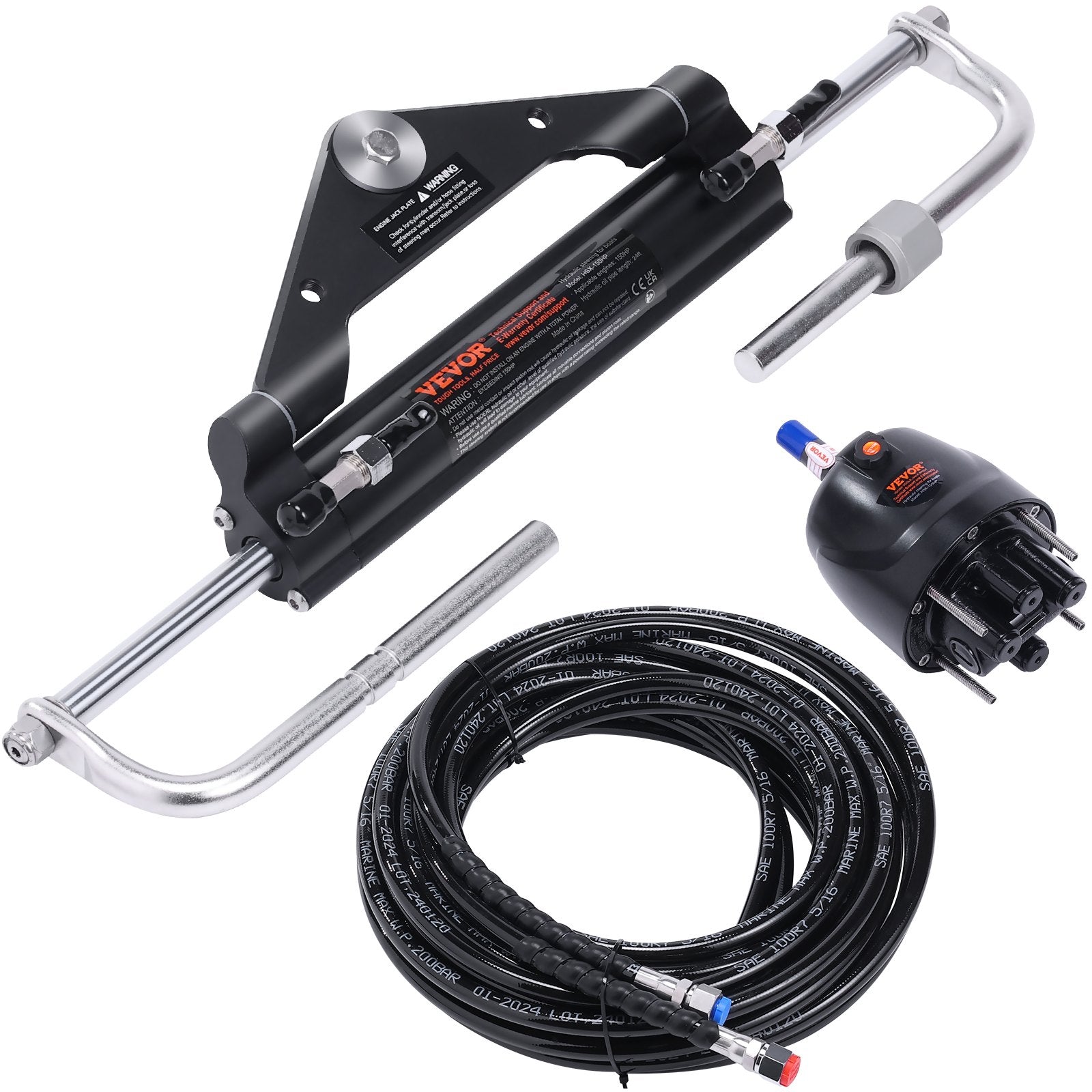

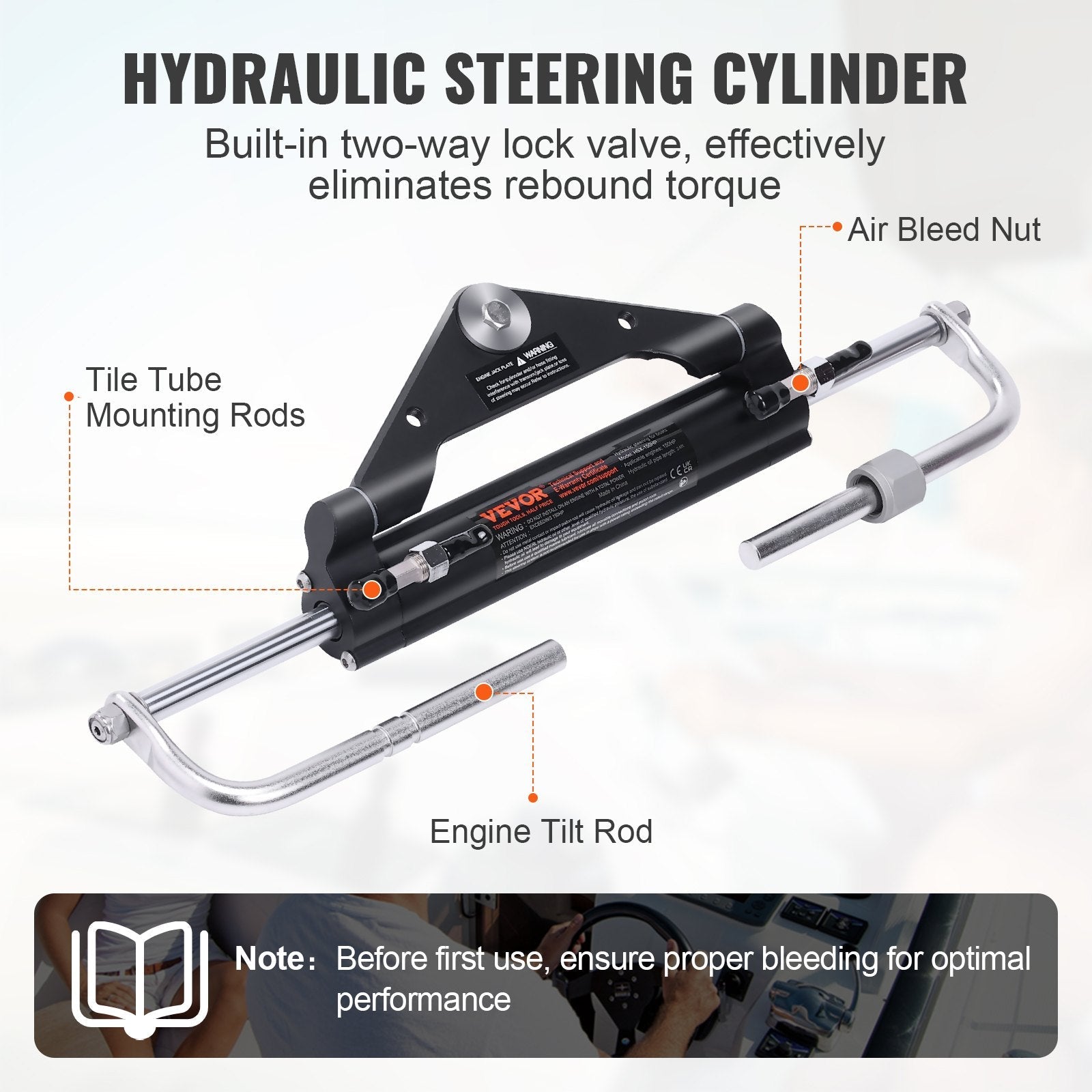

Abundant Accessories: Comes with a full range of components, including a helm pump, two-way lock cylinder, and hydraulic hose for quick setup.
-
Sturdy & Durable: Built with premium materials to withstand the marine environment for long-lasting performance.
-
Maximum Pressure: Capable of handling up to 2.5Mpa/363psi for reliable, consistent steering.
-

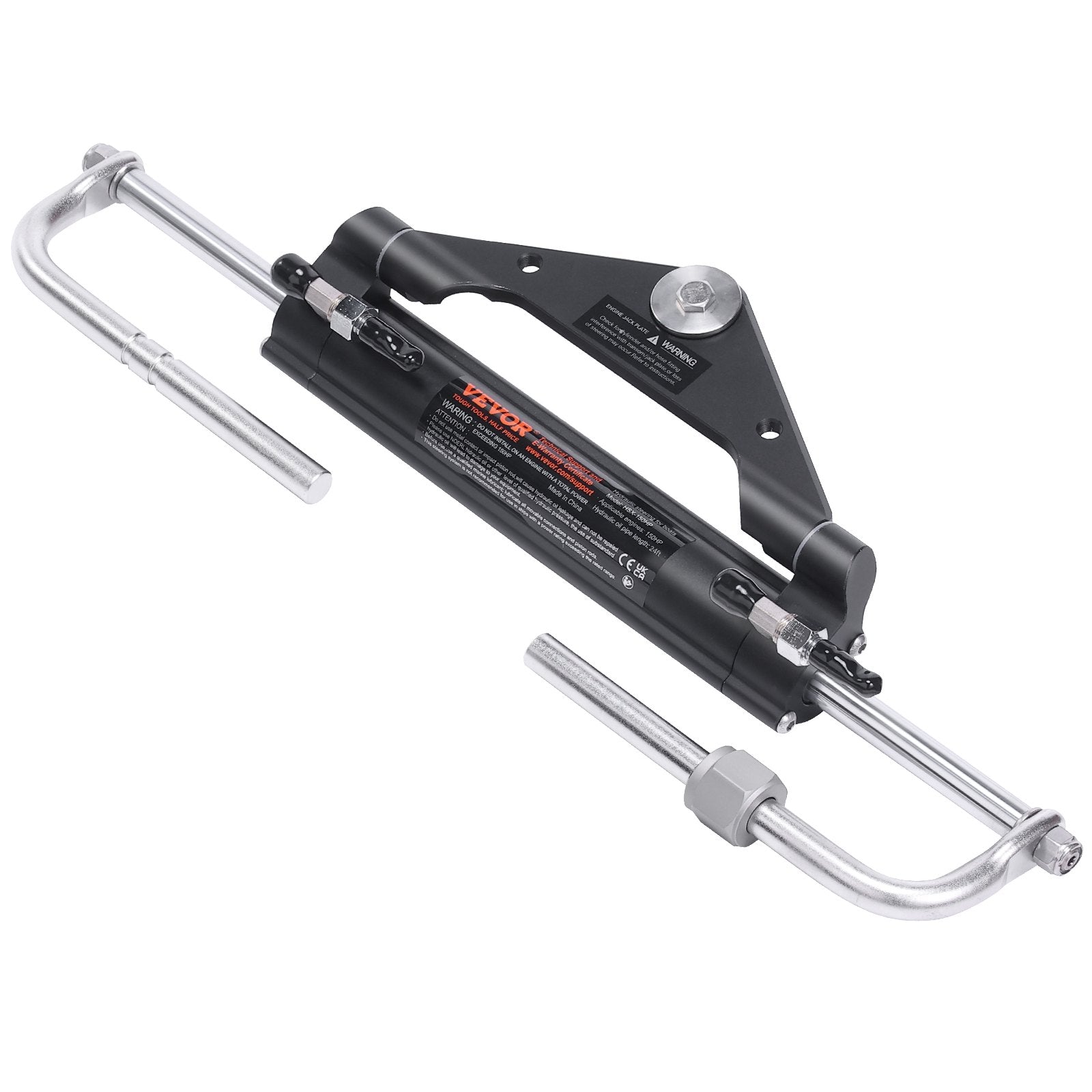

Smooth Steering Control: Features a stroke of 7.7 in/195 mm and a capacity of 117 CC for precise navigation.

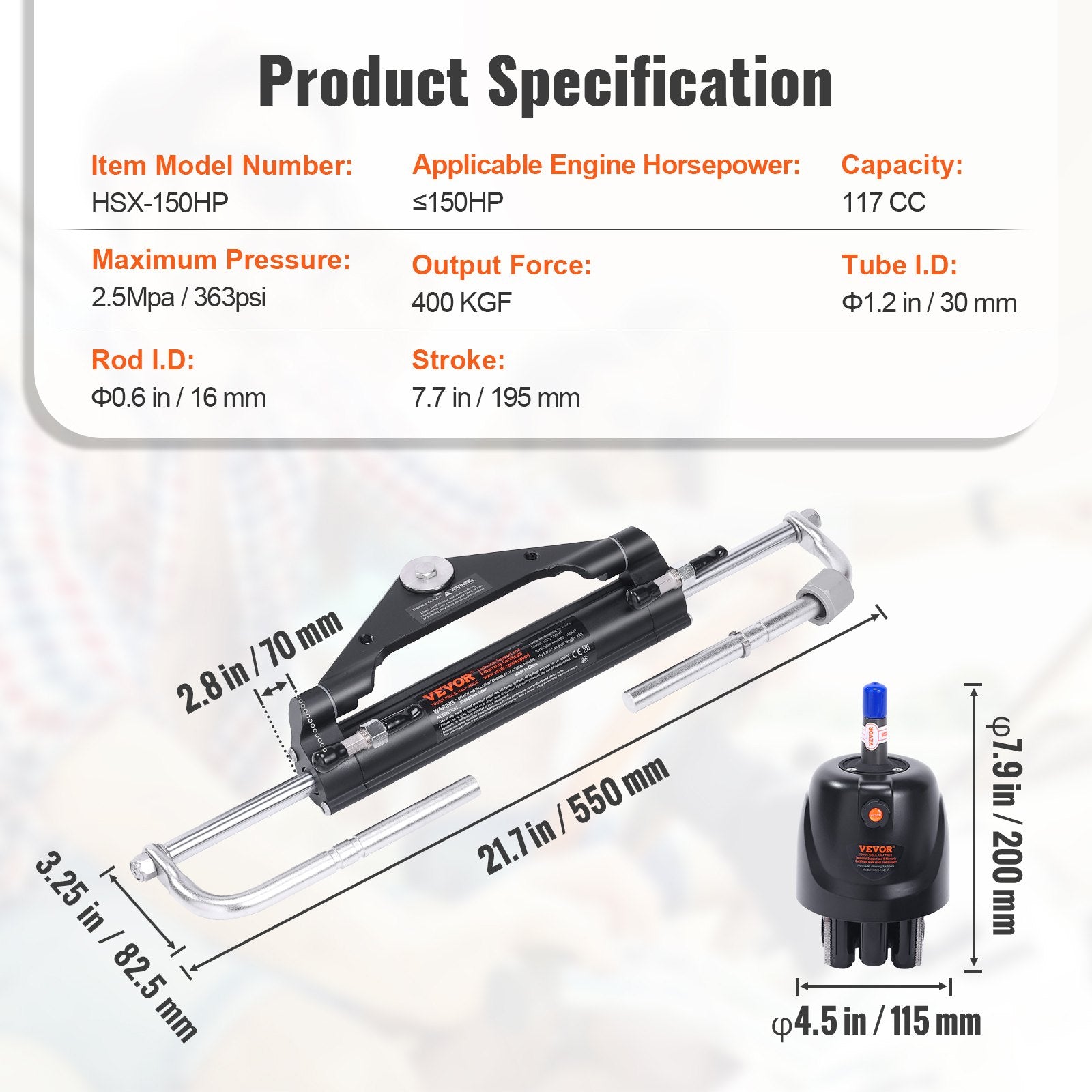

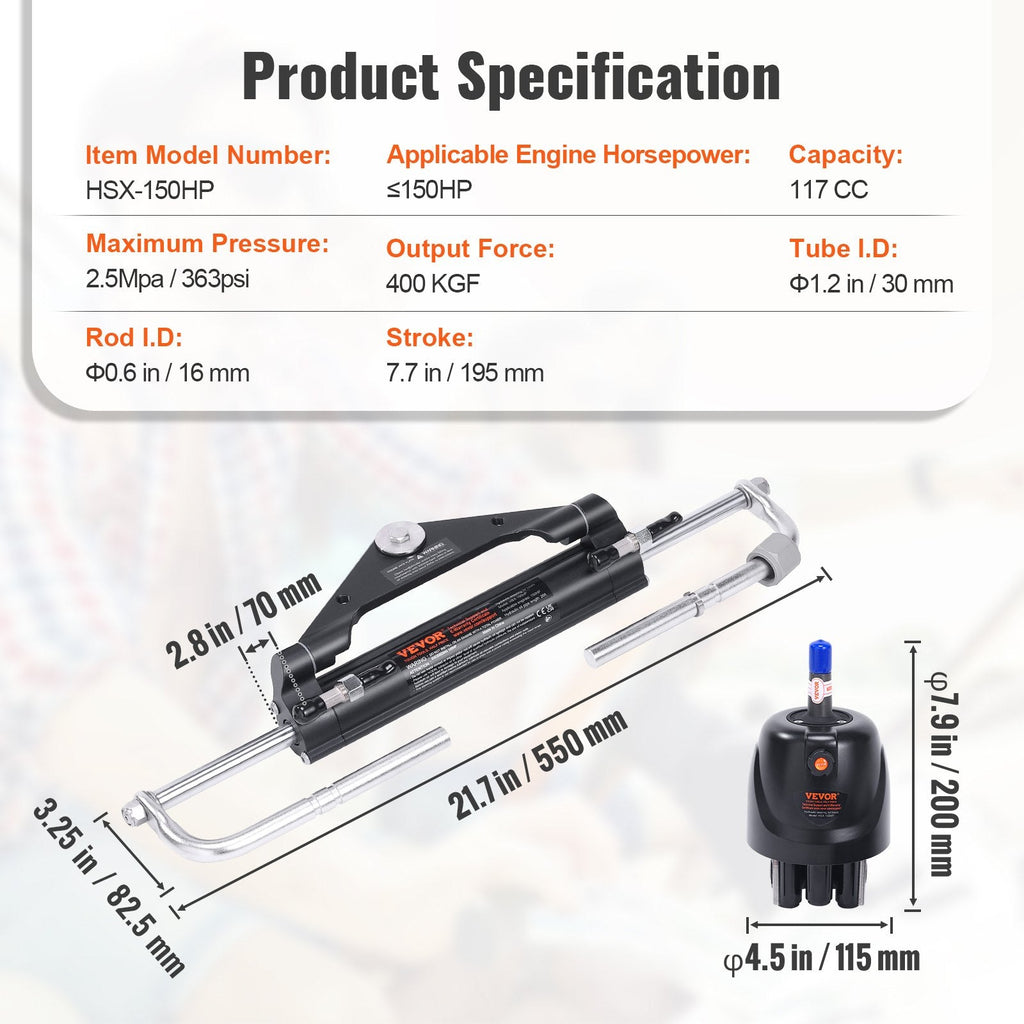

Specifications
-
Stroke: 7.7 in / 195 mm
-
Capacity: 117 CC
-

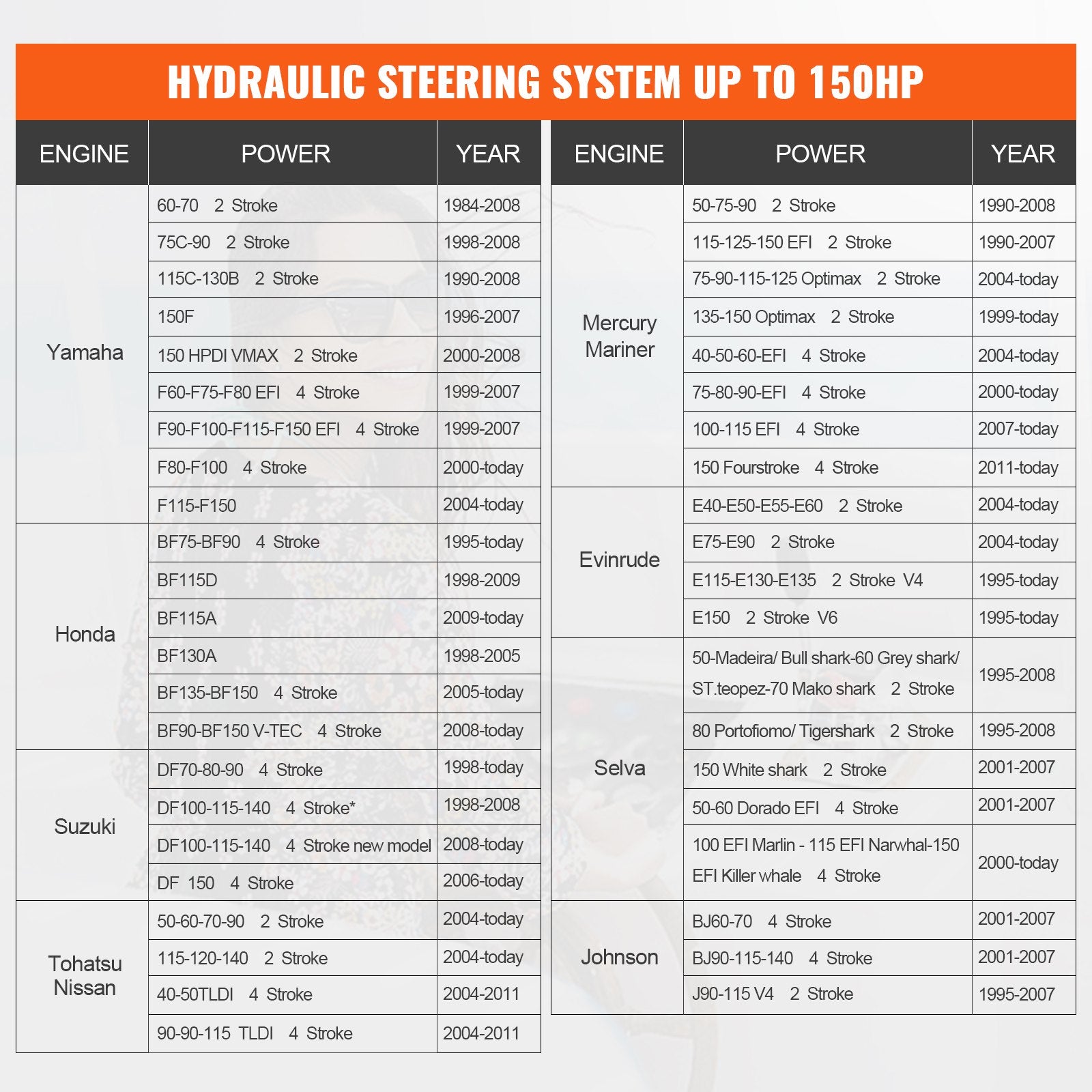

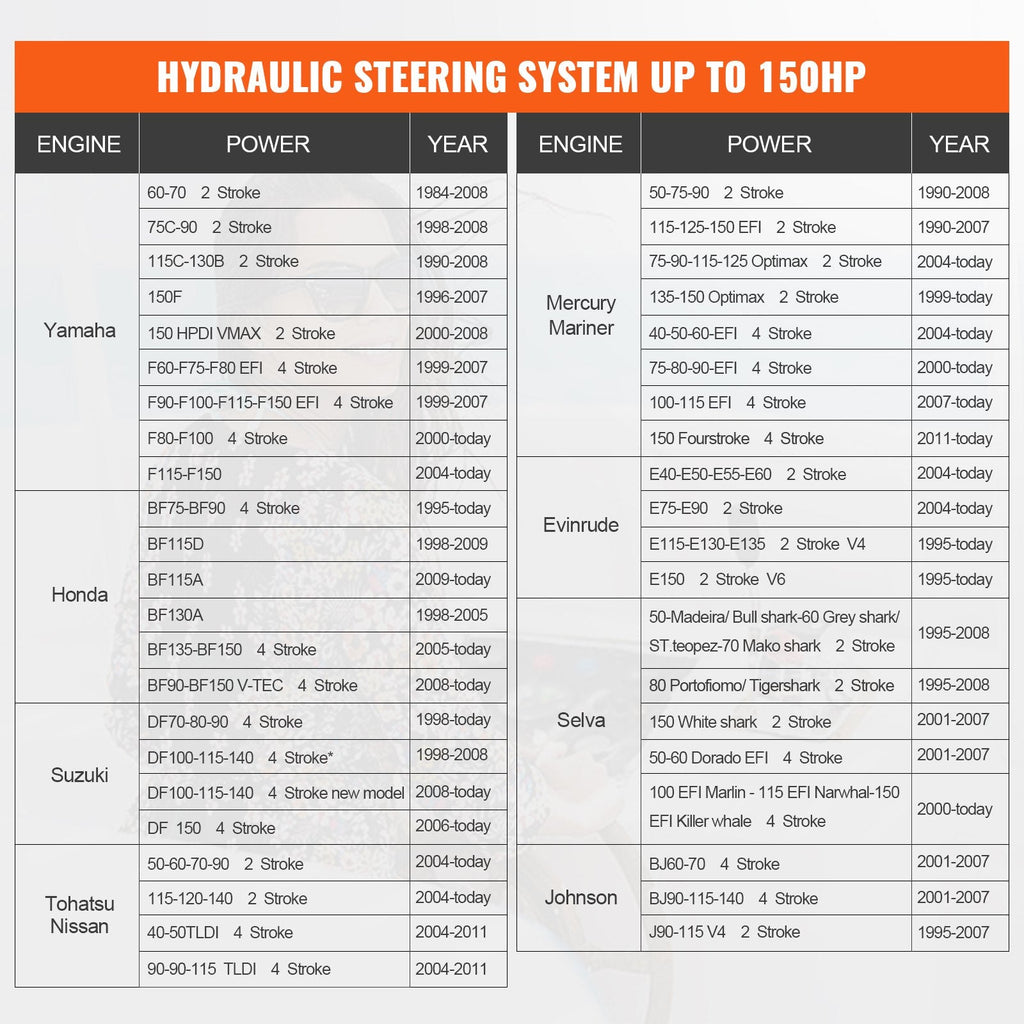

Applicable Engine Horsepower: Up to 150HP
-
Tube I.D.: 1.2 in / 30 mm
-
Item Model Number: HSX-150HP
-
Output Force: 400 KGF
-
Maximum Pressure: 2.5Mpa / 363psi
-
Rod I.D.: 0.6 in / 16 mm
-

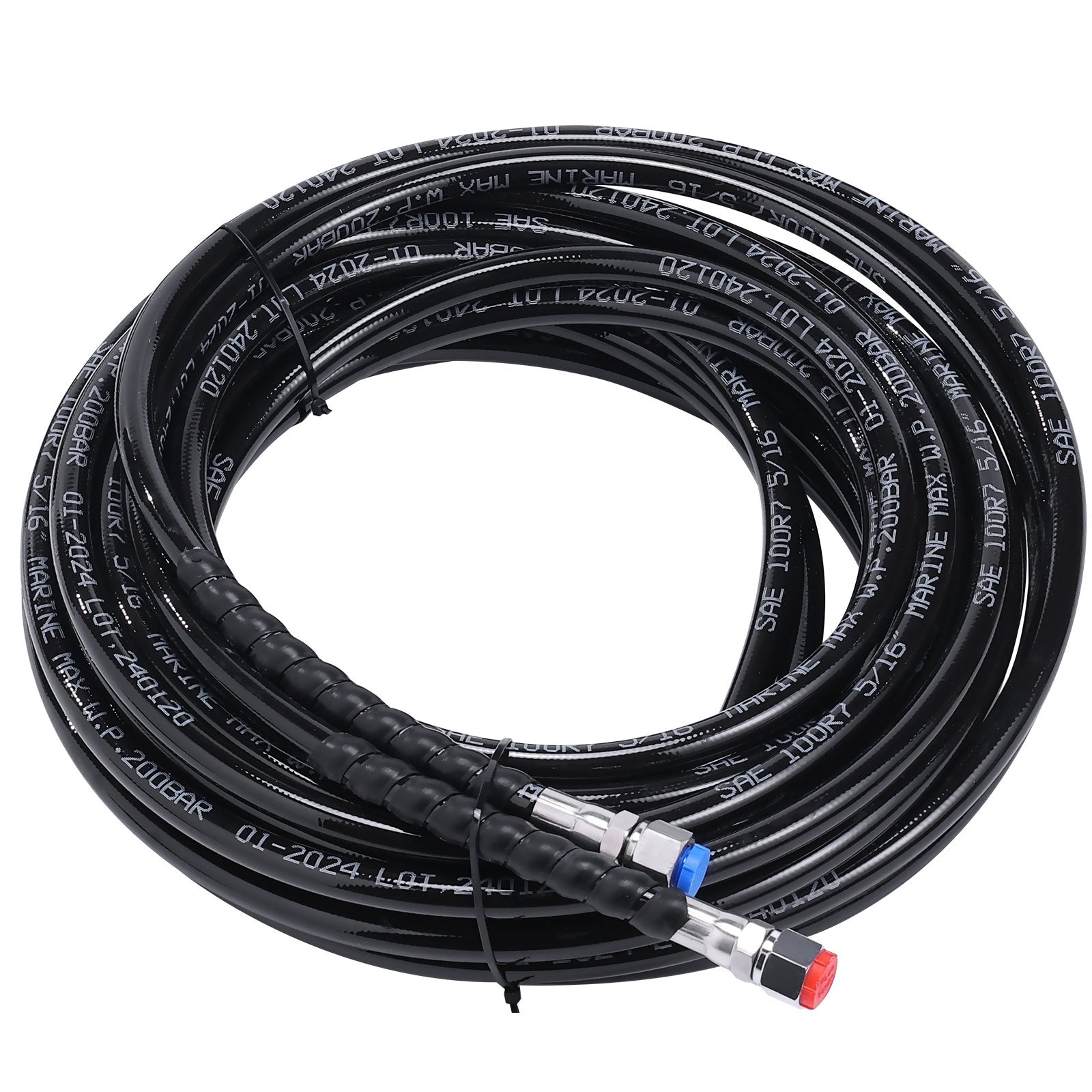

Hydraulic Hose Length: 24 ft
