Description

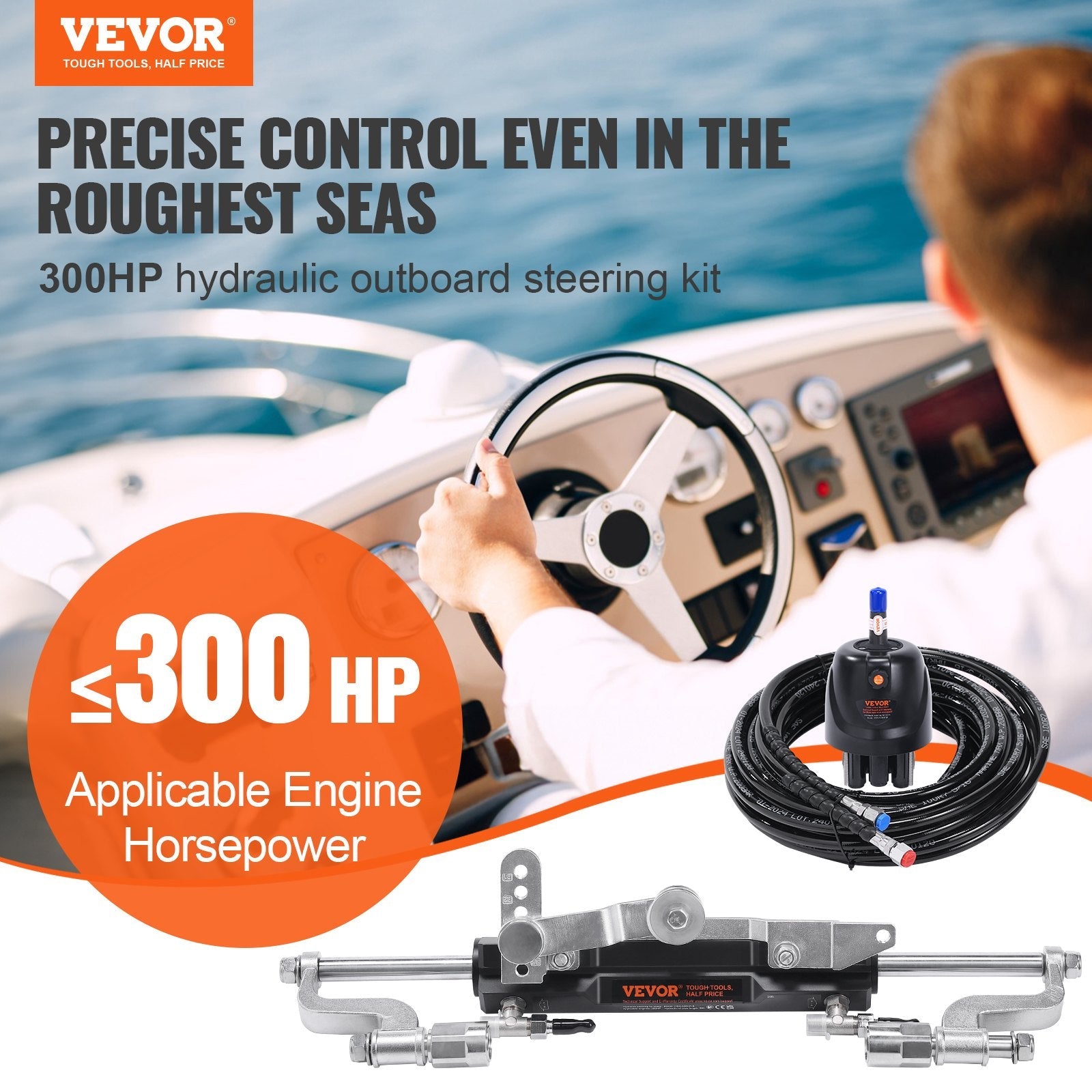

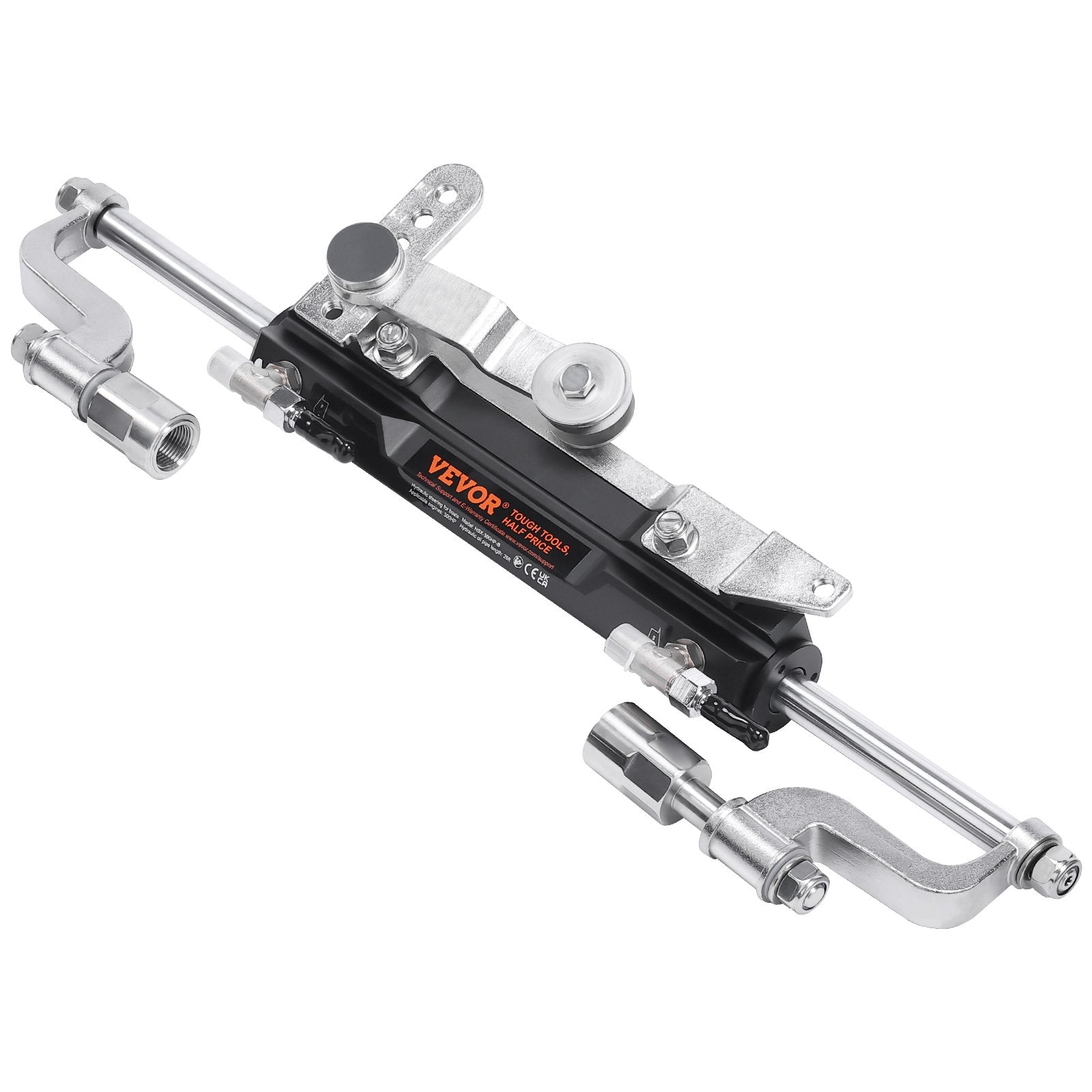

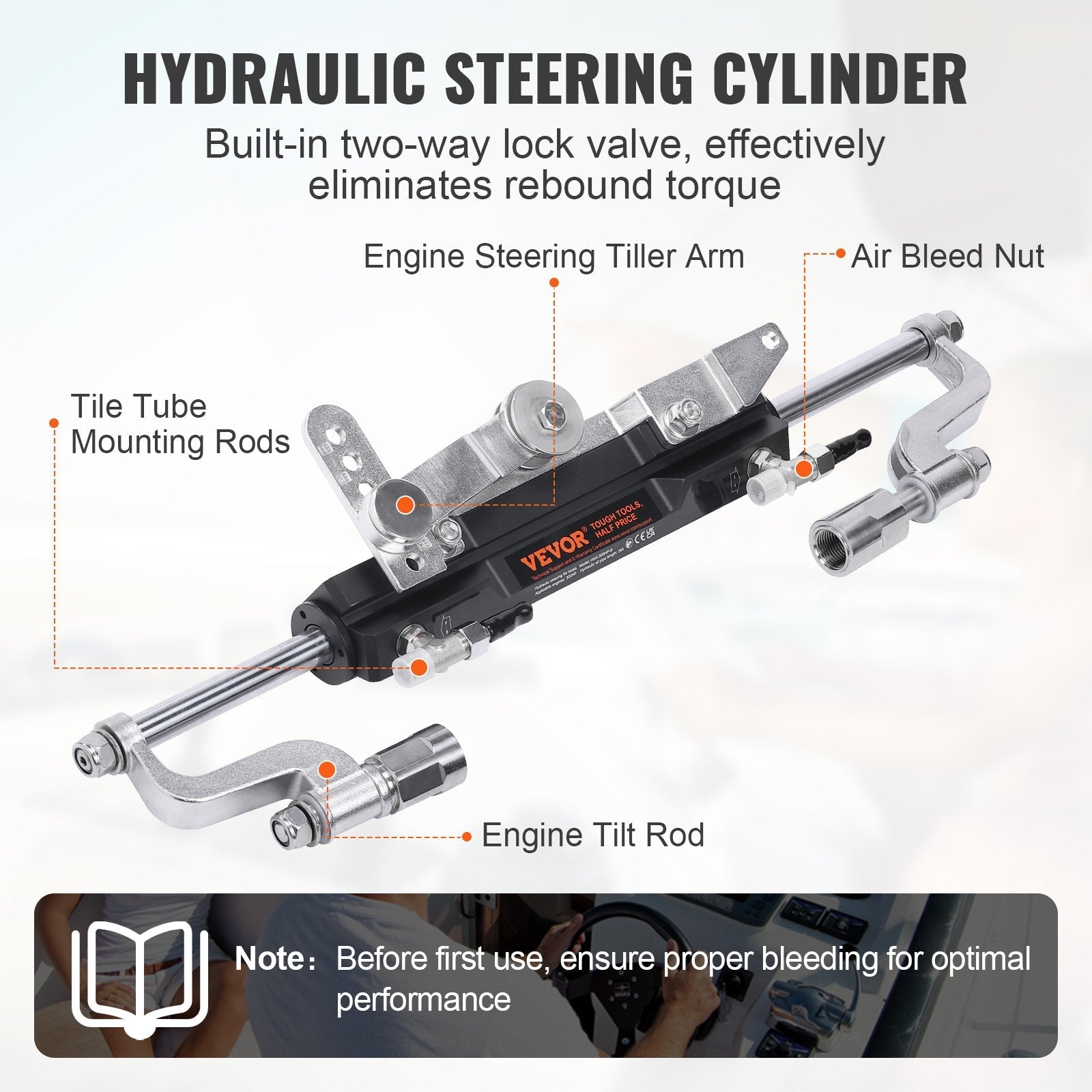

The VEVOR Hydraulic Outboard Steering Kit is a high-performance marine steering system designed for single-station, single-engine boats with up to 300HP. This complete kit includes a helm pump, a two-way lock cylinder, and a 26-foot hydraulic steering hose, ensuring smooth and reliable steering. With a stroke of 7.9 inches (200 mm) and a capacity of 141 cc, this system is built to handle high pressure and provide superior control for your boat. Ideal for boaters seeking a durable and easy-to-maintain hydraulic steering system, it also features fixed-length hoses and an output force of 470 KGF. With its sturdy construction and abundant accessories, this hydraulic steering system is a dependable solution for your boating needs.
Features
-
300HP Hydraulic Steering System Kit: Designed for single-station, single-engine boats with up to 300HP capacity.
-
Easy Maintenance: Low-maintenance system for long-lasting performance on the water.
-
Fixed-Length Hoses: Comes with pre-measured hoses for quick installation and reliable operation.
-
Abundant Accessories: Includes everything needed for installation, making it ready to use right out of the box.
-
Sturdy & Durable Construction: Built to withstand the harsh marine environment, ensuring lasting performance.

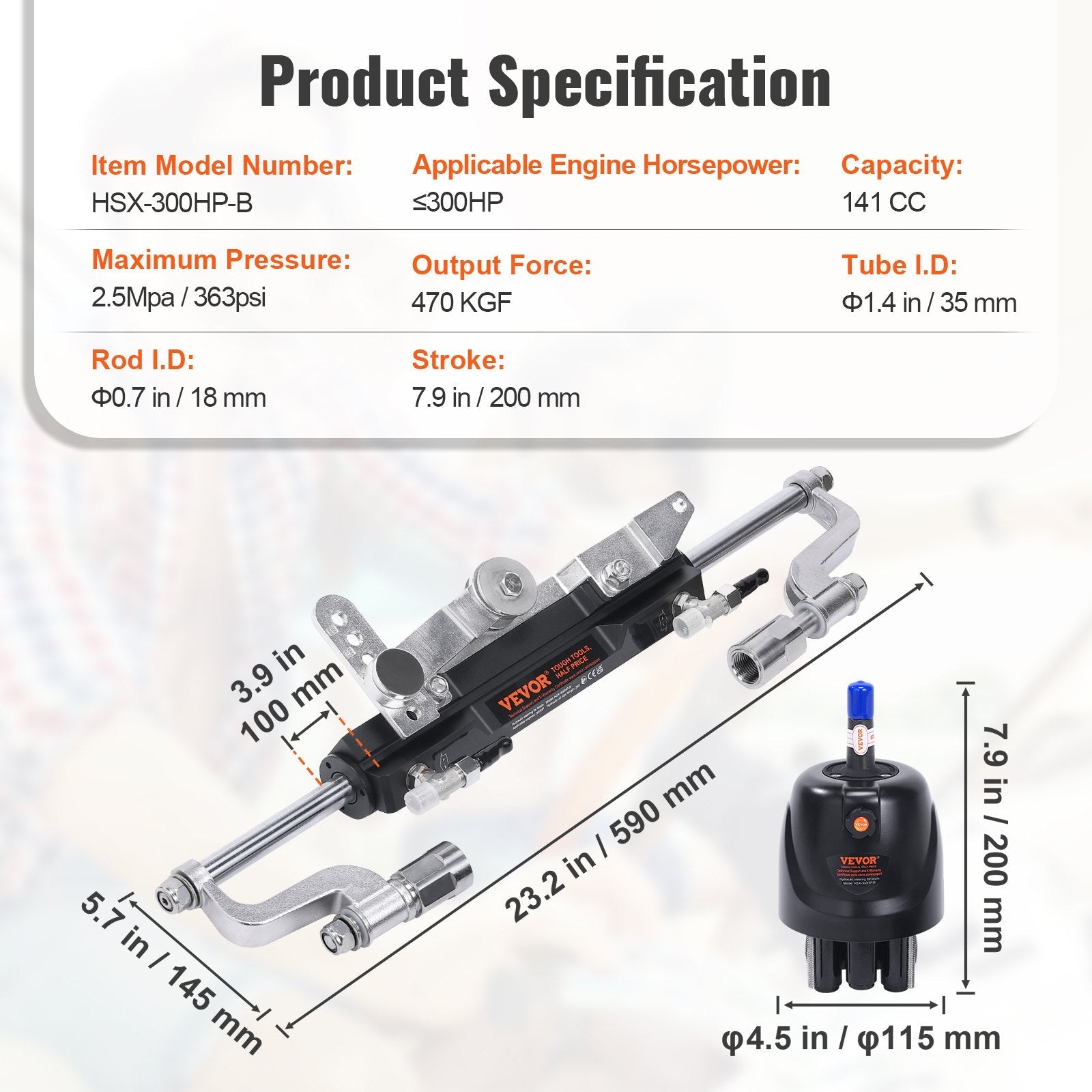

Specifications
-
Model: HSX-300HP-B
-
Stroke: 7.9 inches / 200 mm
-
Capacity: 141 cc
-
Applicable Engine Horsepower: Up to 300HP
-
Tube I.D: 1.4 inches / 35 mm
-
Rod I.D: 0.7 inches / 18 mm
-
Output Force: 470 KGF
-
Maximum Pressure: 2.5 Mpa / 363 psi
-

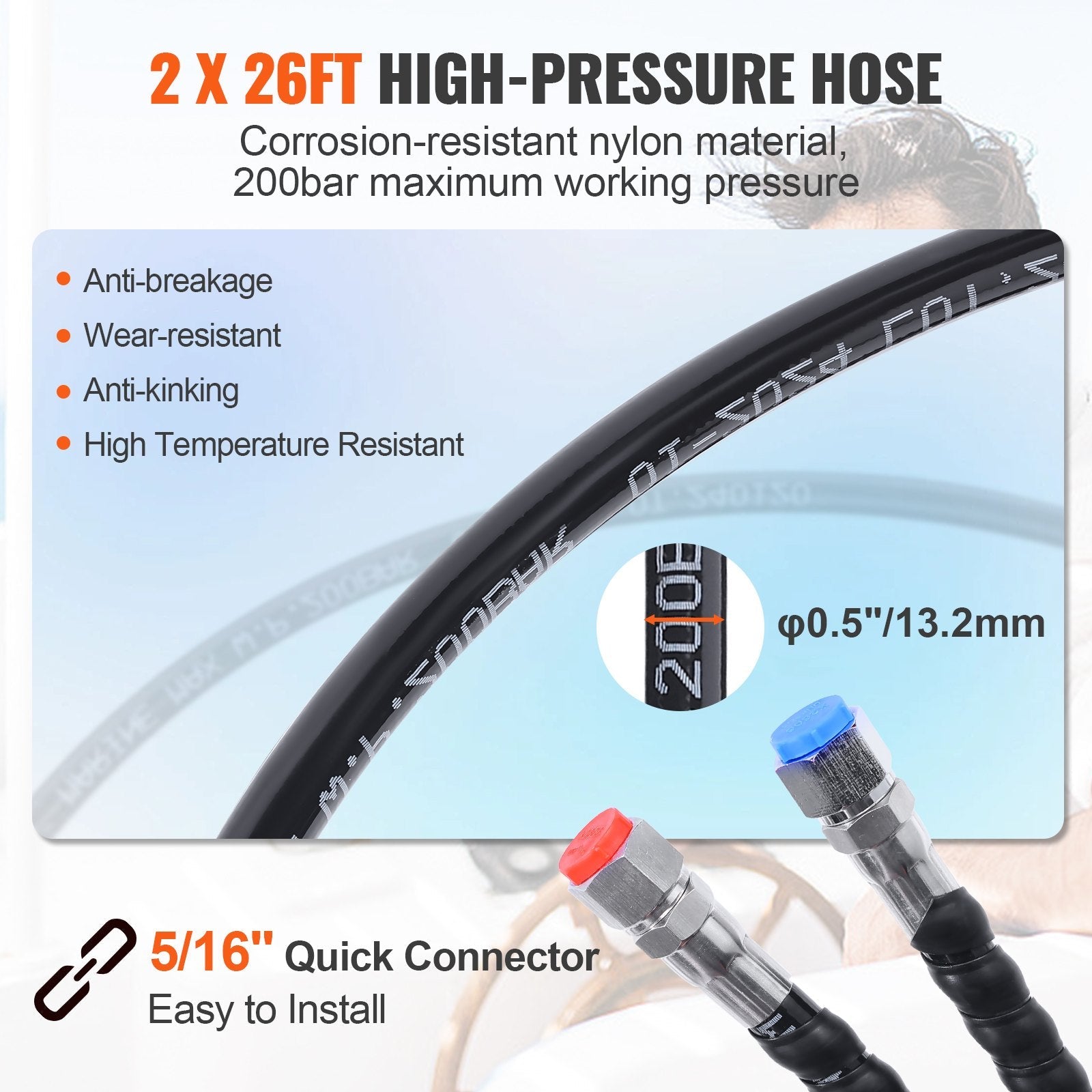

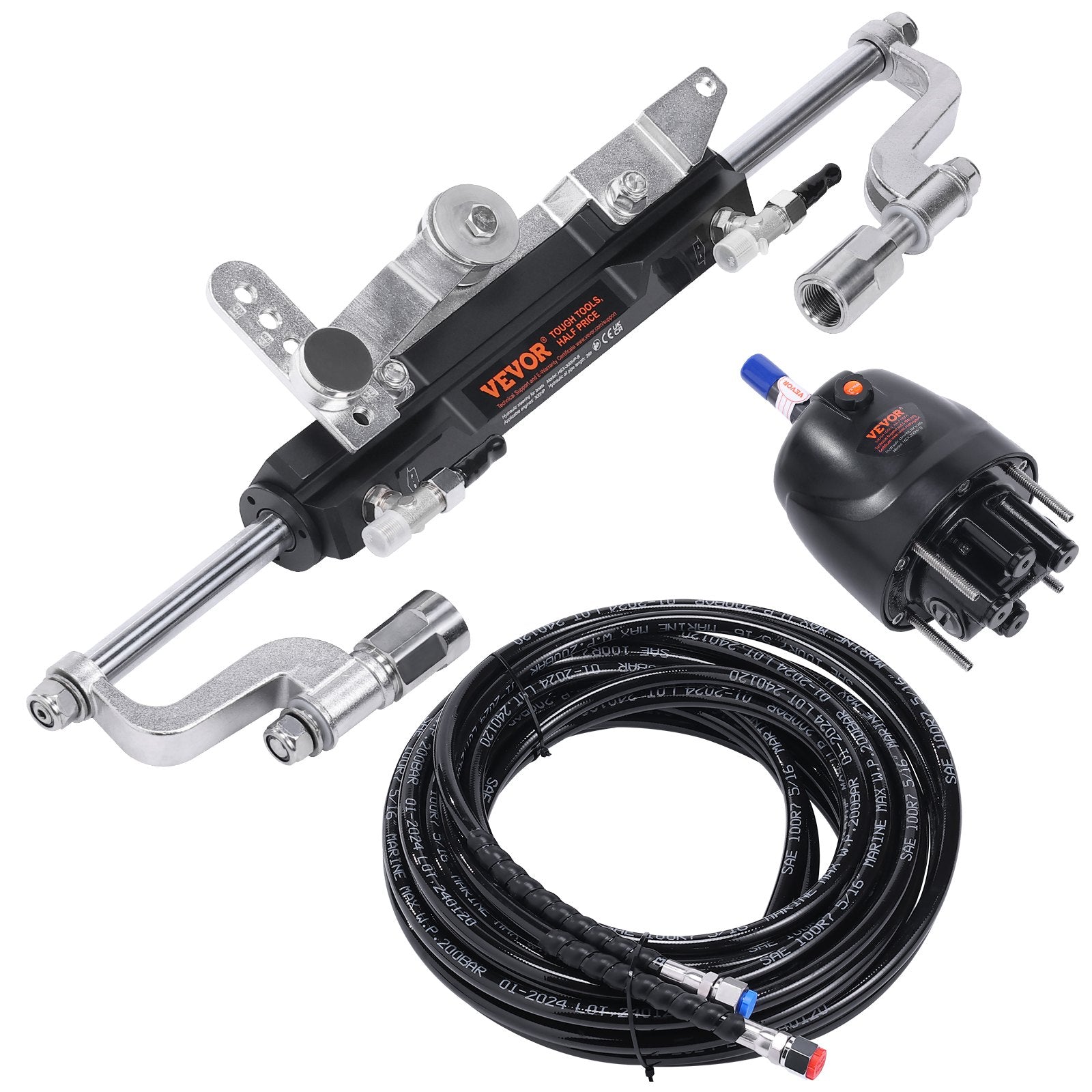

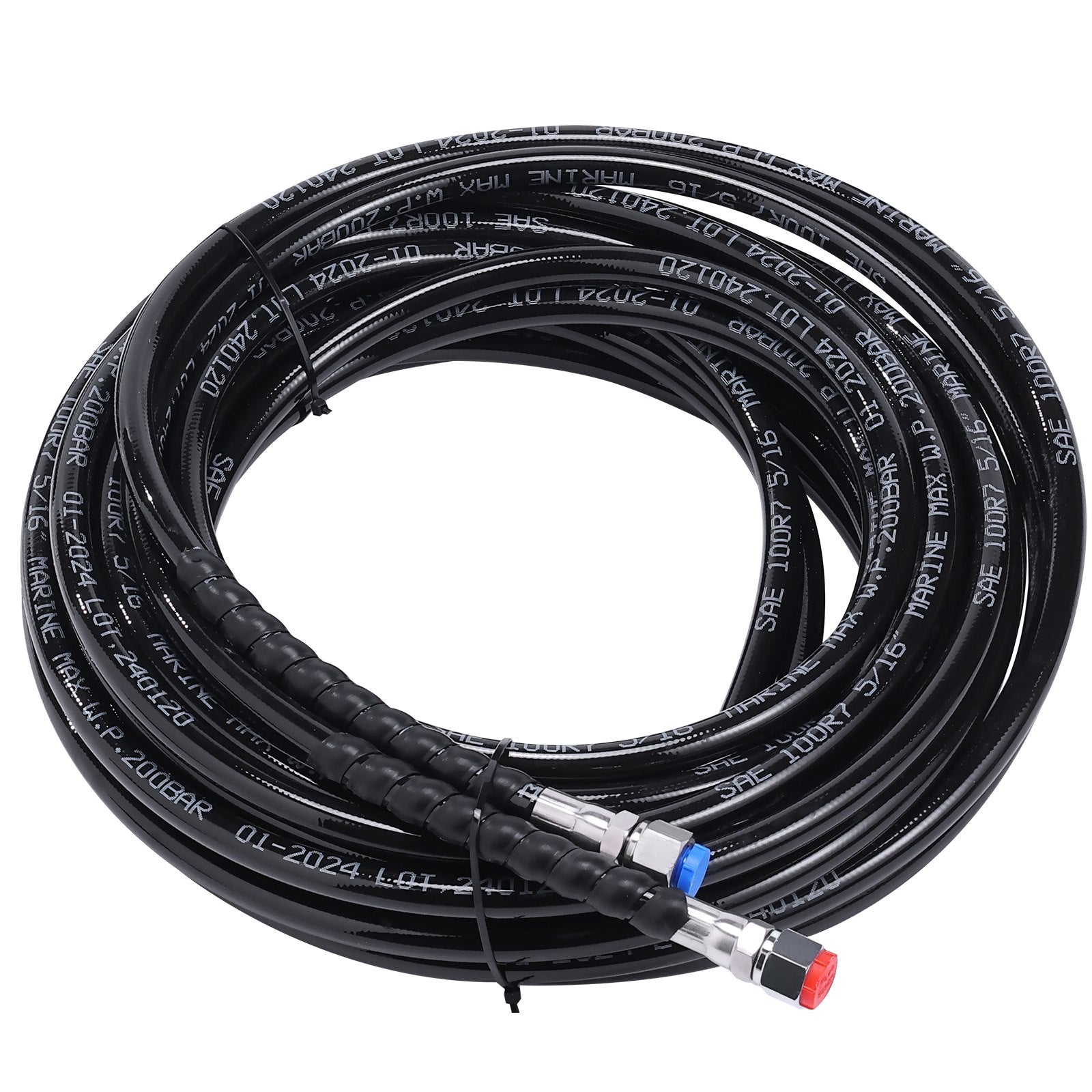

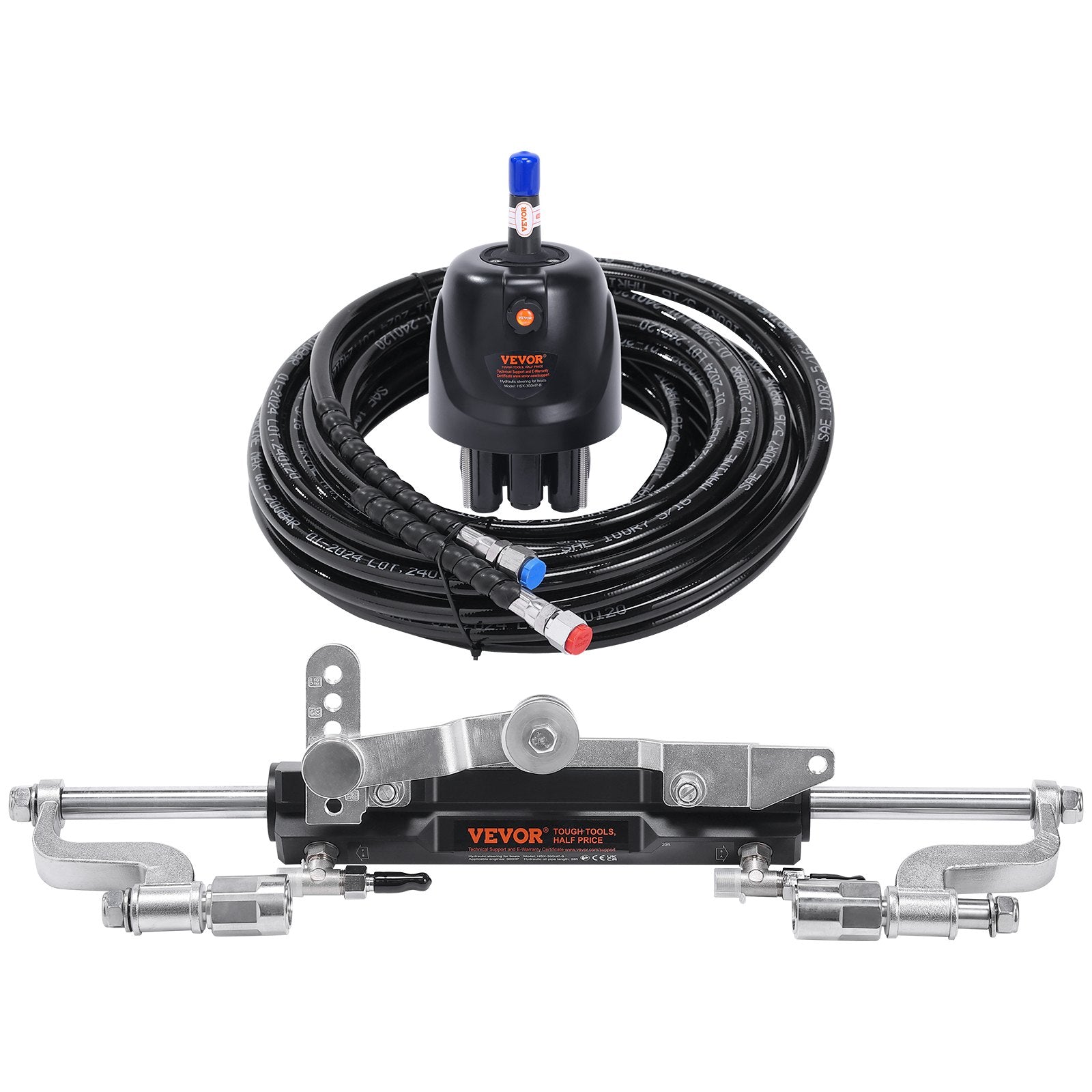

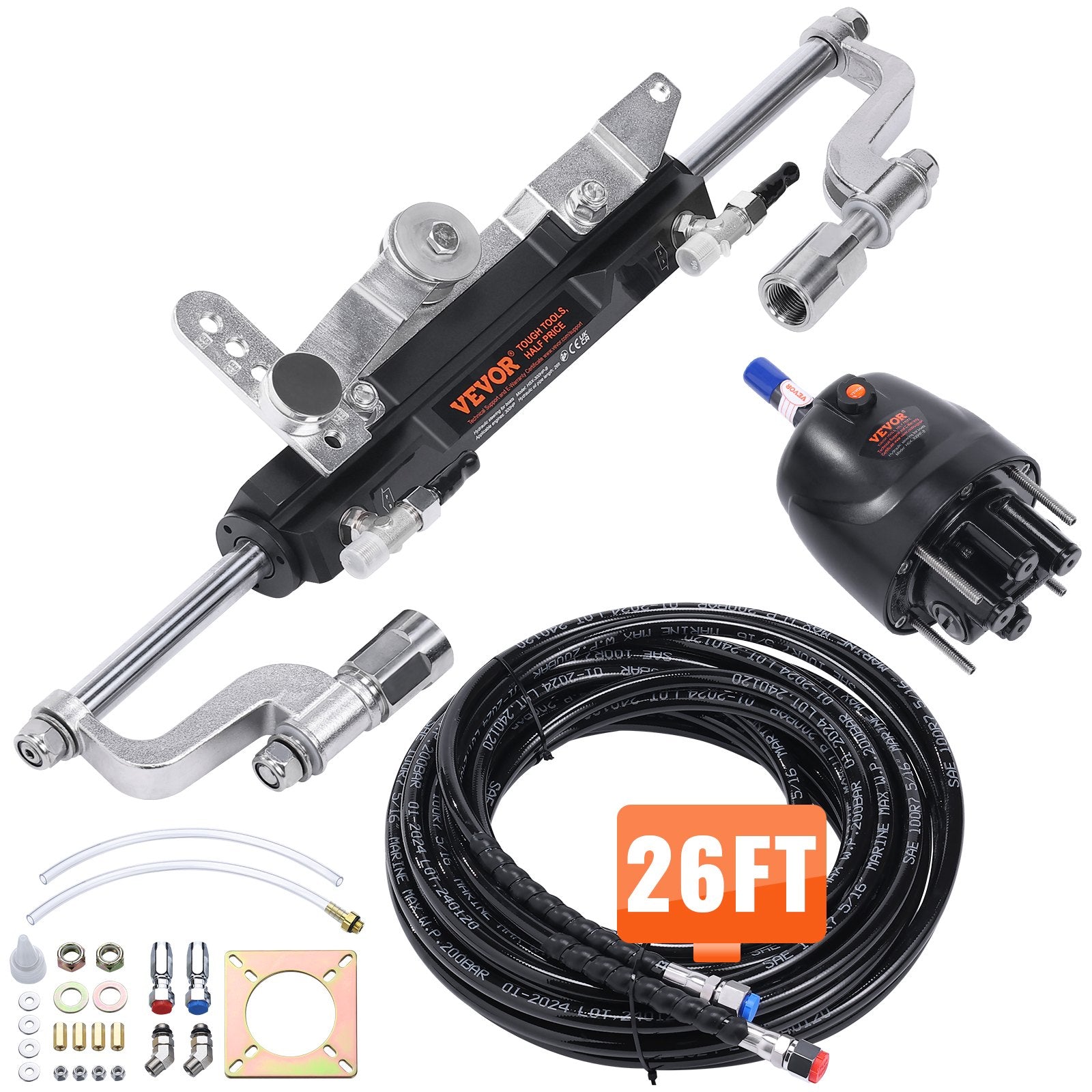

Included Components: Helm pump, two-way lock cylinder, 26 ft hydraulic steering hose, and additional accessories.
-
Item Model Number: HSX-300HP-B
