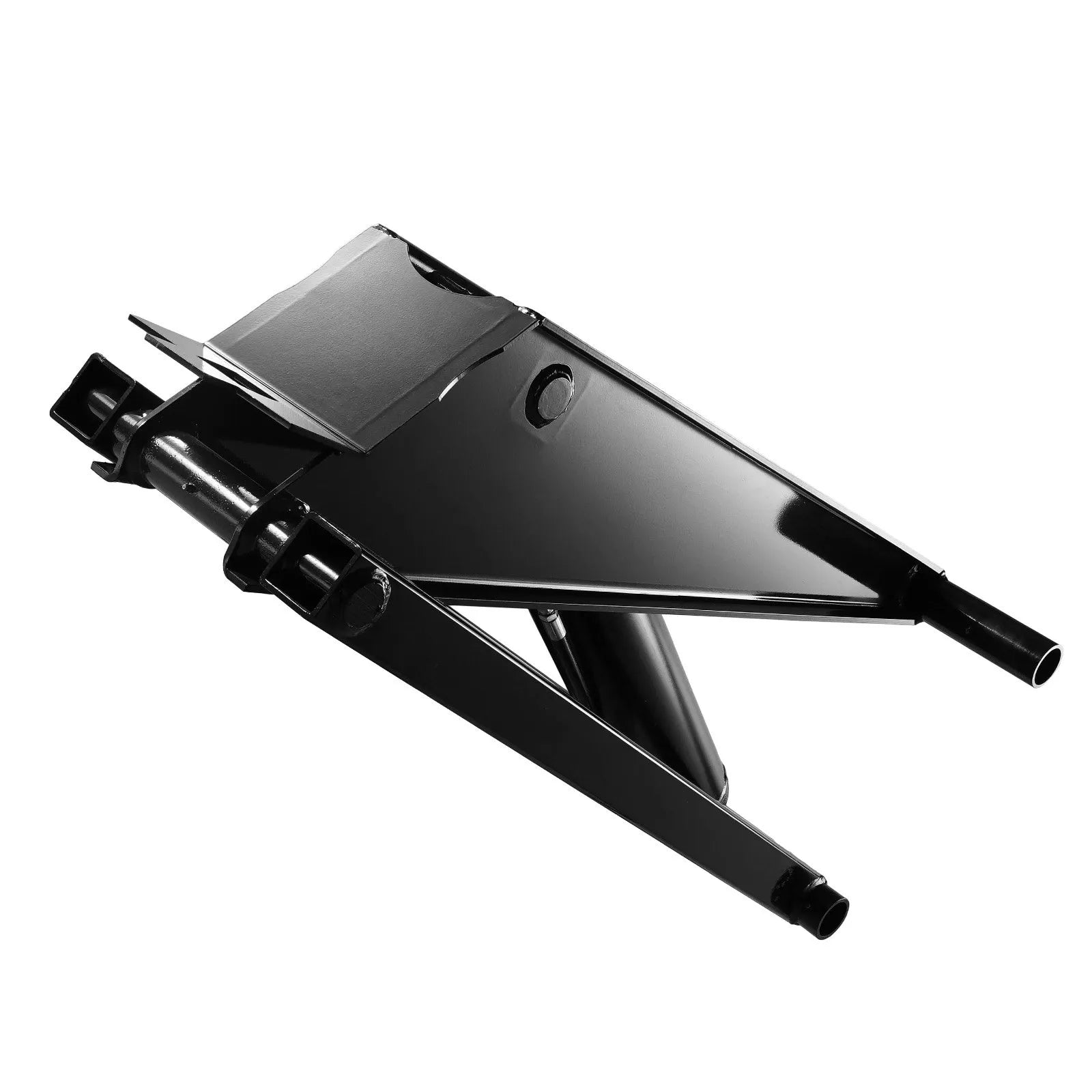

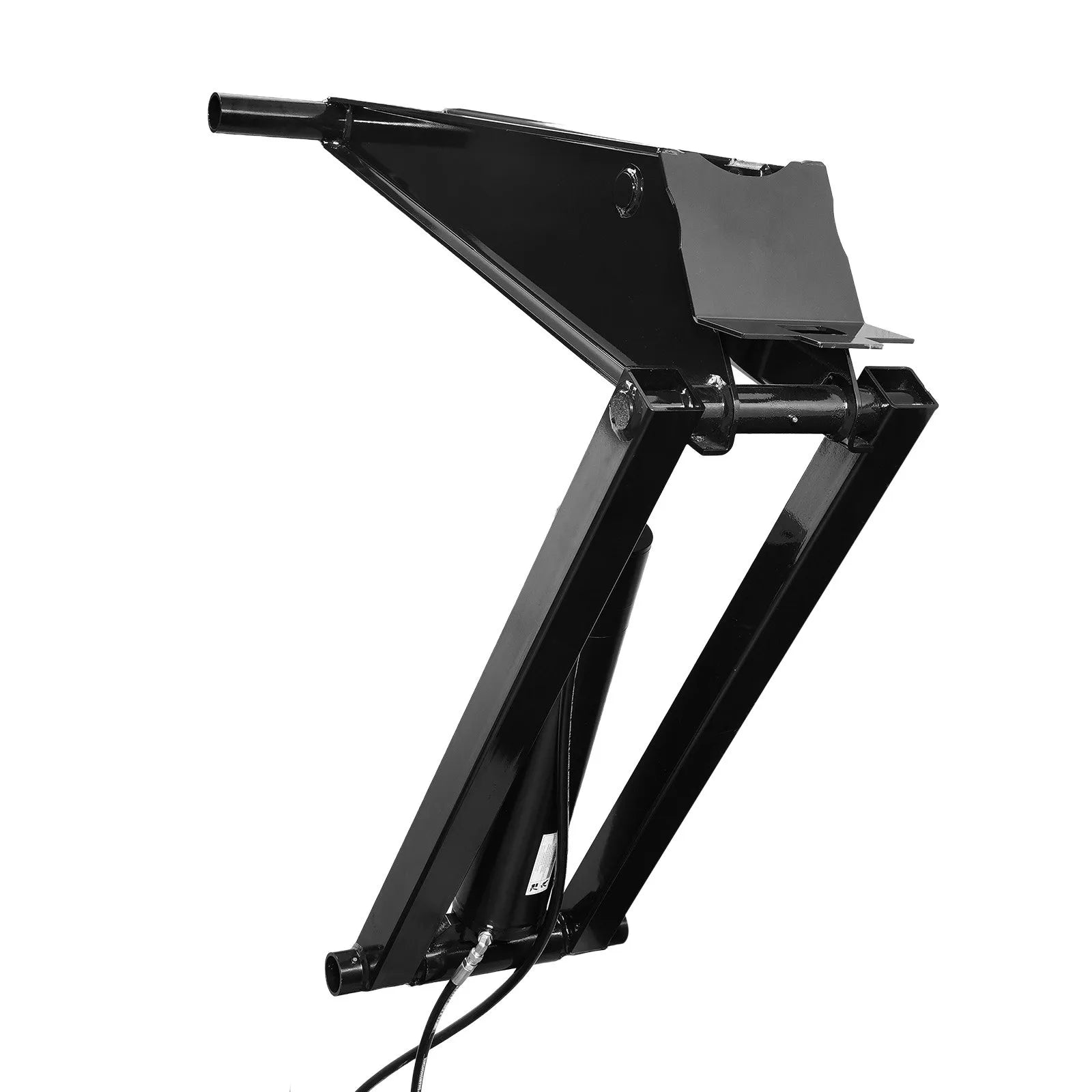

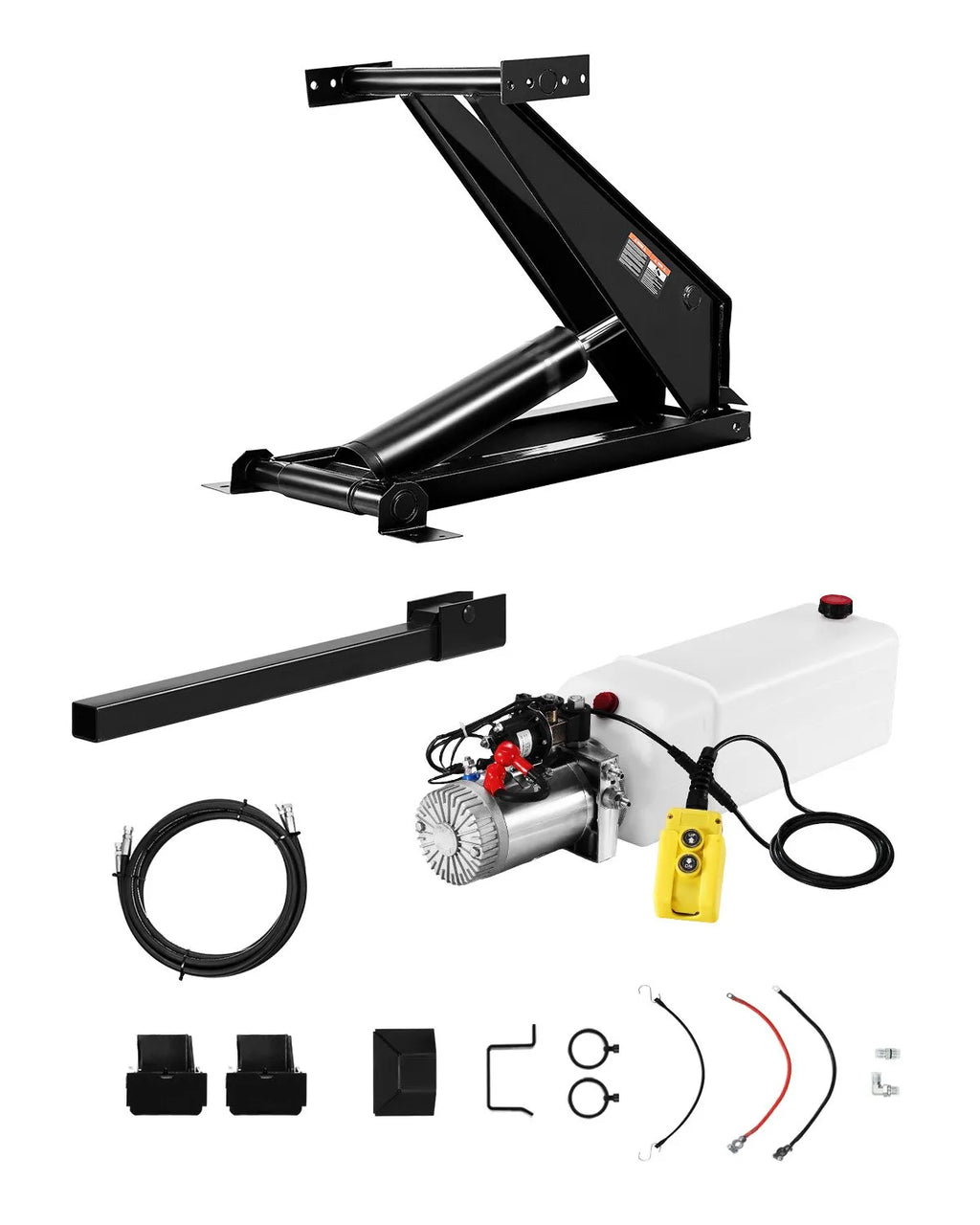

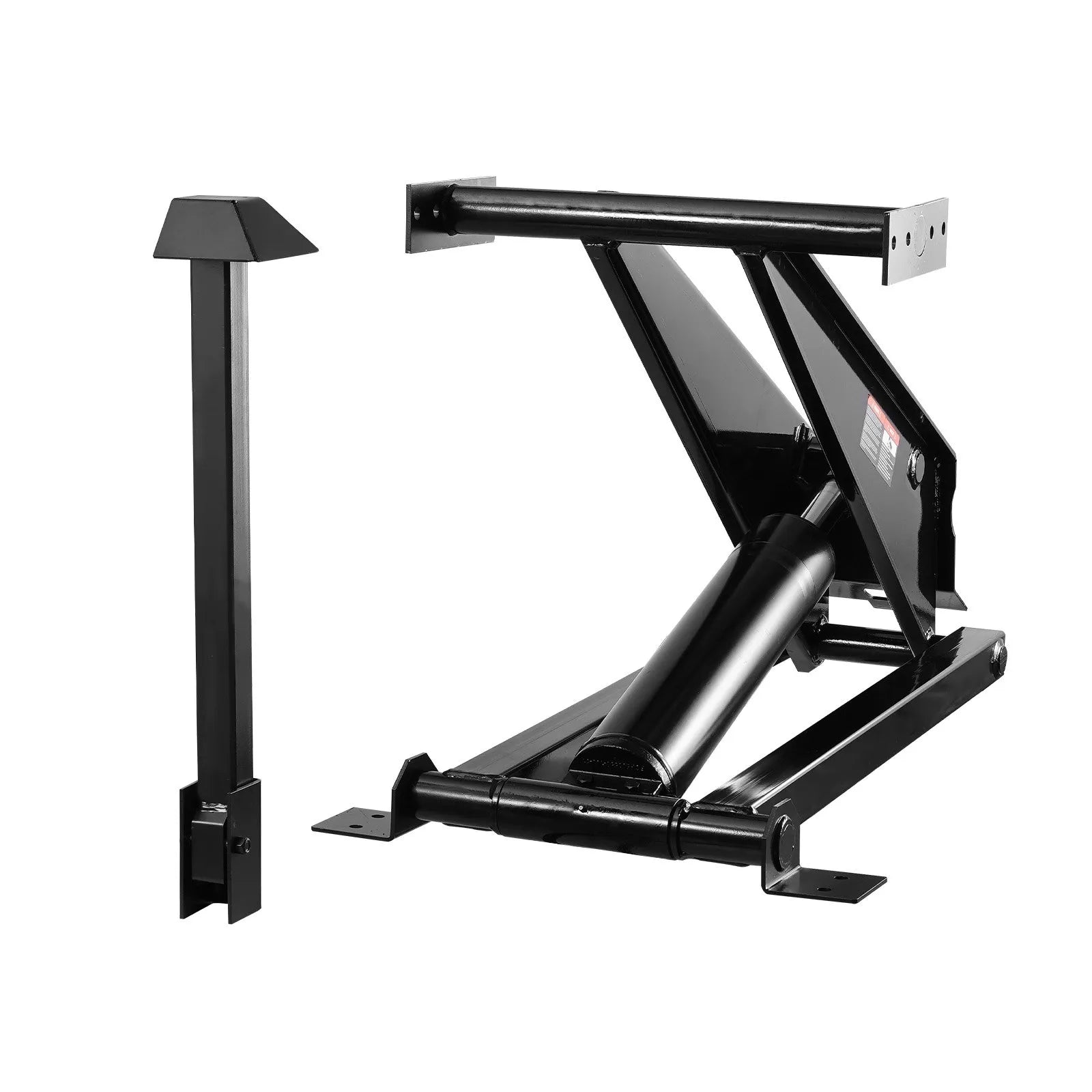

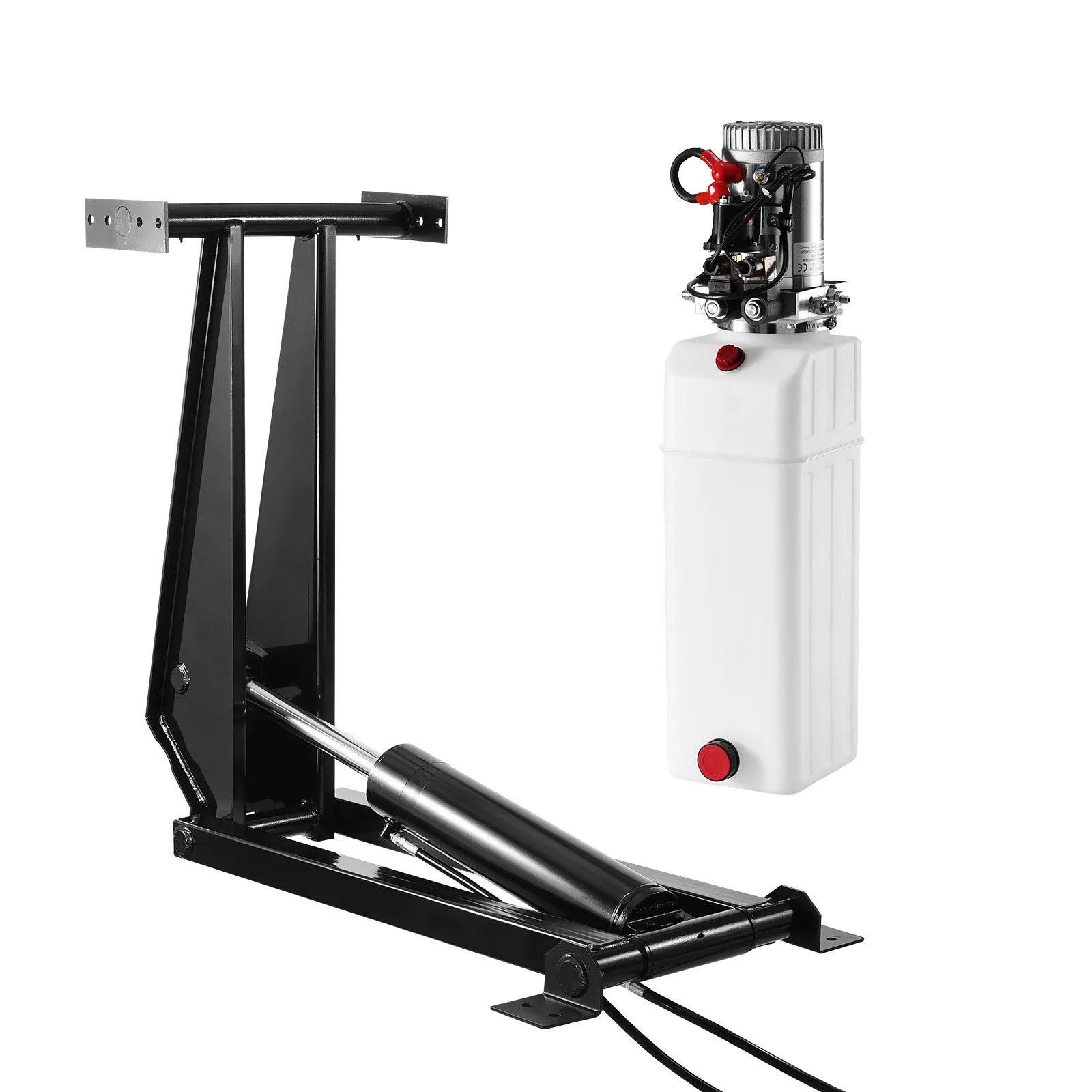

VEVOR Hydraulic Scissor Hoist Kit 10 T Hydraulic Dump Lift Kit for Dump Trailers

VEVOR Hydraulic Scissor Hoist Kit is a high-quality, durable solution designed for reliable lifting performance and efficient dump trailer operation. Built with heavy-duty Q355B steel and a powerful hydraulic system, it ensures strong lifting capability and long-lasting durability. With a 10-ton load capacity and a double-acting hydraulic pump, this scissor hoist kit delivers smooth lifting and controlled lowering for large dump trailers. Designed for easy installation and dependable performance, it is ideal for construction, transportation, and heavy-duty hauling applications.

Key Features:

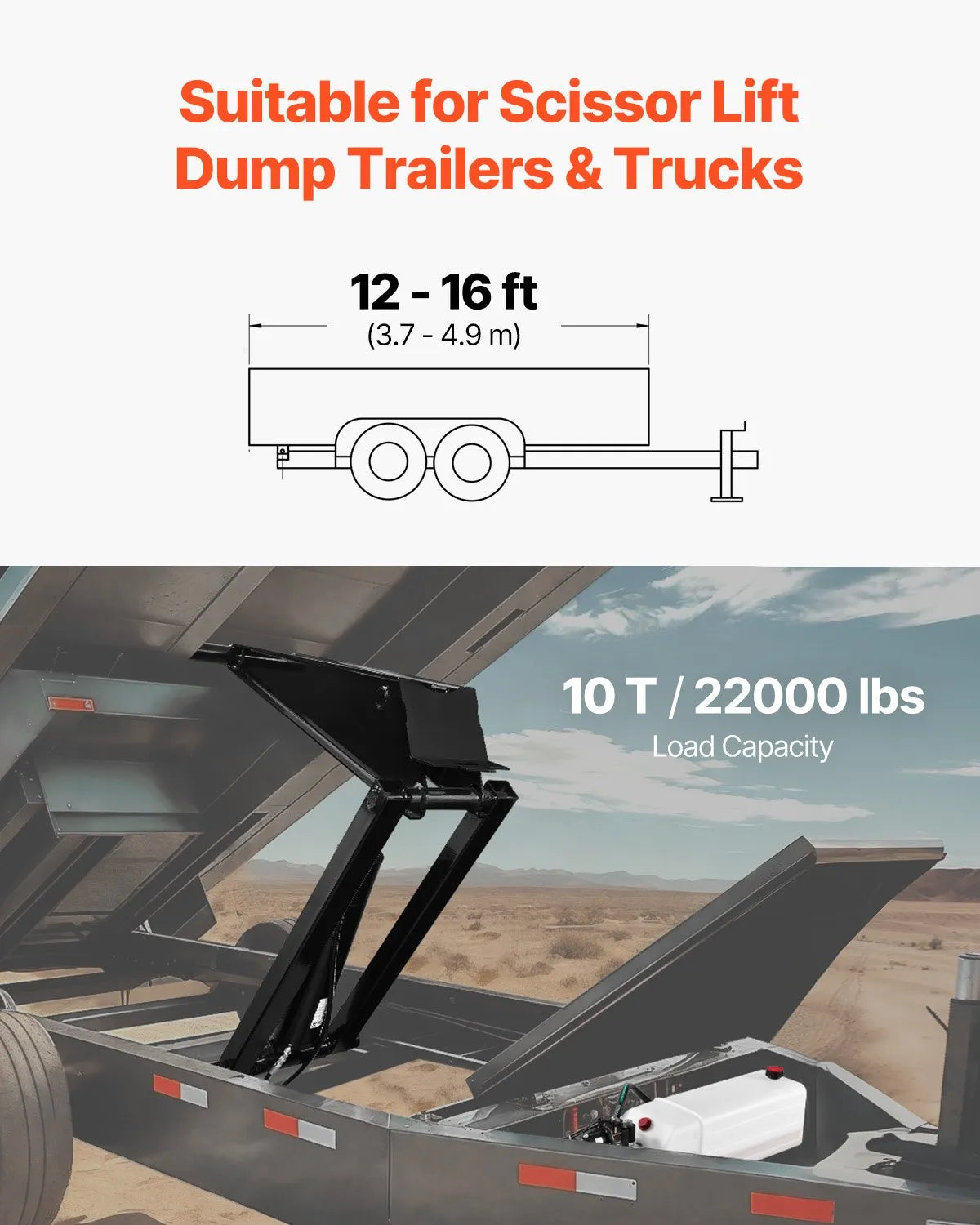

• Custom for Large Dump Trailers: Designed specifically for dump trailers ranging from 12 to 16 ft in length

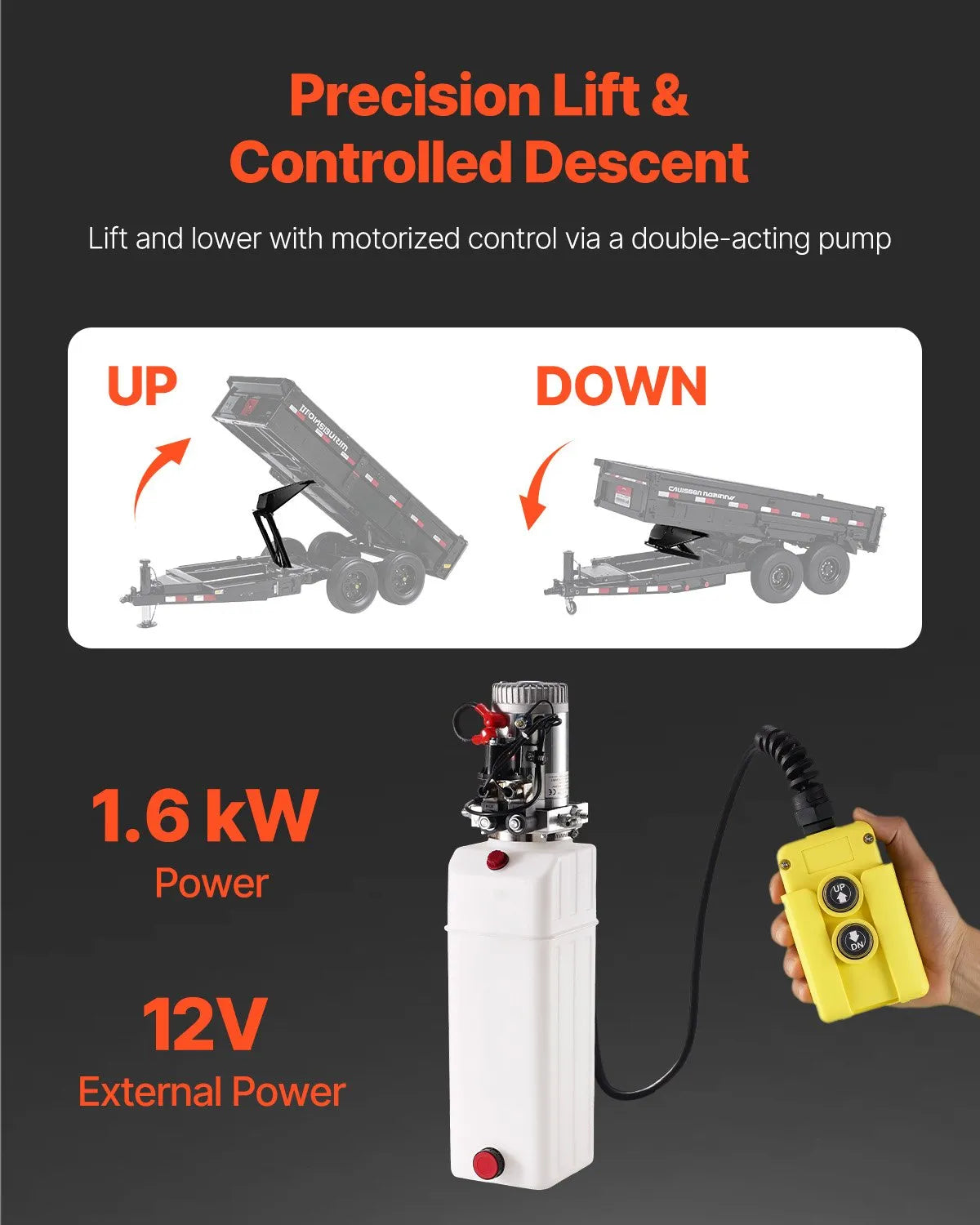

• Double-Acting Pump: Provides powerful lifting and controlled lowering for efficient trailer operation

• High Load Capacity: Supports up to 10 tons / 22,000 lbs for heavy-duty hauling tasks

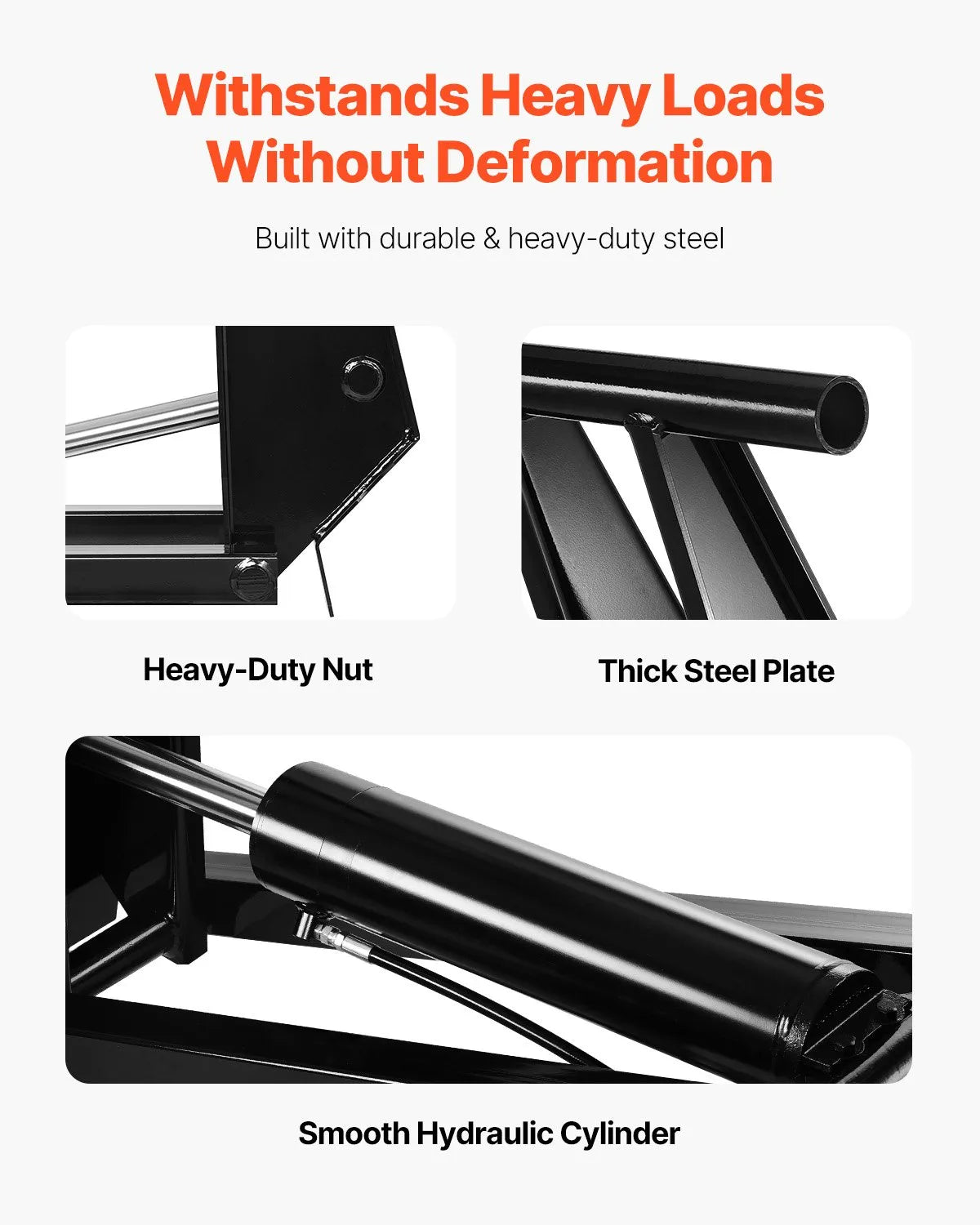

• Sturdy and Durable Construction: Built with strong Q355B steel for enhanced durability and long service life

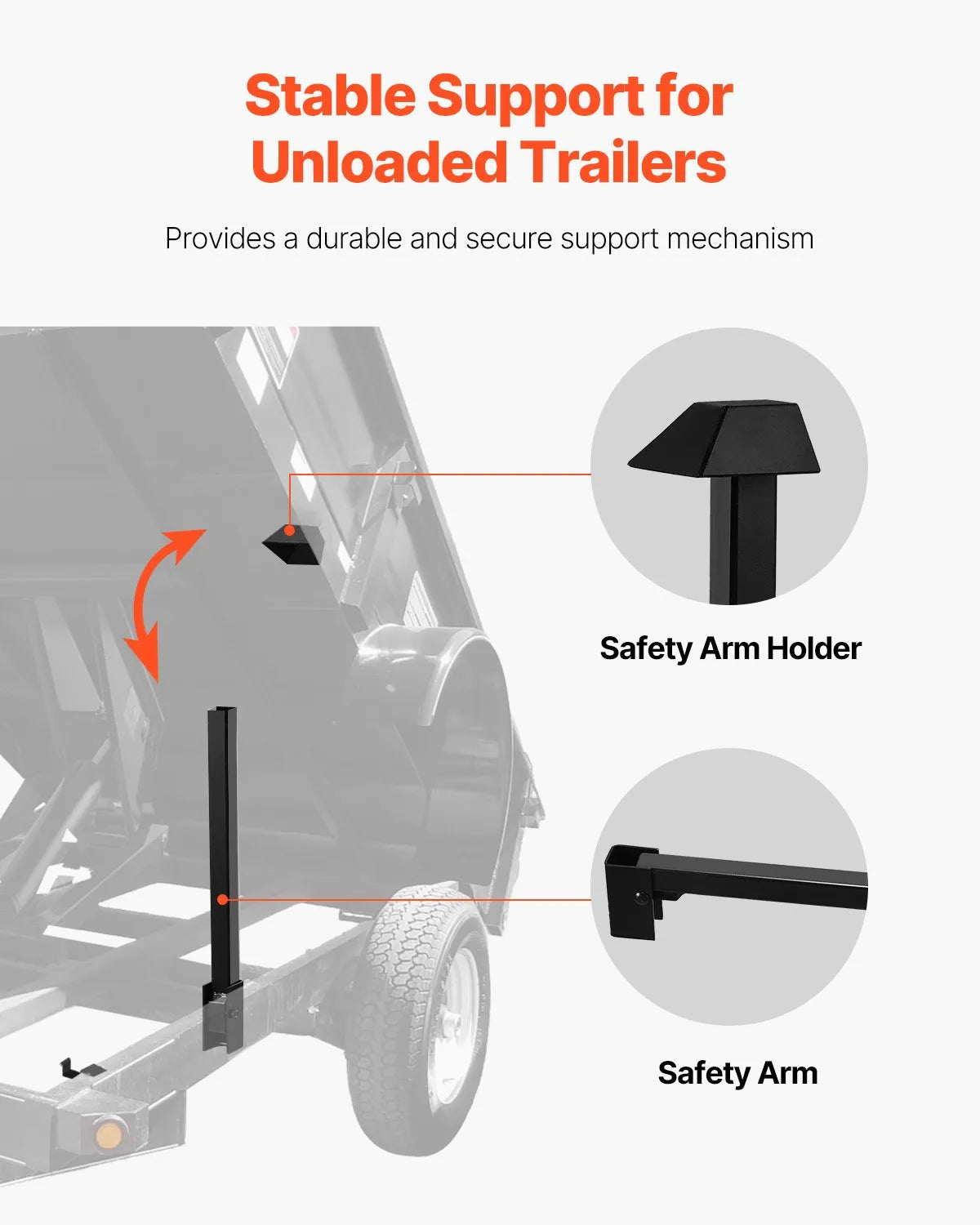

• Safe Lifting Design: Engineered to prevent dangers associated with unloaded lifting operations

• Easy Maintenance: Simple design allows convenient servicing and long-term reliability

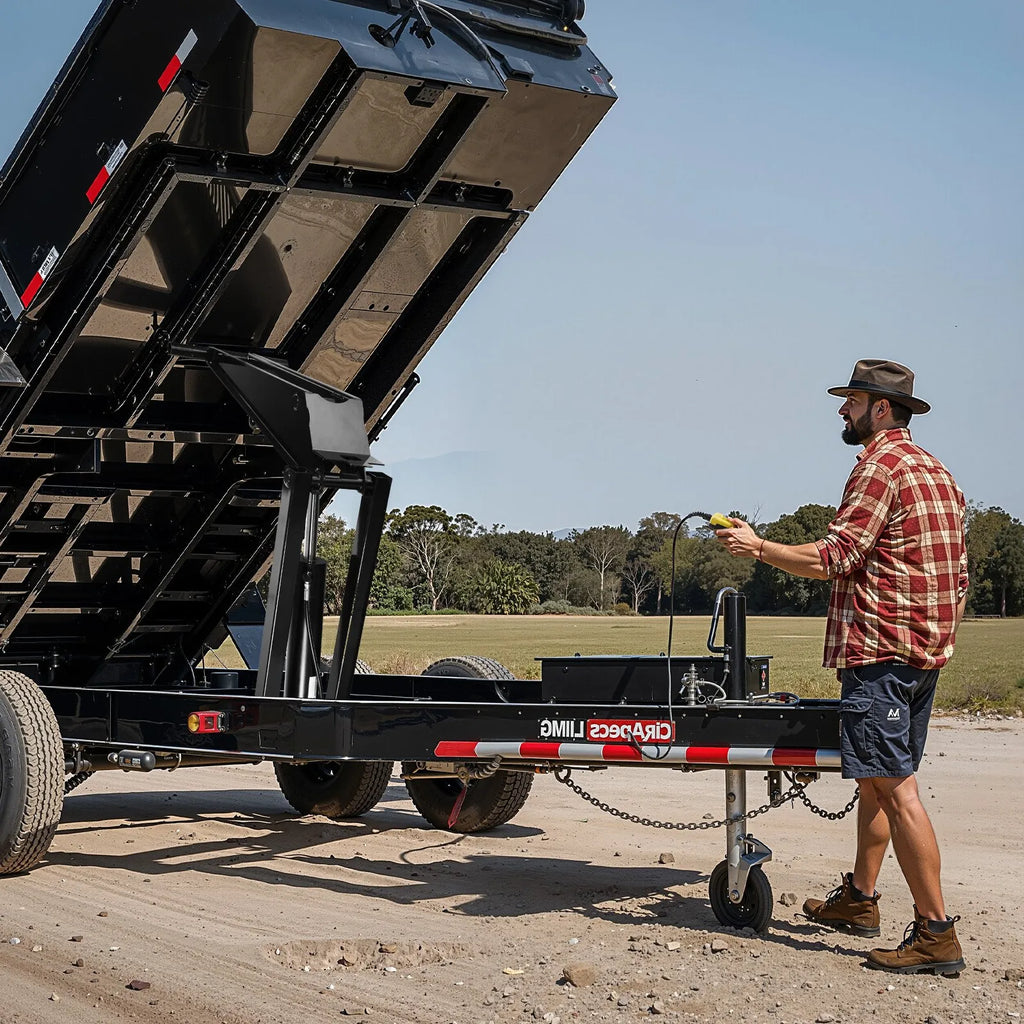

• Versatile Applications: Suitable for dump trailers used in construction, farming, and transportation

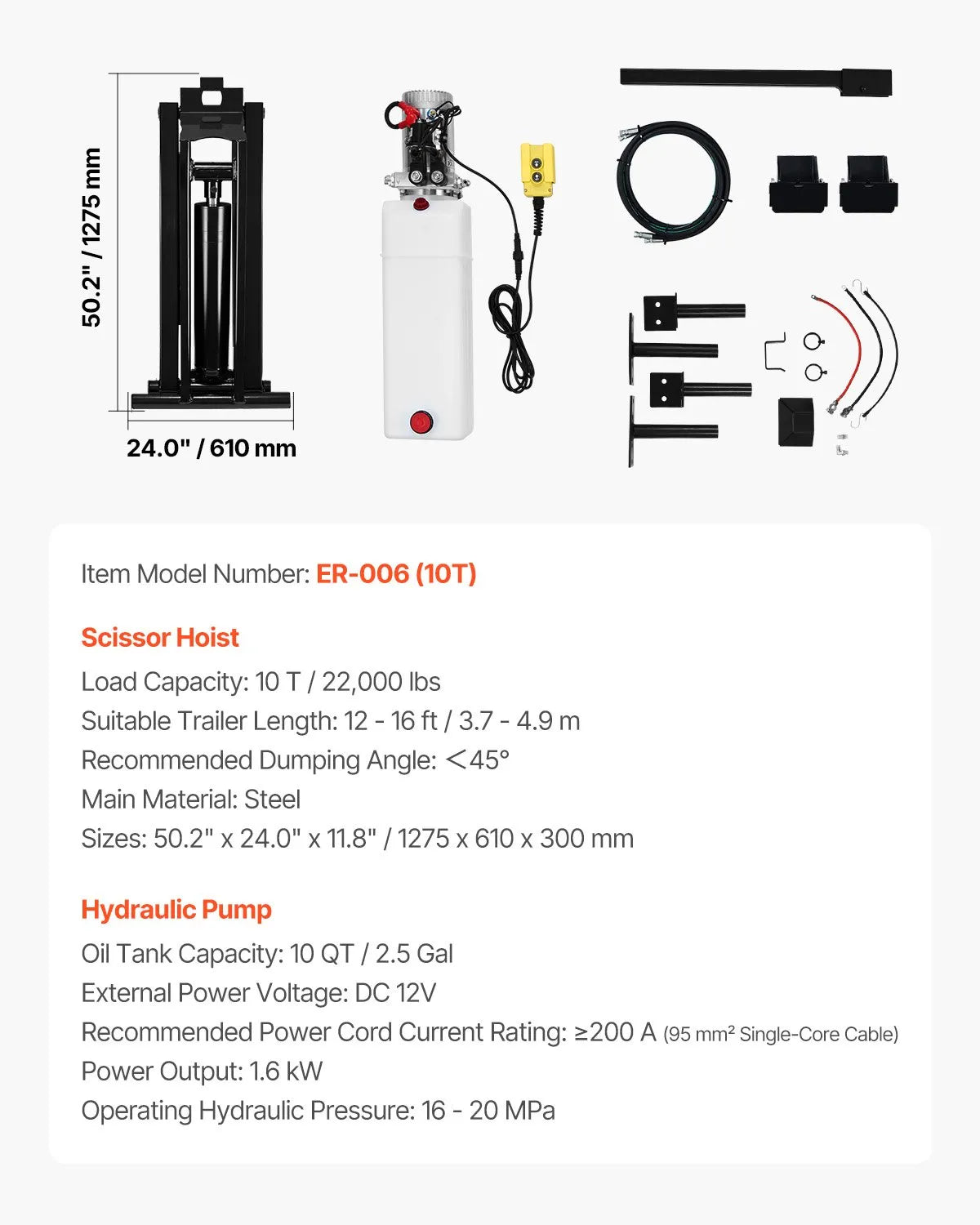

Specifications:

• Product Type: Hydraulic Scissor Hoist Kit

• Brand: VEVOR

• Model: ER-006 (10T)

• Material: Steel (Q355B)

• Color: Red / Black

• Load Capacity: 10 T / 22,000 lbs

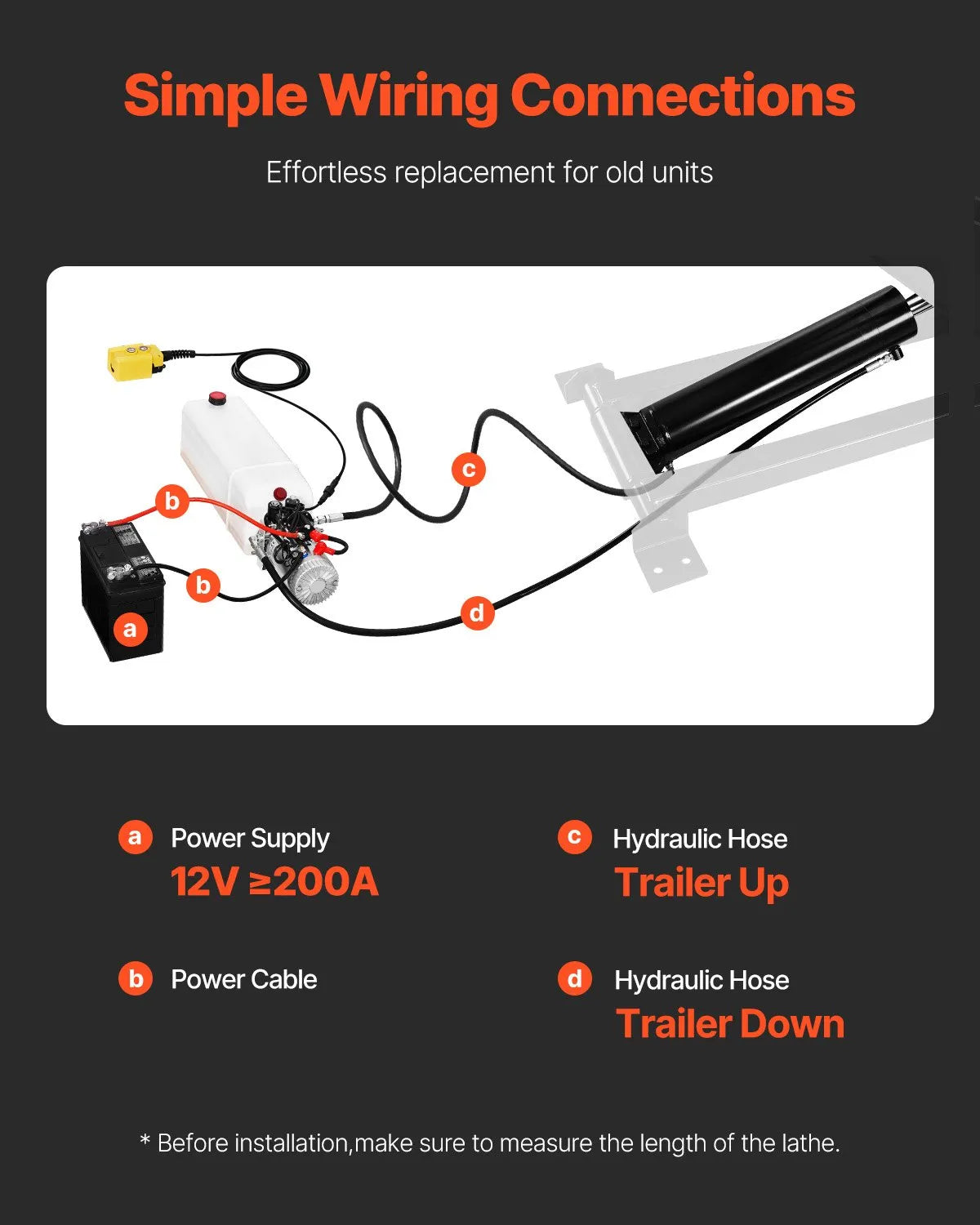

• External Power Voltage: DC 12V

• Power Output: 1.6 kW

• Hydraulic Oil Tank Capacity: 10 QT / 9.5 L

• Flow Rate: 1.45 GPM

• Maximum Release Pressure: 3200 PSI / 22 MPa

• Operating Hydraulic Pressure: 16 – 20 MPa

• Recommended Dumping Angle: ＜45°

• Maximum Body Tilt Angle: 127°

• Suitable Trailer Length: 12 – 16 ft / 3.7 – 4.9 m

• Lifting Plate Thickness: 0.3 in / 8 mm

• Oil Tank Material: PP Plastic

• Product Dimensions: 50.2 × 24.0 × 11.8 in / 1275 × 610 × 300 mm

• User-Provided Power Cable Capacity: ≥200 A (Single-core Cable of 95 mm²)

• Net Weight: 383.6 lbs / 174 kg

• Application: Dump trailer lifting systems and hydraulic lifting equipment

• Suitable For: Home / Professional / Commercial Use
