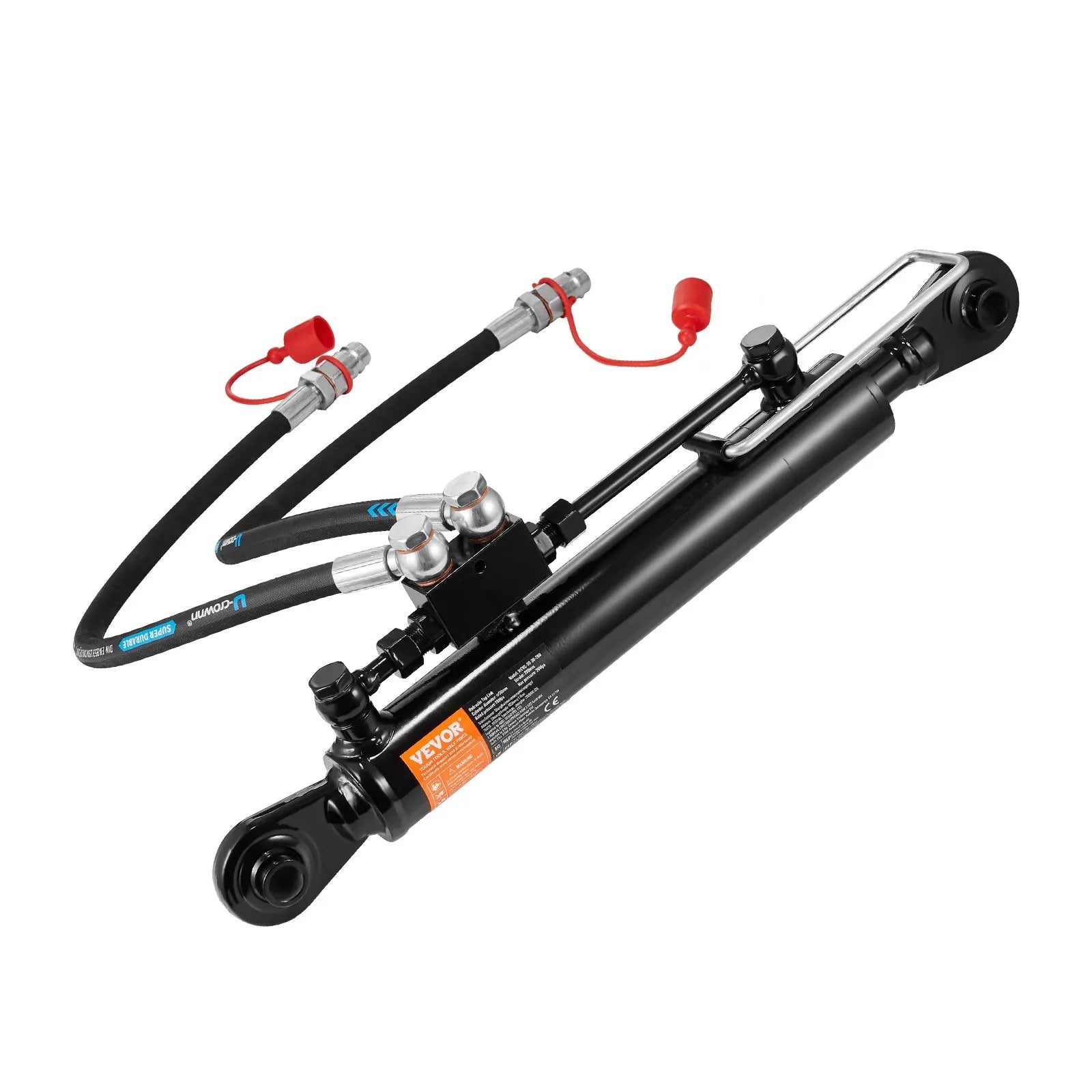

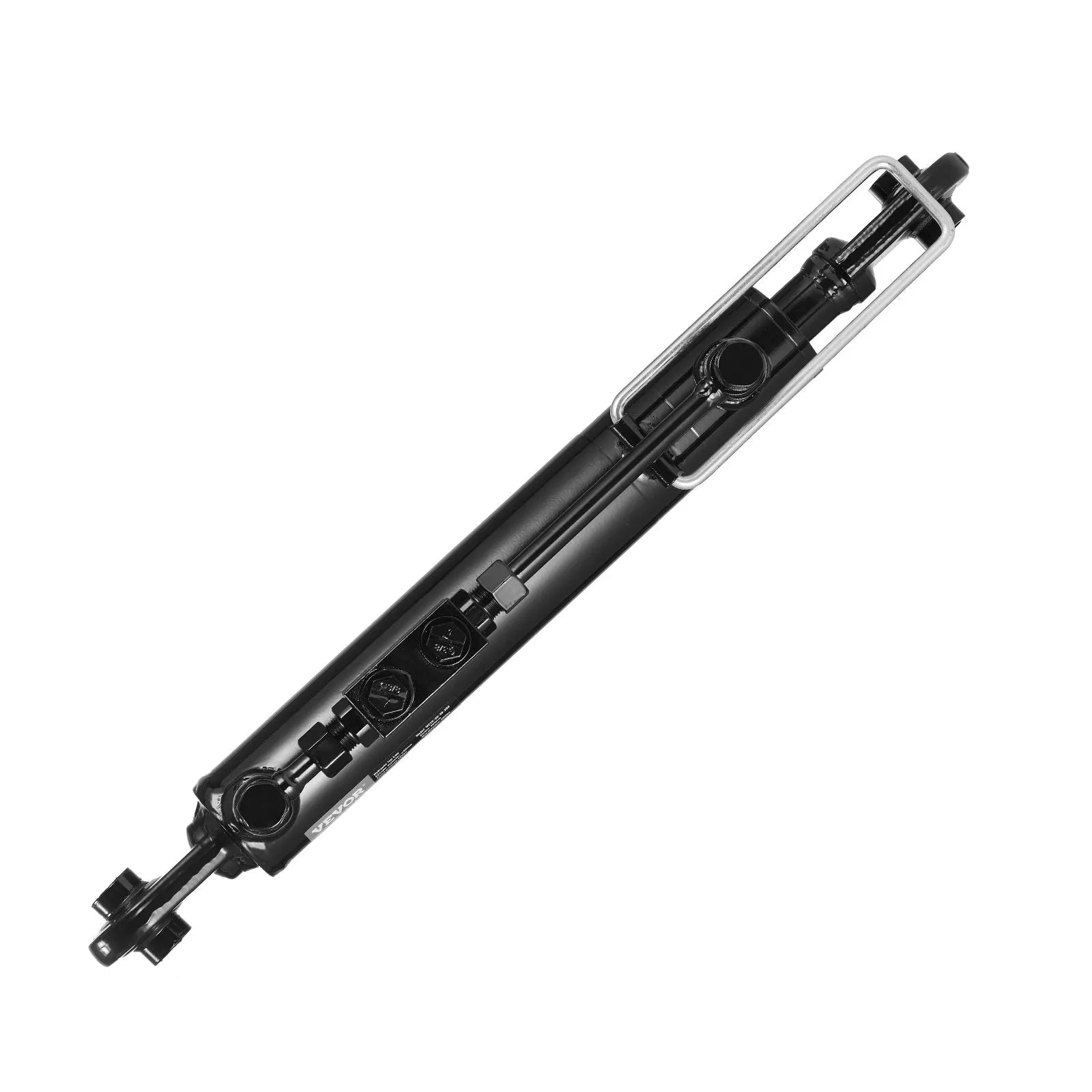

VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve

VEVOR Hydraulic Top Link Cat.1-1 is a high-quality, durable solution designed for reliable tractor attachment control and efficient hydraulic operation. Built with strong 45# steel and a leak-proof hydraulic structure, it ensures long-lasting performance and dependable push-pull force for agricultural tasks. With an 11-inch stroke and adjustable length from 20-7/8 to 31-7/8 inches, this hydraulic cylinder provides precise control for tractor implements. Equipped with two hydraulic hoses and a G3/8" check valve, it offers flexible installation and easy assembly, making it ideal for Class I tractor applications.

Key Features:

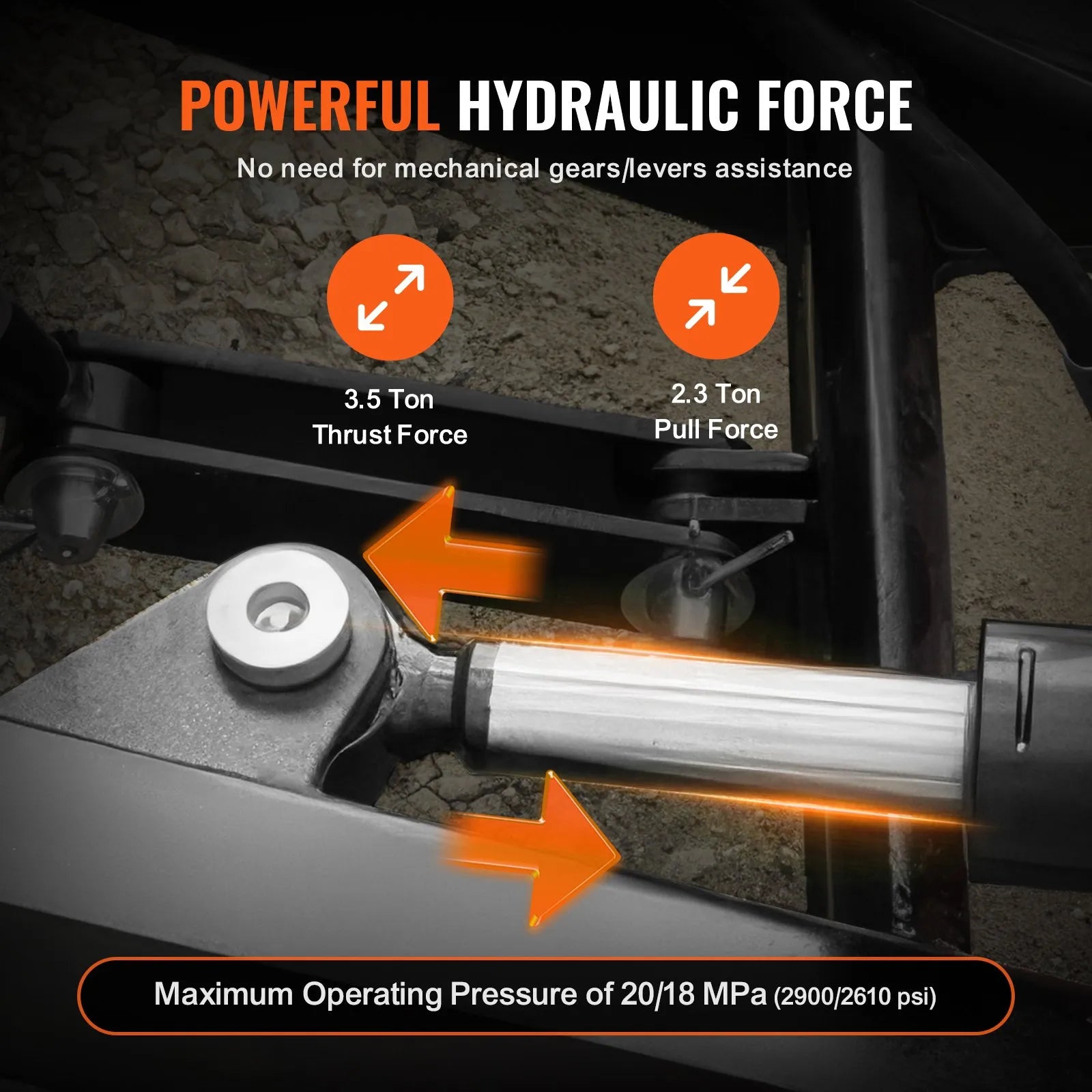

• Enhanced Push-Pull Force: Delivers up to 3.5 tons thrust force and 2.3 tons pull force for reliable implement control

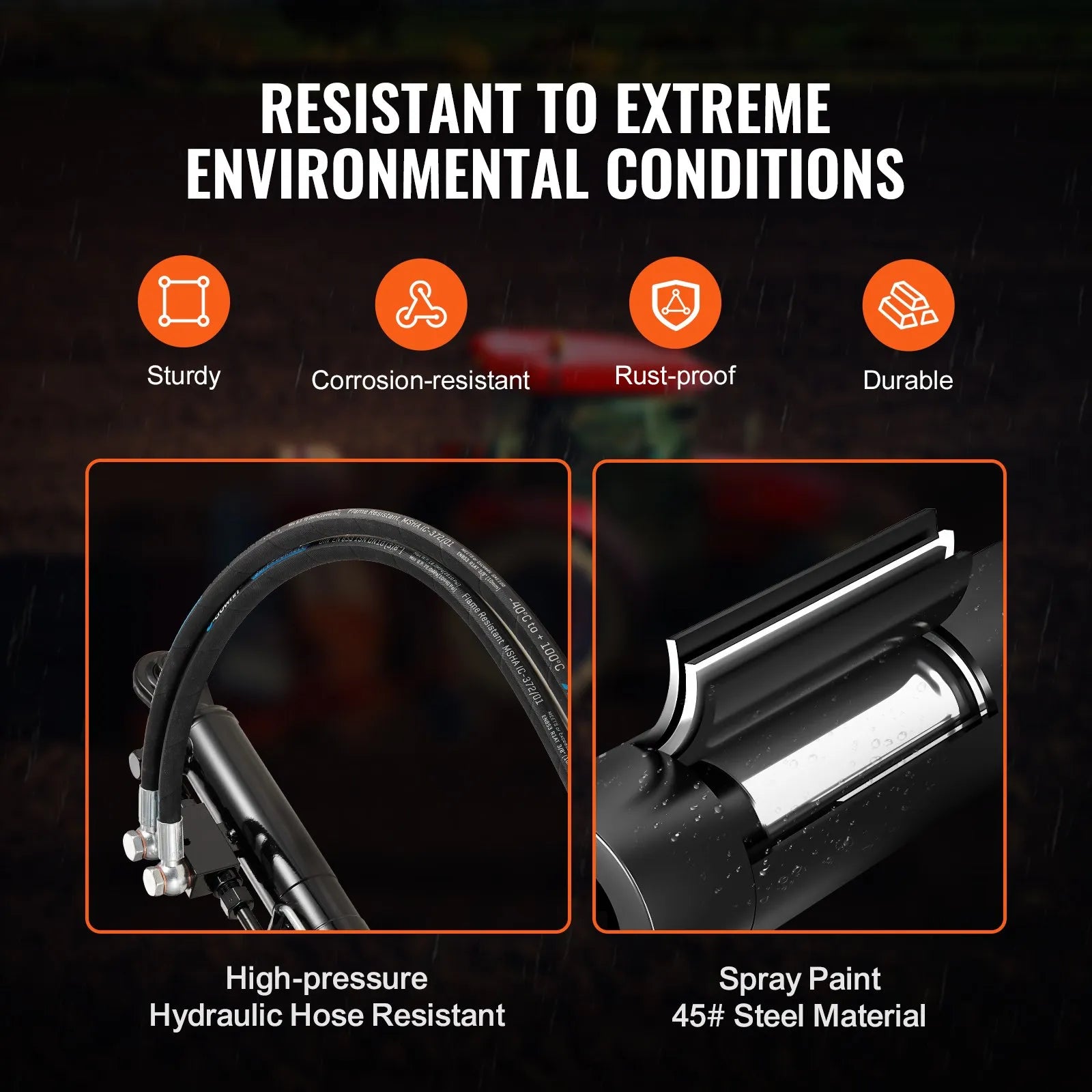

• Leak-Proof Structure: Designed with high-quality seals and precision components to prevent hydraulic leaks

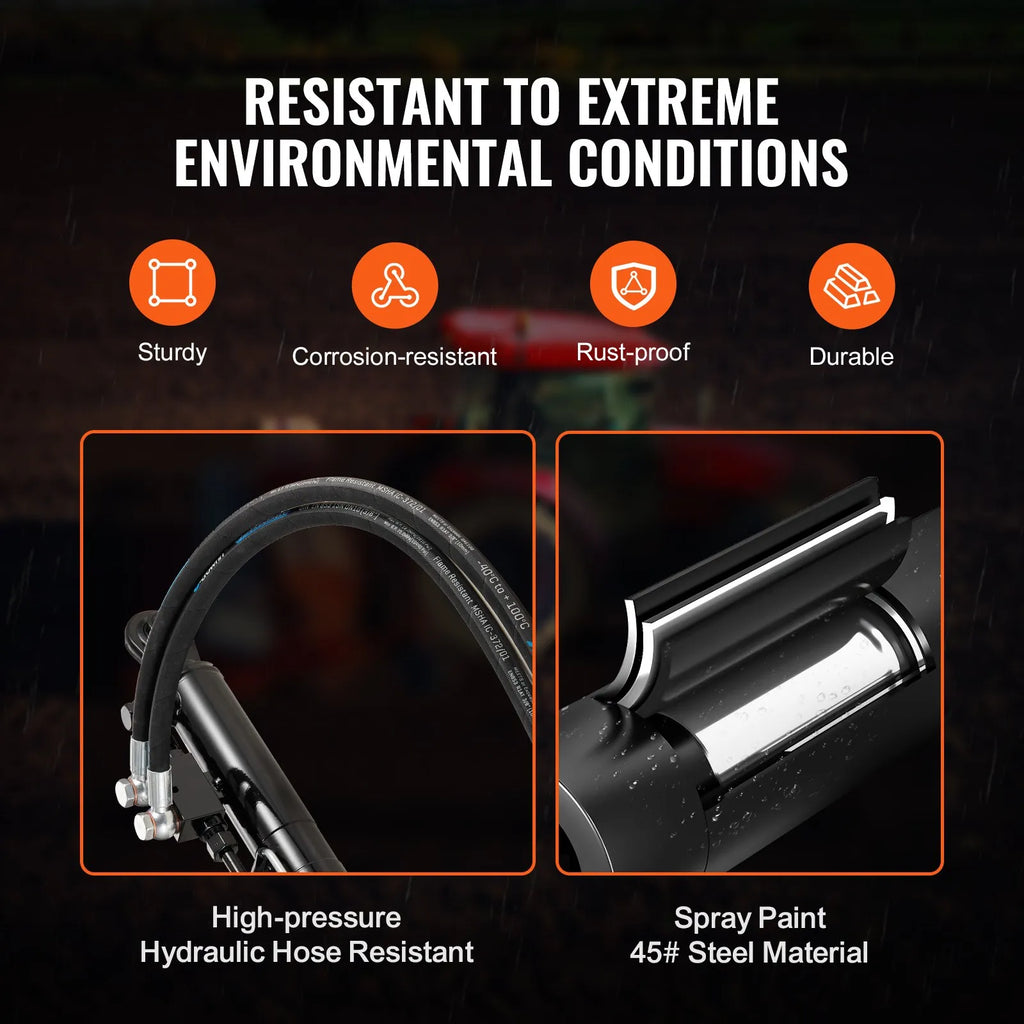

• Durable Construction: Made from strong 45# steel with protective black paint for long-lasting durability

• Flexible Installation: Adjustable length design allows easy fitting with various tractor attachments

• Perfect Compatibility: Designed for Class I tractors and compatible with many agricultural implements

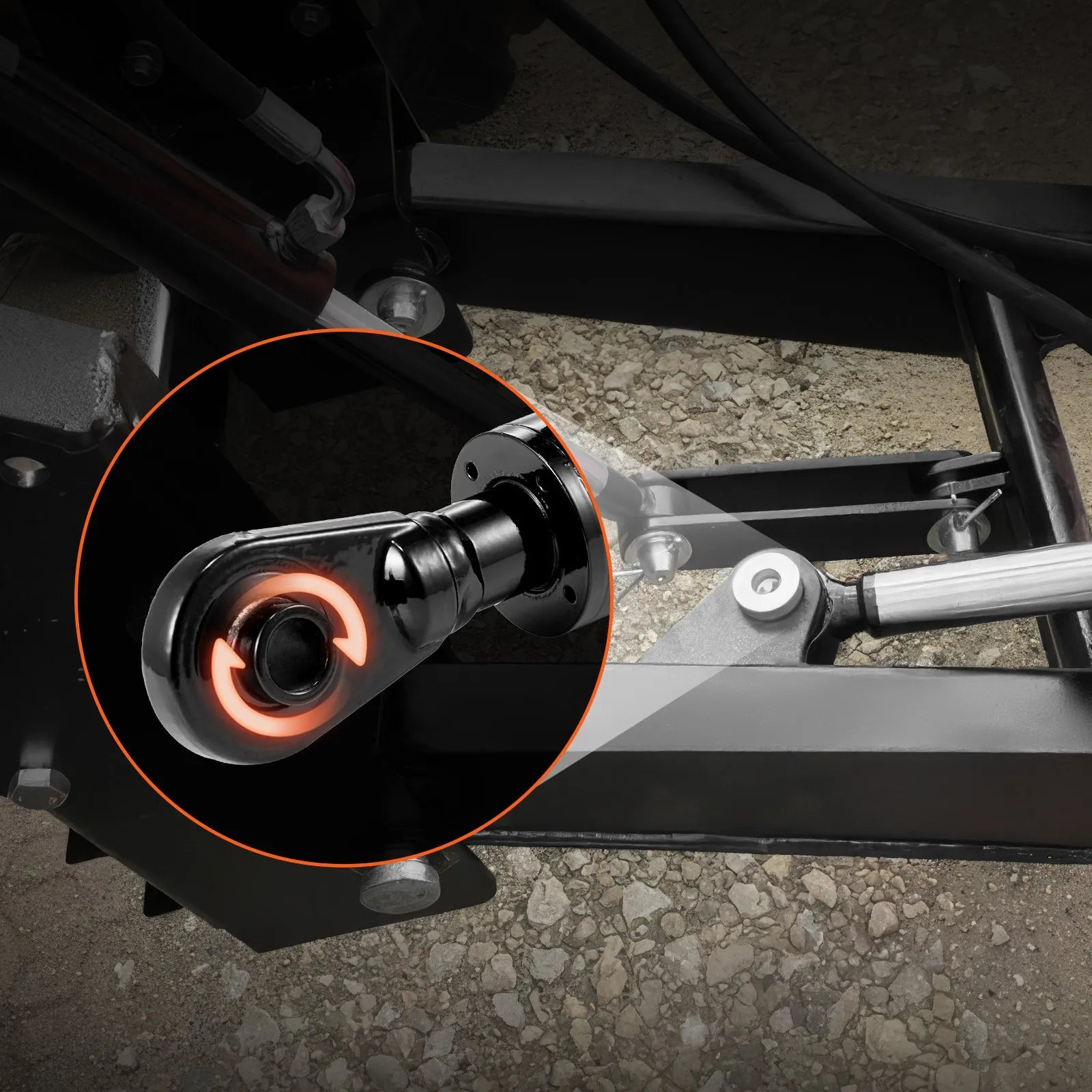

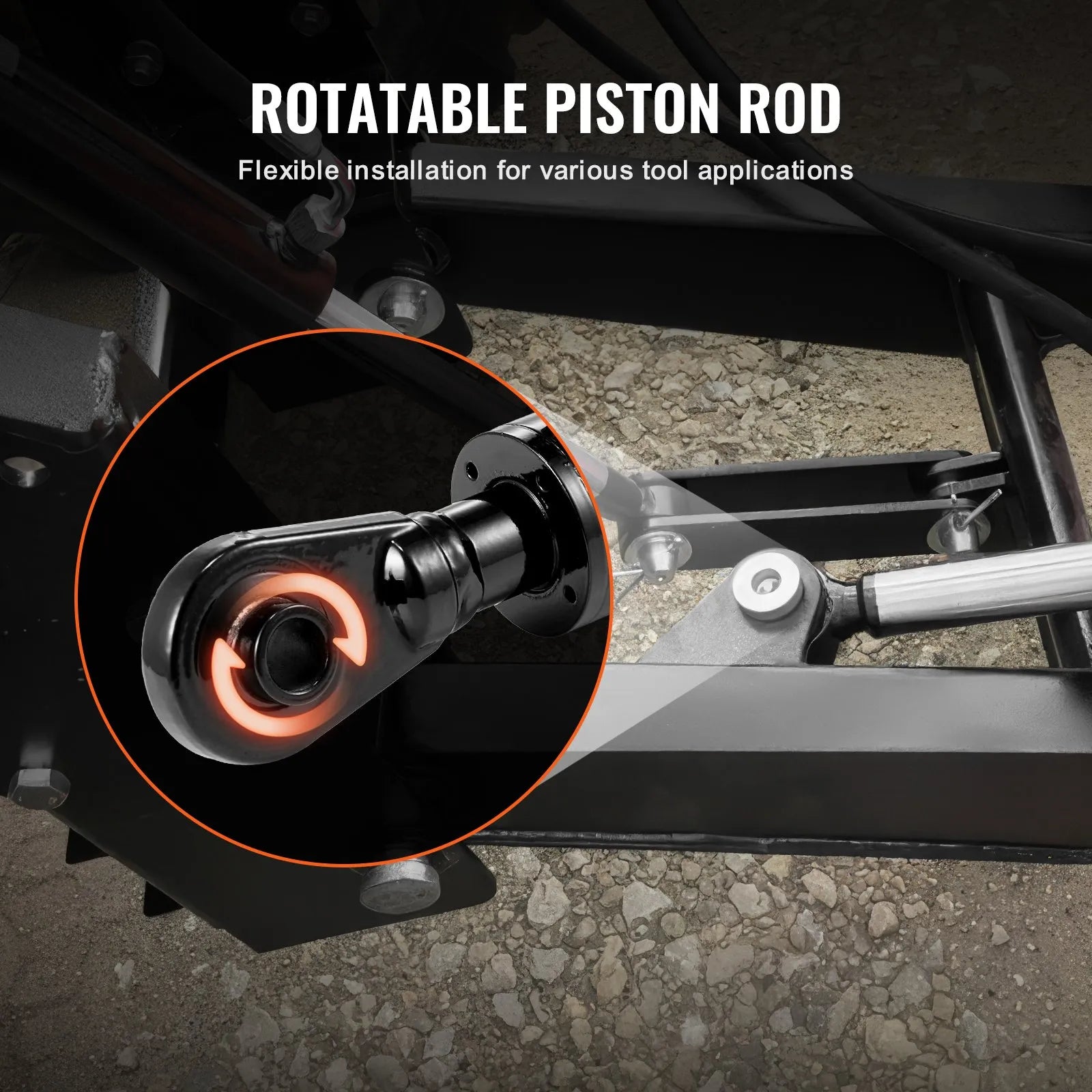

• Rotatable Piston Rod: Ball joint linkage structure improves flexibility and alignment during operation

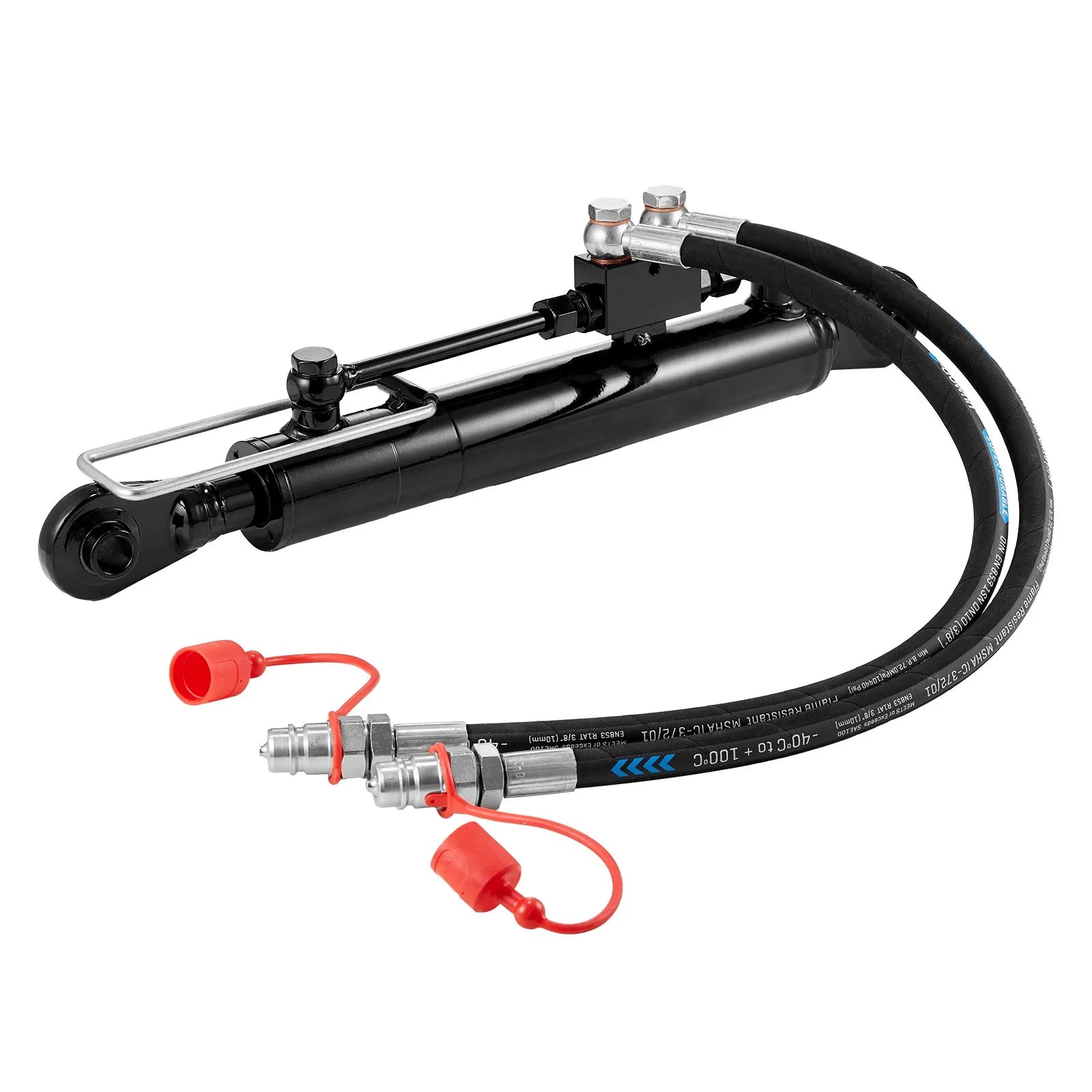

• Easy Assembly: Includes two hydraulic hoses and fittings for convenient installation and use

Specifications:

• Product Type: Hydraulic Top Link Cylinder

• Brand: VEVOR

• Model: WCVC-50-30-280

• Material: 45# Steel

• Color: Black

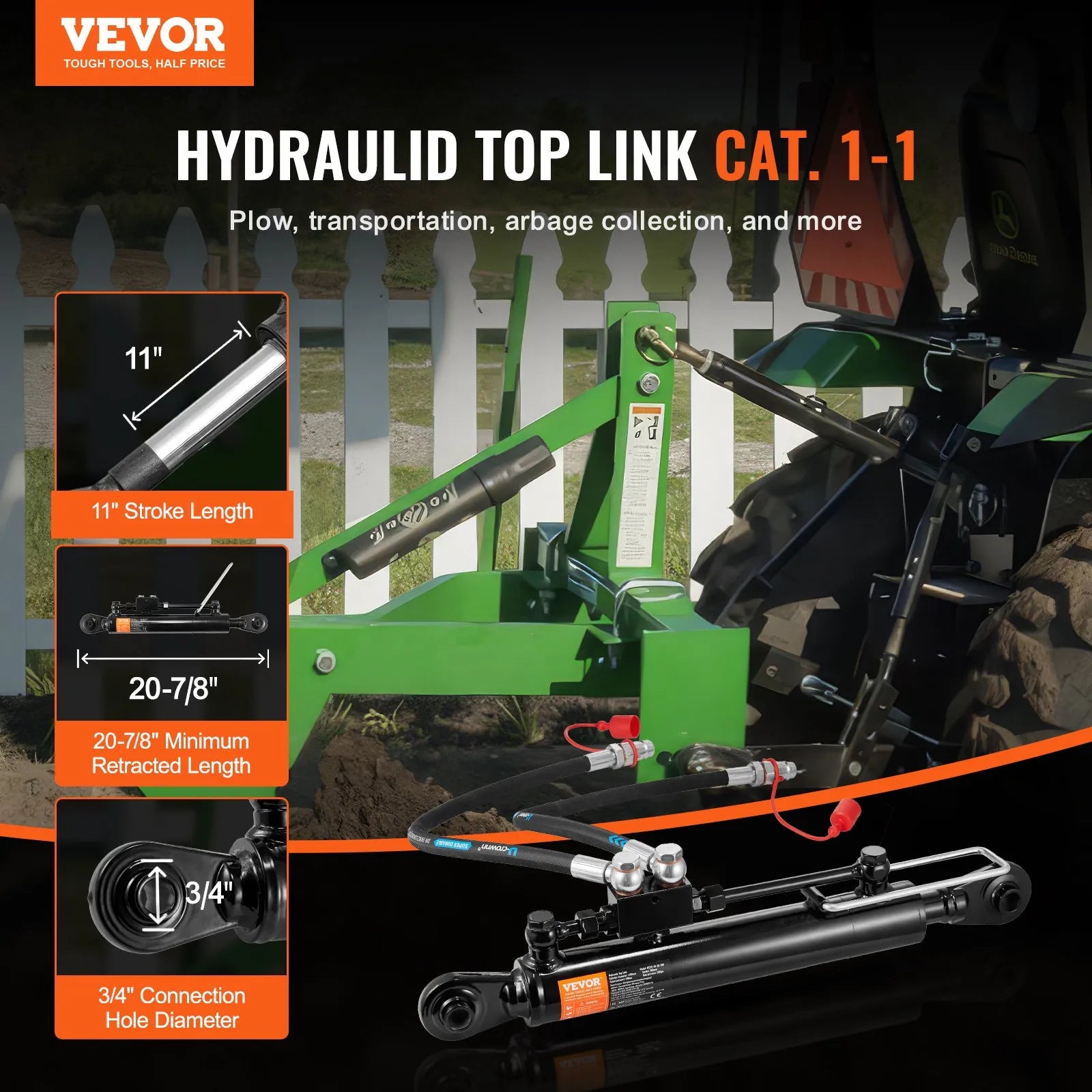

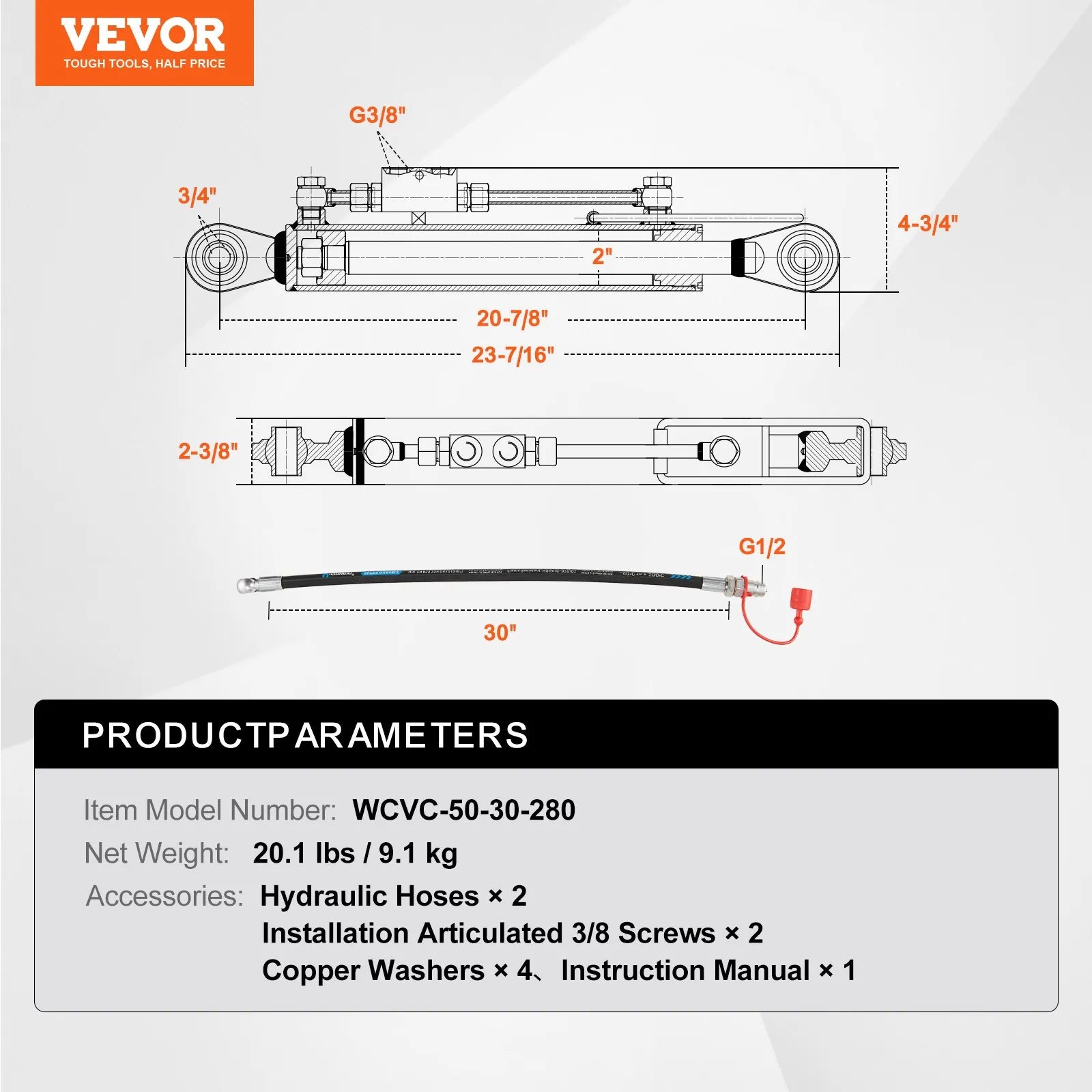

• Stroke: 11 in / 280 mm

• Minimum Retracted Length: 20-7/8 in / 530 mm

• Adjustable Length Range: 20-7/8 – 31-7/8 in

• Cylinder Inner Diameter: 2.0 in / Φ50 mm

• Outer Diameter: 2-3/8 in / Φ60 mm

• Piston Rod Diameter: 1.2 in / Φ30 mm

• Thrust Force: 3.5 Tons

• Pull Force: 2.3 Tons

• Maximum / Rated Working Pressure: 20 / 18 MPa (2900 / 2610 PSI)

• Connection Hole Diameter: 0.8 in / Φ19.4 mm

• Connection Hole Width: 1.7 in / 44 mm

• Hydraulic Hose Size (I.D. × Length): 0.4 × 30.1 in / ∅10 × 765 mm

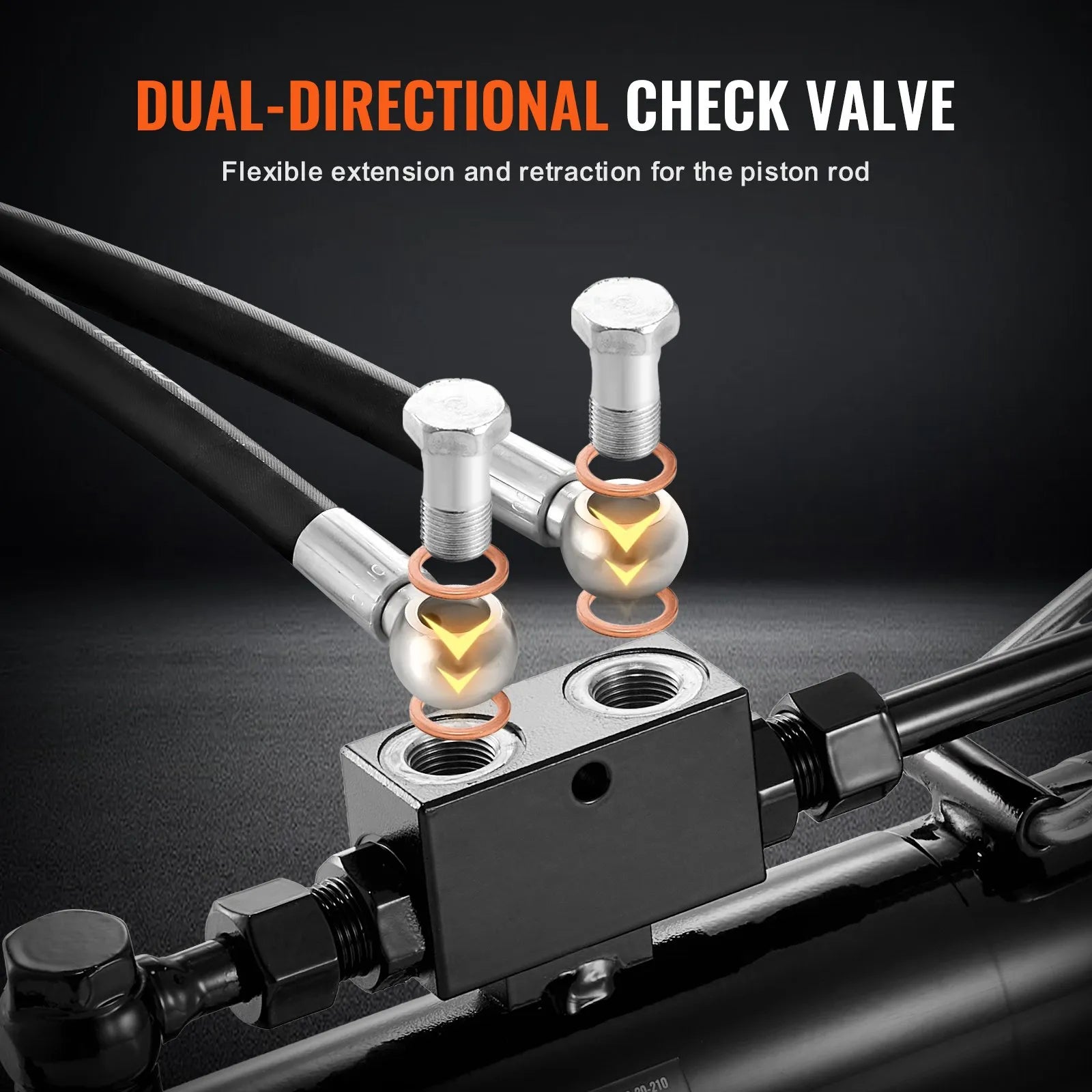

• Check Valve Port: G3/8"

• Fitting Type: G1/2

• Compatible Equipment: Class I Tractors

• Product Dimensions: 23.4 × 4.7 × 2.4 in / 595 × 120 × 60 mm

• Net Weight: 20.1 lbs / 9.1 kg

• Service Life: 1-Year Warranty

• Application: Tractor implement adjustment and hydraulic linkage systems

• Suitable For: Home / Professional / Commercial Use
