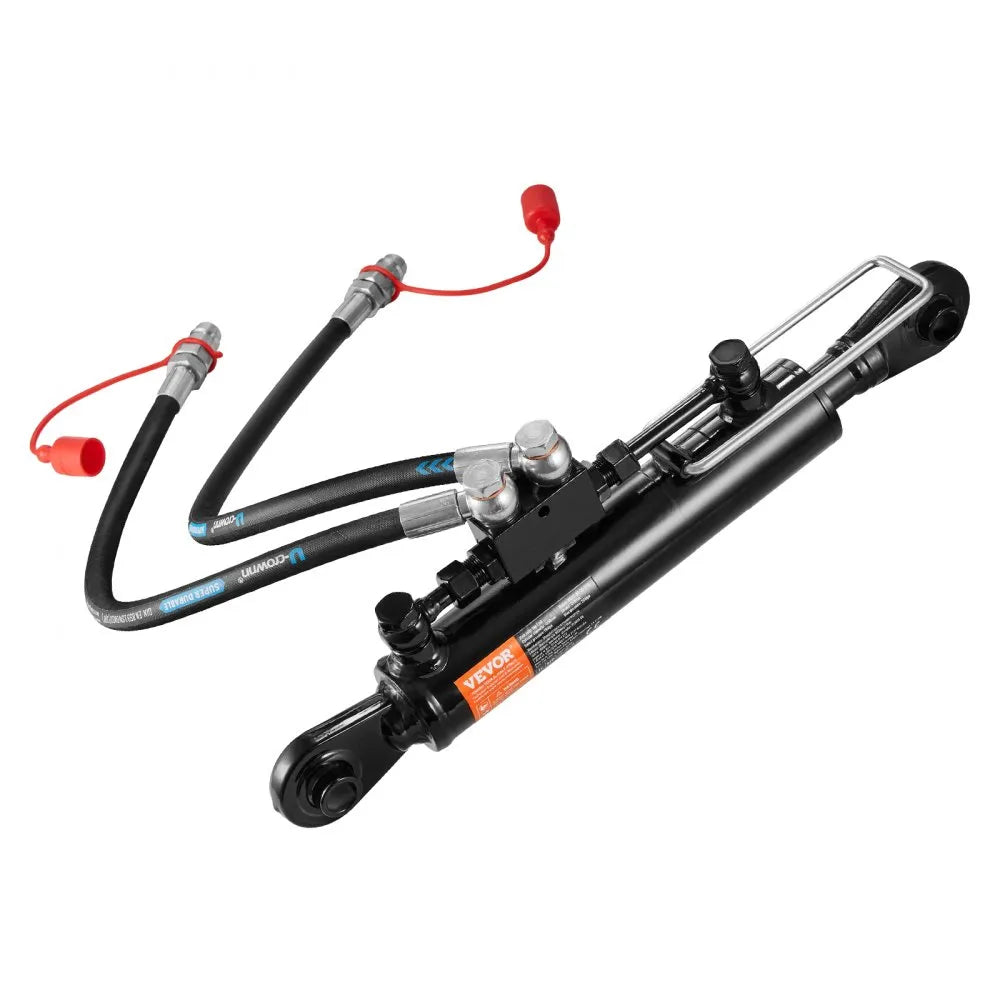

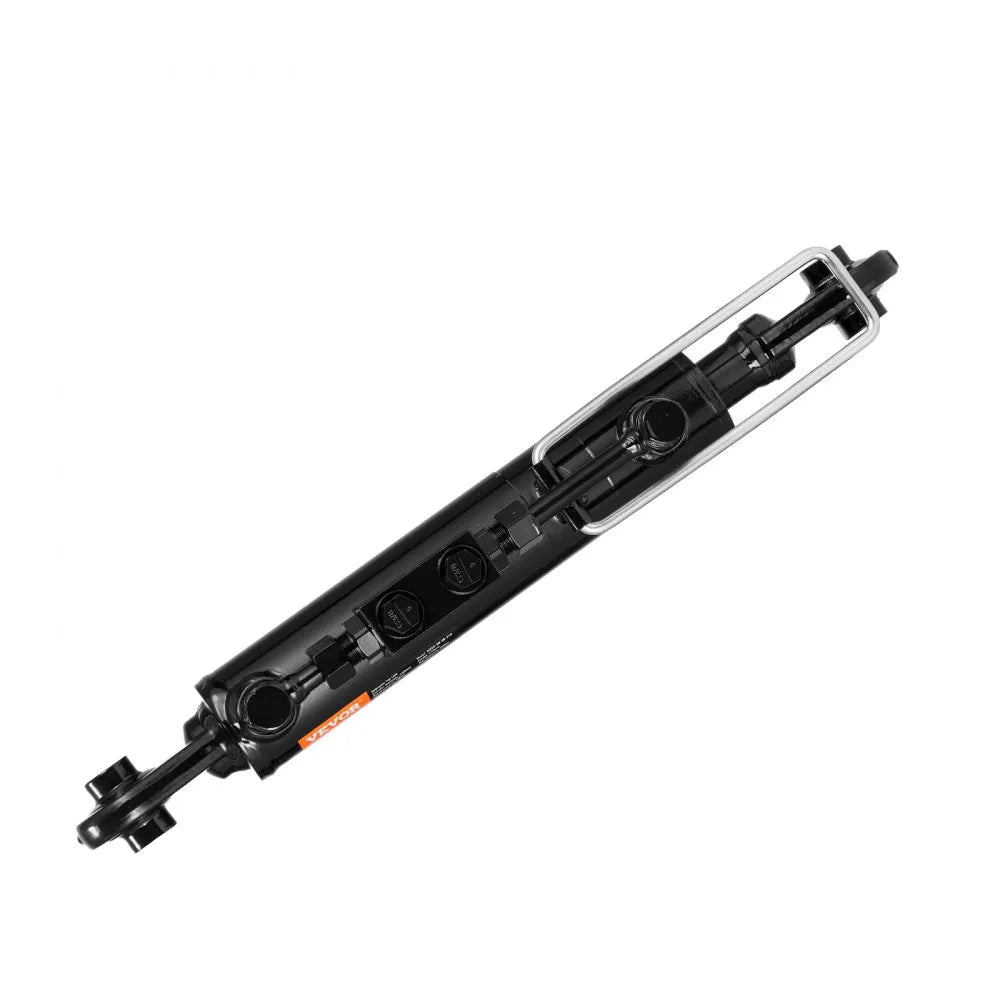

VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve

VEVOR Hydraulic Top Link Cat.1-1 is a durable and reliable hydraulic cylinder designed to improve control and efficiency for tractor implements. Built with high-strength 45# steel and a leak-proof hydraulic structure, it ensures long-lasting performance under demanding agricultural tasks. With an 8-1/4 inch stroke and adjustable length from 18-1/8 to 26-3/8 inches, this hydraulic top link provides smooth push-pull operation for precise implement positioning. Equipped with two hydraulic hoses and a G3/8" check valve, it offers flexible installation and convenient operation, making it ideal for Class I tractor applications.

Key Features:

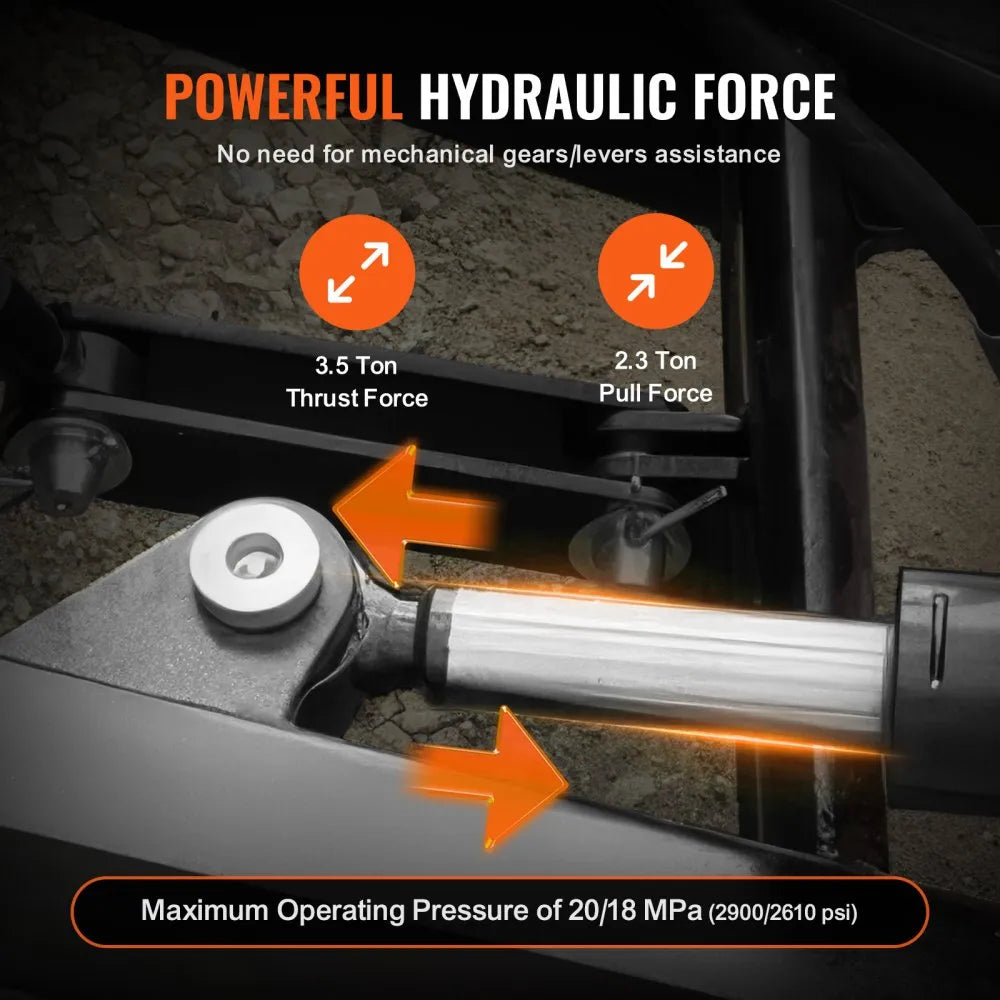

• Enhanced Push-Pull Force: Provides up to 3.5 tons thrust force and 2.3 tons pull force for strong and reliable implement control

• Leak-Proof Structure: Precision hydraulic seals and fittings help prevent oil leakage during operation

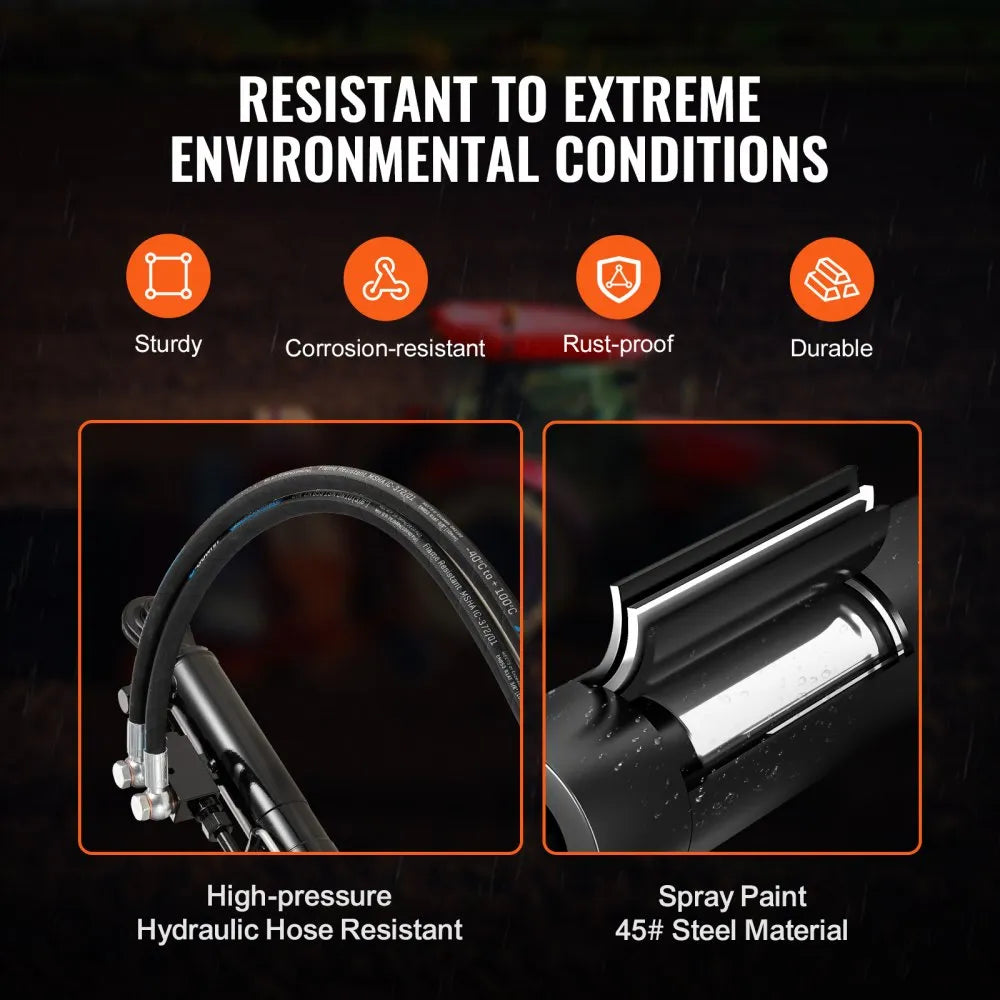

• Durable Construction: Made from heavy-duty 45# steel with protective black paint for long service life

• Flexible Installation: Adjustable design allows easy integration with various tractor implements

• Perfect Compatibility: Designed specifically for Class I tractors and standard 3-point hitch systems

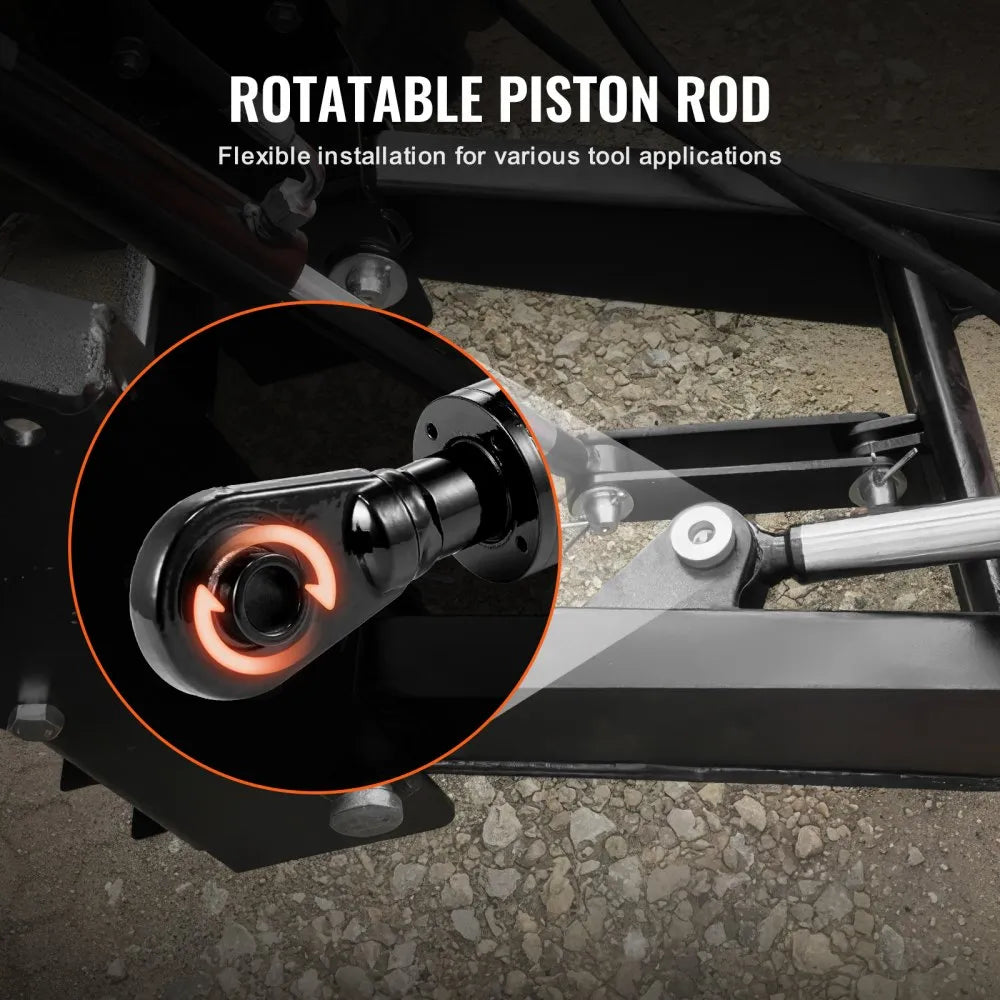

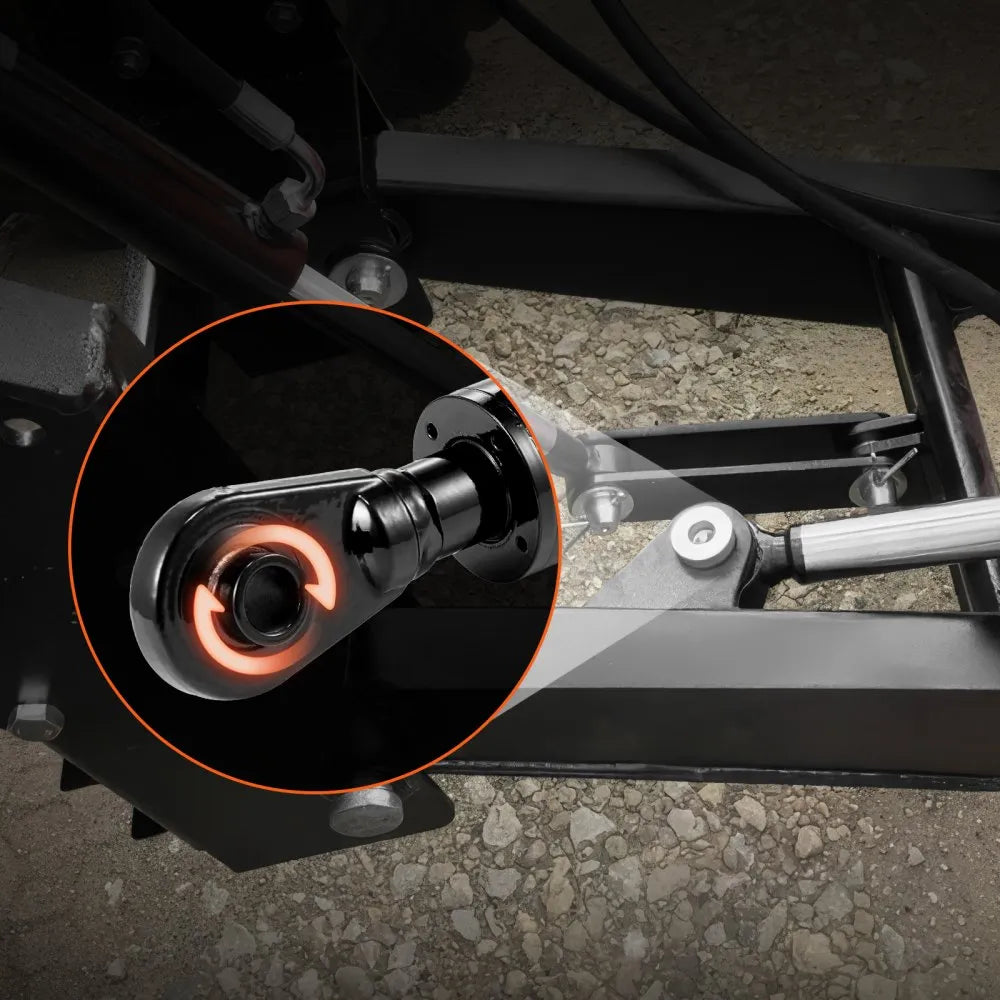

• Rotatable Piston Rod: Ball joint linkage structure enhances flexibility and alignment during use

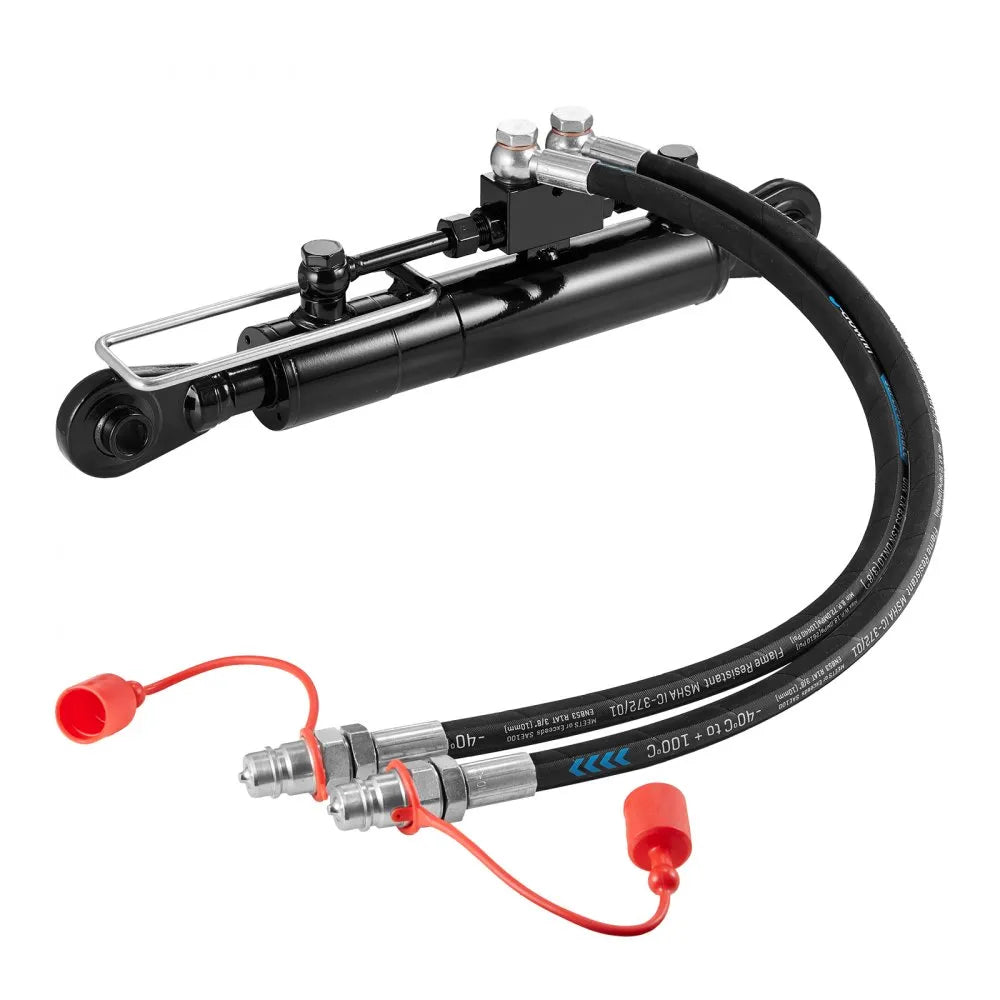

• Easy Assembly: Comes with two hydraulic hoses and fittings for simple and quick installation

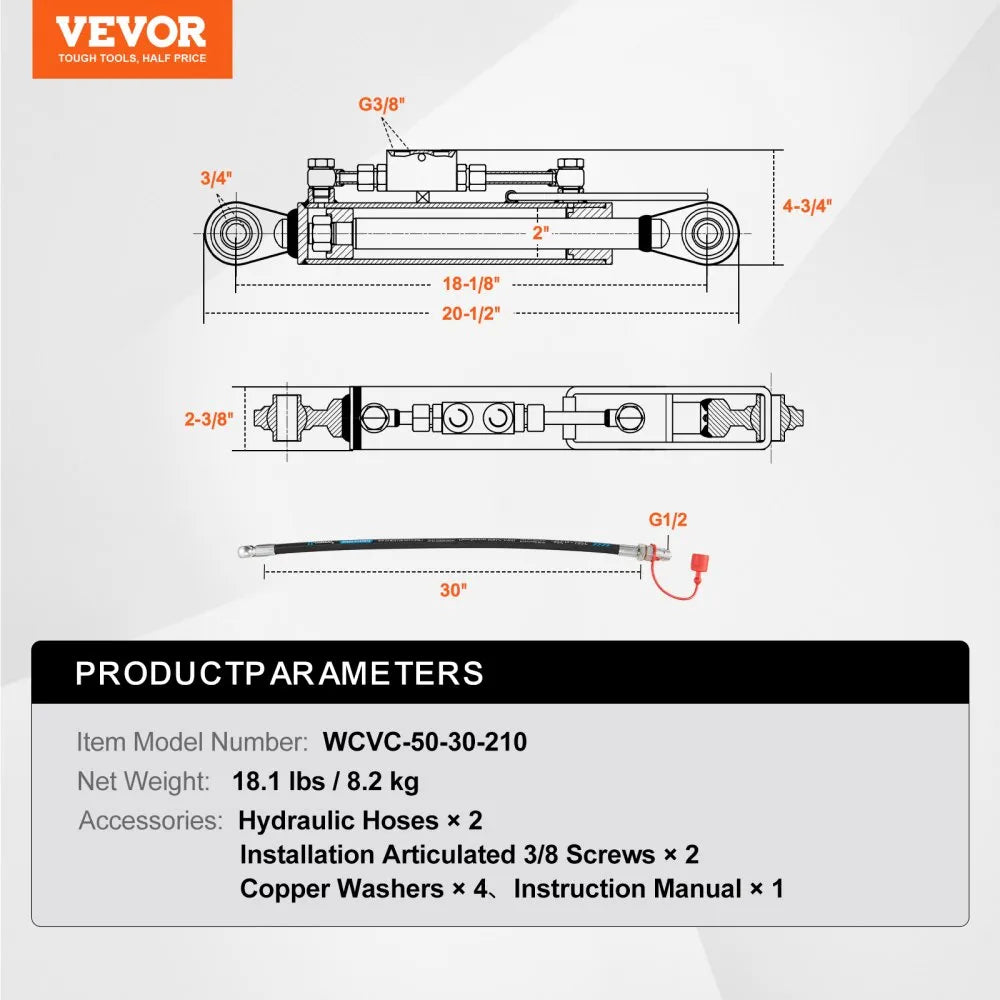

Specifications:

• Product Type: Hydraulic Top Link Cylinder

• Brand: VEVOR

• Model: WCVC-50-30-210

• Material: 45# Steel

• Color: Black

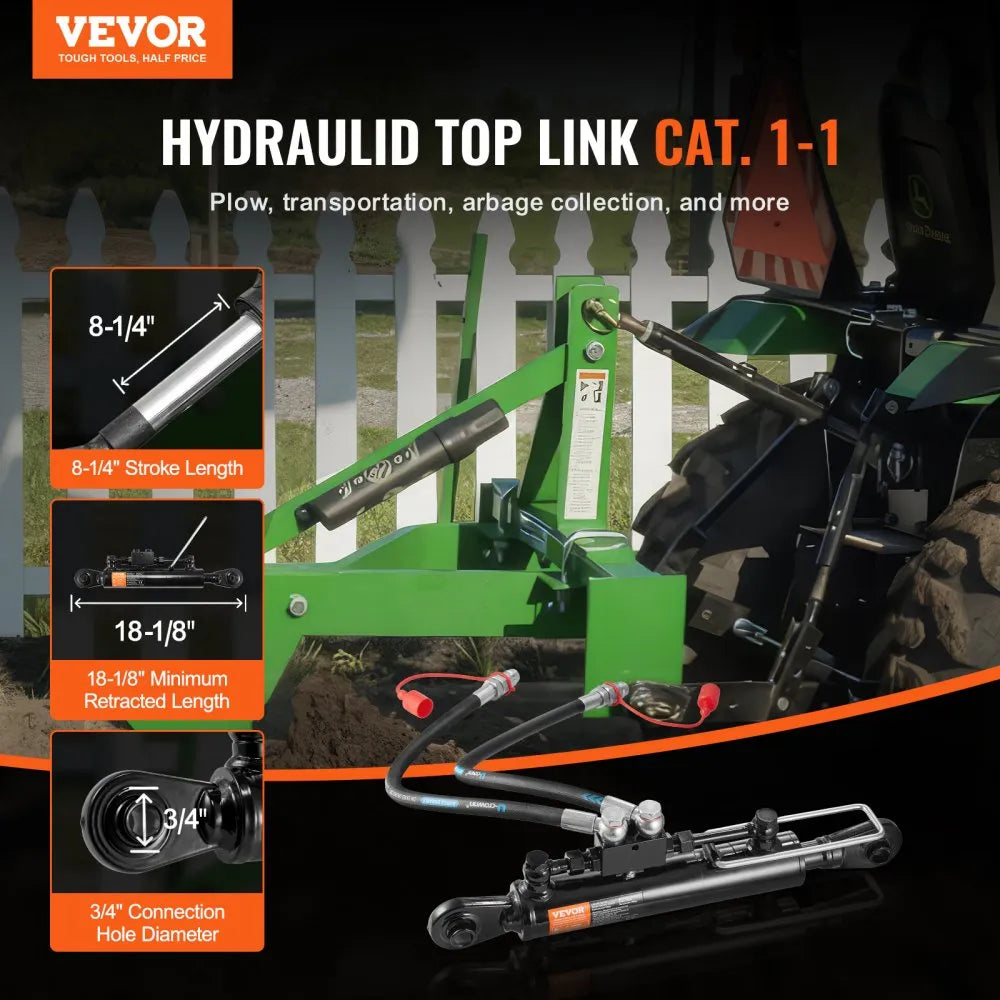

• Stroke: 8-1/4 in / 210 mm

• Minimum Retracted Length: 18-1/8 in / 460 mm

• Adjustable Length Range: 18-1/8 – 26-3/8 in

• Cylinder Inner Diameter: 2.0 in / Φ50 mm

• Outer Diameter: 2-3/8 in / Φ60 mm

• Piston Rod Diameter: 1.2 in / Φ30 mm

• Thrust Force: 3.5 Tons

• Pull Force: 2.3 Tons

• Maximum / Rated Working Pressure: 20 / 18 MPa (2900 / 2610 PSI)

• Connection Hole Diameter: 0.8 in / Φ19.4 mm

• Connection Hole Width: 1.7 in / 44 mm

• Hydraulic Hose Size (I.D. × Length): 0.4 × 30.1 in / ∅10 × 765 mm

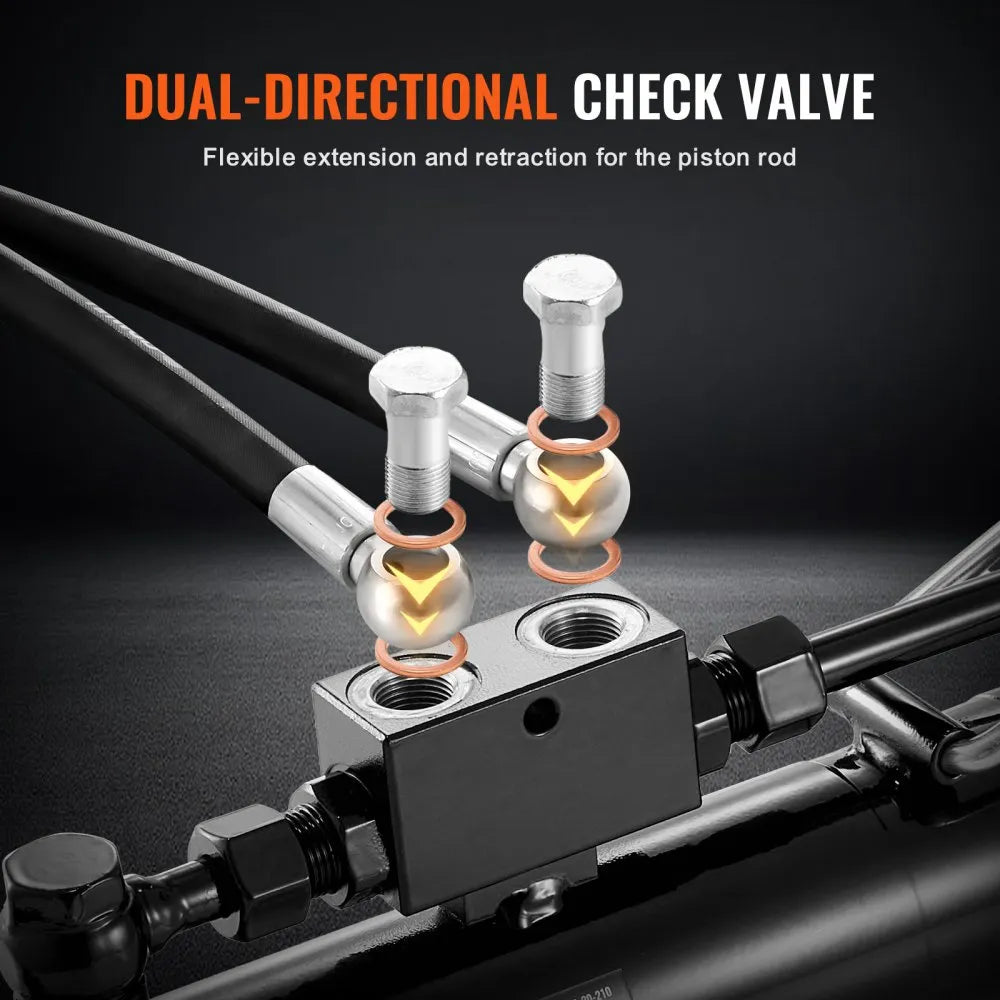

• Check Valve Port: G3/8"

• Fitting Type: G1/2

• Compatible Equipment: Class I Tractors

• Product Dimensions: 20.5 × 4.7 × 2.4 in / 520 × 120 × 60 mm

• Net Weight: 18.1 lbs / 8.2 kg

• Service Life: 1-Year Warranty

• Application: Tractor implement adjustment and hydraulic linkage systems

• Suitable For: Agricultural / Farm / Professional Use
