Description

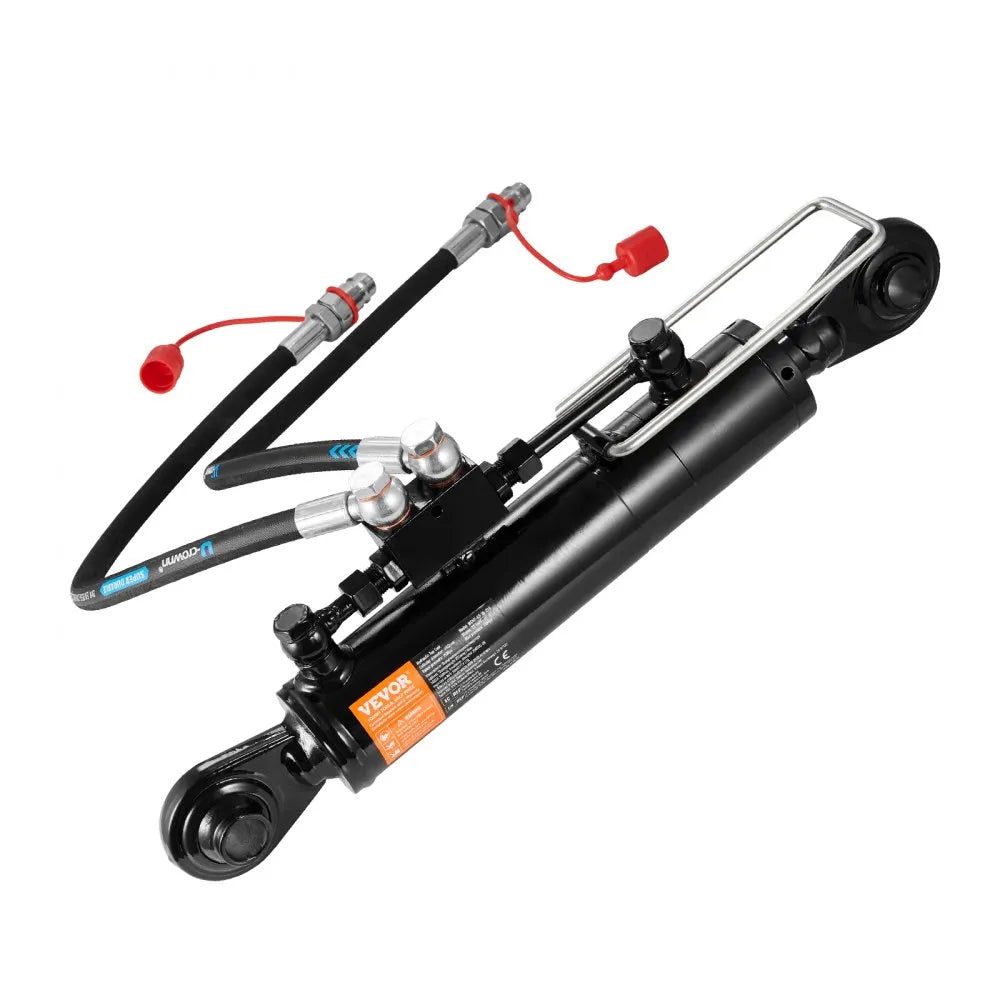

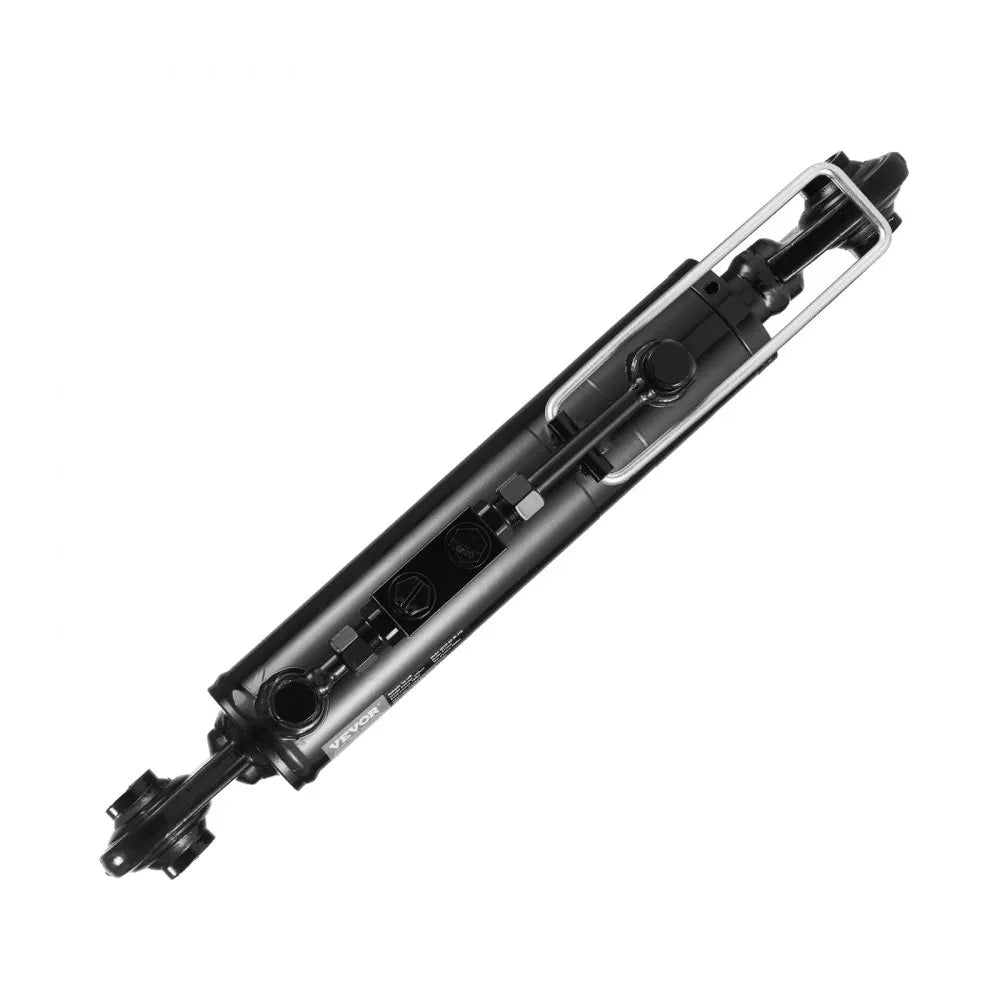

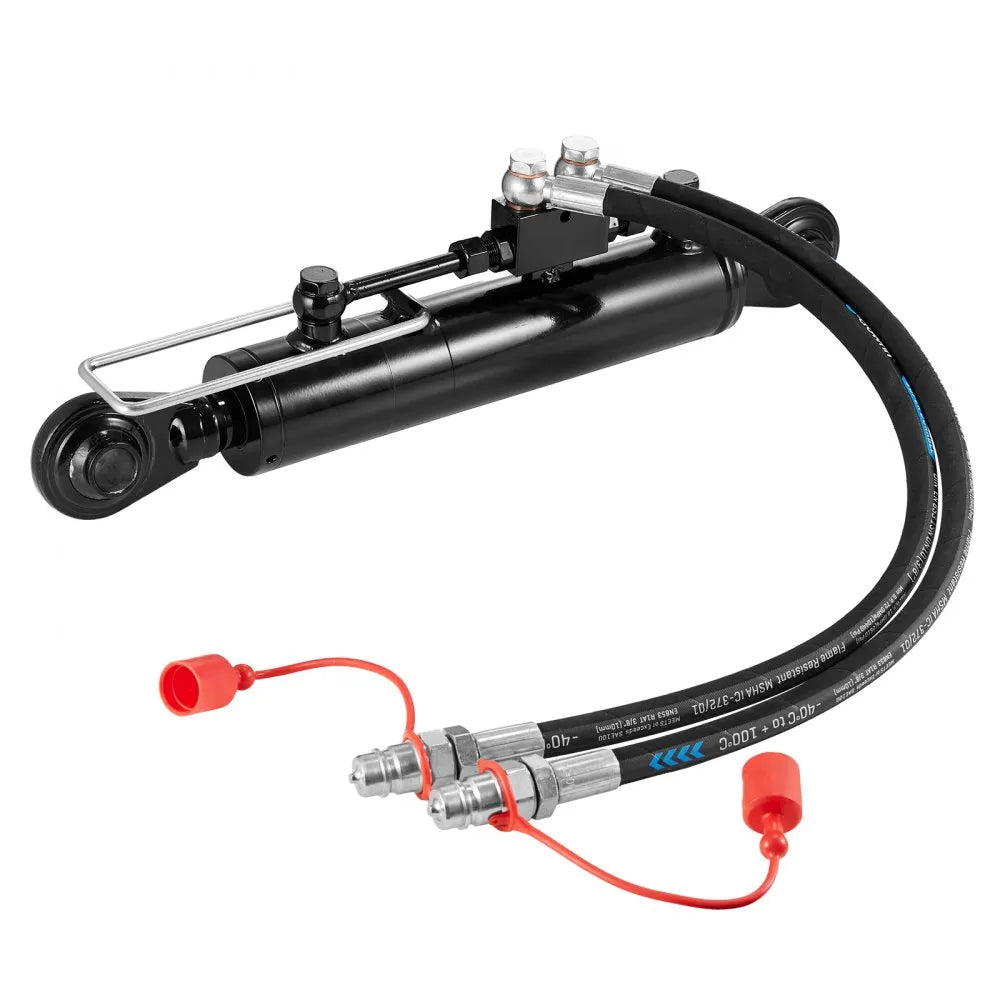

VEVOR Hydraulic Top Link Cat. 2-2 is a robust hydraulic cylinder designed for Class II tractors, providing reliable push and pull force for heavy-duty agricultural applications. Constructed from high-strength 45# steel with a leak-proof design, this cylinder ensures durability and long service life. It comes complete with two hydraulic hoses and a G3/8" check valve for secure and flexible installation. Its adjustable stroke length and compact dimensions make it ideal for precise equipment control and compatibility with a wide range of tractor implements.
Key Features:
-
Enhanced Push-Pull Force: 4 tons thrust and 2.5 tons pull force for heavy-duty applications
-
Durable Construction: Made from high-strength 45# steel with black paint finish
-
Leak-Proof Design: Ensures reliable hydraulic performance under high pressure
-
Flexible Installation: Includes two hoses and G3/8" check valve for secure setup
-
Perfect Compatibility: Designed for Class II tractors and standard hydraulic fittings
-
Easy Assembly: Simple connection with standard G1/2 fittings
-

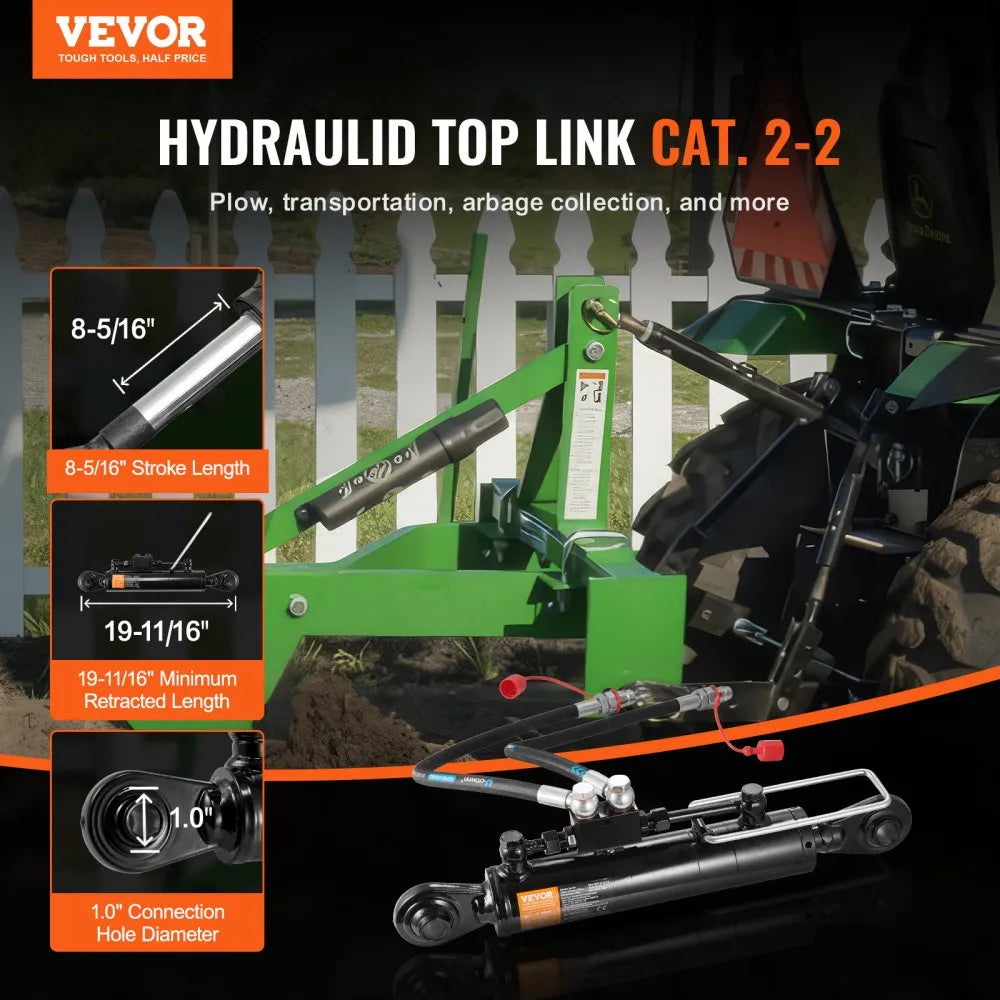

Adjustable Stroke: Stroke length of 8-5/16 in (211 mm) with minimum retracted length of 19-11/16 in (500 mm)
-
Compact & Reliable: Cylinder diameter 2.5 in (63 mm) and outer diameter 2-7/8 in (73 mm)
Specifications:
-

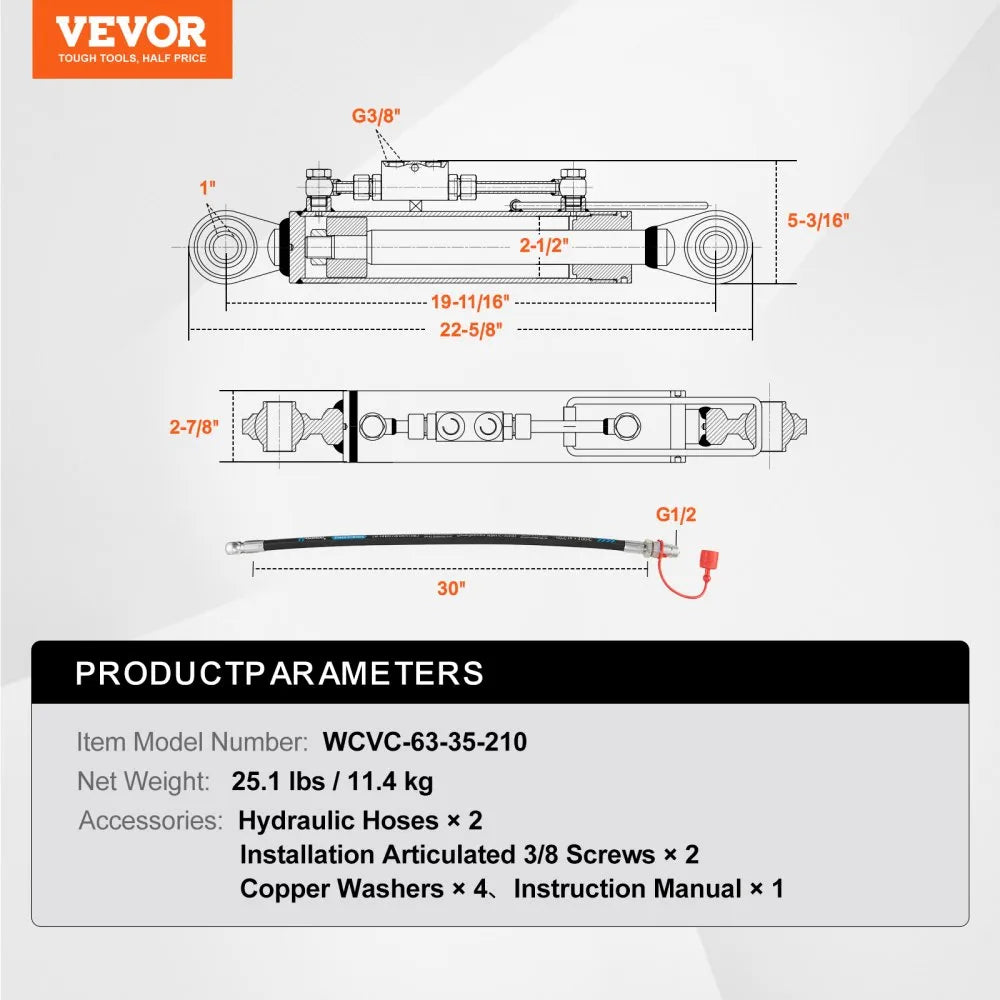

Item Model Number: WCVC-63-35-210
-
Hydraulic Hose (I.D. × L.): 0.4 × 30.1 in / ∅10 × 765 mm
-
Piston Rod Diameter: 1.4 in / Φ35 mm
-
Minimum Retracted Length: 19-11/16 in / 500 mm
-
Stroke Length: 8-5/16 in / 211 mm
-
Cylinder Diameter (I.D.): 2.5 in / Φ63 mm
-
Connection Hole Width: 2.0 in / 51 mm
-

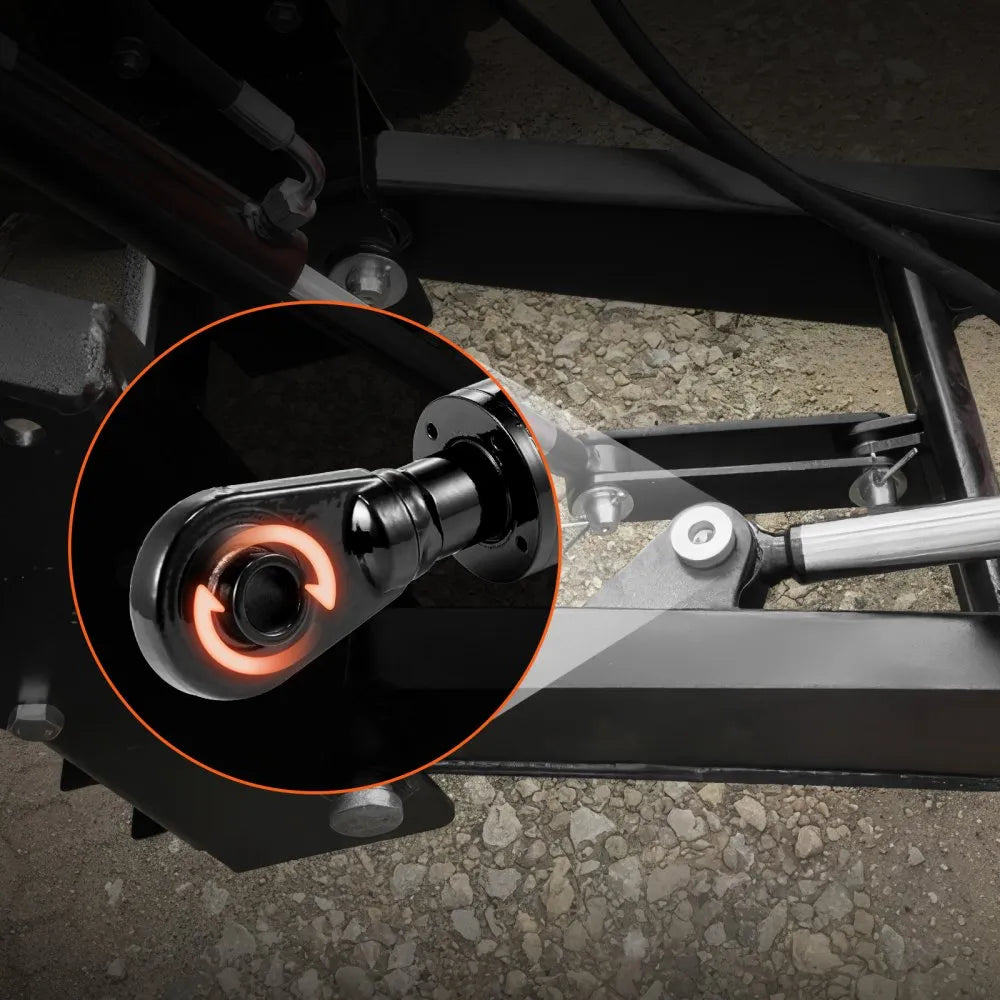

Connection Hole Diameter: 1.0 in / Φ25.5 mm
-
Fitting Type: G1/2
-

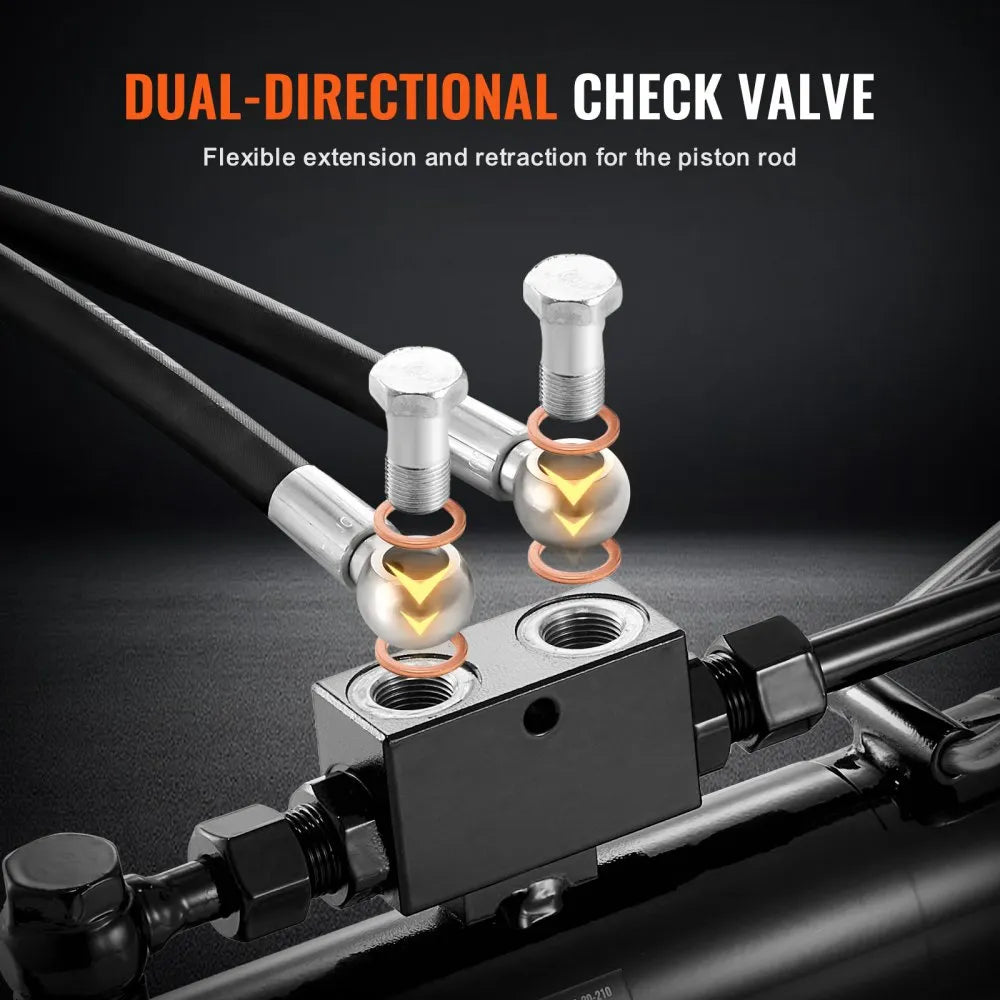

Check Valve Inlet/Outlet Port: G3/8"
-
Maximum/Rated Working Pressure: 20 / 16 MPa (2900 / 2320 psi)
-
Color & Surface Treatment: Black Paint
-
Thrust/Pull Force: 4 tons / 2.5 tons
-
Compatible Equipment: Class II Tractors
-
Service Life: 1-year warranty
-
Product Dimensions: 22.6 × 5.2 × 2.9 in / 575 × 132 × 73 mm
-
Net Weight: 25.1 lbs / 11.4 kg
-
Main Material: 45# steel
