Description

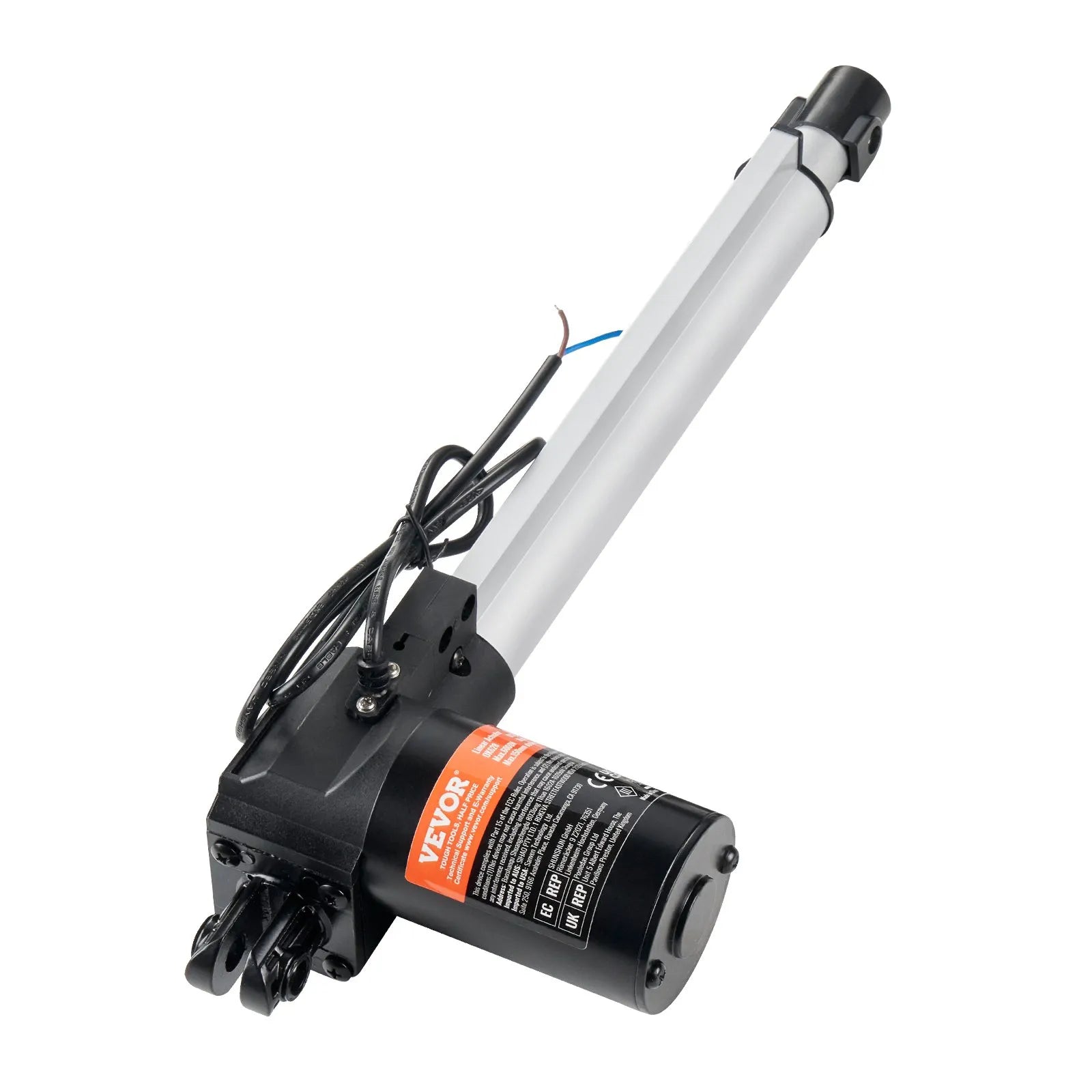

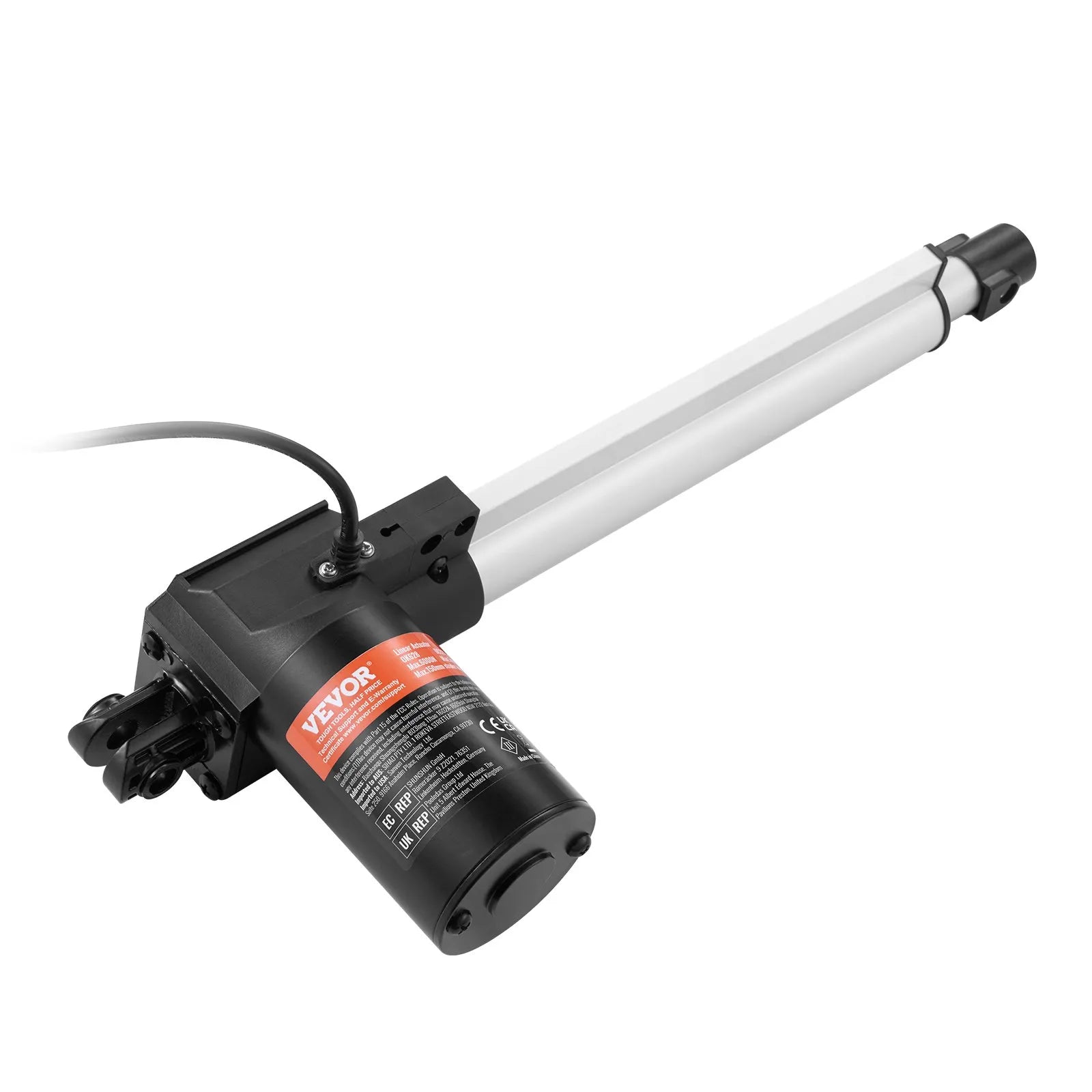

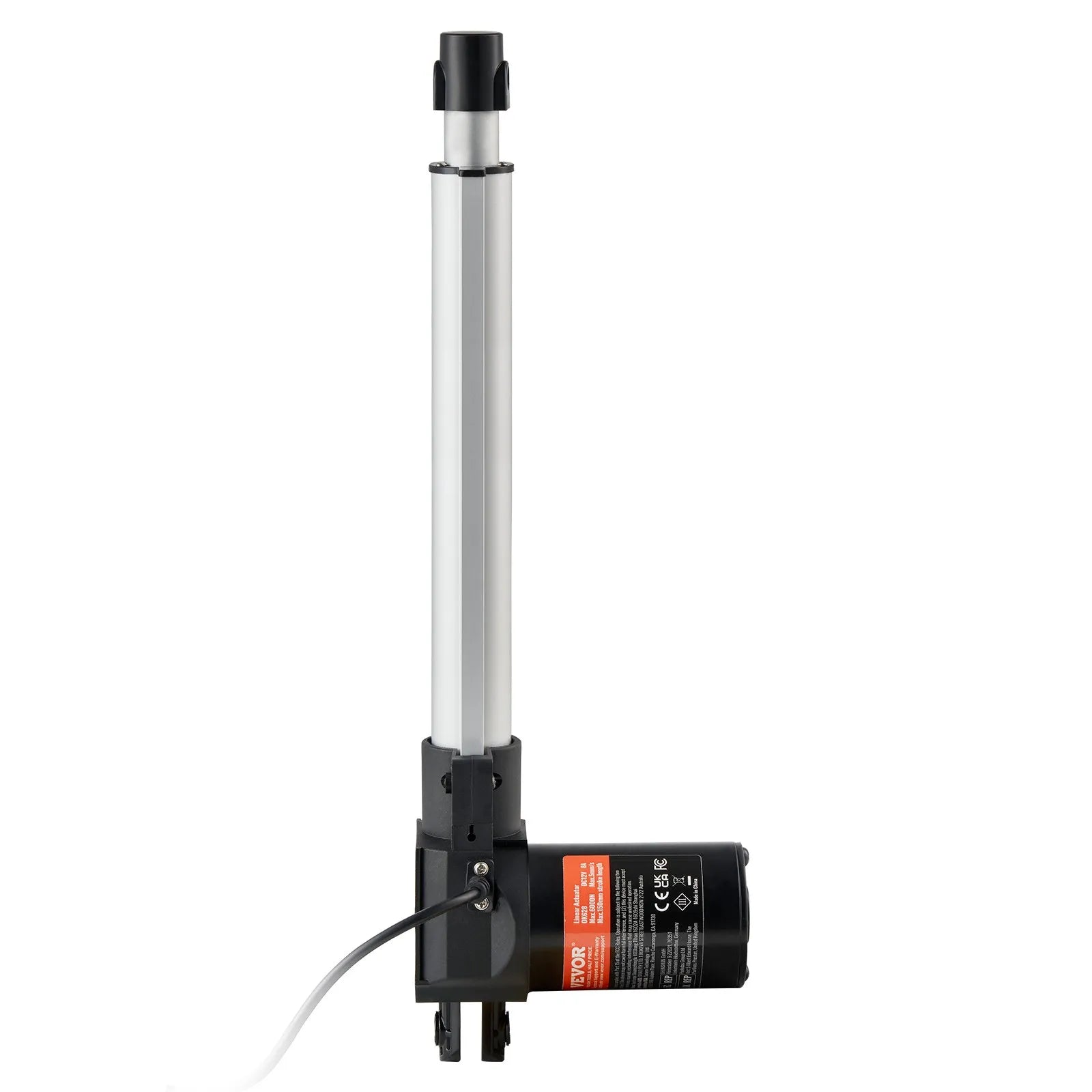

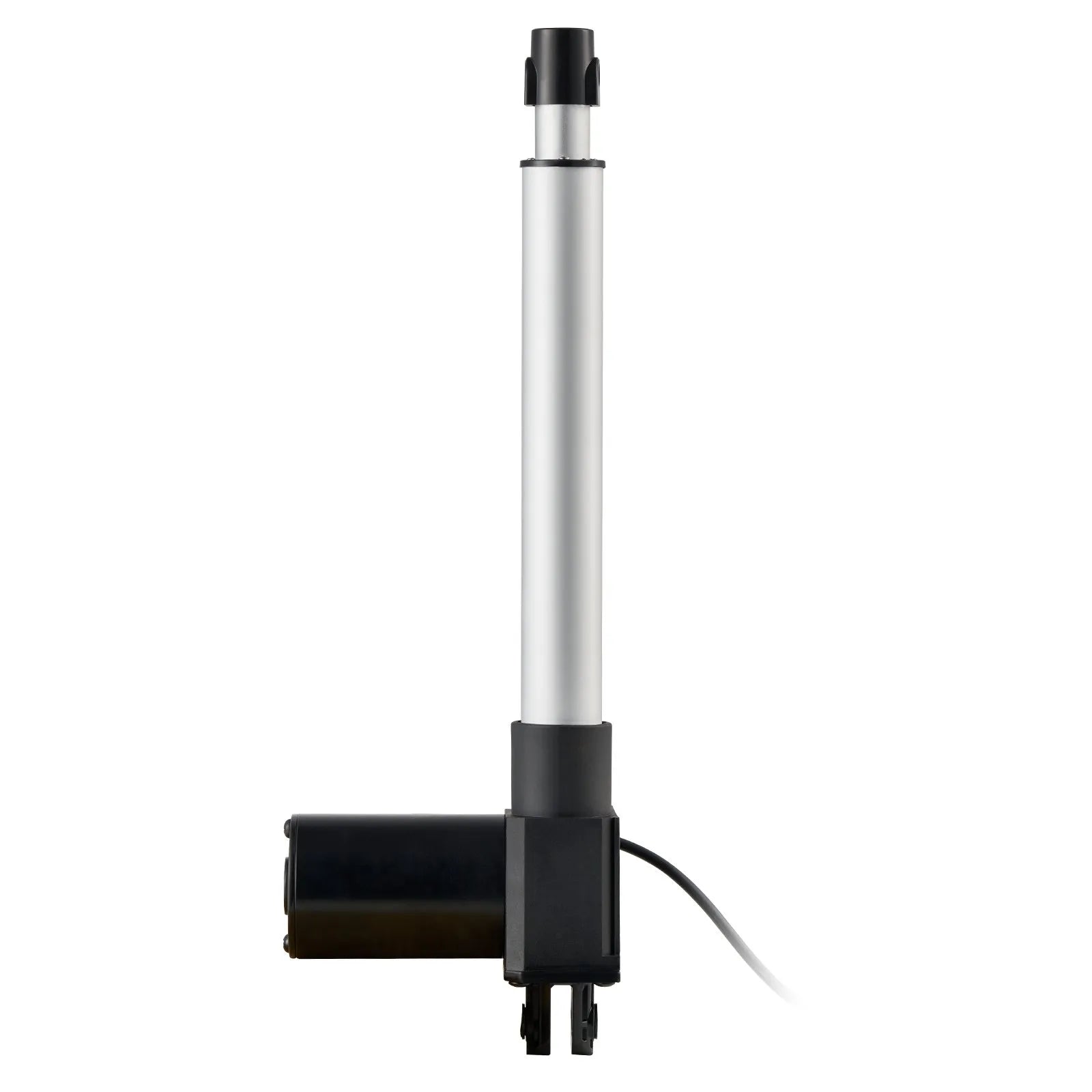

VEVOR Linear Actuator 12V 10 Inch is a heavy-duty electric motion device designed to provide smooth and reliable linear movement for automation applications. With a powerful 6000N (1320 lbs) load capacity, it is suitable for demanding industrial and mechanical systems. Built from durable aluminum alloy and protected with an IP44 rating, this actuator ensures stable performance and resistance against dust and light moisture. Operating at a low noise level (≤50dB) and a controlled speed of 0.19 in/s (5 mm/s), it delivers precise motion control for electric doors, industrial machinery, vessels, cargo systems, and other automation projects. Easy to install with included mounting brackets, it offers dependable performance for various applications.
Key Features:
-
High Load Capacity (6000N / 1320lbs): Strong thrust force for heavy-duty applications.
-
10-Inch Stroke Length: Provides controlled linear motion for automation systems.
-

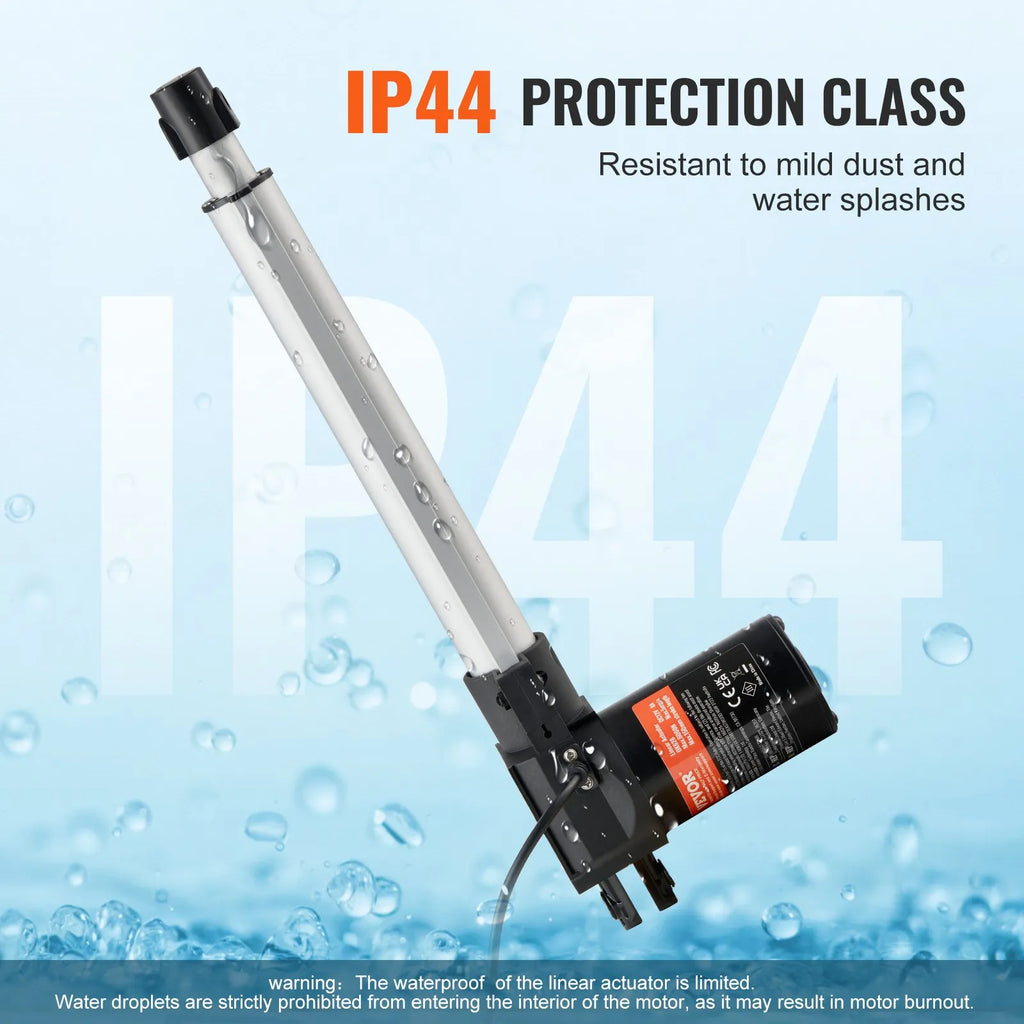

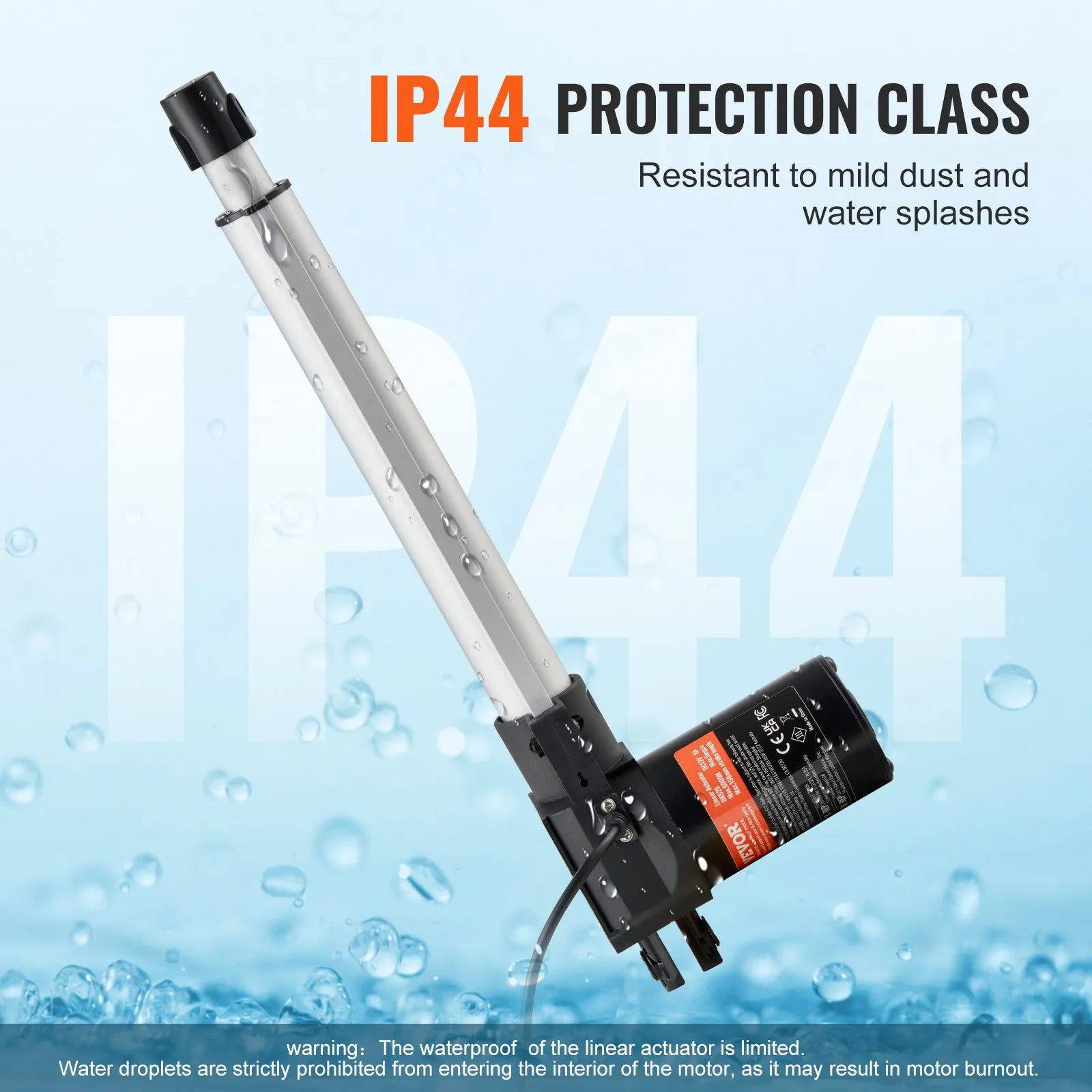

IP44 Protection Class: Offers protection against solid objects and light water exposure.
-
Low Noise Operation (≤50dB): Ensures quiet and smooth performance.
-

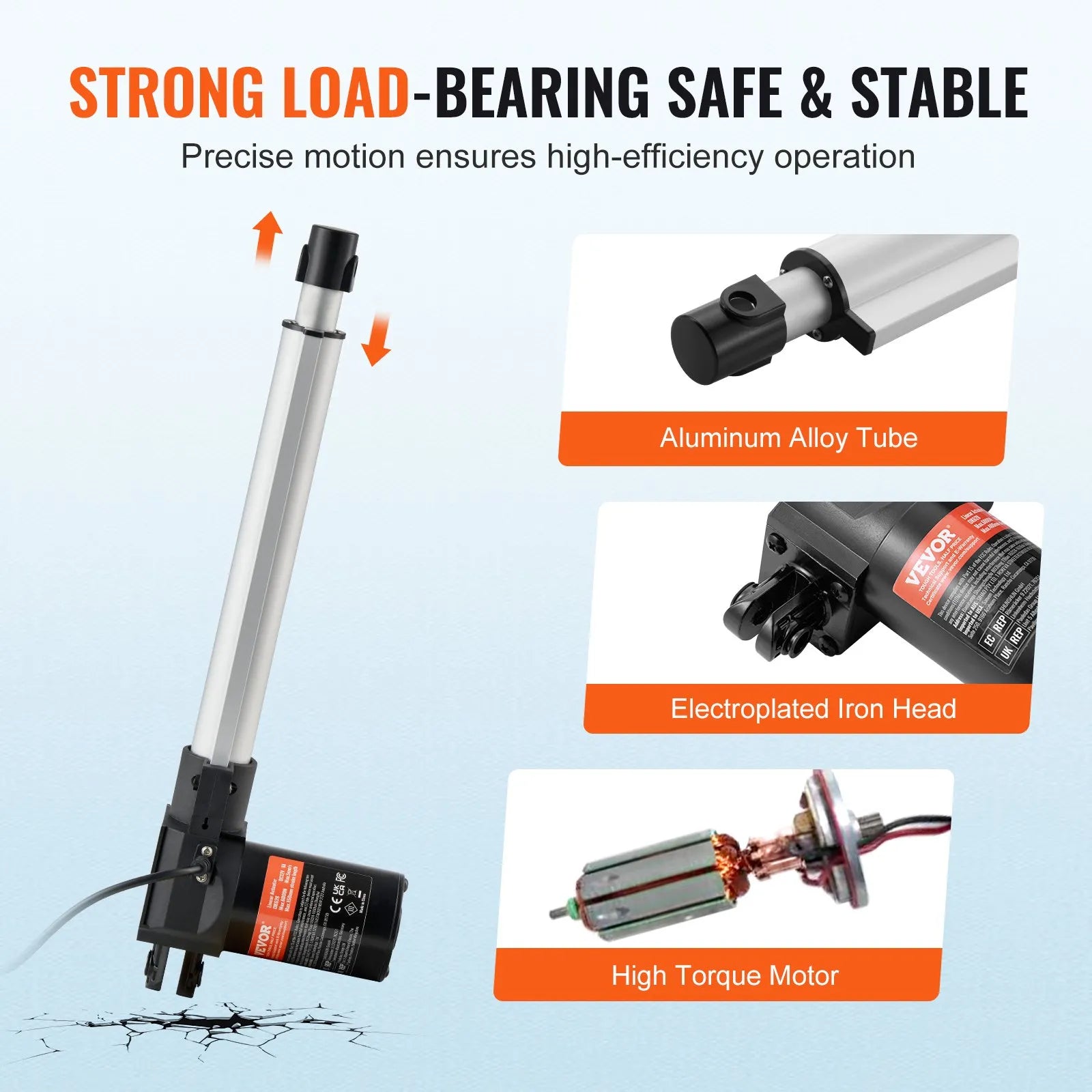

Durable Aluminum Alloy Construction: Built for long-term reliability.
-

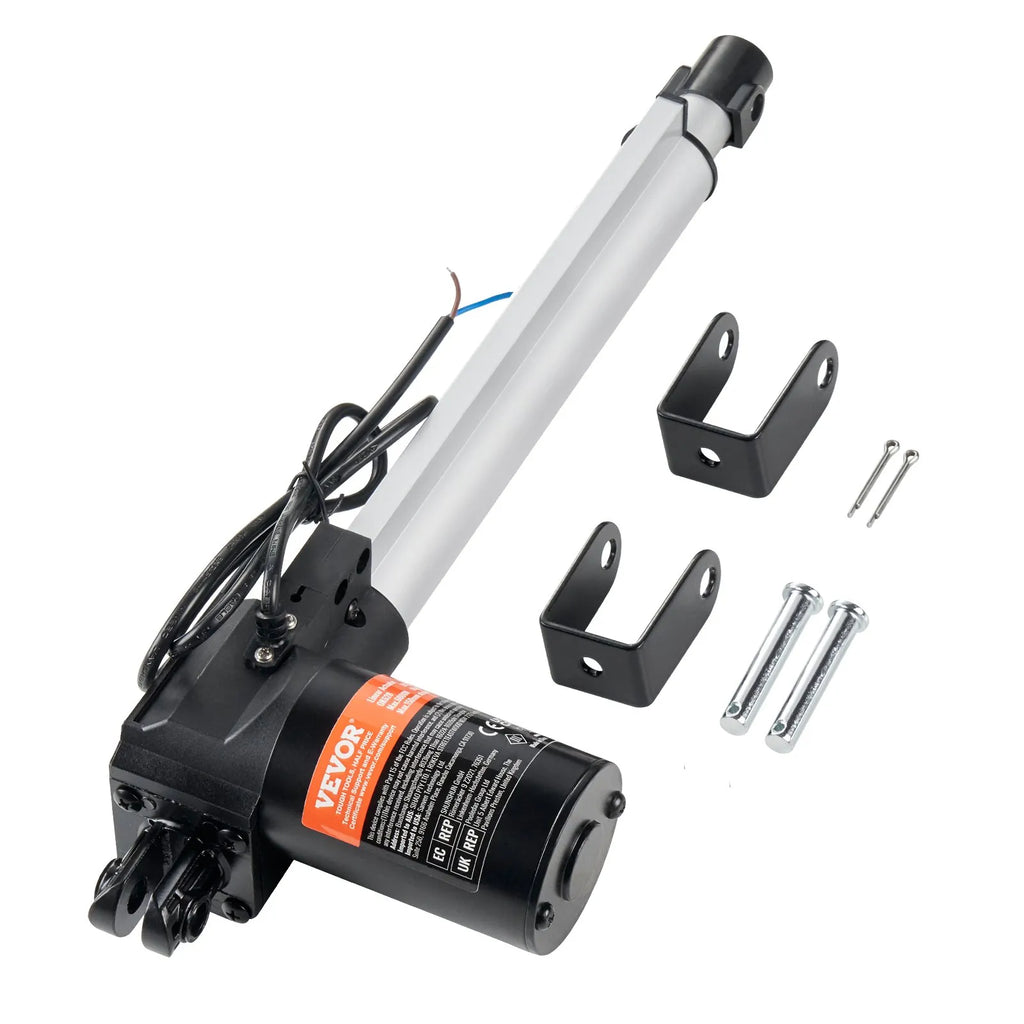

Easy Installation: Includes mounting bracket for convenient setup.
-

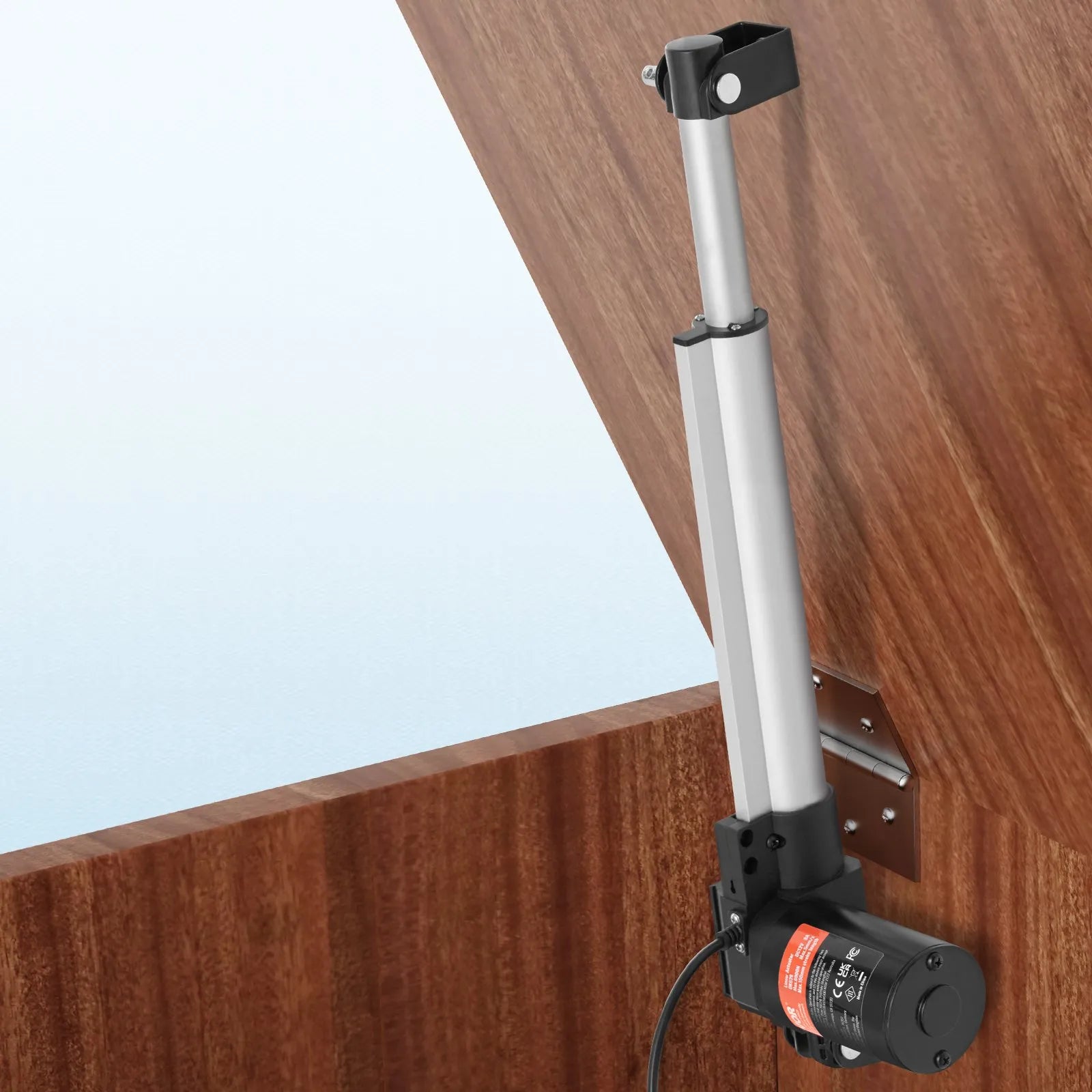

Wide Applications: Suitable for electric doors, industrial machinery, vessels, and cargo systems.

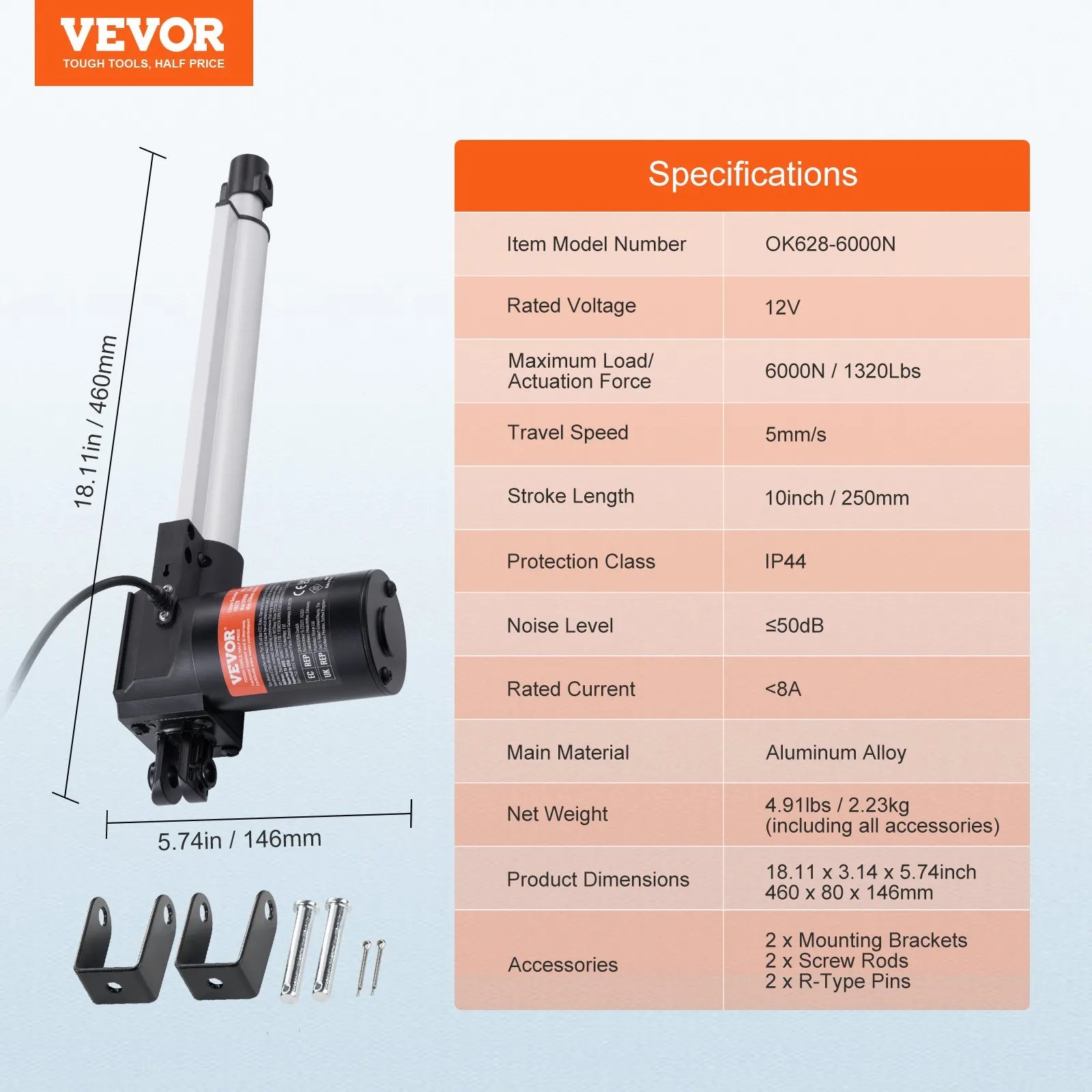

Specifications:
-
Product Type: Industrial & Scientific > Automation & Control > Linear Actuators
-
Item Model Number: OK628-6000N
-
Rated Voltage: DC12V
-
Maximum Load / Actuation Force: 6000N
-

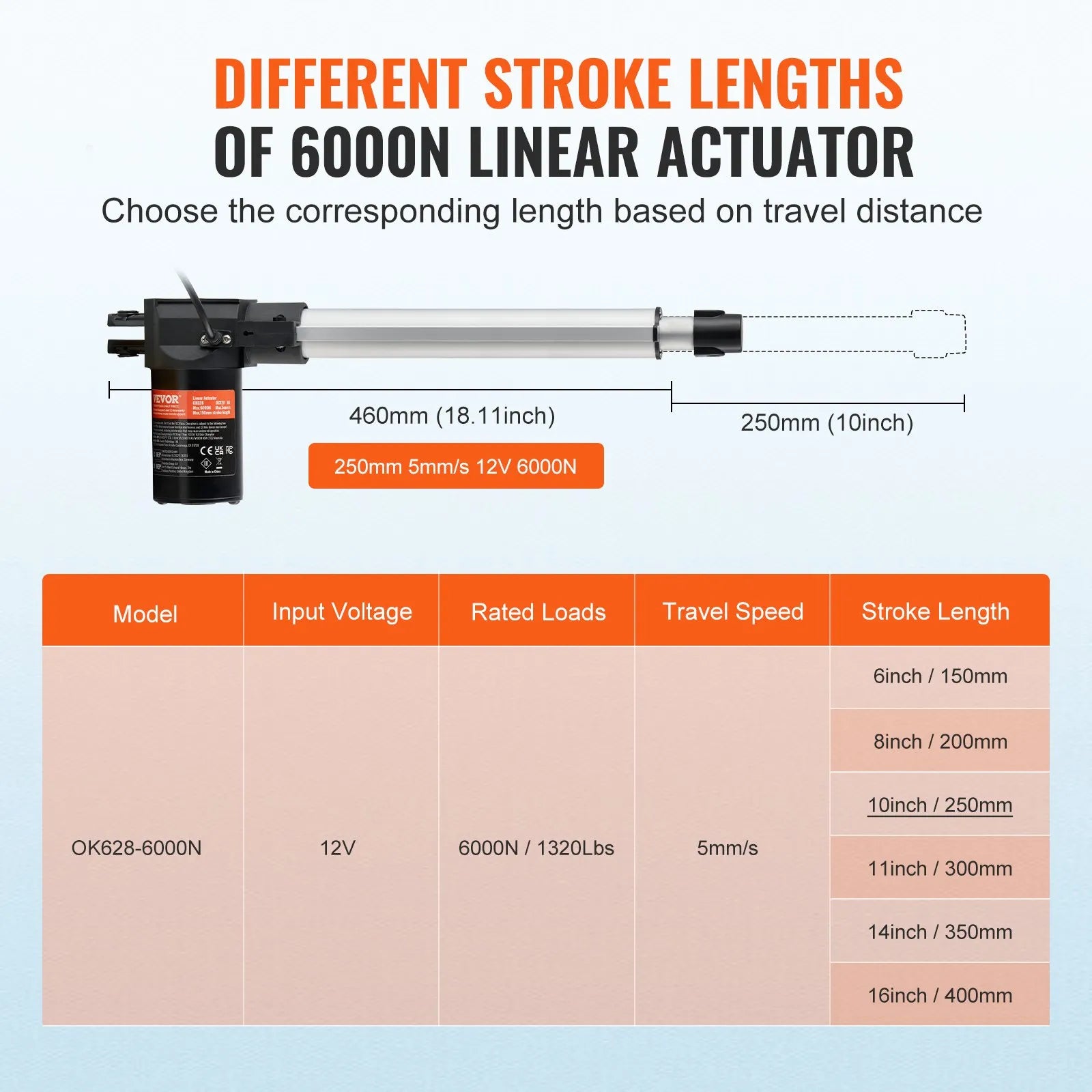

Stroke Length: 10 in / 250 mm
-
Travel Speed: 0.19 in/s / 5 mm/s
-
Rated Current: <8A
-
Protection Class: IP44
-
Noise Level: ≤50dB
-
Main Material: Aluminum Alloy
-
Product Dimensions: 18.11 x 3.14 x 5.74 in / 460 x 80 x 146 mm
-
Net Weight: 4.91 lbs / 2.23 kg (including all accessories)
-

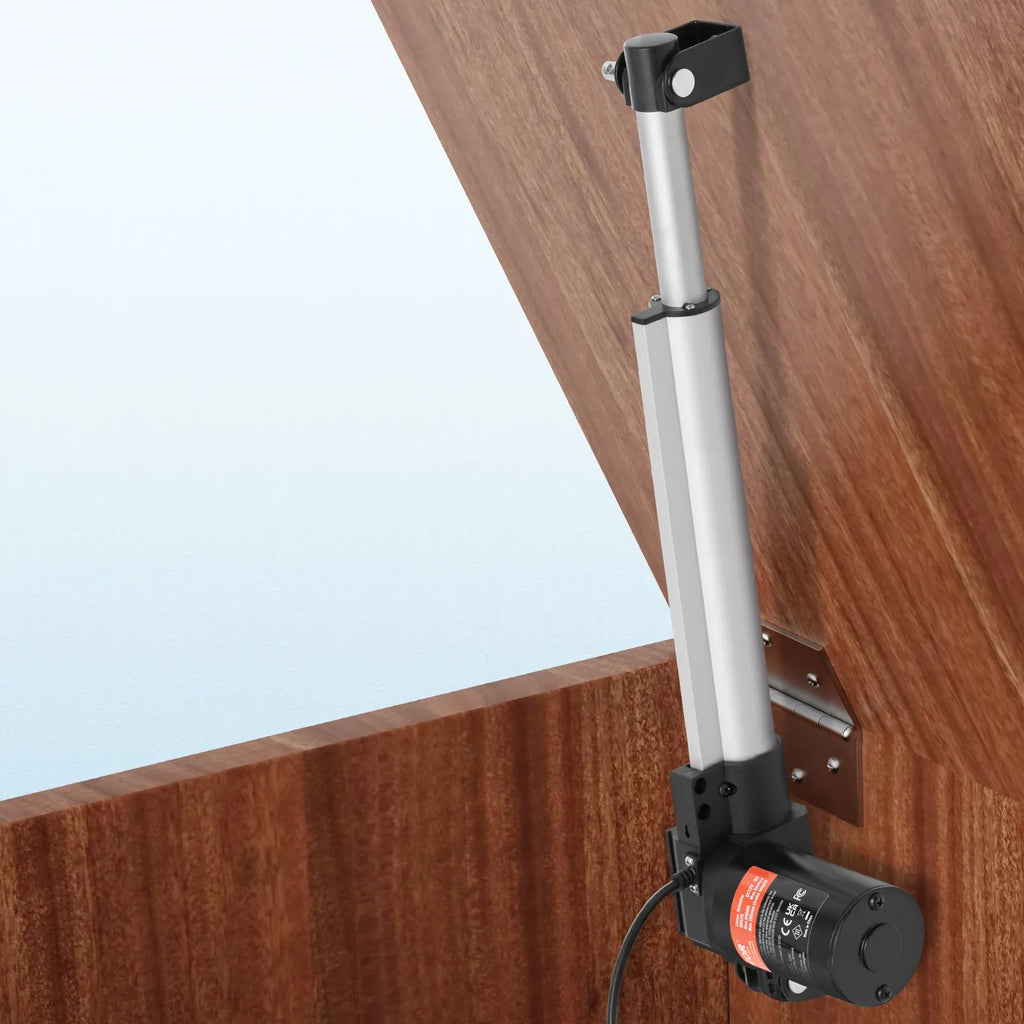

Application: Electric doors, industrial equipment, vessels, cargo systems, automation projects
-
Suitable For: Industrial and mechanical automation use
