Description

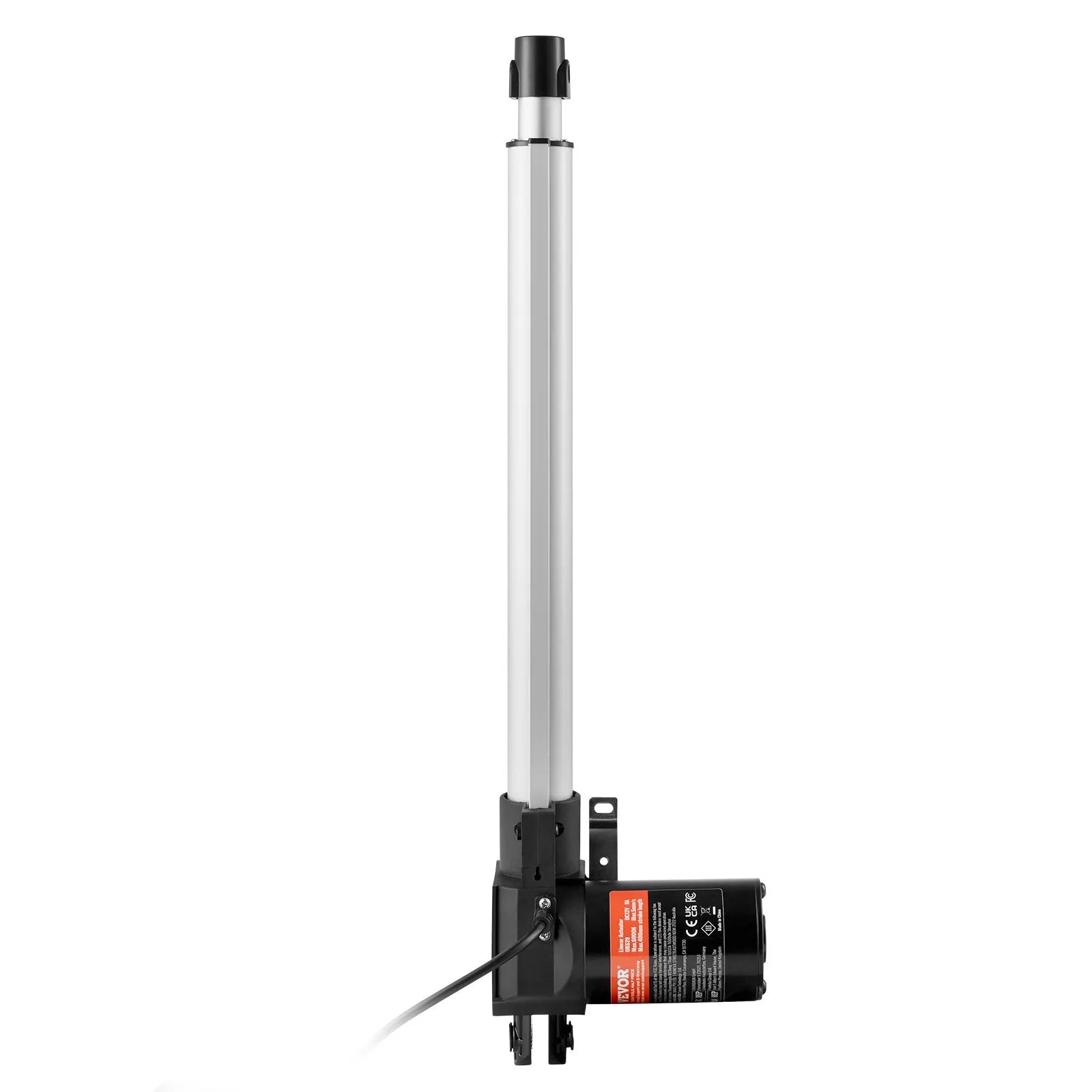

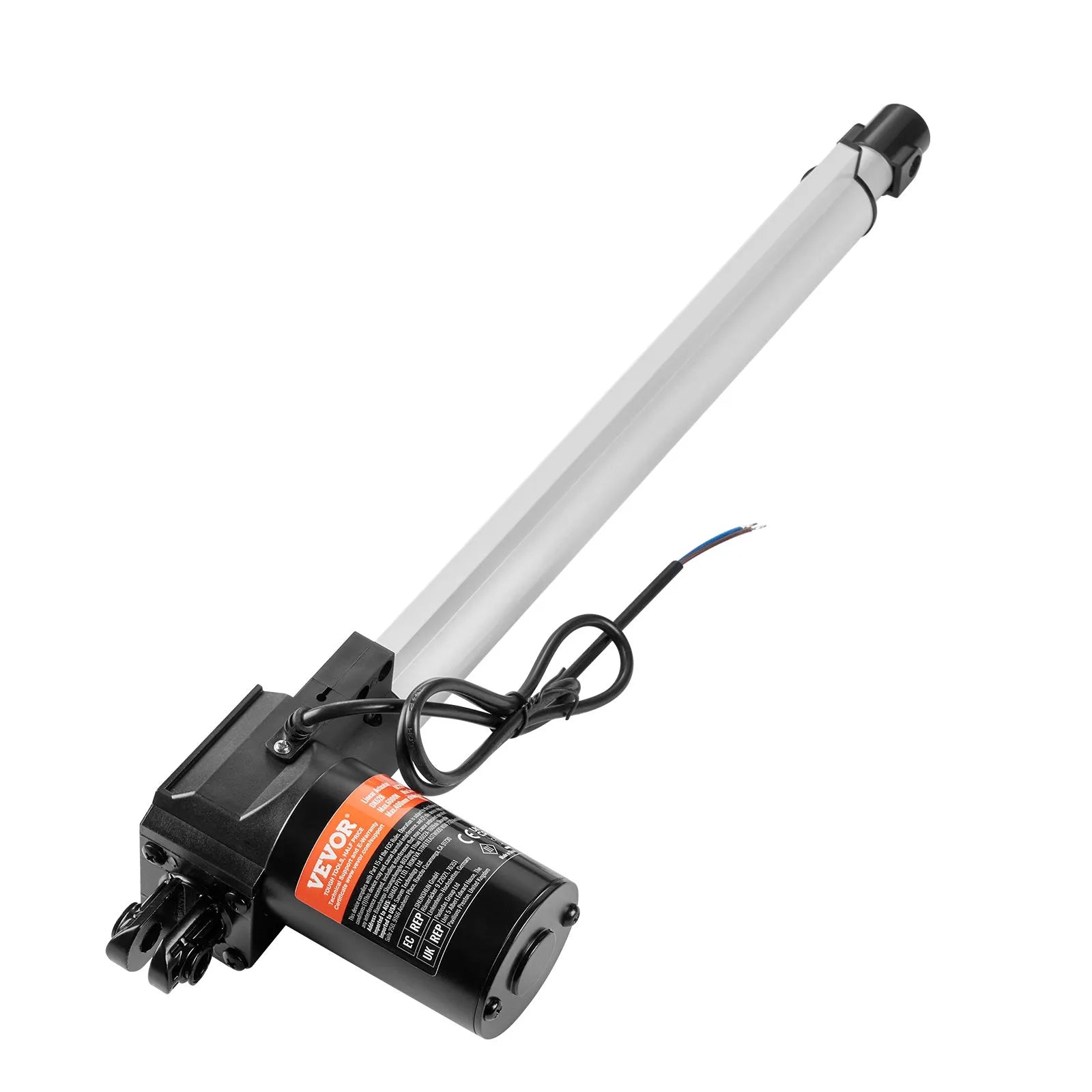

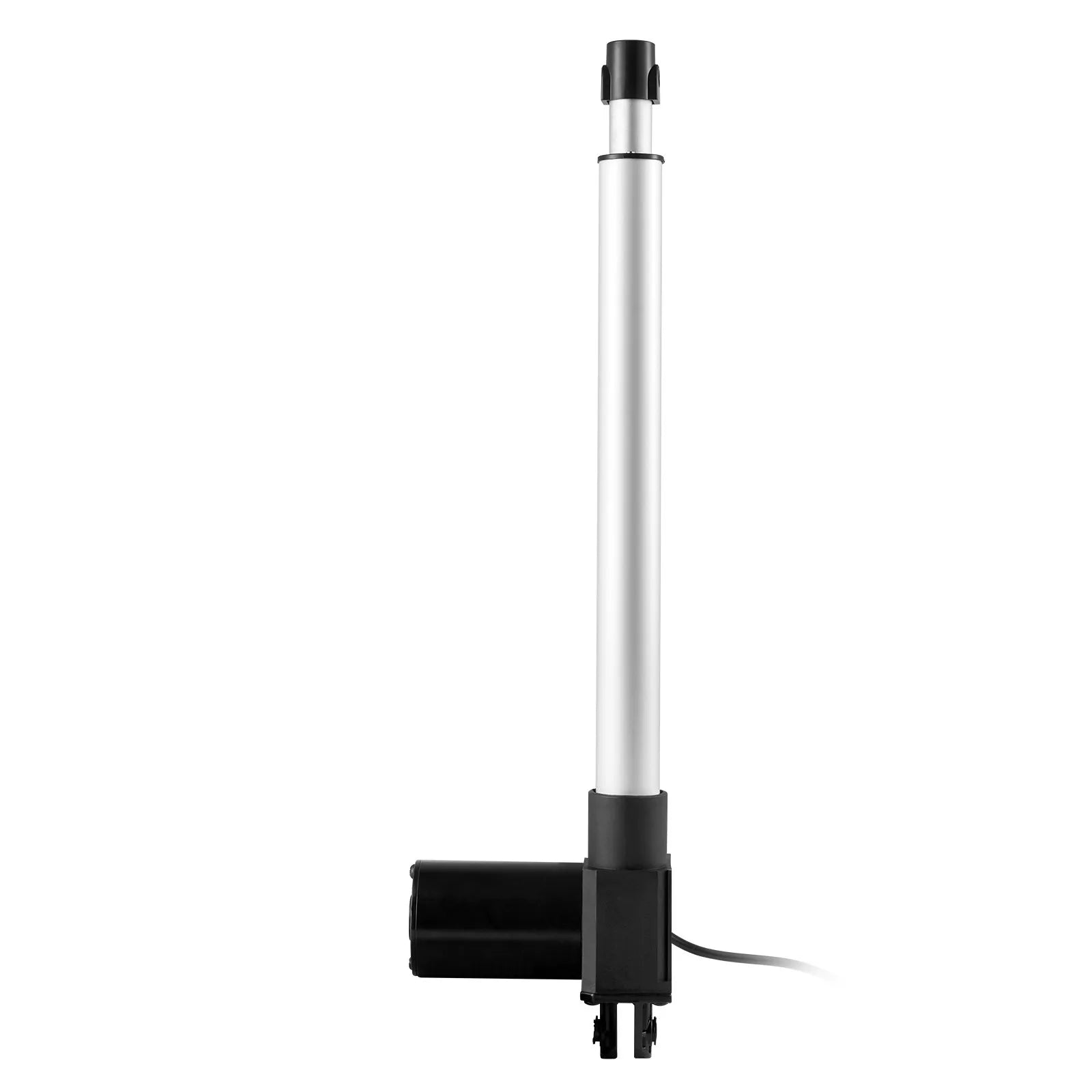

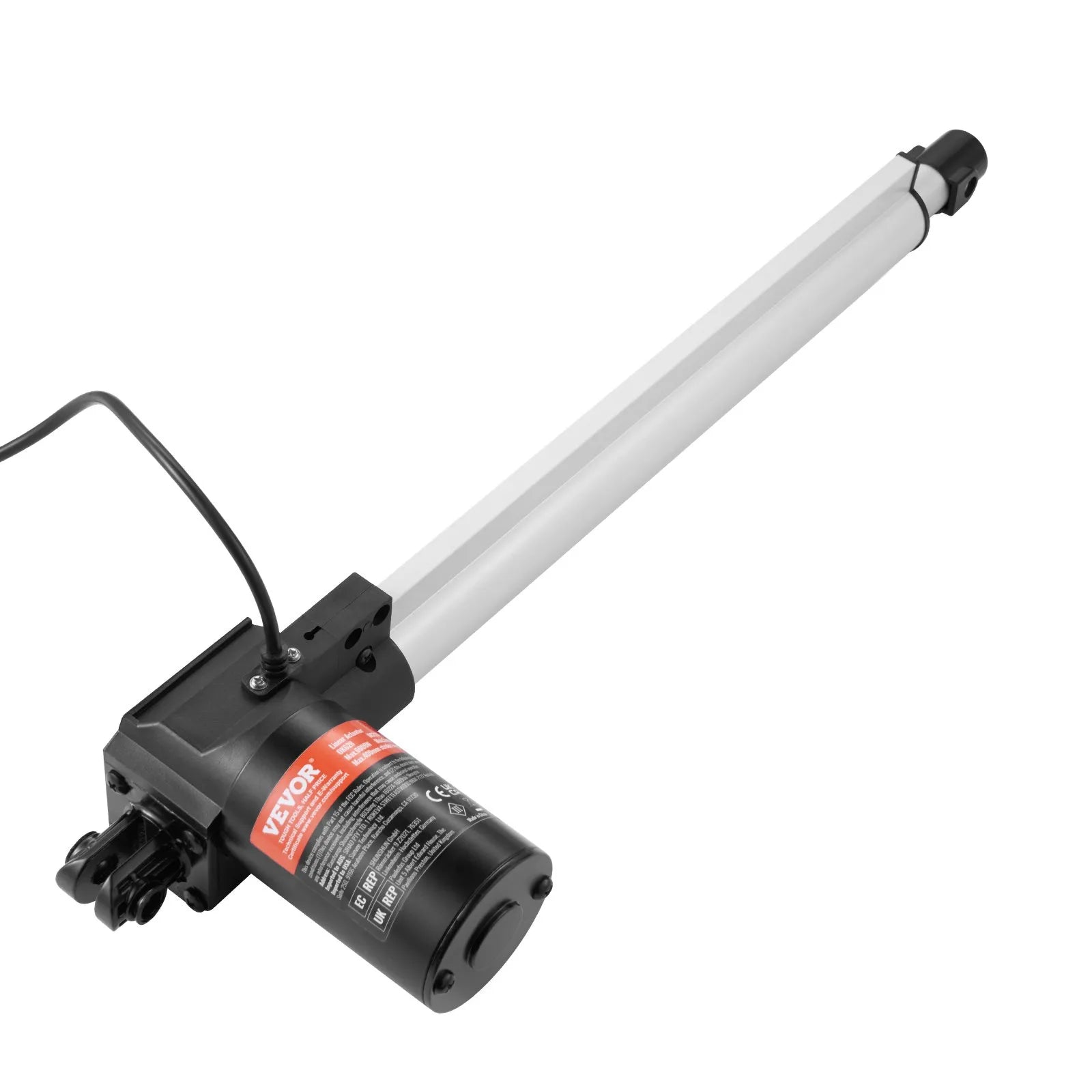

VEVOR Linear Actuator 12V 14 Inch Heavy Duty is a powerful linear motion solution designed for demanding automation applications. With a strong 6000N (1320 lbs) thrust capacity and 14-inch (350 mm) stroke length, it provides extended and stable movement control. Constructed from durable aluminum alloy and rated IP44 for protection, it offers resistance against dust and light moisture. Operating at a controlled speed of 0.19 in/s (5 mm/s) with low noise (≤50dB), it ensures smooth and reliable performance. Ideal for electric doors, industrial machinery, vessels, cargo systems, and various mechanical automation projects, it includes a mounting bracket for easy installation.
Key Features:
-
High Load Capacity (6000N / 1320lbs): Delivers strong and reliable thrust for heavy-duty applications.
-
14-Inch Stroke Length: Provides extended linear travel for flexible installation needs.
-

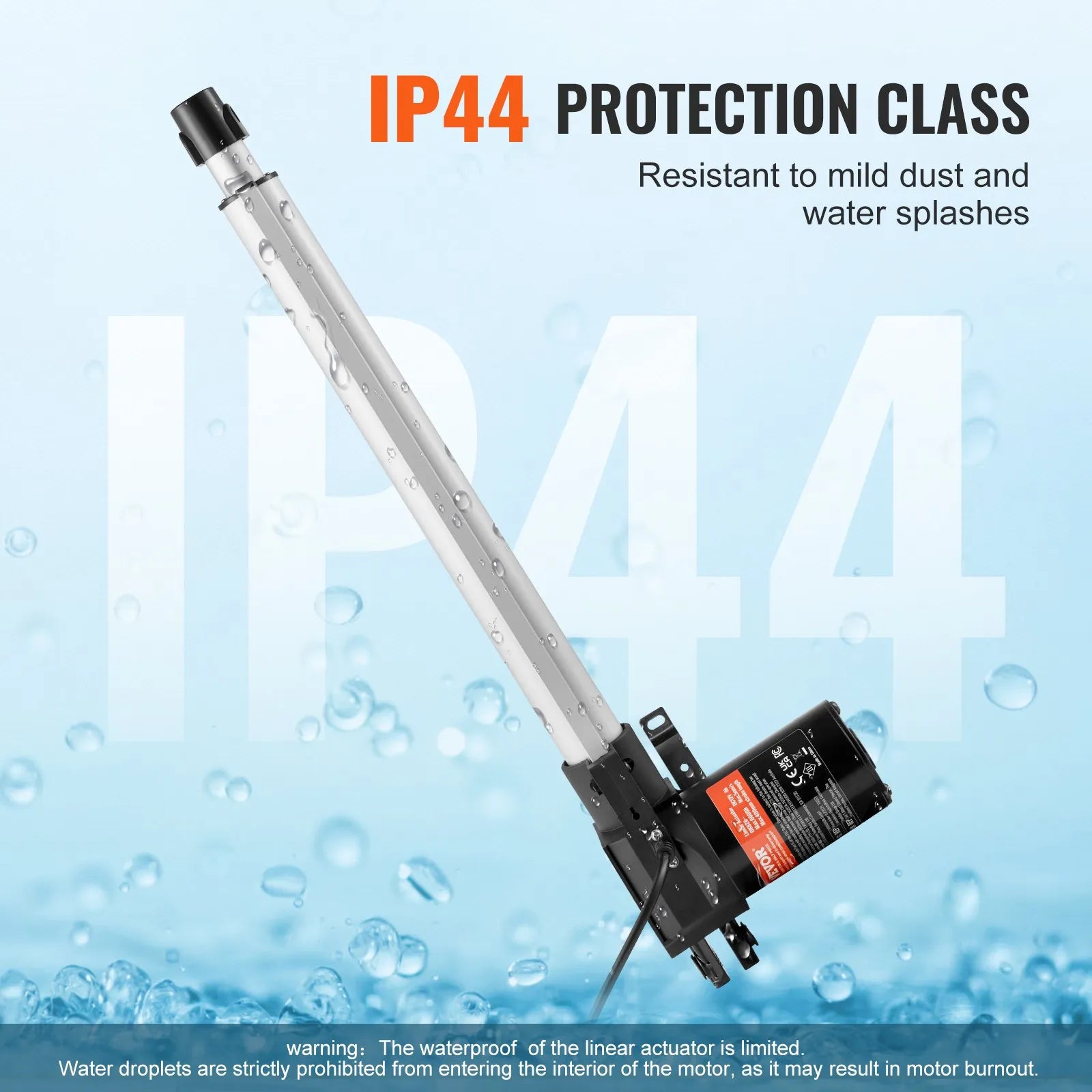

IP44 Protection Class: Offers protection against solid particles and light water exposure.
-
Low Noise Operation (≤50dB): Ensures smooth and quiet performance.
-

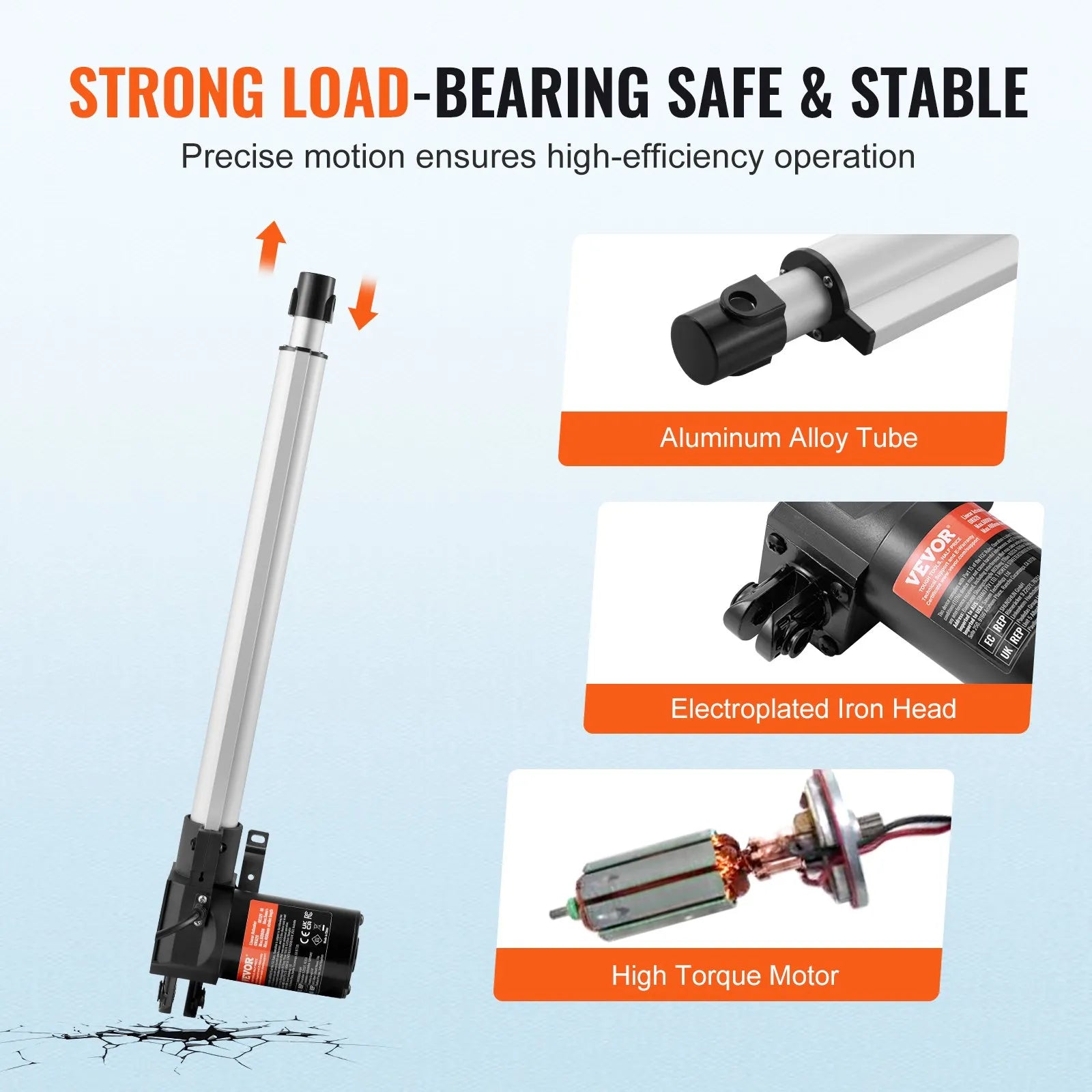

Durable Aluminum Alloy Construction: Built for long-term reliability and strength.
-

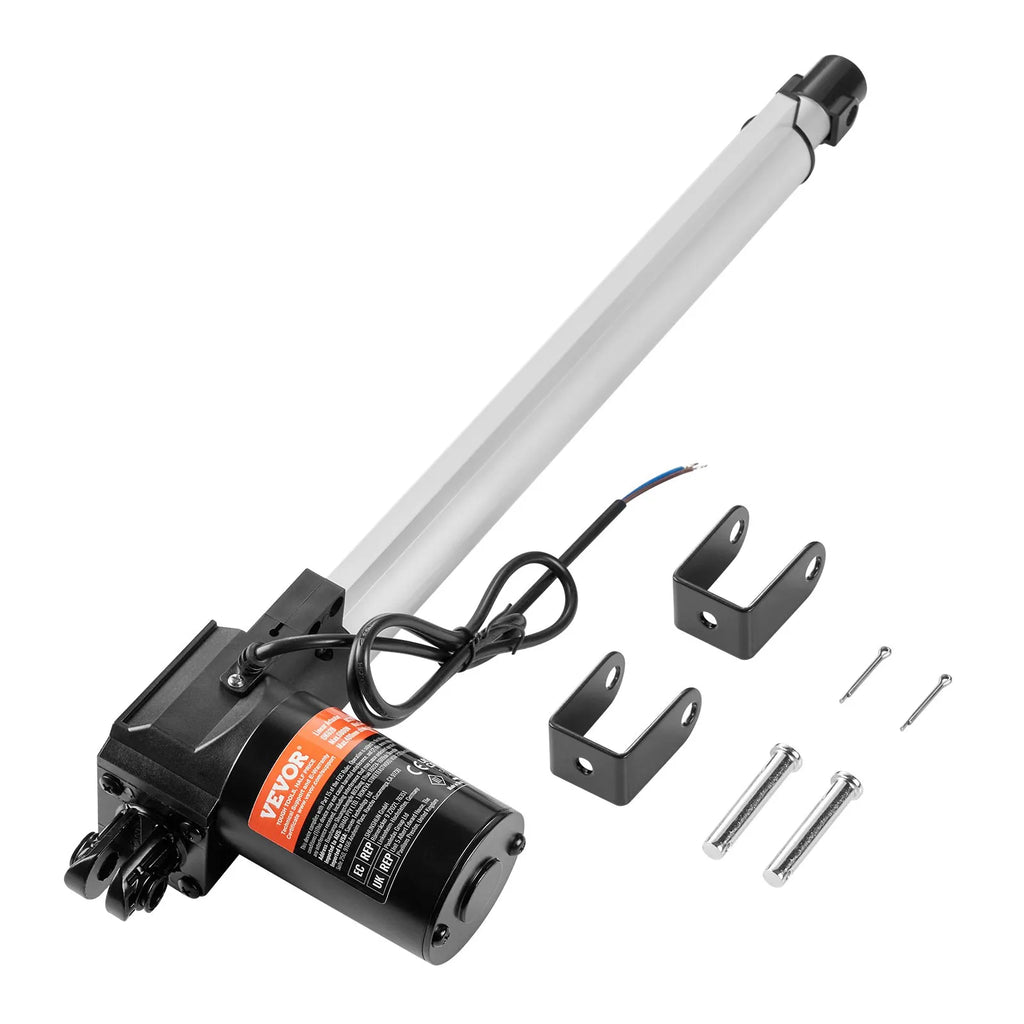

Easy Installation: Comes with mounting bracket for convenient setup.
-

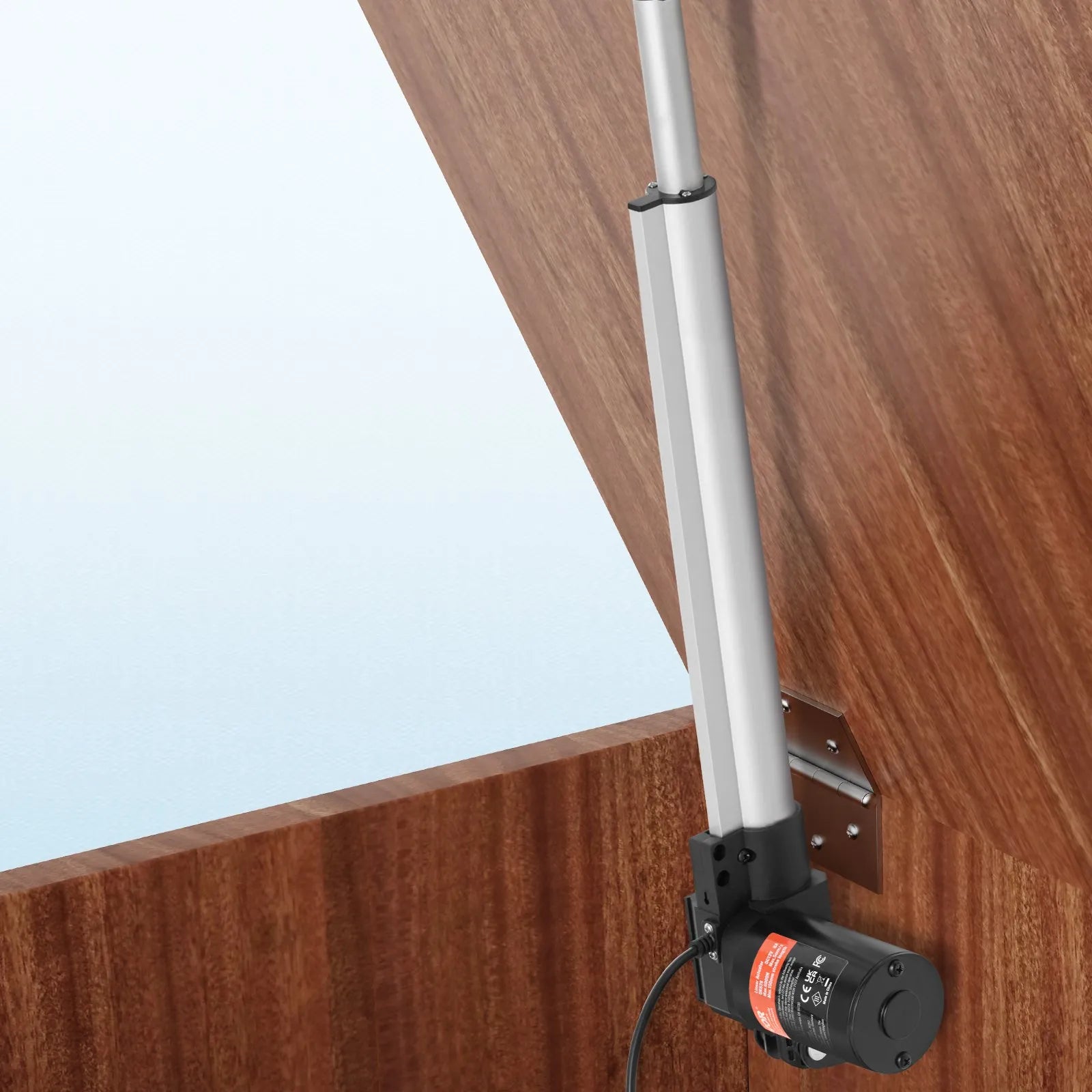

Wide Applications: Suitable for electric doors, industrial machinery, vessels, and cargo systems.

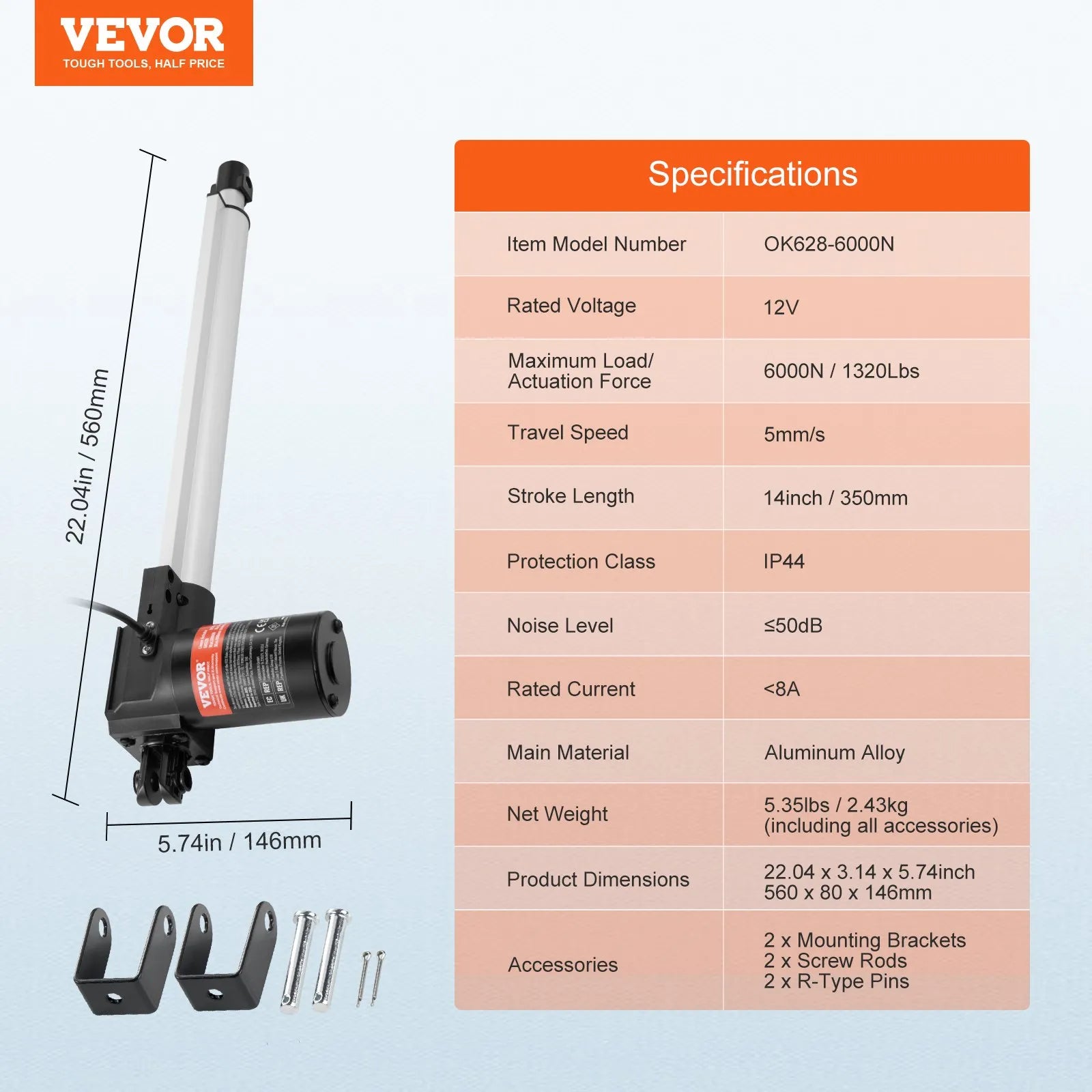

Specifications:
-
Product Type: Industrial & Scientific > Automation & Control > Linear Actuators
-
Item Model Number: OK628-6000N
-
Rated Voltage: DC12V
-
Maximum Load / Actuation Force: 6000N
-

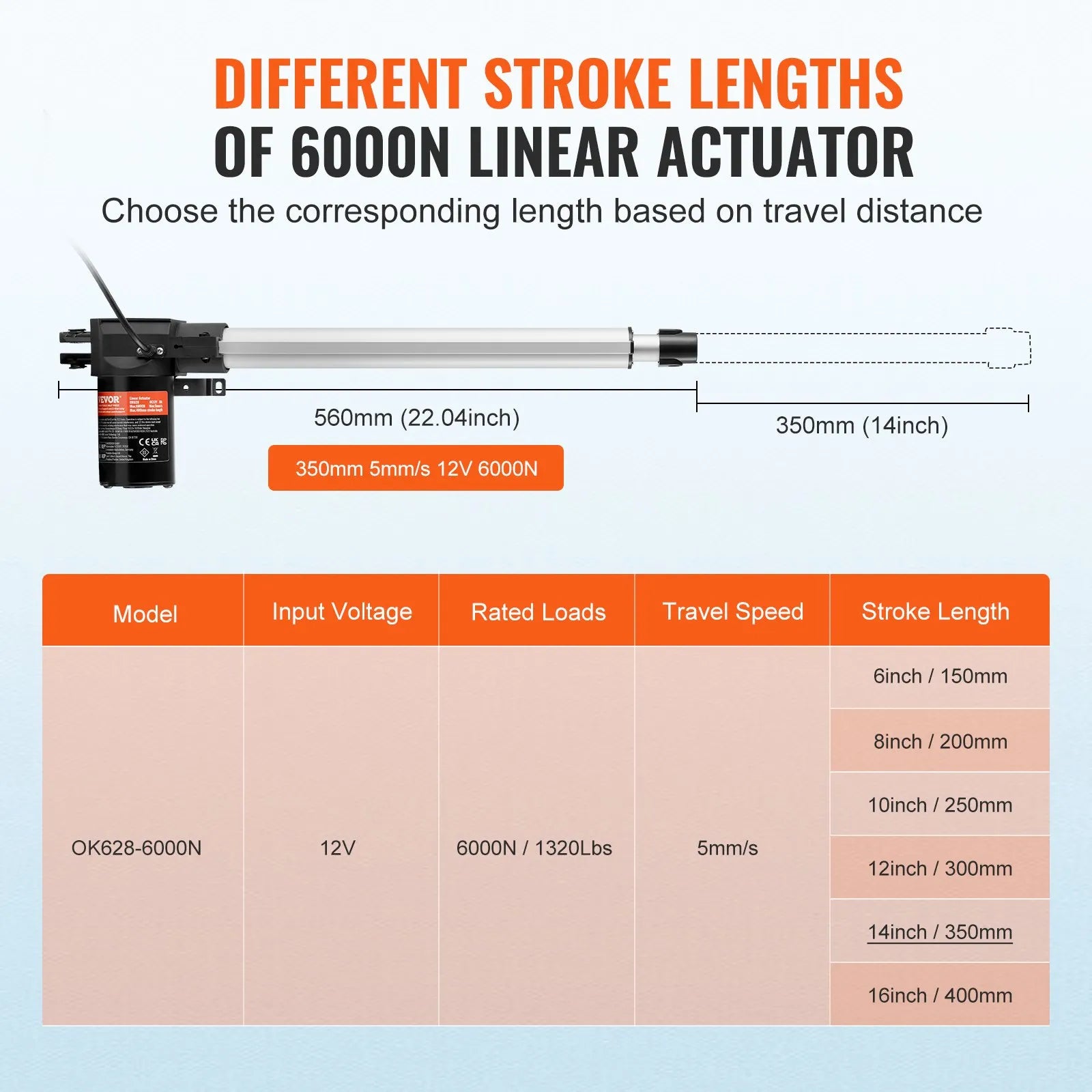

Stroke Length: 14 in / 350 mm
-
Travel Speed: 0.19 in/s / 5 mm/s
-
Rated Current: <8A
-
Protection Class: IP44
-
Noise Level: ≤50dB
-
Main Material: Aluminum Alloy
-
Product Dimensions: 22.04 x 3.14 x 5.74 in / 560 x 80 x 146 mm
-
Net Weight: 5.35 lbs / 2.43 kg (including all accessories)
-
Application: Electric doors, industrial equipment, vessels, cargo systems, automation projects
-
Suitable For: Heavy-duty linear motion tasks
