SKU: ZXDGSBR12MM10S0WTV0
Price:
$68.30

Free Shipping

Authorized Dealer

Lowest Price Guaranteed

QUESTIONS? WE ARE HERE TO HELP!

SPEAK WITH AN EXPERT TODAY FOR EXCLUSIVE PRICING
Call Us Email Us

Description

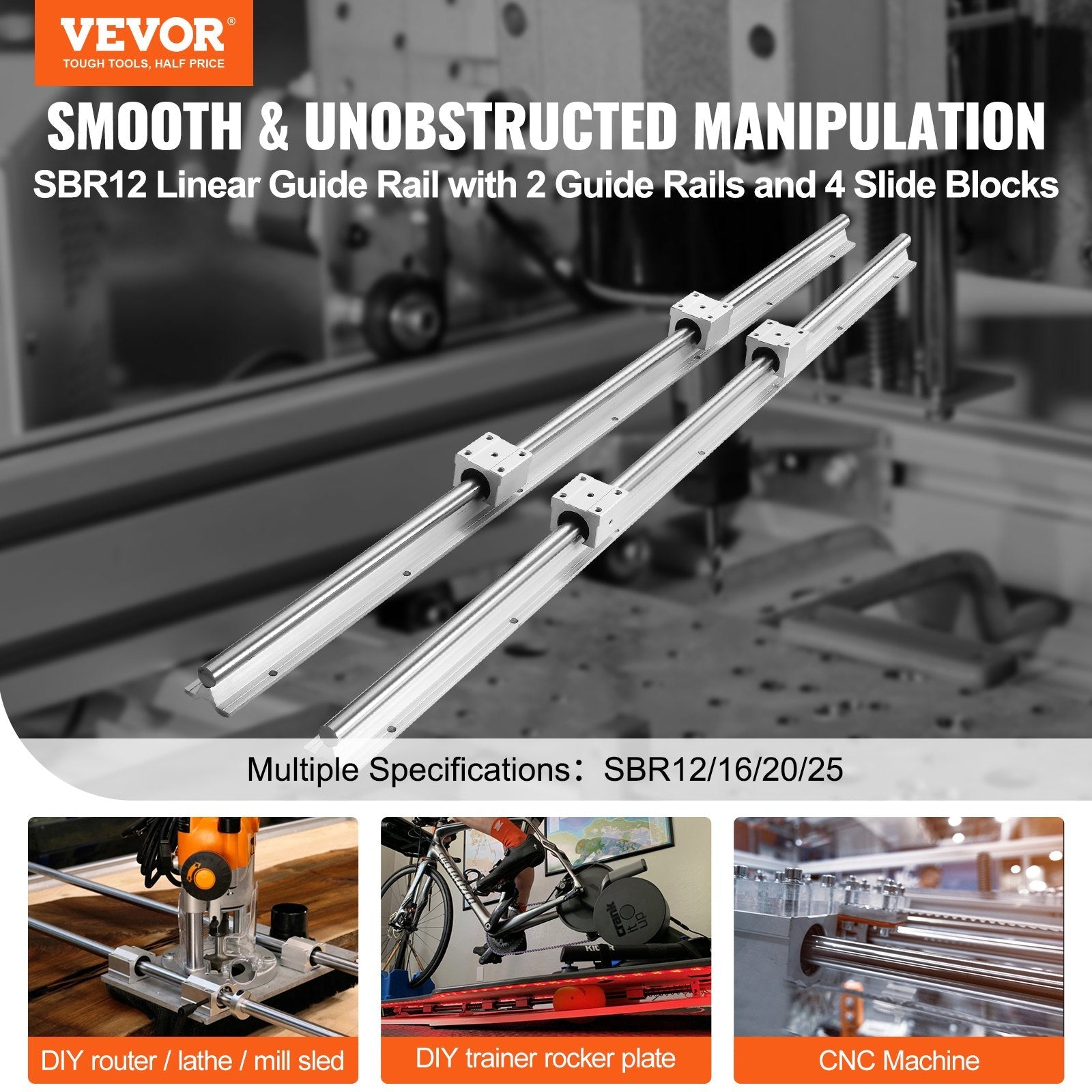

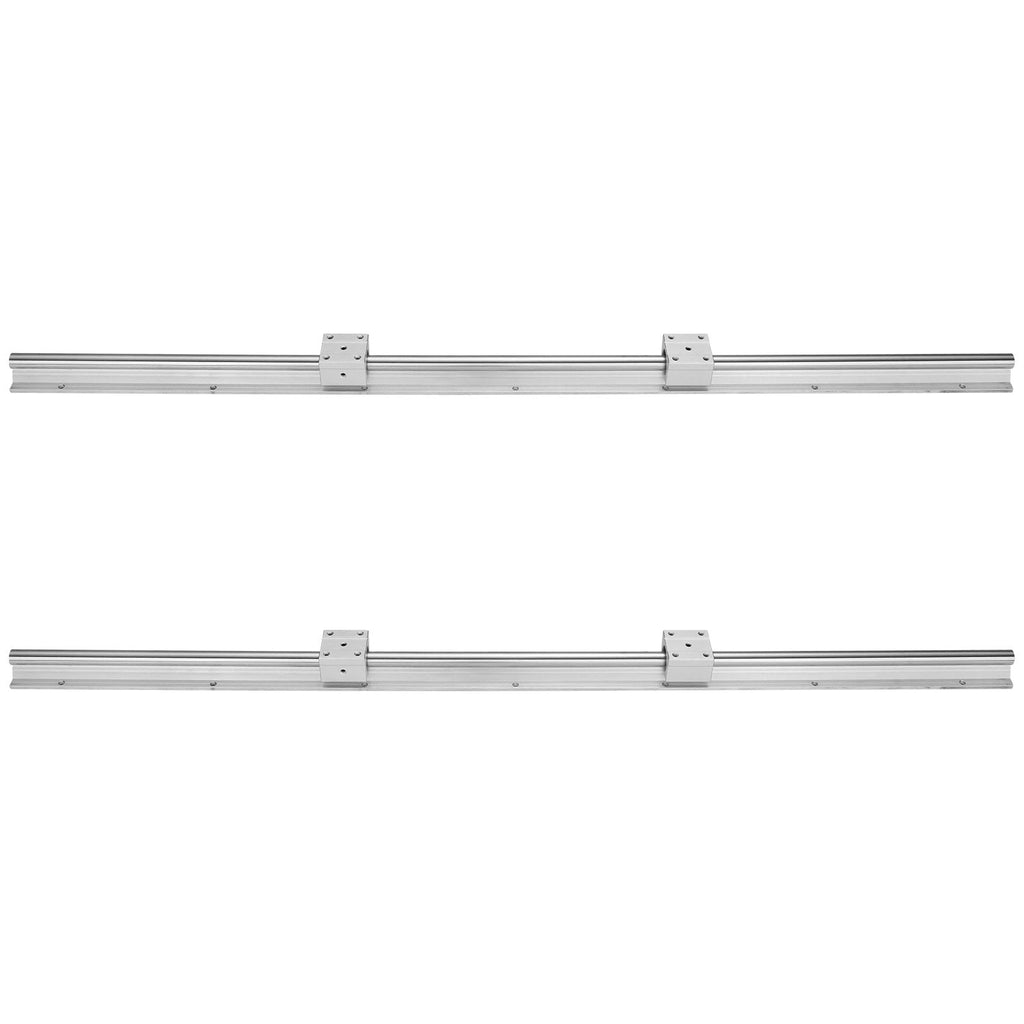

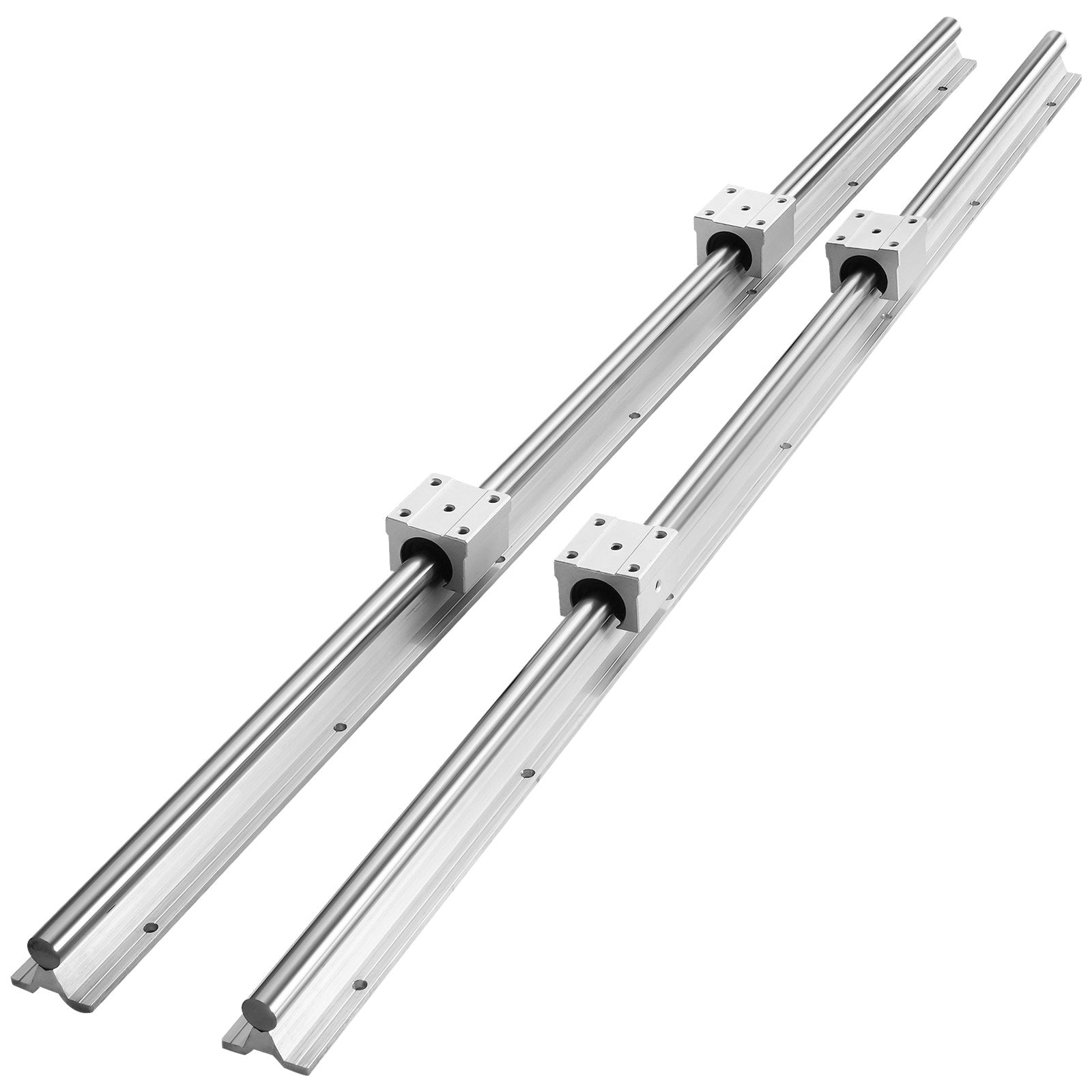

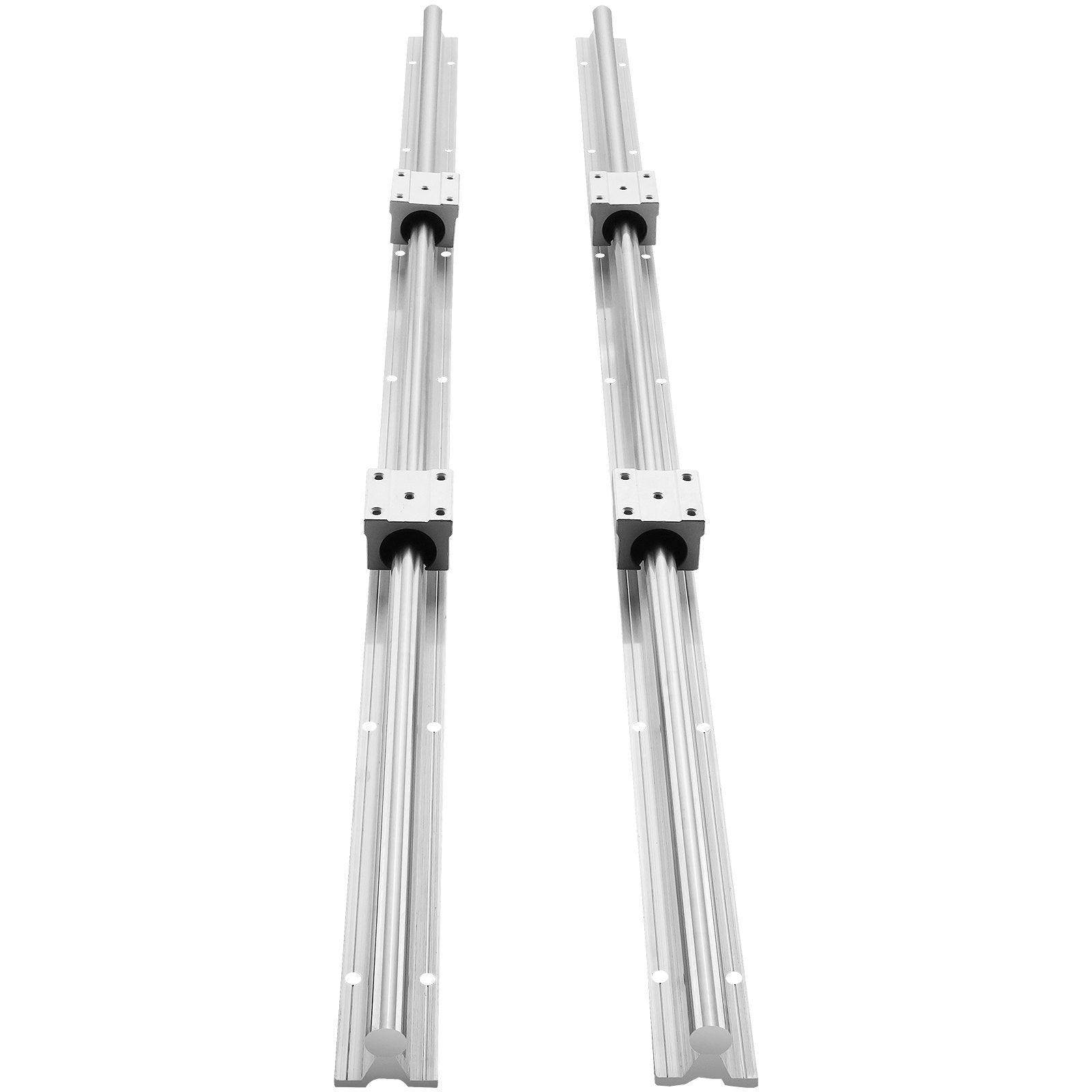

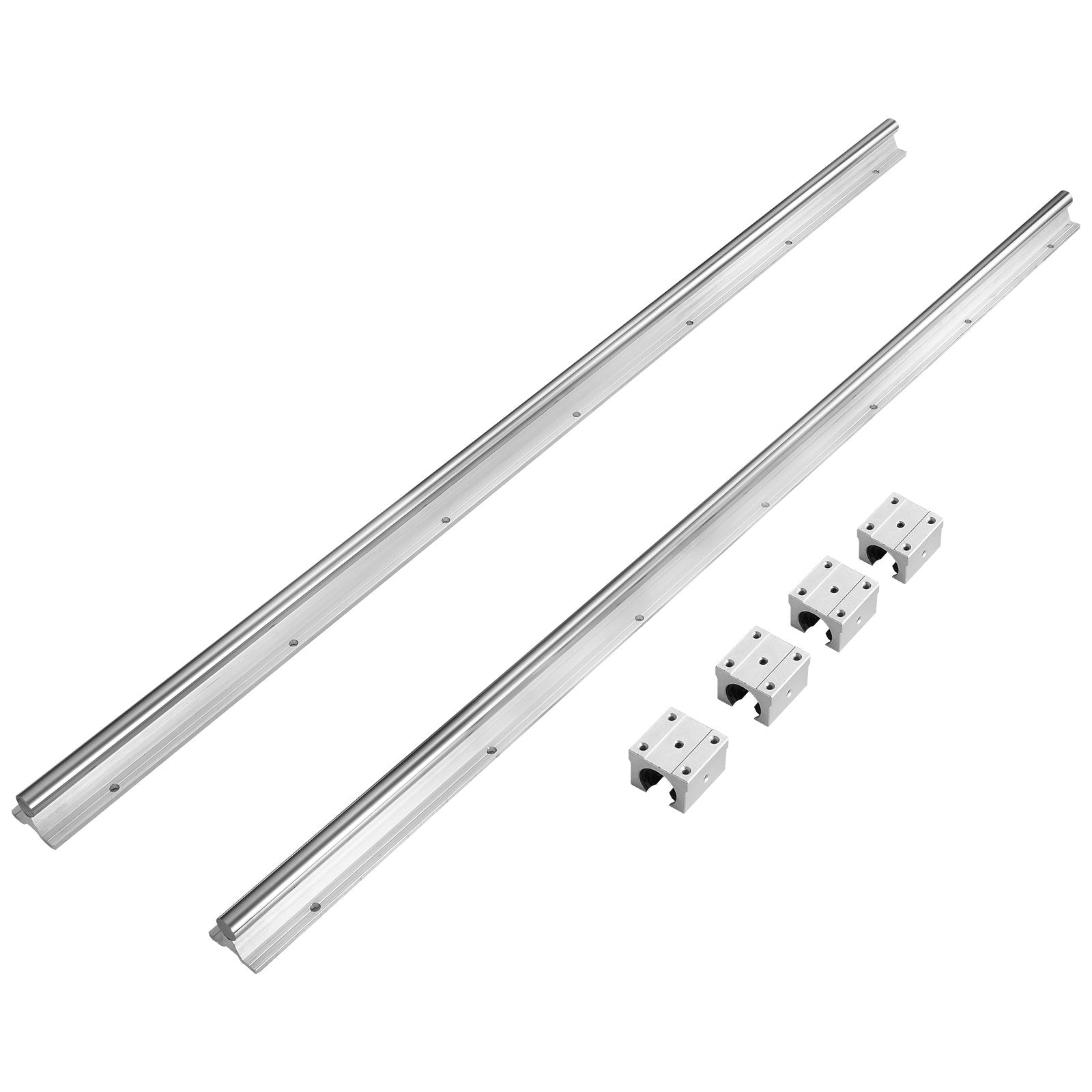

Precision and smooth movement come together with the VEVOR Linear Guide Rail Set, designed to enhance the performance of automated machines, CNC routers, and DIY projects. This 1000mm guide rail set includes 2 SBR12 rails and 4 SBR12UU slide blocks, offering exceptional load-bearing capacity and corrosion resistance. Perfect for ensuring smooth, accurate motion in a variety of applications.

Features

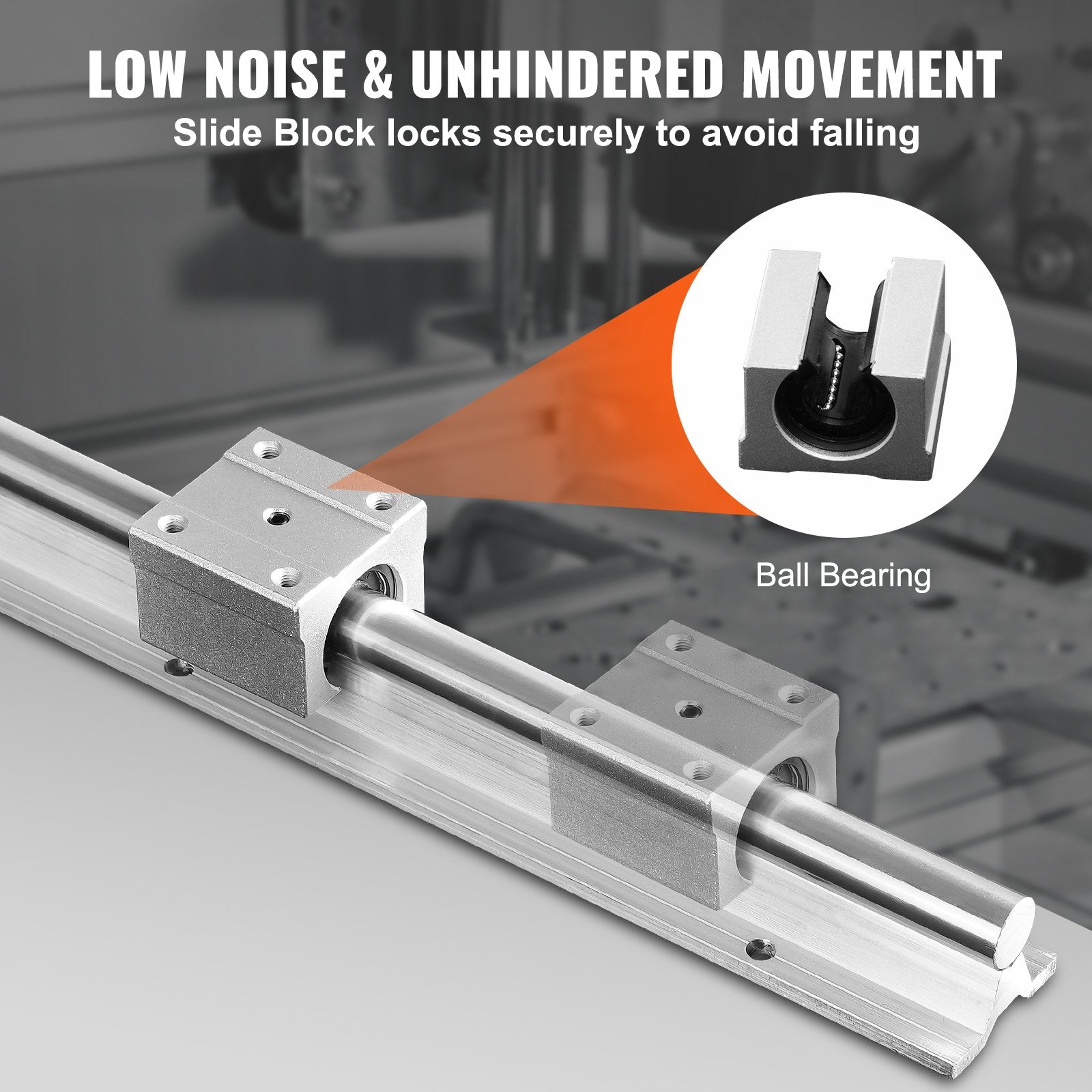

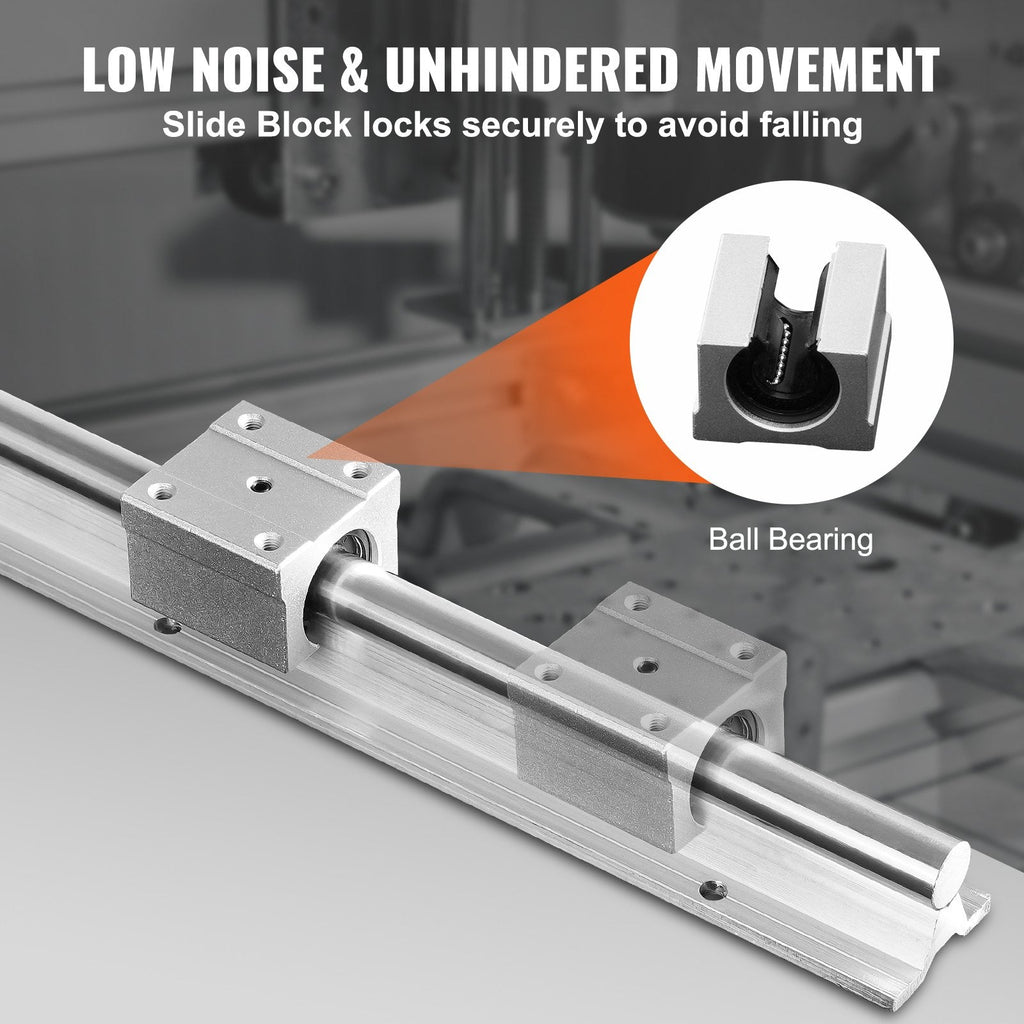

  • Smooth Sliding: Features a high-quality, friction-reducing design for seamless motion and precise accuracy.

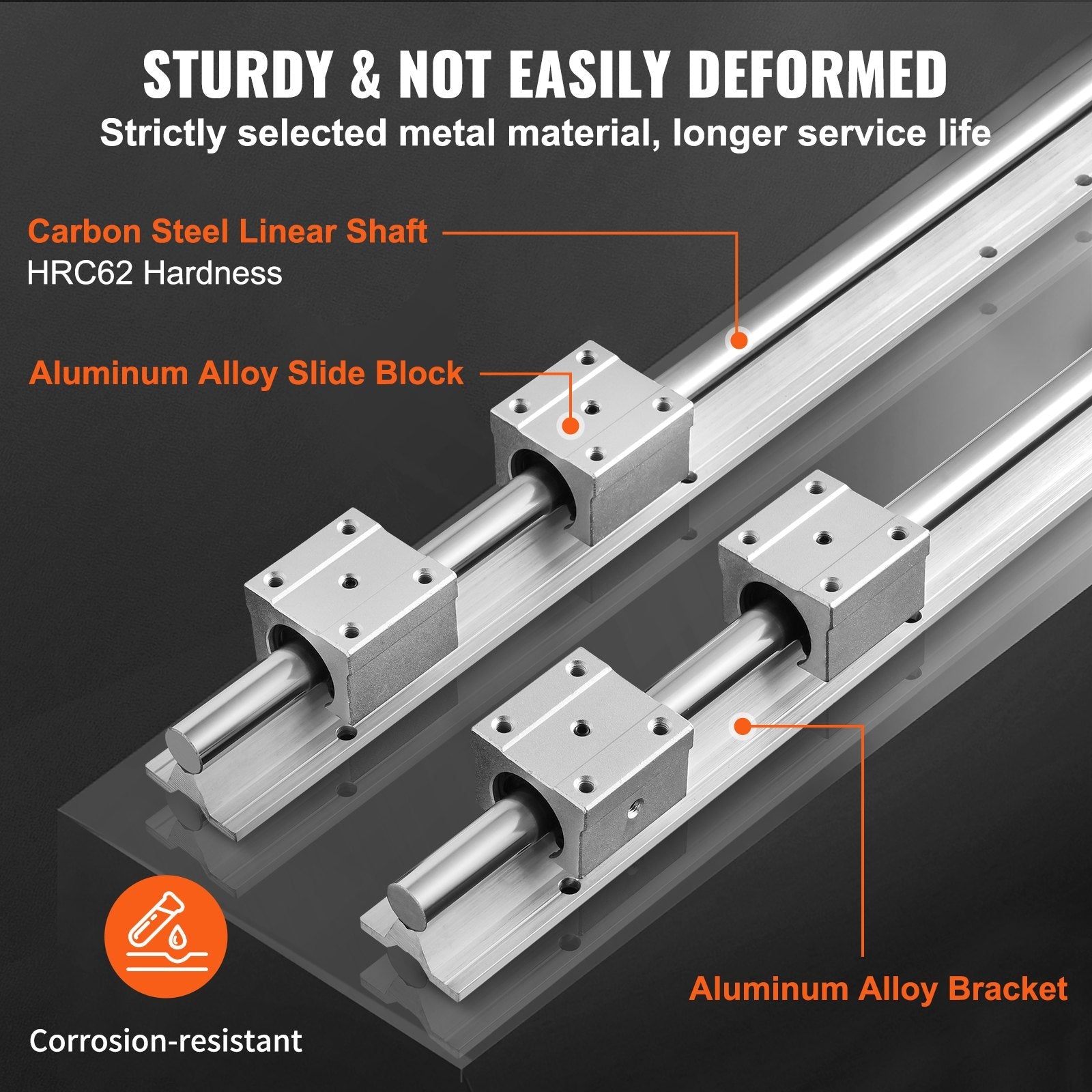

  • Durable Materials: Made from high carbon steel and aluminum for long-lasting use and strength under pressure.

  • Broad Application: Ideal for CNC machines, 3D printers, automated machines, and DIY projects that demand precision.

  • Strong Load Resistance: With a dynamic load of 372 N per block and a static load of 549 N per block, this set is built to handle heavy-duty tasks.

  • Corrosion Resistance: High-quality materials resist rust and wear, even in tough working environments.

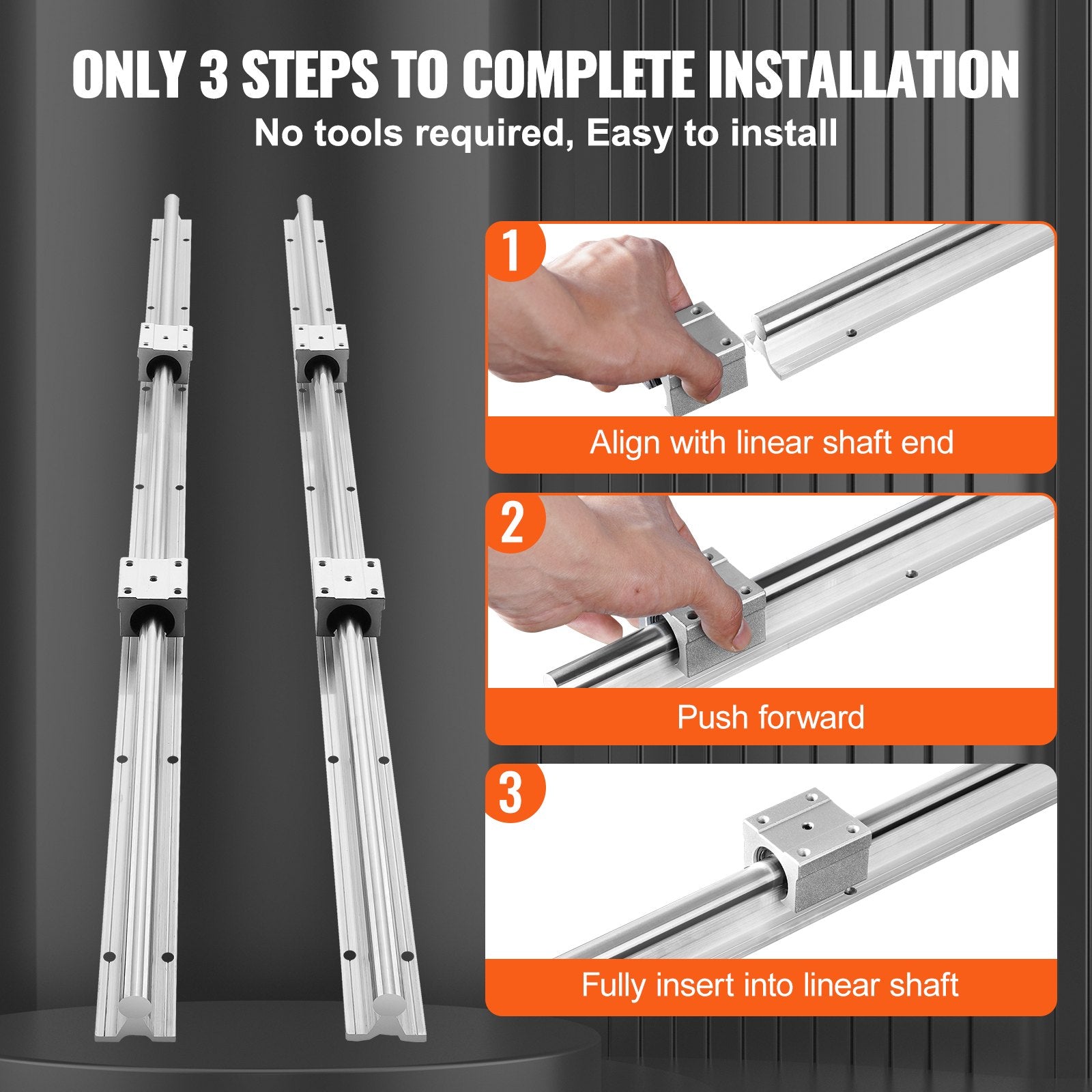

  • Easy Installation: Pre-drilled mounting holes and a user-friendly design for quick and secure installation.

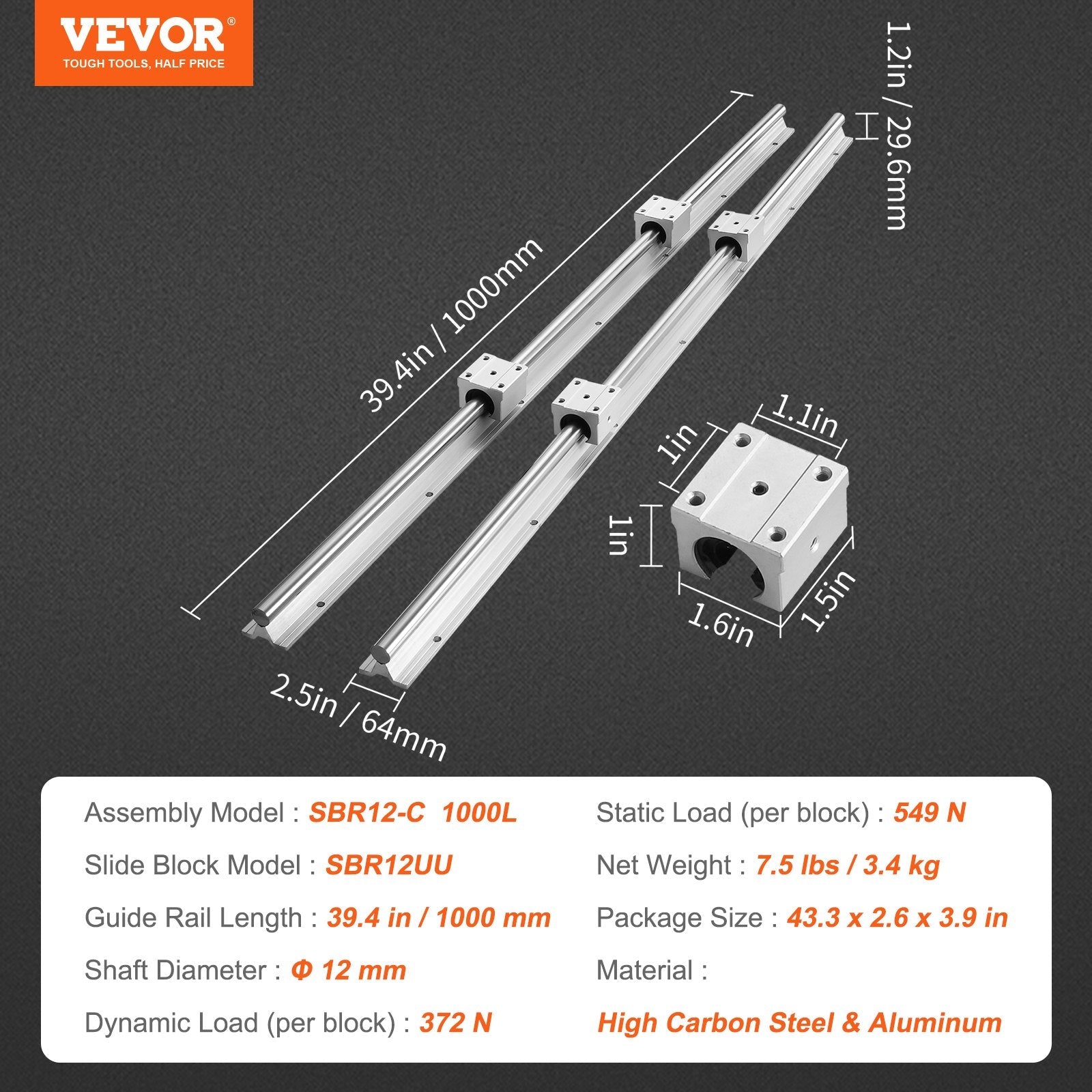

Specifications

  • Item Model Number: SBR12-C 1000L

  • Material: High Carbon Steel & Aluminum

  • Shaft Diameter: 12 mm

  • Guide Rail Length: 39.4 in / 1000 mm

  • Slide Block Size: 1.5 x 1.6 x 1 in / 39 x 40 x 27.6 mm

  • Dynamic Load (per block): 372 N

  • Static Load (per block): 549 N

  • Mounting Hole Distance A: 1.1 in / 28 mm

  • Mounting Hole Distance B: 1 in / 26 mm

  • Net Weight: 7.5 lbs / 3.4 kg

  • Product Dimensions (L x W x H): 39.4 x 2.5 x 1.2 in / 1000 x 64 x 29.6 mm

  • Package Dimensions (L x W x H): 43.3 x 2.6 x 3.9 in / 1100 x 65 x 100 mm
