Description

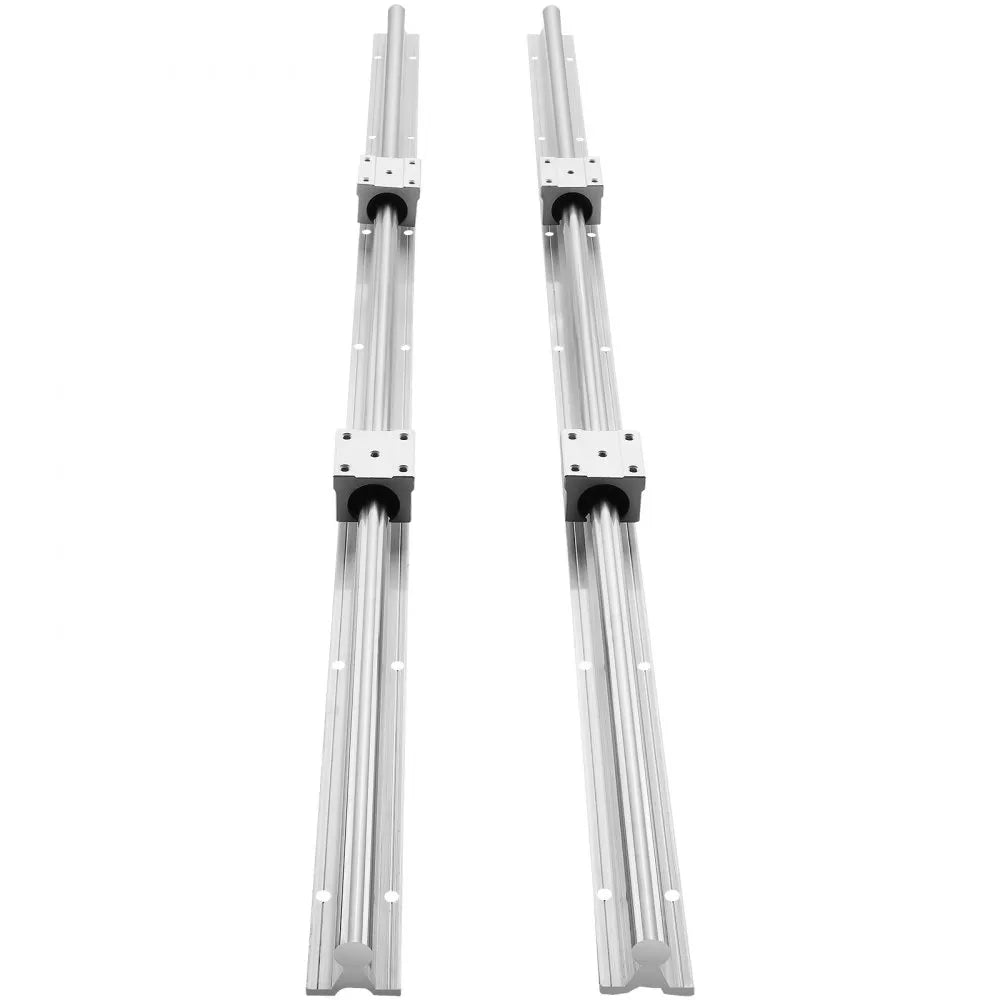

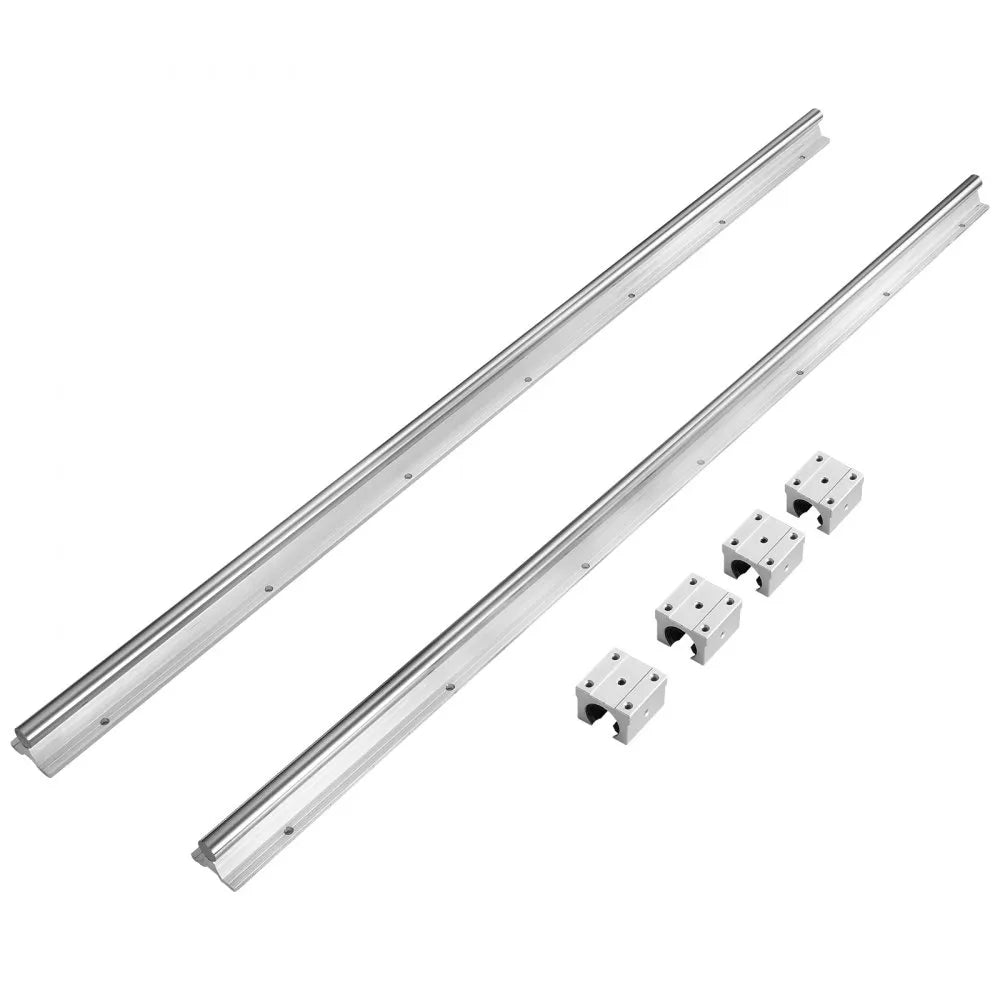

VEVOR Linear Guide Rail Set SBR16 1000mm is a precision motion system designed for automated machines, CNC routers, and DIY projects. The kit includes two 39.4-inch (1000 mm) SBR16 guide rails and four SBR16UU slide blocks, providing smooth, stable, and accurate linear movement. Made from high carbon steel and aluminum, it offers strong durability and corrosion resistance. With high static and dynamic load capacities, it ensures reliable performance for industrial automation and mechanical applications. Ideal for CNC machines, 3D printers, engraving equipment, and other precision systems.
Key Features:
-
Complete Linear Motion Kit: Includes 2 guide rails and 4 slide blocks for ready installation.
-
Smooth & Stable Sliding: Designed for precise and consistent linear movement.
-
High Load Capacity: Supports demanding mechanical and CNC applications.
-
Strong Corrosion Resistance: Built from high carbon steel and aluminum for durability.
-

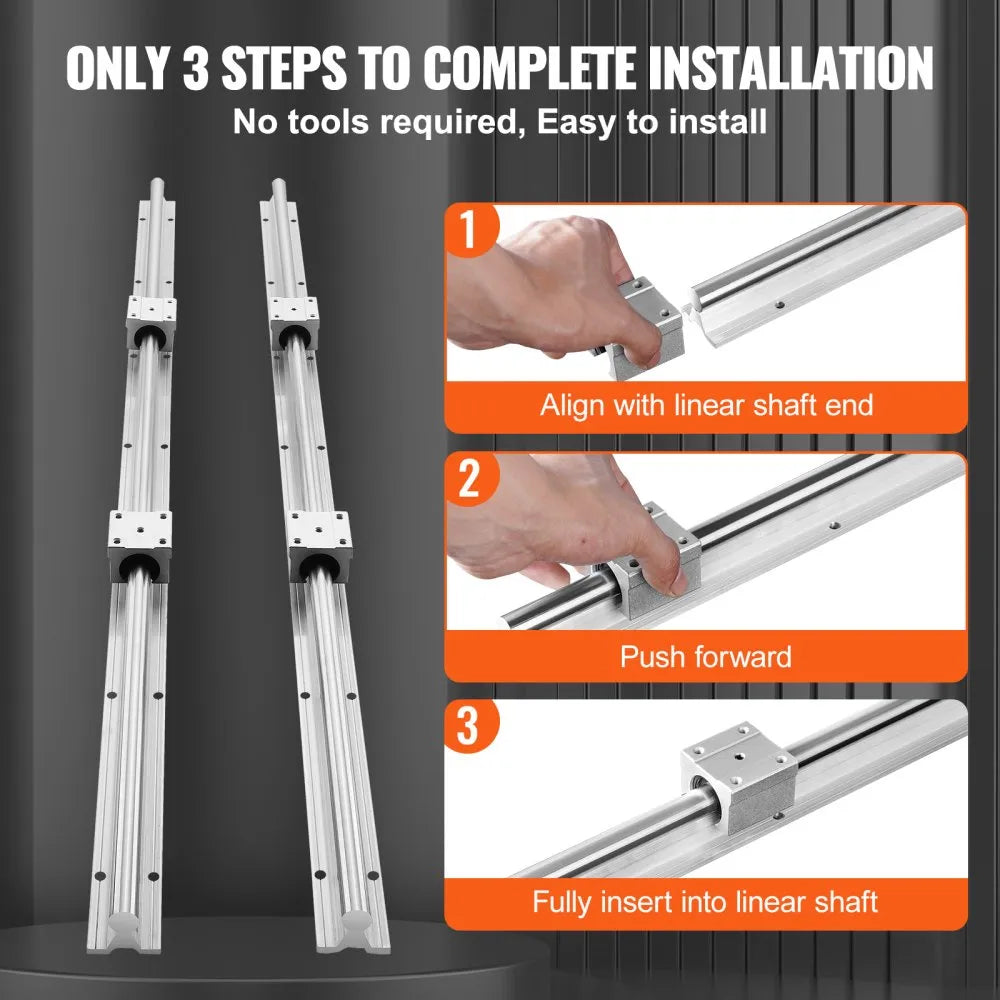

Easy Installation: Designed for straightforward mounting in automated systems.
-
Wide Applications: Suitable for CNC routers, automated machines, DIY projects, and industrial equipment.

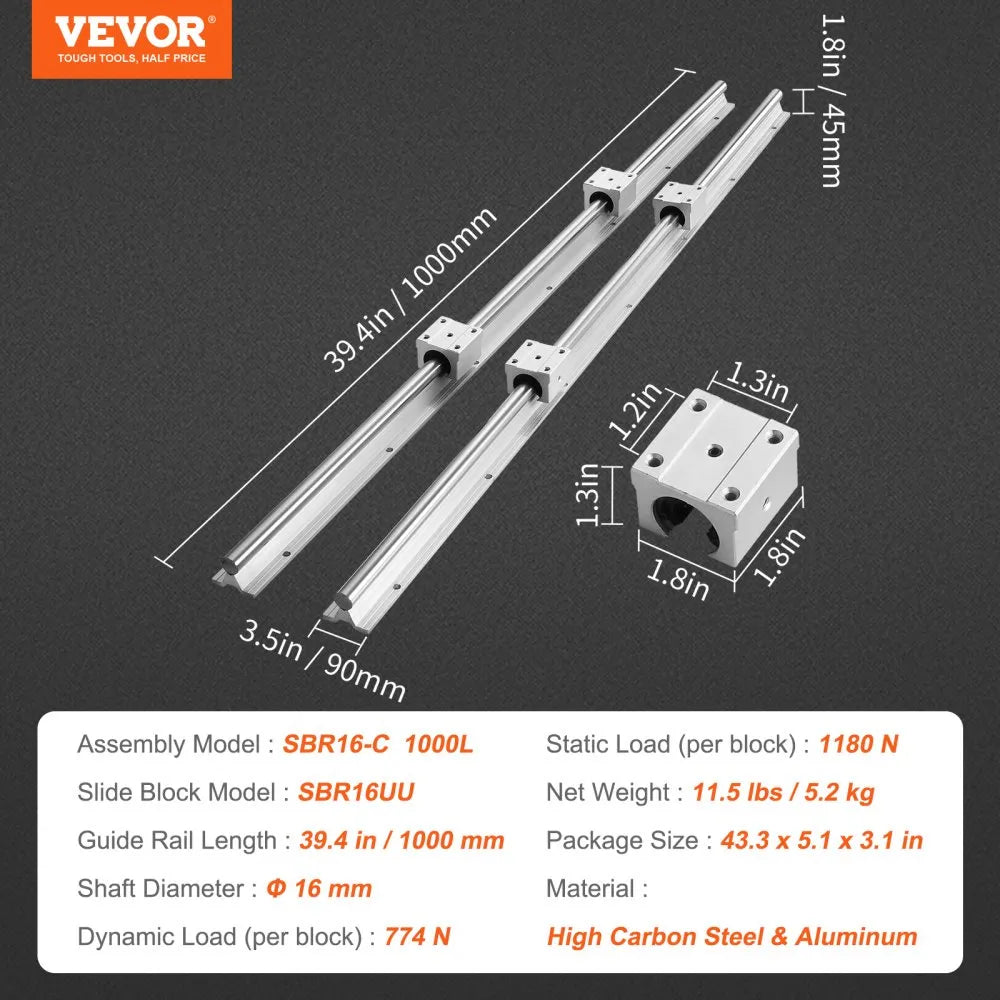

Specifications:
-
Product Type: Industrial & Scientific > Linear Motion Systems > Linear Guide Rails
-
Model Number: SBR16-C 1000L
-
Guide Rail Length: 39.4 in / 1000 mm
-
Shaft Diameter: Φ16 mm
-

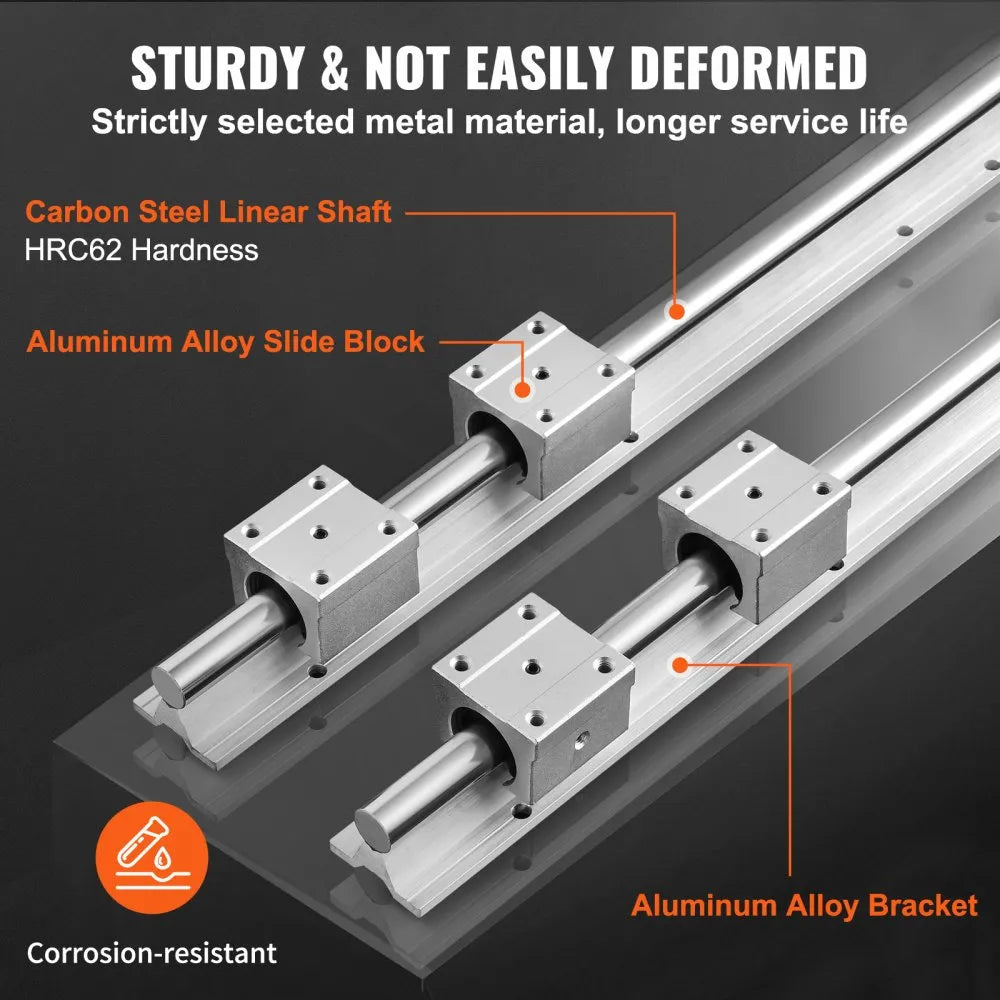

Material: High Carbon Steel & Aluminum
-

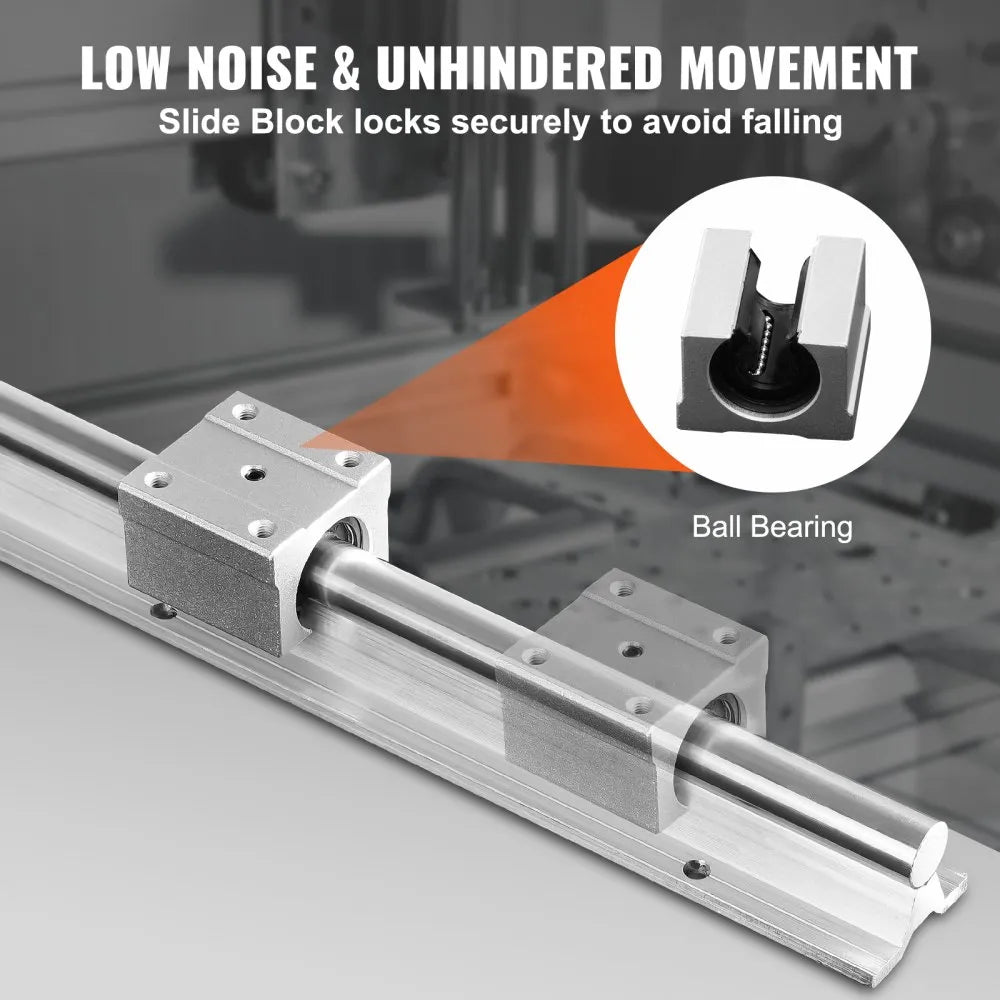

Slide Block Model: SBR16UU
-
Slide Block Size: 1.8 x 1.8 x 1.3 in / 45 x 45 x 33 mm
-
Dynamic Load (per block): 774 N
-
Static Load (per block): 1180 N
-
Mounting Hole Distance A: 1.3 in / 32 mm
-
Mounting Hole Distance B: 1.2 in / 30 mm
-
Product Dimensions (L × W × H): 39.4 x 3.5 x 1.8 in / 1000 x 90 x 45 mm
-
Package Size (L × W × H): 43.3 x 5.1 x 3.1 in / 1100 x 130 x 80 mm
-
Net Weight: 11.5 lbs / 5.2 kg
-
Application: CNC routers, automated machines, engraving equipment, DIY projects
-
Suitable For: Precision linear motion systems
