Description

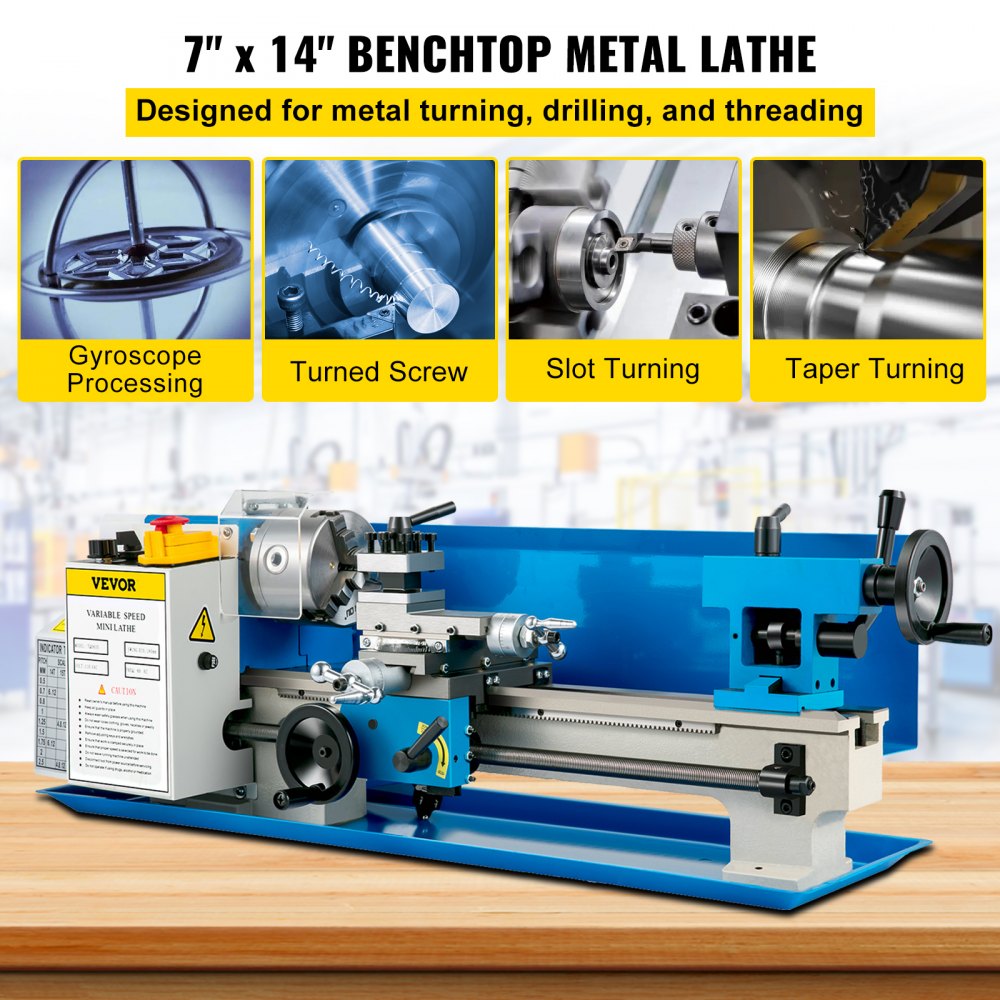

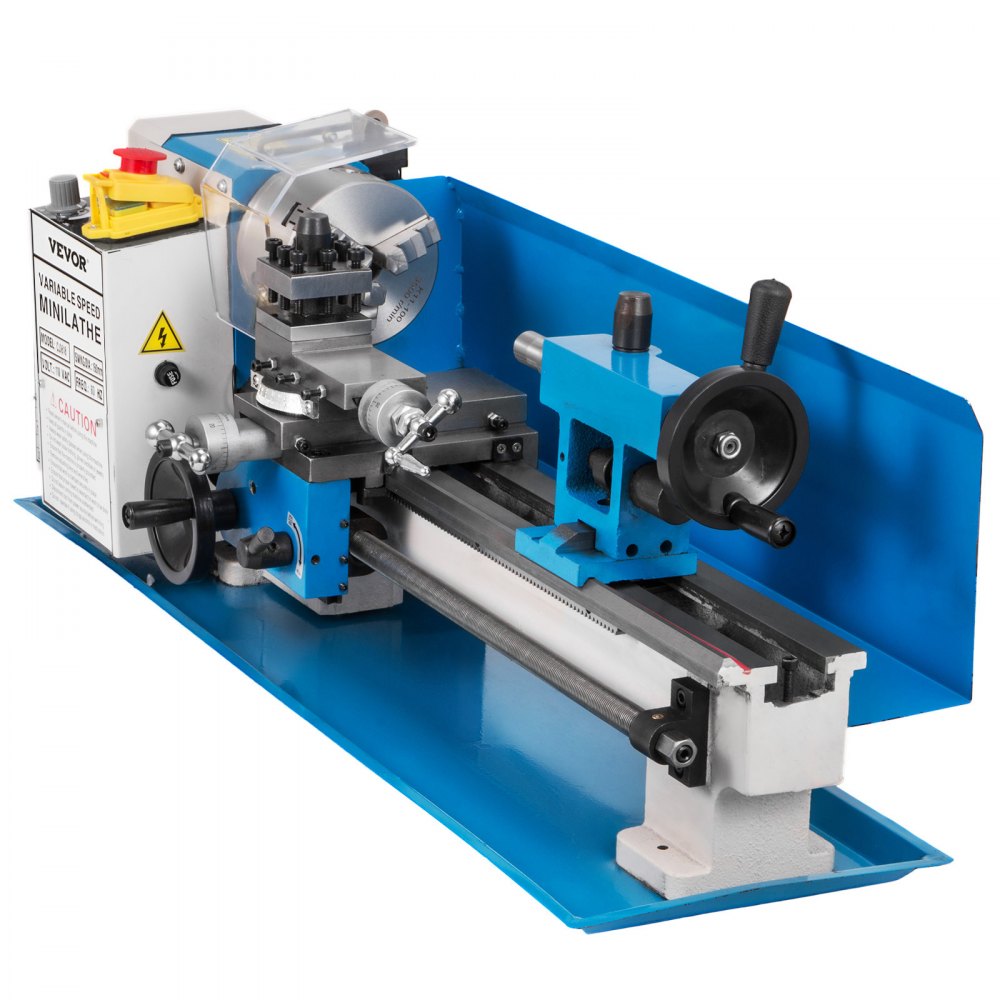

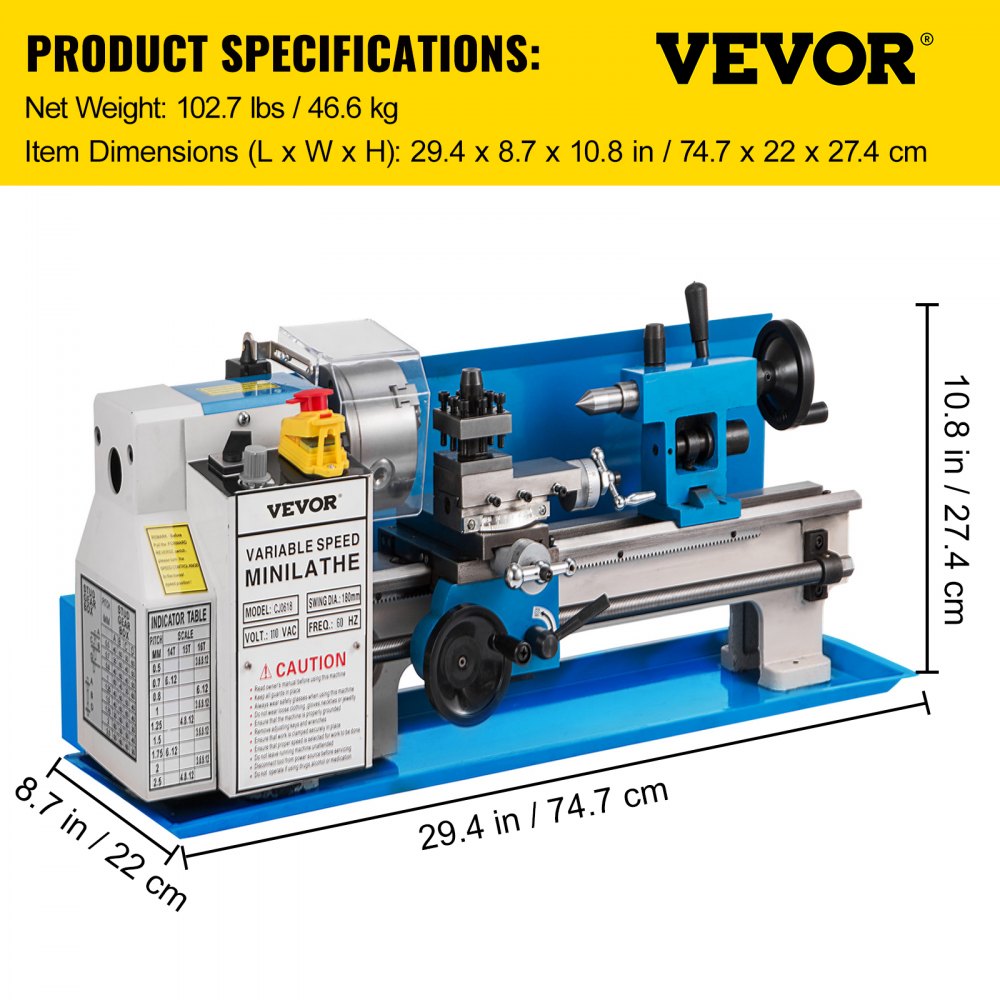

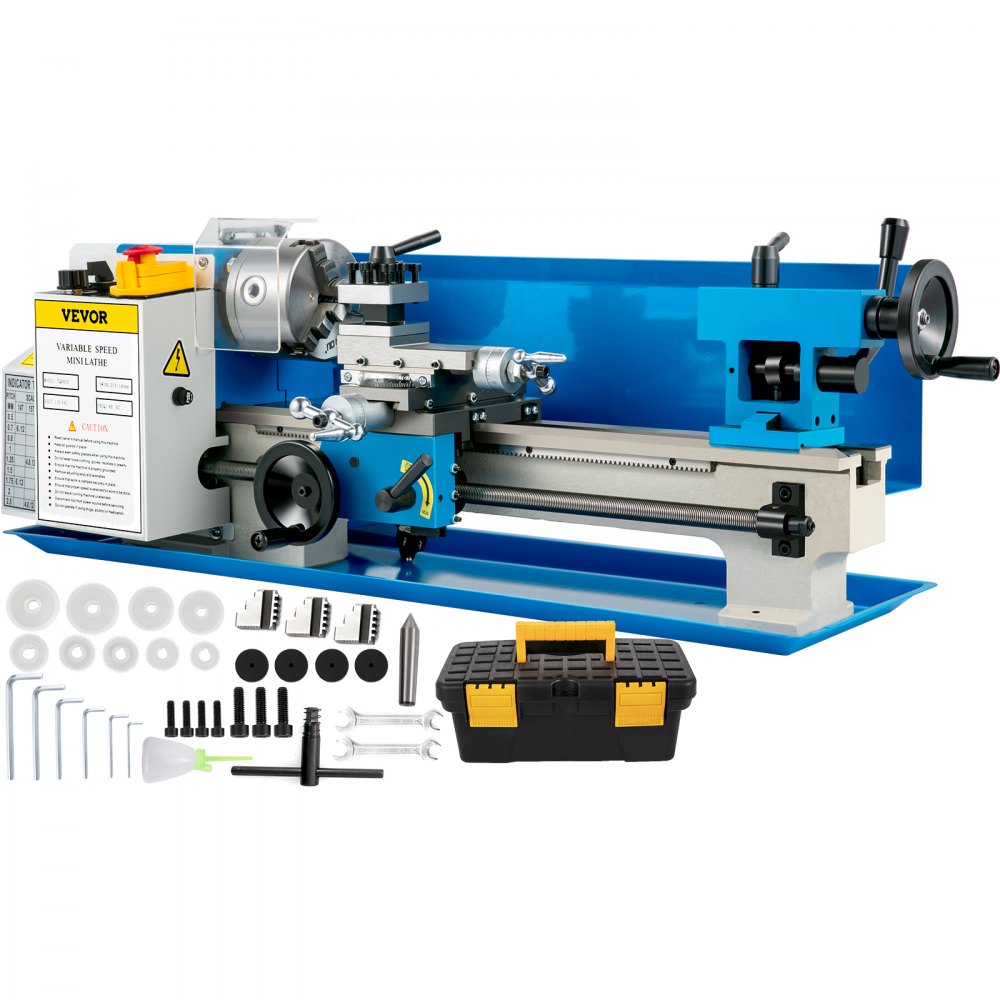

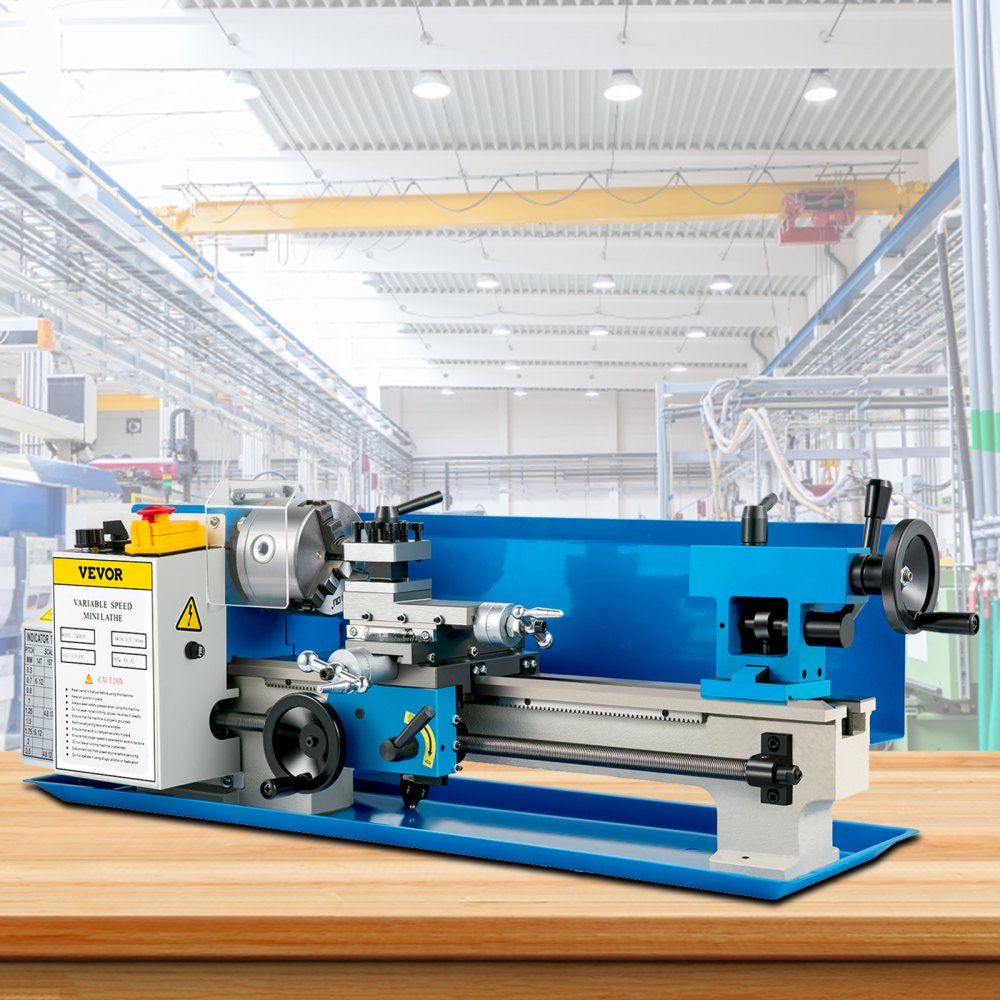

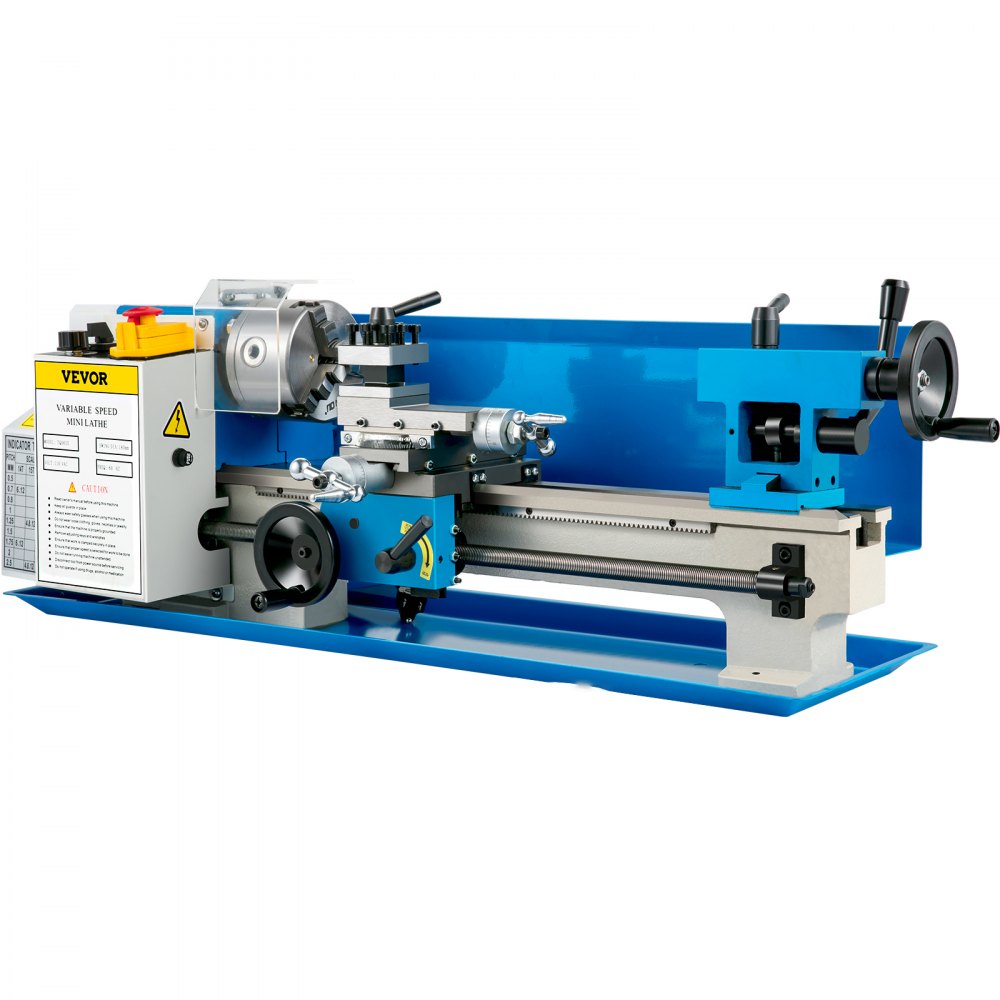

The VEVOR Metal Lathe is a versatile bench-top lathe engineered for various metal turning applications. With a compact footprint measuring 7" x 14", this mini metal lathe offers precise control and variable speeds up to 2250 RPM for high-accuracy machining. Featuring a 4" 3-jaw chuck, a four-way tool post, professional cross slide, and an adjustable tailstock, it is designed to deliver outstanding precision and reliability for both hobbyists and professionals. Its heavy, sturdy construction ensures durability during demanding operations.
Features
-

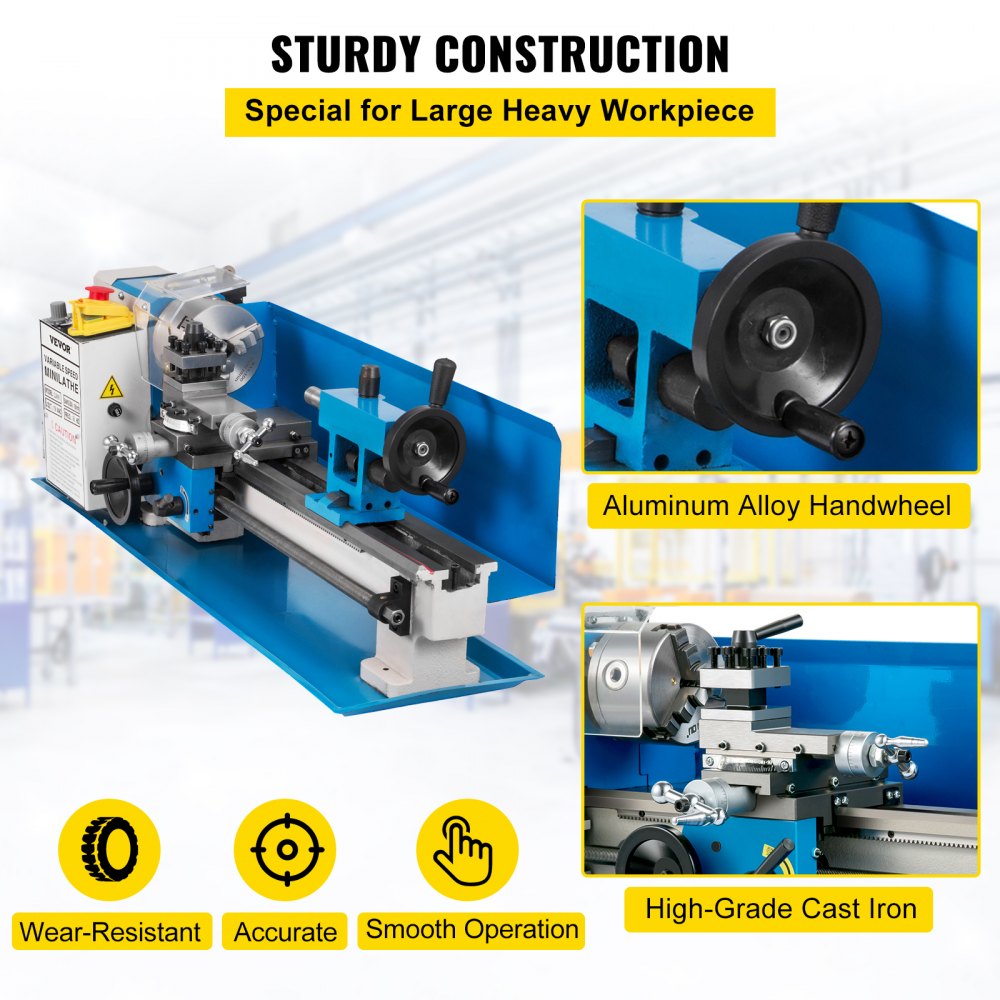

Heavy & Sturdy Machine: Robust construction provides stability and longevity for continuous use
-

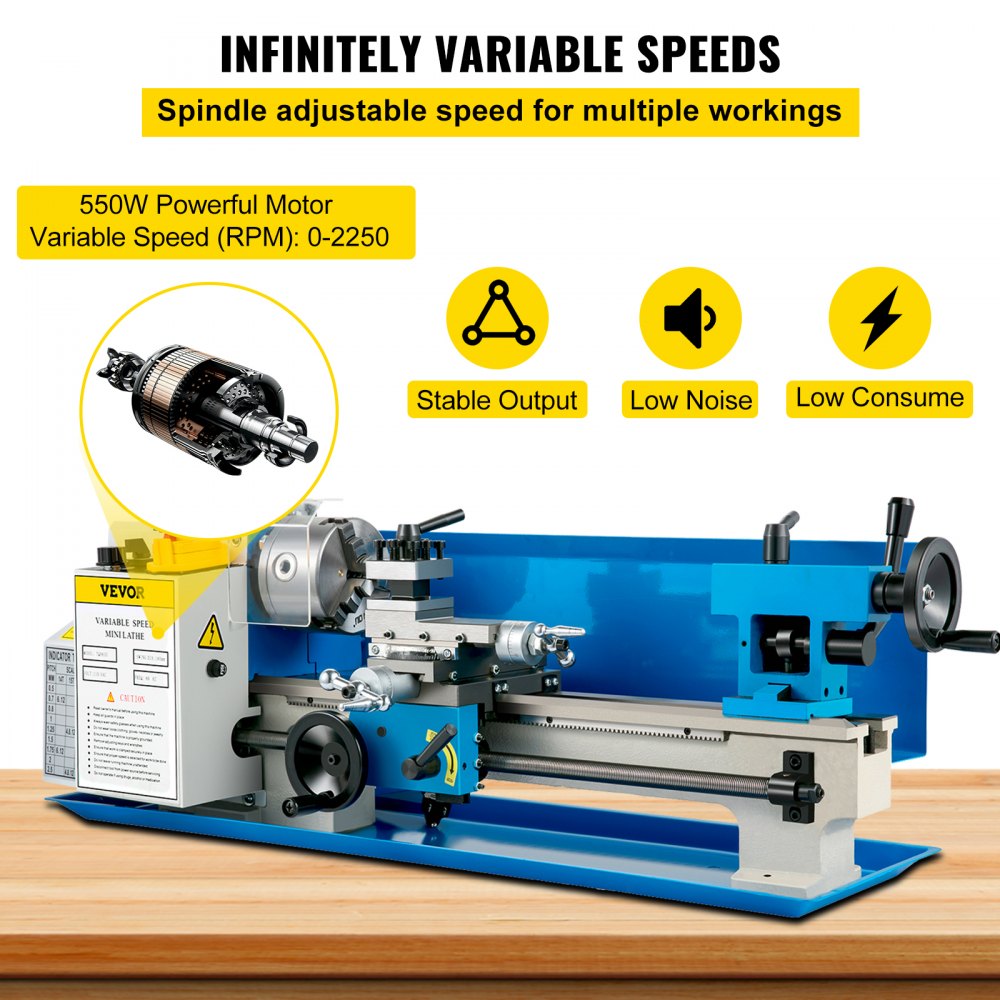

Infinitely Variable Speeds: Offers fine-tuned control with a variable speed range up to 2250 RPM
-
High Accuracy Chuck: Equipped with a 4" 3-jaw chuck for secure workpiece clamping and precise turning
-

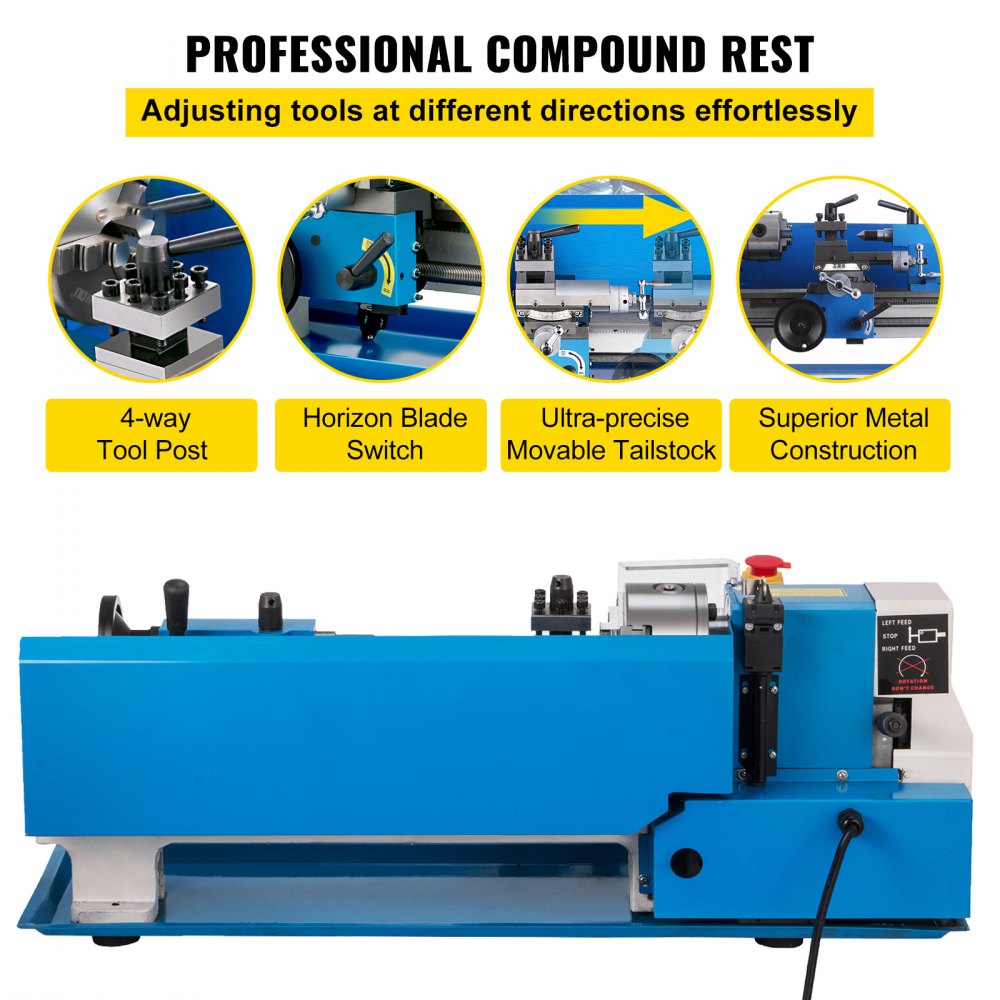

Four-way Tool Post: Enhances versatility for multi-angled machining operations
-
Professional Cross Slide: Provides smooth and precise horizontal movement for detailed work
-
Adjustable Tailstock: Facilitates accurate drilling and support for longer workpieces
Specification
-
Spindle Speed: 0–2250 RPM
-
Inch Thread: 12–52 T.P.I.
-

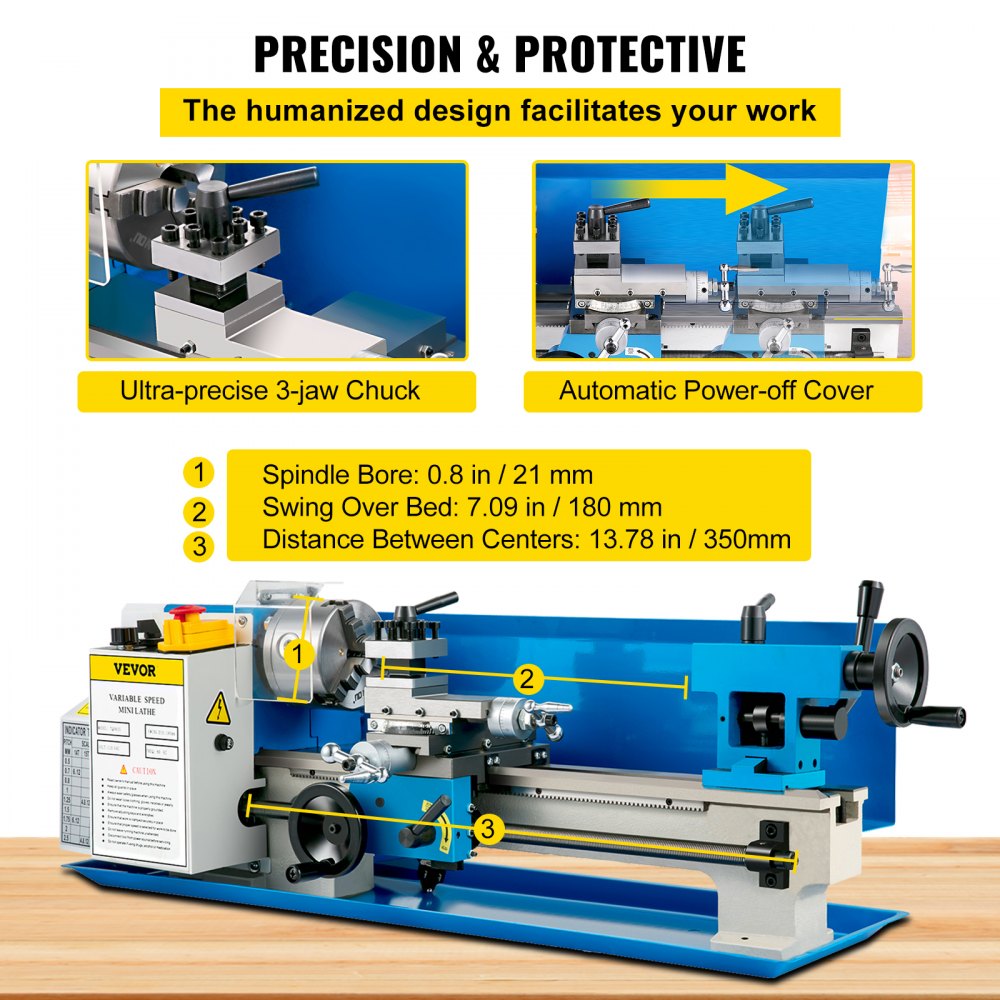

Spindle Bore: 20 mm (0.79")
-
Chuck Diameter: 100 mm (3.94")
-
Tailstock Taper: MT2
-
Spindle Taper: MT3
-
Swing Over Bed: 180 mm (7.09")
-
Cross Slide Travel: 65 mm (2.53")
-
Top Slide Travel: 35 mm (1.36")
-
Centers Distance: 350 mm (13.78")
-
Swing Over Cross Slide: 110 mm
-
Metric Thread: 0.5–2.5 mm
-
Power of Motor: 550W DC Single Phase
-
Spindle Accuracy: 0.01 mm
