Description

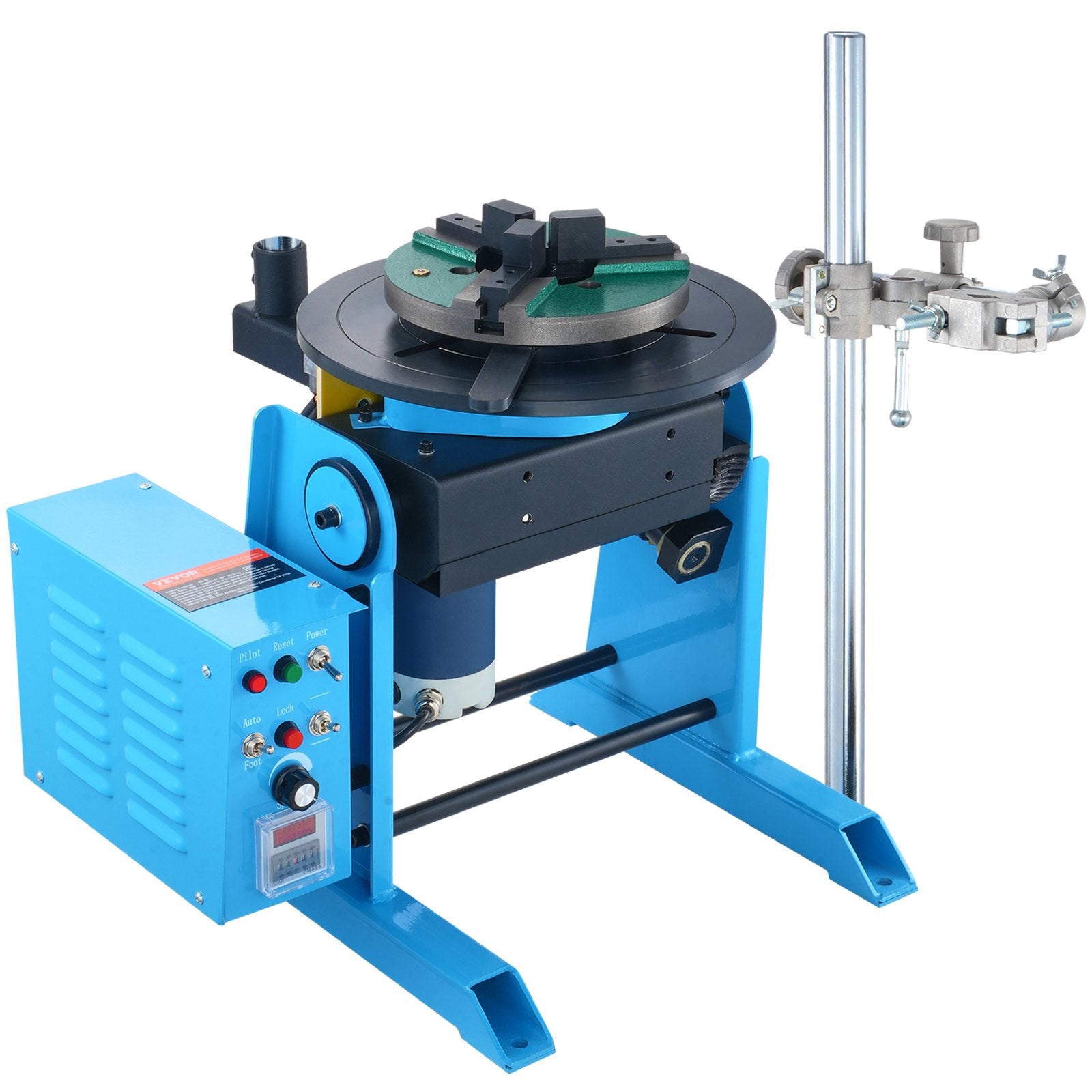

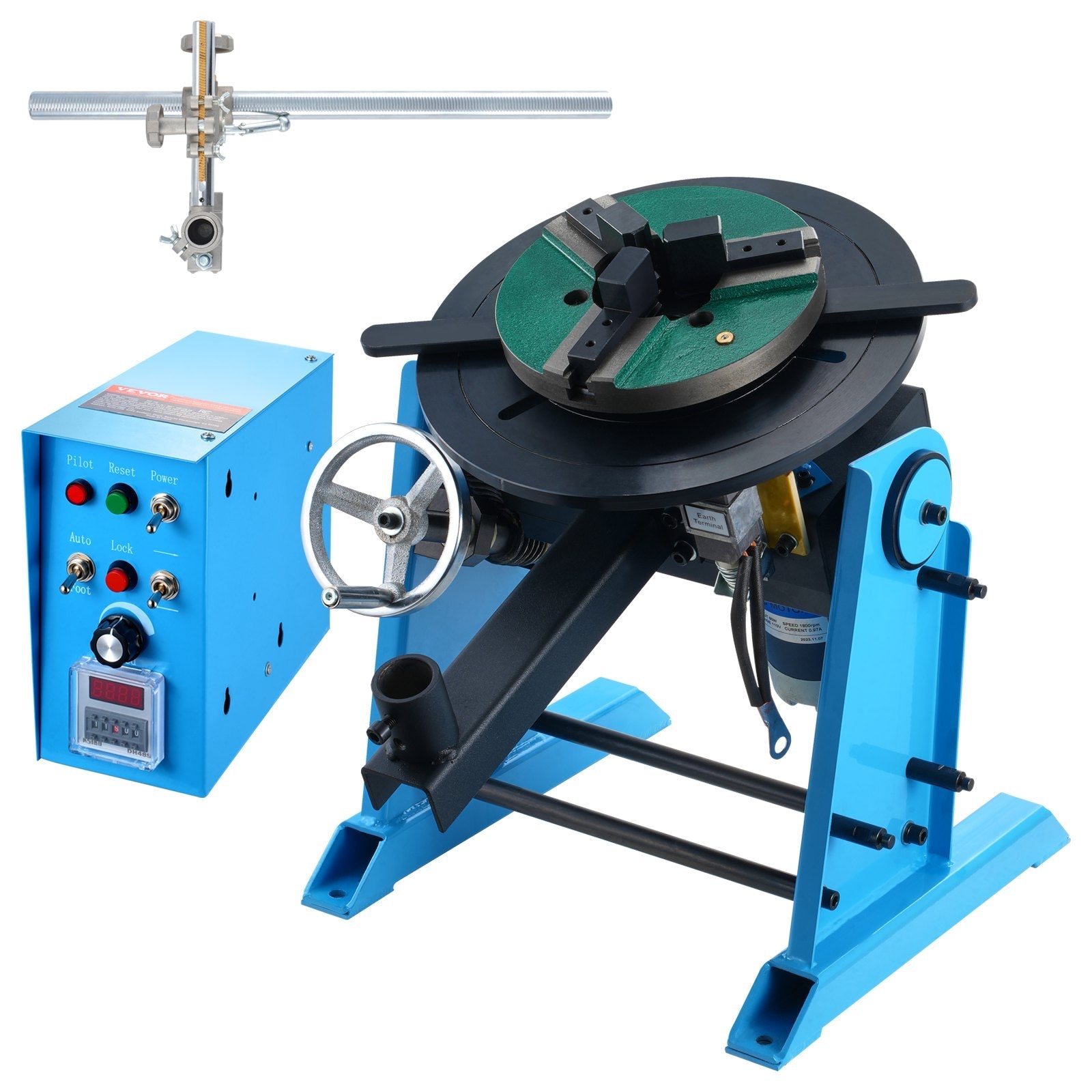

The VEVOR Rotary Welding Positioner is a robust and versatile tool designed for a wide range of welding, cutting, grinding, and assembly tasks. This 30KG capacity turntable features a precise and stable worktable that tilts from 0° to 90°, allowing for optimal positioning of materials for welding or other operations. Equipped with a KD200 chuck and adjustable speeds ranging from 1 to 12 RPM, this positioner is ideal for both horizontal and vertical load applications. The unit’s sturdy construction and motorized operation ensure efficiency and reliability for both industrial and DIY projects.
Features
-

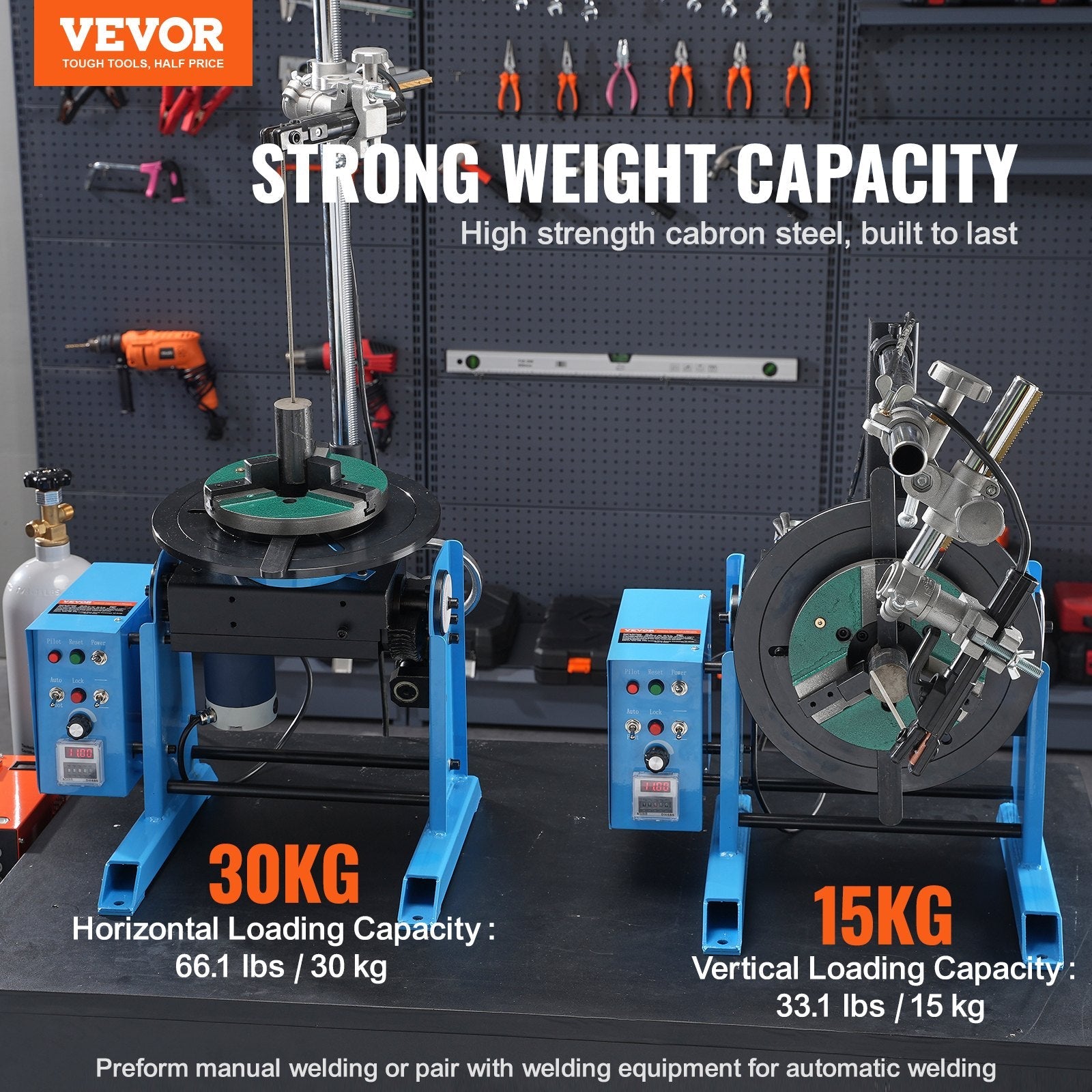

Robust Load-Bearing Capacity: Horizontal load capacity of 66.1 lbs (30 kg) and vertical load capacity of 33.1 lbs (15 kg).
-

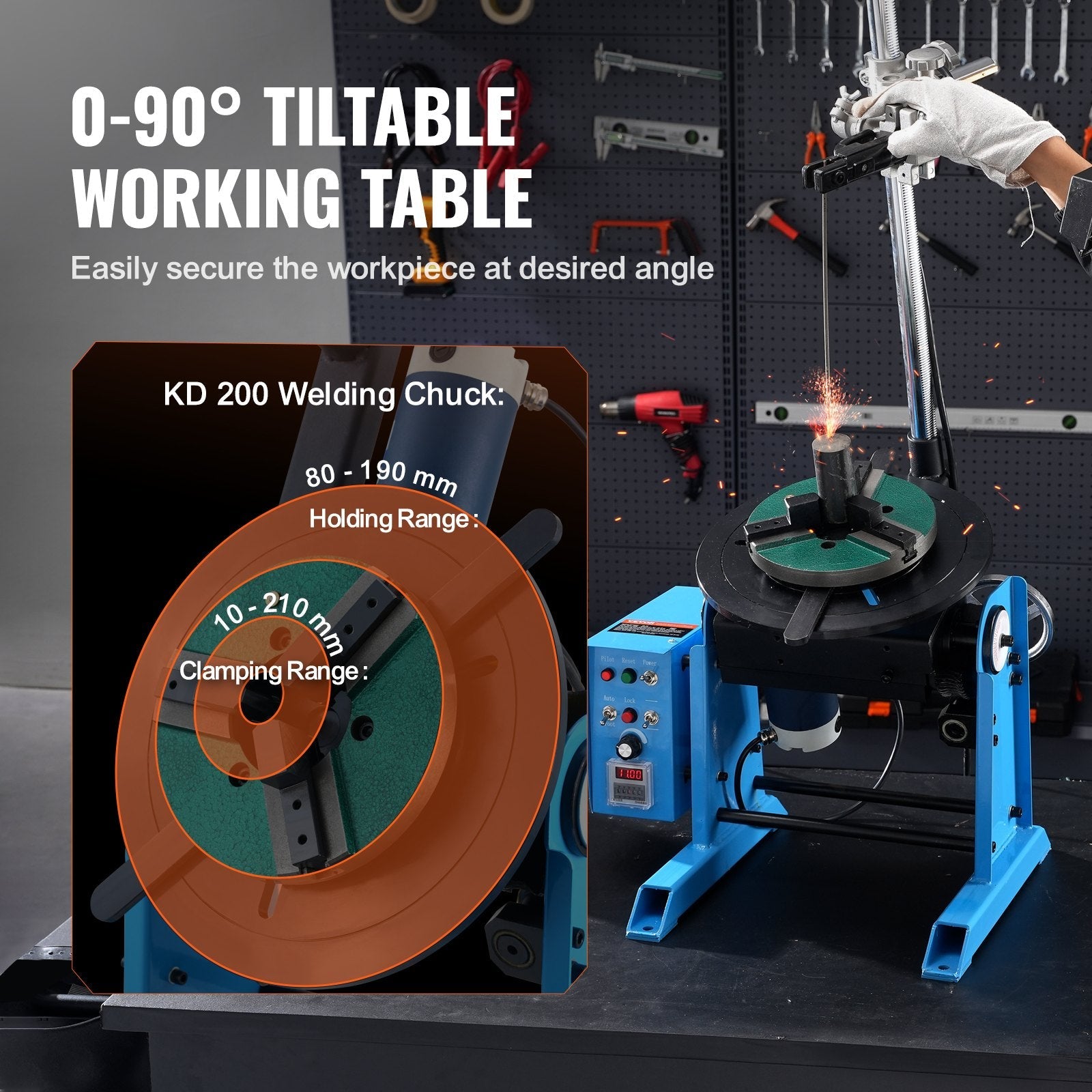

Precise and Stable Worktable: Tiltable table with 0° to 90° positioning for stable and controlled operations.
-

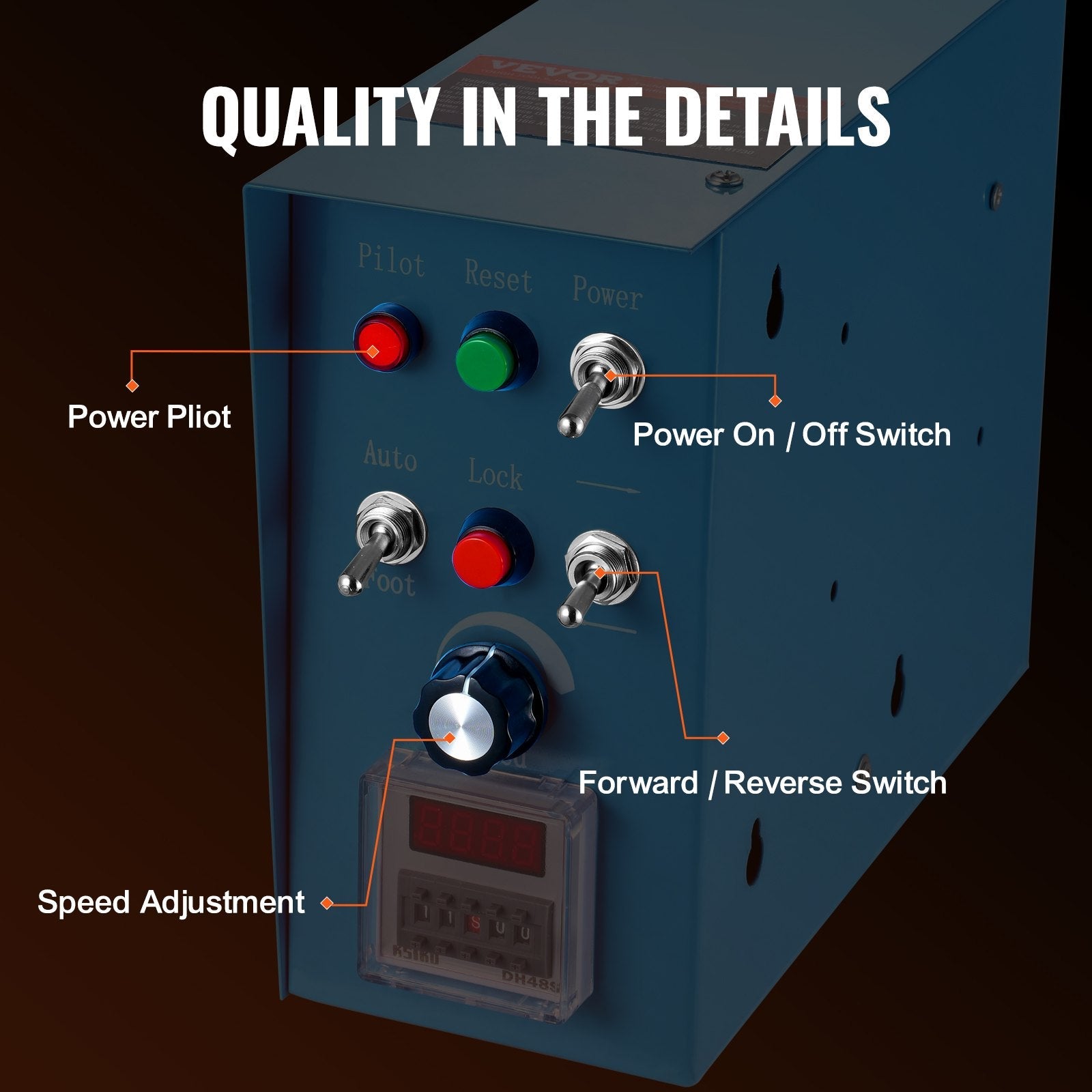

Easy Operation: Adjustable speed (1-12 RPM) with user-friendly controls for precise operation.
-
Wide Range of Applications: Perfect for welding, cutting, grinding, assembly, and testing.
-
Equipped with KD200 Chuck: Features a 12.4-inch 3-jaw lathe chuck with a clamping range of 10-210 mm and a holding range of 80-190 mm.
-
Wheels with Brakes: Easy to move and lock into place for secure positioning.

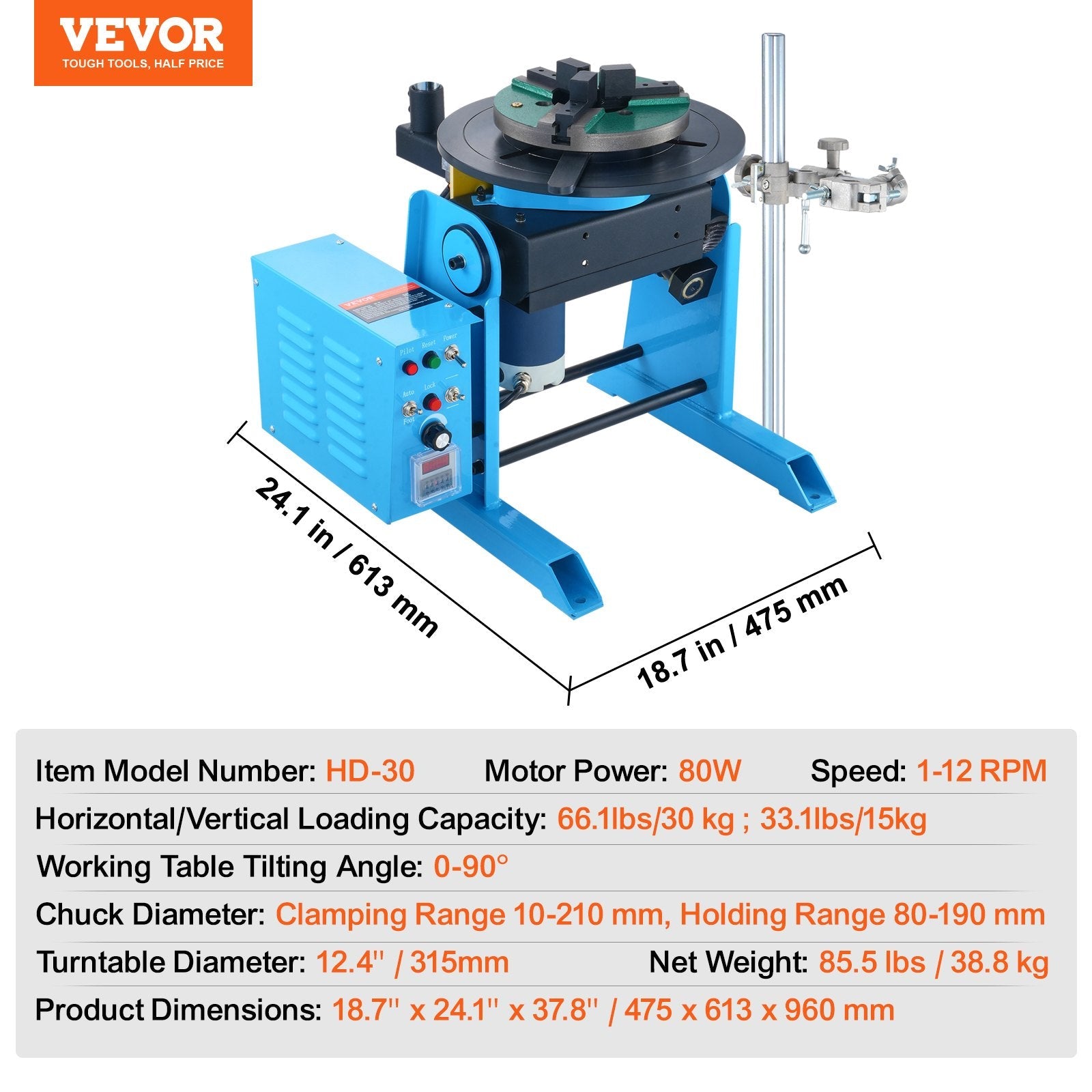

Specification
-
Item Model Number: HD-30
-

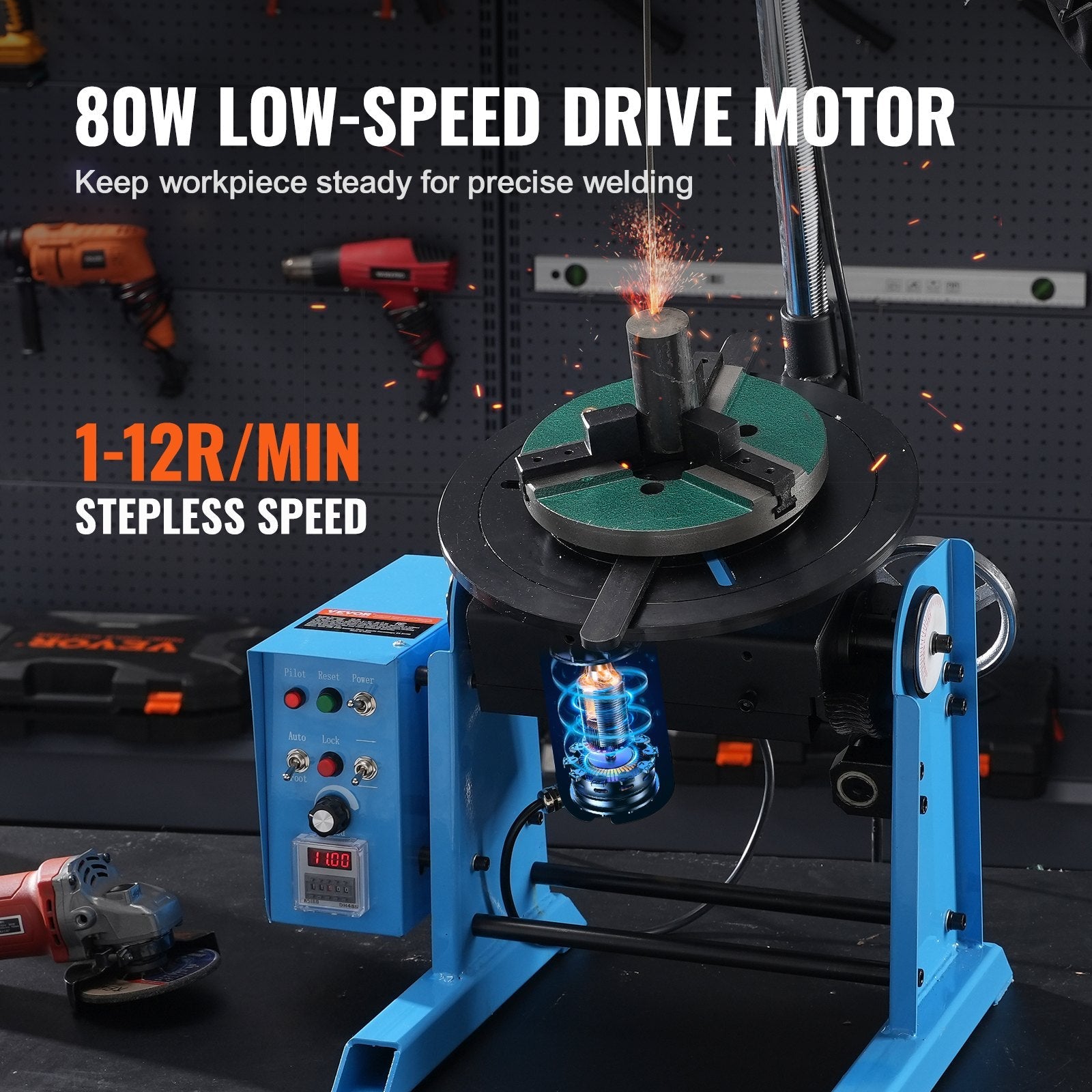

Motor Power: 80W
-
Speed: 1-12 RPM
-
Turntable Diameter: 12.4" / 315 mm
-
Working Table Tilting Angle: 0-90°
-
Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm
-
Product Dimensions: 18.7" x 24.1" x 37.8" / 475 x 613 x 960 mm
-
Net Weight: 85.5 lbs / 38.8 kg
-
Horizontal/Vertical Load Capacity: 66.1 lbs / 30 kg (horizontal), 33.1 lbs / 15 kg (vertical)
-
Main Material: Q235 Steel
