Description

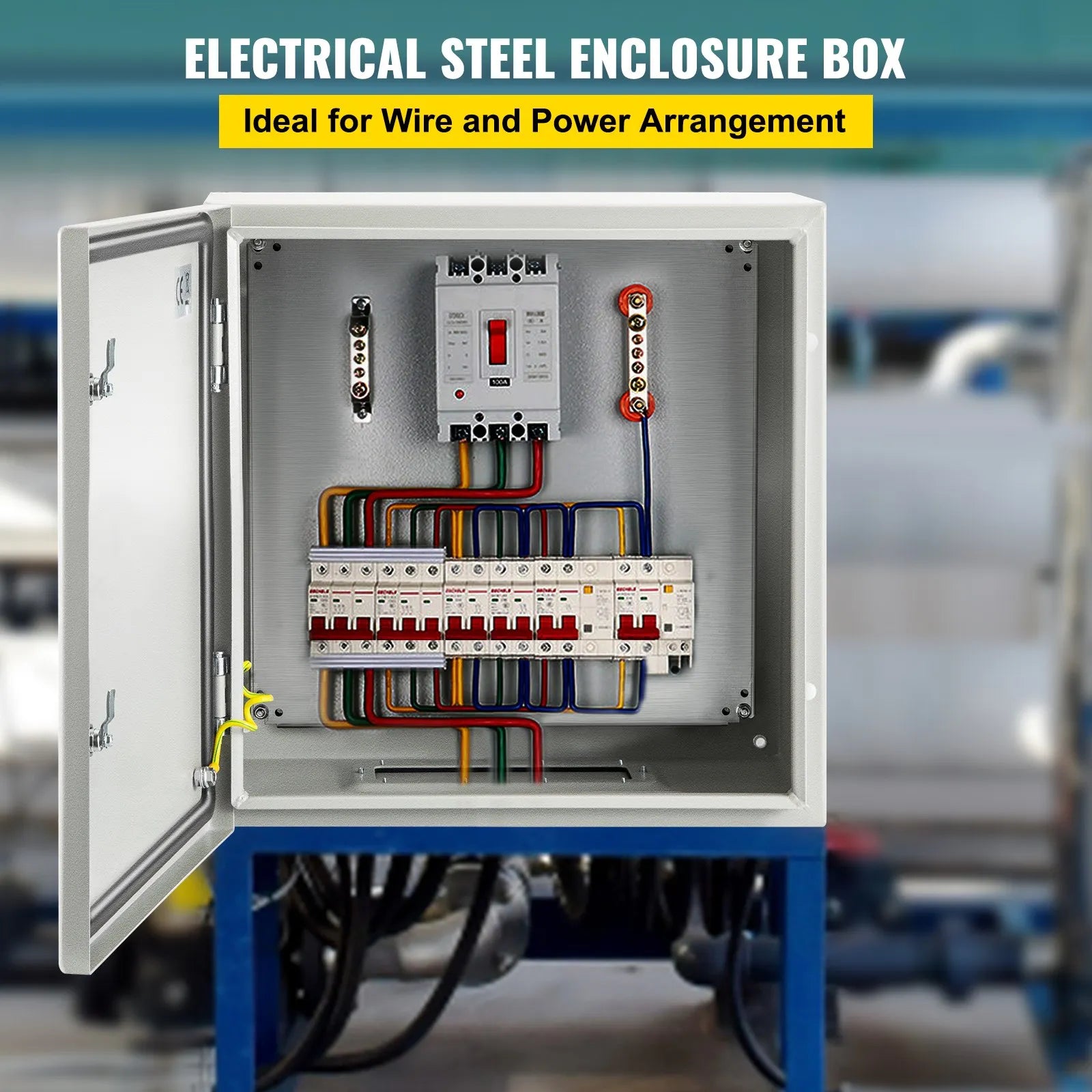

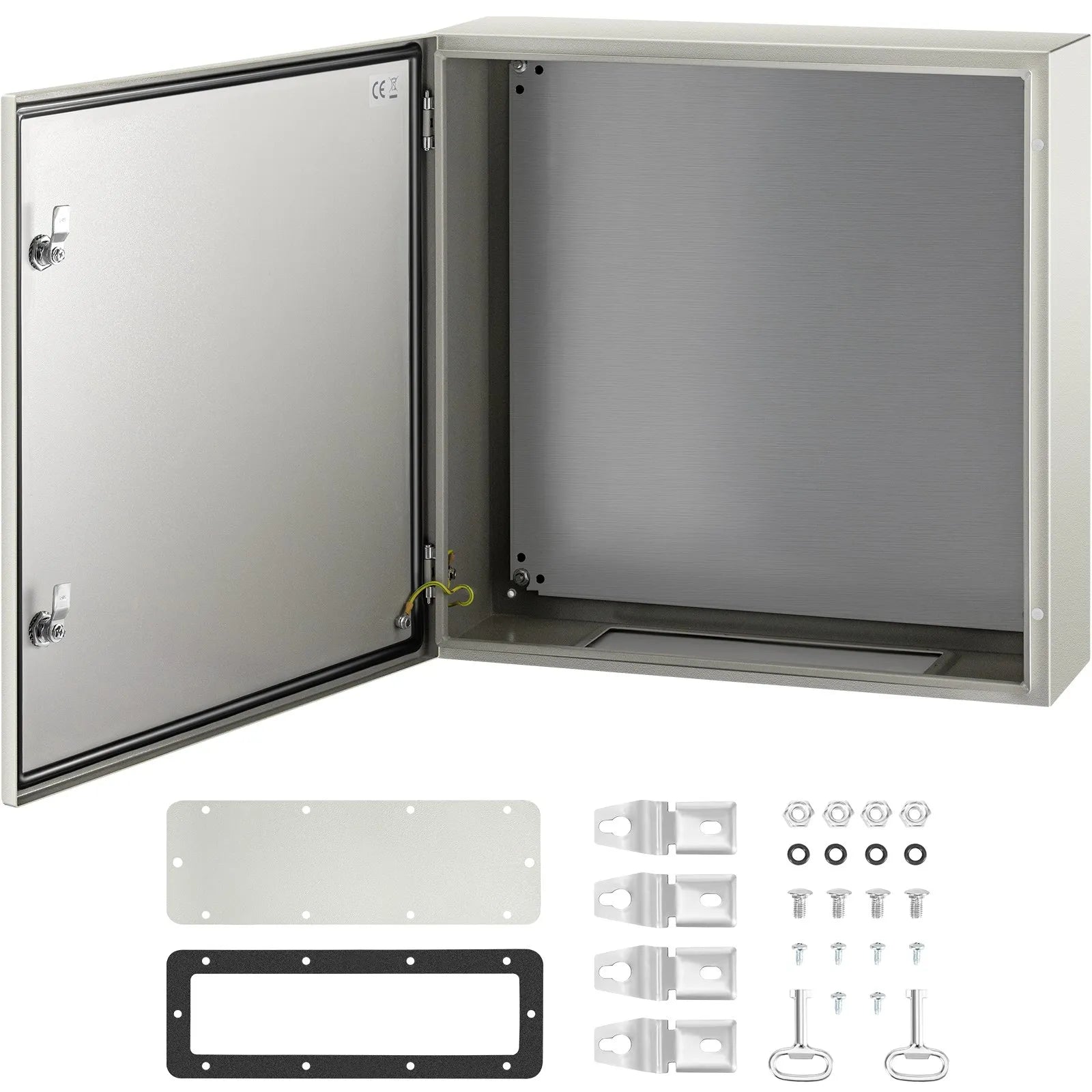

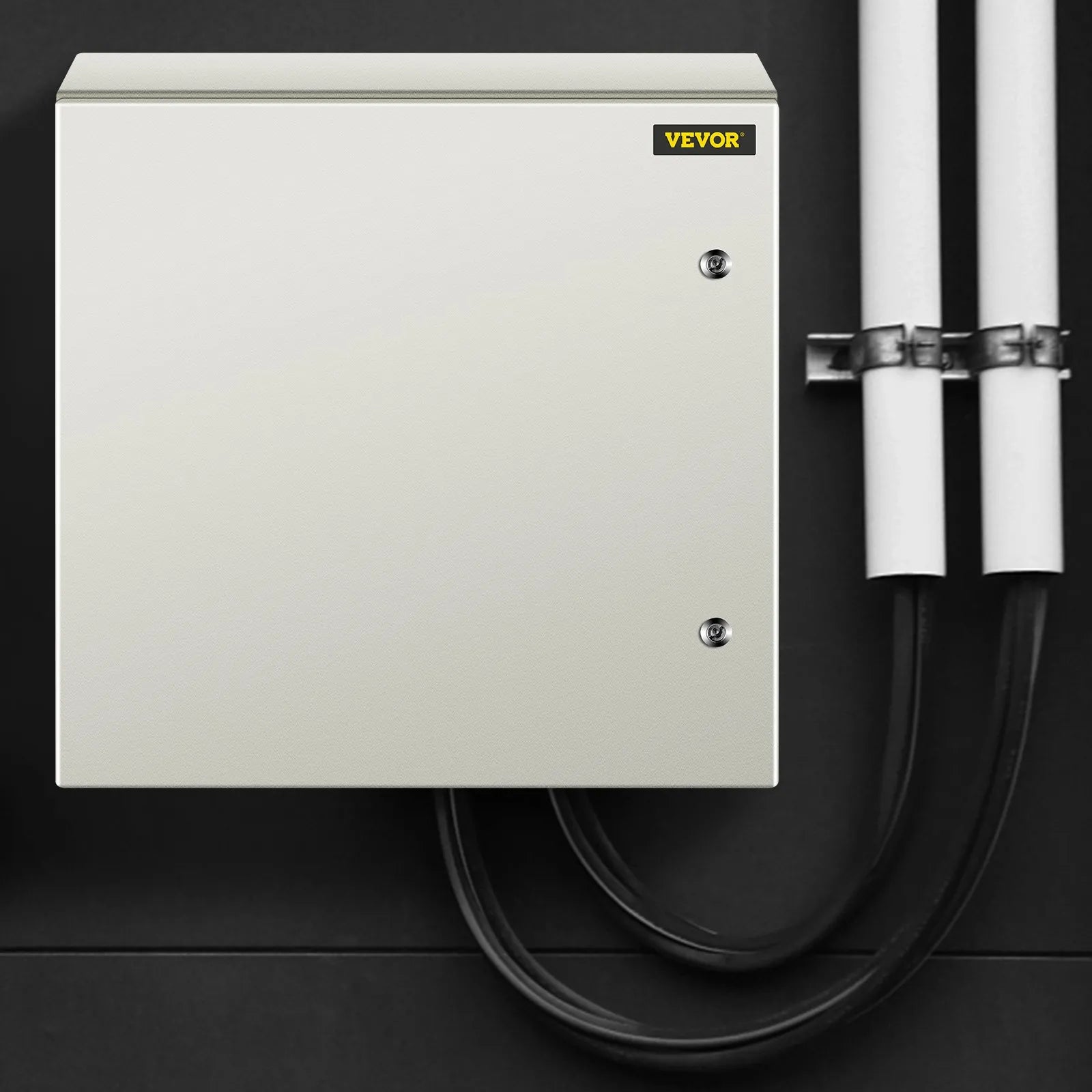

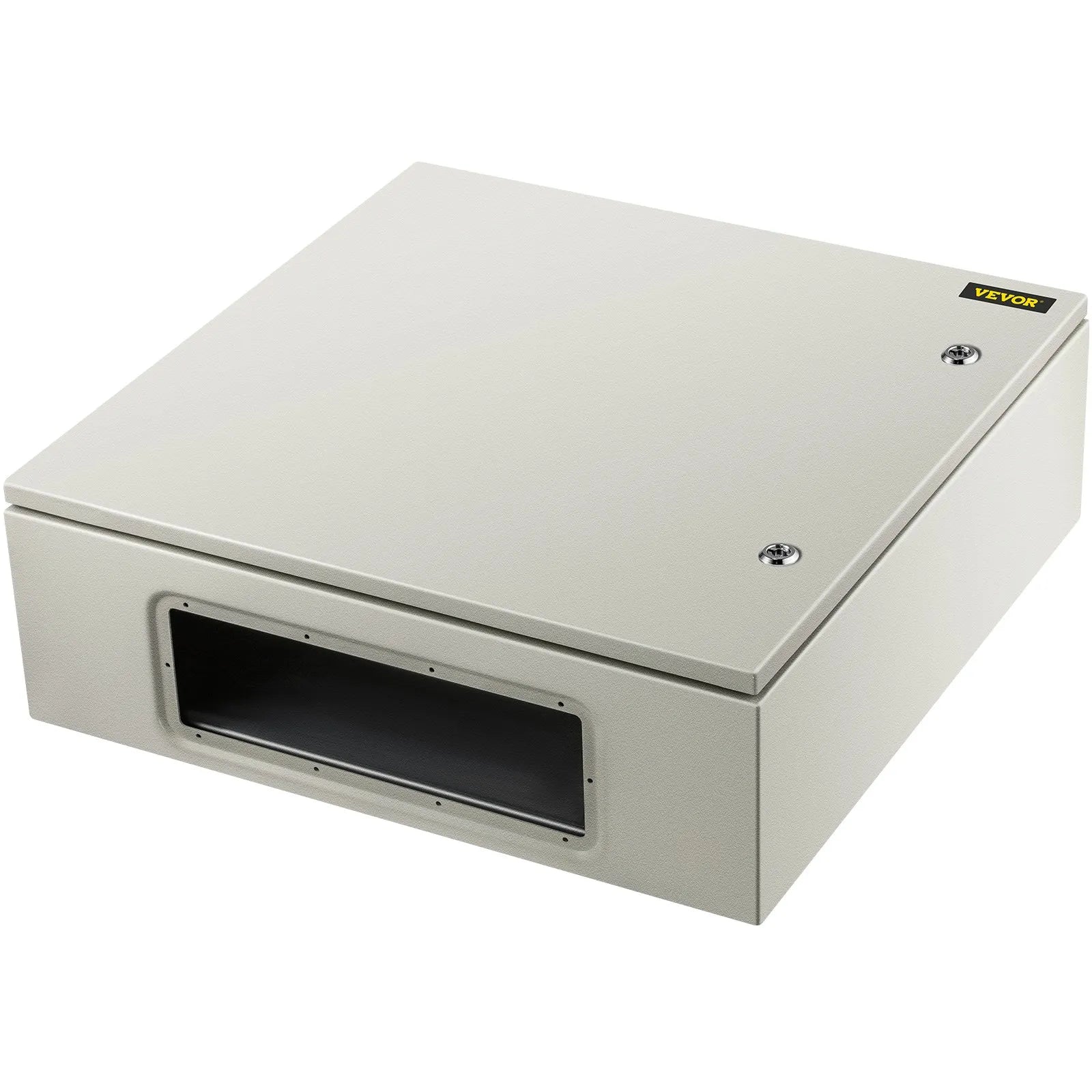

The VEVOR Steel Electrical Box is a 24" x 24" x 8" carbon steel enclosure designed to protect wall-mounted electronic equipment. Constructed with premium steel, a hinged lockable door, and IP66/NEMA-compliant weatherproofing, it provides reliable protection for both indoor and outdoor installations. Featuring a detachable galvanized mounting plate and epoxy polyester powder coating, this enclosure is easy to install and suitable for a wide variety of electrical applications.
Key Features:
-
Premium carbon steel material for long-lasting durability
-

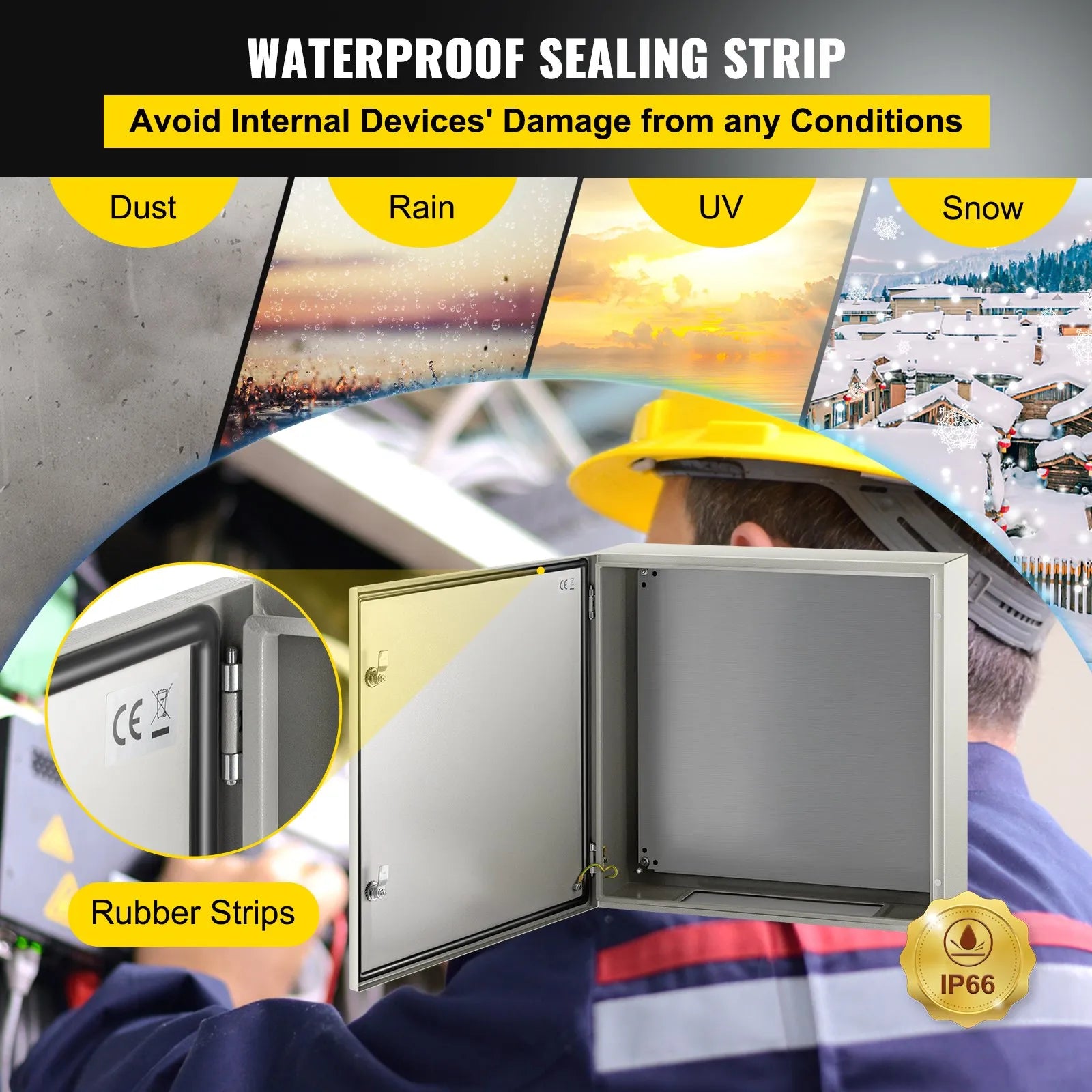

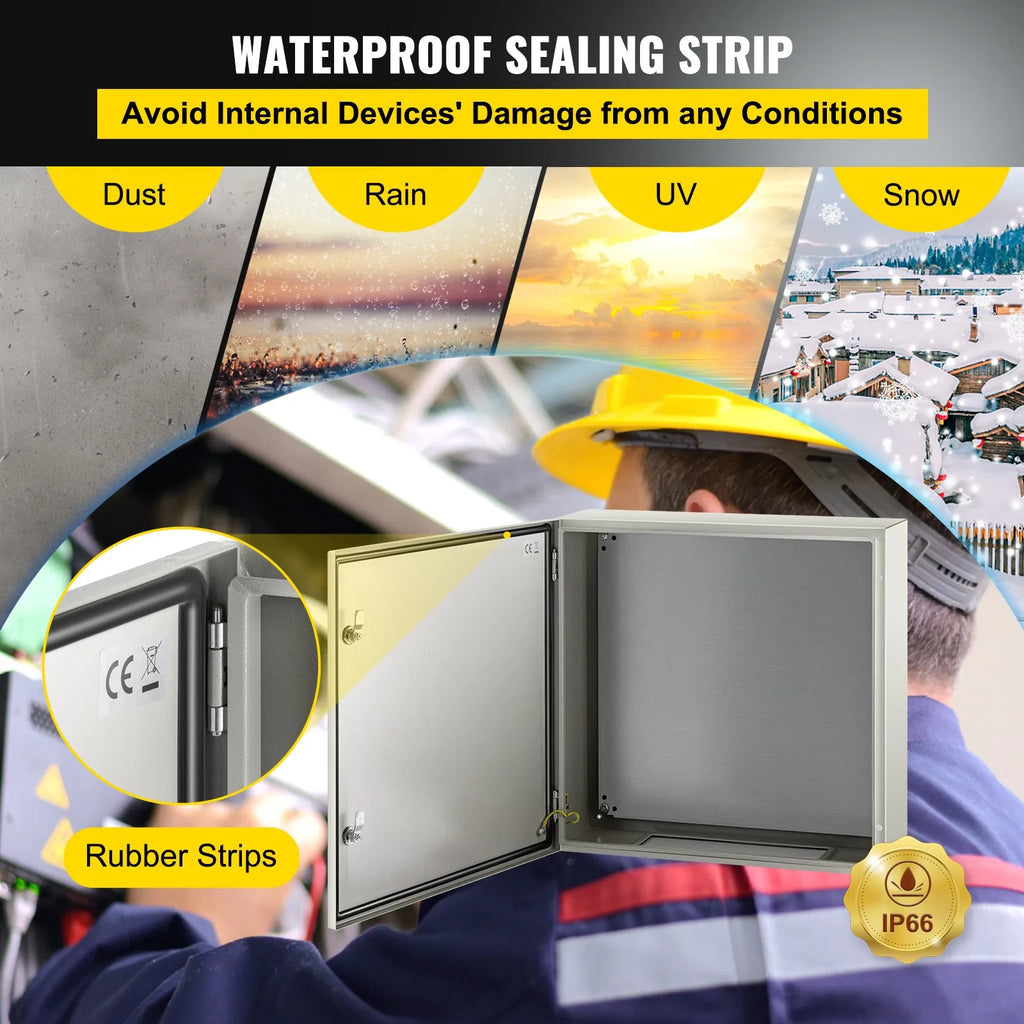

IP66 protection level, compliant with NEMA 1, 2, 4, 4X, & 12
-

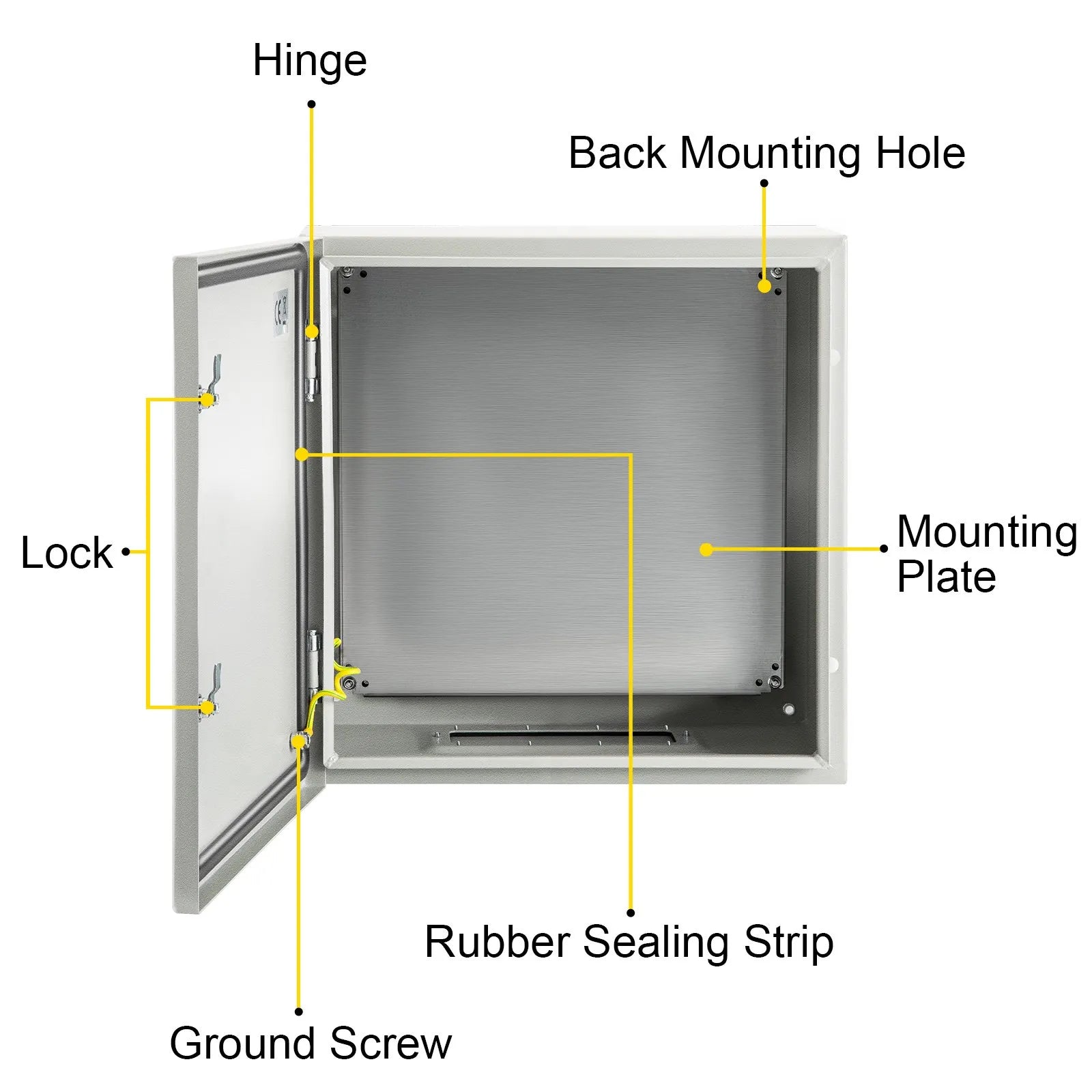

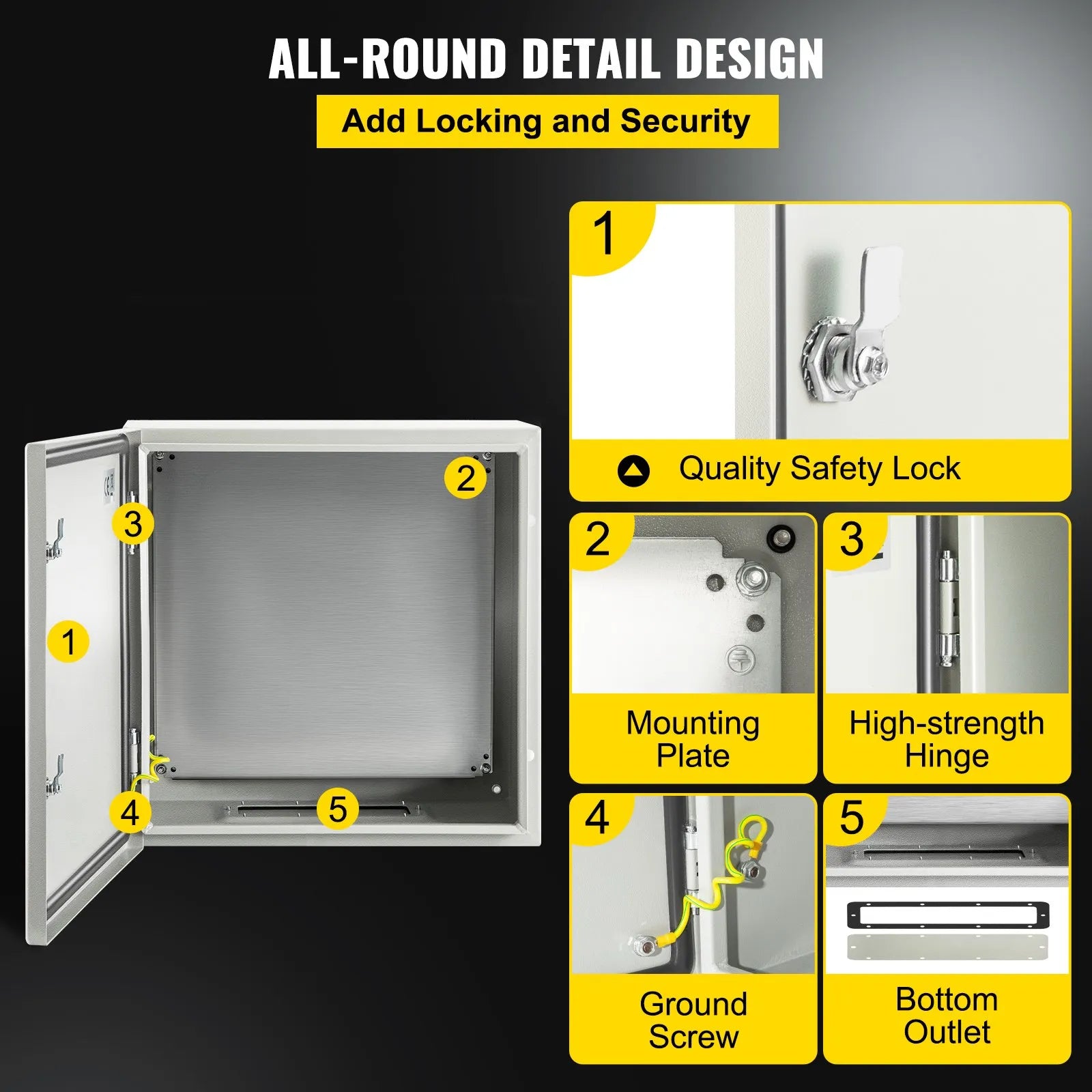

Hinged door with lock for secure operation
-

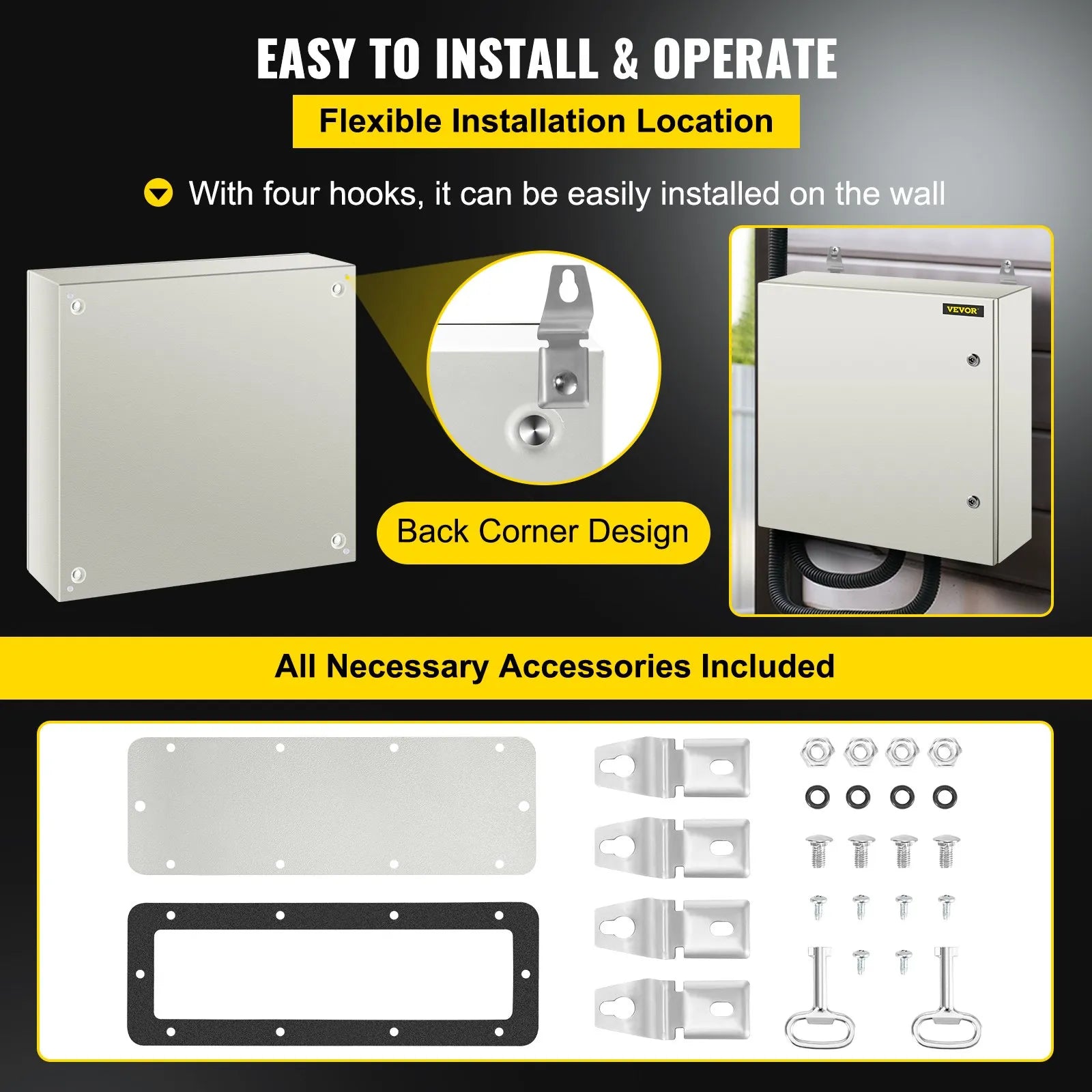

Effortless installation with detachable galvanized backplate
-
Thoughtful design for indoor and outdoor use
-
Extensive applications for electronic equipment protection
-

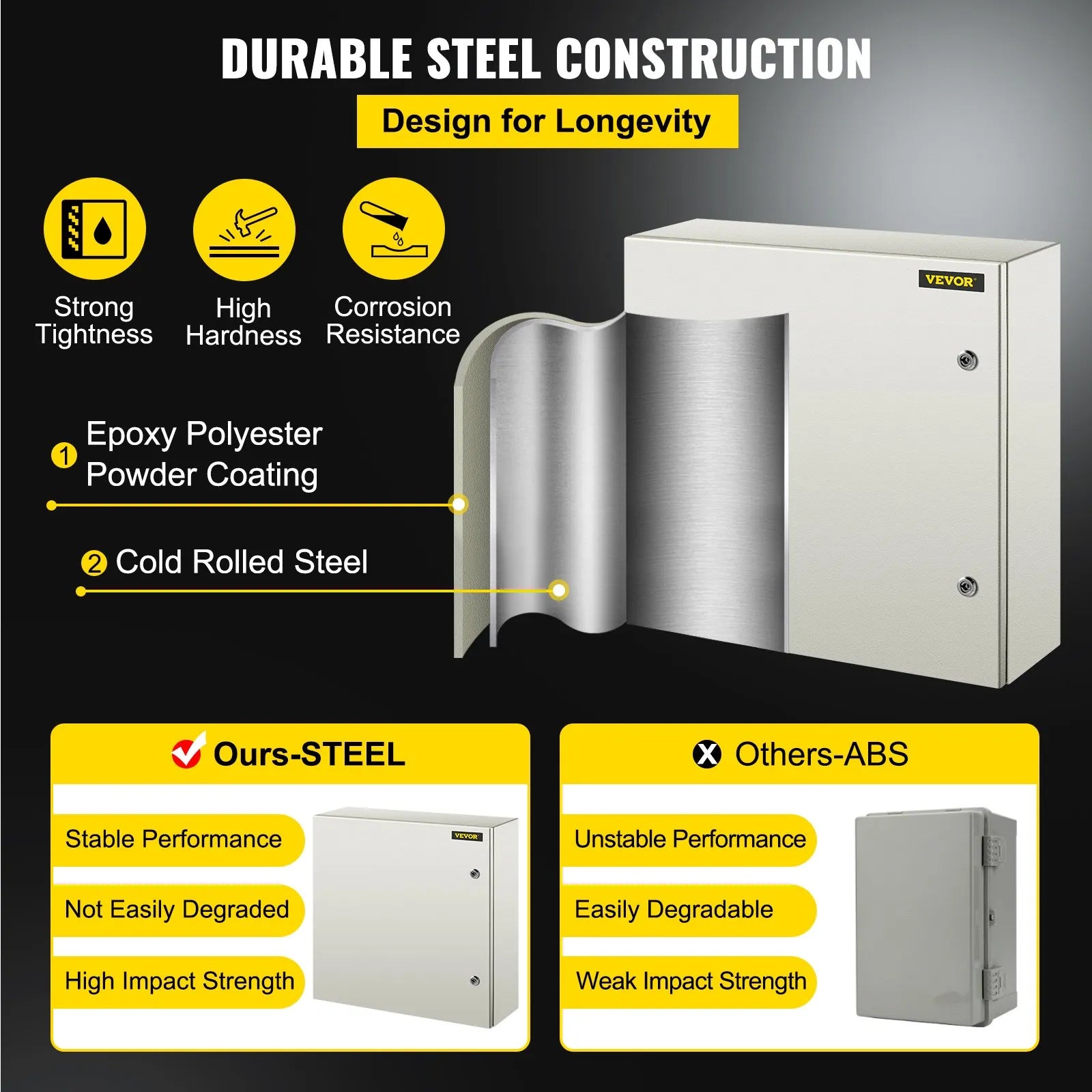

Epoxy polyester powder coating for corrosion resistance
Specifications:
-

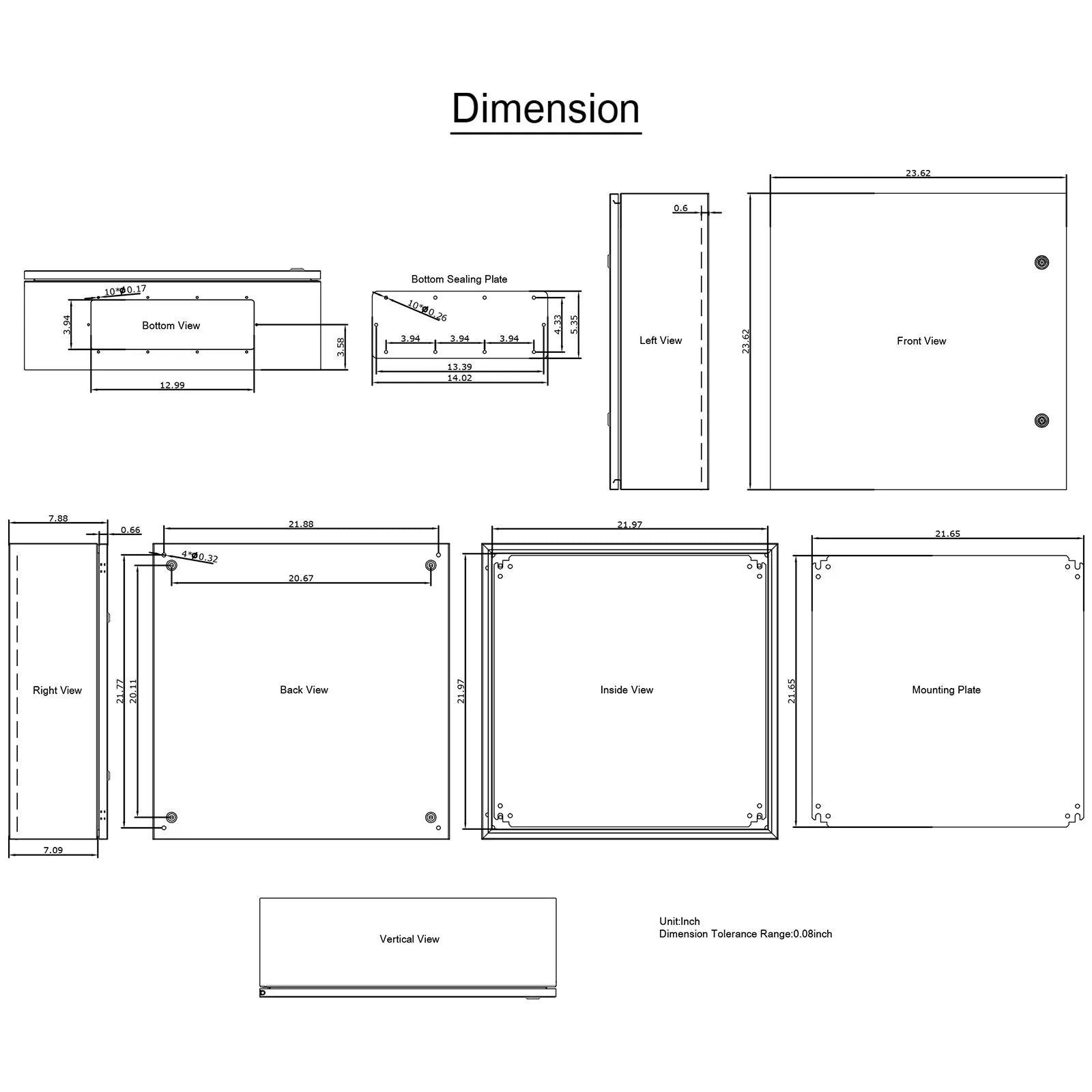

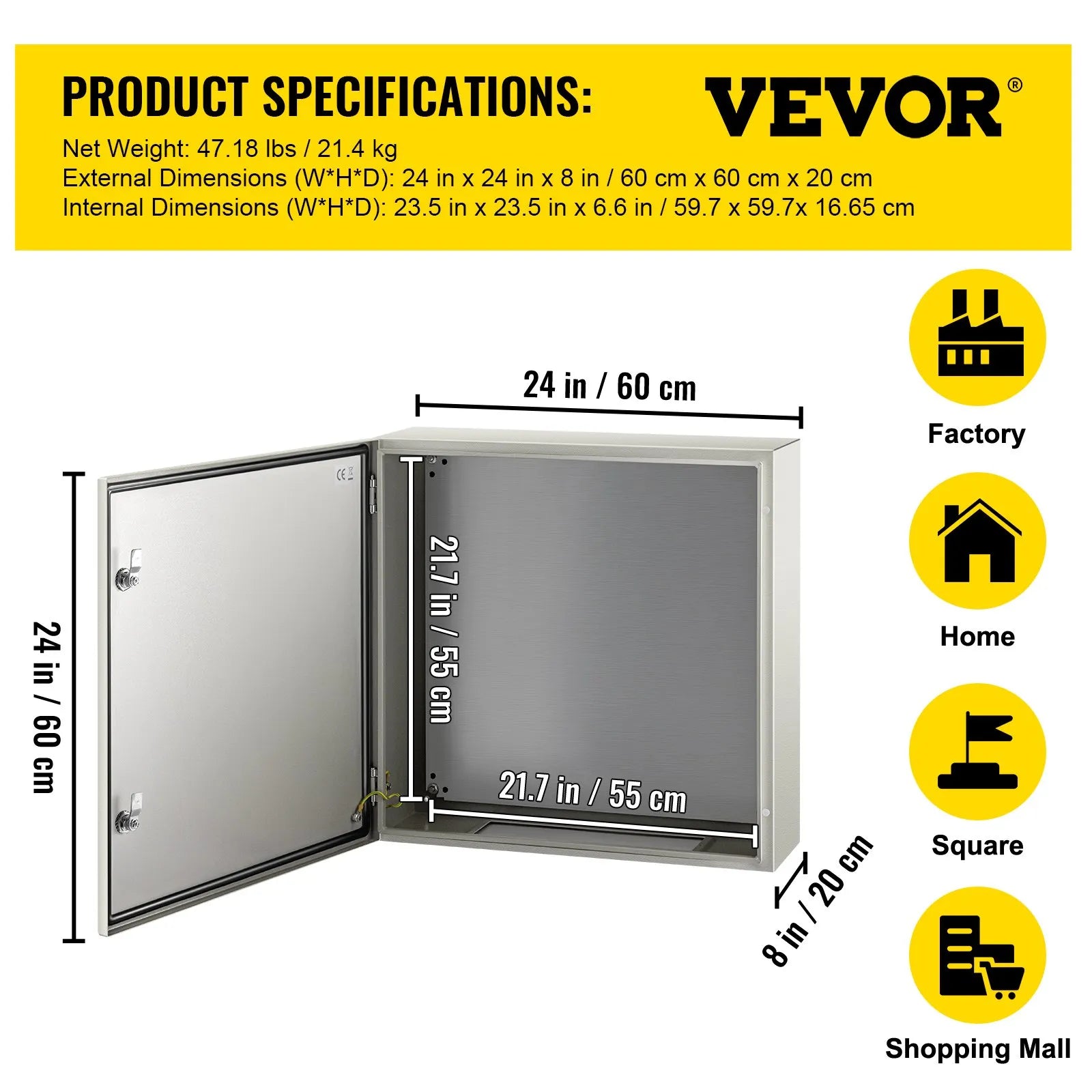

Inner Dimensions (H x W x D): 23.5" x 23.5" x 6.6" / 59.7 x 59.7 x 16.65 cm
-

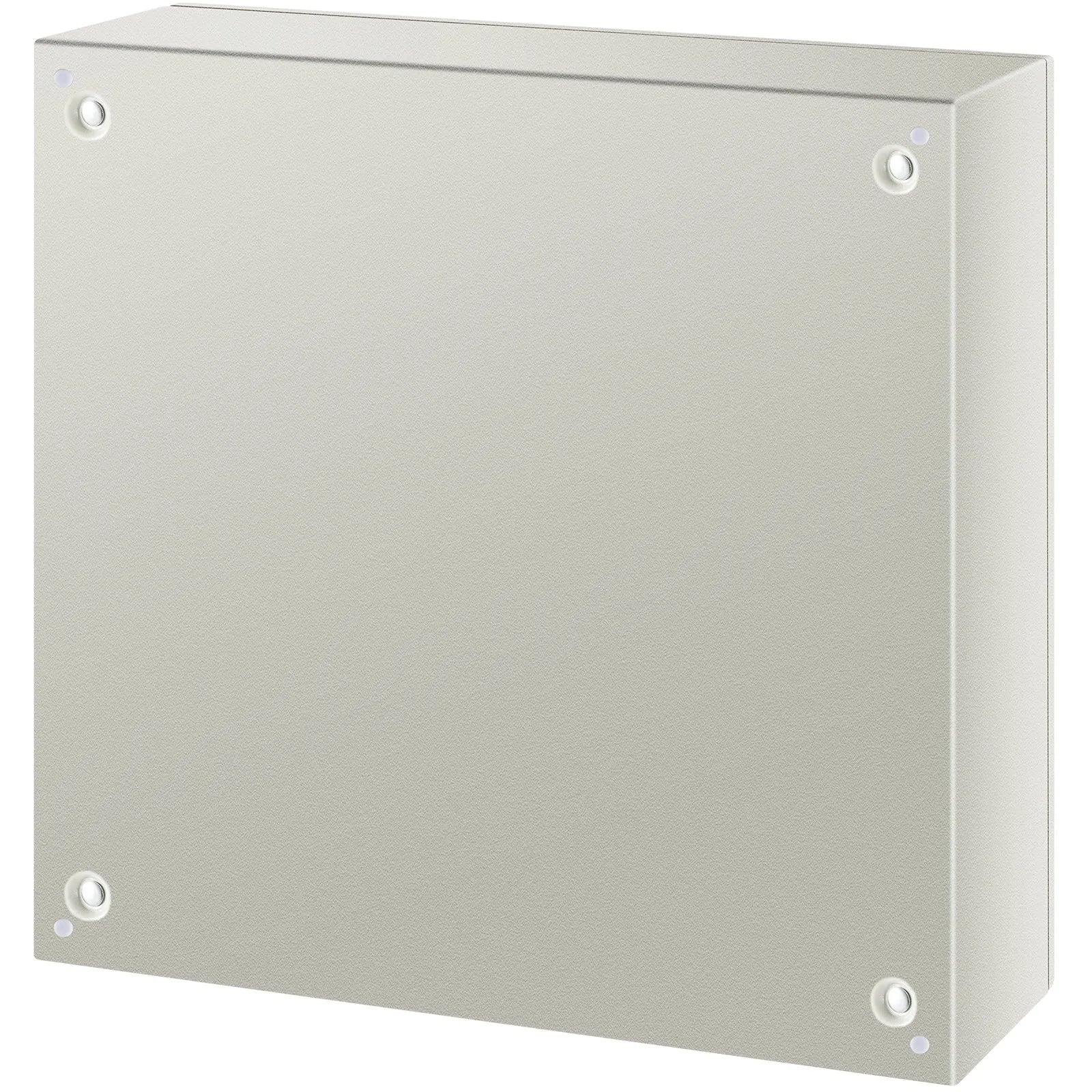

Outer Dimensions (H x W x D): 24" x 24" x 8" / 60 x 60 x 20 cm
-
Color: Gray White (RAL7035)
-
Material: 0.059" / 1.5 mm Carbon Steel
-
Feature: Lockable, Waterproof
-
Certification: CE / ROHS
-
Mounting Plate: 0.079" / 2 mm Detachable Galvanized Backplate
-
Galvanized Backplate Dimensions: 21.7" x 21.7" / 55 x 55 cm
-
IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
-
Connection Type: Hinged
-
Model: SPT
-
Product Weight: 47.18 lbs / 21.4 kg
-
Coating: Epoxy Polyester Powder Coating
