Description

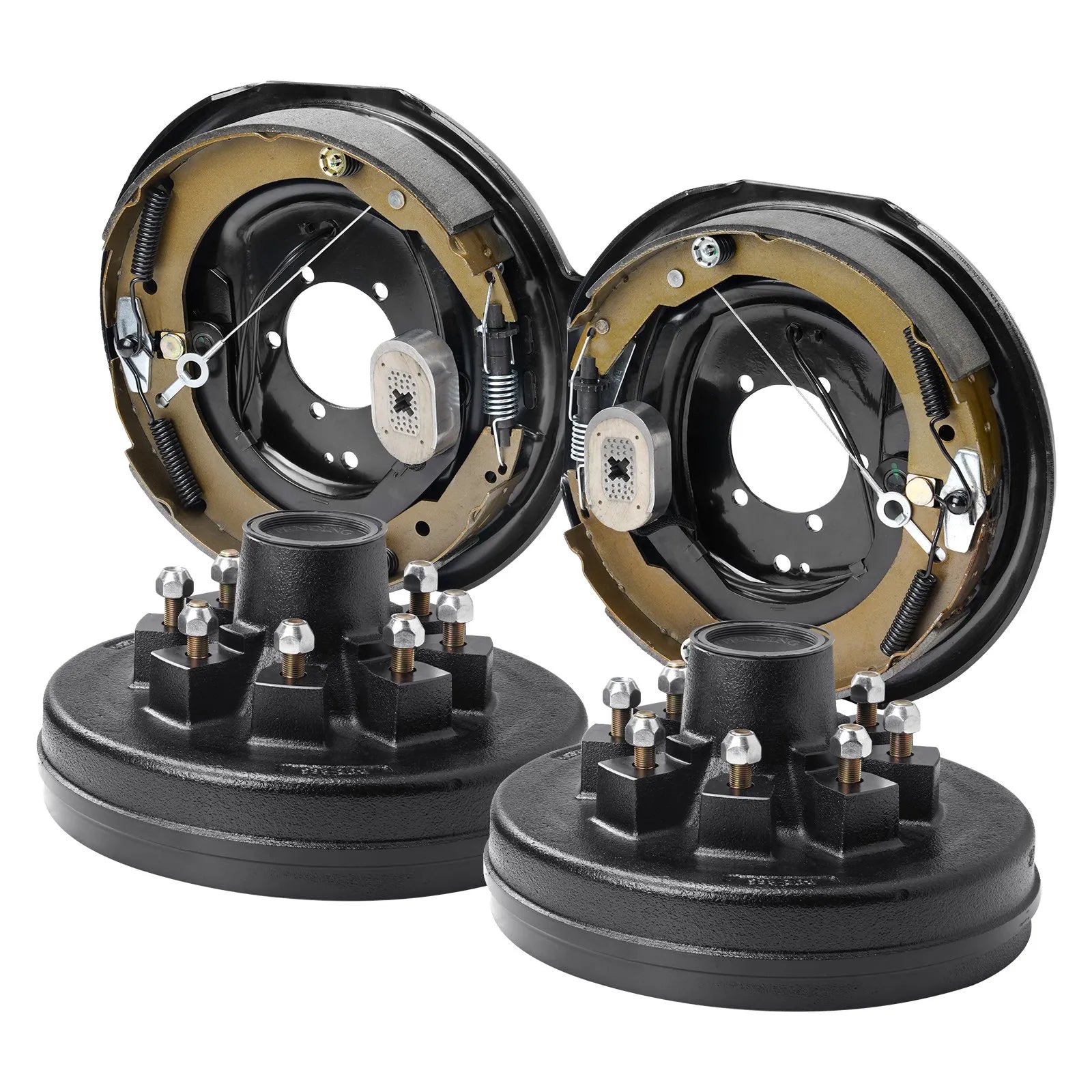

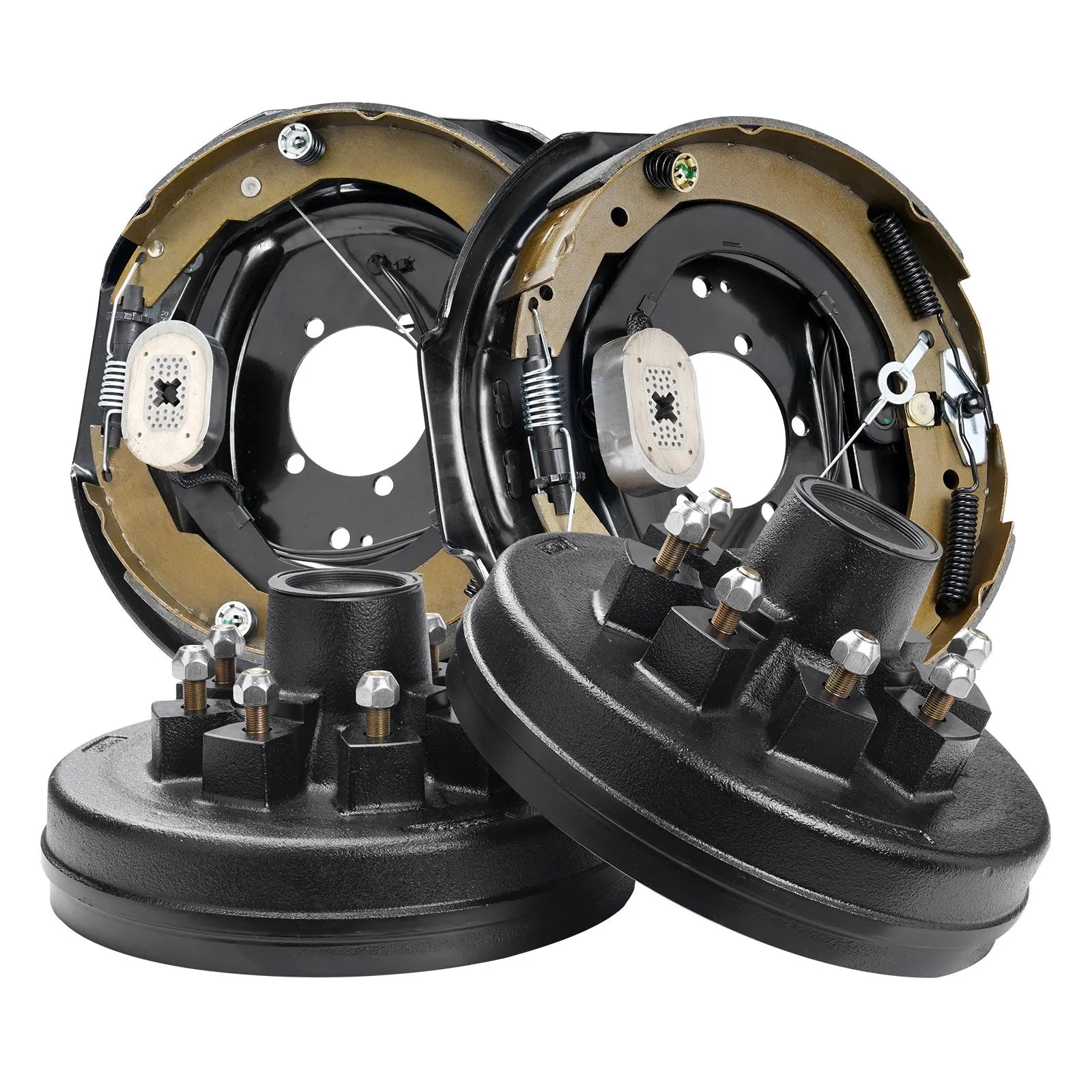

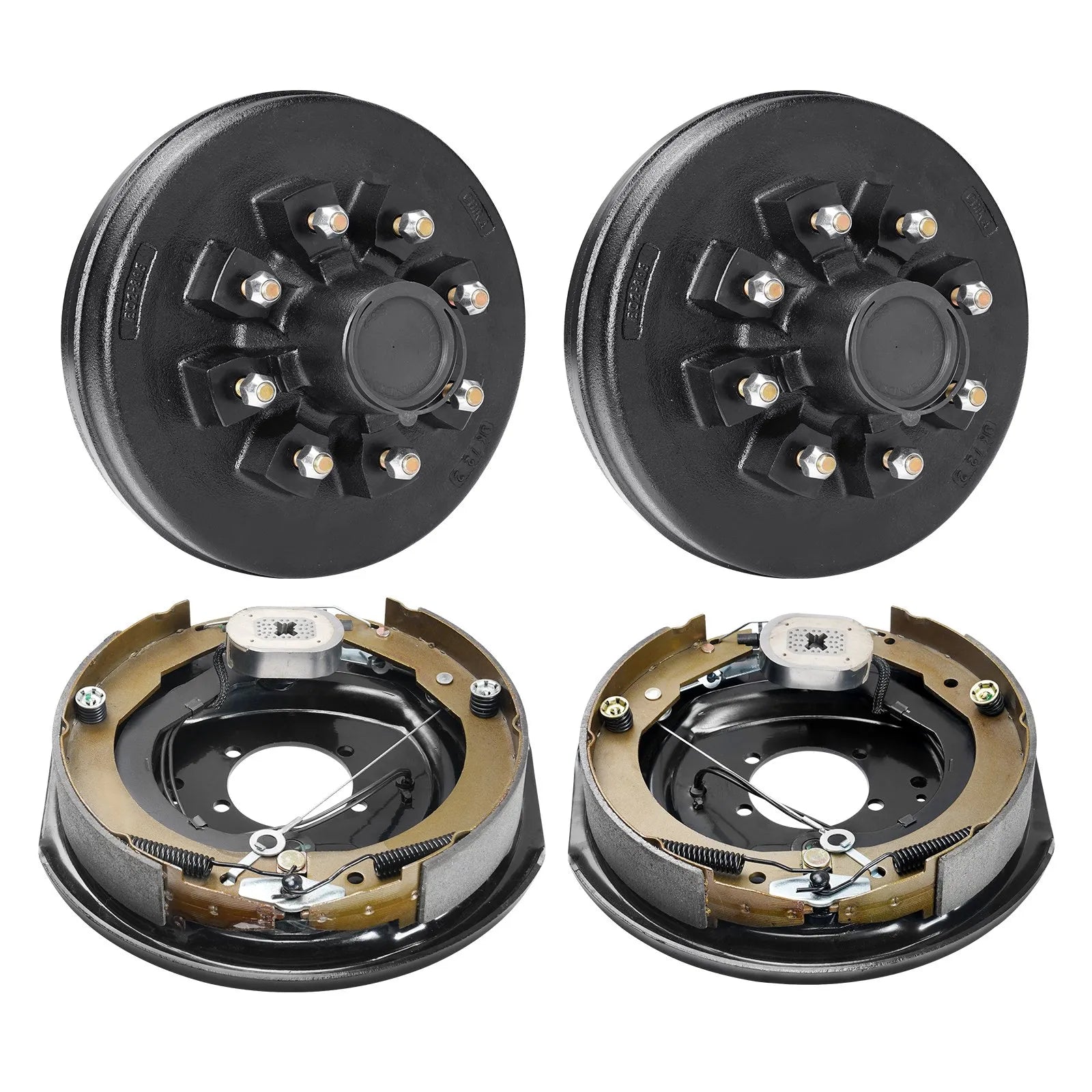

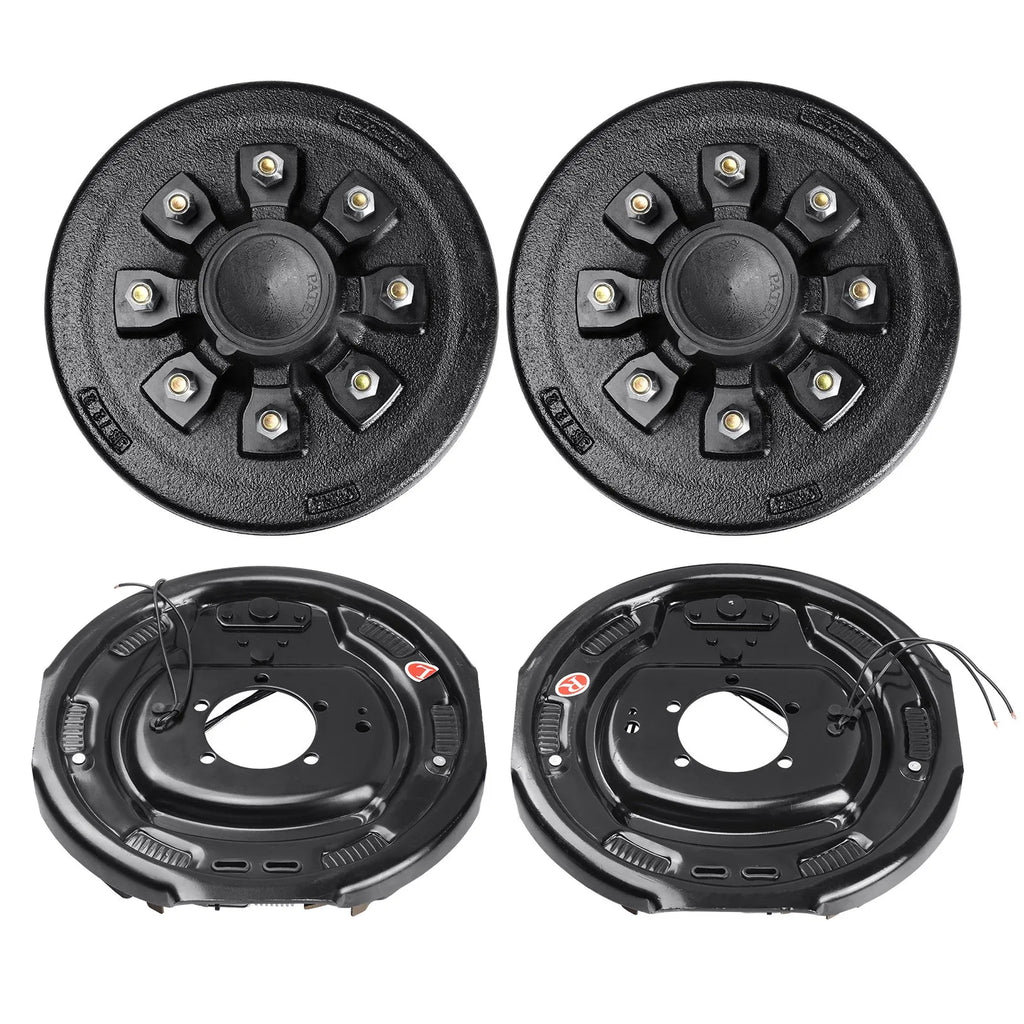

The VEVOR Trailer Hub Drum Kit is a heavy-duty braking solution designed for trailers with a 7000 lbs axle. Featuring 12" x 2" electric brake assemblies with self-adjusting functionality, this kit ensures consistent braking performance and reduced maintenance. Constructed from durable grey cast iron, SPHC, and Q235 steel, the components offer excellent strength and long service life. The kit includes two brake assemblies and two brake drums with an 8 on 6.5" bolt circle, making it ideal for trailer brake system replacement or upgrades. With strong magnetic braking force and reliable friction performance, this kit enhances towing safety for trailers used in transport, farming, and hauling applications.
Key Features:
-

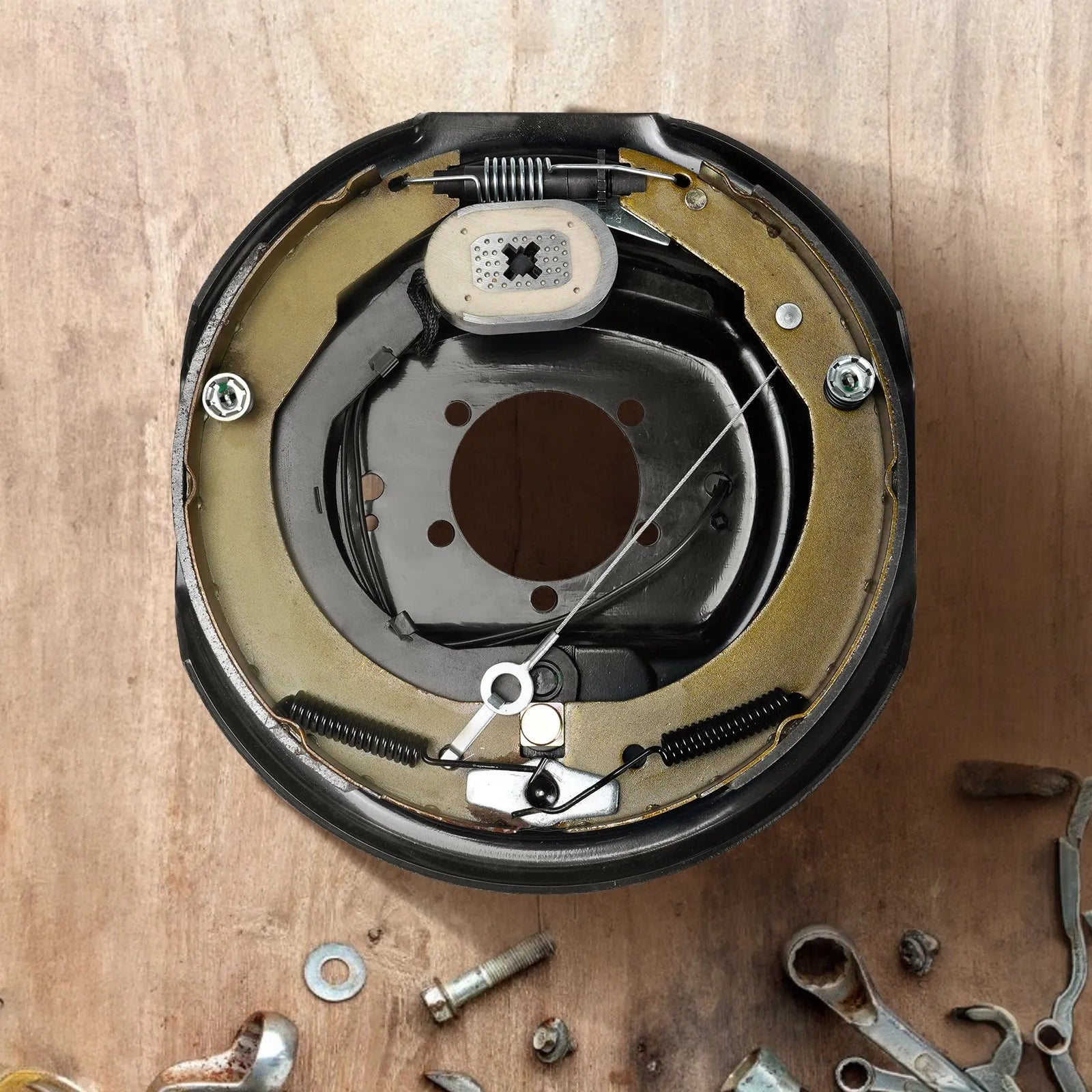

Self-adjusting electric brake assemblies for consistent braking performance
-
Designed for trailers with 7000 lbs axle capacity
-
Includes two brake assemblies and two brake drums
-
Durable construction with grey cast iron, SPHC, and Q235 steel
-
High magnetic force ensures strong braking response
-

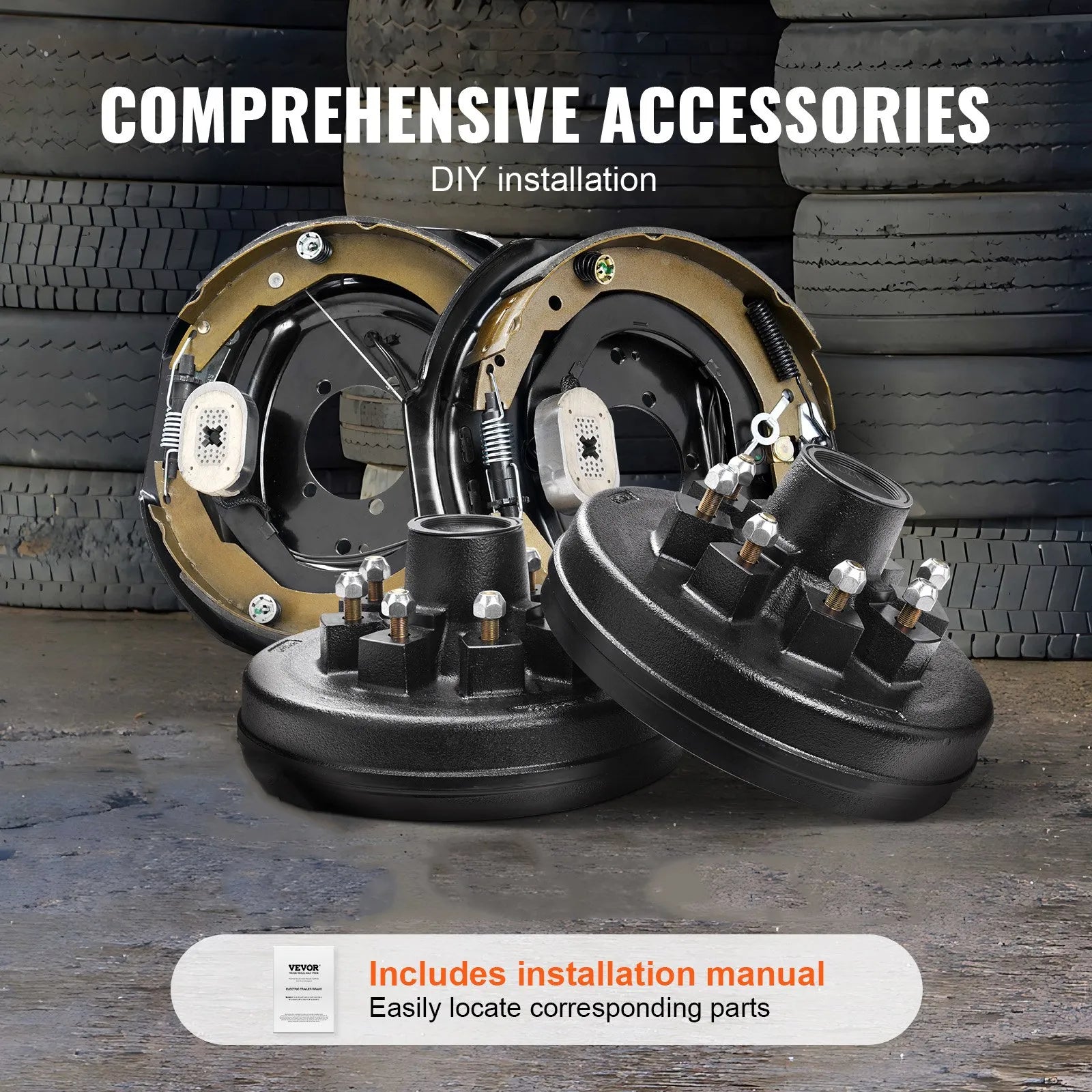

Easy installation with 5-hole mounting backing plates
-
Long service life with brake pads lasting up to 30,000 km
-
Suitable for trailer brake system replacement or upgrades

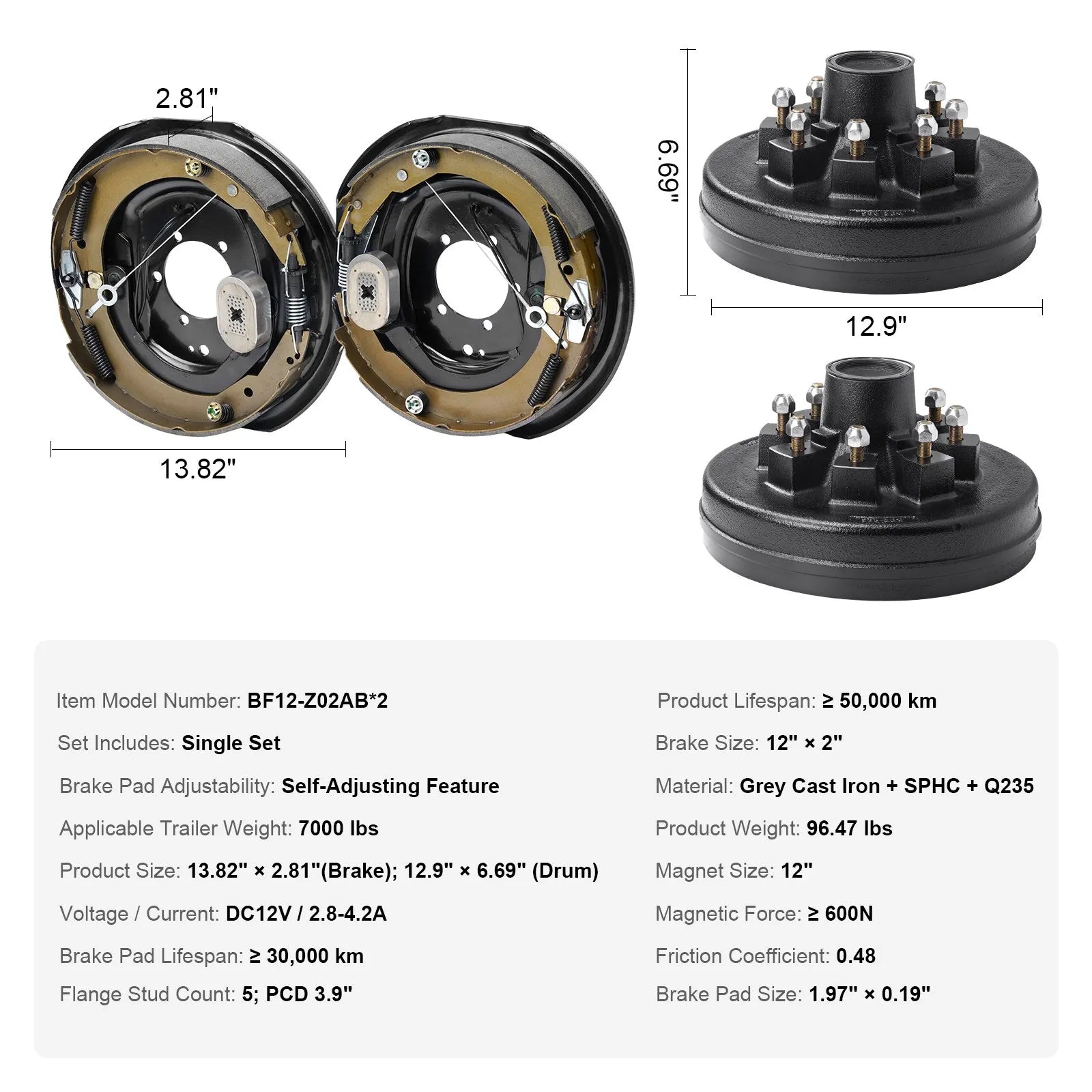

Specifications:
-
Item Model Number: BF12-Z02AB*2
-
Applicable Trailer Weight: 7000 lbs
-
Brake Size: 12 in × 2 in
-
Bolt Circle: 8 on 6.5 in
-
Magnet Size: 12 in
-
Magnetic Force: ≥600 N
-
Voltage / Current: DC 12V / 2.8–4.2 A
-
Friction Coefficient: 0.48
-
Brake Pad Size: 1.97 × 0.19 in
-

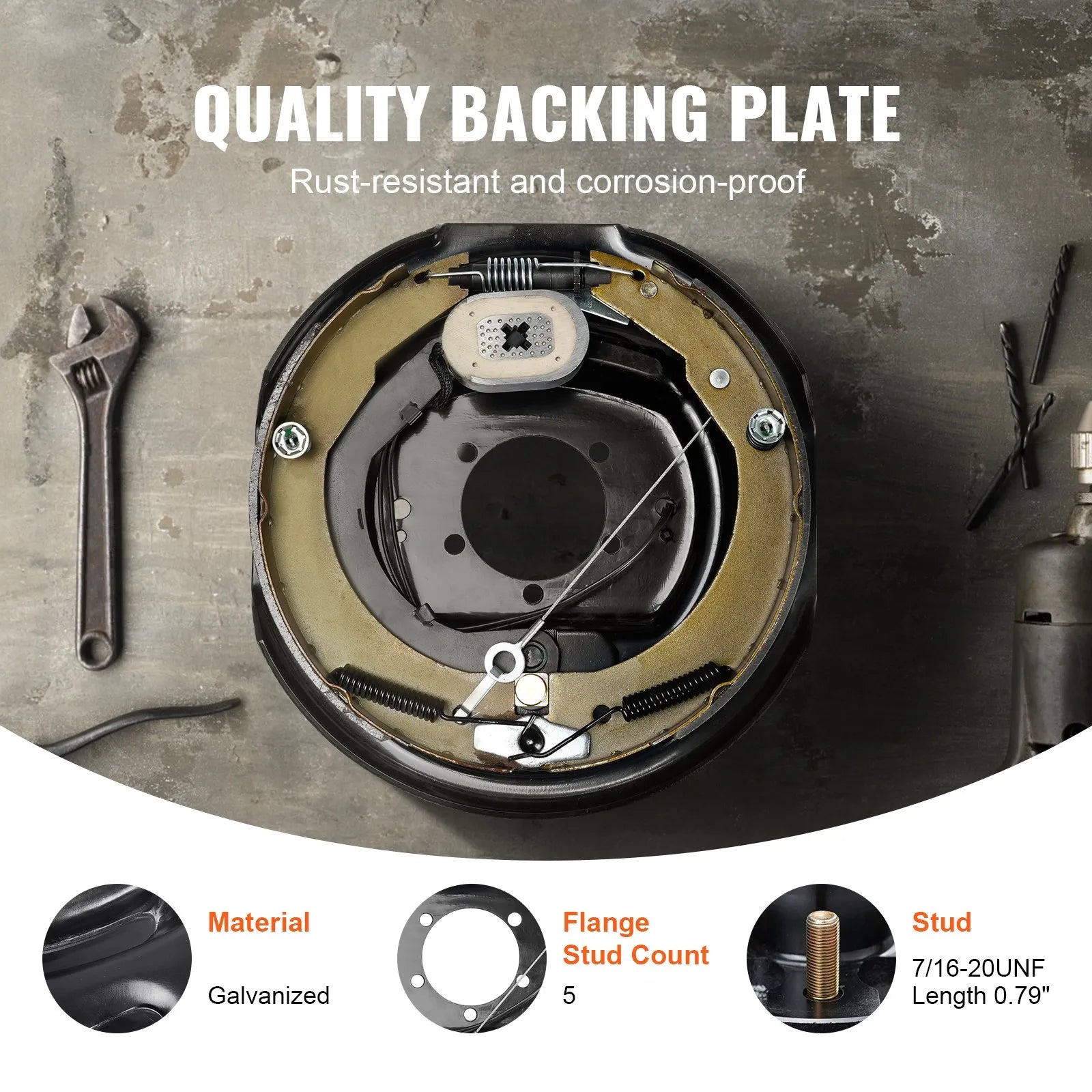

Flange Stud Count: 5
-
Material: Grey Cast Iron + SPHC + Q235
-
Product Lifespan: ≥50,000 km
-
Brake Pad Lifespan: ≥30,000 km
-

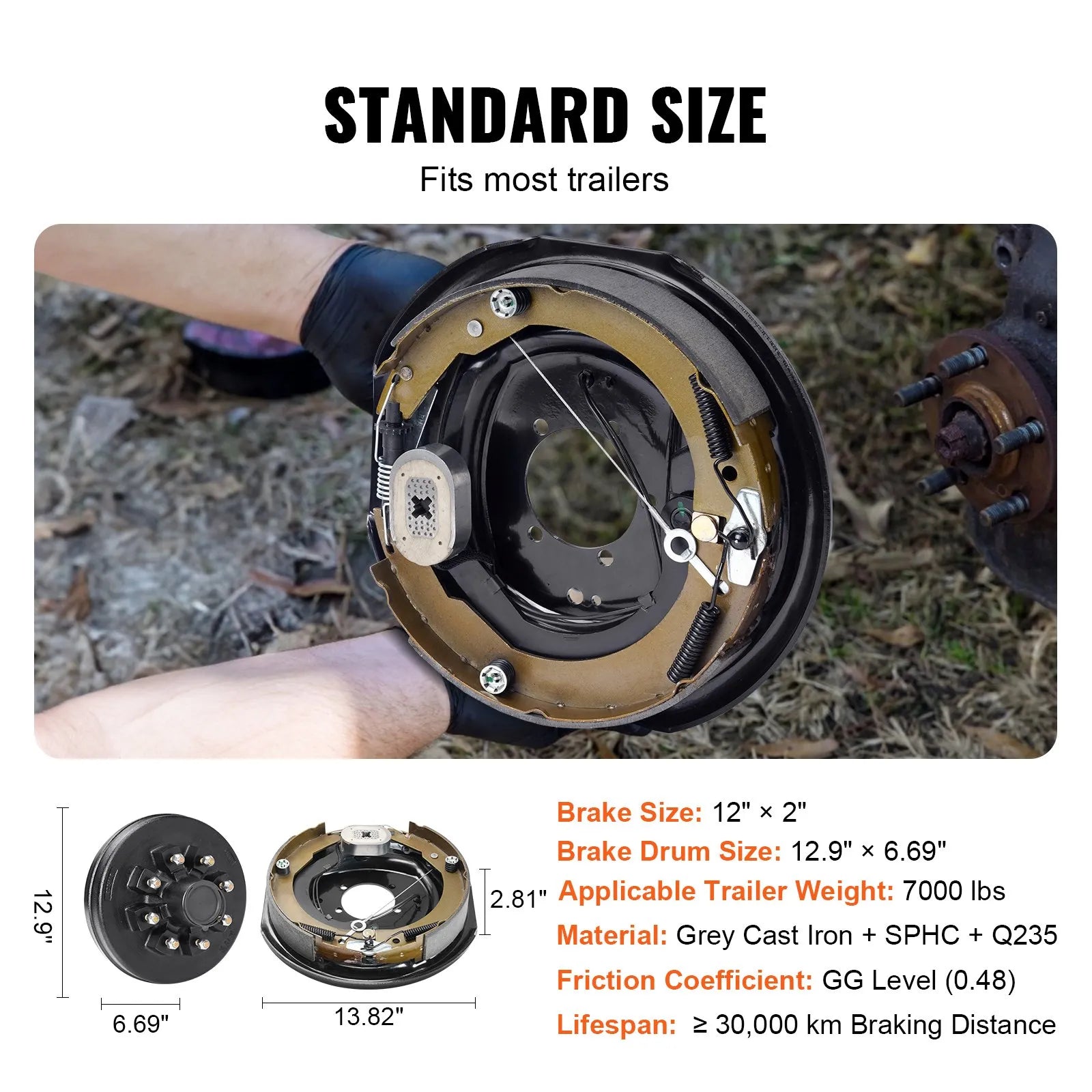

Product Size: Φ13.82 × 2.81 in (Brake); Φ12.9 × 6.69 in (Drum)
-

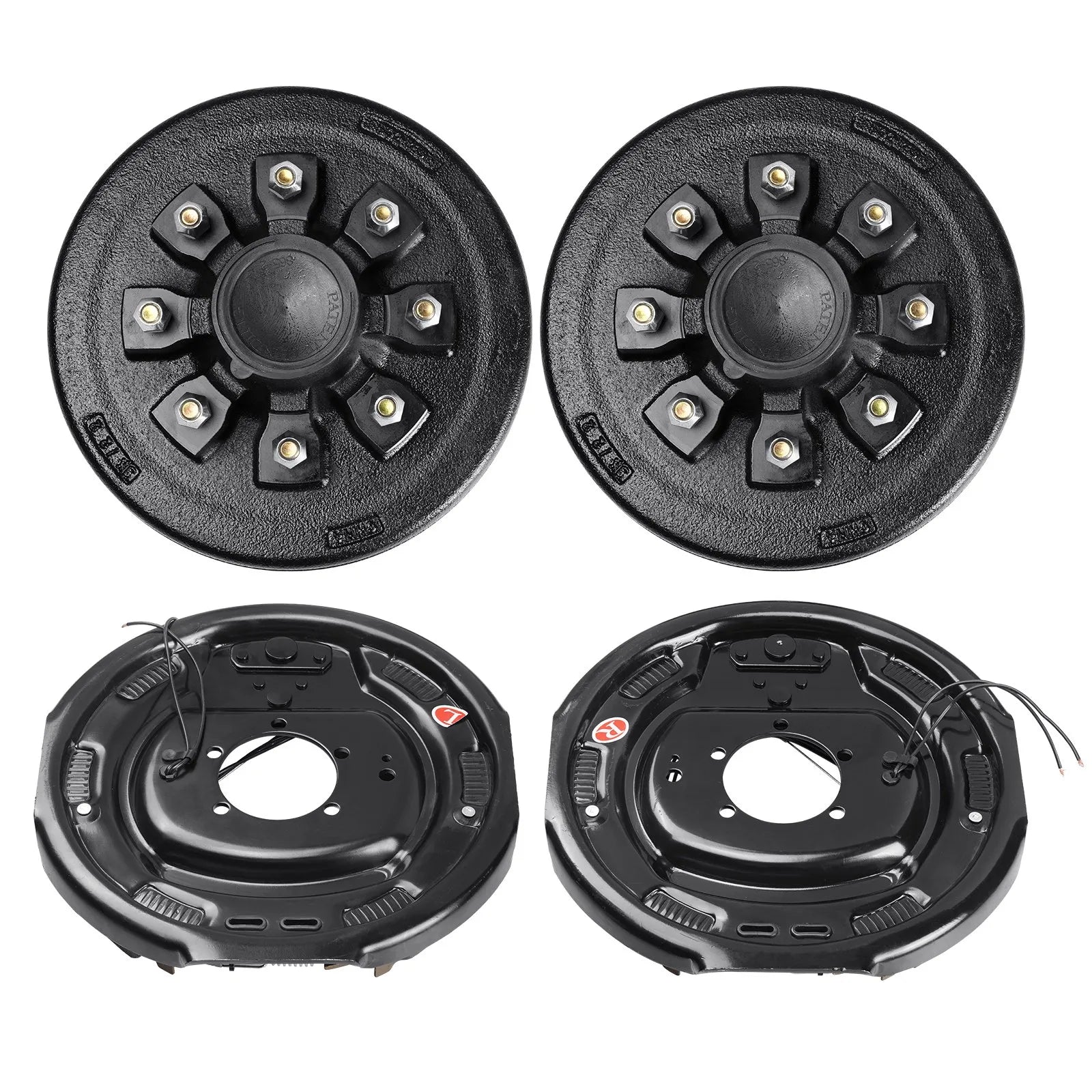

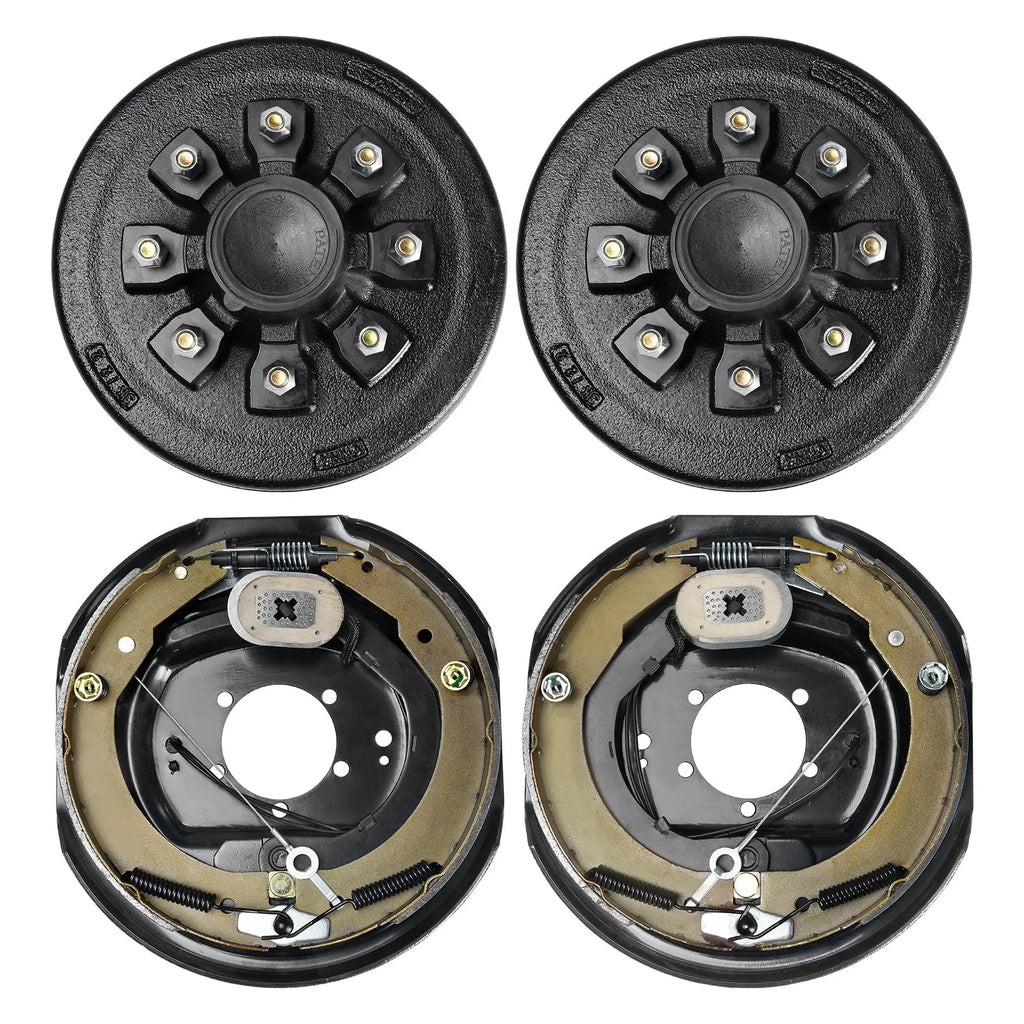

Set Includes: 2 Brake Assemblies + 2 Brake Drums
-
Product Weight: 96.47 lbs
