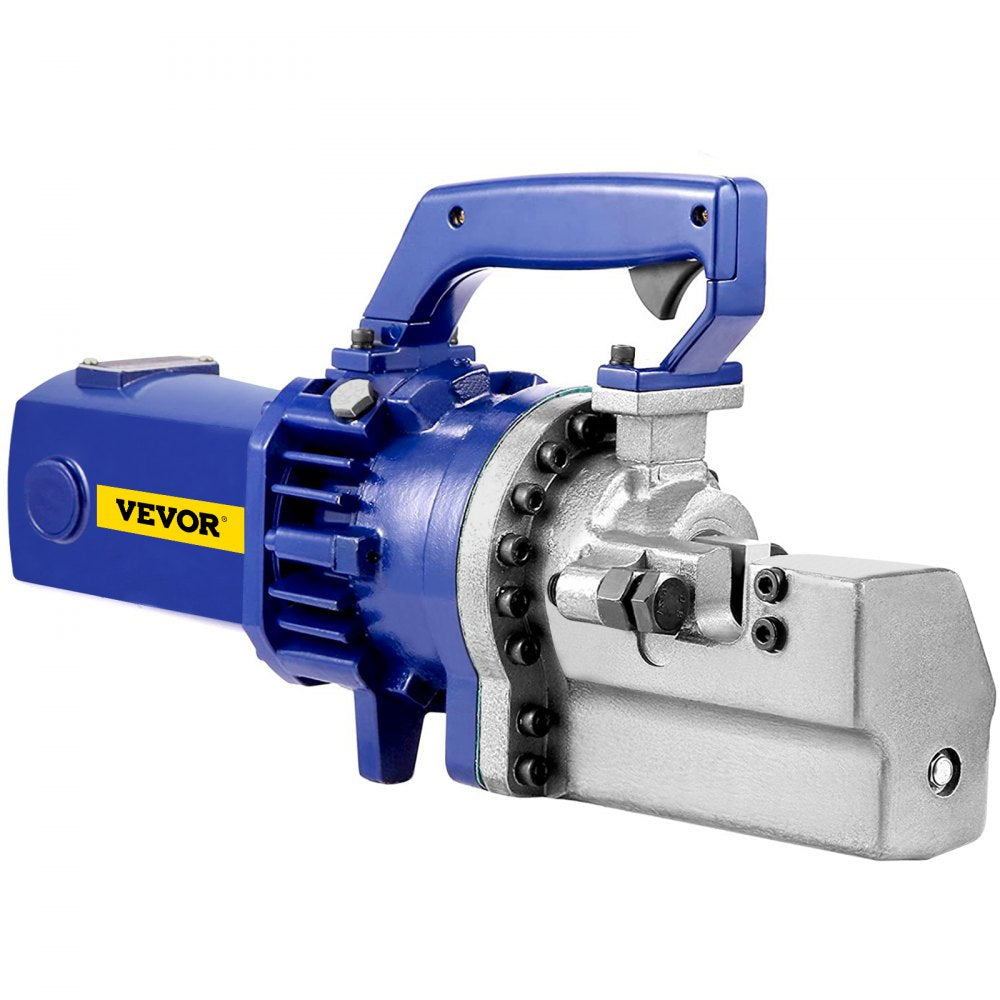

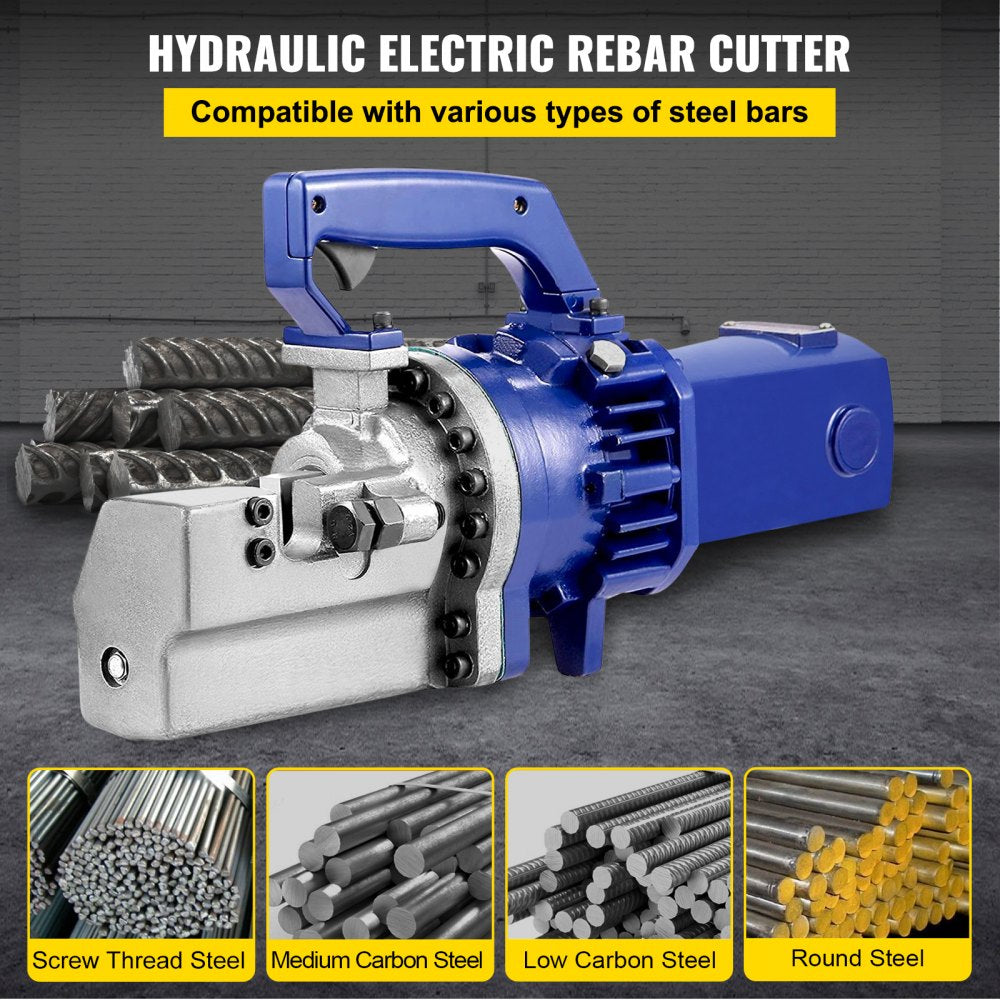

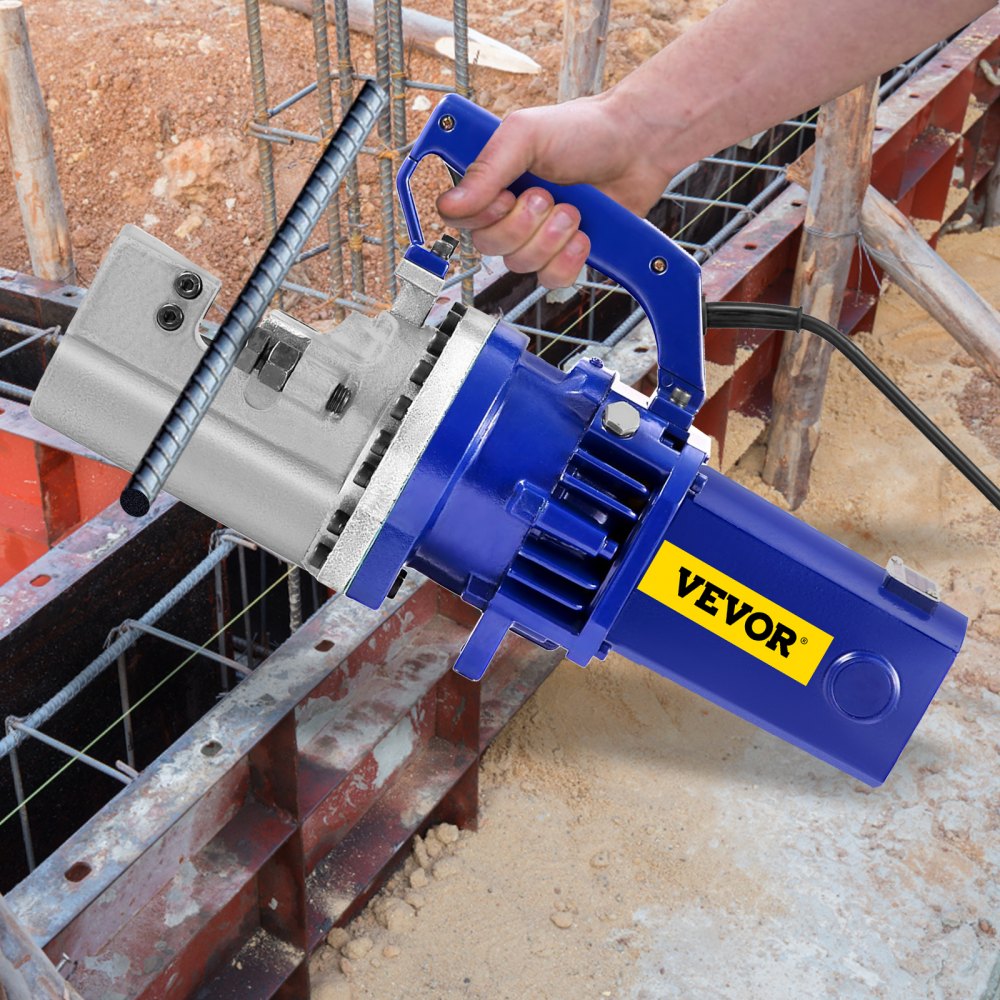

The RC-25 Portable Electric Hydraulic Rebar Cutter is a high-performance cutting tool designed for rapid, precise rebar cutting in construction and rescue operations. Equipped with a durable copper coil motor and an alloy steel blade, this cutter delivers ultra-fast cutting speeds between 3 to 5.5 seconds. Its compact and portable design, reinforced stability, and excellent sealability ensure reliable use in demanding environments. The adjustable rebar size accommodates diameters from 4 mm (#3) up to 25 mm (#8 Grade 60), making it versatile for various jobs.
Features
-

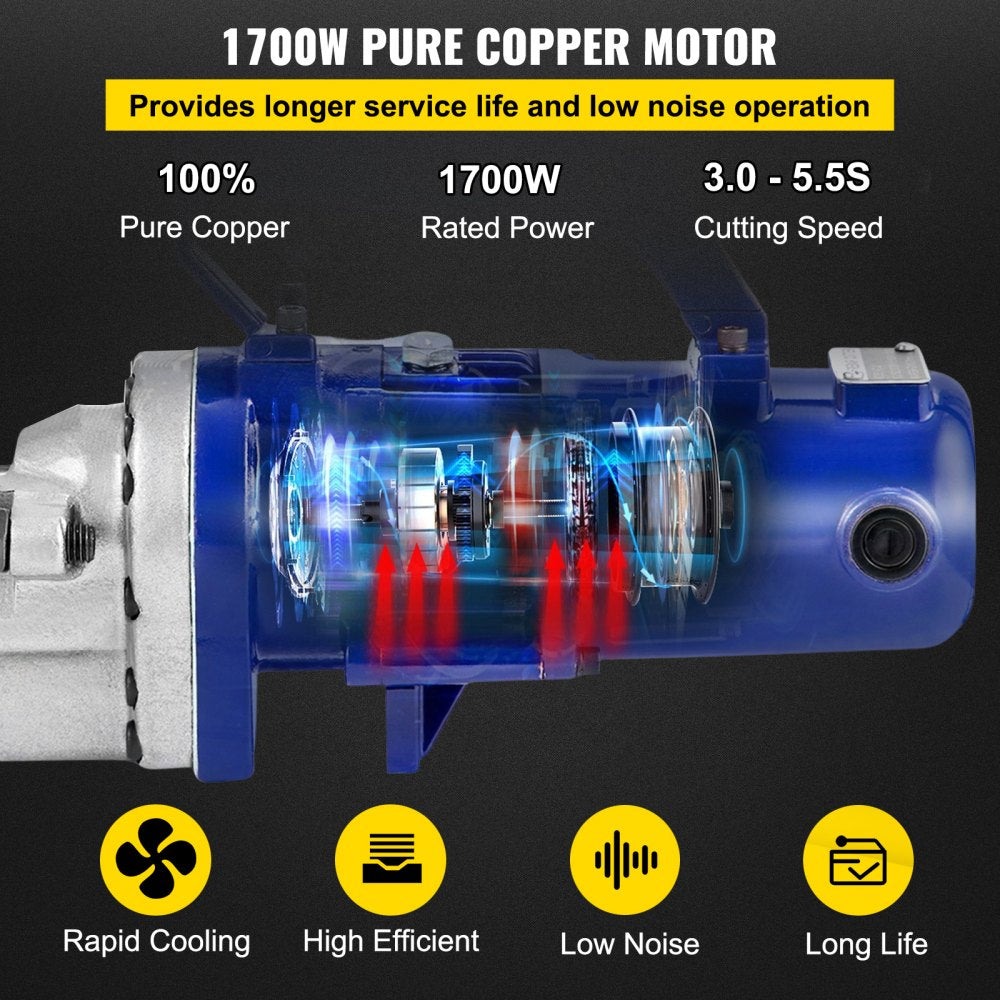

Copper Coil Motor: Powerful and efficient motor for consistent cutting performance
-

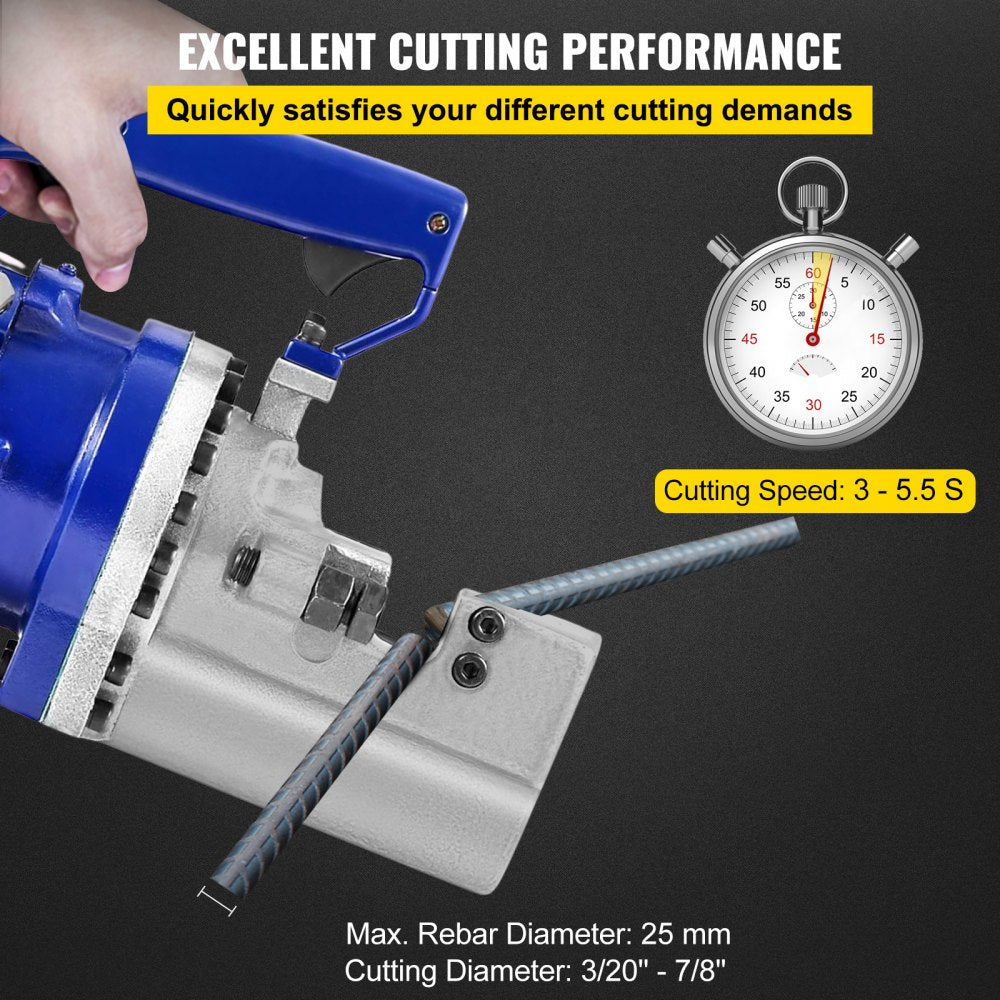

Ultra-fast Cutting Speed: Cuts rebar within 3-5.5 seconds to increase work efficiency
-

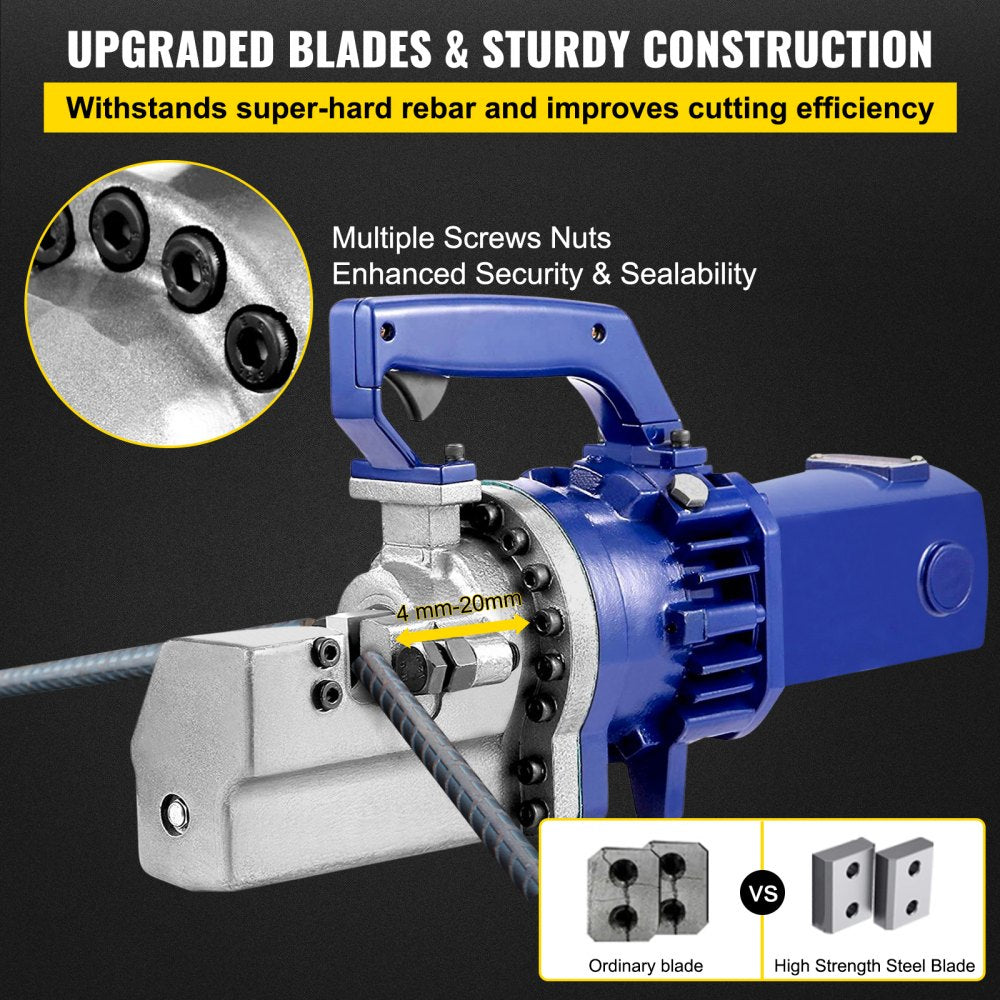

Alloy Steel Blade: High-strength blade ensures clean, precise cuts and long service life
-
Reinforced Stability & Sealability: Built for durability in tough conditions
-
Rebar Size Adjustable: Supports a wide range of rebar sizes from 4 mm to 25 mm
-

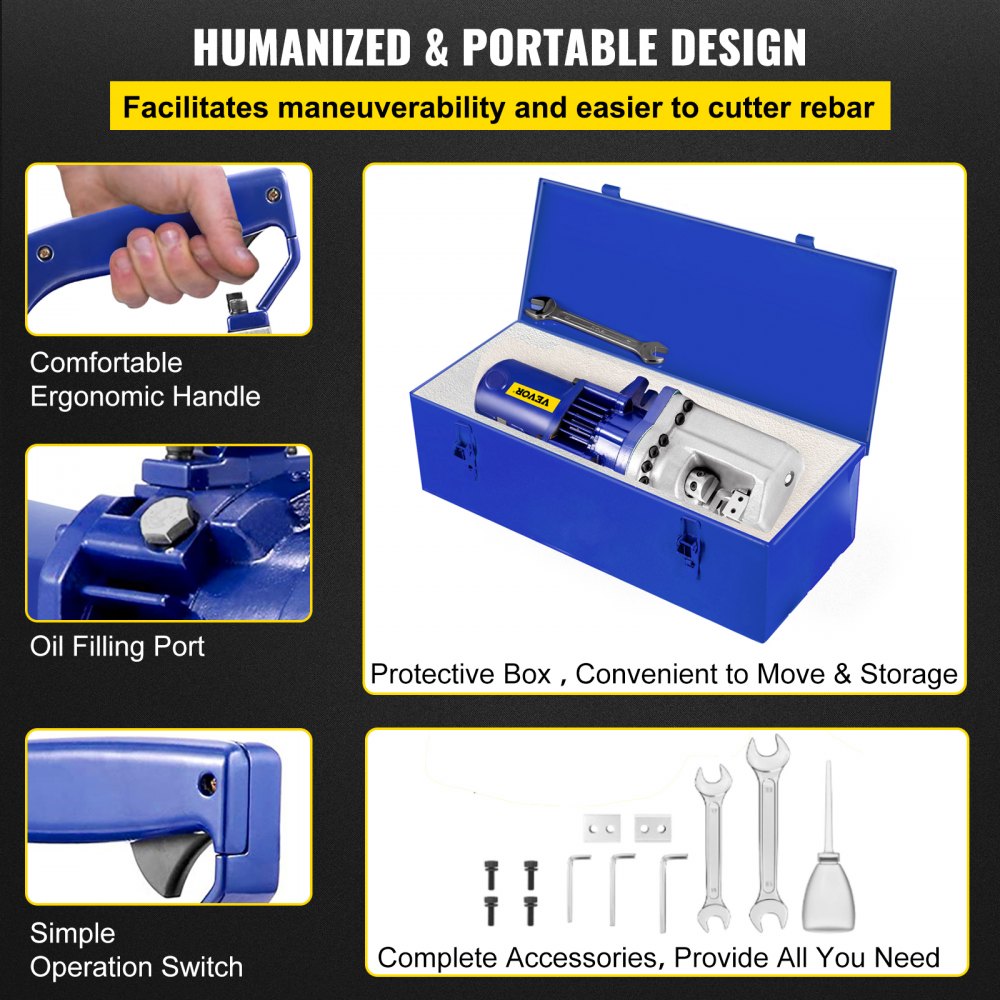

Compact & Portable: Easy to transport and maneuver on-site
Specification
-
Minimum Rebar Diameter: 3/20" (4 mm) #3
-
Maximum Rebar Diameter: 1" (25 mm) #8 Grade 60
-
Cutting Speed: 3–5.5 seconds
-
Power: 1700W
-
Voltage: AC 110V
-
Frequency: 60Hz
-
Hydraulic Oil Type: 46#
-

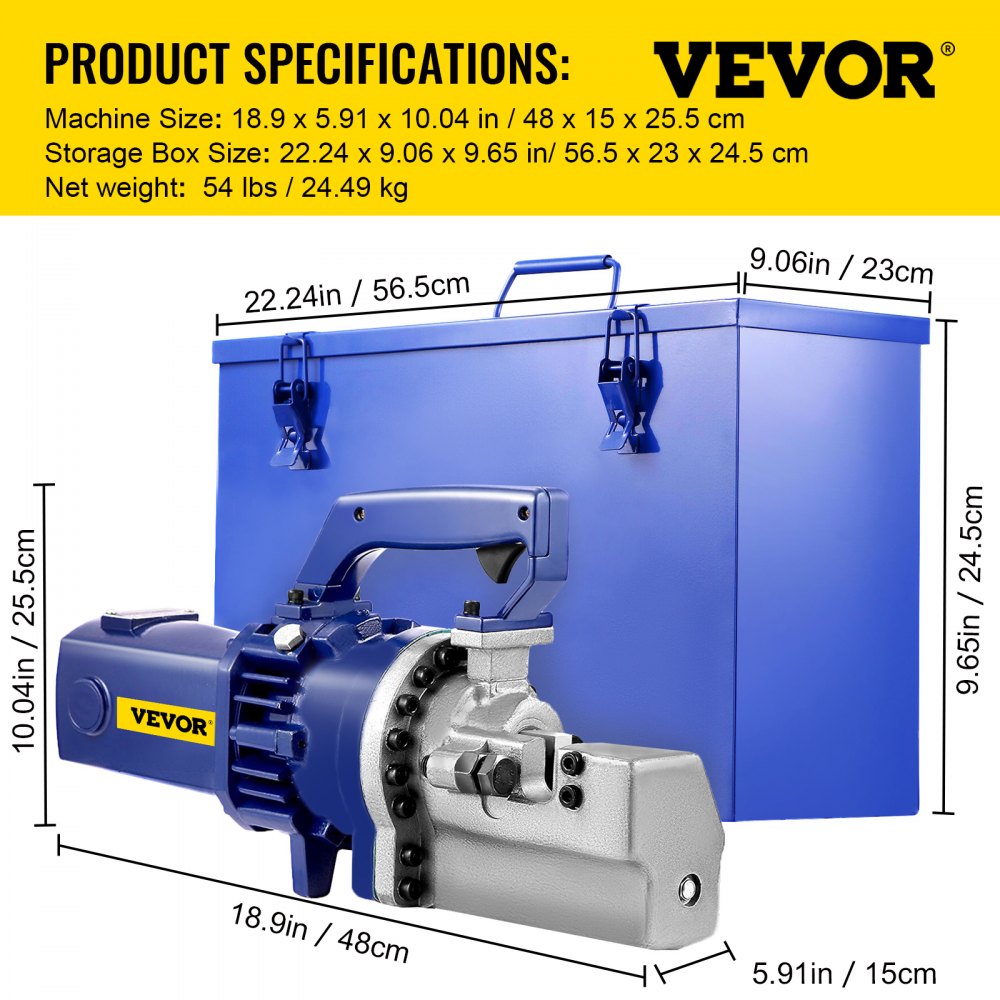

Machine Size (L x W x H): 18.9" x 5.91" x 10.04" (480 x 150 x 255 mm)
-

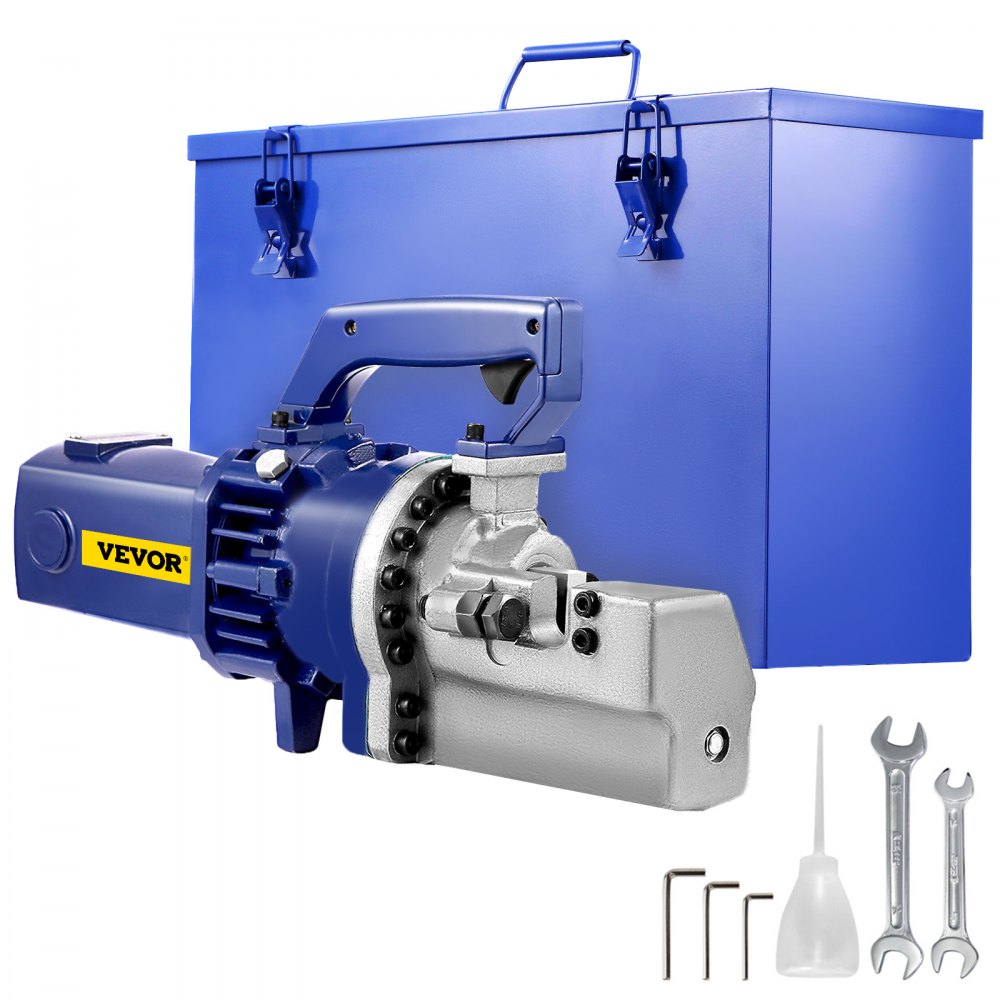

Storage Box Size (L x W x H): 22.24" x 9.06" x 9.65" (565 x 230 x 245 mm)
-
Net Weight: 54 lbs (24.49 kg)
-
Gross Weight: 70 lbs (31.75 kg)
-
Rebar Cutter Method: Hydraulic Driven Squeeze
-
Certification: CE, RoHS
-
Model: RC-25
