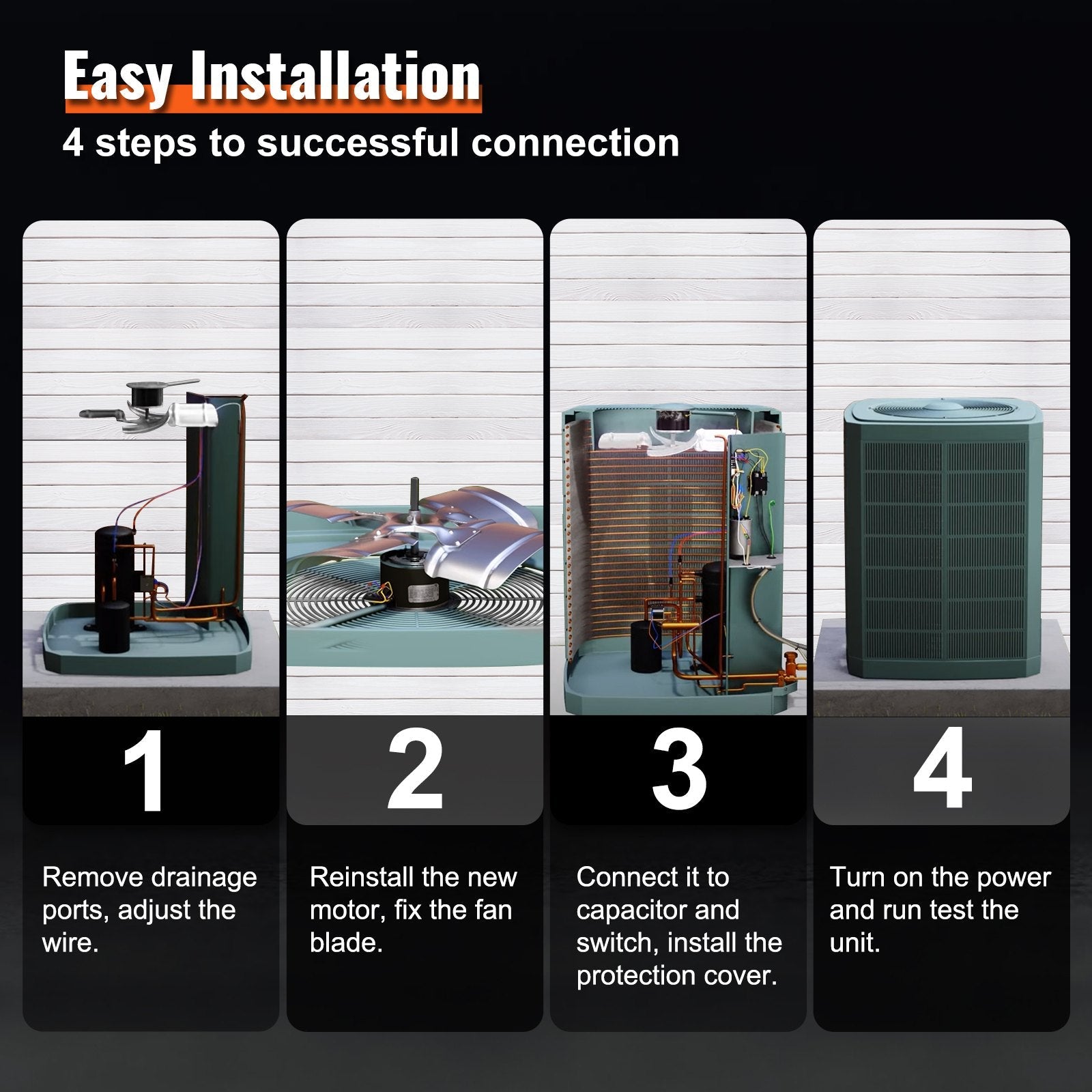

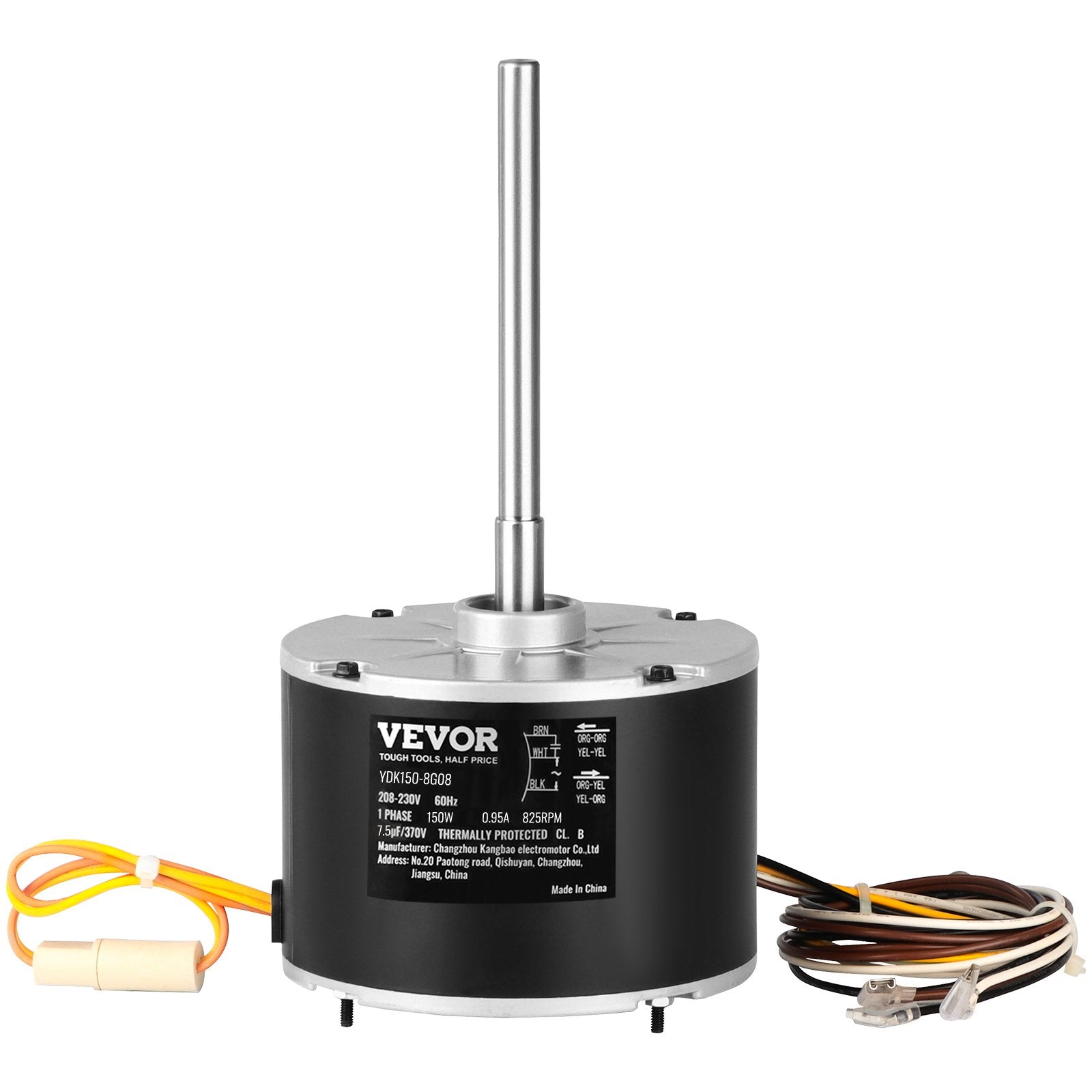

The VEVOR 5KCP39GFS166S Condenser Fan Motor is a reliable OEM-standard replacement for HVAC systems, designed to deliver efficient airflow and quiet operation. With a 1/5 HP output, 825 RPM speed, and reversible rotation, this motor is ideal for various residential and commercial condenser units. Built for durability and safety, it features an explosion-proof CBB65 capacitor, overheat protection, and low-noise performance. Its extended cable and standard mounting pattern ensure quick installation and compatibility with multiple systems.
Features
-
Flawless Performance: Delivers consistent, smooth operation with an 825 RPM rotational speed and 150W power output
-

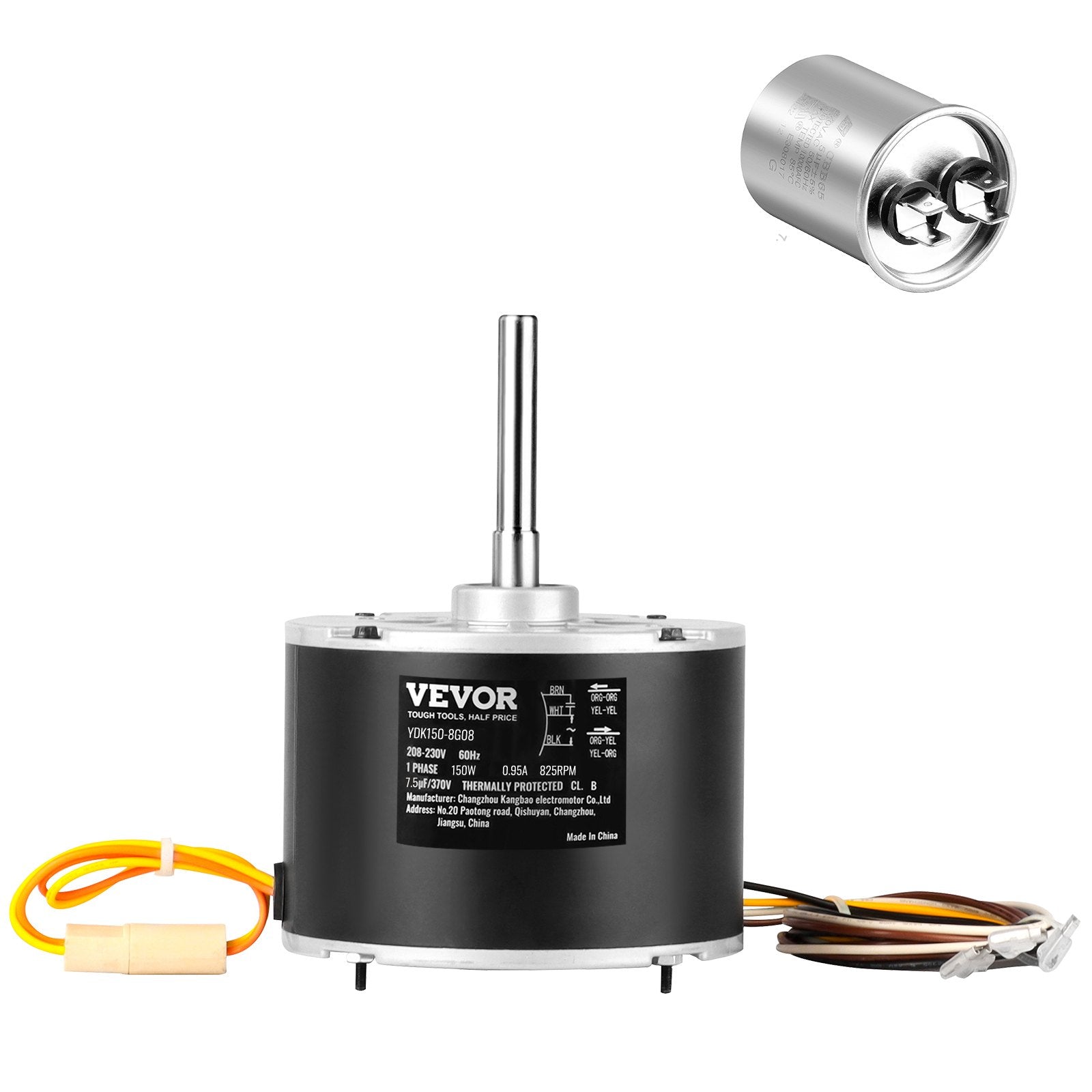

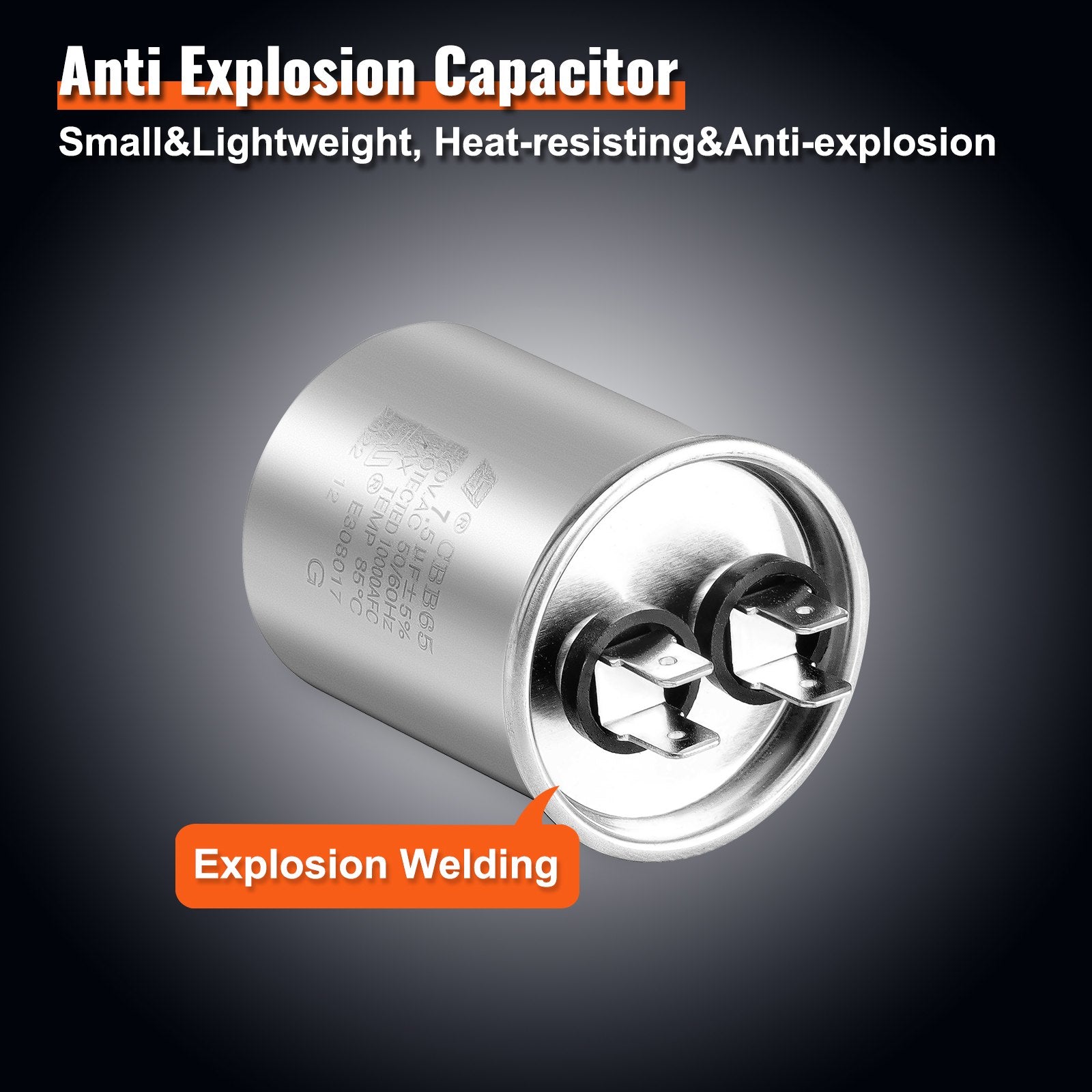

Explosion-Proof Capacitor: Equipped with a 7.5 μF / 370V CBB65 capacitor for added safety and reliability
-

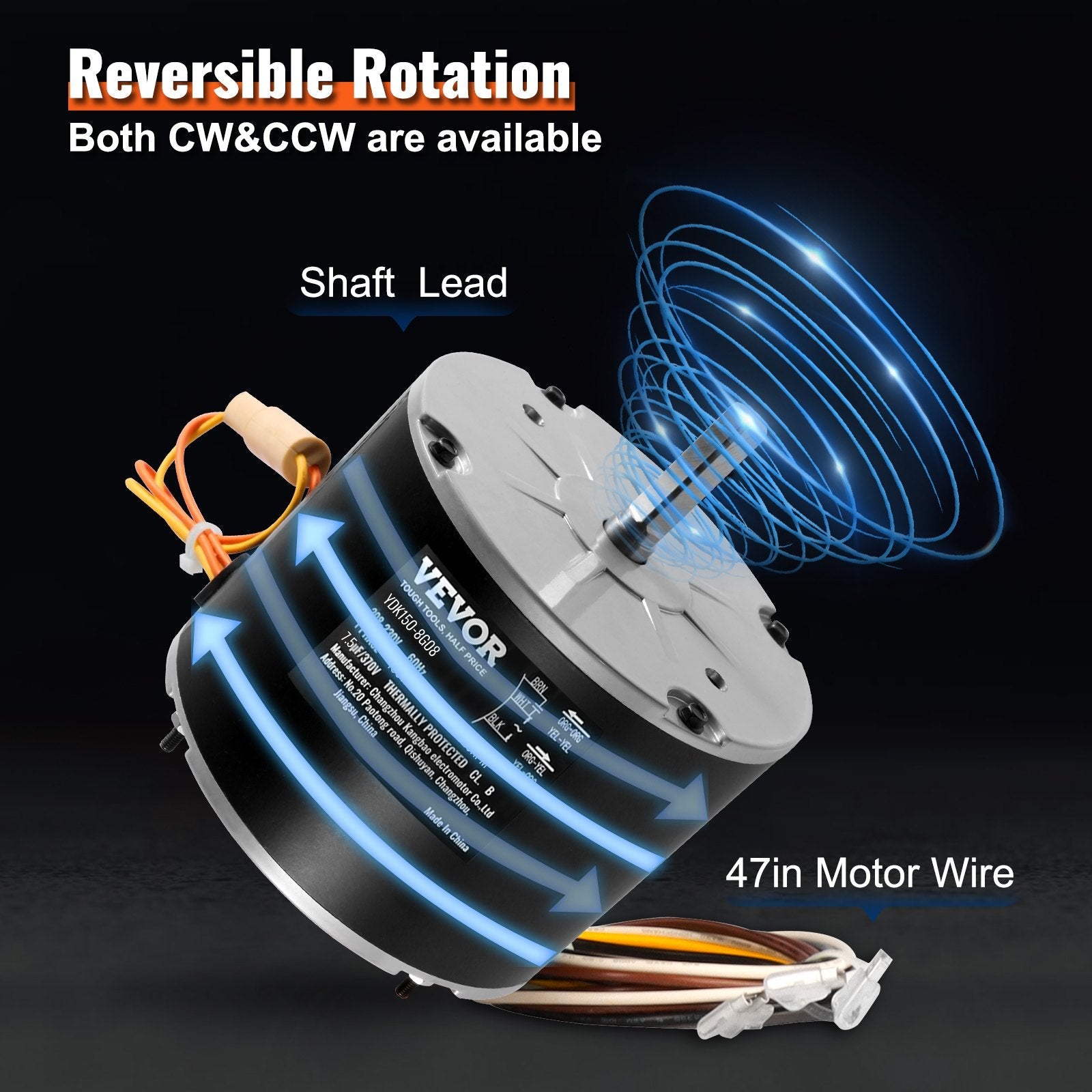

Reversible Rotation: Supports both clockwise and counterclockwise rotation for versatile installation
-

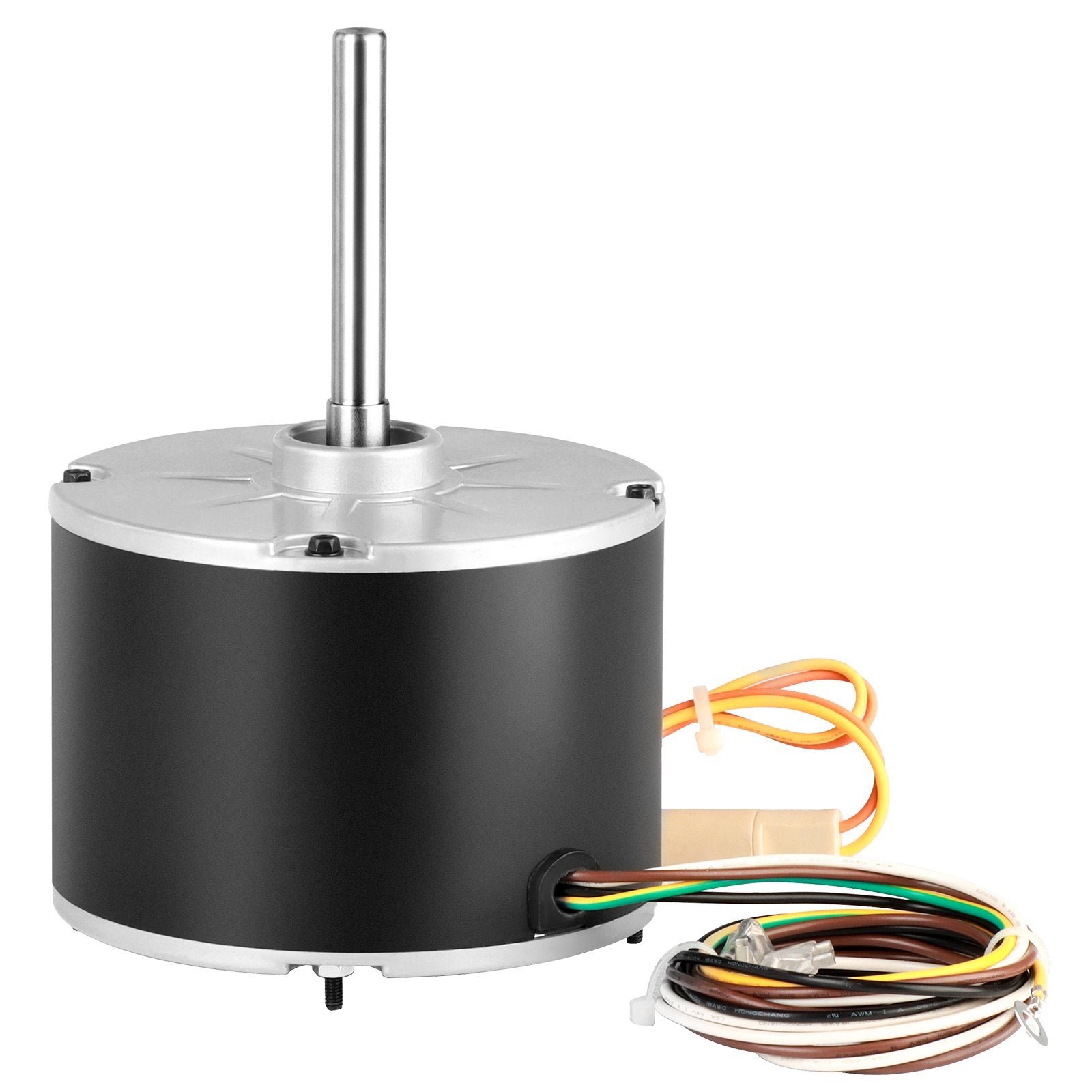

Extended Cable: Longer cable length offers flexibility for installation in tight or varied unit configurations
-
Overheat Protection: Automatically shuts off in high-temperature conditions to prevent damage
-
Low-Noise Design: Engineered for minimal operational noise, perfect for residential environments
Specification
-

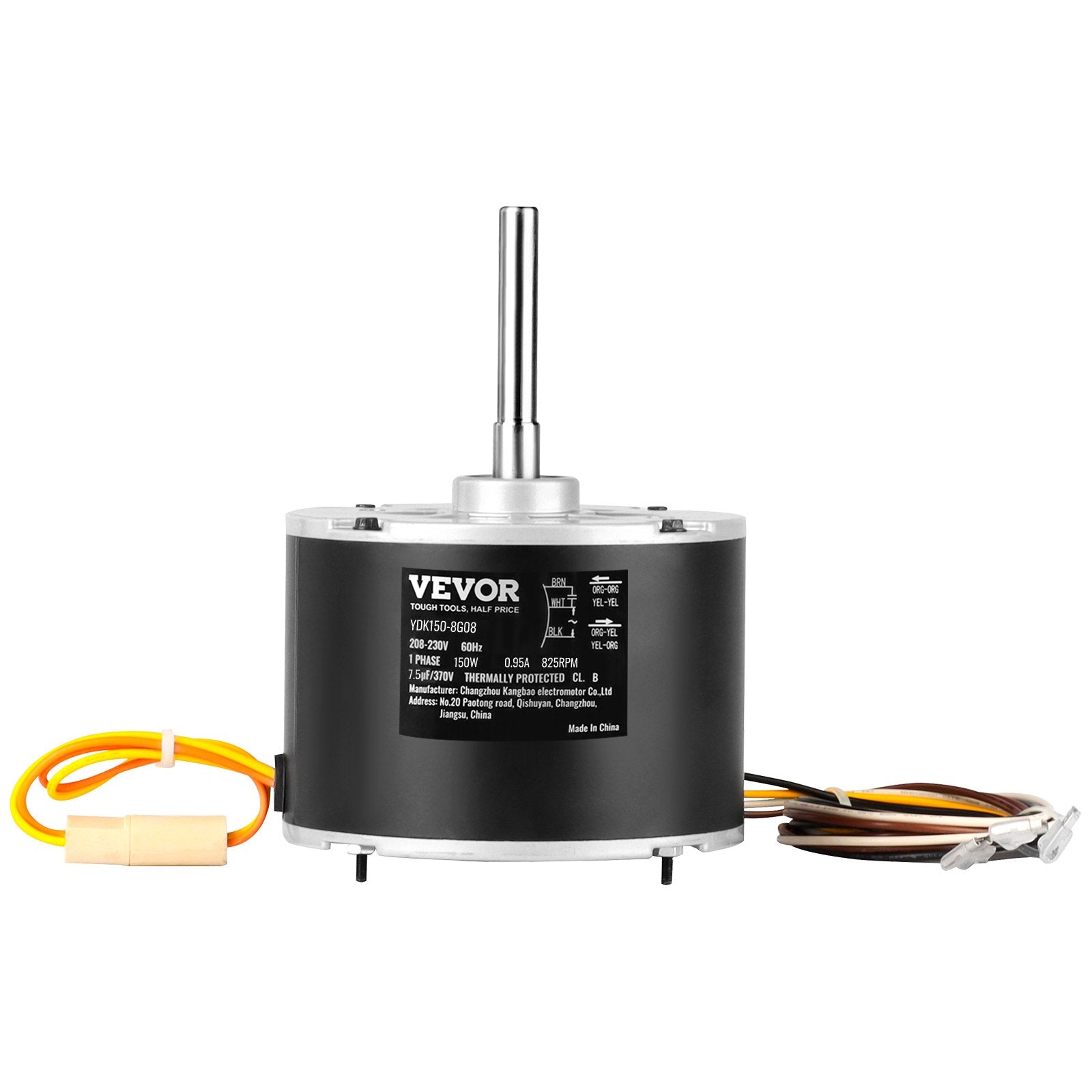

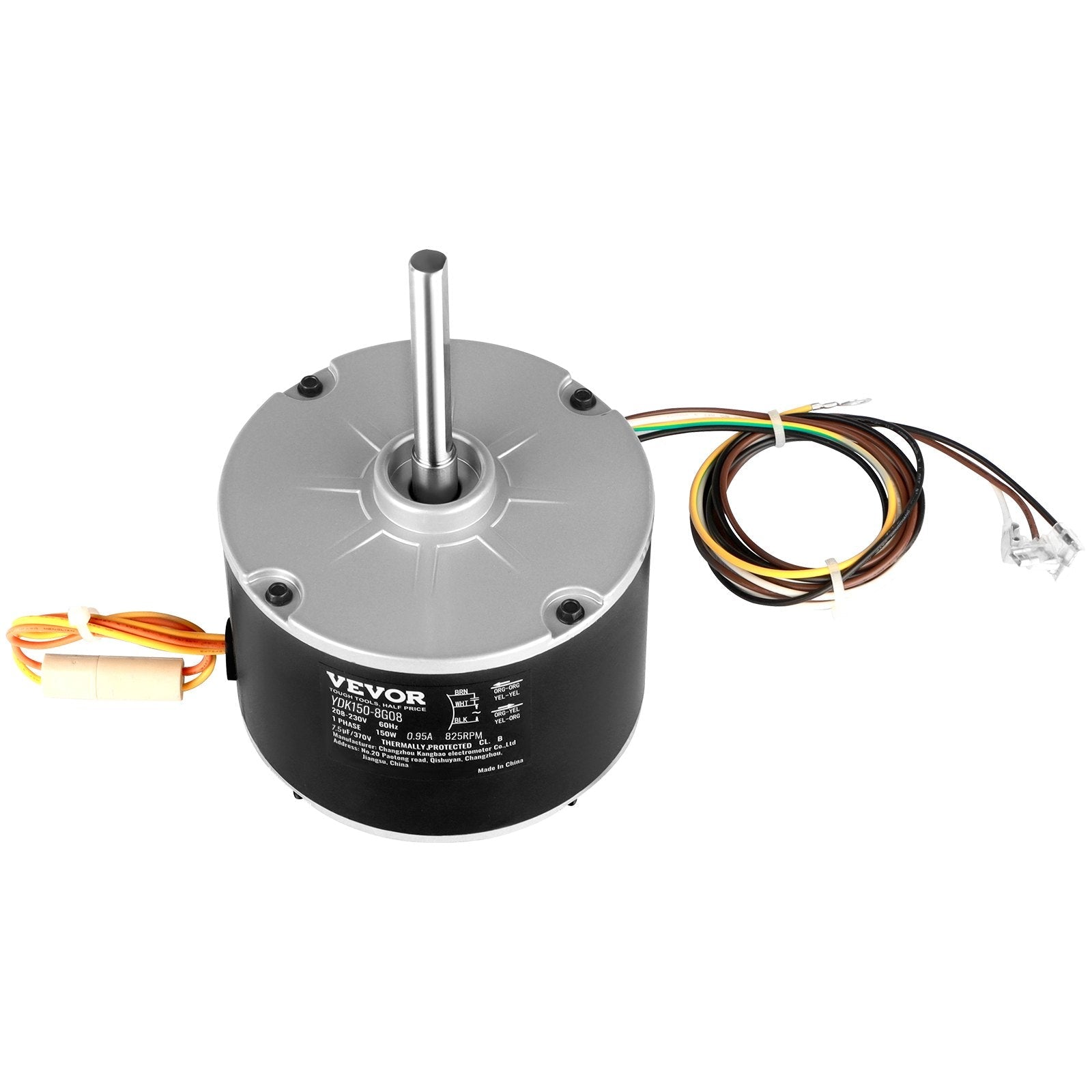

Model: 5KCP39GFS166S
-
Horsepower: 1/5 HP
-
Voltage: 208–230V
-
Rotational Speed: 825 RPM
-
Current: 0.95A
-
Power: 150W
-
Frequency: 60Hz
-

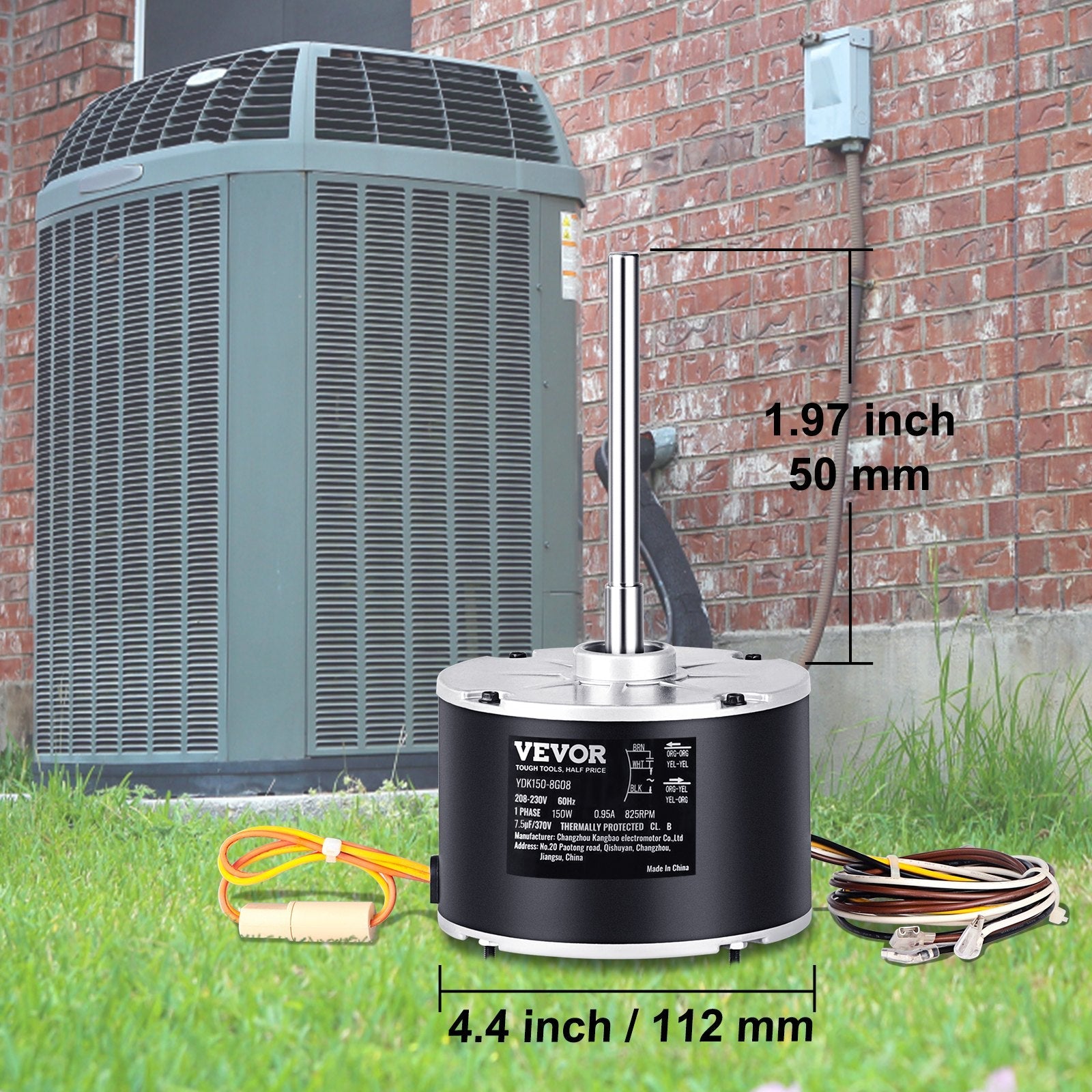

Shaft Diameter: 0.5 in / 12.7 mm
-
Stud Pattern: 5.2 x 5.2 in / 132 x 132 mm
-
Product Weight: 12.79 lbs / 5.8 kg
