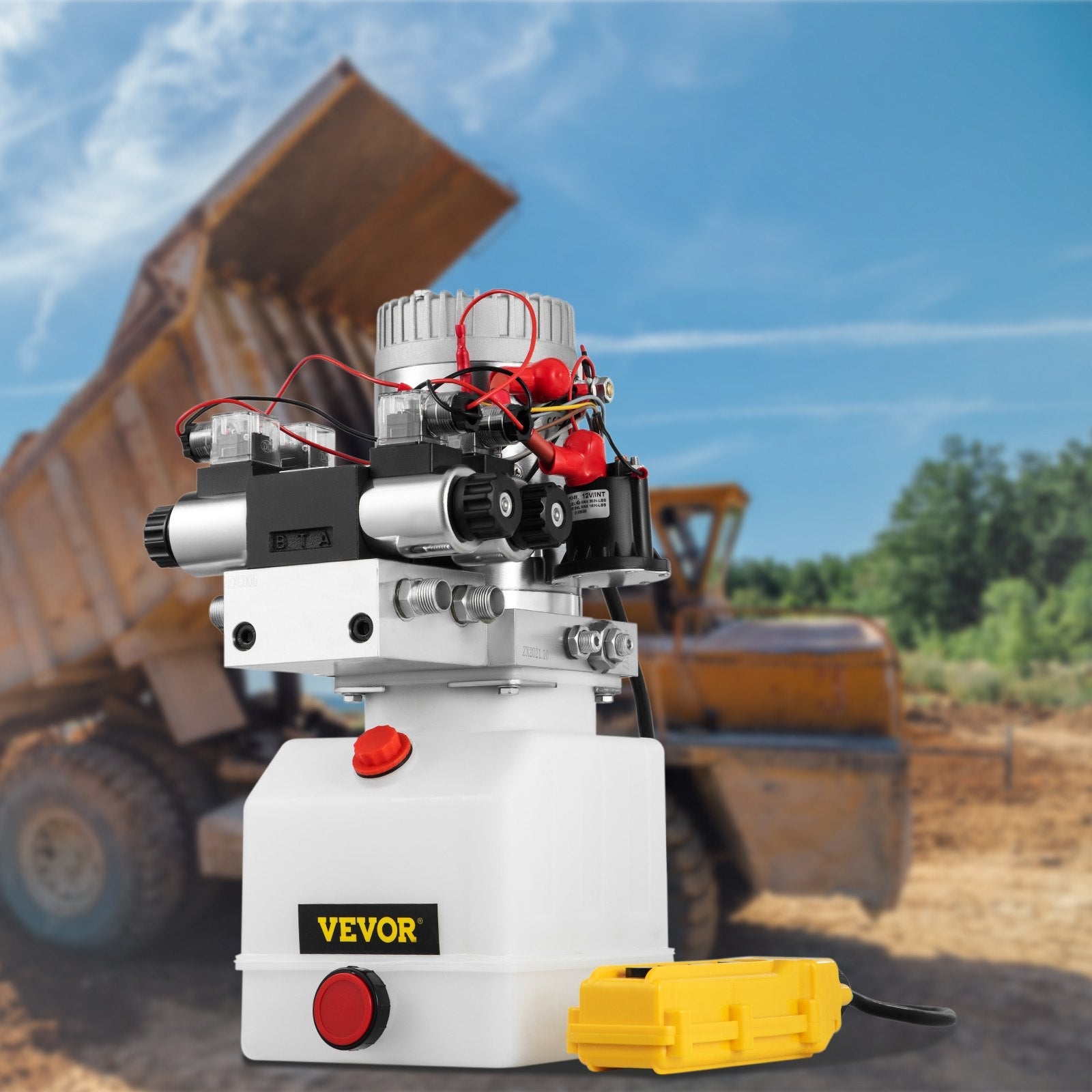

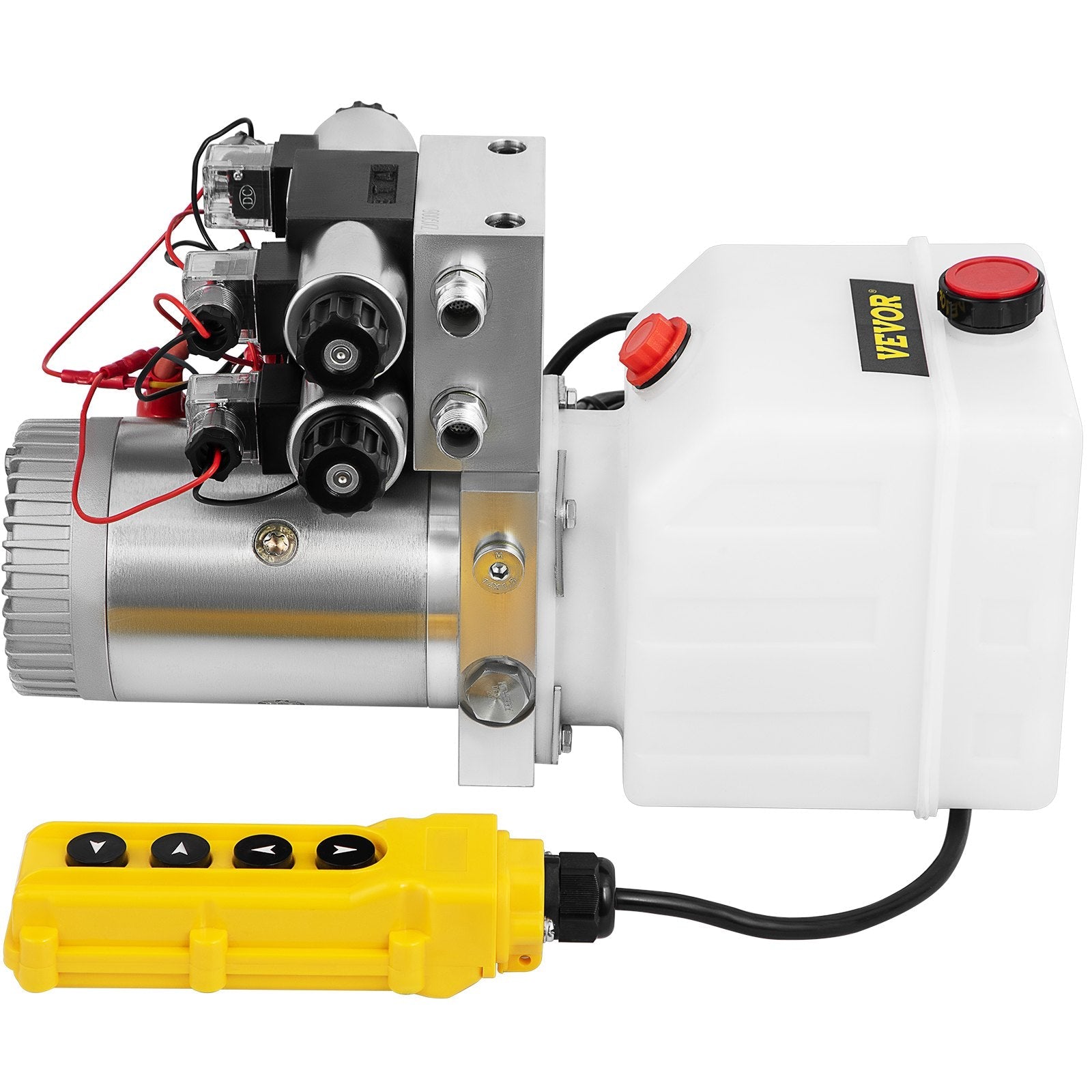

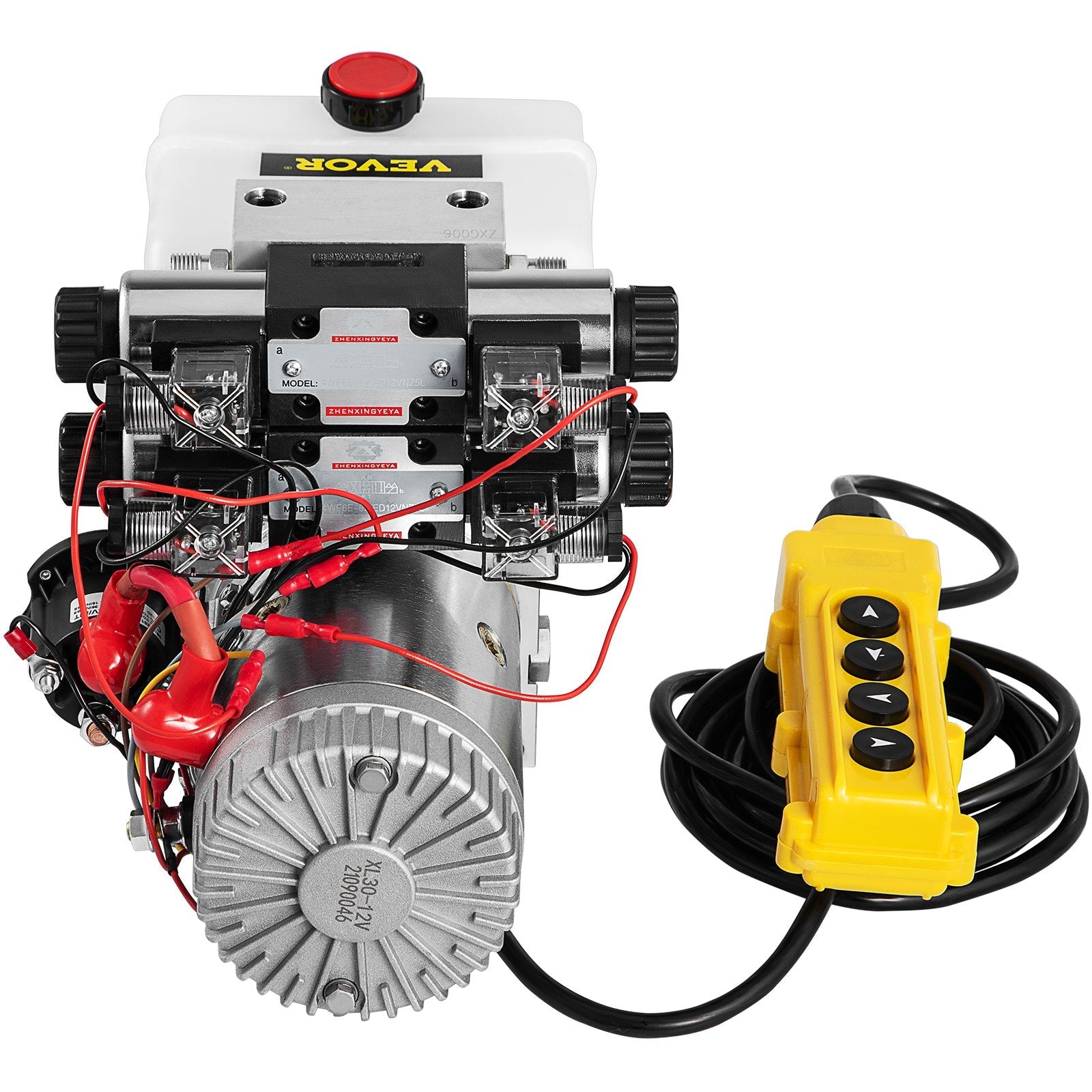

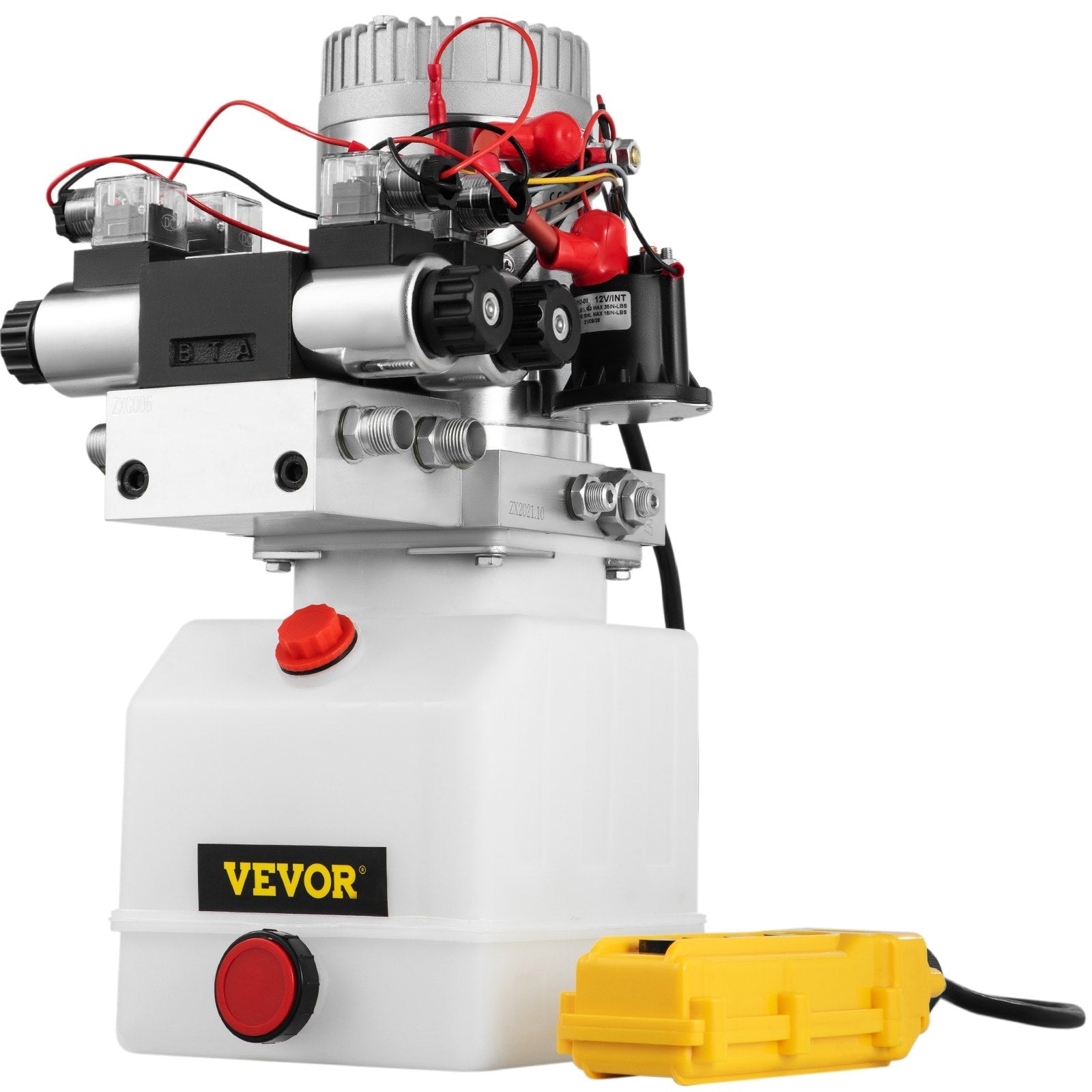

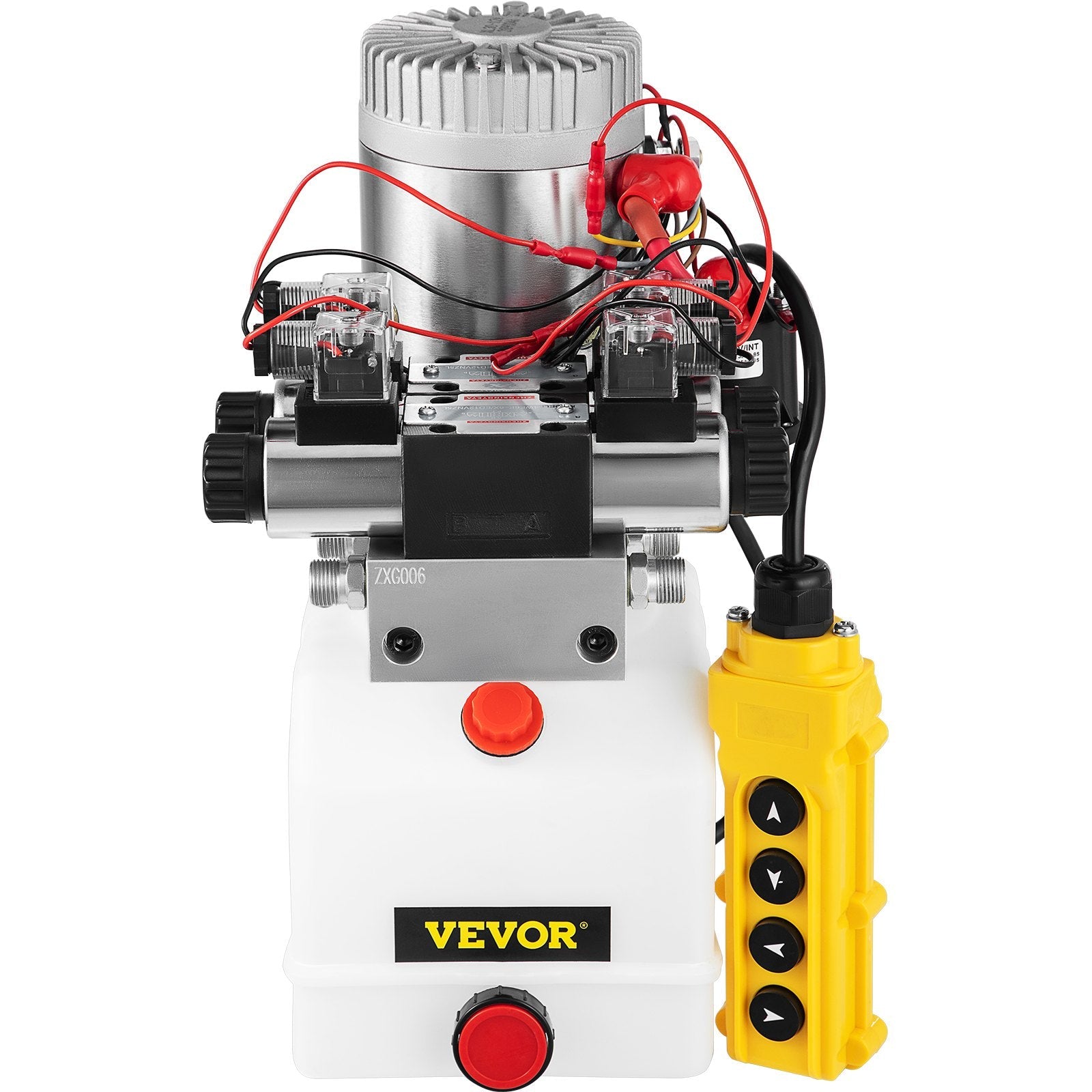

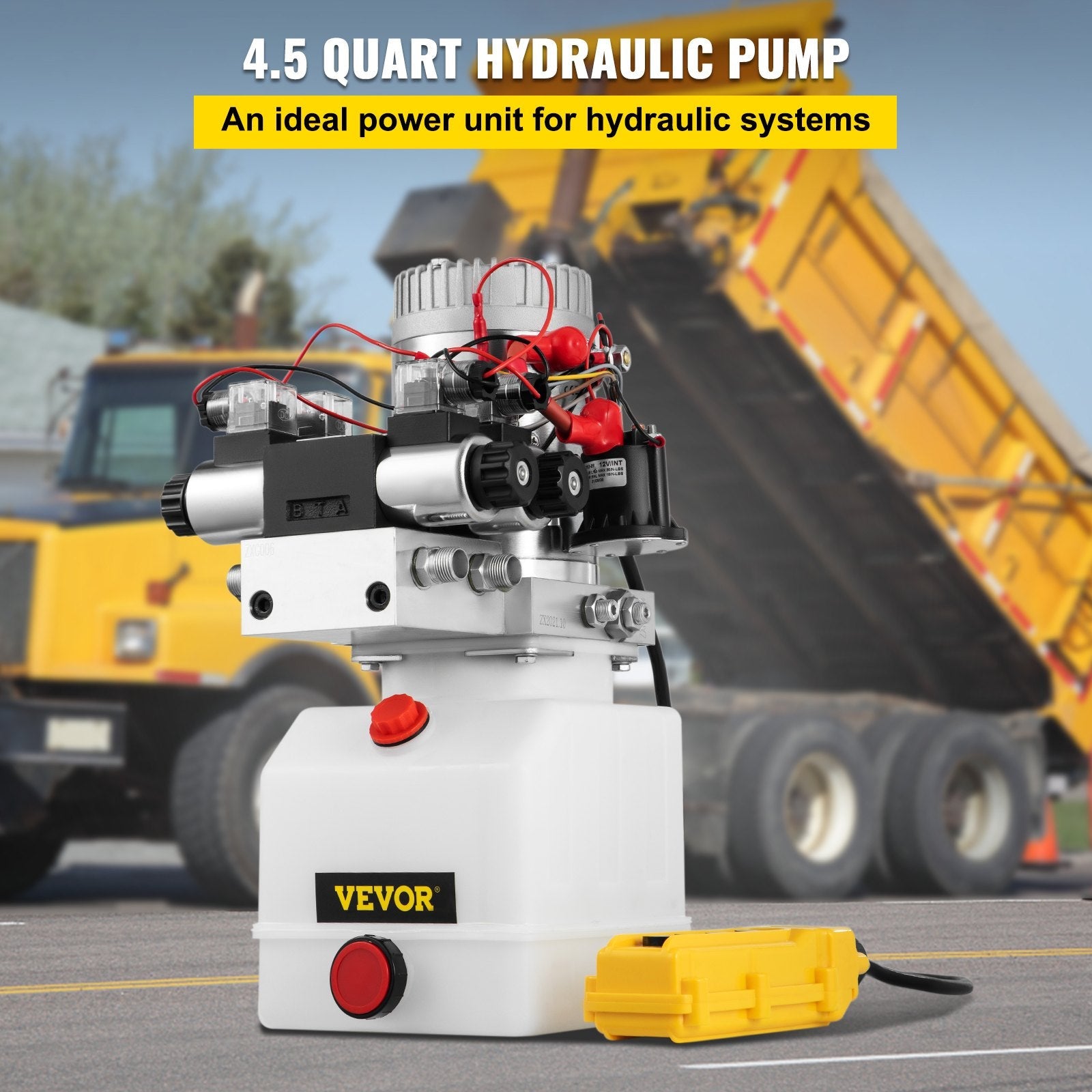

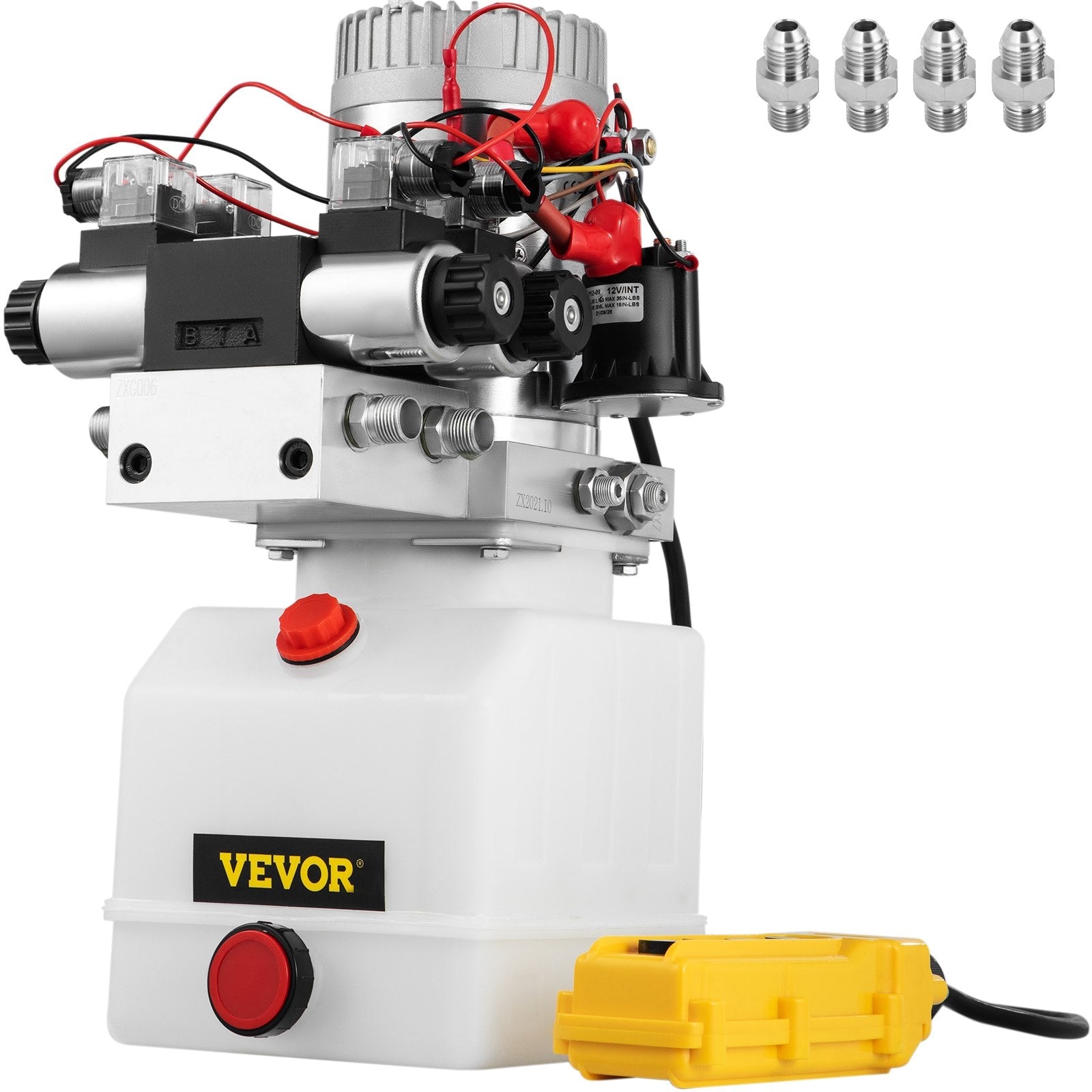

The VEVOR Hydraulic Pump Double Acting Hydraulic Power Unit is a robust and efficient hydraulic power pack designed to power a variety of applications such as dump trailers and car lifting. Featuring a 12V DC electric motor with a 4.5-liter reservoir, this power unit provides reliable lifting capabilities with adjustable pressure up to 3200 PSI. Its double-acting power unit design allows for smooth, efficient operation. Easy to install and built for durability, this hydraulic pump is perfect for commercial, industrial, and DIY applications.
Features
-

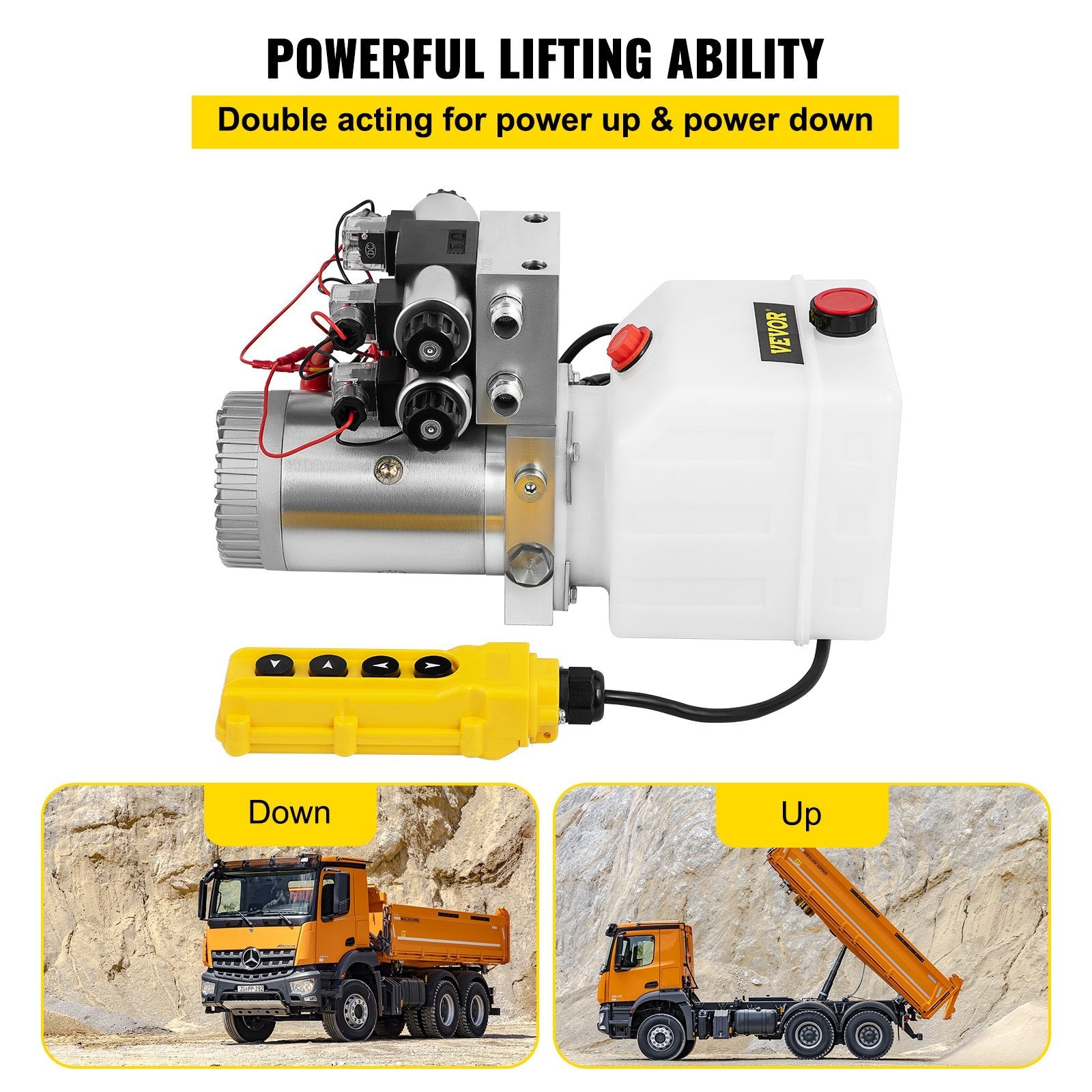

Double-Acting Power Unit: Allows for both lifting and lowering actions, providing versatile functionality for various equipment.
-

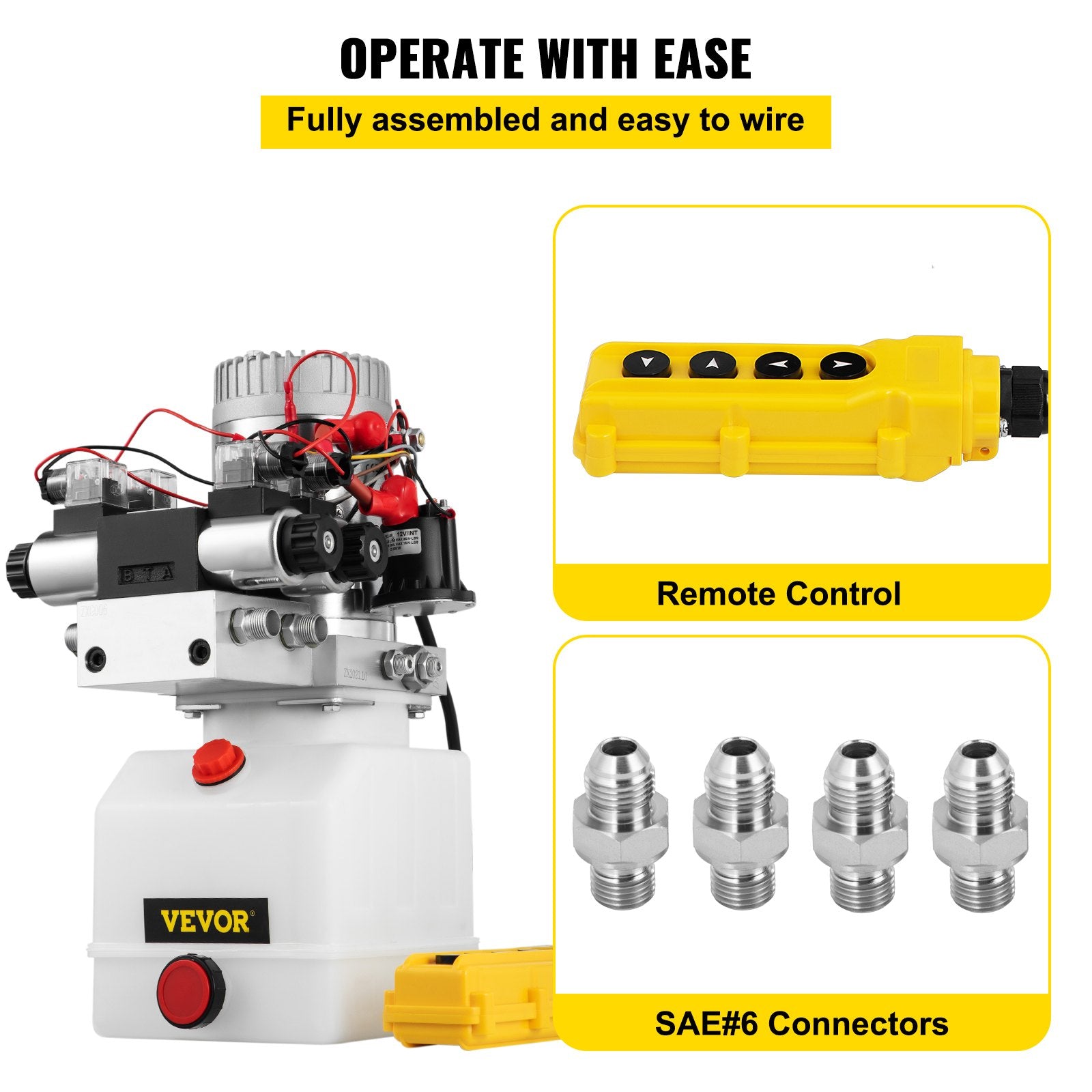

Convenient Design: Includes a 12V DC electric motor with a relay and a 4.5-liter reservoir with drain plug for easy maintenance.
-
Quick Start Lifting: Capable of delivering 5 L/min at 160 bar for efficient and quick lifting operations.
-
Long Lasting: Built with high-quality materials for extended durability and continuous use.
-

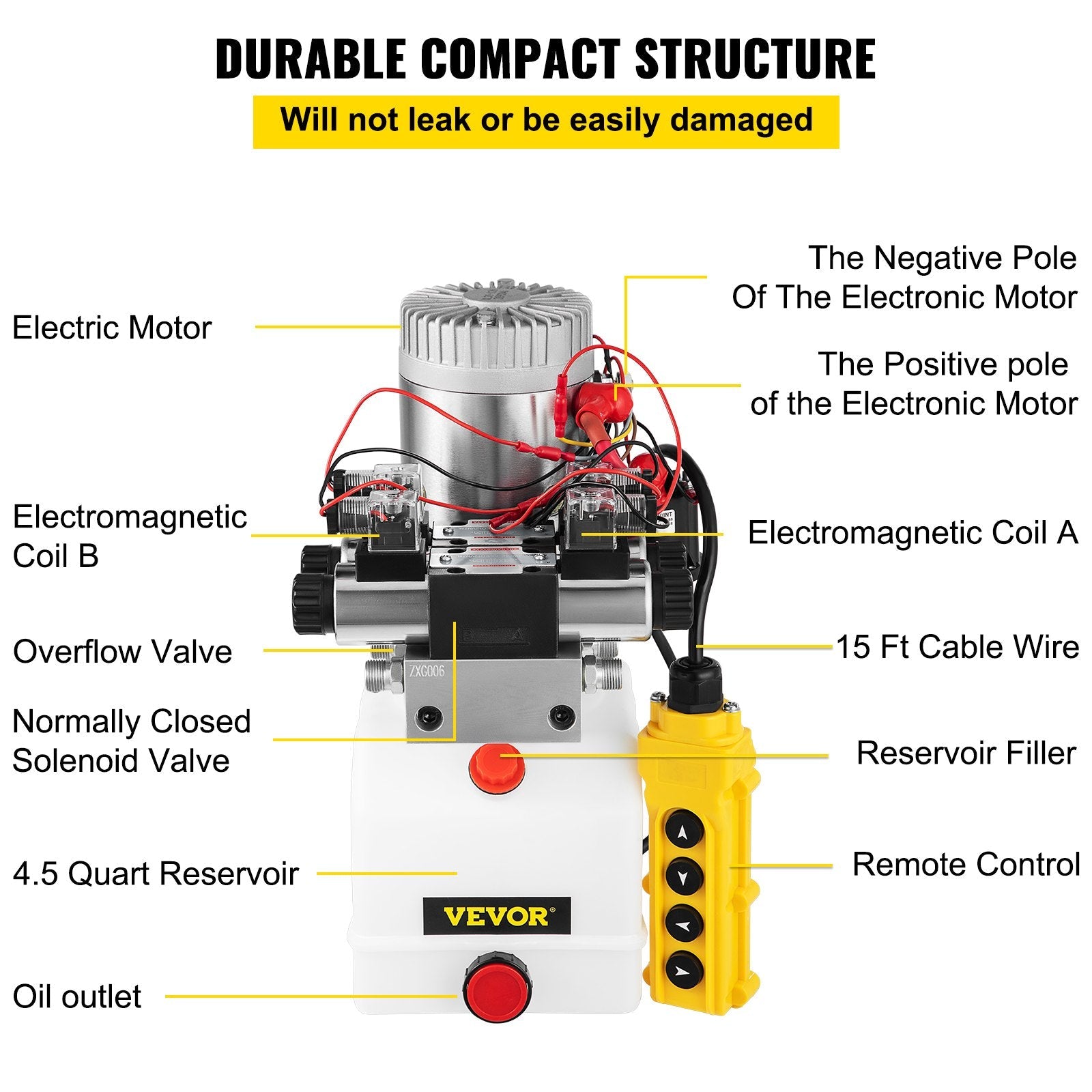

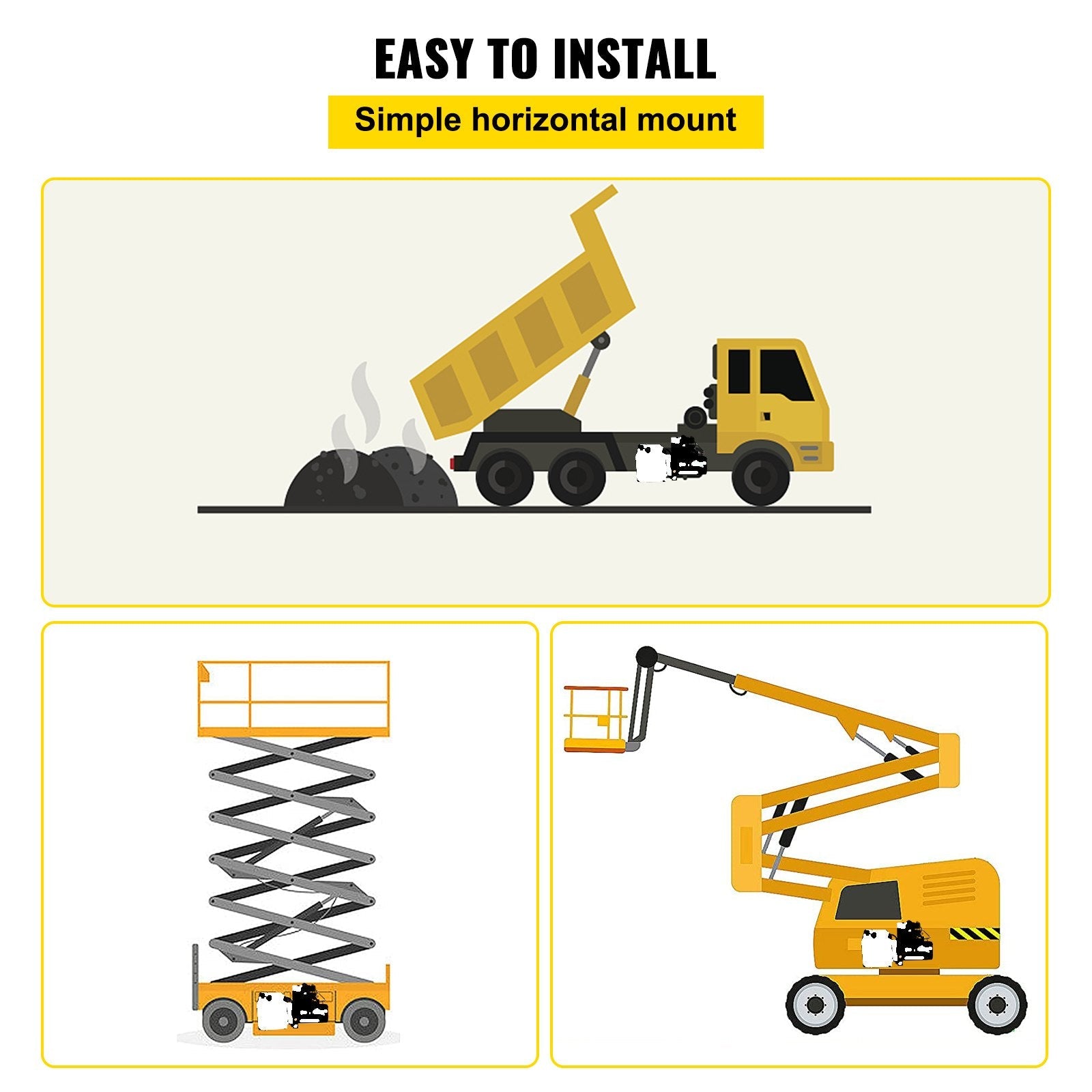

Simple Installation: Easy-to-install horizontal mounting design with a suction strainer, return oil conveyer, and filler breather for convenience.
-
Wide Application: Perfect for use in dump trailers, car lifting systems, and other hydraulic systems requiring reliable performance.

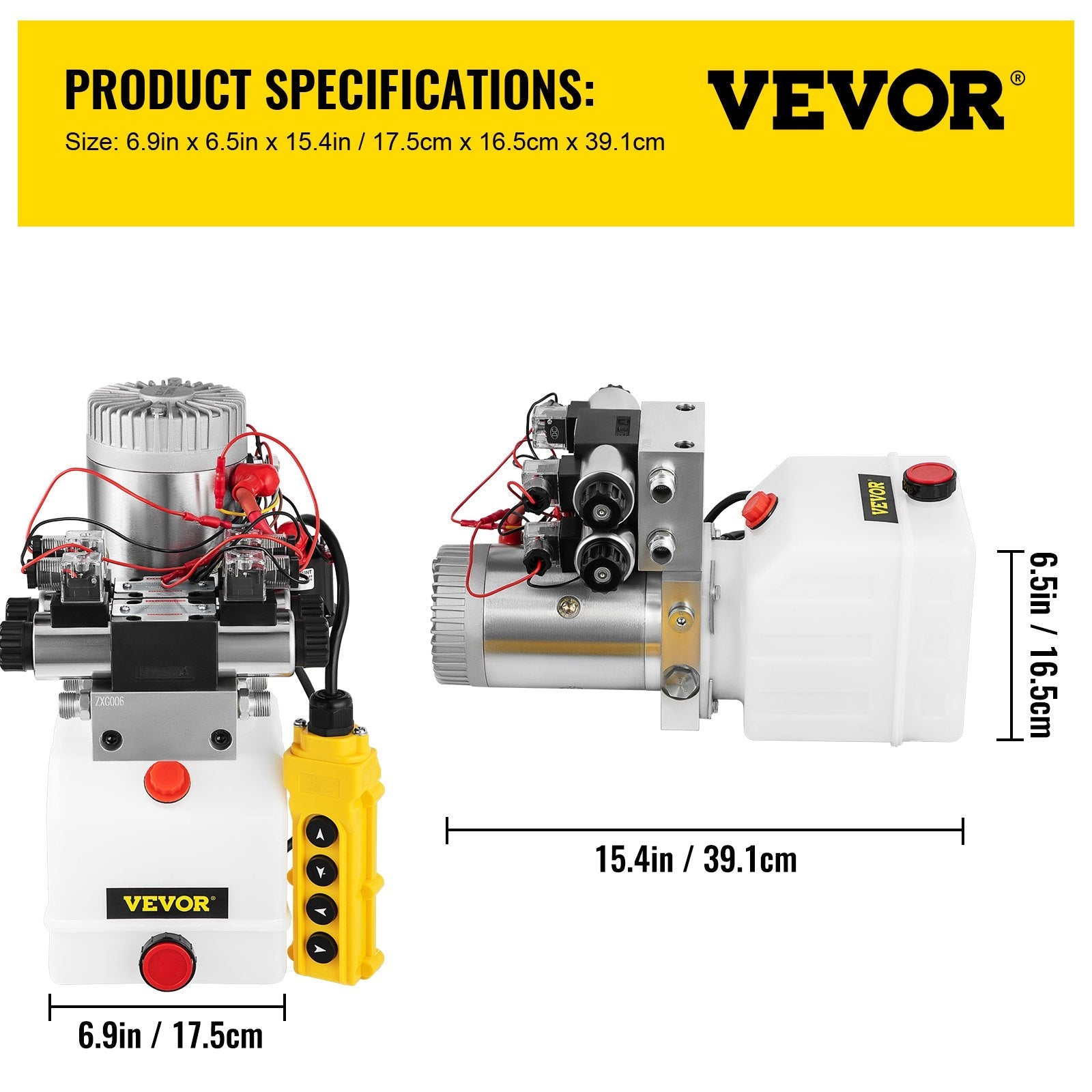

Specification
-
Motor: 12V DC electric motor with relay
-
Reservoir Capacity: 4.5 liters (also available in 8 liters)
-
Max Flow: 5 L/min (adjustable flow rate from 40-200 bar)
-
Port Size: 3/8" BSP
-
Delivery Rate at 160 bar: Approximately 5 L/min
-
Voltage: 12V DC
-
Max PSI: 3200 PSI
-
Power: 1600W
-
Mount: Horizontal mounting
-
Features: Includes suction strainer, return oil conveyer, and filler breather
-
Pump: 2.1cc/rev gear pump
-
Flow: 2 GPM
